X-Vision HD 960H Manuel utilisateur
Professional 960H HD DVR
4, 8 & 16 Channel
Quick Guide
Version 1
HD 960H
Thank you for purchasing the XR960 DVR from Xvision.
Please ensure that you read and understand this Quick Guide before operating the DVR.
Please store this Quick Guide in an easily accessible location.
Contents
1. System Startup ………………………………………………………………………………………………… 3
2. Setup Wizard …………………………………………………………………………………….…………..… 3
2.1. Wizard Interface …………………………………………………………………….. 3
2.2. Administrator Login Interface …………………………………………………. 3
2.3. Basic Setup …………………………………………………………………………….. 4
2.4. Network Setup ……………………………………………………………………….. 5
2.5. Network Tesng ……………………………………………………………………… 5
2.6. DDNS & Port Setup …………………………………………………………………. 5
2.7. Record Mode & Record Setup …………………………………………………. 6
2.8. HDD Setup ………………………………………………………………………….….. 7
3. User Login …………………………………………………………………………………….………………..… 8
4. Interface Introducon ………………………………………………………………………………………. 9
5. Basic Record Setup …………………………………………………………………………………….…..… 9
6. Record Bit Rate Setup ……………………………………………………………………………………..… 9
7. Schedule …………………………………………………………………………………….…………………..… 10
8. Display …………………………………………………………………………………….……………….………. 11
9. Network Setup …………………………………………………………………………………….…………... 13
10. DDNS Setup …………………………………………………………………………………….………………. 15
11. P.T.Z. Setup …………………………………………………………………………………….…………….…. 16
XR960D Quick Guide
3
1!!System!startup! !
Power!on/off! !
Connect!the!power!plug!to!the!power!port!on!the!back!of!the!DVR.!The!system!will!automatically!
run!a!status!check,!and!will!start!after!few!seconds.!You!will!see!a!wizard!interface!after!the!system!
loading.! !
2!!Setup!Wizard!
Setup! Wizard! is! a! quick! way! to! enter! the! DVR’s! basic! settings..! You! can! finish! the! DVR! basic!
settings!according!to!your!requirements.!This!setup!wizard!contains!all!the!basic!settings,!like!time!
setup,!network!setup,!HDD!format!reminder,!etc.!The!DVR!will!be!able!to!perform!basic!functions!
after!the!setup!wizard!has!finished.!If!personalized!settings!are!desired,!please!login!to!the!main!
menu!and!setup!to!complete!this!function.!
!

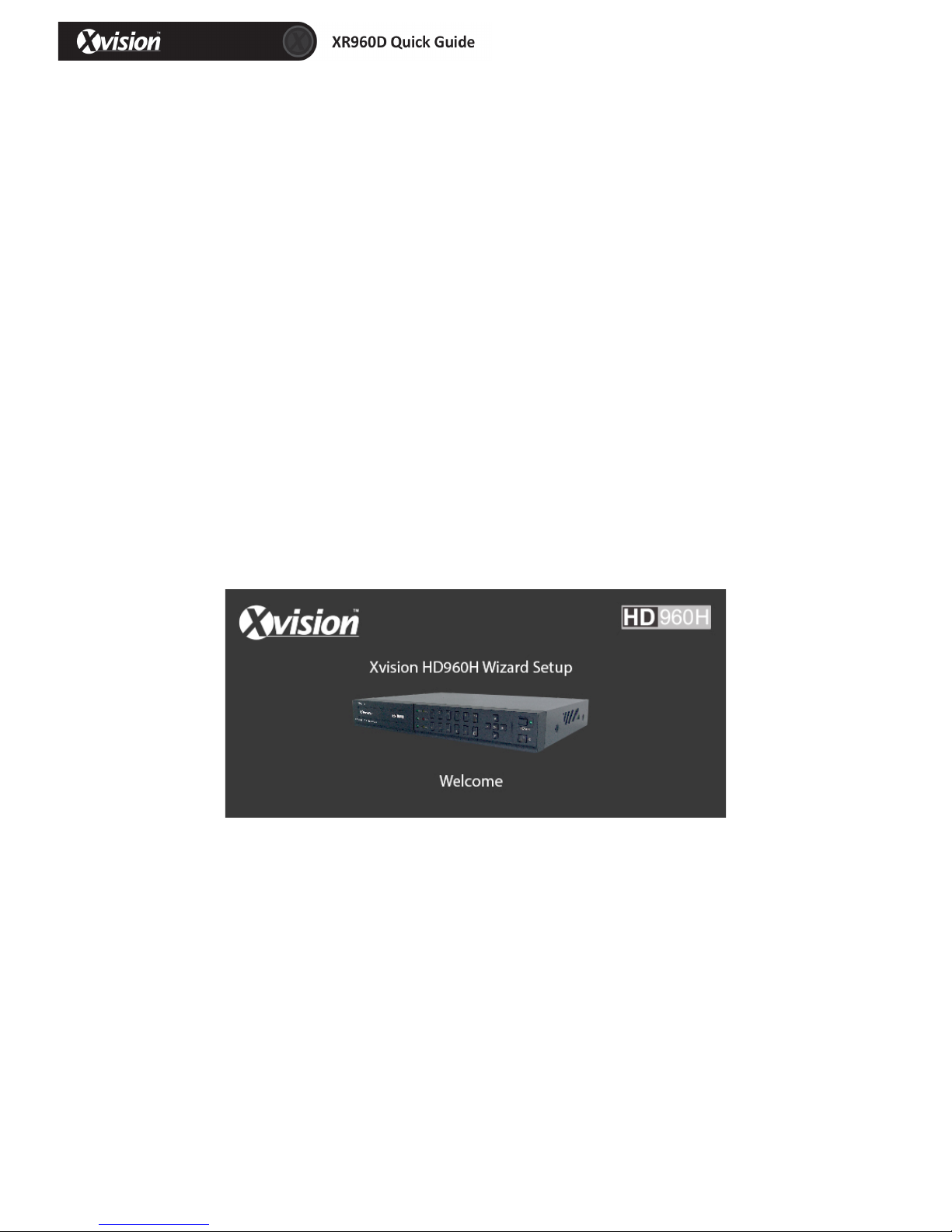

2.1!Wizard!interface!
!
Wizard!interface!is!shown!below.!We!recommend!the!initial!user!finishes!the!guide!step!by!step!
for!the!basic!settings.! !
!
!

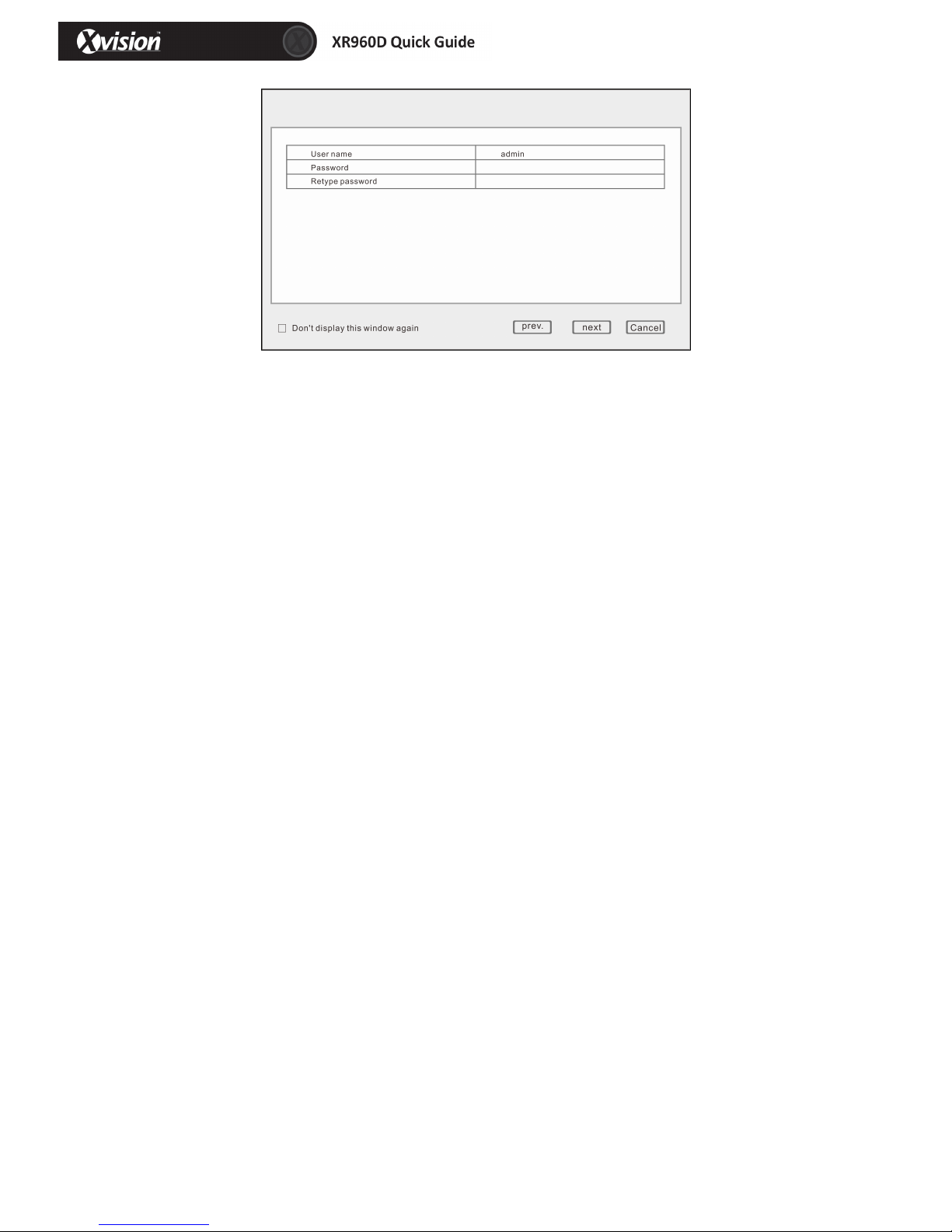

2.2! ! Administrator!Login!Interface! !
Here! we! recommend! you! setup! a! password! for! administrator! and! then! click! "Next"! for! more!
settings;!if!you!click!"Cancel”,!you!will!enter!directly!into!the!"Main!Menu";!if!you!click!"Prev.",!the!
system!goes!to!the!previous!page.!
!
Note:!By!default,!the! administrator! user! name! is:! admin.! There!is!no! password,! but! we! strongly!
recommend!that!you!setup!a!password!here.! !
!
!
4
!
2.3! ! Basic!Setup! !
Date/Time,! date! format,! time! format,! time! zone,! camera! system,! language,! should! be! setup!
according!to!your!needs.!
!
Date/Time! Setup:!Click!calendar! and! choose! the! date;!Click! time,! a! digital! keyboard!will! appear!
and!then!set!to!local!time.!
Date!Format:!Three!format!types:!MM/DD/YYYY,!DD/MM/YYYY,!and!YYYY/MM/DD.!
Time!Format:!24`hour/!12`hour.! !
Time! Zone:! Click! the! down! arrow,! time! zone! options! will! be! displayed,! please! select! your! time!
zone.! !
!
Please!Note:!Once!the!DVR!connects!with!the!internet,!it!will!automatically!adjust!the!time!to!the!
time!zone!you!have!chosen.!Please!make!sure!the!time!zone!you!chosen!is!the!desired!local!time!
zone.!
Camera!System:!PAL/NTSC!optional.!
Language:!Choose!your!local!language!or!the!language!you!want.!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
5

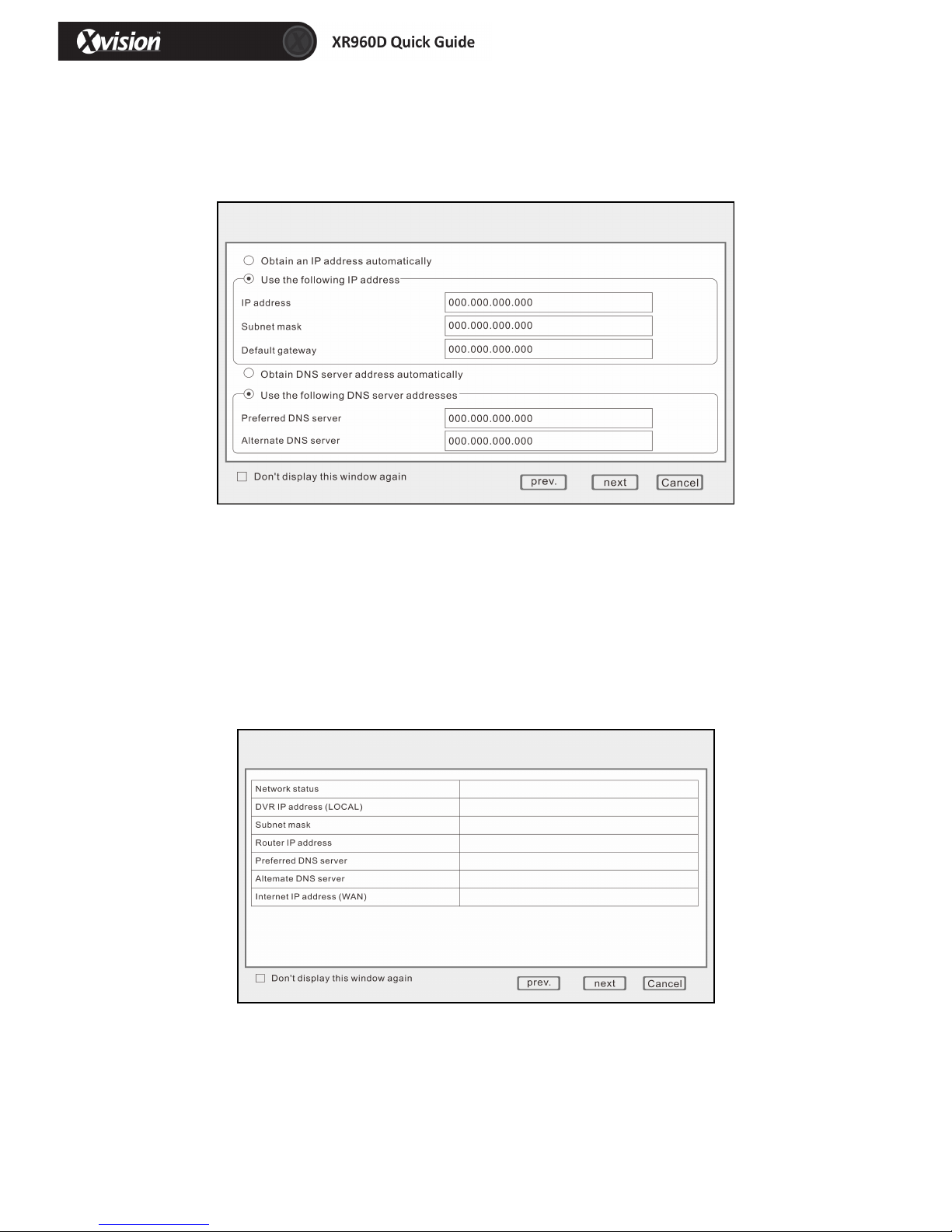

2.4! ! Network!setup! !
There! are! 2! kinds! of! network! setup:! obtain! an! IP! automatically! or! static! IP.! Select! the! type!
according!to!your!network!requirements,!as!displayed!below:!
!
!
!
2.5! ! Network!testing! !
The! system! will! test! your! network! setup! automatically.! If! a! network! connection! is! abnormal,!
please! return! to! the! previous! page! to! correct! the! settings! and! then! click! “Next”.! If! there! is! no!
testing!is!required,!just!click!“Skip”!to!go!to!the!next!page,!as!displayed!below:!
!
!

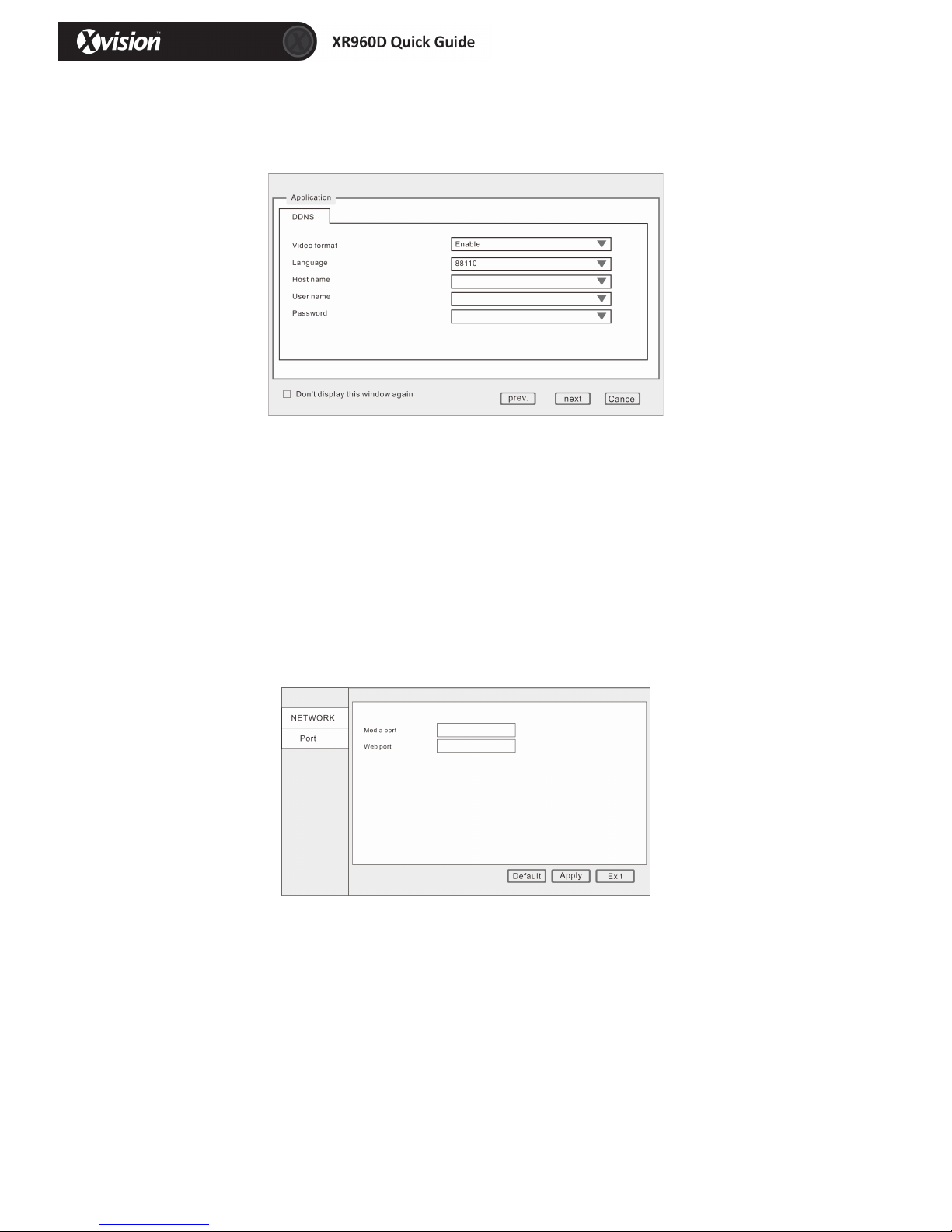

2.6! !DDNS!&!Port!Setup!
DDNS:!Enable/Disable,!please!enable!the!DDNS!to!use!a!domain!name!server.!
Server:!Choose!your!domain!name!server:!3322,!dyndns,!no!IP,!changip!or!dnsexit.!
Host!Name:!Enter!the!host!name!you!registered!on!the!domain!name!server.! !
6
User!Name:!Enter!the!user!name!you!registered!on!the!domain!name!server.!
Password:!Enter!the!password!you!registered!on!the!domain!name!server.!
As!displayed!below:!
!
!
!
!
!
!
!
!
Port!Setup!
!
Media!Port:!one!private!communication!port!that!between!DVR!and!PC,!default:!9000.!If!this!port!
was!occupied!by!other!server!port,!please!change!to!an!idle!port.!
Web!Port:!Http!port,!default:!80,!if!you!change!the!web!port,!for!example:!8088,!when!you!need!
to!access!through!browser,!you!will!need!to!add!the!web!port!after!the!IP!address.! !
E.g.:!http://ip!address:8088!
Please!Note:!port!range:!1`65535,!some!local!ISP’s!may!block!port!“80”.! !
!
!
!
!
!
!
2.7! ! Record!Mode!&!Record!Setup! !
Setup!recording!and!audio!for!each!channel.!There!are!two!record!modes:!Always/Schedule.!
For!ease,!setup!one!channel!and!then!copy!to!the!others,!as!on!the!next!page.!
!
7
!
2.8!!HDD!Setup! !
HDD!Information:!You!can!check!the!HDD!capacity!and!HDD!quantity!in!the!HDD!setup.!
HDD!Format:!tick!'√'!under!format,!and!then!click!“Format”.!
Please!Note:!The!newly!installed!HDD!must!be!formatted!through!our!DVR!before!usage.! ! ! !
Overwrite:!There!are!three!options!to!choose!from;!“by!days”,!“by!capacity”!and!“never”.!Please!
select!the!desired!method.! !
After!the!setup!of!the!disk,!the!save!and!confirm!interface!will!be!shown!on!screen!and!click!“Save!
to!log!out.! !
After! the! completion! of! setup! wizard,! DVR! can! be! worked! properly.! If! personalized! settings! are!
needed,!you!can!login!to!the!menu!to!setup,!as!explained!below:!
!
!
!
!
!
!
!
!
!
!
!
8

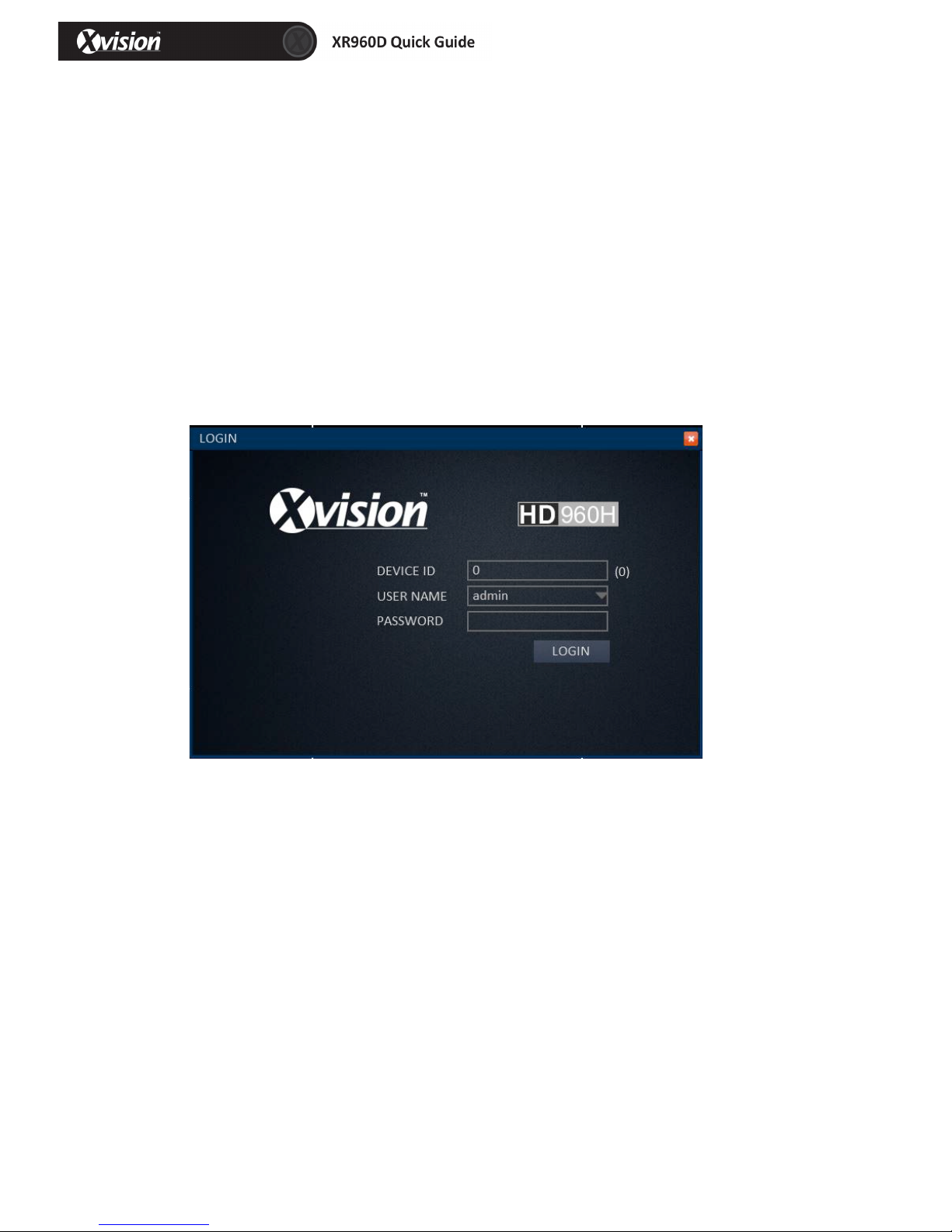

3!!User!login!
!
Open!the!main!menu:!
!
Click!“START”!in!the!task!bar,!by!default!the!taskbar!is!at!the!bottom!of!the!screen,!click!and!hold!
the!taskbar,!you!can!then!drag!it!to!any!position.!Iif!the!taskbar!is!not!displayed,!right!click!the!
mouse!button.!
!
!
Click!“START”!to!enter!the! login!interface,!insert!the!Device!ID,! the!default!Device!ID!is!“0”.!The!
initial!user!name!is:!admin!with!no!password,!but!if!you!setup!a!password!during!the!setup!wizard,!
you!now!need!to!input!your!password!here.!
!
!
!
!
9

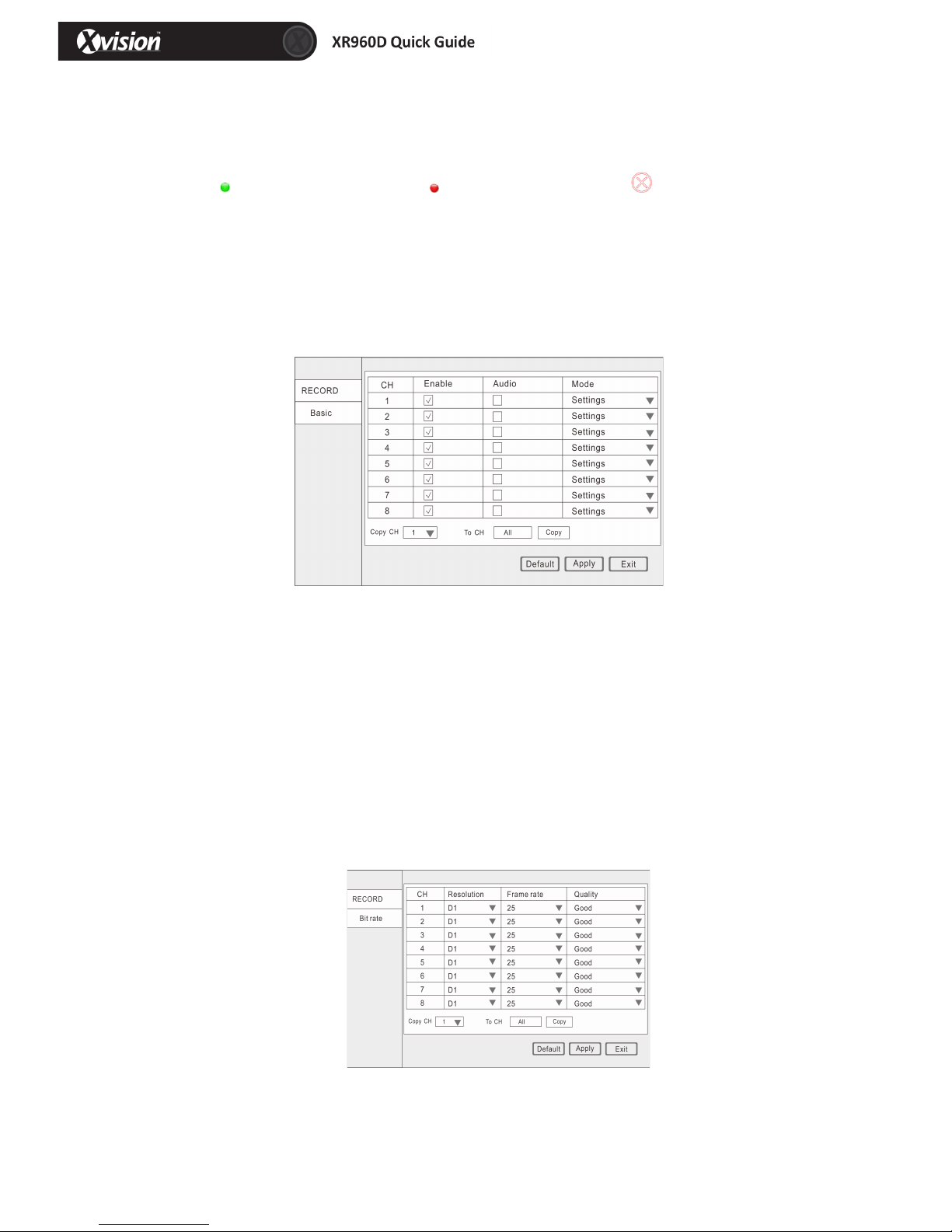

4! ! Interface!Introduction!
In!live!view,!“ ”means!normal!recording,!“ ”!means!alarm!recording,!“ ”!means!not!recording.!
5! ! Basic!Record!Setup!
Login!to!the!Main!Menu,!click!“Basic”,!and!then!click!“RECORD”,!as!displayed!below:! !
!
!
!
!
!
!
!
CH:!Order!of!the!DVR!channel!
Enable:!click!to!enable!the!basic!setting!
Audio:!click!to!enable!audio!recording!
Mode:! Click! “Always”! or! “Time! recording”! to! make! the! DVR! record! when! start! up! or! recording!
according!to!the!set!schedule.!
Copy!CH:!Copy!one!CH!setting!to!another!CH.! !

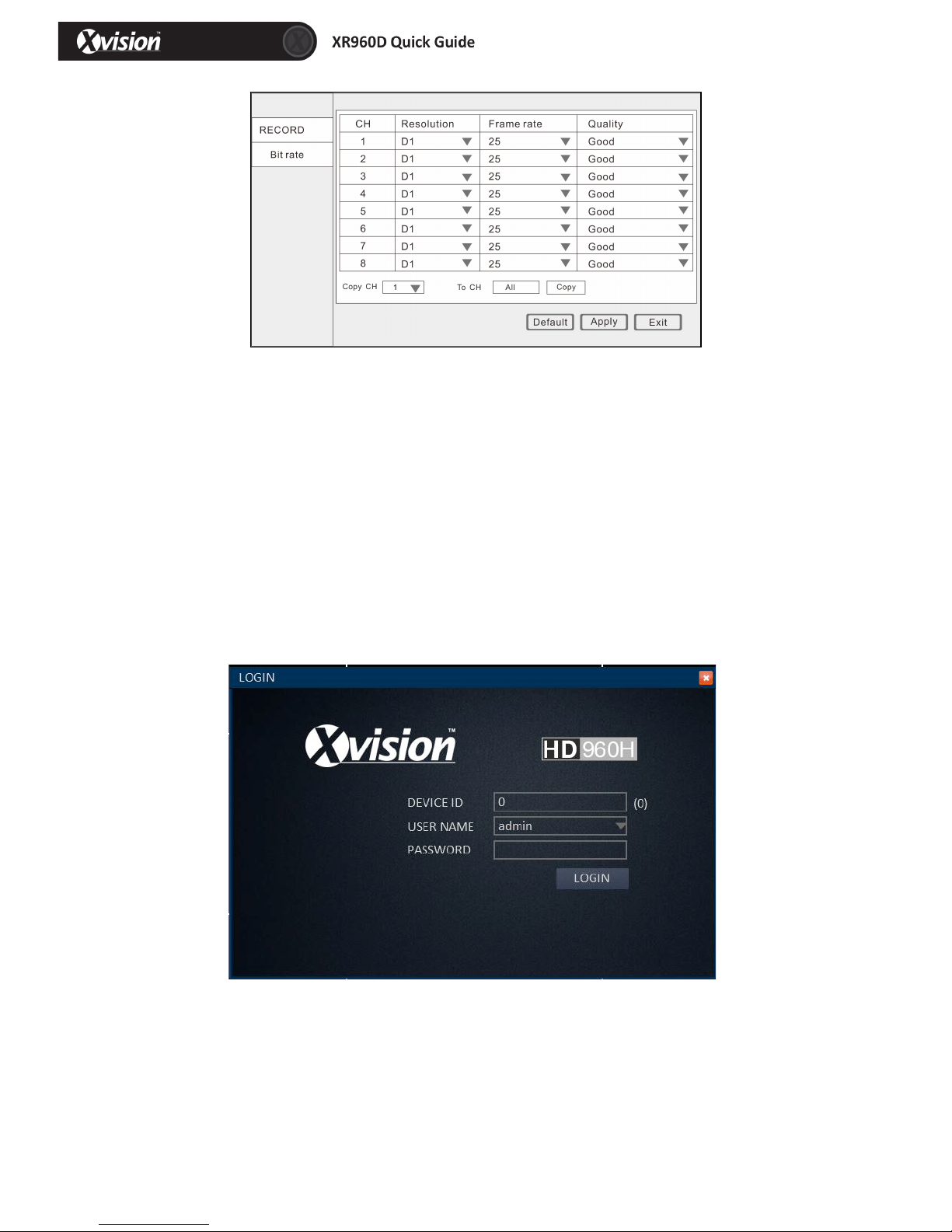

6! ! Record!Bit!rate!Setup!
10
CH:!Order!of!the!DVR!channel!
Resolution:!Click!WCIF,!WHD1,!WD1!to!set!the!recording!resolution.!
Frame!rate:!“1`25”fps!is!for!option.!
Quality:!Best,!Better,!Good,!Normal!
Copy!CH:!Copy!one!CH!setting!to!another!CH.! !
7!!!Schedule!
CH:!Order!of!the!DVR!channel!
Set!the!mode!of!recording.”Manual”!”Normal”!”Alarm”!

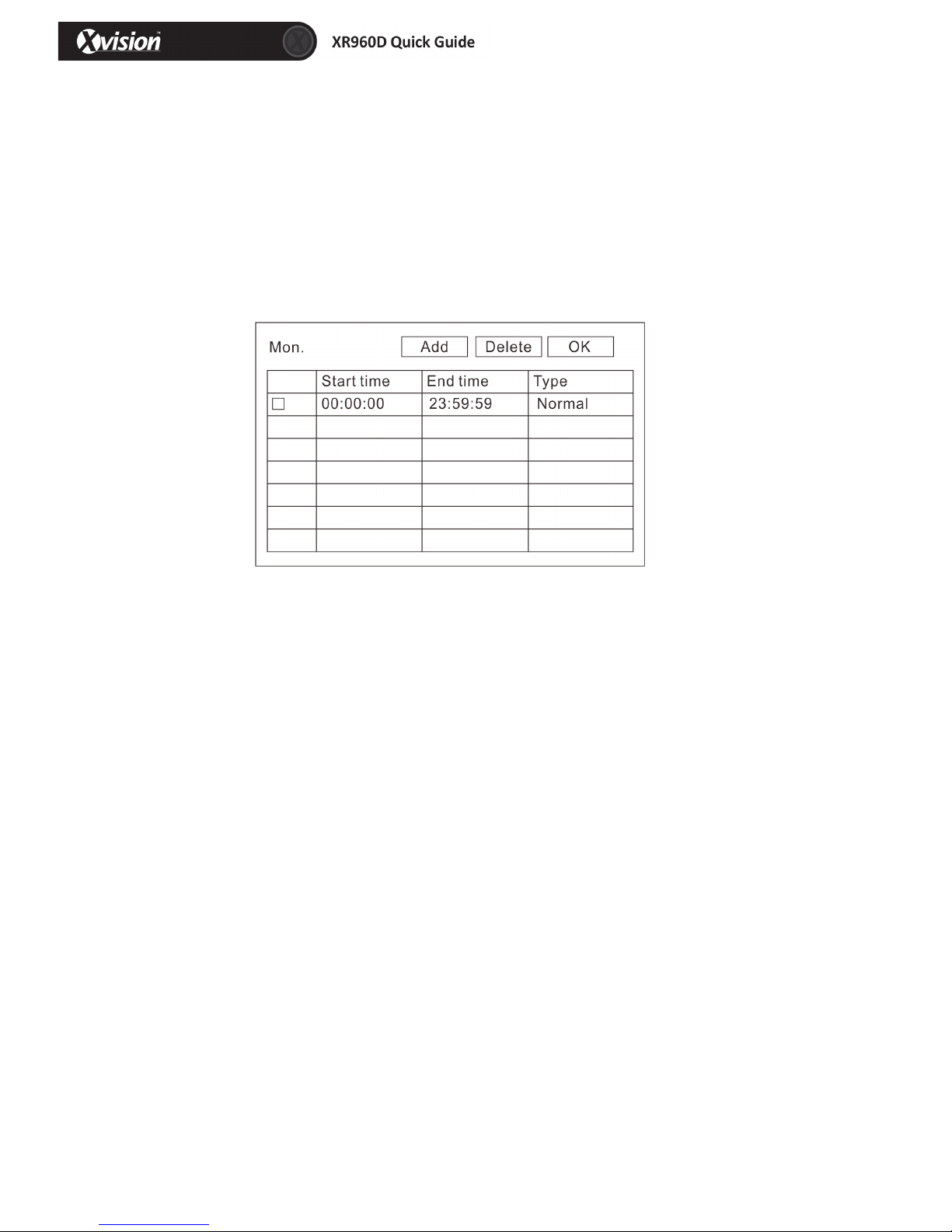

Double!click!the!recording!schedule;!the!“schedule”!window!will!pop!up.!You!can!set!the!recording!
schedule!here.!
!
Copy!CH:!Copy!one!CH!setting!to!another!CH.! !
!
!
!
