WowWee Robosapien X Manuel utilisateur

User Manual

Item No. 8006/8009

P. 1

Introduction

Congratulations on choosing Robosapien X™, a sophisticated fusion of

technology and personality. With a full range of dynamic motion, interactive sensors

and a unique personality, Robosapien X™ is more than a mechanical companion;

he’s a multi-functional, thinking, feeling robot with attitude!

Explore Robosapien X™

’s vast array of functions and programs. Mold his behavior

any way you like.

Be sure to read this manual carefully for a complete understanding of the many

features of your new robot buddy.

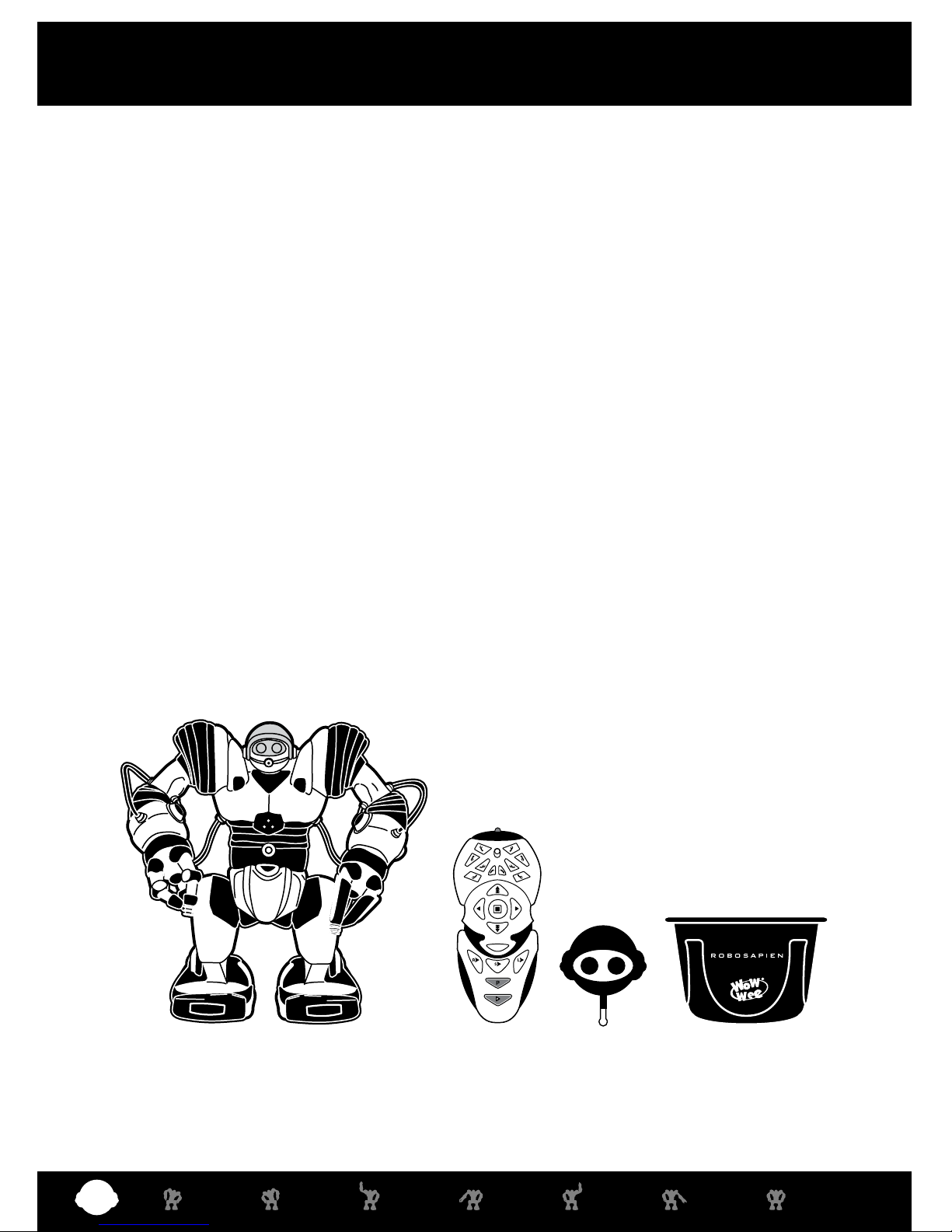

Product Contents:

Robosapien X™ x1

Infra-red Remote Controller x1

Infra-red Dongle x1

Pick Up Accessory x1

For more information visit: www.wowwee.com

SWEEP

THUMP

SWEEP

THUMP

HIGH 5

SELECT

PICK UP

STRIKE 2

SLEEP

STRIKE 2

LISTEN

STRIKE 3

LEFT

DANCE

SONIC

RIGHT

STRIKE 1

LEAN

STRIKE 1

LEAN

BURP

THROW

WHISTLE

THROW

TALK BACK

PICK UP

ALL DEMO

EXECUTE

POWER OFF

WAKE UP

SWEEP

THUMP

SWEEP

THUMP

HIGH 5

SELECT

PICK UP

STRIKE 2

SLEEP

STRIKE 2

LISTEN

STRIKE 3

LEFT

DANCE

SONIC

RIGHT

STRIKE 1

LEAN

STRIKE 1

LEAN

BURP

THROW

WHISTLE

THROW

TALK BACK

PICK UP

ALL DEMO

EXECUTE

POWER OFF

WAKE UP

Robosapien X™ Remote

Controller

Infra-red

Dongle

Pick Up

Accessory

P. 2

Content

Introduction & Contents P.1-2

Battery Details P.3

Robosapien X™ & IR Dongle Overview P.4

Robosapien X™ Operation Overview P.5

Controller Index P.6

RED Commands - upper controller P.7

RED Commands - middle & lower controller P.8

GREEN Commands - upper controller P.9

GREEN Commands - middle & lower controller P.10

ORANGE Commands - upper controller P.11

ORANGE Commands - middle & lower controller P.12

Programming Mode - touch sensors P.13

Programming Mode - sonic sensor P.14

Programming Mode - master command P.15

Troubleshooting Guide P.16

Notes P.17

Warranty P.18

P. 3

Battery Details

BATTERY REQUIREMENTS:

Your robot is powered by 4 x “D” size Alkaline batteries (2 batteries in each foot - not included).

Your remote controller is powered by 3 x “AAA” batteries (not included).

Your infra-red dongle is powered by 3 x “LR44” batteries (included).

BATTERY INSTALLATION:

• Be sure the robot power button is in the OFF position (OUT) before installing or changing batteries.

• Remove the battery covers with a Phillips/crosshead screwdriver as shown (not included).

•

Install recommended batteries as shown, making sure battery polarity is correct (batteries not included).

• Replace battery doors and carefully tighten all screws.

LOW BATTERY INDICATORS:

When Robosapien X™

’s batteries grow weak, your Robosapien X™ will move and walk very slowly.

- When this occurs, power robot OFF and replace all batteries.

When the remote controller’s batteries grow weak, the indicator light will shine very dimly.

- When this occurs, replace all the batteries in the remote controller.

• Robot will just stop when battery power gets VERY low. Power off and replace all batteries.

• Some lighting or sunlight can interfere with infra-red signals.

IMPORTANT BATTERY INFORMATION:

• Use only fresh batteries of the required size and recommended type

• Do not mix old and new batteries, different types of batteries [standard

(Carbon-Zinc), Alkaline or rechargeable] or rechargeable batteries of

different capacities

• Remove rechargeable batteries from the toy before recharging them

• Rechargeable batteries are only to be charged under adult supervision

• Please respect the correct polarity, (+) and (-)

• Do not try to recharge non-rechargeable batteries

• Do not throw batteries into the re

• Replace all batteries of the same type/brand at the same time

• The supply terminals are not to be short-circuited

• Remove exhausted batteries from the toy

• Batteries should be replaced by adults

• Remove batteries if the toy is not going to be played with for some time

1.5V

"D"

LR20

UM1

1.5V

"D"

LR20

UM1

1.5V

"D"

LR20

UM1

1.5V

"D"

LR20

UM1

Robosapien X™ : Base of feet Infra-Red Dongle

Remote Controller:

Bottom View

1.5V "AAA"

LR03 UM4

1.5V "AAA"

LR03 UM4

1.5V "AAA"

LR03 UM4

NOTE

P. 4

Robosapien X™ & IR Dongle Overview

1. Infra-Red Receiver

Always point the Controller towards

Robosapien X™ ’s head.

Infra-Red Dongle Instructions:

The Robosapien X™ Infra-Red Dongle is compatible with

both iOS and Android devices. To start, plug the infra-red

dongle into the 3.5mm headphone jack on your smart

device. Then, download the free application to your device

using the instructions below:

iOS – Visit the Apple App Store on your device and search

for “WowWee Robo Remote”, or use the following link:

https://itunes.apple.com/us/app/id618649939. Click on

install, and then start the application.

Android – Visit the Google Play store on your device and

search for “WowWee Robo Remote”. Click on install, and

then start the application.

Instructions on how to use your smart device to control

Robosapien X™ are included in the app tutorial.

2. Eye Lights

Blink and move when he executes a command.

Look into Robosapien X™ ’s eyes to see what

he is “thinking”.

3. Sonic Sensor

Senses sounds when in

LISTEN mode.

4. Foot Sensors (Both feet)

Sense any touch to the front or back of the foot.

6. Palm Lights

(Both hands)

Light up when you

move an arm or when

you press STOP.

5. Hand Sensors

(Both hands)

Sense touch at the tips

of the longest ngers.

NOTE: Always point the Controller

at Robosapien X™ ’s head.

Remove the battery

pull-out tab before use

P. 5

Where is Robosapien X™ ’s power switch?

• The power switch is located on the robot’s back, below the right shoulder blade.

• Press once to turn ON. Robosapien X™ will awaken with a yawn, a stretch and then say “Uh-

huh.” Robosapien X™ is now ready for your commands.

How do I access the levels of commands on the Controller?

• By using the SELECT button. The Select buttons works just like the CAPS LOCK on a computer

keyboard. Every controller button can do at least three different things. Pressing the Select

button once (controller displays a green light) activates all the GREEN commands on the remote.

Pressing the Select button twice (controller displays an orange light) activates all the ORANGE

commands.

What are the RED command buttons for?

• The RED commands on the upper sections of the controller directly control Robosapien X™

’s

movements (arms and legs). For further information see page 7.

• The RED commands on the lower section of the controller are used for programming your

Robosapien X™ - for detailed information see page 13 to 15.

What are the GREEN command buttons for?

• The GREEN commands on the upper sections of the controller execute combination actions

(Pick Up, Throw). For further information see page 9.

• The GREEN commands on the lower section of the controller execute your Programmed

Sequences - for detailed information see page 13 to 15.

What are the ORANGE command buttons for?

• The ORANGE commands on the upper sections of the controller access “Attitude Actions”

(ie.,”High 5”, “Burp”). For further information see page 11.

• The ORANGE commands on the lower section of the controller execute three pre-programmed

Demo Sequences - for detailed information see page 12.

Robosapien X™ Operation Overview

Robosapien X™ has 67 easy to

access command functions.

The command functions feature:

Direct Control, Combination Actions,

Actions with Attitude, Demo Modes

and Programming Mode to build your

own dynamic sequence of motions!

Explore the unique multi-level remote

control for hours of fun and action!

OFF

P. 6

SWEEP

THUMP

SWEEP

THUMP

HIGH 5

SELECT

PICK UP

STRIKE 2

SLEEP

STRIKE 2

LISTEN

STRIKE 3

LEFT

DANCE

SONIC

RIGHT

STRIKE 1

LEAN

STRIKE 1

LEAN

BURP

THROW

WHISTLE

THROW

TALK BACK

PICK UP

ALL DEMO

EXECUTE

POWER OFF

WAKE UP

SWEEP

THUMP

SWEEP

THUMP

HIGH 5

SELECT

PICK UP

STRIKE 2

SLEEP

STRIKE 2

LISTEN

STRIKE 3

LEFT

DANCE

SONIC

RIGHT

STRIKE 1

LEAN

STRIKE 1

LEAN

BURP

THROW

WHISTLE

THROW

TALK BACK

PICK UP

ALL DEMO

EXECUTE

POWER OFF

WAKE UP

Controller Index

The LEFT side of the Controller operates Robosapien X™

’s RIGHT side;

the RIGHT side of the Controller operates Robosapien X™

’s LEFT side.

NOTE:

Selection Indicator Light

1 6

16 18

510

SELECT Button

Infra-Red Transmitter

STOP Button

P. 7

SWEEP

THUMP

SWEEP

THUMP

HIGH 5

SELECT

PICK UP

STRIKE 2

SLEEP

STRIKE 2

LISTEN

STRIKE 3

LEFT

DANCE

SONIC

RIGHT

STRIKE 1

LEAN

STRIKE 1

LEAN

BURP

THROW

WHISTLE

THROW

TALK BACK

PICK UP

ALL DEMO

EXECUTE

POWER OFF

WAKE UP

SWEEP

THUMP

SWEEP

THUMP

HIGH 5

SELECT

PICK UP

STRIKE 2

SLEEP

STRIKE 2

LISTEN

STRIKE 3

LEFT

DANCE

SONIC

RIGHT

STRIKE 1

LEAN

STRIKE 1

LEAN

BURP

THROW

WHISTLE

THROW

TALK BACK

PICK UP

ALL DEMO

EXECUTE

POWER OFF

WAKE UP

SWEEP

THUMP

SWEEP

THUMP

HIGH 5

SELECT

PICK UP

STRIKE 2

SLEEP

STRIKE 2

LISTEN

STRIKE 3

LEFT

DANCE

SONIC

RIGHT

STRIKE 1

LEAN

STRIKE 1

LEAN

BURP

THROW

WHISTLE

THROW

TALK BACK

PICK UP

ALL DEMO

EXECUTE

POWER OFF

WAKE UP

SWEEP

THUMP

SWEEP

THUMP

HIGH 5

SELECT

PICK UP

STRIKE 2

SLEEP

STRIKE 2

LISTEN

STRIKE 3

LEFT

DANCE

SONIC

RIGHT

STRIKE 1

LEAN

STRIKE 1

LEAN

BURP

THROW

WHISTLE

THROW

TALK BACK

PICK UP

ALL DEMO

EXECUTE

POWER OFF

WAKE UP

Red Commands

upper controller

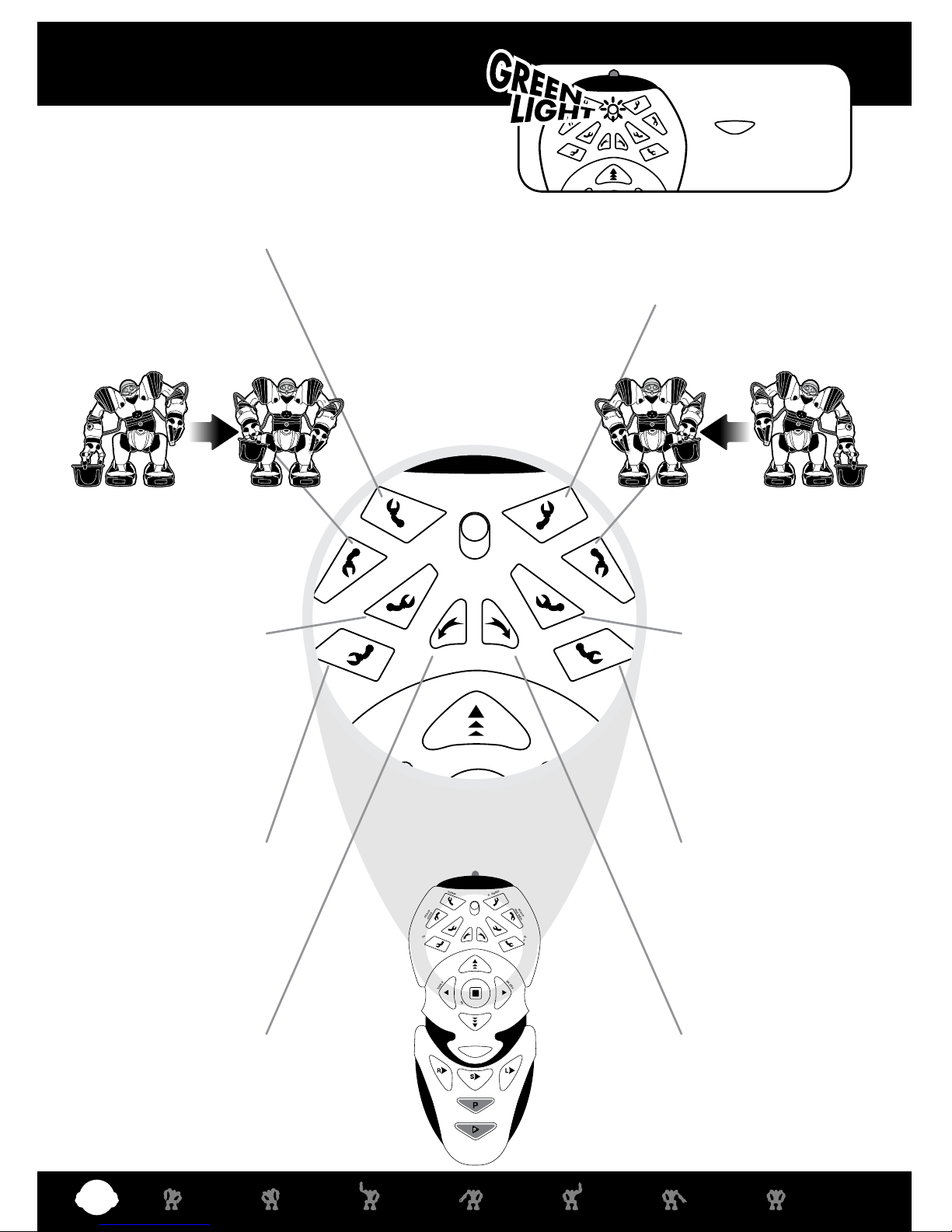

Red Commands directly control Robosapien X™

’s movements.

1 RIGHT ARM UP

• Press twice to

fully raise arm up.

6 LEFT ARM UP

• Press twice to

fully raise arm up.

2 RIGHT ARM DOWN

• Press twice to

fully lower arm down.

7 LEFT ARM DOWN

• Press twice to

fully lower arm down.

3 RIGHT ARM IN

• Press twice to

fully turn arm inwards.

8 LEFT ARM IN

• Press twice to

fully turn arm inwards.

4 RIGHT ARM OUT

• Press twice to

fully turn arm outwards.

9 LEFT ARM OUT

• Press twice to

fully turn arm outwards.

5 TILT BODY RIGHT

• Press once to

tilt body to the right.

10 TILT BODY LEFT

• Press once to

tilt body to the left.

P. 8

SWEEP

THUMP

SWEEP

THUMP

HIGH 5

SELECT

PICK UP

STRIKE 2

SLEEP

STRIKE 2

LISTEN

STRIKE 3

LEFT

DANCE

SONIC

RIGHT

STRIKE 1

LEAN

STRIKE 1

LEAN

BURP

THROW

WHISTLE

THROW

TALK BACK

PICK UP

ALL DEMO

EXECUTE

POWER OFF

WAKE UP

SWEEP

THUMP

SWEEP

THUMP

HIGH 5

SELECT

PICK UP

STRIKE 2

SLEEP

STRIKE 2

LISTEN

STRIKE 3

LEFT

DANCE

SONIC

RIGHT

STRIKE 1

LEAN

STRIKE 1

LEAN

BURP

THROW

WHISTLE

THROW

TALK BACK

PICK UP

ALL DEMO

EXECUTE

POWER OFF

WAKE UP

SWEEP

THUMP

SWEEP

THUMP

HIGH 5

SELECT

PICK UP

STRIKE 2

SLEEP

STRIKE 2

LISTEN

STRIKE 3

LEFT

DANCE

SONIC

RIGHT

STRIKE 1

LEAN

STRIKE 1

LEAN

BURP

THROW

WHISTLE

THROW

TALK BACK

PICK UP

ALL DEMO

EXECUTE

POWER OFF

WAKE UP

SWEEP

THUMP

SWEEP

THUMP

HIGH 5

SELECT

PICK UP

STRIKE 2

SLEEP

STRIKE 2

LISTEN

STRIKE 3

LEFT

DANCE

SONIC

RIGHT

STRIKE 1

LEAN

STRIKE 1

LEAN

BURP

THROW

WHISTLE

THROW

TALK BACK

PICK UP

ALL DEMO

EXECUTE

POWER OFF

WAKE UP

SWEEP

THUMP

SWEEP

THUMP

HIGH 5

SELECT

PICK UP

STRIKE 2

SLEEP

STRIKE 2

LISTEN

STRIKE 3

LEFT

DANCE

SONIC

RIGHT

STRIKE 1

LEAN

STRIKE 1

LEAN

BURP

THROW

WHISTLE

THROW

TALK BACK

PICK UP

ALL DEMO

EXECUTE

POWER OFF

WAKE UP

SWEEP

THUMP

SWEEP

THUMP

HIGH 5

SELECT

PICK UP

STRIKE 2

SLEEP

STRIKE 2

LISTEN

STRIKE 3

LEFT

DANCE

SONIC

RIGHT

STRIKE 1

LEAN

STRIKE 1

LEAN

BURP

THROW

WHISTLE

THROW

TALK BACK

PICK UP

ALL DEMO

EXECUTE

POWER OFF

WAKE UP

13 AT ANY TIME

PRESS “STOP” TO

END A COMMAND.

Select Button

11 WALK FORWARD

• Press once to

walk forward.

• Press twice to move

forward slowly.

15 WALK BACKWARD

• Press once to

walk backwards.

• Press twice to move

backwards slowly.

12 TURN RIGHT

• Press once to turn

right on the spot.

14 TURN LEFT

• Press once to turn

left on the spot.

Programming is covered

in detail on page 13-15.

18 Left Sensor Program16 Right Sensor Program

19 Master Command Program

20 Program Play

17 Sonic Sensor Program

Red Commands

middle & lower controller

• For best performance, use on at

surfaces or low carpet.

• Shag carpeted surfaces may limit

the walking function slightly.

P. 9

SWEEP

THUMP

SWEEP

THUMP

HIGH 5

SELECT

PICK UP

STRIKE 2

SLEEP

STRIKE 2

LISTEN

STRIKE 3

LEFT

DANCE

SONIC

RIGHT

STRIKE 1

LEAN

STRIKE 1

LEAN

BURP

THROW

WHISTLE

THROW

TALK BACK

PICK UP

ALL DEMO

EXECUTE

POWER OFF

WAKE UP

SWEEP

THUMP

SWEEP

THUMP

HIGH 5

SELECT

PICK UP

STRIKE 2

SLEEP

STRIKE 2

LISTEN

STRIKE 3

LEFT

DANCE

SONIC

RIGHT

STRIKE 1

LEAN

STRIKE 1

LEAN

BURP

THROW

WHISTLE

THROW

TALK BACK

PICK UP

ALL DEMO

EXECUTE

POWER OFF

WAKE UP

SWEEP

THUMP

SWEEP

THUMP

HIGH 5

SELECT

PICK UP

STRIKE 2

SLEEP

STRIKE 2

LISTEN

STRIKE 3

LEFT

DANCE

SONIC

RIGHT

STRIKE 1

LEAN

STRIKE 1

LEAN

BURP

THROW

WHISTLE

THROW

TALK BACK

PICK UP

ALL DEMO

EXECUTE

POWER OFF

WAKE UP

SWEEP

THUMP

SWEEP

THUMP

HIGH 5

SELECT

PICK UP

STRIKE 2

SLEEP

STRIKE 2

LISTEN

STRIKE 3

LEFT

DANCE

SONIC

RIGHT

STRIKE 1

LEAN

STRIKE 1

LEAN

BURP

THROW

WHISTLE

THROW

TALK BACK

PICK UP

ALL DEMO

EXECUTE

POWER OFF

WAKE UP

SWEEP

THUMP

SWEEP

THUMP

HIGH 5

SELECT

PICK UP

STRIKE 2

SLEEP

STRIKE 2

LISTEN

STRIKE 3

LEFT

DANCE

SONIC

RIGHT

STRIKE 1

LEAN

STRIKE 1

LEAN

BURP

THROW

WHISTLE

THROW

TALK BACK

PICK UP

ALL DEMO

EXECUTE

POWER OFF

WAKE UP

SWEEP

THUMP

SWEEP

THUMP

HIGH 5

SELECT

PICK UP

STRIKE 2

SLEEP

STRIKE 2

LISTEN

STRIKE 3

LEFT

DANCE

SONIC

RIGHT

STRIKE 1

LEAN

STRIKE 1

LEAN

BURP

THROW

WHISTLE

THROW

TALK BACK

PICK UP

ALL DEMO

EXECUTE

POWER OFF

WAKE UP

Green Commands

upper controller

Green Commands access combination actions.

1 RIGHT HAND THUMP

• Robosapien X™

’s right arm lifts

and presses downward.

2 RIGHT HAND PICK UP

• Place Pick Up Accessory

next to Robosapien X™

’s

right foot (see diagram)

and he’ll pick it up!

3 LEAN BACKWARD

• Robosapien X™ leans

backward and opens his arms!

4 RIGHT HAND THROW

• If an object is already in

Robosapien X™

’s right hand,

press THROW and he’ll toss it!

5 SLEEP

• Robosapien X™ goes to

sleep (all sensors are inactive).

Press STOP or WAKE UP

to wake him up (see page 10).

After approx. 2 hours of

uninterrupted sleep,

he’ll power himself off

to save energy.

6 LEFT HAND THUMP

• Robosapien X™

’s left arm lifts

and presses downward.

7 LEFT HAND PICK UP

• Place Pick Up Accessory

next to Robosapien X™ ’s

left foot (see diagram)

and he’ll pick it up!

8 LEAN FORWARD

• Robosapien X™ leans

forward and opens his arms!

9 LEFT HAND THROW

• If an object is already in

Robosapien X™

’s left hand,

press THROW and he’ll toss it!

10 LISTEN

• Robosapien X™ responds

to a sound or tap on his body

with a default grunt, or a Sonic

Sensor Program sequence

programmed by you.

See Programming on page 14

for further details.

SELECT

To access the GREEN

Commands, first press

the button once.

The GREEN indicator light

will LIGHT AND HOLD to

confirm the selection.

Autres manuels pour Robosapien X

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels WowWee Jouet

WowWee

WowWee 1045 Manuel utilisateur

WowWee

WowWee RC Mini MiP Guide d'installation

WowWee

WowWee ArtSee Studio Manuel utilisateur

WowWee

WowWee RoboRaptor Blue Manuel utilisateur

WowWee

WowWee BUTT HEADS LOUD & PROUD FART LAUNCHER 3000 Manuel utilisateur

WowWee

WowWee Lite Sprites Lite Wand + Prisma Manuel utilisateur

WowWee

WowWee ROBORAPTOR X Manuel utilisateur

WowWee

WowWee FlyTech BLADESTAR Manuel utilisateur

WowWee

WowWee Alive 9726 Manuel utilisateur

WowWee

WowWee FlyTech Skyhopper 4501 Manuel utilisateur

WowWee

WowWee FlyTech HOVERPOD REMOTE CONTROL HOVERCRAFT Manuel utilisateur

WowWee

WowWee RS FEMISAPIEN Manuel utilisateur

WowWee

WowWee Minion MiP Turbo Dave 0868 Manuel utilisateur

WowWee

WowWee Roboreptile Manuel utilisateur

WowWee

WowWee Roboboa Manuel utilisateur

WowWee

WowWee CHIP Manuel utilisateur

WowWee

WowWee pinkfong BABY SHARK Manuel utilisateur

WowWee

WowWee 0442 Manuel utilisateur

WowWee

WowWee RS Media Manuel utilisateur

WowWee

WowWee ROBOROVER 8405 Manuel utilisateur

WowWee

WowWee Buttheads Manuel utilisateur

WowWee

WowWee Lite Sprites Water Fall Manuel utilisateur

WowWee

WowWee RC Mini Robosapien Manuel utilisateur

WowWee

WowWee Alive Lion Cub Manuel utilisateur

Manuels Jouet populaires d'autres marques

marklin

marklin 37321 Manuel utilisateur

Canon

Canon PAPER CRAFT Manuel utilisateur

GREAT PLANES

GREAT PLANES Pitts M-12S Manuel utilisateur

NOCH

NOCH 14261 Manuel utilisateur

Hausler

Hausler 450 SE V2 Manuel utilisateur

Dynaflite

Dynaflite Daydream Manuel utilisateur

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Manuel

Kenner

Kenner Batman 63651 Manuel utilisateur

LEGO

LEGO 8527 Manuel utilisateur

iKarus

iKarus ECO 8 Manuel utilisateur

Multiplex

Multiplex EasyStar II Mode d’emploi

Walkera

Walkera 38 Mode d’emploi

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Manuel utilisateur

MD MXION SWD Manuel utilisateur

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Manuel utilisateur

marklin

marklin 39671 Manuel utilisateur

Meccano

Meccano 15103 Manuel utilisateur

LEGO

LEGO TECHNIC 8735 Manuel utilisateur
