USER’S MANUAL

ITEM NO. 8091

AGES: 8+

www.robosapienv2online.com

Introduction

Congratulations on choosing Robosapien™V2, the next

generation of Robosapien™ technology and personality.

Now with even more advanced dynamic motion,

interactive sensors, new program functions, speech

capability, and a unique personality.

The multi-functional, thinking, feeling robot with

attitude has arrived!

Be sure to read this manual carefully for a

complete understanding of the many features

of your new and improved robot.

This package contains: 1 x Robosapien™V2

1 x Controller

1 x Green Bowling Ball

3 x Red Bowling Pins

To sample some of Robosapien™V2’s cool functions

immediately, insert his batteries (see p.5-6) turn him on

(see p.13) and follow these instructions:

STOP: Press to stop Robosapien™V2 performing his

current action.

DEMO 1: Press to perform his dance routine.

DEMO 2: + Press to perform a sequence demonstrating

Robosapien™V2’s range of movements.

LIE DOWN / SIT UP / LIE DOWN / STAND UP: + With each

press, Robosapien™V2 will cycle through one step in this routine.

LEFT STICK = walking: Walking is controlled by the left stick;

Forward, backward, left, right, and diagonal motions.

RIGHT STICK = HEAD AND UPPER BODY: Basic upper body

movement is controlled by the right stick.

ARMS: + + Use the right stick with shift buttons

1 (left) and/or 2 (right) to control Robosapien™V2’s arms.

FREE ROAM: Put Robosapien™V2 into Free Roam so he can

explore his environment autonomously. However make sure he’s on

the ﬂoor before he starts!

INFRARED VISION: Interact with Robosapien™V2 directly. Put your

hand in front of his face and he will track your movements.

Quick Start Guide

• Battery Information: p.5-6

• Robosapien™V2 Overview: p.7

• Controller Overview: p.8

• Controller Overview-Function Chart:

Left Side p.9-10

Right Side p.11-12

• Basic Operations:

Power Switch p.13

Accessing the Controller Commands p.13

Stop p.14

Walking p.14

Head and Upper Body p.15

Arms p.16

• Demos & Animations:

Dance Demo p.17

Movement Demo p.17

Right Arm Commands p.17

Left Arm Commands p.17

Lie Down/Sit Up/Lie Down/Stand Up p.17

Get Up p.17

Actions p.17-18

• Resets:

Full Reset p.19

Quick Reset/Walking Gait Change p.19

Sleep /Wake Up p.19

Power Down p.19

Sonic Sensors On/Off p.19

Vision System On/Off p.19

• Free Roam:

Free Roam p.20

Standing Mode p.20

Table of contents

• Vision Systems:

Vision Systems On/Off p.21

Long-Range Infrared Vision p.21

Close-Range Infrared Vision p.21

Flinch Response p.22

Obstacle Avoidance p.22

• Color Camera:

Color Recognition p.23-25

Color Camera Settings p.25

Blinking p.26

• Sonic Sensors:

Sonic Sensor On/Off p.26

Listening p.26-27

Tilt Sensors p.27

Grip Sensors/Pick Up p.27-28

Gauntlet Sensors p.29

Foot Sensors p.29

• Programming:

Programming Keys p.30

Positional Program Categories p.30

Main Positional Program Mode p.30-32

Left and Right Positional Program Modes p.32

Controller Program Categories p.32

Main Program Mode p.32-33

Exit Programming p.33

Subroutines p.33-34

Sonic and Vision Program Modes p.34

• Guard Mode: p.35

• Robot Interaction:

Robosapien™V2 p.36

Roboraptor™ p.37

Robopet™ p.37

• Important Notes: p.38

Table of Contents

Battery Requirements:

ROBOSAPIEN™V2 BODY AND BRAIN

Your Robosapien™V2 is powered by 6 x “D” size batteries (not

included) and 4 x “AAA” size batteries (not included). Alkaline

batteries are recommended.

ROBOSAPIEN™V2 CONTROLLER

Your Robosapien™V2 remote controller is powered by 3 x “AAA” size

batteries (not included). Alkaline batteries are recommended.

Battery Information

BATTERY INSTALLATION:

1. Before installing or changing batteries, ensure the

Robosapien™V2’s ON / OFF button is in the OFF position.

2. Remove the battery compartment covers using a Phillips

crosshead screwdriver (not included).

3. Insert batteries into the Robosapien™V2 and the controller as

shown in the diagrams.

4. Replace the battery compartment covers and the screws.

Bottom View: Robosapien™V2

Brain

Batteries

Body

Batteries

1.5V“D”

LR20

UM1

1.5V“D”

LR20

UM1

1.5V“D”

LR20

UM1

1.5V“D”

LR20

UM1

1.5V“D”

LR20

UM1

1.5V“D”

LR20

UM1

1.5V

“AAA”

LR03UM4

1.5V

“AAA”

LR03UM4

1.5V

“AAA”

LR03 UM4

1.5V

“AAA”

LR03 UM4

Attention: Important Battery Information

• Use only fresh batteries of the required size and recommended type.

• Do not mix old and new batteries, different types of batteries (Standard (Carbon

zinc), alkaline, or rechargeable), or rechargeable batteries of different capacities.

• Remove rechargeable batteries from the toy before recharging them.

• Rechargeable batteries are only to be charged under adult supervision.

• Please respect the correct polarity, (+) and (-).

• Do not try to charge non-rechargeable batteries.

• Do not throw batteries into the ﬁre.

• Replace all batteries of the same type/brand at the same time.

• The supply terminals are not to be short circuited.

• Remove exhausted batteries from the toy.

• Batteries should be replaced by adults because of small parts.

• Remove batteries if the toy is not going to be used for some time.

• The packaging should be kept as it contains important information.

BRAIN BATTERIES

Robosapien™V2 will inform you when his Brain Batteries are low,

then he will shut down. You will need to replace the 4 x “AAA” size

batteries when this happens.

BODY BATTERIES

Robosapien™V2 does not issue a warning about low

power in his Body Batteries (6 x “D” size) You may notice that he

becomes sluggish when they need to be replaced.

CONTROLLER BATTERIES

If Robosapien™V2 is not responding well to controller commands,

you may need to replace the Controller Batteries.

Back View

Battery Information

Battery

Compartment

Cover

1.5V LR03 UM4 “AAA”

1.5

LR03

“AAA”

V LR03

M4 “AAA

”

Stereo Sonic

Sensors

Infrared Vision

Sensors and

Color Camera

Full View

Foot Sensors

Front and Back

(both feet)

Gauntlet Sensors

(both hands)

Articulated Hands

(both hands)

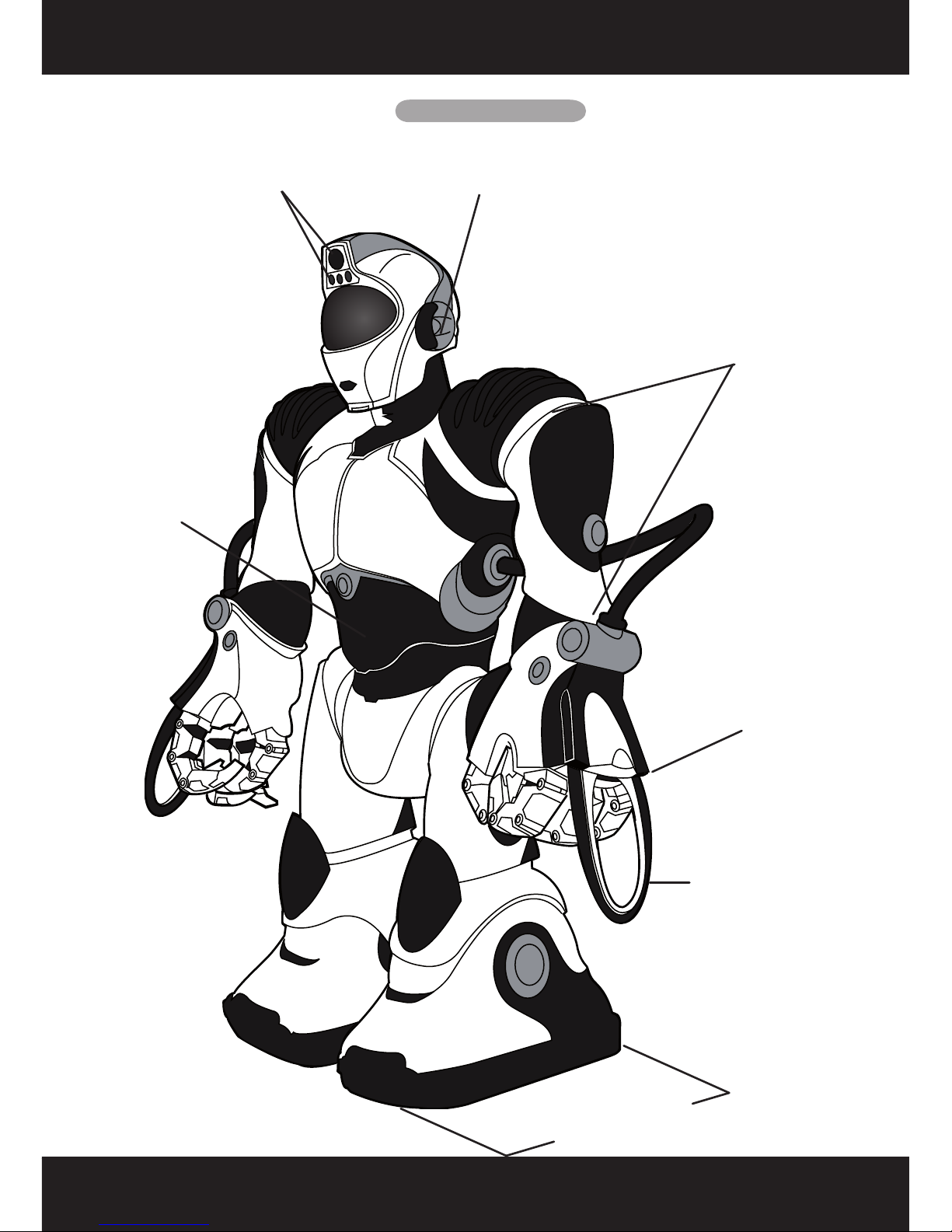

Robosapien™V2 Overview

Articulated

Waist

Articulated Shoulders

and Wrists

(both sides)

Controller Overview

Shift 3

Tri-color LED

Controller Face View

Infrared (IR)

Transmitter

Demo/

Function

Button

Stop/

Function

button

Right Stick

(8 positions)

Function Buttons

Shift 1

Shift 2

Left Stick

(8 positions)

Controller Shoulder View

Controller Overview-Function Chart

SHIFT1

SHIFT3

SHIFT2

SHIFT1

SHIFT3

SHIFT2

SHIFT1

SHIFT3

SHIFT2

SHIFT1

SHIFT3

SHIFT2

SHIFT1

SHIFT3

SHIFT2

SHIFT1

SHIFT3

SHIFT2

SHIFT1

SHIFT3

SHIFT2

SHIFT1

SHIFT3

SHIFT2

SHIFT1

SHIFT3

SHIFT2

SHIFT1

SHIFT3

SHIFT2

SHIFT1

SHIFT3

SHIFT2

SHIFT1

SHIFT3

SHIFT2

Press

Together

Un-shifted Walking Stop

Reset

Sleep/

Wake up

Get up

Clear

Program

Bulldozer

Forward

Bulldozer

Backward

Power

Down

Sonic

Sensors

On/Off

Right Arm

Throw

Left Arm

Throw

Right Kick

Sound

Program

Laugh

Roar

Robosapien™V2

Interaction
