Wouxun KG-S84B Manuel utilisateur
ank you for purchasing the Wouxun KG-S84B portable business radio.
Your feedback makes our products better. Please share your thoughts.
feedback@buytwowayradios.com
www.buytwowayradios.com
2
Contents
Safety Information������������������������������������������������������������������������������������5
FCC Licensing Information...........................................................................8
Getting Started�����������������������������������������������������������������������������������������9
Feature Summary............................................................................................9
What’s Included ...........................................................................................10
Front Panel Guide ........................................................................................11
Right / Left Side Guide ...............................................................................12
Dust and Water Protection...........................................................................13
Installing and Removing the Battery ............................................................14
Charging the Battery ....................................................................................14
Antenna Information....................................................................................16
Installing the Belt Clip .................................................................................17
Programming Your Radio .............................................................................17
Operation����������������������������������������������������������������������������������������������� 18
3
Introducing the KG-S84B............................................................................18
Power On/O and Adjusting Volume ..........................................................18
Your First Transmit.......................................................................................19
Channels and Privacy Codes.........................................................................20
Channel Scan................................................................................................21
Priority Channel Scan ..................................................................................22
Scan Mode....................................................................................................22
VOX .............................................................................................................23
Squelch Level ...............................................................................................24
Transmit Overtime Timer ............................................................................24
Timeout Timer Alert....................................................................................24
Beep Tone.....................................................................................................25
Roger Beep ...................................................................................................25
Compander...................................................................................................26
4
Programmable Key Functions .....................................................................26
Troubleshooting ������������������������������������������������������������������������������������� 32
Technical Information ���������������������������������������������������������������������������� 34
Specications ................................................................................................34
Standard CTCSS and DCS Tones ...............................................................36
Default Frequencies ......................................................................................38
Available Frequencies....................................................................................39
Optional Accessories������������������������������������������������������������������������������� 41
Limited Warranty ����������������������������������������������������������������������������������� 42
5
Safety InformationSafety InformationSafety InformationSafety Information
e KG-S84B is an electrical apparatus, as well as a generator of RF (Radio Frequency)
energy, and you should exercise all safety precautions as are appropriate for this type of
device.
Please read the suggestions and warnings below before using the transceiver.
⚠
Keep the transceiver and accessories out of the reach of children.
⚠
Do not disassemble the transceiver.
⚠
Only use the supplied battery pack and charger or genuine Wouxun branded
replacements purchased from an authorized dealer. Using improper batteries and
charging accessories can damage the transceiver.
⚠
e supplied antenna is tuned for the frequencies supported by this transceiver.
Using an aftermarket antenna can damage the transceiver.
⚠
Do not leave the transceiver exposed to direct sunlight or in overheated areas for an
extended period of time.
⚠
Keep the transceiver away from dusty or humid areas.
6
Safety Information
⚠
e transceiver should be cleaned with mild detergents and a soft brush or cloth.
Avoid cleaning with aggressive chemicals.
⚠
NEVER transmit without a properly connected antenna.
⚠
If an abnormal odor or smoke is detected from the transceiver, power it o immedi-
ately, then remove the battery pack. Contact your dealer for further assistance.
⚠
Only the carry accessories supplied with this radio (such as the belt clip) should be
used. Use of other accessories may exceed RF exposure guidelines.
Notice
▪
ese tips are important for safe operation of your KG-S84B
radio and its accessories. If the transceiver does not function
normally, please contact your dealer immediately.
▪
If you use components or accessories not produced by the
Wouxun Company, Wouxun will not guarantee the safety and
usability of the transceiver.
7
Safety InformationSafety Information
Caution
Please read this manual before using the radio, as it includes important instructions for
the safe handling, use and operation of your radio.
FCC Compliance
is device complies with Part 15 of the FCC Rules. Operation is subject to the follow-
ing two conditions:
(1) is device may not cause harmful interference, and
(2) is device must accept any interference received, including interference that may
cause undesired operation.
WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR
RADIOTELEPHONE SERVICE SIGNALS IS PROHIBITED UNDER FCC
RULES AND US FEDERAL LAW.
8
Safety Information
Radio Operation and EME Exposure
Use only an antenna designed for use with this radio and its operating frequencies. Un-
authorized modications or attachments may damage the radio and violate FCC rules.
DO NOT hold the antenna while the radio is in use.
DO NOT attempt to use the radio with a damaged antenna.
FCC Licensing Information
e Wouxun KG-S84B is FCC Part 90 type accepted for use on the business band.
e KG-S84B operates on UHF business frequencies according to the Federal Com-
munications Commission (FCC) Rules in the United States. As such, a business radio
license is required to transmit on these frequencies. To obtain an FCC license for the
your business, go to the FCC’s web site and complete the online application. For assis-
tance with the FCC licensing process, visit https://www.buytwowayradios.com/services/
radio-licensing.html.
9
Getting StartedGetting StartedGetting StartedGetting Started
Feature Summary
▪
Up to 256 Custom Channels
▪
Up to 16 Groups (16 Channels per
Group)
▪
99 Business Frequencies
▪
Up to 2 Watts Output Power
▪
16 Pre-Programmed Channels (for
out-of-the-box compatibility)
▪
50 CTCSS Tones / 105 DCS Codes
▪
IP65 Waterproof
▪
USB-C Charging Port
▪
High/Low Power Selectable
▪
Standard and Non-Std CTCSS/DCS
▪
Channel Scan
▪
Priority Channel Scanning
▪
Superheterodyne Receiver
▪
Companding
▪
Call ID
▪
Monitor Function
▪
DTMF Support
▪
Battery Level Indicator
▪
VOX
English Voice Guide
▪
Narrowband Compliant
▪
Built-in Flashlight
▪
2 Congurable Side Keys
▪
Congurable Top Key
▪
Alarm and SOS Functions
▪
PC Programmable
10
Getting Started

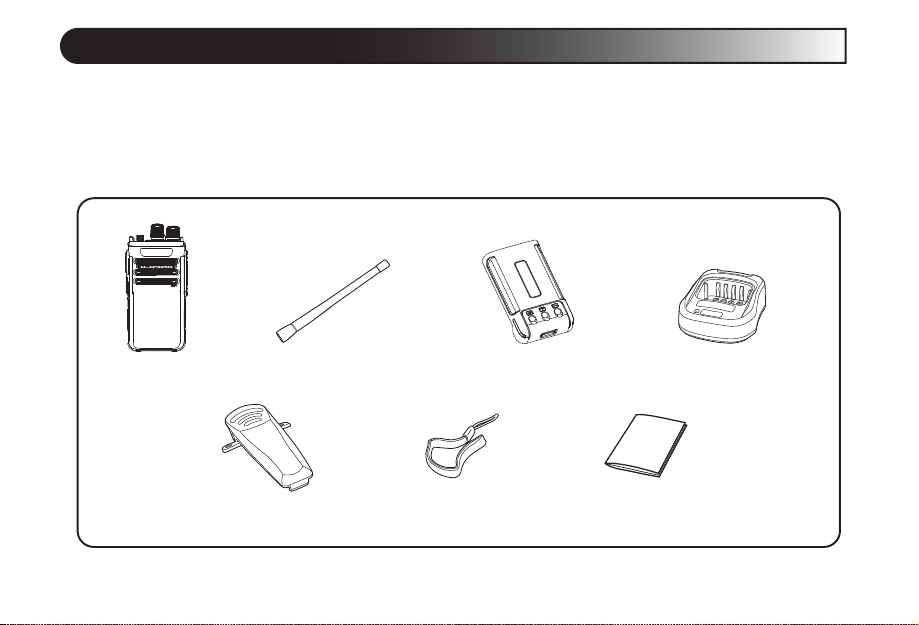

What’s Included
Carefully unpack the contents of the box and be sure that you have the items in the list
below. If any items are missing or damaged, please contact your dealer.
Transceiver High gain antenna Lithium-ion battery pack Intelligent charger
Belt clip Handstrap User’s manual
