Workrite Ergonomics CONF-BSE-WP-S Manuel de programmation

1 of 2 Workrite Ergonomics | 800.959.9675 www.workriteergo.com

Phillips head screwdriver, 2.5 mm Allen Wrench, 5 mm

Allen Wrench, Drill, Drill Bit, Fasteners (not included).

Conform Monitor Arm

AWall Plate Assembly

Qty: 1

Parts Included Parts Included, Hardware kit

Tools Required

Assembly & Installation Instructions:

Conform Base, Wall Plate

CONF-BSE-WP-S

Attach the Wall Plate Base to the wall

Remove Bolt & Washers.

Fasten Wall Plate Base with ¼/6 mm diameter bolts or screws

appropriate to the construction of the wall.

Required Parts Sold Separately

B5 mm Allen Wrench

Qty: 1 EStatic Arm Spacer

Qty: 1

FSticker

Qty: 1C4 mm Allen Wrench

Qty: 1

D2.5 mm Allen Wrench

Qty: 1

Do not exceed 48 lb.

Mounting Surface requirement. Do not mount to drywall only!

(drywall/stud mount)

•Drywall: ⁄” sheetrock with screws

into stud backing, using 2 centered

holes.

•Use ¼”/6 mm diameter fasteners.

•

Concrete: Use appropriate concrete anchors using

4 outer holes.

•

Wood/steel/other solid surface: bolt or screw using

4 outer holes.

•Use ¼”/6 mm diameter fasteners.

(all other surfaces)

All manuals and user guides at all-guides.com

all-guides.com

2 of 2 Workrite Ergonomics | 800.959.9675 www.workriteergo.com

Insert Spacer and Bolt

Choose the appropriate spacer and re-assemble pin with

selected spacer.

Ready for Arm Installation

You are now ready to attach your selected Conform Monitor Arm (sold separately). Follow Arm installation

instructions.

Articulating Arm

Shown

1500254 Rev A

Static Arm

Spacer.

Articulating Arm

Spacer

Aer M8 x 90 mm bolt has been

installed and set screw has been

tightened with 2.5 mm Allen

Wrench (D), apply the sticker (F) to

cover the set screw.

Note:

All manuals and user guides at all-guides.com

Table des matières

Autres manuels Workrite Ergonomics Support et étagère

Workrite Ergonomics

Workrite Ergonomics Conform LT CONF-LT-2SA-TPCG-G Manuel de programmation

Workrite Ergonomics

Workrite Ergonomics Willow Dual Guide de démarrage rapide

Workrite Ergonomics

Workrite Ergonomics Sequoia SQ-101 Manuel utilisateur

Workrite Ergonomics

Workrite Ergonomics CONF-2SDA-WOB-S Manuel de programmation

Workrite Ergonomics

Workrite Ergonomics CONF-ACC-1EXT-S Manuel de programmation

Workrite Ergonomics

Workrite Ergonomics CONF-2SDS-WOPB-S Manuel de programmation

Workrite Ergonomics

Workrite Ergonomics Sequoia SQ-523 Manuel utilisateur

Workrite Ergonomics

Workrite Ergonomics Sequoia SQ-211 Manuel utilisateur

Workrite Ergonomics

Workrite Ergonomics CONF-3SDS-WOPB-S Manuel de programmation

Workrite Ergonomics

Workrite Ergonomics PEAK-1SA-CCG-S Manuel utilisateur

Workrite Ergonomics

Workrite Ergonomics Conform CONF-1SDS-WOPB-S Manuel de programmation

Workrite Ergonomics

Workrite Ergonomics Conform LT CONF-LT-1SA-TPCG-G Manuel de programmation

Workrite Ergonomics

Workrite Ergonomics Sequoia SQ-422 Manuel utilisateur

Workrite Ergonomics

Workrite Ergonomics PEAK-2DA-CCG-S Manuel utilisateur

Workrite Ergonomics

Workrite Ergonomics Conform Sit-to-Stand Arm Manuel de programmation

Workrite Ergonomics

Workrite Ergonomics Sequoia SQ-413 Manuel utilisateur

Workrite Ergonomics

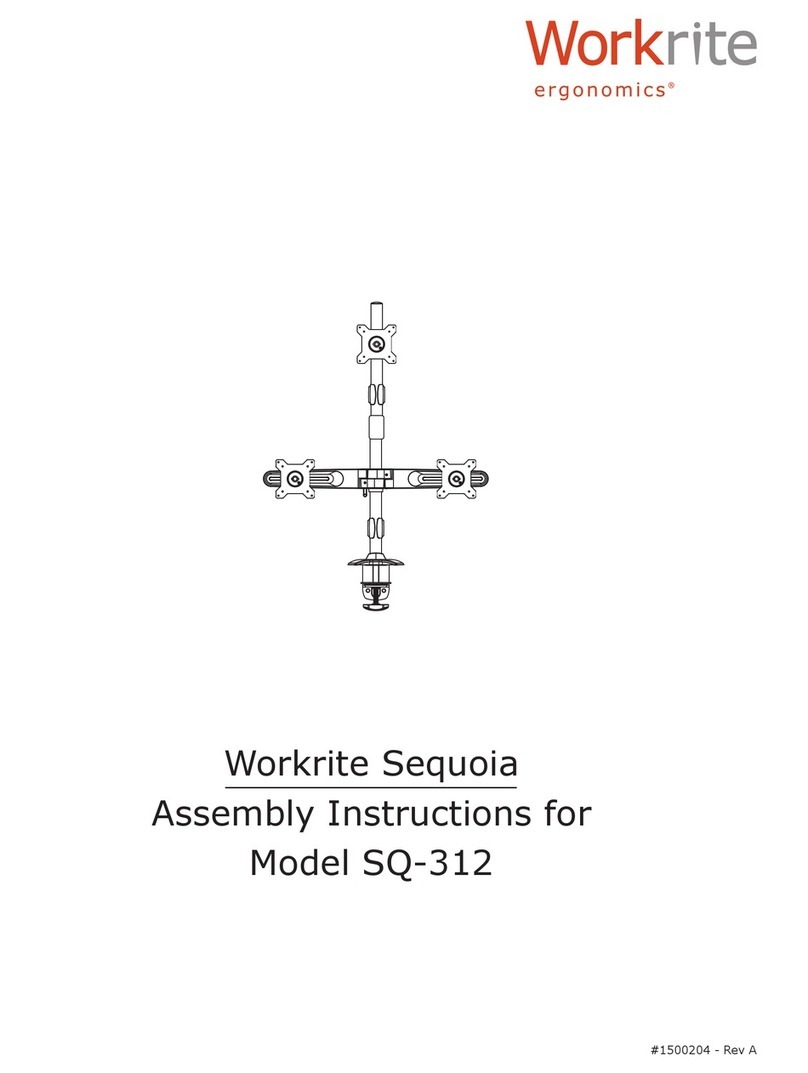

Workrite Ergonomics Sequoia SQ-312 Manuel utilisateur
