WOOX R4238 Manuel utilisateur

Quick Sta Guide (EN)
Verkoe handleiding (NL)
Kurzanleitung (DE)
Guía de inicio rápido (ES)
Guide de démarrage rapide (FR)
Guida rapida (IT)
Guia de iniciação rápida (PT)
Huigstasguide (DK)
Snabbstasguide (SE)
Pikaopas (FI)
Krótki przewodnik (PL)
Rychlá příručka (CZ)
Príručka pre rýchly šta (SK)
Gyors útmutató (HU)
Ghid rapid (RO)
Српски (RS)
Hitri vodnik (SI)
Īss ceļvedis (LV)
Trumpas vadovas (LT)
Kiirjuhend (EE)
brzi vodič (HR)
Smart Garden Irrigation
Control
R4238
Version: 1.0

Take As Global, SL hereby conrms that the R4238 Sma Garden Irrigation Control complies
with Directive 2014/53 / EU. The full text of the EU Declaration of Conformity is below
internet address available: www.wooxhome.com
Compliance with the WEEE Directive and waste disposal. This product has been manufactured
from pas and materials of high quality that can be reused and can be recycled. Therefore,
do not throw this product away with waste normal household appliances at the end of their
useful life. Take him away at a collection point for recycling equipment electric and electronic.
This is indicated by this symbol on the product, in the user manual and on the packaging.
Please consult the local authorities to nd out where the point of nearest collection. Help
protect the environment by recycling used products.
The packaging materials of the product are made in accordance with our national
environmental regulations made from recyclable materials made. Packing materials not
together with dispose of with household waste or other waste. Bring them to the collection
points prescribed by the local authorities for packing material.
Tech support
If you need futher help or have comments or suggestions please visit: www.wooxhome.com or FAQ &
Feeback page in the App.
Tech support contact:
Non-EU: [email protected]
How to use FAQ & Feedback in the App:
Step 1: Navigate to "Me" > "FAQ & Feedback".
Step 2: If "Most Asked" and FAQ not help, you could submit your question via "Feedback/Suggestions",
we will reply you in 24 hours.
Compliance

WOOX Home Youtube Channel
You could also nd WOOX product videos in Youtube by searching "woox home" or "WOOX + model
number".
Facebook group support
We also create a facebook group for technical support. Searching "WOOX HOME users" to join the
group and leave your question.
WOOX Home app QR code

Product Appearance
Input (G 3/4" size)
Indicator light
Output
On/O button,
Reset button
Reset device:
Hold and press the reset button above 5 seconds.
Indicator light status:
Wi-Fi pairing mode: ash in red.
Irrigation On/O: ash 1 time in blue.
Low batte: ash 3 times in blue when press button.
Turn On/O watering valve:
1. The default manually watering time is 10 minutes by On/O button on device or APP; The
manually watering time can be set from 1 minute to 24 hours in the APP.
2. The countdown timer refesh in eve 1 minute in the APP until watering stopped.
3. Device will response in 0-30 seconds when set On/O command from APP, because the
device is in sleep mode and will wake up in eve 30 seconds.
*There might be few seconds deviation as the cloud timer.

Batte compament
Notes:
•Regularly wash the lter to prevent clogging.
•Remove from faucet when temperature reaches below 5℃ , drain all water and remove
batteries to avoid oxidization.
•Do not use with operating pressure higher than 8.27 bar, and with wateemperature
exceeding 40℃ .
•Do not install into any type of valve box or under the soil level.
•Do not submerge in water or other liquids.
•Use with tap water only.
Techinical Data
Batteries: DC 1.5V AA x 4 (included)
Battery lifetime: approximate 4.5 months
Waterproof: IPX4
Water pressure range: 0.34-8.27 bar
Wireless connection: 2.4GHz Wi-Fi
Connection distance: 10-30m depends on obstacle between device and Wi-Fi router.
Working temperature: 5℃ - 40℃
Working humidity: 0-95%RH, no condensation
Dimension: 141x75x99mm

Frequently Asked Questions
1. Can I share with family and friends?
Yes, you can share your Garden Irrigation Controls with family and friends who will have
access to control your Garden Irrigation Control. In the app, click the Family name at the
top and click on the“Home Management”button, and you will be able to give or revoke
sharing permissions. In order to share, the other user should already have downloaded the
app and registered a new account.
2. What's the Wireless Range?
The range of your home Wi-Fi is heavily dependent on your home router and the
conditions of the room. Check with your router specications for exact range data. The
distance is 50 meters in open area, if there is obstacle between device and Wi-Fi router,
the distance would be less, normally it's 10-30 meters.
3. How many Smart Garden Irrigation Control can I control?
WOOX Home app can control an unlimited amount of devices in an unlimited amount
of locations. Your router may have a limit of how many devices can be connected to one
router, regularly it's 15 devices around.
4. My device can't be connected to network with App
•Make sure the device is under the cong status (indicator light is ashing).
•Make sure the Wi-Fi is avaliable and the device is not far away from the router.
•Make sure the Wi-Fi password you input is correct.
•Make sure the Wi-Fi is separate 2.4GHz band.
5. My device shows oine in my App
•Make sure the device is powered on.
•Make sure the network is stable and the Wi-Fi name and password not modied. If not,
add device again.
•If the network is normal, but its still offline. Check if there are too many Wi-Fi
connections. You can resta your router to check the status of the device.
Package includes
1. Sma garden irrigation control x 1
2. AA batte x 4
3. User manual x 1

Installation

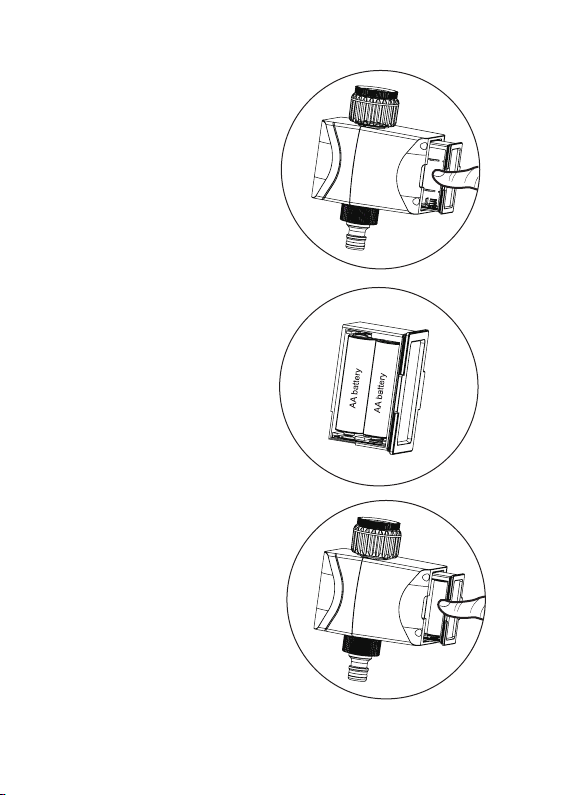

1. Install battery
Step 1: pull out the battery compartment
Step 2: install 4 pcs AA battery
Step 3: put the batte compament back
English

Notes:
•Only use Alkaline batte.
•Batte life is around 4.5 months if watering 2-3 times per day.
•Low batte notication will be sent to APP when batte is lower than 20%. When batte
lower to 16%, the device will work abnormal, please change batte in time.
•Replace the batte at the beginning of the watering season.
•When garden irrigation control is not in use for an extended period of time, remove the
batte to avoid oxidization.
2. Install the device to faucet
Introduction
The smart garden irrigation control can be controlled remotely from anywhere via Woox
home app, it can also work with other WOOX sma products.
Requirement to use
1. WOOX Home app
2. WLAN-enabled router: 2.4GHz (Separate band)
English

Set up Sma Garden Irrigation Control to WOOX Home app
1. Download and install the app "WOOX Home" from Apple App Store or Google Play Store on your
smartphone.
2. Open bluetooth on smartphone.
3. Enable bluetooth and location permission for WOOX Home app, so that the app can nd Smart
Garden Irrigation Control via bluetooth.
4. Launch the app "WOOX Home".
5. Create a new account or log in to your existing account.
6. Ensure the indicator light is ashing in red. If the indicator light isn't ashing: hold and press the
reset button above 5 seconds until the indicator light starts ash in red.
7. Tap “+” to add the device.
8. The Smart Garden Irrigation Control will appear on the app. If Smart Garden Irrigation Control does
not appear, please check if the bluetooth and location permission of WOOX Home app are enabled
in smartphone settings.
9. Select the Smart Garden Irrigation Control and continue.
10. Conrm the Wi-Fi network and password.
Note: only 2.4GHz Wi-Fi is supported.
11. The app will now search for the device and register it to your account.
12. Enter the device name.
Note: The device name will also be used by Amazon Alexa and Google Home.
Voice control command
"Alexa, open <device name>"
"Alexa, close <device name>"
"OK Google, turn on <device name>"
"OK Google, turn off <device name>"
English

Installatie
1. Installeer de batterij
Stap 1: trek het batterijvak eruit
Stap 2: installeer 4 AA-batterijen
Stap 3: plaats het batterijvak terug
Nederlands
