WOOSIM PORTI-W40 Manuel utilisateur

http://www.woosim.com

All specifications are subjected to change without notice

MODEL

PORTI-W40

(4inch Mobile Printer)

Rev. 2.0

WOOSIM SYSTEMS Inc.

Add : #501, Daerung Technotown 3th,

448, Gasan-Dong, GeumChun-Ku,

Seoul, Korea

Tel : +82-2-2107-3700

Fax : +82-2-2107-3707

URL: http://www.woosim.com

Porti-W40 Rev. 2.0

http://www.woosim.com

PORTI-W40 portable printer operator’s manual.

The information contained in this manual is the property of Woosim System Inc. and

may not be reproduced in whole or in part without the prior written permission of

Woosim Systems Inc.

Trademark

a registered trademark of Woosim System Inc.

All other trademark are the properties of their respective companies.

Caution

Some semiconductor devices are easily damaged by static electricity. You should turn

the printer “OFF”, before you connect or removed the cable on the rear side, in order to

guard the printer against the static electricity.

If the printer is damaged by the static electricity, you should turn the printer “OFF”.

Notice

The contents of this manual are subject to change without notice.

Porti-W40 Rev. 2.0

http://www.woosim.com

Introduction

The PORTI-W40 is suitable designed for use with a growing variety of mobile

devices. IrDA/Serial or Bluetooth/Serial interfaces make the PORTI-W40 the perfect

comrade for applications such as point of transaction warehousing, distribution, point

of sales, hospitality, gaming and healthcare.

The general features of PORTI-W40 printer are as follows:

uPocket size (138mm x 88.5mm x 45.2mm).

uLight weight(408g) for true mobility.

uVery silent printing thru direct thermal printing method.

uHigh speed (50mm/sec, MAX)

uHigh resolution (203dpi, 8dot/mm)

uUART(RS-232C or TTL), Bluetooth Ver2.1 + EDR,

IrDA Ver1.0(SIR)[option], USB[optional] Interface

uIntuitive LED’s indicate Power(on/off),Error and Battery status

uSupport text and graphic printing

uEasier paper roll loading by CLAMSHELL design.

uPrinter door open & Paper-out sensor

uEasier maintenance with self-diagnostic.

uIn field programming – Update Firmware, Download Fonts and Logos

uMicrosoft Windows 98 / ME / 2000 / XP / VISTA / 7 compatible.

uFree fall: 1 meter onto concrete (option 1.5 meter)

uFlow control : Software (XON/XOFF)

※Hardware flow control not supported in printer.

uAgency Approvals

Porti-W40 Rev. 2.0

http://www.woosim.com

Operating Precautions

Please follow the precautions below to enjoy and maintain the full performance of

the printer.

Using the Printer

● Be careful not to drop or bump the printer on a hard surface.

● Do not install the printer in direct sunlight or such areas.

Suitable environment for the use of the printer is as follows:

◆Operating temperature :-10°C to 50°C

◆Relative humidity : 10% to 90% (No condensation)

● Do not install the printer near devices that generate strong

electromagnetic fields such as a copy machine.

● Do not open the platen cover during printing .

● Do not remove or reinstall the communication cable during printing

or transmission.

● Do not touch the connectors of the communication during printing.

● Switch the POWER OFF when not in use.

● Do not use alcohol or other solvent.

●The AC adapter, the battery charger and the battery pack may

become warm when in use. This is normal and is not a malfunction.

● When the battery pack is used at low temperature, the length of time

the printer can be used may be shortened.

uThermal Paper Handling

● Store the thermal paper in a cool, dry and dark place.

● Do not rub the paper with hard object.

● Do not leave the paper with hard object.

● Do not allow plastic film, erasers, or adhesive tape to touch the paper

for long periods.

● Do not stack the thermal paper with diazo copies immediately

after copying or wet-type copies.

● Do not use chemical glue.

●Always use the clean thermal paper.

Porti-W40 Rev. 2.0

http://www.woosim.com

Note

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 the FCC Rules.

These limits are designed to provide reasonable protection against harmful

interference in a residential installation.

These equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation.

If this equipment does cause harmful interference to radio or television reception ,

which can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help.

Porti-W40 Rev. 2.0

http://www.woosim.com

CONTENTS

1. Outline ............................................................................................................................................7

1.1. Model classifications ............................................................................................................7

1.2. Product Part Number System................................................................................................7

1.3. Specifications........................................................................................................................8

2. Setting up the printer ..................................................................................................................10

2.1. Printer & Accessories .........................................................................................................10

2.2. Printer Features...................................................................................................................11

2.2.1. Part name .................................................................................................................11

2.2.2. Dimensions ..............................................................................................................11

2.3. Replacing paper roll............................................................................................................12

2.4. Power supply ......................................................................................................................14

2.4.1. Internal power supply ..............................................................................................14

2.4.2. Installing the Battery................................................................................................14

2.4.3. Recharging the battery pack.....................................................................................15

2.5. Set operation mode .............................................................................................................16

3. Interface........................................................................................................................................26

3.1. UART(RS-232C or TTL) or USB ......................................................................................26

3.2. Infrared data communication..............................................................................................27

3.3. Bluetooth ............................................................................................................................28

4. Using the printer..........................................................................................................................29

4.1. Control panel ......................................................................................................................29

4.2. Self test ...............................................................................................................................30

5. Consumable parts........................................................................................................................31

5.1. Recommended paper...........................................................................................................31

5.2. Printing position..................................................................................................................31

Porti-W40 Rev. 2.0

http://www.woosim.com

PORTI-W40 ( ) ( )

Model Name

Interface

None : IrDA/UART

BT : Bluetooth/UART

U : USB/UART

Power

None : DC 8.4V

Model name / Interface Spec.

Example) 1. Porti-S40 UART/Bluetooth Part No. ⇒S40/A1

2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1

S40

SC30

W25

Wired Wireless

A RS-232C 1 Bluetooth

B TTL 2 IrDA

C USB 0 None

D RS-485

E Parallel

Z None

Porti-W40 Rev. 2.0

http://www.woosim.com

Item Specification

Printing method Direct thermal line printing

Characters per line 92cpl (MAX)

Character size Eng. : 9*24dots, 12*24dots Kor. : 16*24dots, [24*24dots]

Optional Characters Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Tukish, Greek,

Japanese, Persian, Latin9 and Others upon request.

Resolution 203dpi, 8dots/mm

Print width 4-inch (104mm, 832dots)

Printing speed 50mm / sec (MAX)

Dimensions 138 x 88.5 x 45.2 mm

Weight 408g (Including battery & roll paper)

Interface UART(RS-232C or TTL), Bluetooth Ver2.1 + EDR,

IrDA Ver1.0 (SIR) [option], USB[option]

Paper supplied Thermal roll paper (113mm wide, 38ø)

Barcode supplied

1-dimension : Code128, Code39, I2/5, Code93, UPC, EAN, KAN,

JAN, CODABAR

2-dimension : PDF417, QR Code, DATA Matrix

Black mark Support black mark detection

H/W Spec. MCU : 32bits RISC, FLASH : 4M bytes, RAM : 8M bytes

Receive buffer size 1M bytes

Battery Rechargeable 7.4V DC, 1400mAh(Li-ion)

Battery duration 1 hour continuous printing

Battery Charger Input (100~250VAC, 50~60Hz)

Output(8.4VDC/0.8A), 4hours full charge time

( continue…)

Porti-W40 Rev. 2.0

http://www.woosim.com

Item Specification

Environment

Conditions

Temperature -10°C ~ 50°C (operating)

-10°C ~ 70°C (storage)

Humidity 30% - 80% (operating)

10% - 90% (storage)

MCBF (Mean Cycle

Between failure)

Mechanical 37,000,000 lines

Head Approximately 50 Km

< Table 1 >

Porti-W40 Rev. 2.0

http://www.woosim.com

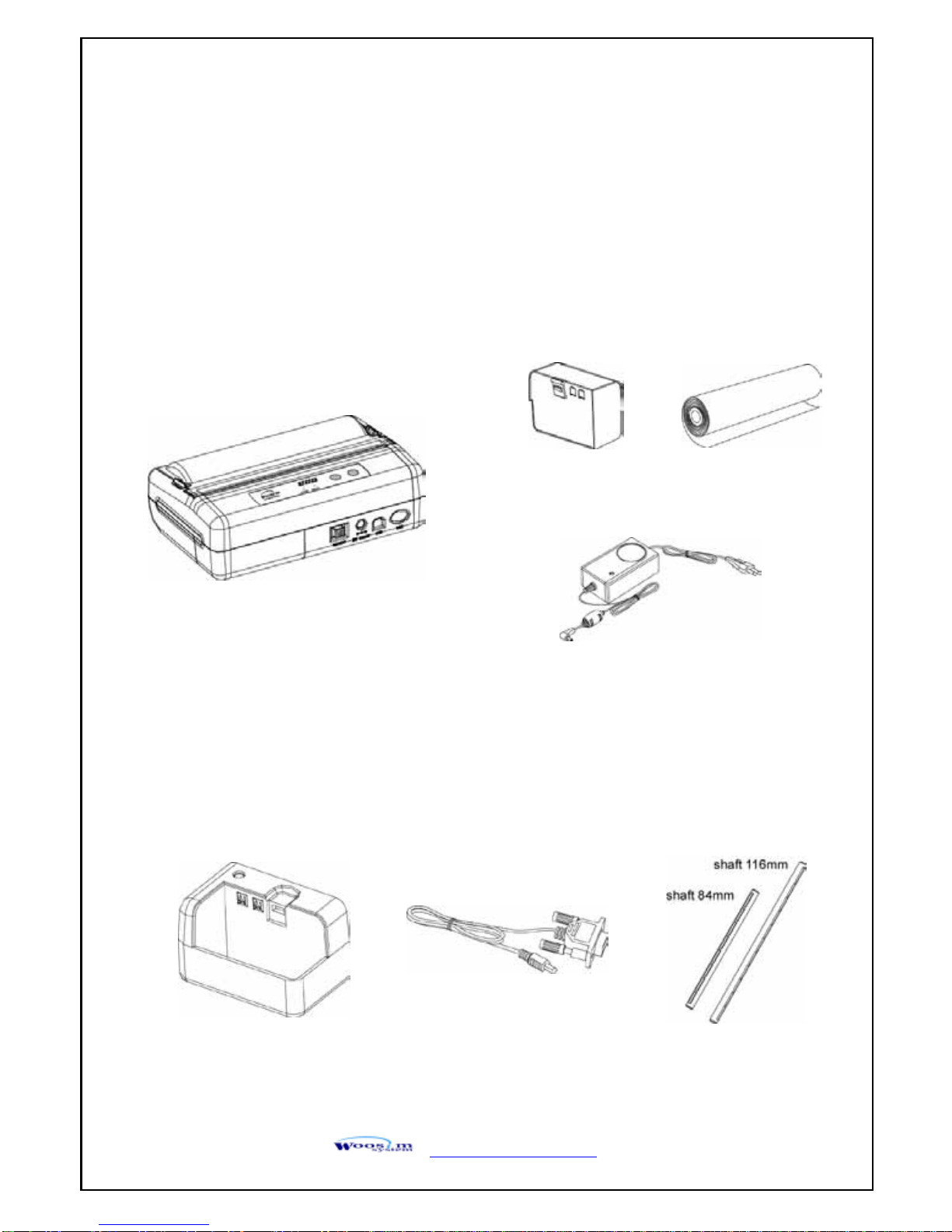

Your printer box should include these items. If any items are damaged or missing,

please contact your dealer for assistance.

PORTI-W40

Battery pack Thermal roll paper

Battery charger adaptor

SHAFT

Communication cable

▼

OPTIONAL

Battery holder
