Chapter 1.

Lubrication Procedure

Introduction

The only maintenance required for the ELA is lubricating the roller screw, gears, and bearings every

32,000 hours in accordance with the descriptions below.

Explosion Hazard

Do not remove covers or connect/disconnect electrical connectors

unless power has been switched off or the area is known to be non-

hazardous

Substitution of components may impair suitability for Class 1,

Division 2 or Zone 2 applications.

To prevent possible serious personal injury, or damage to equipment,

be sure all electric power, hydraulic pressure, and gas pressure have

been removed from the actuator before be

innin

maintenance.

Lift or handle the actuator only by using the specific lifting locations

as noted on the installation drawing. The product weight is stated in

the specifications section.

Due to typical noise levels in turbine environments, hearing

protection should be worn when working on or around the electric

actuator.

Never put your hands near the output shaft. There are moving

components with sharp edges, tight clearances, and large closing

forces. Actuator position should only be verified by using the visual

position indicator on the side of the actuator clevis.

The surface of this product can become hot enough or cold enough to

be a hazard. Use protective gear for product handling in these

circumstances. Temperature ratings are included in the specification

section of this manual.

Use only Woodward-approved grease to lubricate the roller screw,

gears and bearing in this actuator. Use of any other grease will reduce

performance and reliabilit

. Woodward lubrication kits are available.

Released

Manual 35128 ELA21/28 Lubrication Procedure

Woodward 6

This procedure contains instructions on the proper techniques and equipment for proper lubrication of the

Electric Linear Actuator (ELA). Images illustrate where the grease ports are located and the adaptor

properly installed in the actuator to ensure efficient and effective application of adequate lubricants to

keep the ELA working according to manufacturer’s specifications. Prior to beginning the procedure,

Figures 7-2 and 7-3 show you where the grease ports are located.

Grease Kit

This kit will arrive in a bag with a part number and revision number printed on the outside of the bag.

Each kit contains multiple syringes with a premeasured amount of grease. Do not refill the syringes.

Please refer to the product manual for the correct grease kit part number or contact your Woodward

service provider to confirm the recommended grease kit. The correct grease kit should be used for each

corresponding actuator, ensuring that grease is not cross contaminated.

For the shallow grease ports represented in Figures 1-1 and 1-2, insert the syringe with the adapter

attached and depress the plunger until the recommended volume of grease is dispensed into the grease

port. Reuse the adaptor for each syringe during the greasing operation.

Grease Port Locations

The ELA has six grease ports: two ports on the side, two ports on top, and one port on the bottom of the

actuator base. Use these to lubricate the gear and bearing assembly. One port (Grease Port 6, Fig. 1-2)

is located on the actuator body and is where to lubricate the roller screw assembly.

Figure 1-2 shows the locations of these ports. All of the plugs require a ¼-inch hex wrench to remove

them prior to installing the re-greasing adaptor 1249-1338.

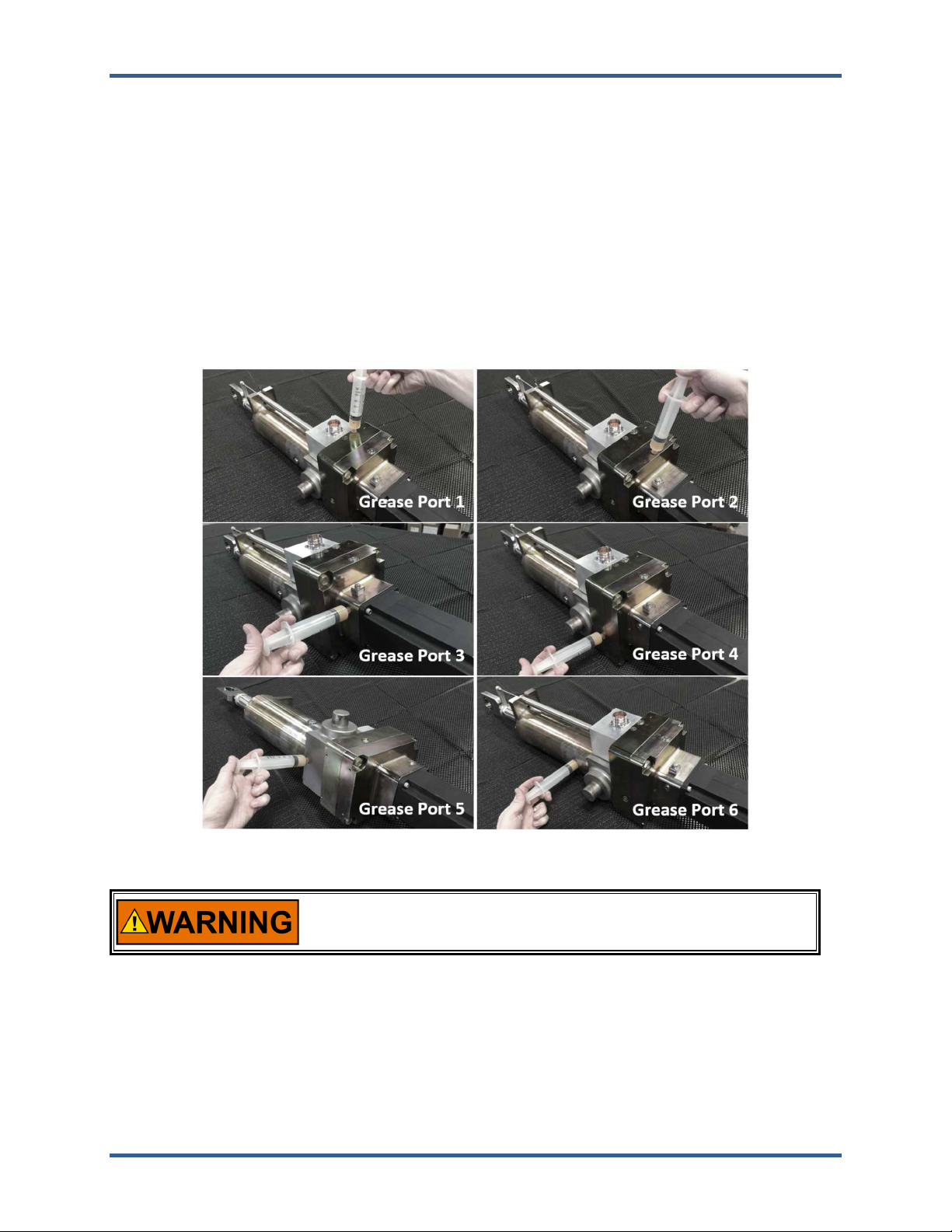

Figure 1-1. Grease Port Locations

There are two different procedures to lubricate the ELA. One is lubricating the gear and bearing assembly

and two is lubricating the roller screw assembly.

Released

Manual 35128 ELA21/28 Lubrication Procedure

Woodward 7

Gear and Bearing Lubrication Procedure (Ports 1-5)

Lubricating the Gear and Bearing Assembly (See Fig. 1-2)

1. Clean the outside of the actuator to ensure that no debris gets inside the actuator during the

lubrication process. Any debris in the gears and bearings will reduce its life.

2. Remove the plugs and inject grease into each port using the Grease Syringe 8923-2283 as displayed

in Figure 7-3 below.

3. Set the plugs aside and keep clean, ensuring that the inside plug surface is not scratched or marred.

4. Attach the thread connector of the grease syringe to the threaded bearing grease port. Fully seat the

fitting.

5. Inject 4 cm³ of Woodward approved grease into the bearing grease port.

6. Remove the grease syringe from the bearing port and install the port plug. Torque to 2.5–3.2 Nꞏm /

22–28 lb.-in.

7. Repeat this process for all five gear/bearing access ports.

Figure 1-2. Greasing Technique

Wear protective eyewear and gloves during this maintenance

procedure.

Released

Manual 35128 ELA21/28 Lubrication Procedure

Woodward 8

Roller Screw Lubrication Procedure (Port 6)

Lubricating the Roller Screw Assembly (See Fig. 1-3)

1. Clean the outside of the actuator to ensure that no debris gets inside the actuator during the

lubrication process. Any debris on the internal components will reduce its life.

2. Command the actuator to the 0% position so that the Roller Screw Port Plug will align with the Roller

Screw Grease Port per Figure 7-3.

3. Remove the roller screw port plug with a 1/4 inch hex wrench.

4. Set the plugs aside and keep clean, ensuring that the inside plug surface is not scratched or marred.

5. Attach the thread connector of the grease syringe to the threaded grease port of the roller screw.

Fully seat the fitting.

6. Inject 4 cm³ of Woodward approved grease (3901-1003) into the roller screw grease port.

7. Remove the grease syringe from the roller screw grease port and install the roller screw port plug and

torque the port plug to 2.5–3.2 Nꞏm / 22–28 lb.-in (Figure 7-1).

Figure 1-3. Roller Screw Assembly Lubrication

Released

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Woodward Contrôleurs

Woodward

Woodward easYgen-1600 Manuel utilisateur

Woodward

Woodward APECS DPG-2101-001 Manuel utilisateur

Woodward

Woodward ProTech-SX 8237-1242 Manuel utilisateur

Woodward

Woodward SPM-D2-11 Manuel utilisateur

Woodward

Woodward 505E Manuel utilisateur

Woodward

Woodward 2301A Manuel utilisateur

Woodward

Woodward UG-25+ Manuel utilisateur

Woodward

Woodward SEG PCM1x Manuel utilisateur

Woodward

Woodward 505 Manuel utilisateur

Woodward

Woodward L-Series Manuel utilisateur

Woodward

Woodward 2301E Manuel utilisateur

Woodward

Woodward VariStroke-I Manuel utilisateur

Woodward

Woodward 723PLUS Manuel utilisateur

Woodward

Woodward 2301D Manuel utilisateur

Woodward

Woodward 723PLUS Instructions d'utilisation

Woodward

Woodward EPG 512 Manuel d'utilisation et d'entretien

Woodward

Woodward DTSC-200 Manuel utilisateur

Woodward

Woodward easYgen-1700 Manuel utilisateur

Woodward

Woodward ProAct ITB Manuel utilisateur

Woodward

Woodward 723PLUS Manuel utilisateur

Woodward

Woodward 94911 Manuel utilisateur

Woodward

Woodward EGCP-2 Manuel utilisateur

Woodward

Woodward TecJet 110 Manuel utilisateur

Woodward

Woodward DTSC-200A Mode d’emploi

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
