PARTS LIST

Phone: 1-360-734-3482 • On-Line Technical Support: [email protected]

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT

THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC. Printed in Taiwan

MODEL W1702

3 HP SHAPER

-B-

PARTS

-C-

52 X1702052 READ MANUAL WARNING

53 X1702053 PINION SHAFT

55 XPSB77 CAP SCREW 3⁄8"-24 X 1"

56 X1702056 FENCE ADJ. SCREW

57 XPSS02 SET SCREW 5⁄16"-18 X 3⁄8"

58 X1702058 ADJUSTMENT BRACKET

59 X1702059 LOCKING HANDLE 5⁄16"-18

60 XPSB04 CAP SCREW

1⁄4"-20 X 1⁄2"

61 XPW06 FLAT WASHER 1⁄4"

62 X1702062 ADJUSTMENT KNOB

63 X1702063 SCALE

64 X1702064 SCALE

65 XPS07 PHLP HD SCRW 1⁄4"-20 X 3⁄8"

66 XPSS03 SETSCREW 1⁄4"-20 x 3⁄8"

67 X1702067 SCALE

68 XPFH07 PHLP HD SCR 5⁄16"-18 X 11⁄4"

69 X1702036 POWER CORD, 3 WIRE

70 X1702070 ADJUSTMENT TUBE

72 X1702072 COLOR STRIPE

73 X1702073 LABEL (W1702)

78 X1702035 MOTOR POWER CORD, 5 WIRE

79 XPHTEK1 SELF TAPPING SCREW

80 XPW02 FLAT WASHER 3⁄8"

81 XPW02 FLAT WASHER 3⁄8"

82 XPW06 FLAT WASHER 1⁄4"

83 XPSB17 CAP SCREW 1⁄4"-20 x 3⁄8"

85 X1702085 BARREL SCREW

86 XPFH21 FLAT HD SCR 10-24 x 3⁄4"

87 XPB24 HEX BOLT 3⁄8"-16 X 11⁄4"

88 XPS01 PHLP SCREW 10-24 X 1⁄2"

89 XPN07 HEX NUT 10-24

90 XPTLW02M EXT TOOTH WASHER 5mm

91 XPS07 PHLP SCREW 1/4"-20 X 3/8"

92 X1702092 SPECIAL COVER SCREW

93 X1702093 STRAIN RELIEF 16

601 X1702601 CAST LOGO

603 XPS50M PHLP HD SCR M3-0.5X12

1X1702001 STAND

2X1702002 TABLE WING

3XPS07 PHLP SCREW 1/4"-20 X 3/8"

4XPB21 HEX BOLT 3/8"-16 X 3/4"

5XPLW04 LOCK WASHER 3/8"

6X1702006 MOTOR COVER

7X1702007 TABLE

9X1702009 TABLE INSERT

10 X1702010 TABLE INSERT

11 X1702011 TABLE INSERT

12 X1702012 STARTING PIN

14 XPW02 FLAT WASHER 3/8"

16 X1702016 HOLD-DOWN BRACKET

17 X1702017 POINTER

18 X1702018 FENCE MOUNT (RIGHT)

19 X1702019 LOCK HANDLE

20 X1702020 PLASTIC FACING (LEFT)

21 X1702021 PLASTIC FACING (RIGHT)

22 X1702022 T-NUT

23 X1702029 WOOD FACING

25 XPSS04 SETSCREW 1⁄4"-20 x 5⁄16"

28 XPW06 FLAT WASHER 1⁄4"

29 X1702029 MAIN FENCE HOUSING

30 X1702030 KNURLED KNOB

31 X1702031 FENCE MOUNT (LEFT)

32 X1702032 BRACKET

33 X1702033 MAGNETIC SWITCH

35 X1702035 FWD⁄REV SWITCH

36 X1702036 BRACKET

37 X1702037 SWITCH BOX

39 X1702039 SWITCH BOX COVER

40 X1702040 SCALE

42 X1702042 GROMMET

46 X1702046 MACHINE ID/WARNING

48 X1702048 UNPLUG MACHINE WARNING

49 X1702049 ELECTRICITY WARNING

51 X1702047 SAFETY GLASSES WARNING

REF PART# DESCRIPTION

PARTS

REF PART # DESCRIPTION

-D-

PARTS

-E-

REF PART # DESCRIPTION

101 X1702101 HANDLE

102 X1702102 HANDWHEEL

103 XPB09 HEX BOLT 5⁄16"-18 x 1⁄2"

104 XPSS15 SETSCREW 3⁄8"-16 x 3⁄8"

105 XPSS08 SETSCREW 5⁄16"-18 x 1⁄2"

106 X1702106 COLLAR

107 XPSB07 CAP SCREW 5⁄16"-18 x 3⁄4"

108 X1702108 SHAFT MOUNT

109 X1702109 BUSHING

111 X1702111 WORM SHAFT

113 XP51103 BEARING

114 X1702114 GIB

115 X1702115 ELEVATION HOUSING

116 XPN02 HEX NUT 5⁄16"-18

118 XPB72 HEX BOLT 1⁄2"-13 x 2"

119 XPLW07 LOCK WASHER 1⁄2"

120 XPLN07 LOCK NUT 5⁄8"-11

121 X1702121 GEAR 25T

122 XPK06M KEY 5 x 5 x 10mm

127 XPW07 FLAT WASHER 5⁄16"

128 X1702128 HAND KNOB 3⁄8"-16

129 XPB25 HEX BOLT 3⁄8"-16 x 13⁄4"

131 XPB19 HEX BOLT 1⁄4"-20 x 1⁄2"

132 XPW06 FLAT WASHER 1⁄4"

133 X1702133 “L” BRACKET

134 W1702134 POINTER

135 XPW07 FLAT WASHER 5⁄16"

136 X1702036 ELEVATION LEAD SCREW

137 X1702137 CARTRIDGE SLIDE

138 XPB15 HEX BOLT 5⁄16"-18 x 3⁄8"

139 X1702146 V-BELT 7m690

141 XPB22 HEX BOLT 5⁄16"-18 x 13⁄4"

142 XPW07 FLAT WASHER 5⁄16"

143 XPLW01 LOCK WASHER 5⁄16"

144 XPK06M KEY 5 x 5 x 10

145 X1702145-2 CAPACITOR COVER

147 X1702147 MOTOR PULLEY

148 XPW01 FLAT WASHER 1⁄2"

149 XPLW07 LOCK WASHER 1⁄2"

150 XPSS02 SETSCREW 5⁄16"-18 x 3⁄8"

151 X1702151 MOTOR MOUNT PLATE

152 X1702152 MOTOR 3 HP

153 X1702145-3 WIRE BOX COVER

154 X1702145-4 MOTOR FAN

155 X1702145-5 MOTOR FAN COVER

156 XPSS20 SETSCREW 5⁄16"-18 x 11⁄2"

157 XPB55 HEX BOLT 1⁄2" - 13 x 11⁄2"

158 X1702137 CABLE CLAMPS

159 X1702152-1 START CAPACITOR

161 XPW01 FLAT WASHER 1⁄2"

REF PART # DESCRIPTION

PARTS

-F-



PARTS

-G-

202 XPR15M EXT RETAINING RING 30mm

204 X1702204 SPINDLE CARTRIDGE

205 XPK20M KEY 5 x 5 x 15mm

206 XP6205 BEARING 6205 ZZ

207 X170207 INT RETAINING RING 25mm

209 X170209 BEARING HOUSING

210 XPR14M EXT RETAINING RING 70mm

211 X1702211 PULLEY

212 X1702212 TOOTHED WASHER

213 X1702213 SPANNER NUT

214 X1702214 1⁄2" SPINDLE

215 X1702215 3⁄4" SPINDLE

216 X1702216 1" SPINDLE

217 X1702217 DRAW BAR

218 X1702218 DRAW BAR NUT

219 X1702219 1⁄2"SPINDLE NUT SET

220 X1702220 3⁄4" SPINDLE NUT SET

221 X1702221 1" SPINDLE NUT SET

222 X1702222 PIN

231 X1702231 1⁄2"SPINDLE WASHER

232 X1702232 3⁄4"SPINDLE WASHER

233 X1702233 SPINDLE WRENCH SET

234 X1702214A SPINDLE CARTRIDGE KIT

236 X1702236 1" SPINDLE WASHER

237 X1702237 HOUSING CAP

238 XPS01 PHLP HD SCR 10-24 x 1⁄2"

- W1161 1⁄2" ID x 1" OD x 1⁄2" OH SPACER

- W1162 1⁄2" ID x 1" OD x 3⁄4" OH SPACE

- W1164 3⁄4"IDx1

1⁄4" OD x 1⁄4"OH SPACER

-W1165 3⁄4"IDx 11⁄4" OD x 3⁄8"OH SPACER

-W1166 3⁄4"IDx 11⁄4" OD x 1⁄2"OH SPACER

-W1167 3⁄4"IDx 11⁄4" OD x 3⁄4"OH SPACER

-W1169 1" ID x 11⁄2" OD x 1⁄4"OH SPACER

-W1170 1" ID x 11⁄2" OD x 3⁄8"OH SPACER

-W1171 1" ID x 11⁄2" OD x 1⁄2"OH SPACER

-W1172 1" ID x 11⁄2" OD x 3⁄4"OH SPACER

-W1173 1" ID x 11⁄2" OD x 1" OH SPACER

-W1163 1⁄2" ID x 1" OD x 1" OH SPACER

-W1168 3⁄4"IDx1

1⁄4" OD x 1" OH SPACER

-W1159 1⁄2" ID x 1" OD x 1⁄4"OH SPACER

-W1160 1⁄2" ID x 1" OD x 3⁄8"OH SPACER

ID: INSIDE DIAMETER

OD: OUTSIDE DIAMETER

OH: OVERALL HEIGHT

-NOT SHOWN ON DIAGRAM

REF# PART # DESCRIPTION REF# PART # DESCRIPTION

PARTS

-H-

PARTS

-I-

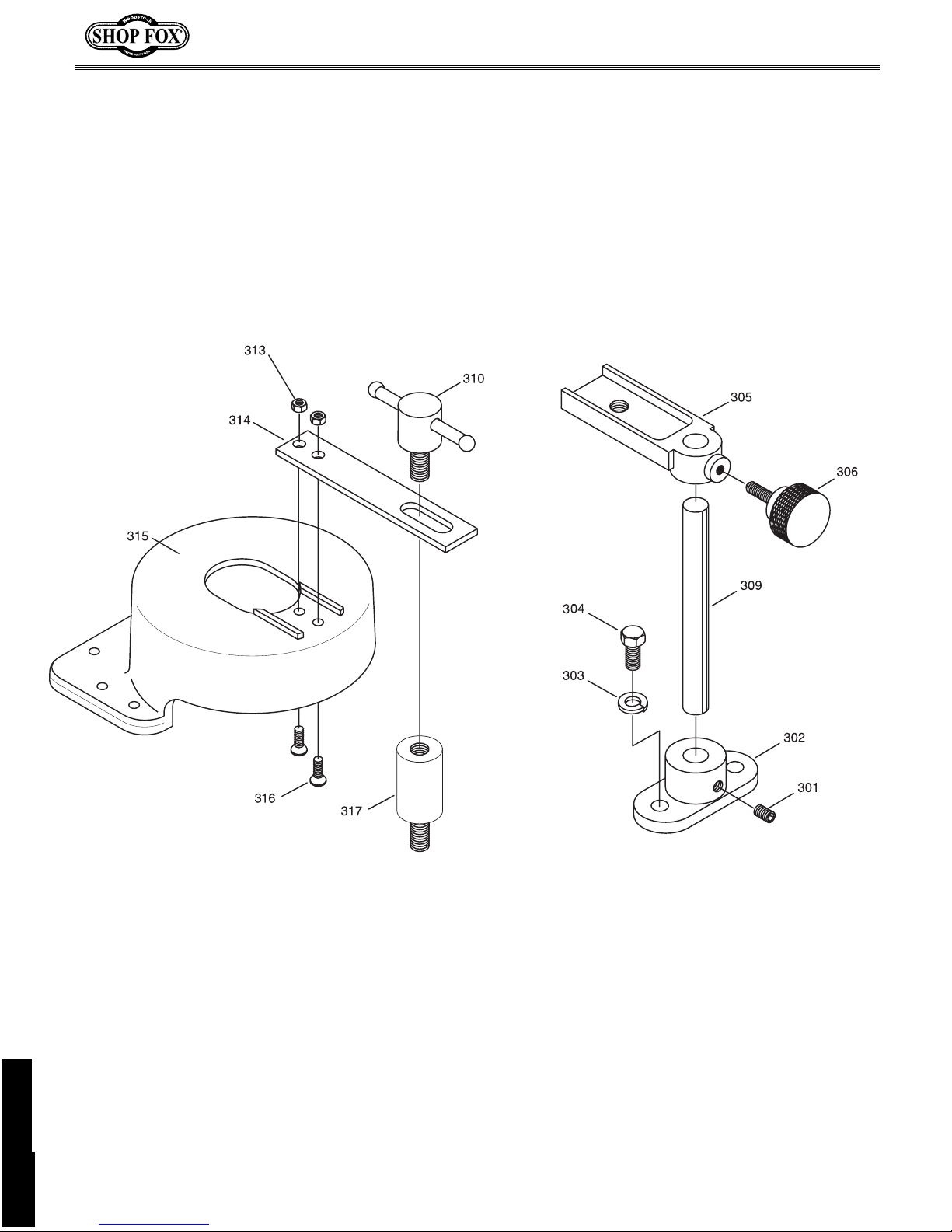

301 XPSS02 SETSCREW 5⁄16"-18 x 3⁄8"

302 X1702302 SHAFT MOUNT

303 XPW02 LOCK WASHER

3⁄8"

304 XPB18 HEX BOLT 3⁄8"-16 x 1"

305 X1702305 EXTENSION BRACKET

306 X1702306 LOCK KNOB W/SHAFT

309 X1702309 SHAFT

310 X1702310 “T” HANDLE PEG

313 XPN02 HEX NUT 5⁄16"-18

314 X1702314 EXTENSION BAR

315 X1702315 GUARD

316 XPFH14 FLAT HD SCRW 5⁄16"-18 x 3⁄4"

317 X1702417 SUPPORT

REF PART # DESCRIPTION REF PART # DESCRIPTION

PARTS

-J-

PARTS
