Woodline SHELL BASE KIT Manuel utilisateur
Distributor: ShadeScapes Americas TEL: 970.527.7070 www.shadescapesusa.com [email protected] © PROTRADE & WOODLINE cc. 2010
www.woodline.co.za
1|4
NOT INCLUDED
4 x M10 x 20 BOLT
4 x M10 NUT INSERT
8 x M8 NUT INSERT 8 x M8 x 16 BOLT
8 x M8 SKIFFY PLUG
WOODLINE
SHELL BASE KIT
800 x 800 mm (31.5“ SQ)
(SEE OVERLEAF FOR ASSEMBLY DIAGRAM.)
PARTS LIST
1 x SHELL BASE 4 x HANDLE
1 x REINFORCING WIRE MESH
1 x CENTRE POLE
SPIGOT
PICOLLO
- OR -
Item Code: 13962
Item Code: 00322
Item Code: 14031
Item Code: 13965
Item Code: 13969
Item Code: 14030
Item Code: 05836
Item Code: 09180
Item Code: 02890
PACKED WEIGHT &
DIMENSIONS
Height: 3.94 inches (100 mm)
Width: 31.50 inches (810 mm)
Depth: 31.50 inches (810mm)
Weight: 17.64 pounds (8.00 Kg)
Distributor: ShadeScapes Americas TEL: 970.527.7070 www.shadescapesusa.com [email protected] © PROTRADE & WOODLINE cc. 2010
www.woodline.co.za
2|4
WOODLINE
SHELL BASE KIT
800 x 800 mm (31.5“ SQ)
ASSEMBLY INSTRUCTIONS
STEP 1
STEP 2
STEP 3
STEP 4 STEP 8
STEP 7
STEP 6
STEP 5
REMOVE SHELL BASE FROM BOX & TURN BASE
UPSIDE DOWN ON BOX. * See Notes
INSERT 8 M8 BOLTS INTO HOLES ON 4 SIDES
OF BASE AND THEN SCREW IN M8 NUT INSERTS
AS ILLUSTRATED AND TIGHTEN BY HAND.
INSERT 4 M10 BOLTS INTO HOLES IN MIDDLE
OF BASE AND THEN SCREW IN M10 NUT INSERTS
AS ILLUSTRATED AND TIGHTEN BY HAND.
PLEASE MAKE SURE THAT ALL NUTS ARE IN THE
CORRECT LOCATION M8 BOLTS ON OUTER RIM
AND M10 BOLTS IN CENTRE.
PLEASE MAKE SURE THAT ALL NUT INSERTS ARE
CONFIGURED AS INDICATED IN ILLUSTRATION
MIX THE READY MIX CONCRETE AS PRESCRIBED BY
MANUFACTURER AND FILL BASE HALF WAY.
FIRMLY PLACE THE REINFORCING MESH ON
CONCRETE MIXTURE.(MORE OR LESS THE MIDDLE)
POUR IN MORE CONCRETE & GRAVEL MIX.
TO BRIM OF THE SHELL BASE.
Use box as working surface to avoid
scratching or damages to shell base.
NOTES
Distributor: ShadeScapes Americas TEL: 970.527.7070 www.shadescapesusa.com [email protected] © PROTRADE & WOODLINE cc. 2010
www.woodline.co.za
3|4
WOODLINE
SHELL BASE KIT
800 x 800 mm (31.5“ SQ)
ASSEMBLY INSTRUCTIONS
STEP 15
STEP 14
STEP 13
STEP 9
STEP 10
STEP 11
STEP 12
OR
COMPACT CONCRETE MIX & SCRAPE ACROSS THE
SURFACE TO ENSURE CONCRETE DOES NOT
PROTRUDE ABOVE BOTTOM OF THE BASE.
USE A DAMP CLOTH AND WIPE THE METAL RIM
AREA CLEAN.
LEAVE CONCRETE TO SET BEFORE YOU CONTINUE
TO STEP 12. (THIS SHOULD BE FOR 24-48 HOURS)
CAREFULLY TURN THE SHELL BASE OVER.
(YOU WILL REQUIRE ASSISTANCE OF AT LEAST
ONE OTHER PERSON AS THE WEIGHT IS +/- 230 lbs.
UNSCREW THE CENTER M10 BOLTS
UNSCREW THE M8 BOLTS ON THE RIM OF BASE
ATTACHE THE HANDLES USING THE M8 BOLTS AS
INDICATED IN THE DIAGRAM. ENSURE THE BOLT
ARE PROPERLY SECURED. HANDLES ARE USED FOR
LIFTING & MOVING OF SHELL BASE.
OR SCREW IN M8 SKIFFY PLUGS IN IF THE SHELL
BASE IS IN THE REQUIRED POSITION.
Distributor: ShadeScapes Americas TEL: 970.527.7070 www.shadescapesusa.com [email protected] © PROTRADE & WOODLINE cc. 2010
www.woodline.co.za
4|4
NOT INCLUDED
OR SPIGOT
CENTRE POLE
WOODLINE
SHELL BASE KIT
800 x 800 mm (31.5“ SQ)
ASSEMBLY INSTRUCTIONS

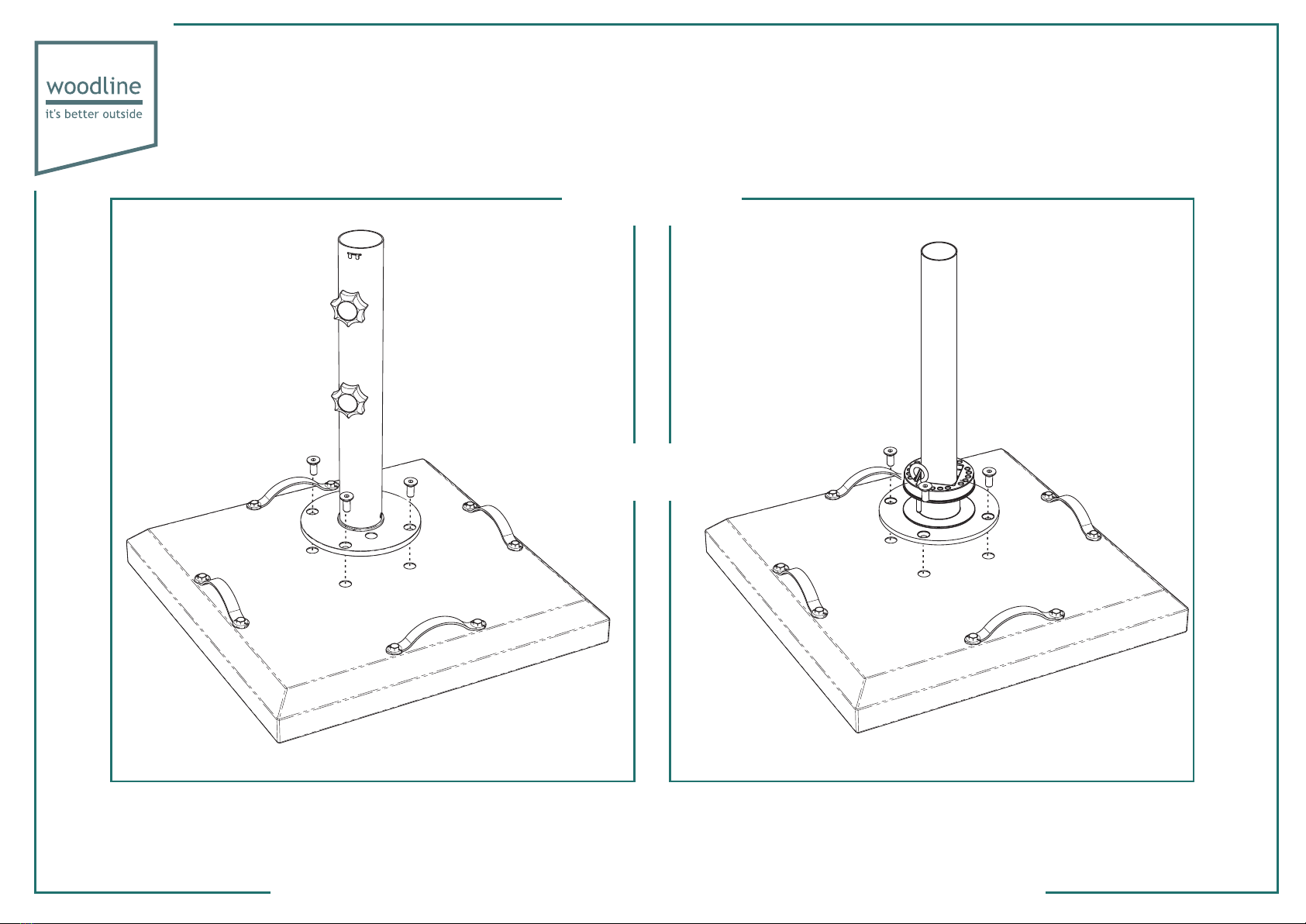

STEP 16
USE THE 4 COUNTER SUNK BOLTS AND ALLEN KEY TO TIGHTEN THE BASE
SHELL & SPIGOT OR CENTER POLE TOGETHER. ENSURE THE BOLTS ARE PROPERLY SECURED.
