Woodbridge BW5100S Instructions de montage

WOODBRIDGE

Customer Service Phone: 562-229-0088. (Monday - Friday 9 AM - 5 PM Pacific Time)

Or Email: [email protected]

www.woodbridgebath.com

20201208 REV. 1

WOODBRIDGE

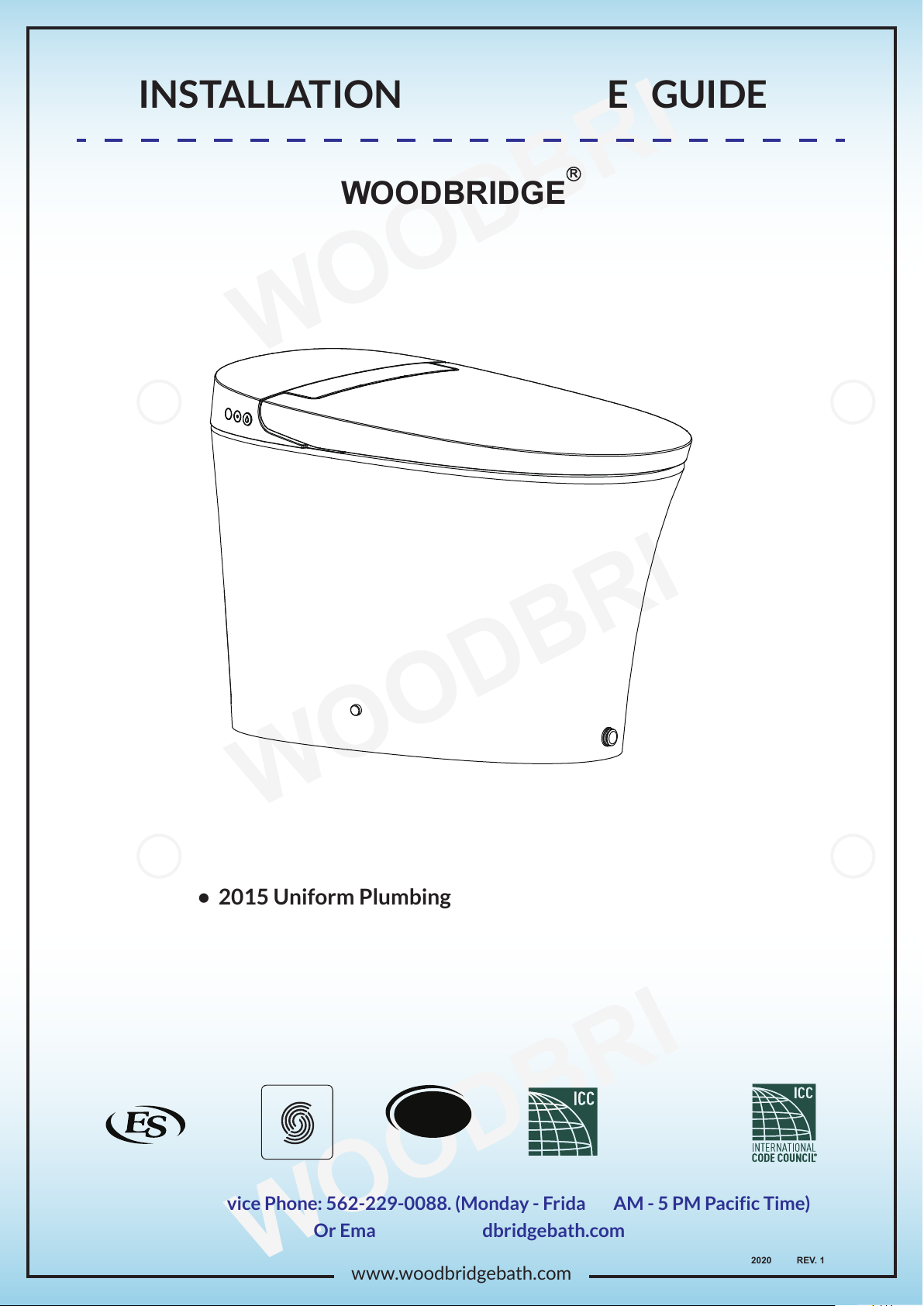

INSTALLATION AND CARE GUIDE

• 2015 Uniform Plumbing Code ( UPC )

• 2018 International Plumbing Code ( IPC )

• 2018 International Residential Code ( IPC )

• CSA B45.5 / IAPMO Z124-2017- Plastic Plumbing Fixtures

Compliance with the following codes & standard:

PREFERED

EDUCATION

PROVIDER

LISTED

ICC

SCC Accredited

CB-P/S

OCPS

Accrédité CCN

ANSI

ACCREDITED

ISO/IEC 17065

Product Certification Body

#1000

WASHLET TOILET BW5100S

WOODBRIDGE

Installation

www.woodbridgebath.com

WOODBRIDGE

Content

(Only apply to models with wave-to-flush function)

2.Replacement of battery

(Only apply to models with wave-to-flush function)

Installation of sensor module

3.Low voltage battery determination and replacement

Safety instructions

List of materials

Technical drawings

Parts identification

Installation of ceramic toilet

Previous preparation

Daily maintenance

1.Main unit care and maintenace

Emergency troubleshooting

1.Electricity and water supply cut-off

4.When the product is left unused for long time

The illustration of Main Unit Keys

Warranty Card

Maintenance Others

2.Maintenance of filter net

Technical specification

WOODBRIDGE

www.woodbridgebath.com 2

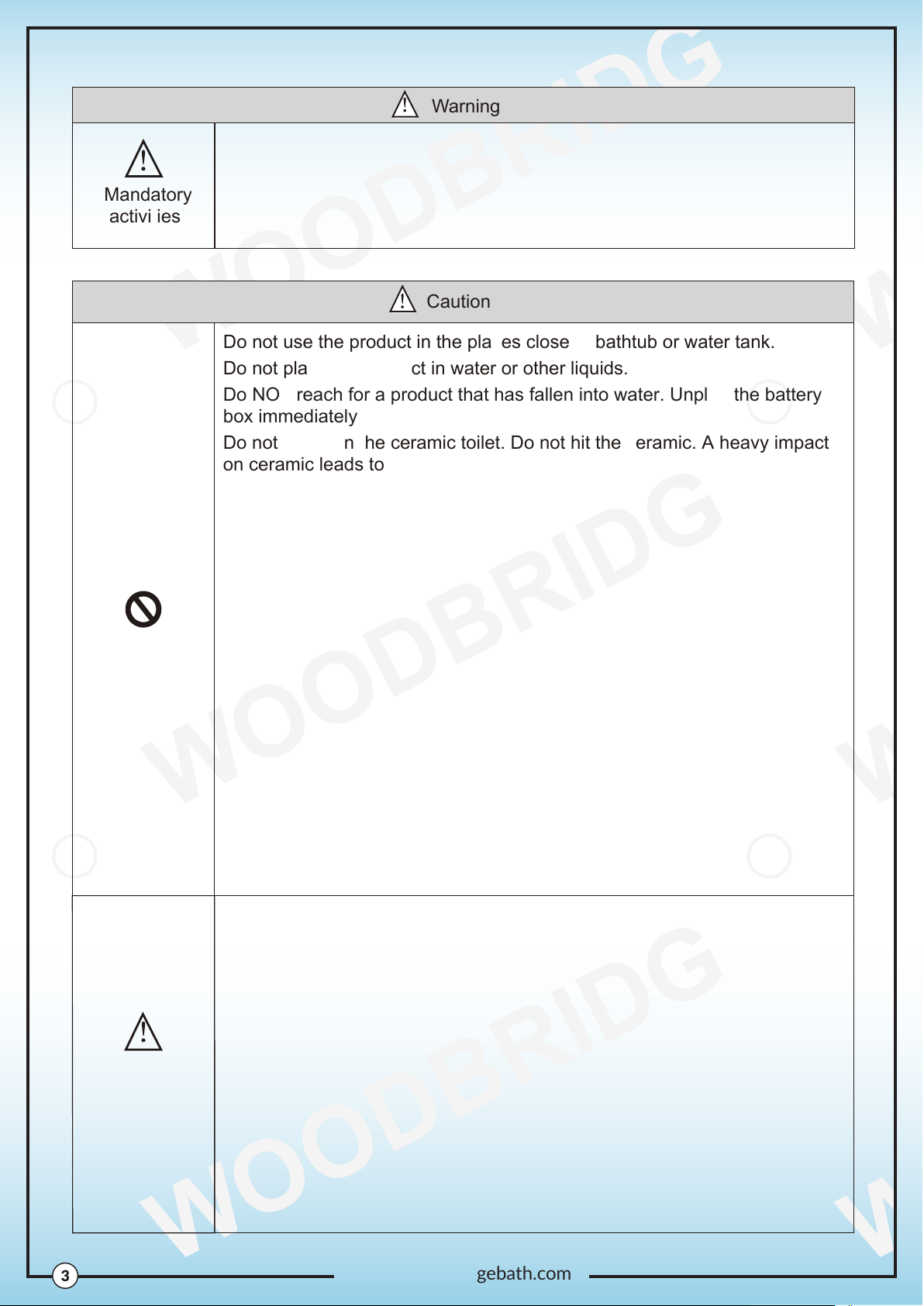

WOODBRIDGE Safety instructions

Symbol lllustration

Please read the instructions carefully before installation and keep it available for future

maintenance or reference.

Failure to observe this instruction can cause body injury and property damage.

Warning

Caution

Indicates that failure to follow the instruction may cause serious

injury or a fatal.

Indicates that failure to follow the instruction may cause body

injury or property damage.

Symbol lllustration

Symbol Indication

Prohibited activities

Mandatory activities

Do NOT disassemble, repair or modify this product by yourself,

otherwise it may cause fire or malfunction.

Do NOT handle the battery box plug with wet hands, otherwise it

may cause malfunction.

If the electric cord of battery box is damaged, it must be replaced by

the manufacturer, its service center or equivalent specialist to avoid

malfunction.

Do NOT pour water or detergent on the main unit or battery box plug,

otherwise it may cause fire or electric shock.

Warning

This product is factory equipped with a specific battery device.

Do NOT use any battery device other than the factory equipped

battery device, otherwise it may cause fire or malfunction.

This product is electric appliance, so it must be placed far away

from water. Please don’t drench urine and other liquid to it.

Do not position the product on its side or upside down while making

electrical connections with the battery box, otherwise it may cause

fire or burning.

Mandatory

activities

Do not install or use the product in wet places as steam room etc.

Do not throw cigarettes and other burning stuff into toilet, otherwise

it might cause malfunction.

WOODBRIDGE

www.woodbridgebath.com

Warning

Mandatory

activities

Caution

Do not use the product in the places close to bathtub or water tank.

Do not place the product in water or other liquids.

Do NOT reach for a product that has fallen into water. Unplug the battery

box immediately

Do not stand on the ceramic toilet. Do not hit the ceramic. A heavy impact

on ceramic leads to damage and water leakage.

Do not stand on product unit, seat and cover.

Do not use lacquer thinner, petrol, liquid medicine, detergent, insecticide,

toilet cleanser and scrubbing brush to clean the product.

Only use tap water or potable water; otherwise it may cause chafing.

Exposure to direct sunlight is prohibited.

This product is equipped with soft-closing seal cover. Heavy pressing or

pushing may damage the soft-closing damper.

Do not connect water supply to heater outlet. Make sure inlet water

temperature at 3~35℃,exceeding the specified range will result in the

built-in heating module not working.

Do not lean against the seat cover when using the product, to avoid damage.

Do not try flushing the newsprint,diapers, sanitary napkins and other items

easy to chock the toilet.

If this product is malfunctioning, stop using immediately, unplug the battery

box, turn off water supply, and contact the service provider.

Mandatory

activities

Never embed ceramic toilet base in cementitious material ( such as cement

mortar). It may lead to expansion crack.

When installing, disassembling, repairing, and maintaining the product,

you must unplug the power supply and close the water supply valve.

Do not use in an environment below 0 °C.

If this product will not be used for an extended period of time (over 3 days),

it is recommended to unplug the battery box, remove batteries, turn off

water supply, and drain any water in the product.

When used by people (including children) who lack physical, sensory,

intellectual abilities, or lack of experience and common sense,This product

needs to be used under the supervision of a person, and patients with heart

disease should use it with caution.

Do not let children play with this product.

To prevent damage caused by freezing, please implement warmth

measures to increase the temperature of the toilet.

When move the product from cold or wet environment into normal room

temperature, wait for 2 hours until the condensation water is fully volatilized.

Doing so can prevent the product from electrical short-circuit.

Only use the factory equipped battery box and 1.5V “AA” alkaline battery.

WOODBRIDGE

www.woodbridgebath.com 4

WOODBRIDGE

Battery box

Sensor module assembly (optional)

Main Unit Installation Cardboard

Installation Manual

Warranty Card

FlangeAngle Valve

Sealing Flange

Braided hose

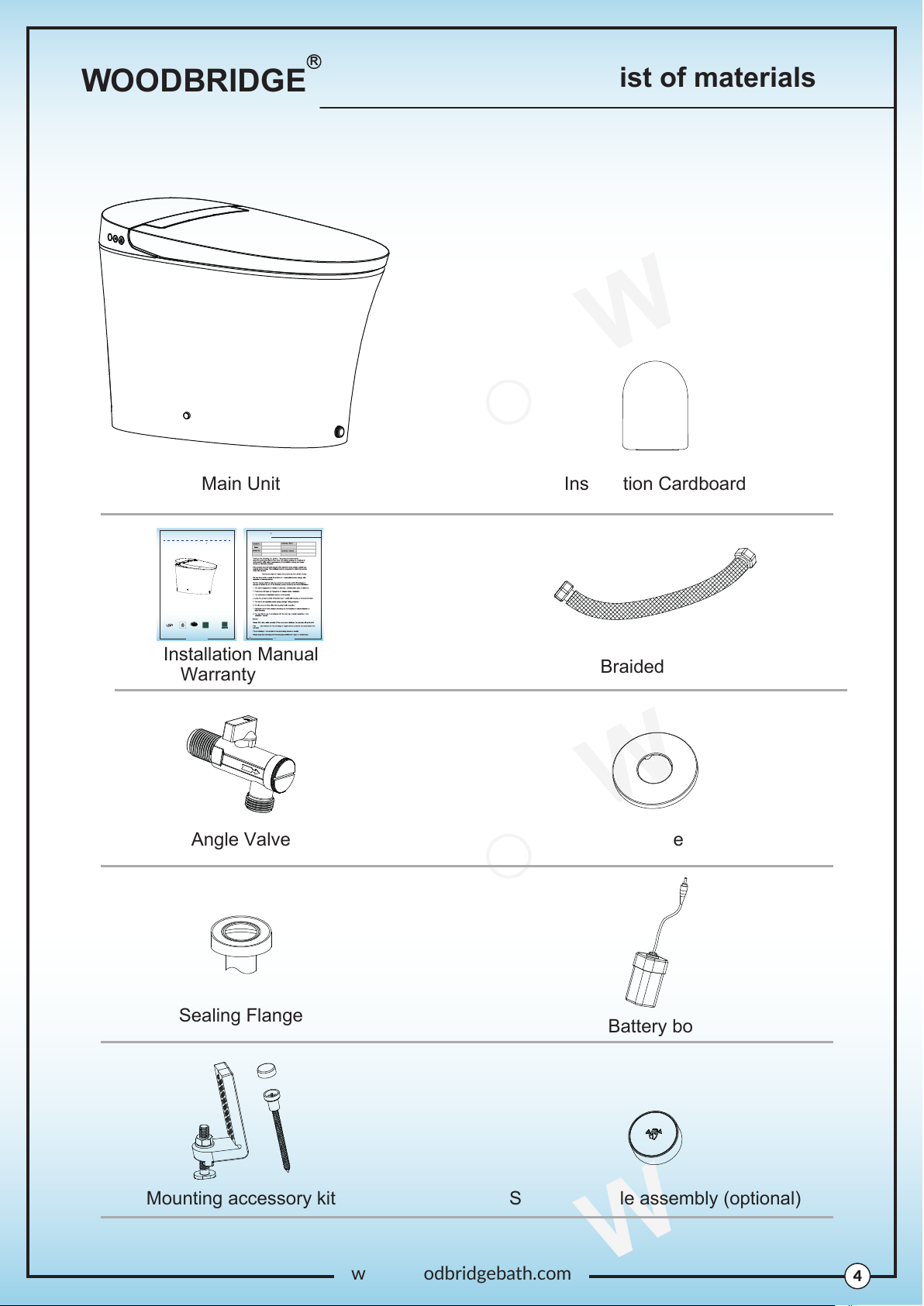

List of materials

Mounting accessory kit

www.woodbridgebath.com

WOODBRIDGE Product Warranty Card

Our company

One(1) years

three

Date of Purchased:

Distributor Distributor Phone

CustomerService Phone: 562-229-0088. (Monday - Friday 9 AM - 5 PM Pacific Time)

OrEmail: [email protected]

www.woodbridgebath.com

20201108 REV.1

WOODBRIDGE

INSTALLATION AND CARE GUIDE

• 2015 Uniform Plumbing Code ( UPC )

• 2018 International Plumbing Code ( IPC )

• 2018 International Residential Code ( IPC )

• CSA B45.5 / IAPMO Z124-2017- Plastic Plumbing Fixtures

Compliancewith the following codes & standard:

PREFERED

EDUCATION

PROVIDER

LISTED

ICC

SCCAccredited

CB-P/S

OCPS

AccréditéCCN

ANSI

ACCREDITED

ISO/IEC17065

ProductCertificationBody

#1000

ELECTRONIC WASHLET TOILET :BW5100S

WOODBRIDGE

www.woodbridgebath.com

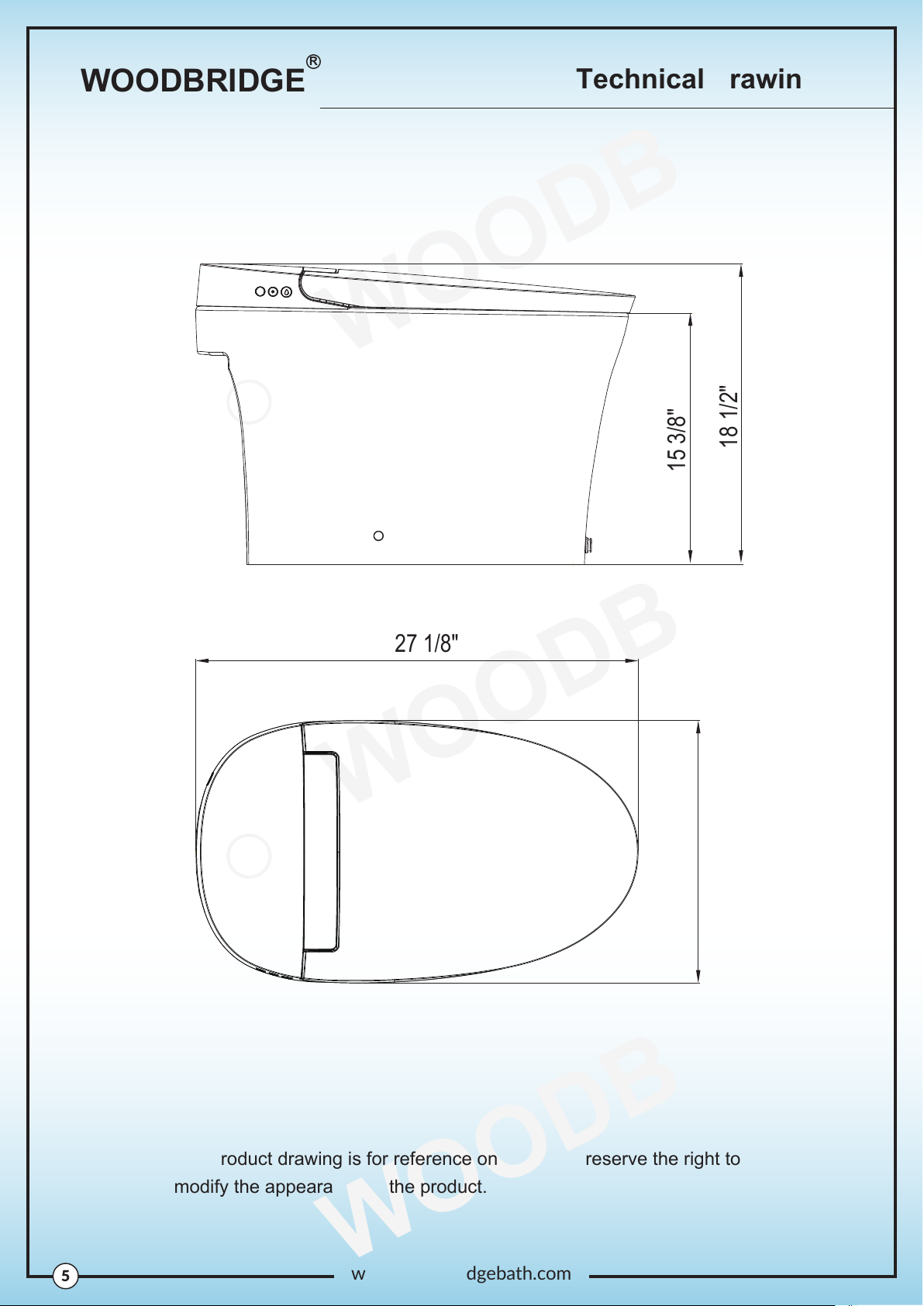

WOODBRIDGE Technical drawing

The product drawing is for reference only, and we reserve the right to

modify the appearance of the product.

18 1/2"

15 3/8"

27 1/8"

16 1/8"

WOODBRIDGE

www.woodbridgebath.com 6

WOODBRIDGE

Foot-touch button

Decorative piece

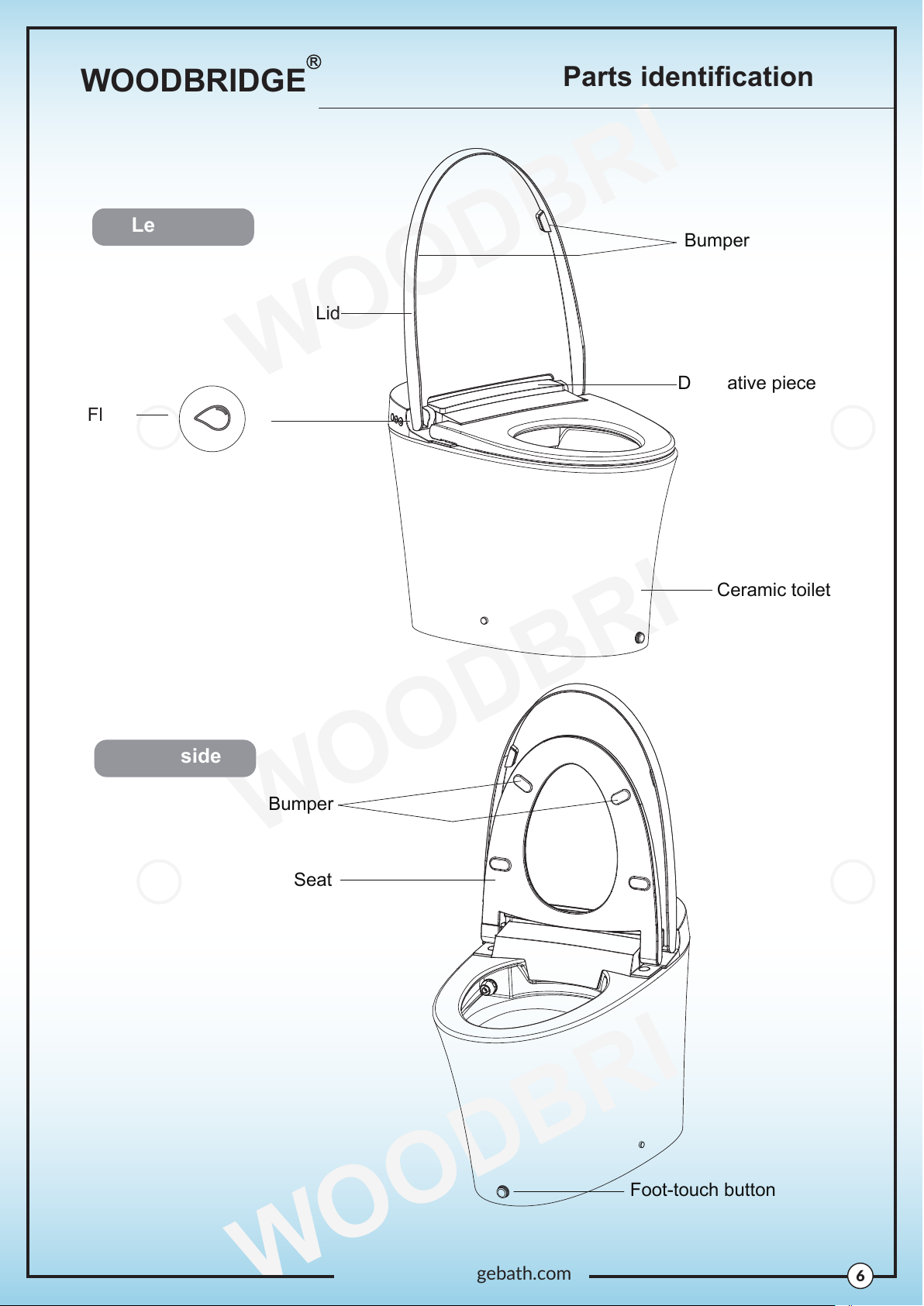

Parts identification

Left side

Right side

Ceramic toilet

Bumper

Lid

Seat

Flush

WOODBRIDGE

www.woodbridgebath.com

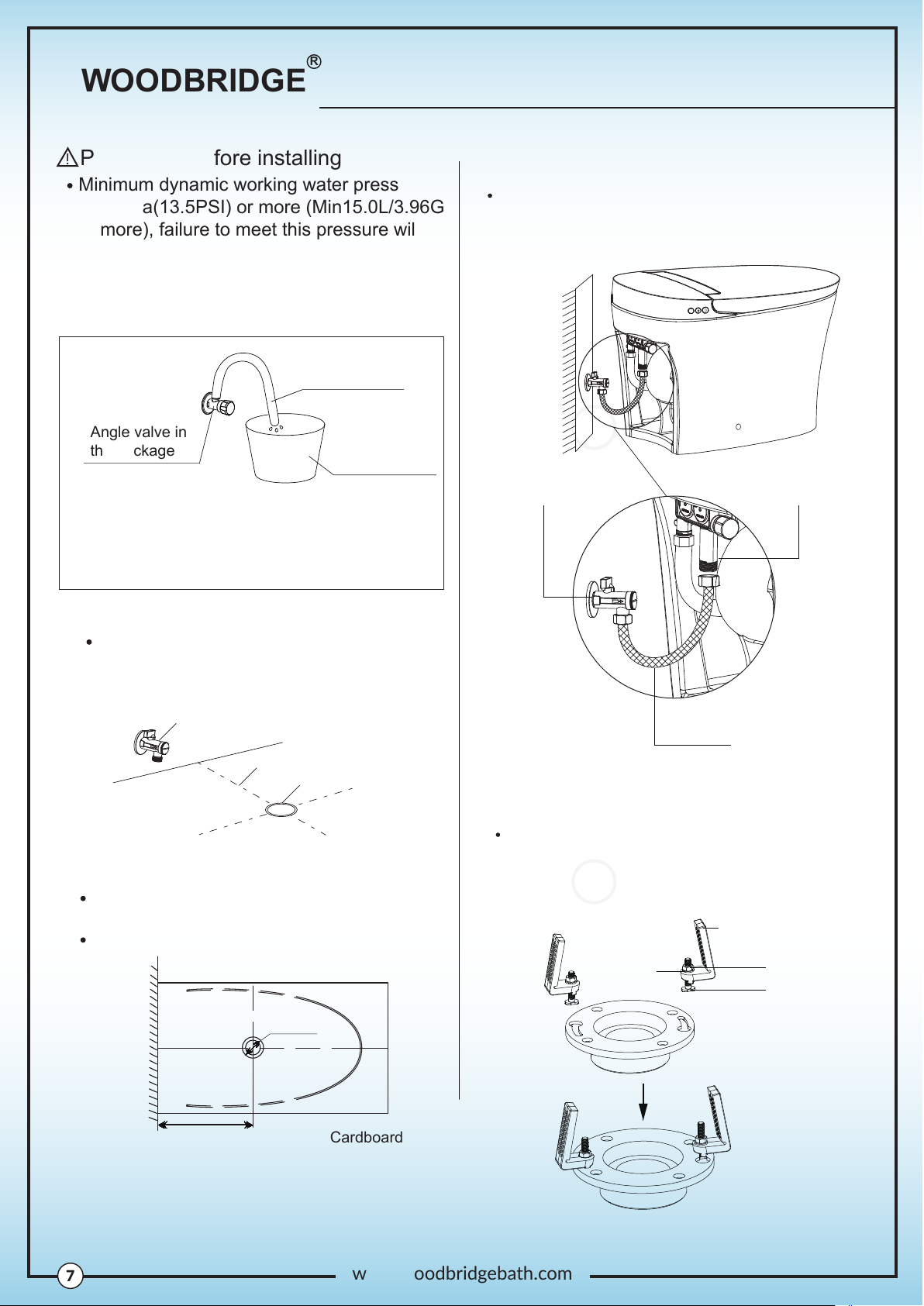

WOODBRIDGE

Cardboard

Precaution before installing

Angle valve in

the package

Minimum dynamic working water pressure:

0.09MPa(13.5PSI) or more (Min15.0L/3.96G

or more), failure to meet this pressure will

not achieve the best flushing effect.

Remark:Apply the methods below if you

don’t have water pressure testing device.

Hose in the

package

Water storage

barrel

Open the angle valve and connect water inlet

for 10s, once the water volume is above 2.5L,

the minimum water pressure of the product is

ensured.

Draw drain outlet centerline on the floor,

Install angle valve at proper position on

wall according to dimension of toilet.

1. Installation of mating angle valve

Line

Drain outlet

Mating angle valve

2. Cardboard installation

Align cardboard with the centerline of

drain outlet;

Draw contour line according to cardboard;

Angle valve connector Inlet connector

Flexible hose

3.Hose

Connect the water inlet and angle valve of the

toilet with the matching hose and tighten it

Nut

Bolt

4.Mounting bracket installation

Assemble the mounting bracket with bolts

and then install them to the pre-installed

flange plate on the ground and lock tight

with nuts.

Mounting bracket

Washer

Installation of ceramic toilet

2 3/4"

12"

WOODBRIDGE

www.woodbridgebath.com 8

WOODBRIDGE

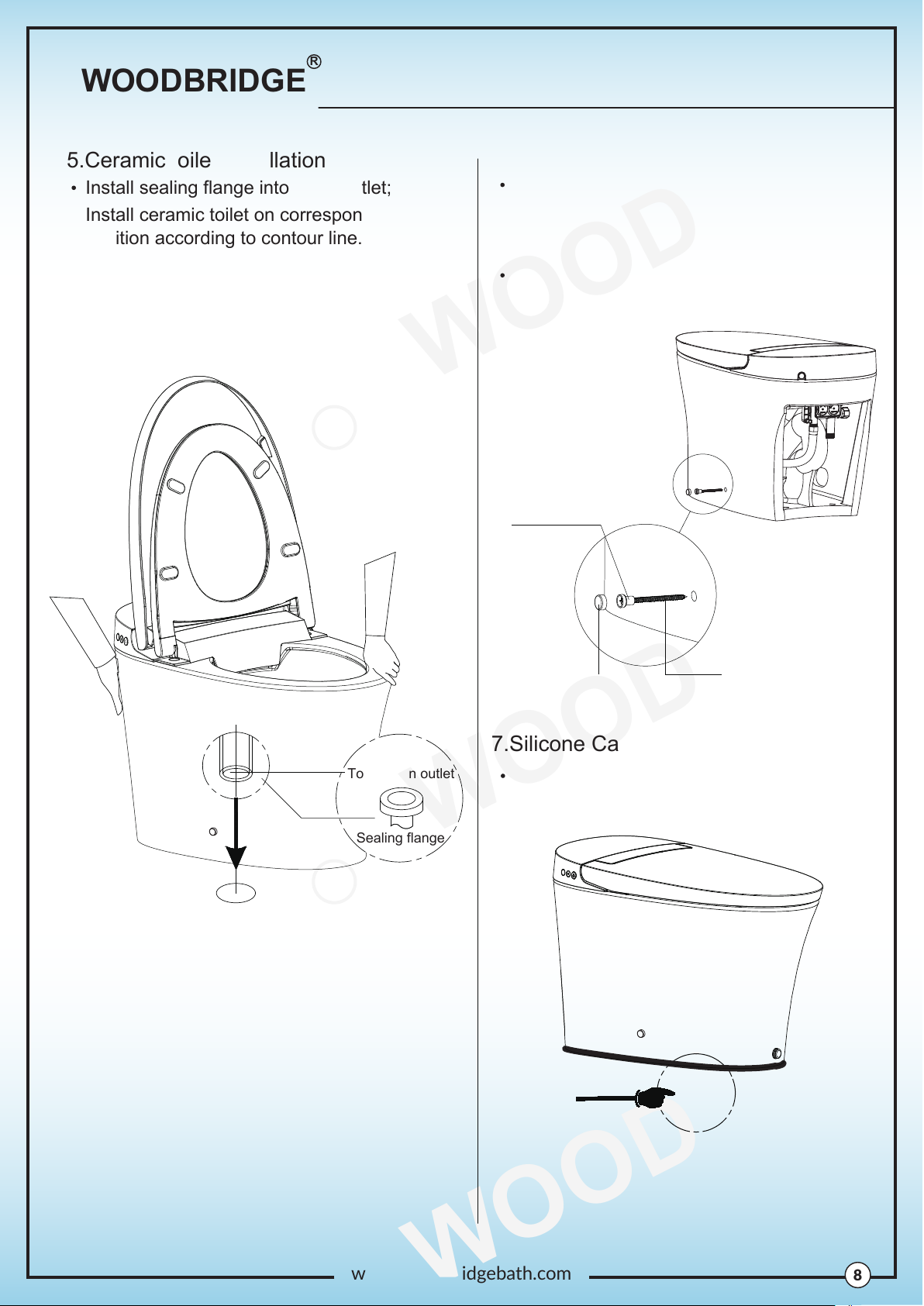

5.Ceramic toilet installation

Install sealing flange into drain outlet;

Install ceramic toilet on corresponding

position according to contour line.

Toilet drain outlet

Sealing flange

7.Silicone Caulking application

Silicone

caulking

Tips:

Please clean the drain outlet;

Please make sure ceramic toilet outlet

sits perfectly on drain outlet.

Apply high quality silicone caulking around

the lower edge of the toilet.

Fixing sleeve

Screw

Decorative cap

6.Screw installation

Put the screw through the fixing sleeve and

then install it through the holes(on both sides

of the toilet ceramic) to the mounting bracket

on the ground, and lock tight with a tool;

Put the decorative cap on the fixing sleeve.

WOODBRIDGE

www.woodbridgebath.com

WOODBRIDGE

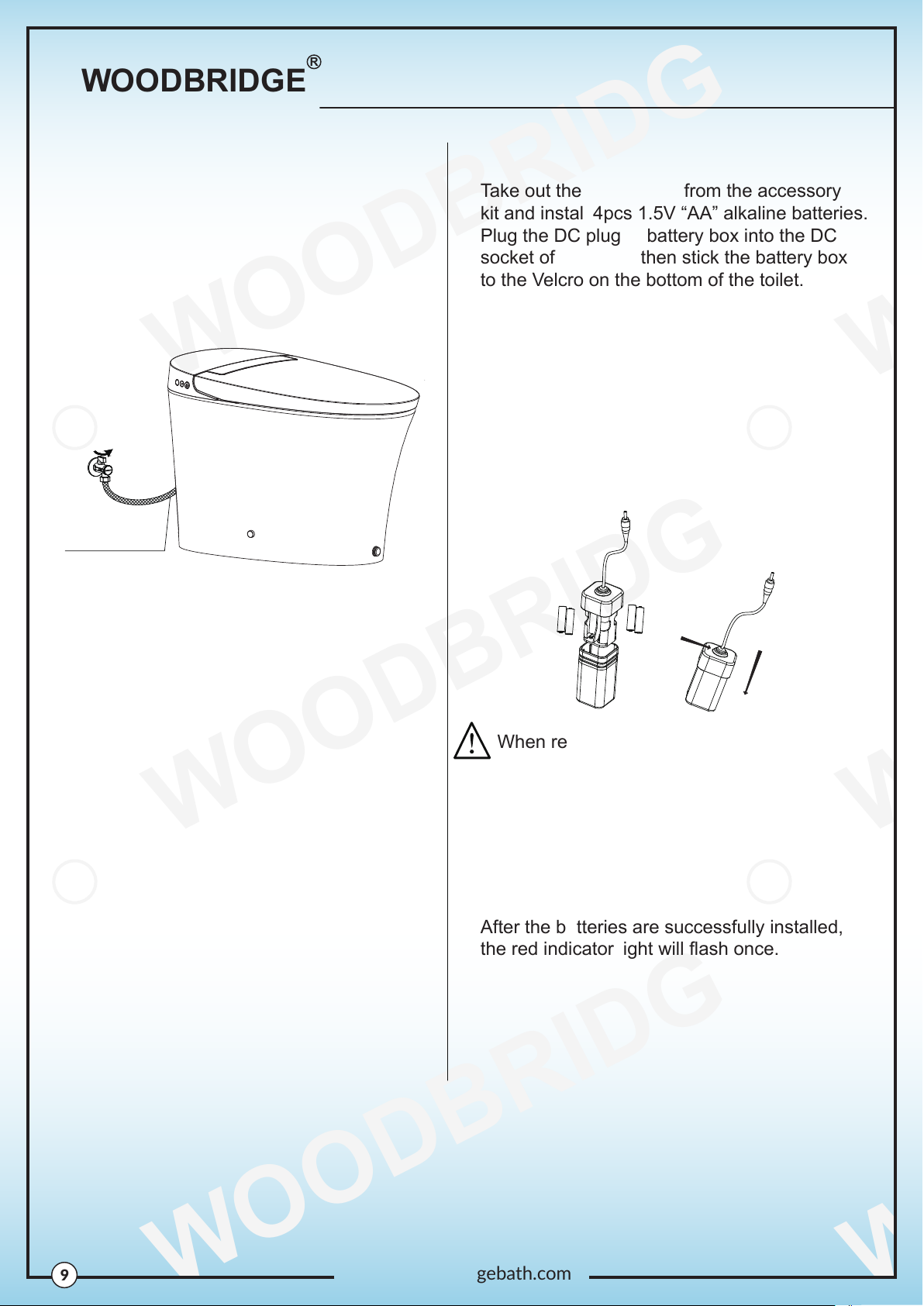

After the batteries are successfully installed,

the red indicator light will flash once.

Take out the battery box from the accessory

kit and install 4pcs 1.5V “AA” alkaline batteries.

Plug the DC plug of battery box into the DC

socket of toilet and then stick the battery box

to the Velcro on the bottom of the toilet.

When re-installing the cover of battery box,

use your fingers to squeeze the side of rubber

plug to exhaust air out of the box and ensure

sealing.

1. Turn on the angle valve

Check thread connection, make sure no

leakage is found,unscrew angle valve

counter clockwise to maximum opening.

(Tips: The angle valve handle has a larger

torgue during the first time turning)

Angle valve

2.Power Connection

3. Self-inspection

Notes:

1.Must be 1.5V “AA” alkaline battery(Battery

not included)

2.Different brands, different used and new

batteries cannot be mixed.

3.Battery life will be significantly reduced when

using non-alkaline batteries;

4.When installing the inner box components,

follow the installation direction shown in the

label.

Previous preparation

Table des matières

Autres manuels Woodbridge Toilettes

Woodbridge

Woodbridge T-0042 Instructions de montage

Woodbridge

Woodbridge T-0022 Instructions de montage

Woodbridge

Woodbridge LT610 Instructions de montage

Woodbridge

Woodbridge T-0032/B0750 Instructions de montage

Woodbridge

Woodbridge B0950S Instructions de montage

Woodbridge

Woodbridge B0920 Manuel utilisateur

Woodbridge

Woodbridge B0950S/V8300 Instructions de montage

Woodbridge

Woodbridge T0001 Manuel utilisateur

Woodbridge

Woodbridge LT611 Manuel utilisateur

Woodbridge

Woodbridge B0970S Manuel utilisateur

Woodbridge

Woodbridge T-0047 Instructions de montage

Woodbridge

Woodbridge B0940 Manuel utilisateur

Woodbridge

Woodbridge T-0041 Instructions de montage

Woodbridge

Woodbridge T0033 Instructions de montage

Woodbridge

Woodbridge V8300 Instructions de montage

Woodbridge

Woodbridge B0942 Instructions de montage

Woodbridge

Woodbridge B0960S Instructions de montage

Woodbridge

Woodbridge T0002W/B0720 Instructions de montage

Woodbridge

Woodbridge B0980S Instructions de montage

Woodbridge

Woodbridge T-0031/B0500 Instructions de montage

Woodbridge

Woodbridge T-0044 Instructions de montage

Woodbridge

Woodbridge BID 02 Manuel utilisateur

Woodbridge

Woodbridge B0970S Manuel utilisateur

Woodbridge

Woodbridge B0931S Manuel utilisateur

Manuels Toilettes populaires d'autres marques

Toto

Toto Washlet TCF4911 Series Manuel utilisateur

Kohler

Kohler K-6419 Manuel utilisateur

Grohe

Grohe Sensia ARENA Manuel utilisateur

Kohler

Kohler K-5171K Instructions de montage

Geberit

Geberit AQUACLEAN MERA CLASSIC Manuel utilisateur

Kohler

Kohler K-24097X Instructions de montage

Better Bathrooms

Better Bathrooms BUN/BeBa 27555/78725 Manuel utilisateur

American Standard

American Standard CONCEPT Cube TF-2704 Manuel utilisateur

BIOLAN

BIOLAN ECO Manuel de la liste des pièces

Thetford

Thetford C260 Series Manuel utilisateur

KELISS

KELISS T162A Series Manuel utilisateur

Kohler

Kohler K-22241K Instructions de montage

Kohler

Kohler ESCALE K-32771T-NS Manuel utilisateur

BIOLAN

BIOLAN GARDEN TOILET Manuel de la liste des pièces

washloo

washloo Prestige Manuel utilisateur

JABSCO

JABSCO 37010 Series Manuel utilisateur

Drive

Drive TSE 150 Manuel utilisateur

Olympia

Olympia EPOQUE 69209 Mode d’emploi
