WOODBRIDGE

INSTALLATION AND CARE GUIDE

Remote Control Illustration

STOP

ENERGY

SAVER

NOZZLE

CLEANING

TEMPERATURE WATER DRY SEAT

MASSAGE

AUTO

Thank you for choosing our product.Please read the instructions carefully before

installation and keep it available for future maintenance or reference.

Customer Service Phone: 562-229-0088. (Monday - Friday 9 AM - 5 PM Pacific Time)

Or Email: help.[email protected]

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

www.woodbridgebath.com

WOODBRIDGE REMOTE CONTROL ILLUSTRATION

106mm

Hole

106mm

The position of

anti-theft screw

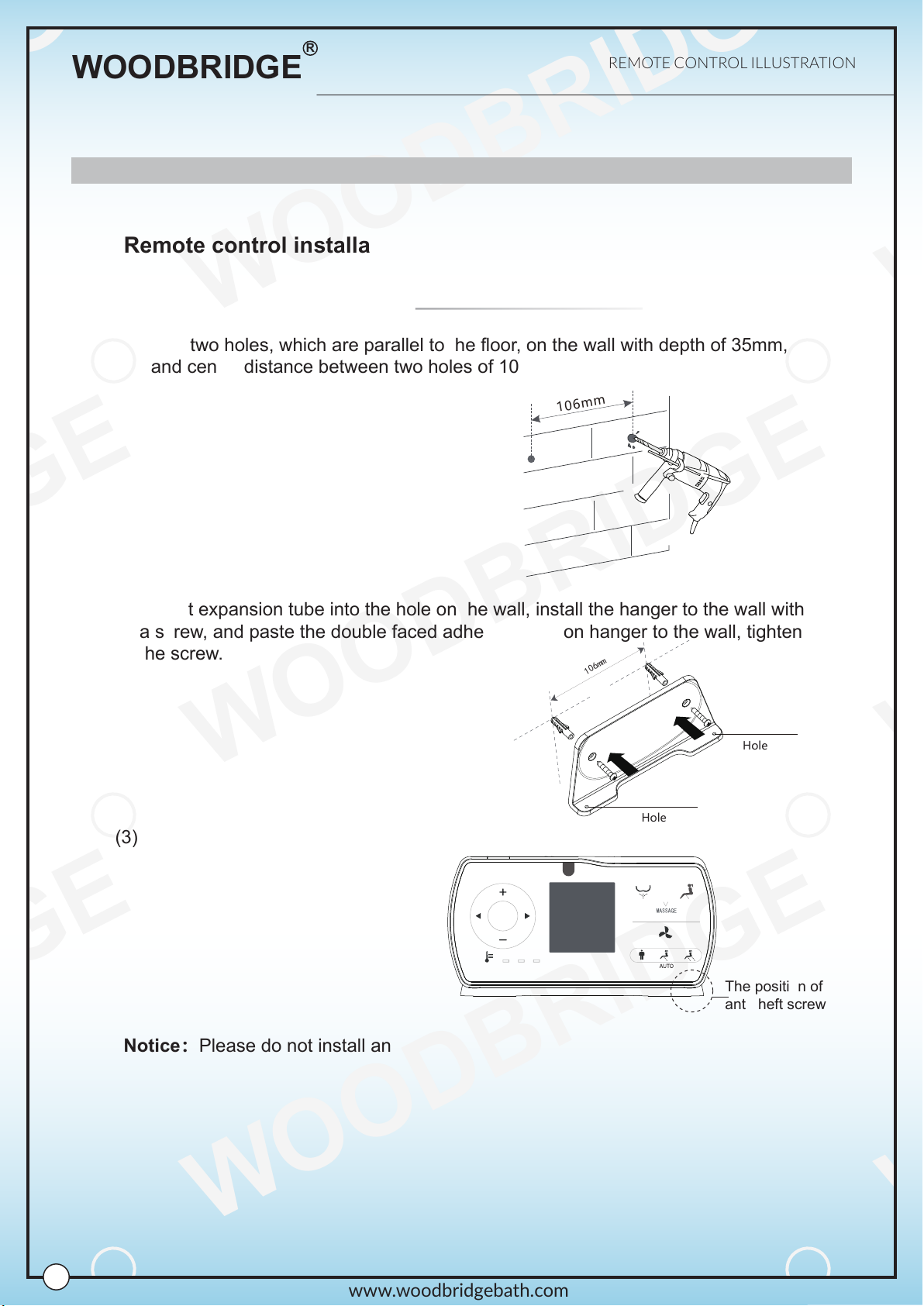

Remote control installation

(1)Drill two holes, which are parallel to the floor, on the wall with depth of 35mm,

and center distance between two holes of 106mm.

(2)Insert expansion tube into the hole on the wall, install the hanger to the wall with

a screw, and paste the double faced adhesive tape on hanger to the wall, tighten

the screw.

(3)

Notice：Please do not install and use the product in moist place, such as steam

room, and prohibit to place in the space where is easily got wet.

In public place, please use screw to fix the remote control with bracket in

avoid remote control missing.

Installation Preparation

STOP

Remote control hanger installation

Install battery and place remote control to the hanger.

NOZZLE

CLEANING

TEMPERATURE

Installation Preparation

Make sure end-user be able to reach the

remote control when sitting on the seat.

WATER DRY SEAT

ENERGY

SAVER

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

www.woodbridgebath.com

WOODBRIDGE REMOTE CONTROL ILLUSTRATION

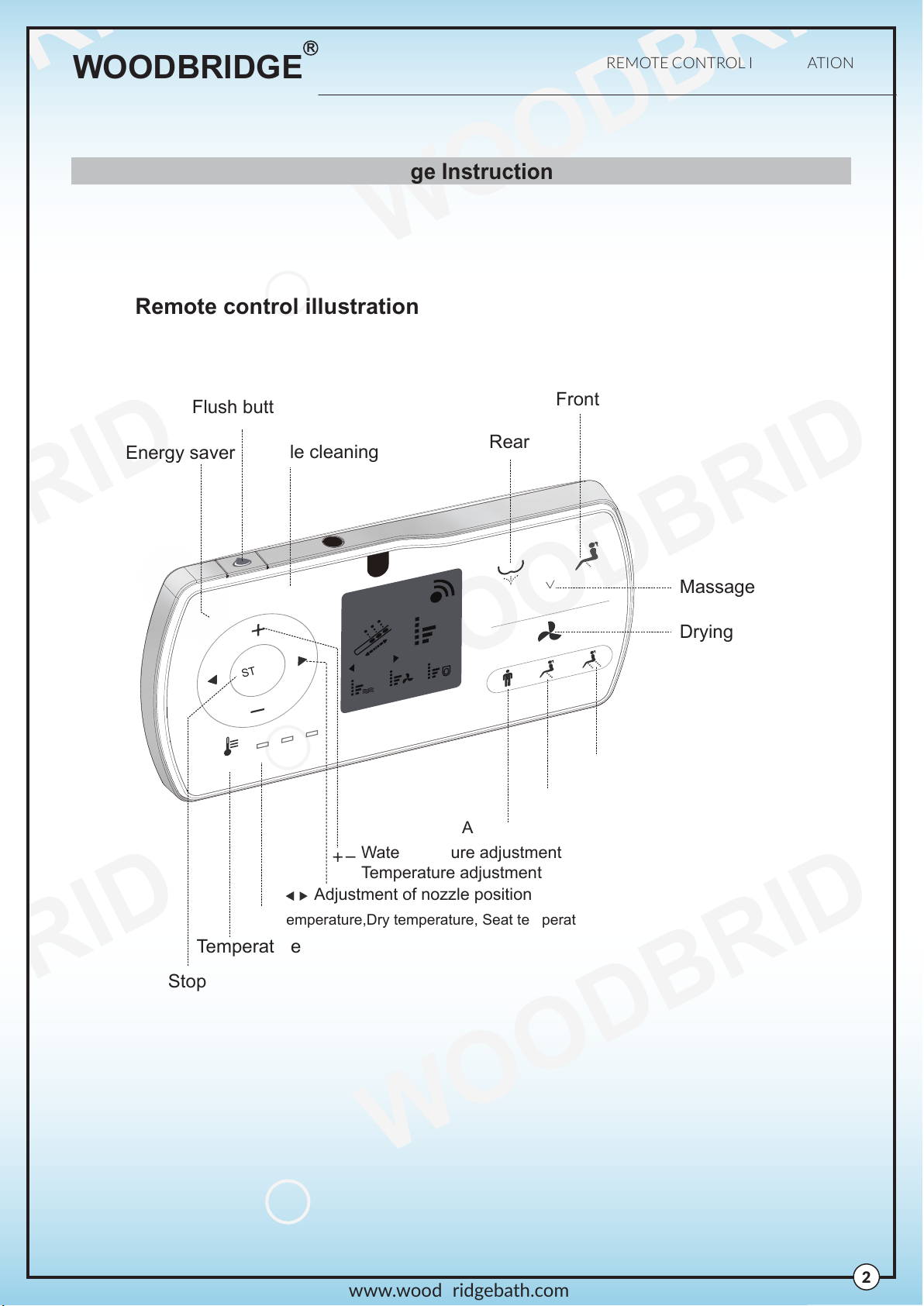

Remote control illustration

STOP

Water temperature,Dry temperature, Seat temperature

Usage Instruction

Energy saver

Flush button

Nozzle cleaning Rear

Front

Massage

Drying

Temperature

Stop

Adjustment of nozzle position

Water pressure adjustment

Temperature adjustment

Auto rear cleaning

Auto Front cleaning

Auto rear/front cleaning

TEMPERATURE

NOZZLE

CLEANING

WATER

DRY

SEAT

WATER

DRY

SEAT

ENERGY

SAVER

ENERGY SAVER 3 6 9 H

PRESSURE

POSITION

MASSAGE

AUTO

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

www.woodbridgebath.com

WOODBRIDGE

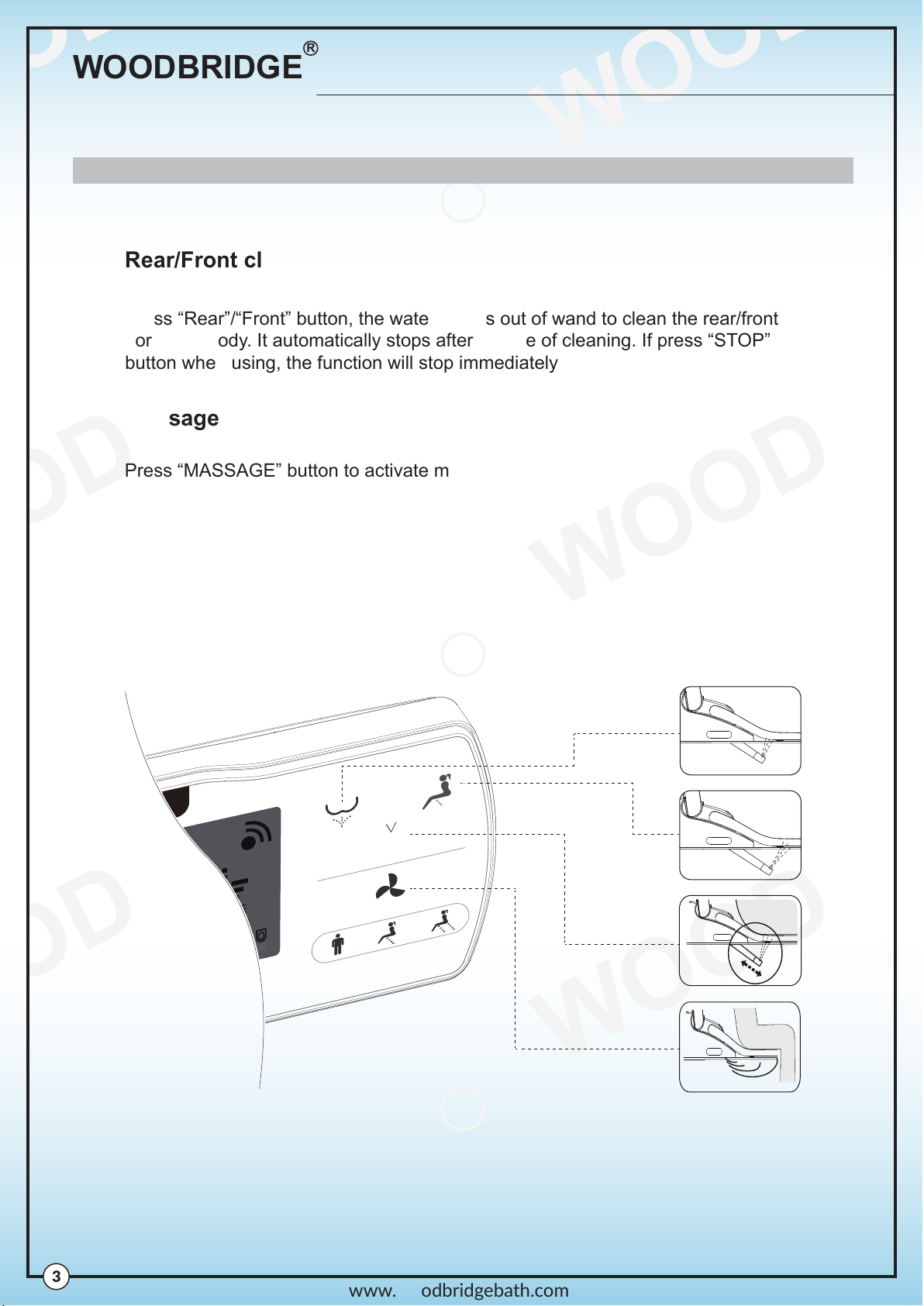

Rear/Front cleaning

Press “Rear”/“Front” button, the water comes out of wand to clean the rear/front

portion of body. It automatically stops after a cycle of cleaning. If press “STOP”

button when using, the function will stop immediately.

Massage

Press “MASSAGE” button to activate massage function, the nozzle moves forward

and back to extend the cleaning scope; Press “MASSAGE” button again to stop the

function.

Drying Operation

Press “DRY” button, warm wind comes out of wand to dry. After a cycle or user

leaves the seat, it automatically stops.

Dry

Massage

Front

Rear

Usage Instruction

SAVER 3 6 9 H

MASSAGE

AUTO

REMOTE CONTROL ILLUSTRATION

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

www.woodbridgebath.com

WOODBRIDGE REMOTE CONTROL ILLUSTRATION

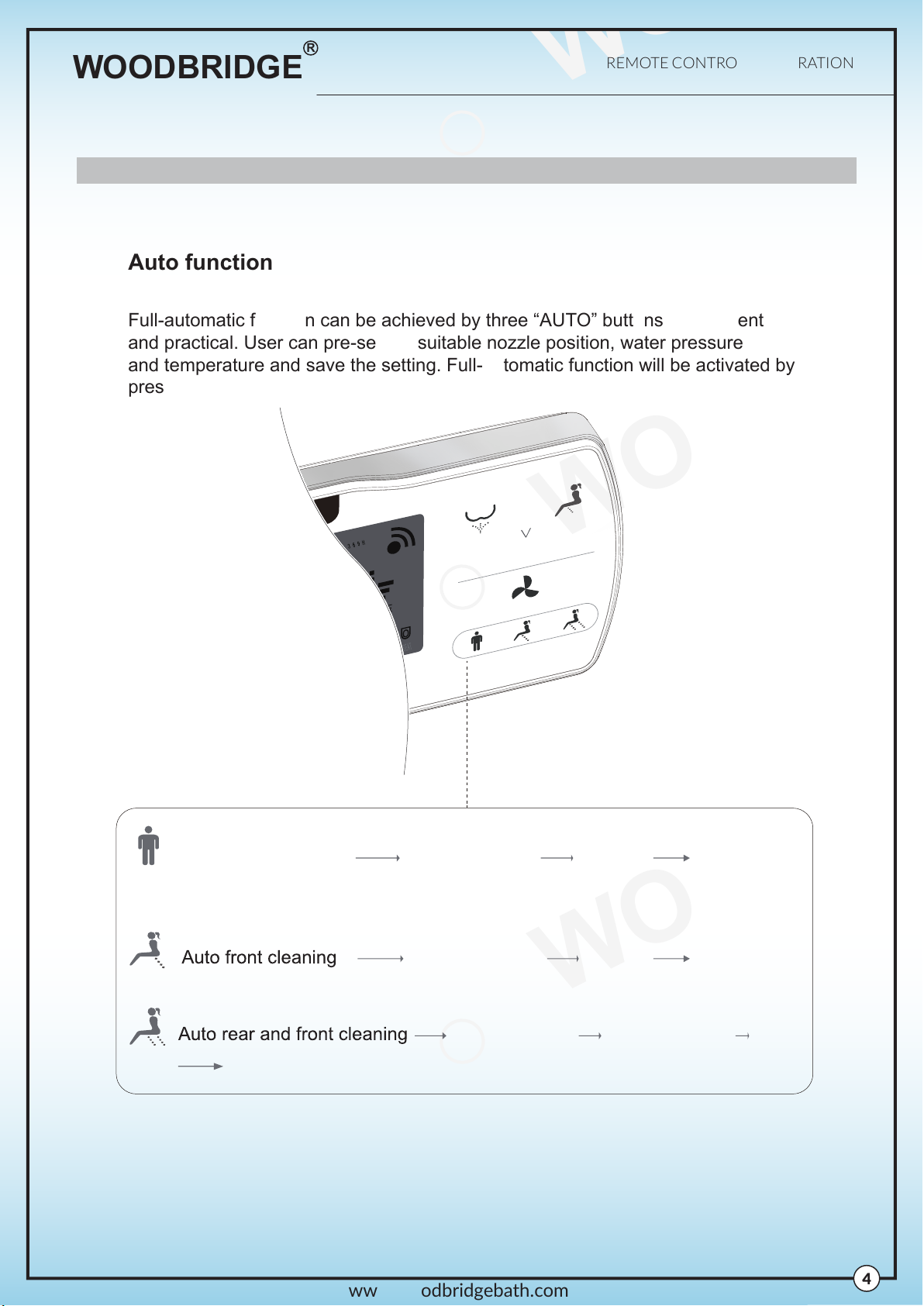

Auto function

Full-automatic function can be achieved by three “AUTO” buttons, convenient

and practical. User can pre-set the suitable nozzle position, water pressure

and temperature and save the setting. Full-automatic function will be activated by

pressing the related function button when using afterwards.

Rear cleaning 90s Dry 180s

Dry 180s

Front cleaning 90s

Rear cleaning 90s Front cleaning 90s

Automatic stop

Usage Instruction

MASSAGE

AUTO

Auto rear cleaning

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

www.woodbridgebath.com

WOODBRIDGE REMOTE CONTROL ILLUSTRATION

9:00 15:00

STOP

Usage Instruction

TEMPERATURE

NOZZLE

CLEANING

WATER

DRY SEAT

WATER DRY SEAT

WATER

DRY

SEAT

Energy saver time

ENERGY SAVER 6 H

ENERGY SAVER

POWER

energy saver icon

ENERGY SAVER 3 H

ENERGY

SAVER

ENERGY

SAVER

PRESSURE POSITION

The toilet enters the

energy saver

mode from 9:00 to 15:00.

Energy saver light is on

Energy saver

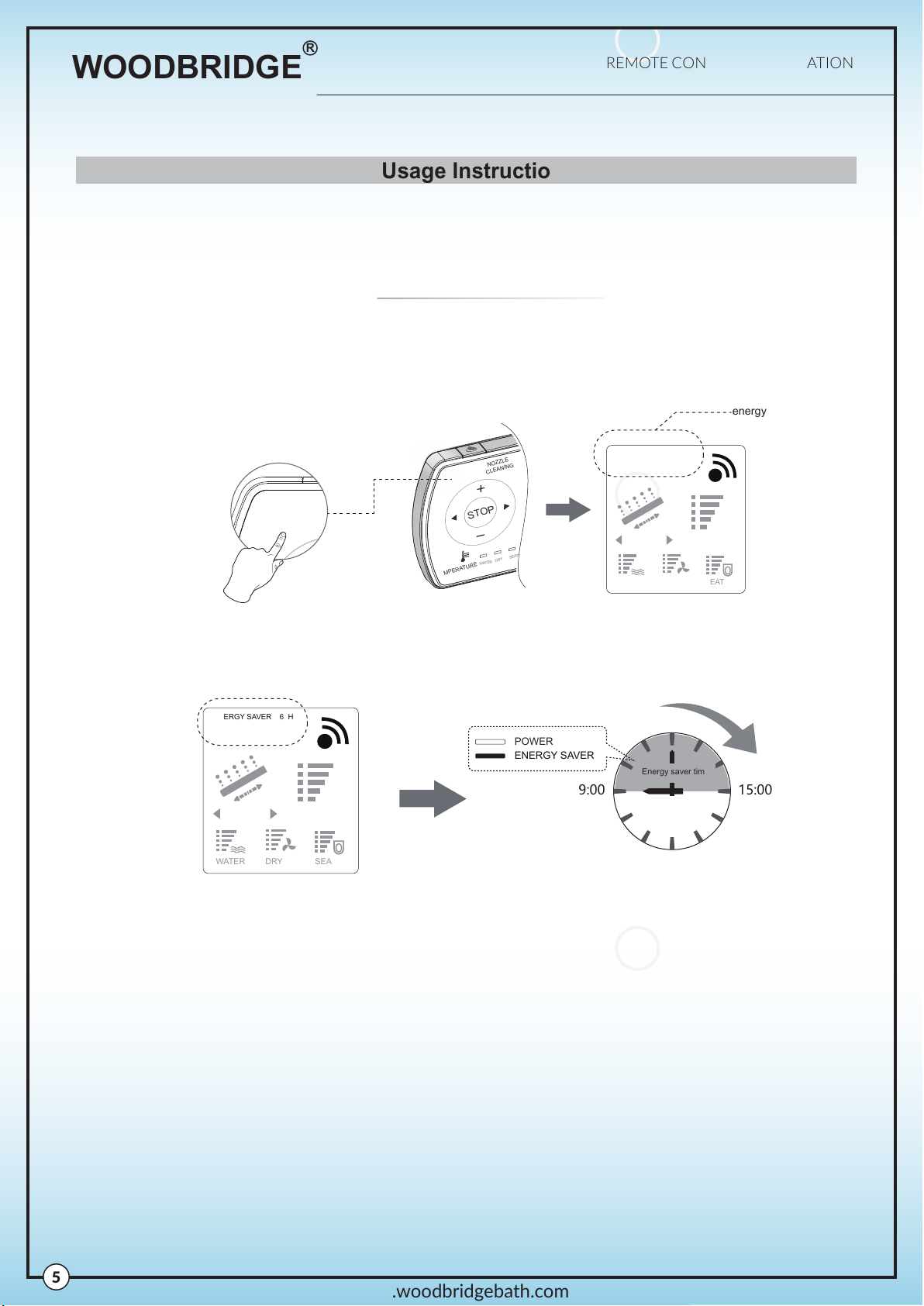

Setting energy saver time

Press “ENERGY SAVER” button, LCD screen shows energy saver and figures. It

shows three options of energy saver period as 3-6-9-off, which can be selected

accordingly. For example, user can set from 9:00 to 15:00 as energy saver

according to following operation.

(1)Press“ENERGY SAVER”button, LCD screen shows

“ENERGY SAVER” icon.

(2)Press“ENERGY SAVER”button again, LCD screen shows figure “6”, and the “ENERGY SAVER”icon

disappear after 3 seconds, the setting succeeds. The toilet enters the energy saver mode from 9:00 to

15:00 every day. During this period, power light is off, and the energy saver light is on. It goes back to

normal operation mode after energy saver time.

Energy saver:

The toilet will be under energy saver mode automatically after setting. Under energy saver mode,

seat temperature is on low temperature status (first level) to achieve energy saver.

Notice:

If user sits on the seat, the energy saver mode is paused, and enters into the function mode, the

seat starts to heat immediately (under opening seat temperature circumstance). The energy saver mode

restores after user leaves.

When the energy saver mode is set, the icon disappears automatically, which is normal set.

(3)Cancel energy saver set: Press“ENERGY SAVER”button continuously until this function is

cancelled. (Nothing display on the screen.)

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

www.woodbridgebath.com

WOODBRIDGE REMOTE CONTROL ILLUSTRATION

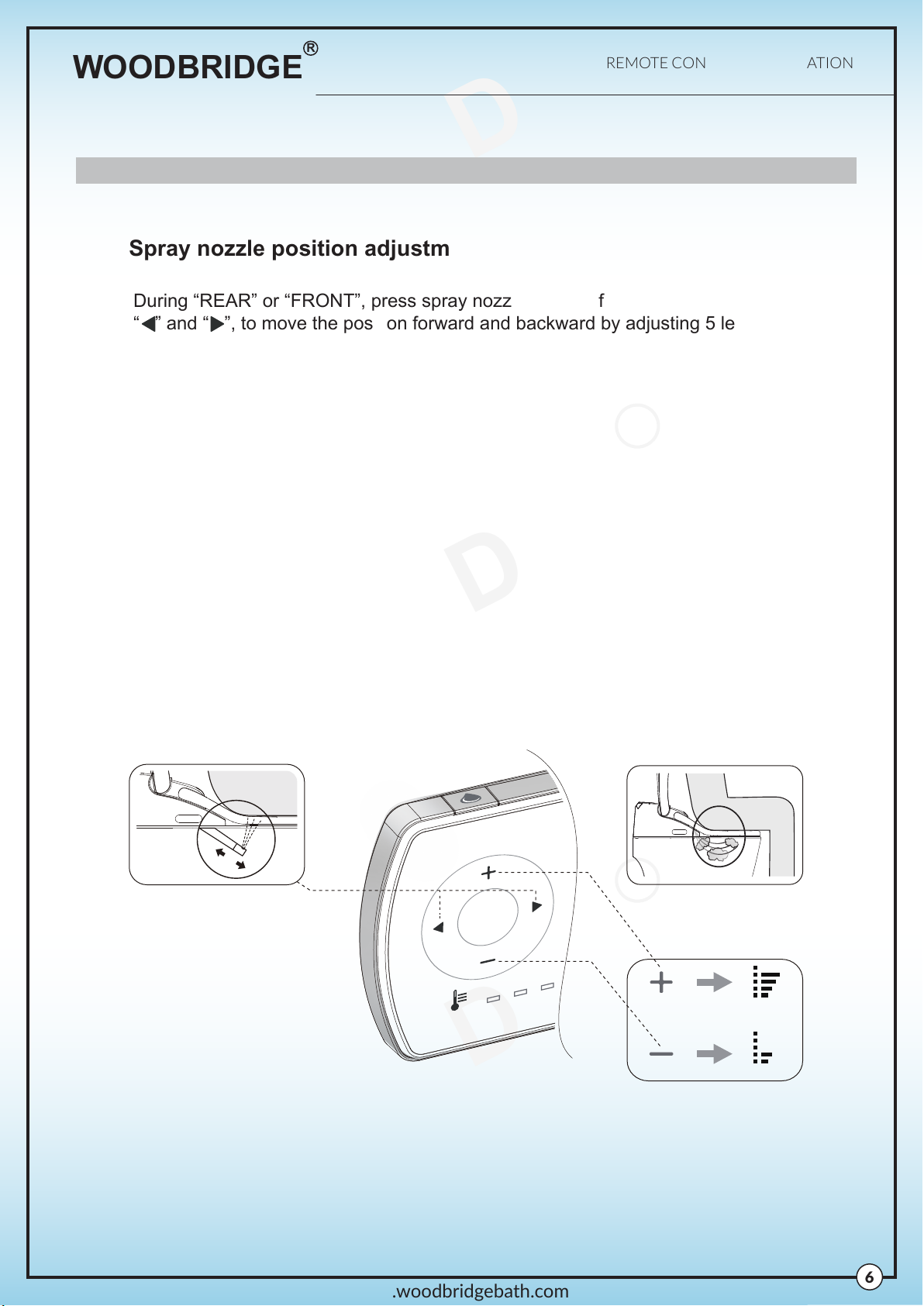

Spray nozzle position adjustment

During “REAR” or “FRONT”, press spray nozzle button of

“ ” and “ ”, to move the position forward and backward by adjusting 5 levels.

Water pressure adjustment

During “REAR” or “FRONT”, press water pressure button of “+” and “-”, to adjust

pressure for rear and front cleaning.

Automatic deodorization

Remark:

The deodorization function starts to work automatically as the user sits on the seat

and stops automatically 3 seconds after the user leaves the seat. When drying, the

function of automatic deodorization stops.

Massage Deodorization

STOP

Usage Instruction

TEMPERATURE

NOZZLE

CLEANING

WATER

DRY

SEAT

ENERGY

SAVER

PRESSURE

POSITION

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

www.woodbridgebath.com

WOODBRIDGE REMOTE CONTROL ILLUSTRATION

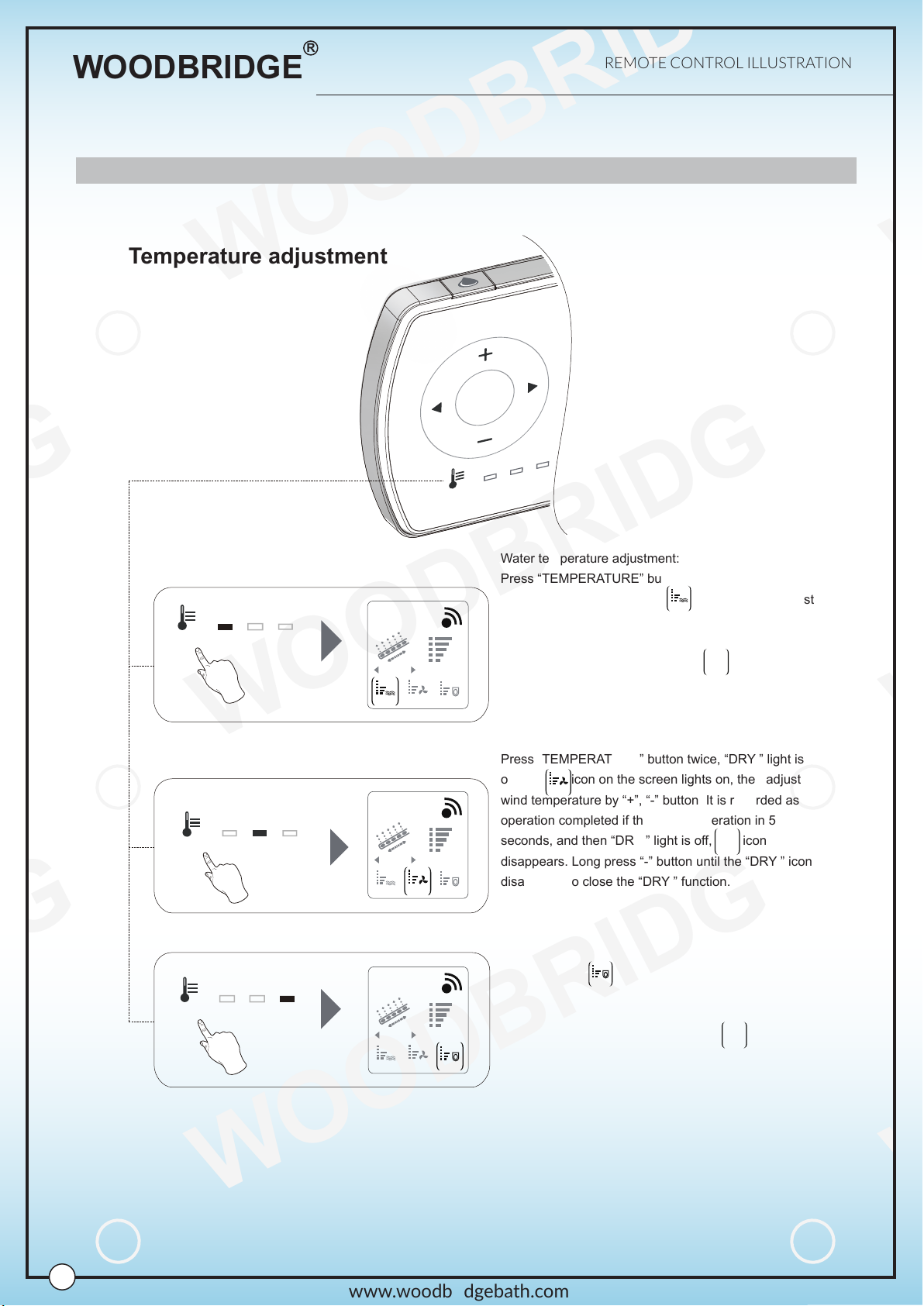

Temperature adjustment

Press “TEMPERATURE” button twice, “DRY ” light is

on, and icon on the screen lights on, then adjust

wind temperature by “+”, “-” button. It is regarded as

operation completed if there is no operation in 5

seconds, and then “DRY ” light is off, icon

disappears. Long press “-” button until the “DRY ” icon

disappears to close the “DRY ” function.

Water temperature adjustment:

Press “TEMPERATURE” button one time, “WATER ”

light is on,icon on the screen lights on, then adjust

water temperature by “+”, “-” button. It is regarded as

operation completed if there is no operation in 5 seconds,

and then “WATER ” light is off, and icon disappears.

Long press “-” button until the “WATER ” icon disappears

to close the “WATER ” function.

Press “TEMPERATURE” button three times, “SEAT ”

light is on, and icon on the screen lights on, then

adjust seat temperature by “+”, “-” button. It is regarded

as operation completed if there is no operation in 5

seconds, and then “SEAT ” light is off, icon

disappears. Long press “-” button until the “SEAT ” icon

disappears to close the “SEAT ” function.

STOP

Usage Instruction

TEMPERATURE

NOZZLE

CLEANING

TEMPERATURE

WATER

DRY SEAT

WATER

DRY

SEAT

WATER DRY SEAT

WATER

WATER DRY SEAT

DRY

SEAT

WATER DRY SEAT

ENERGY

SAVER

PRESSURE POSITION

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

www.woodbridgebath.com

WOODBRIDGE REMOTE CONTROL ILLUSTRATION

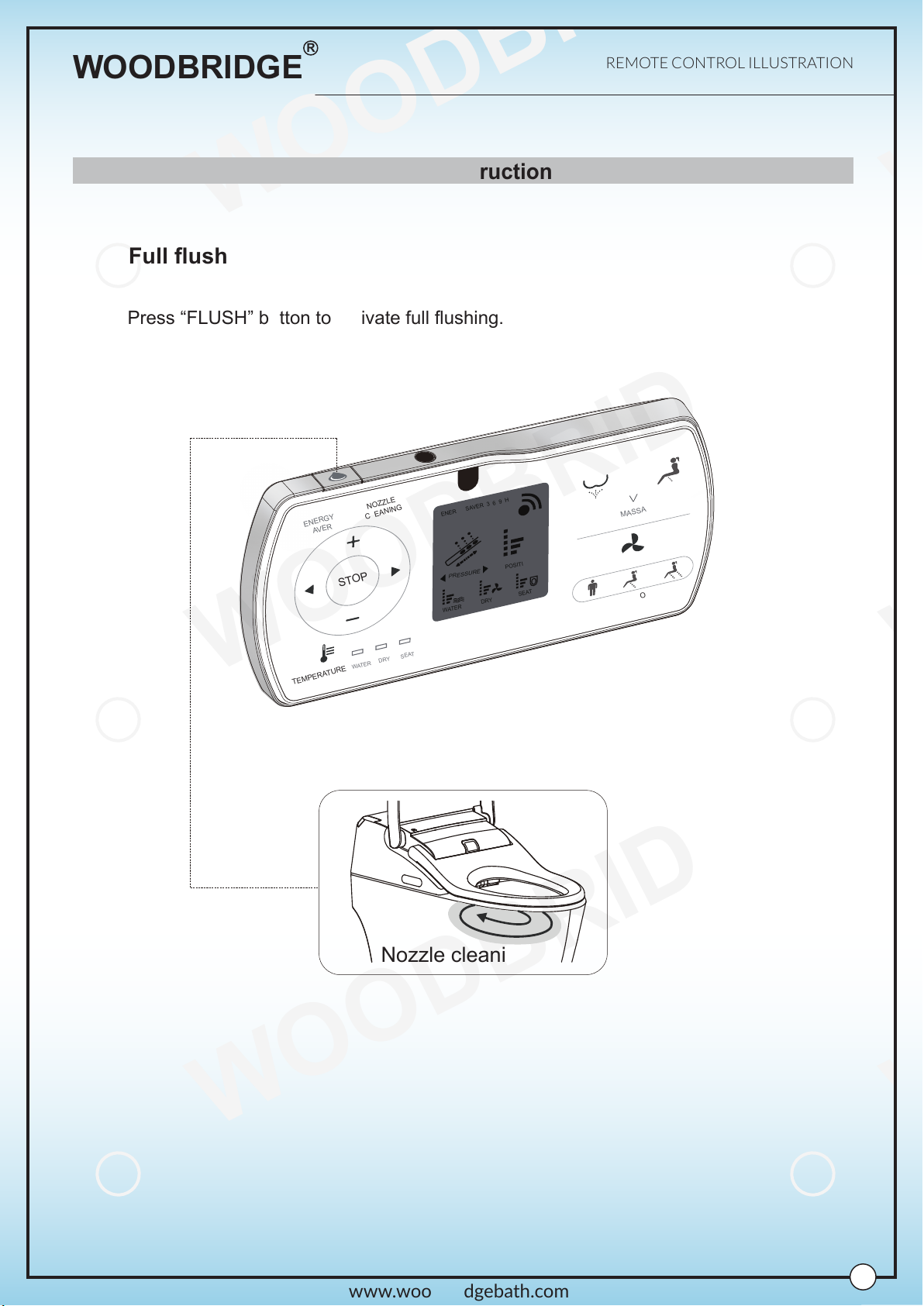

Full flush

Press “FLUSH” button to activate full flushing.

Nozzle cleaning

Usage Instruction

STOP

TEMPERATURE

NOZZLE

CLEANING

WATER

DRY

SEAT

WATER

DRY

SEAT

ENERGY

SAVER

ENERGY SAVER 3 6 9 H

PRESSURE

POSITION

MASSAGE

AUTO

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

WOODBRIDGE WOODBRIDGE

WOODBRIDGE

www.woodbridgebath.com

WOODBRIDGE REMOTE CONTROL ILLUSTRATION

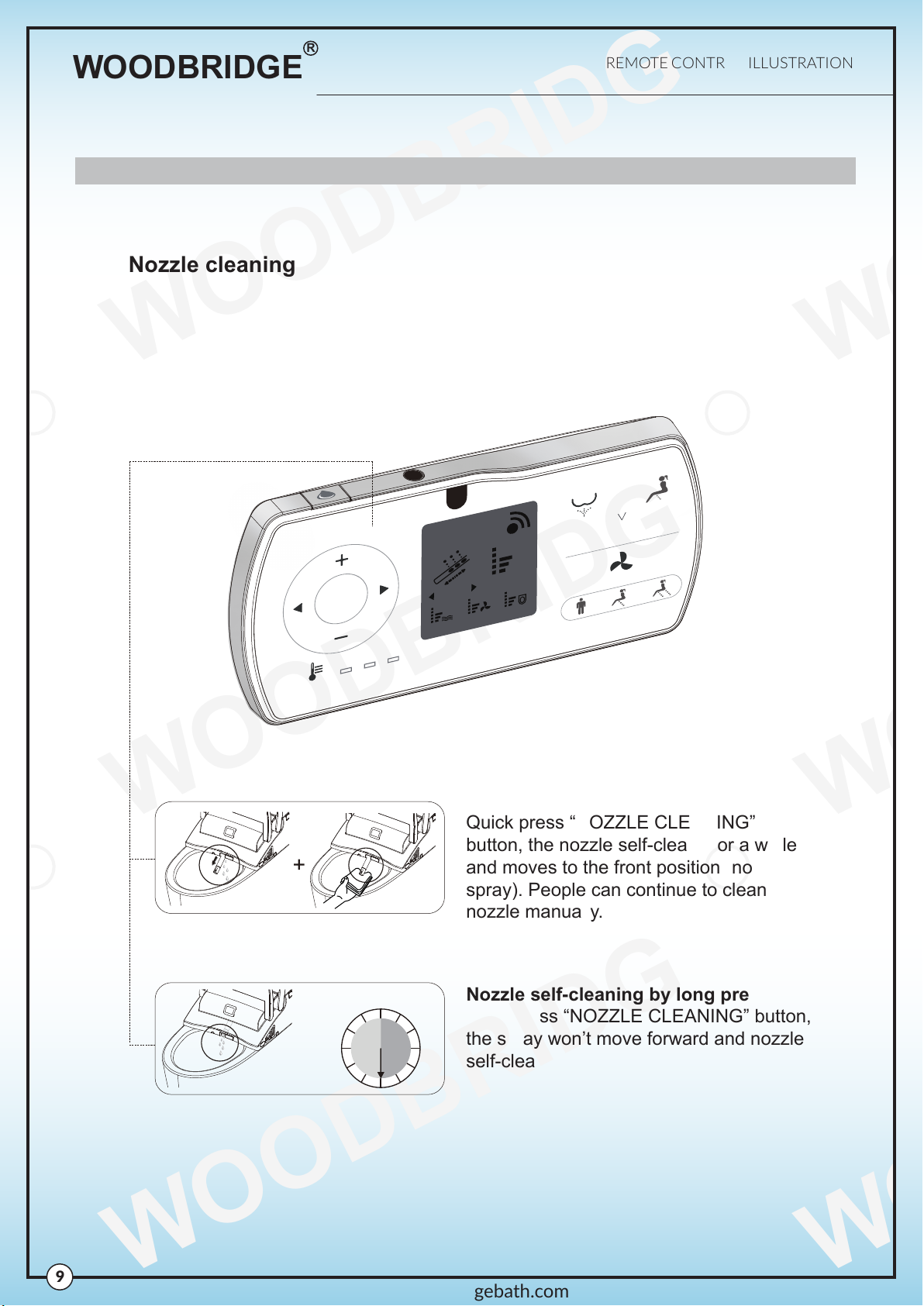

Nozzle cleaning

Quick press “NOZZLE CLEANING”

button, the nozzle self-cleans for a while

and moves to the front position (no

spray). People can continue to clean

nozzle manually.

Nozzle self-cleaning by long press：

Long press “NOZZLE CLEANING” button,

the spray won’t move forward and nozzle

self-cleans for 90 seconds.

self-clean for

90 seconds.

STOP

Usage Instruction

TEMPERATURE

NOZZLE

CLEANING

Nozzle self-cleaning by quick press:

WATER

DRY

SEAT

WATER

DRY

SEAT

ENERGY

SAVER

ENERGY SAVER 3 6 9 H

PRESSURE

POSITION

MASSAGE

AUTO

Table des matières

Autres manuels Woodbridge Toilettes

Woodbridge

Woodbridge T-0041 Instructions de montage

Woodbridge

Woodbridge T-0032/B0750 Instructions de montage

Woodbridge

Woodbridge T-0031/B0500 Instructions de montage

Woodbridge

Woodbridge LT611 Manuel utilisateur

Woodbridge

Woodbridge V8300 Instructions de montage

Woodbridge

Woodbridge B0942 Instructions de montage

Woodbridge

Woodbridge B0960S Instructions de montage

Woodbridge

Woodbridge T-0035 Instructions de montage

Woodbridge

Woodbridge LT610 Instructions de montage

Woodbridge

Woodbridge T-0047 Instructions de montage

Woodbridge

Woodbridge BID 02 Manuel utilisateur

Woodbridge

Woodbridge B0931S Manuel utilisateur

Woodbridge

Woodbridge B0990S Instructions de montage

Woodbridge

Woodbridge T-0032/B0750 Instructions de montage

Woodbridge

Woodbridge B0930S Manuel utilisateur

Woodbridge

Woodbridge B0970S Manuel utilisateur

Woodbridge

Woodbridge T0001 Manuel utilisateur

Woodbridge

Woodbridge T-0042 Instructions de montage

Woodbridge

Woodbridge T-0022 Instructions de montage

Woodbridge

Woodbridge B0920 Manuel utilisateur

Woodbridge

Woodbridge B0980S Instructions de montage

Woodbridge

Woodbridge B0735 Instructions de montage

Woodbridge

Woodbridge T0033 Instructions de montage

Woodbridge

Woodbridge BW5100S Instructions de montage

Manuels Toilettes populaires d'autres marques

Toto

Toto Washlet TCF4911 Series Manuel utilisateur

Kohler

Kohler K-6419 Manuel utilisateur

Grohe

Grohe Sensia ARENA Manuel utilisateur

Kohler

Kohler K-5171K Instructions de montage

Geberit

Geberit AQUACLEAN MERA CLASSIC Manuel utilisateur

Kohler

Kohler K-24097X Instructions de montage

Better Bathrooms

Better Bathrooms BUN/BeBa 27555/78725 Manuel utilisateur

American Standard

American Standard CONCEPT Cube TF-2704 Manuel utilisateur

BIOLAN

BIOLAN ECO Manuel de la liste des pièces

Thetford

Thetford C260 Series Manuel utilisateur

KELISS

KELISS T162A Series Manuel utilisateur

Kohler

Kohler K-22241K Instructions de montage

Kohler

Kohler ESCALE K-32771T-NS Manuel utilisateur

BIOLAN

BIOLAN GARDEN TOILET Manuel de la liste des pièces

washloo

washloo Prestige Manuel utilisateur

JABSCO

JABSCO 37010 Series Manuel utilisateur

Drive

Drive TSE 150 Manuel utilisateur

Olympia

Olympia EPOQUE 69209 Mode d’emploi
