Planning Information

Model W422718(R) Pro Wall Hood

Dimensions in parentheses are in

millimeters unless otherwise specified.

9/06

Wolf Pro wall hoods provide the ultimate in

ventilation. With standard elements like heat sentry

and dual setting halogen lighting, Wolf elevates the

need for ventilation to an enjoyable perk.

Pro 27" (686) deep wall hoods are available in the

classic stainless steel finish. You also have the option

of a decorative rail. While a classic stainless steel rail

is standard on (R) models, platinum or brass rails are

available to match the bezels of our dual fuel ranges

and sealed burner rangetops.

The deepest of the Pro wall hoods, this 27" (686)

model provides an additional exclusive feature – heat

lamps.

Pro wall ventilation hoods are recommended for use

with all Wolf cooking appliances. For optimal perform-

ance, a Pro 27" (686) deep wall hood is recommended

for use with ranges and rangetops that contain a

charbroiler or griddle.

Wolf Pro 27" (686) deep wall hoods

are available in the classic stainless steel

finish. Rail option hoods (R) come with a

classic stainless steel decorative rail and

stand-offs. Optional platinum or brass

rails match dual fuel range bezels. Pro

wall hoods are sold as a shell only;

internal, in-line and remote blower

options are available.

Model W422718

Model W422718R

– Rail Option

Classic stainless

steel finish

Backdraft damper

Stainless steel

baffle filters

Infinite speed

blower control

Welded seams

and hemmed edges

Halogen lighting

Model W422718R shown with standard classic stainless steel

decorative rail, platinum or brass rail available as a sales accessory

Hand finished

craftsmanship

Recessed easy

access controls

Decorative rail

(optional)

Planning Information

Model W422718(R) Pro Wall Hood

Dimensions in parentheses are in

millimeters unless otherwise specified.

Dimensions may vary by ±

" (3).

FEATURES

42" (1067) wide by 27" (686) deep wall

ventilation hood with classic stainless steel

finish

Rail option hoods (R) come with a classic

stainless steel decorative rail and stand-offs –

optional platinum or brass rail to match dual

fuel range and sealed burner rangetop bezels

is available as a sales accessory

Internal, in-line and remote blower options

Heavy-duty 16-gauge brushed stainless steel

construction

Stainless steel enclosed liner

Continually welded seams, hemmed edges

and sides and hand finished craftsmanship

Recessed easy-access controls

Infinite-speed blower control

Heat sentry feature automatically turns unit

on when heat is sensed and automatically

adjusts blower speed

Halogen lighting with two settings

Heat lamps – bulbs not included

Removable, dishwasher-safe, restaurant-

grade stainless steel baffle filters

Transition with backdraft damper included

UL listed to US and Canadian safety

standards

UL approved for covered outdoor applications

Two and five year residential warranty –

exclusions apply; warranty information can

be found on our website, wolfappliance.com

42" (1067)

OVERALL WIDTH

27" (686)

OVERALL DEPTH

12"

(305)

42" (1067)

OVERALL WIDTH

27" (686)

OVERALL DEPTH

12"

(305)

18"(457)

OVERALL

HEIGHT

(51)

4"(102)

3/4" (19)

DIAMETER

OF RAIL

18"(457)

OVERALL

HEIGHT

4"(102)

OVERALL DIMENSIONS

Model W422718

Model W422718R with Rail

Planning Information

Model W422718(R) Pro Wall Hood

Dimensions in parentheses are in

millimeters unless otherwise specified.

SPECIFICATIONS

Overall Width of Hood 42" (1067)

Overall Height of Hood 18" (457)

Overall Depth of Hood – W422718 27" (686)

W422718R (including rail) 29" (737)

Duct Size 10" (254) Round

Discharge Vertical

Electrical Supply Requirements 110 / 120 V AC, 60 Hz

15 amp dedicated circuit

Shipping Weight 88 lbs (40 kg)

For optimal performance, a Pro 27" (686) deep wall hood is

recommended for use with ranges and rangetops that contain a

charbroiler or griddle.

Specifications are subject to change without notice.

BLOWER OPTIONS

600 CFM Internal Blower 807614

900 CFM Internal Blower 805086

1100 CFM In-Line Blower 808332

900 CFM Remote Blower 801641

1200 CFM Remote Blower 801642

1500 CFM Remote Blower 804701

Refer to the Pro Ventilation

Recommendations chart at the end

of this section.

ACCESSORIES

Platinum or brass decorative rail

and stand-offs

38" (965) high stainless steel

backsplash

38" (965) high stainless steel

backsplash with warming rack

6" (152) and 12" (305) duct covers

Contact your Wolf dealer for additional

information on accessories.

Planning Information

Model W422718(R) Pro Wall Hood

Dimensions in parentheses are in

millimeters unless otherwise specified.

DIMENSIONS

Overall Width of Hood 42" (1067)

Overall Height of Hood 18" (457)

Overall Depth of Hood (excluding rail) 27" (686)

Countertop to Bottom of Hood 30" (762) to 36" (914)

Location of Electrical Within shaded area

See Installation Instructions shipped with unit for detailed specifications.

INSTALLATION SPECIFICATIONS

42" (1067)

WIDTH OF HOOD

NOTE: Horizontal discharge is applicable on 24" (610) deep wall hoods used with WBLOWER-60INT or any remote blower. WBLOWER-90INT

is not for use in horizontal discharge applications. 27" (686) deep wall hoods are vertical discharge only.

30" TO 36"

(762–914)

TO COUNTERTOP

30" TO 36"

(762–914)

TO COUNTERTOP

18" (457)

HEIGHT

OF HOOD

27" (686)

DEPTH OF HOOD

(152)

(127)

LOCATION OF

ELECTRICAL

Planning Information

Model W422718(R) Pro Wall Hood

Dimensions in parentheses are in

millimeters unless otherwise specified.

INSTALLATION NOTES

Refer to the illustrations and specifications

for overall dimensions and installation specifics.

Wolf Pro wall ventilation hoods are recom-

mended for use with any Wolf cooking appli-

ance, and should be at least as wide as the

cooking surface. It is recommended that the

hood overlap the cooking surface by 3" (76) on

either side.

For optimal performance, a Pro 27" (686)

deep wall hood is recommended for use with

ranges and rangetops that contain a charbroiler

or griddle.

Installation of all Pro wall hoods should be

30" (762) to 36" (914) from the bottom of the

hood to the countertop. Follow the dimensions

shown in the Installation illustration.

Wolf Pro wall hoods are shipped without a

blower assembly. Internal, in-line and remote

blower assemblies are available. Blower options

also vary with the volume of air that needs to be

moved and the length of the duct run. Refer to

the end of this section for Pro ventilation

recommendations and blower options.

IMPORTANT NOTE: Install this ventilation hood

only with a Wolf blower.

Pro wall hoods require a separate, grounded

110/120 V AC, 60 Hz power supply. The service

should have its own 15 amp circuit breaker.

Placement of the electrical supply is not critical,

as long as you provide a minimum of 6" (152)

of 120 V AC, 60 Hz power cable. Locate electri-

cal within the shaded area shown in the Instal-

lation illustration. Note that the location of the

electrical supply will differ between vertical and

horizontal discharge blowers.

You must follow all National Electrical Code

regulations. In addition, be aware of local codes

and ordinances when installing your service.

Refer to the installation instructions shipped

with each Wolf product for detailed specifica-

tions. This information can also be found on

our website, wolfappliance.com.

Planning Information

Model W422718(R) Pro Wall Hood

Dimensions in parentheses are in

millimeters unless otherwise specified.

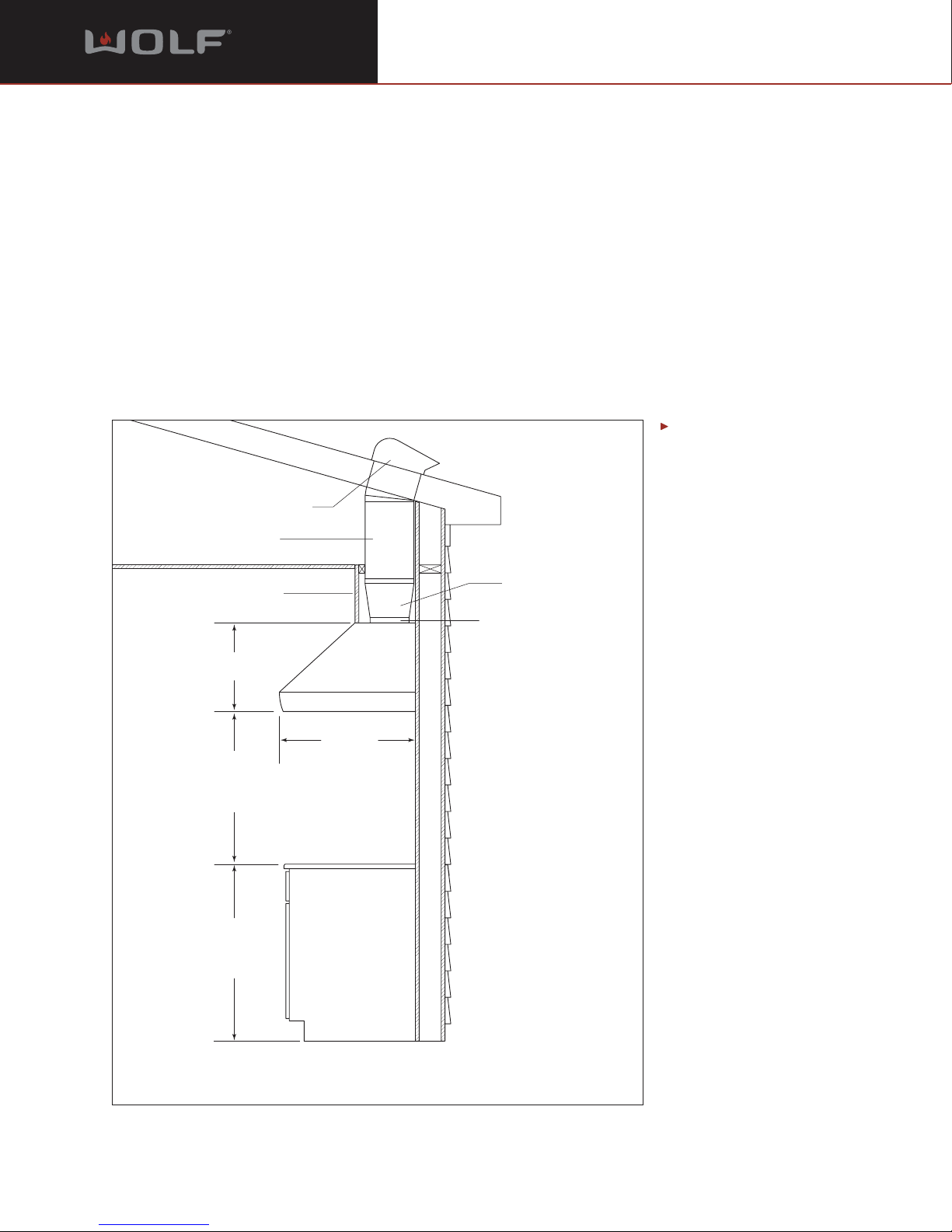

DUCTING CONSIDERATIONS

Wolf Pro 27" (686) deep wall hoods are shipped

without the blower assembly. Internal, in-line or

remote blower assemblies are available.

Pro 27" (686) deep wall hoods have a vertical

discharge location as shown in the illustration

below.

IMPORTANT NOTE: Install these ventilation

hoods only with a Wolf blower.

Refer to the Pro ventilation charts at the end of

this section for recommendations and blower

options.

30" TO 36"

(762–914)

COUNTERTOP

TO BOTTOM OF

VENTILATION HOOD

18" (457)

HEIGHT OF HOOD

WALL HOOD

DUCTWORK INSTALLATION

THROUGH ROOF

36" (914)

STANDARD

FLOOR TO

COUNTERTOP

HEIGHT

27" (686)

DEPTH OF HOOD

10" ROUND DUCT

SOFFIT OR CABINET

OR DUCT COVER

VERTICAL DISCHARGE ONLY FOR 27" (686) DEEP WALL HOODS.

TRANSITION

221/4"W x 9"D TO 10" ROUND

10"H (INCLUDING FLANGES)

ROOF CAP OR REMOTE BLOWER

VERTICAL DISCHARGE

Ducting considerations

for Pro 27" (686) deep

wall hoods.

Planning Information

Wolf Ventilation Recommendations

Dimensions in parentheses are in

millimeters unless otherwise specified.

241/2"

(622)

151/2"

(394)

281/4"

(718)

203/4"

(527)

243/4"

(629)

14"

(356)

43/4"

(121)

10" (254)

Diameter

143/4"

(375)

291/2"

(749)

291/2"

(749)

18" (457)

22"

(559)

101/8"

(257)

71/4"

(184)

10"

(254)

10" (254)

Diameter

Remote BLOWER-60REM and

BLOWER-90REM

143/4"

(375)

291/2"

(749)

291/2"

(749)

21" (533)

25"

(635)

103/8"

(264)

71/4"

(184)

10"

(254)

10" (254)

Diameter

WOLF BLOWER ASSEMBLIES

A ventilation system must include a blower

assembly. With a few exceptions where internal

blowers are included, Wolf ventilation hoods and

downdrafts are shipped without the blower

assembly. An internal, in-line or remote blower

assembly must be selected to accommodate the

cooking appliance, CFM requirements and home-

owner preferences. Internal, in-line and remote

blower assemblies are available as sales acces-

sories through your Wolf dealer.

Wolf internal, in-line and remote blowers are for

use with Wolf cooktop hoods, downdraft

systems and Pro ventilation hoods and hood

liners.

IMPORTANT NOTE: Use only a Wolf blower

with all Wolf ventilation products.

Internal blowers are mounted inside the hood

canopy or downdraft blower box. In-line blowers

are mounted in between the hood and the

exterior of the home. Remote blowers can be

mounted on the roof or in some cases, on an

exterior wall. Refer to the illustrations below for

dimensions of Wolf in-line and remote blowers.

Ventilation recommendation charts on the

following pages provide minimum CFM recom-

mendations according to the cooking appliance

and ventilation system used and blower options

for each specific ventilation hood or downdraft.

Remote BLOWER-120REM Remote BLOWER-150REM

113/4"

(298)

211/2"

(546)

243/8"

(619)

181/2"

(470)

121/4"

(311)

41/2"

(114)

18"

(457)

22"

(559)

247/8"

(632)

12"

(305)

18"

(457)

(203)

In-line BLOWER-60IL In-line BLOWER-110IL

Dimensions may vary by ±

" (3).

Planning Information

Wolf Pro Ventilation Recommendations

Dimensions in parentheses are in

millimeters unless otherwise specified.

PRO VENTILATION CFM RECOMMENDATIONS

Pro 27" (686) Deep Wall Hoods

W302718 W362718 W422718 W482718 W542718 W602718 W662718

DF304 / R304 / SRT304 600 600

DF366 / R366 / SRT366 / RT366 900 900

DF364 / R364 / SRT364 / RT364 900 900

RT362 900 900

R488 / RT488 1100 1100

DF486 / R486 / SRT486 / RT486 1100 1100

DF484 / R484 / SRT484 / RT484 1100 1100

R482 / RT482 1100 1100

DF606 / R606 1500 1500

DF604 / R604 1500 1500

Model numbers for dual fuel ranges, gas ranges, sealed burner rangetops and gas rangetops indicate width and number of surface

burners. Features such as a charbroiler, griddle and/or French Top will vary.

CFM recommendations are based on total Btu/hr output. Wolf recommends 1 CFM per 100 Btu/hr (.03 kW). Additional CFM may be

required for long duct runs.

PRO VENTILATION BLOWER OPTIONS

Pro 27" (686) Deep Wall Hoods

Blower Description Blower Number Wall Hood Models

600 CFM Internal WBLOWER-60INT (807614) W302718 / W362718 / W422718

900 CFM Internal WBLOWER-90INT (805086) W302718 / W362718 / W422718

1200 CFM Internal WBLOWER-120INT (804702) W482718 / W542718 / W602718 / W662718

600 CFM In-Line BLOWER-60IL (808331) W302718

1100 CFM In-Line BLOWER-110IL (808332) All 27" (686) Deep Wall Hoods

600 CFM Remote BLOWER-60REM (801640) W302718

900 CFM Remote BLOWER-90REM (801641) W302718 / W362718 / W422718 / W482718 / W542718

1200 CFM Remote BLOWER-120REM (801642) All 27" (686) Deep Wall Hoods

1500 CFM Remote BLOWER-150REM (804701) All 27" (686) Deep Wall Hoods

Vertical discharge with 10" (254) round duct.

Wall hood models without decorative rail listed; blower options are the same for (R) models. Transition with backdraft damper included

with all wall hoods. Blower configurations are for reference only. Refer to minimum CFM recommendations for your specific cooking

product. Always consult a qualified HVAC Engineer for specific applications.

Ce manuel convient aux modèles suivants

Autres manuels Wolf hotte de ventilation

Wolf

Wolf Downdraft Ventilation Manuel utilisateur

Wolf

Wolf W662418 Instructions d'utilisation

Wolf

Wolf PWC422418(R) Instructions d'utilisation

Wolf

Wolf L522212 Instructions d'utilisation

Wolf

Wolf CTEWH30I Manuel du propriétaire

Wolf

Wolf PW422210 Instructions d'utilisation

Wolf

Wolf Drawer Microwave Oven Manuel utilisateur

Wolf

Wolf L402212 Instructions d'utilisation

Wolf

Wolf Pro Hood Liner Manuel utilisateur

Wolf

Wolf L282212I Manuel utilisateur

Wolf

Wolf W302718 Instructions d'utilisation

Wolf

Wolf PL462212 Instructions d'utilisation

Wolf

Wolf PL402212 Instructions d'utilisation

Wolf

Wolf W362418 Manuel utilisateur

Wolf

Wolf CTWH30 Manuel utilisateur

Wolf

Wolf PW602418 Manuel utilisateur

Wolf

Wolf PI543418 Instructions d'utilisation

Wolf

Wolf CTEWH30I Manuel utilisateur

Wolf

Wolf CTWH36 Manuel utilisateur

Wolf

Wolf Drawer Microwave Oven Manuel utilisateur

Wolf

Wolf L342212 Instructions d'utilisation

Wolf

Wolf PW362418 Instructions d'utilisation

Wolf

Wolf V Series Manuel utilisateur

Wolf

Wolf PI363418 Manuel utilisateur

Manuels hotte de ventilation populaires d'autres marques

emmeti

emmeti RECUPA MED A-140 Mode d’emploi

Nibe

Nibe F135 Manuel utilisateur

Kuppersberg

Kuppersberg INTRO 60 Instructions d'installation et d'entretien

Zephyr

Zephyr Spruce AK9834BS Guide d'installation

Hisense

Hisense MH6INBG Manuel utilisateur

Miele

Miele DA 1255 Manuel utilisateur

Broan

Broan 46000 Manuel utilisateur

GE Profile PV977 Instructions originales

FALMEC

FALMEC FFRIA24W5FS Manuel utilisateur

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuel utilisateur

Küppersbusch

Küppersbusch DX ISLA Manuel utilisateur

ETNA

ETNA AV360RVS Manuel utilisateur

JUNO

JUNO JDF603E6 Manuel utilisateur

Miele

Miele DA 6708 D Manuel utilisateur

Tricity Bendix

Tricity Bendix LE 150 Manuel

AEG

AEG X68163BV1 Manuel utilisateur

AEG

AEG 125 D Manuel utilisateur

Smeg

Smeg KSEV97X Manuel utilisateur
