Planning Information

Pro 24" (610) Deep Wall Ventilation Hood

MODEL PW422418(R)

Model PW422418

ail Option

Wolf Pro wall hoods provide the ultimate in

ventilation. With standard elements like heat sentry

and dual setting halogen lighting, Wolf elevates the

need for ventilation to an enjoyable perk.

Pro 24" (610) deep wall hoods are available in the

classic stainless steel finish. You also have the option

of a decorative rail. While a classic stainless steel rail

is standard on (R) models, platinum or brass rails are

available to match the bezels of our dual fuel ranges

and sealed burner rangetops.

Pro wall ventilation hoods are recommended for use

with all Wolf cooking appliances. For optimal perform-

ance, a Pro 27" (686) deep wall hood is recommended

for use with ranges and rangetops that contain a

charbroiler or griddle.

Wolf Pro 24" (610) deep wall hoods

are available in the classic stainless steel

finish. ail option hoods ( ) come with a

classic stainless steel decorative rail and

stand-offs. Optional platinum or brass

rails match dual fuel range bezels. Pro

wall hoods are sold as a shell only;

internal, in-line and remote blower

options are available.

Model PW422418 shown with decorative rail.

Classic stainless

steel finish

Stainless steel

baffle filters

Location of

rating plate

Infinite-speed

blower control

Welded seams

and hemmed edges

Halogen lighting

Hand finished

craftsmanship

ecessed easy-

access controls

Decorative rail

(optional)

Dimensions in parentheses are in

millimeters unless otherwise specified.

Unit dimensions may vary by ± 1/8" (3).

Planning Information

Pro 24" (610) Deep Wall Ventilation Hood

MODEL PW422418(R)

F E A U R E S

42" (1067) wide wall ventilation hood with

classic stainless steel finish

Rail option wall hoods (R) come with a

classic stainless steel decorative rail and

stand-offs—optional platinum or brass rail

available to match dual fuel range bezels

Internal, in-line and remote blower options

Heavy-duty 16-gauge brushed stainless steel

construction

Stainless steel enclosed liner

Continually welded seams, hemmed edges

and sides and hand finished craftsmanship

Recessed easy-access controls

Infinite-speed blower control

Heat sentry feature automatically turns unit

on when heat is sensed and automatically

adjusts blower speed

Halogen lighting with two settings

Removable, dishwasher-safe, restaurant-

grade stainless steel baffle filters

Transition with backdraft damper included

CSA listed to US and Canadian safety

standards

Two and five year residential warranty—

exclusions apply; warranty information can

be found on our website, wolfappliance.com

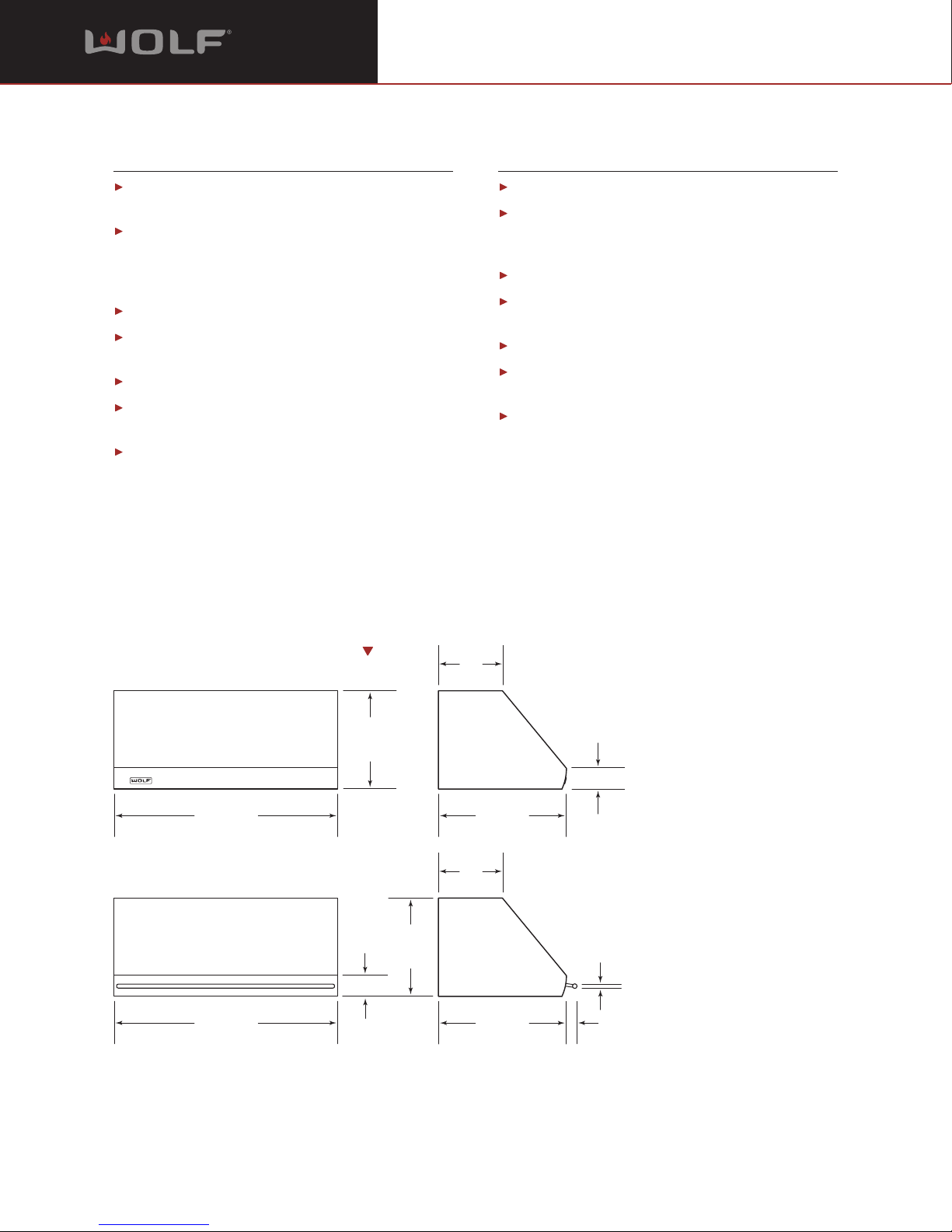

18"(457)

OVERALL

HEIGHT

42" (1067)

OVERALL WIDTH

4"(102)

24" (610)

OVERALL DEPTH

42" (1067)

OVERALL WIDTH

12"

(305)

4"(102)

24" (610)

OVERALL DEPTH

12"

(305)

18"(457)

OVERALL

HEIGHT

(51)

3/4"(19)

DIAMETER

OF RAIL

OVERALL DIMENSIONS

Model PW422418

Model PW422418 with ail

Dimensions in parentheses are in

millimeters unless otherwise specified.

Planning Information

Pro 24" (610) Deep Wall Ventilation Hood

MODEL PW422418(R)

S P E C I F I C A I O N S

verall Width of Hood 42" (1067)

verall Height of Hood 18" (457)

verall Depth of Hood 24" (610)

(including rail) 26" (660)

Internal Blower ptions 600 or 900 CFM

In-Line Blower ption 1100 CFM

Remote Blower ptions 900, 1200 or 1500 CFM

Discharge Vertical or Horizontal*

Duct Size 10" (254) Round

Electrical Supply Requirements 110 / 120 V AC, 60 Hz

15 amp dedicated circuit

Shipping Weight (shell only) 107 lbs (49 kg)

*Horizontal discharge applications require a horizontal discharge kit.

Specifications are subject to change without notice.

BLOWER OP IONS

600 CFM Internal Blower 810559

900 CFM Internal Blower 811131

1100 CFM In-Line Blower 808332

900 CFM Remote Blower 801641

1200 CFM Remote Blower 801642

1500 CFM Remote Blower 804701

efer to Pro Ventilation ecommendations

at the end of this section.

ACCESSORIES

Platinum or brass decorative rail

and stand-offs

38" (965) high classic stainless

steel backsplash with or without

warming racks

6" (152), 12" (305), 18" (457) and

24" (610) classic stainless steel

duct covers

Horizontal discharge kit

Accessories are available through your

Wolf dealer. To obtain local dealer

information, visit the Showroom Locator

section of our website, wolfappliance.com.

(152)

(127)

LOCATION OF

ELECTRICAL

42" (1067)

WIDTH OF HOOD

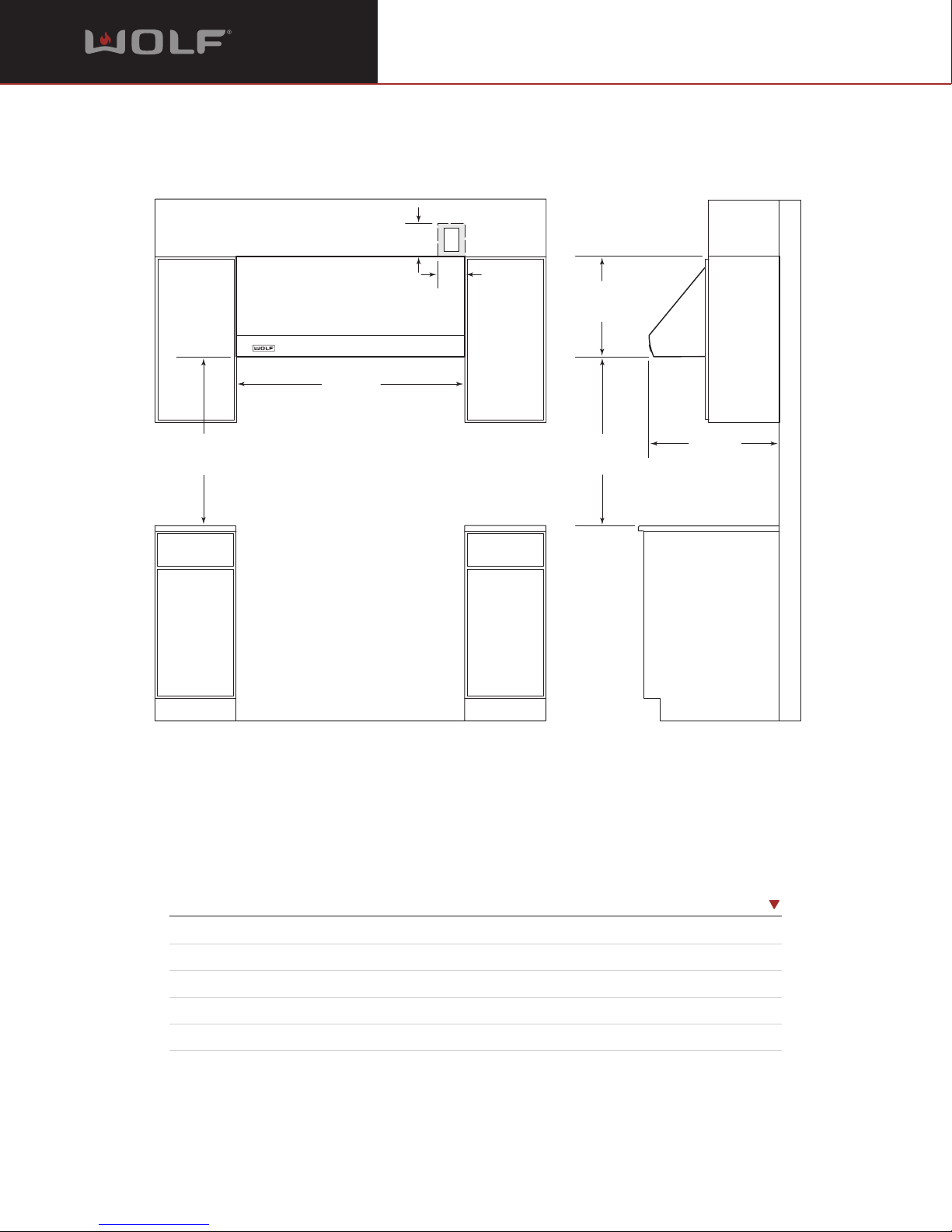

NOTE: 24" (610) deep wall hoods can be vertical or horizontal discharge.

30" TO36"

(762–914)

TO COUNTERTOP

30" TO36"

(762–914)

TO COUNTERTOP

18" (457)

HEIGHT

OF HOOD

24" (610)

DEPTH OF HOOD

DIMENSIONS

verall Width of Hood 42" (1067)

verall Height of Hood 18" (457)

verall Depth of Hood (excluding rail) 24" (610)

Countertop to Bottom of Hood 30" (762) to 36" (914)

Location of Electrical Within shaded area

See Installation Instructions shipped with unit for detailed specifications.

I N S A L L A I O N S P E C I F I C A I O N S

Dimensions in parentheses are in

millimeters unless otherwise specified.

Planning Information

Pro 24" (610) Deep Wall Ventilation Hood

MODEL PW422418(R)

Dimensions in parentheses are in

millimeters unless otherwise specified.

Planning Information

Pro 24" (610) Deep Wall Ventilation Hood

MODEL PW422418(R)

I N S A L L A I O N N O E S

Refer to the illustrations and specifications

for overall dimensions and installation specifics.

Wolf Pro wall ventilation hoods are recom-

mended for use with any Wolf cooking appli-

ance, and should be as least as wide as the

cooking surface. It is recommended that the

hood overlap the cooking surface by 3" (76) on

either side.

IMPOR AN NO E: For optimal performance, a

Pro 27" (686) deep wall hood is recommended

for use with ranges and rangetops that contain

a charbroiler or griddle.

Installation of all Pro ventilation hoods

should be 30" (762) to 36" (914) from the

bottom of the hood to the countertop. Follow

the dimensions shown in the Installation

illustration on page 4.

Wolf Pro wall hoods are shipped without a

blower assembly. Internal, in-line or remote

blower assemblies are available. Blower options

also vary with the volume of air that needs to

be moved and the length of the duct run. Refer

to the charts at the end of this section for Pro

ventilation recommendations and blower

options.

IMPOR AN NO E: Install this ventilation hood

only with a Wolf blower.

Pro wall hoods require a separate, grounded

110/120 V AC, 60 Hz power supply. The service

should have its own 15 amp circuit breaker.

Placement of the electrical supply is not critical,

as long as you provide enough 120 V AC, 60 Hz

power cable to make the electrical connection.

Locate electrical within the shaded area shown

in the Installation illustration on page 4.

You must follow all National Electrical Code

regulations. In addition, be aware of local codes

and ordinances when installing your service.

Refer to the installation instructions shipped

with each Wolf product for detailed specifica-

tions. This information can also be found on

our website, wolfappliance.com.

Dimensions in parentheses are in

millimeters unless otherwise specified.

Planning Information

Pro 24" (610) Deep Wall Ventilation Hood

MODEL PW422418(R)

Ducting for Pro 24" (610)

deep wall hoods.

DUCTWORK INSTALLATION

THROUGH ROOF

24" (610)

DEPTH OF HOOD

ROOF CAP OR REMOTE BLOWER

10" (254) ROUND DUCT

SOFFIT OR CABINET

OR DUCT COVER

NOTE: HORIZONTAL DISCHARGE REQUIRES AN ACCESSORY KIT.

VERTICAL DISCHARGE

TRANSITION

221/4"W x 9"D TO 10" ROUND

10"H (INCLUDING FLANGES)

30" TO 36"

(762–914)

COUNTERTOP

TO BOTTOM OF

VENTILATION HOOD

36" (914)

STANDARD

FLOOR TO

COUNTERTOP

HEIGHT

18" (457)

HEIGHT OF HOOD WALL HOOD

D U C I N G C O N S I D E R A I O N S

Wolf Pro 24" (610) deep wall hoods are shipped

without the blower assembly. Internal, in-line

and remote blower assemblies are available.

IMPOR AN NO E: Install this ventilation hood

only with a Wolf blower.

Pro 24" (610) deep wall hoods have a vertical

discharge. A horizontal discharge kit is available

as a sales accessory.

The hood will operate most efficiently when

ductwork does not exceed 50' (15 m) in length.

Local building codes may require the use of

make-up air. Consult your local HVAC profes-

sional for specific requirements in your area.

IMPOR AN NO E: Wolf Pro 24" (610) deep

wall hoods must be vented to the outside. Use

only metal ductwork.

Refer to the illustration below for ducting

considerations for Pro 24" (610) deep wall

hoods.

Dimensions in parentheses are in

millimeters unless otherwise specified.

Unit dimensions may vary by ± 1/8" (3).

Planning Information

Pro 24" (610) Deep Wall Ventilation Hood

MODEL PW422418(R)

W O L F B L O W E R A S S E M B L I E S

Aventilation system must include a blower

assembly. Wolf ventilation hoods are shipped

without the blower assembly. An internal, in-line

or remote blower assembly must be selected to

accommodate the cooking appliance, CFM

requirements and homeowner preferences.

Internal, in-line and remote blower assemblies

are available as sales accessories through your

Wolf dealer.

IMPOR AN NO E: Use only a Wolf blower

with all Wolf ventilation products.

Internal blowers are mounted inside the hood

canopy. In-line blowers are mounted in between

the hood and the exterior of the home. Remote

blowers can be mounted on the roof or in some

cases, on an exterior wall. Refer to the illustra-

tions below for dimensions of Wolf in-line and

remote blowers.

Pro ventilation recommendation charts on the

following page provide minimum CFM recom-

mendations according to the cooking appliance

and ventilation hood used and blower options

for each specific Pro 24" (610) deep wall hood.

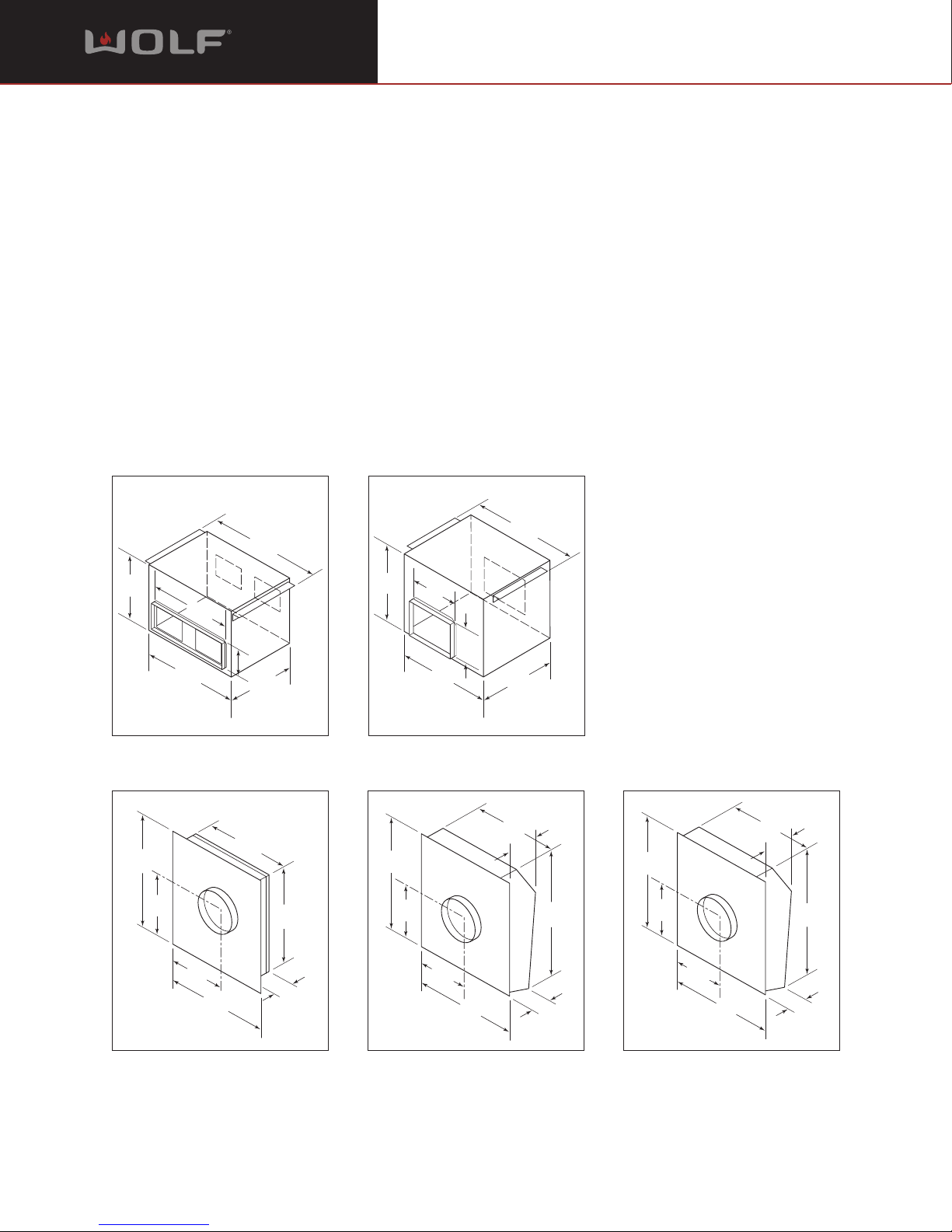

241/2"

(622)

151/2"

(394)

281/4"

(718)

203/4"

(527)

243/4"

(629)

14"

(356)

43/4"

(121)

10" (254)

Diameter

143/4"

(375)

291/2"

(749)

291/2"

(749)

18" (457)

22"

(559)

101/8"

(257)

71/4"

(184)

10"

(254)

10" (254)

Diameter

143/4"

(375)

291/2"

(749)

291/2"

(749)

21" (533)

25"

(635)

103/8"

(264)

71/4"

(184)

10"

(254)

10" (254)

Diameter

113/4"

(298)

211/2"

(546)

243/8"

(619)

181/2"

(470)

121/4"

(311)

41/2"

(114)

In-line BLOWE -60IL

emote BLOWE -60 EM and

BLOWE -90 EM

emote BLOWE -120 EM emote BLOWE -150 EM

18"

(457)

22"

(559)

247/8"

(632)

12"

(305)

18"

(457)

(203)

In-line BLOWE -110IL

Dimensions in parentheses are in

millimeters unless otherwise specified.

Planning Information

Pro 24" (610) Deep Wall Ventilation Hood

MODEL PW422418(R)

P R O V E N I L A I O N C F M R E C O M M E N D A I O N S

P R O V E N I L A I O N B L O W E R O P I O N S

Pro 24" (610) Deep Wall Hoods

Blower Description Blower Number Wall Hood Models

600 CFM Internal WBL WER-60INT (810559) PW302418 / PW362418 / PW422418

900 CFM Internal WBL WER-90INT (811131) PW302418 / PW362418 / PW422418

1200 CFM Internal WBL WER-120INT (810316) PW482418 / PW542418 / PW602418 / PW662418

600 CFM In-Line BL WER-60IL (808331) PW302418

1100 CFM In-Line BL WER-110IL (808332) All 24" (610) Deep Wall Hoods

600 CFM Remote BL WER-60REM (801640) PW302418

900 CFM Remote BL WER-90REM (801641) PW302418 / PW362418 / PW422418

PW482418 / PW542418

1200 CFM Remote BL WER-120REM (801642) All 24" (610) Deep Wall Hoods

1500 CFM Remote BL WER-150REM (804701) All 24" (610) Deep Wall Hoods

Pro 24" (610) Deep Wall Hoods

Model

PW302418 PW362418 PW422418 PW482418 PW542418 PW602418 PW662418

DF304 / R304 / SRT304 600 600

DF366 / R366 / SRT366 / RT366 900 900

DF364 / R364 / SRT364 / RT364 900 900

RT362 900 900

R488 / RT488 1100 1100

DF486 / R486 / SRT486 / RT486 1100 1100

DF484 / R484 / SRT484 / RT484 1100 1100

DF606 / R606 1500 1500

DF604 1500 1500

Minimum CFM requirements for Wolf ranges and rangetops. CFM recommendations are based on total Btu/hr output.

Additional CFM may be required for long duct runs.

Ce manuel convient aux modèles suivants

Autres manuels Wolf hotte de ventilation

Wolf

Wolf PI663418 Instructions d'utilisation

Wolf

Wolf CTWH30 Manuel utilisateur

Wolf

Wolf L282212I Manuel utilisateur

Wolf

Wolf Pro Wall Series Manuel utilisateur

Wolf

Wolf W302418 Instructions d'utilisation

Wolf

Wolf DD45I Manuel utilisateur

Wolf

Wolf PW302418 Manuel utilisateur

Wolf

Wolf PWC482418 Manuel utilisateur

Wolf

Wolf PW302210R Instructions d'utilisation

Wolf

Wolf PW602418(R) Instructions d'utilisation

Wolf

Wolf W542418 Instructions d'utilisation

Wolf

Wolf PW542418R Instructions d'utilisation

Wolf

Wolf Downdraft Ventilation Manuel utilisateur

Wolf

Wolf PI363418 Manuel utilisateur

Wolf

Wolf CTWH30 Manuel utilisateur

Wolf

Wolf L402212 Instructions d'utilisation

Wolf

Wolf PW602718 Instructions d'utilisation

Wolf

Wolf ICBPW482418 Manuel utilisateur

Wolf

Wolf L282212I Instructions d'utilisation

Wolf

Wolf Pro Wall Chimney Ventilation Hoods Manuel utilisateur

Wolf

Wolf Pro Hood Liner Manuel utilisateur

Wolf

Wolf Pro Wall Ventilation hoods Manuel utilisateur

Wolf

Wolf PW662418 Instructions d'utilisation

Wolf

Wolf DD45I Manuel utilisateur

Manuels hotte de ventilation populaires d'autres marques

emmeti

emmeti RECUPA MED A-140 Mode d’emploi

Nibe

Nibe F135 Manuel utilisateur

Kuppersberg

Kuppersberg INTRO 60 Instructions d'installation et d'entretien

Zephyr

Zephyr Spruce AK9834BS Guide d'installation

Hisense

Hisense MH6INBG Manuel utilisateur

Miele

Miele DA 1255 Manuel utilisateur

Broan

Broan 46000 Manuel utilisateur

GE Profile PV977 Instructions originales

FALMEC

FALMEC FFRIA24W5FS Manuel utilisateur

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuel utilisateur

Küppersbusch

Küppersbusch DX ISLA Manuel utilisateur

ETNA

ETNA AV360RVS Manuel utilisateur

JUNO

JUNO JDF603E6 Manuel utilisateur

Miele

Miele DA 6708 D Manuel utilisateur

Tricity Bendix

Tricity Bendix LE 150 Manuel

AEG

AEG X68163BV1 Manuel utilisateur

AEG

AEG 125 D Manuel utilisateur

Smeg

Smeg KSEV97X Manuel utilisateur
