• Please read and follow all safety rules and instructions

in this manual before operating.

• The product warranty is printed on the back of this

guide, so please keep it in a safe place for future use.

• This product is manufactured for use only in USA/CA

Model

Use & Care

Guide

English

C535

Light Sensor

Front Panel

True HEPA Filter

Power cord with plug

(This product is suitable

for 120V only.)

Odor

Sensor

Carbon Filter

Sheet

PlasmaWave®

Control Panel/Display Panel

3-STAGE AIR PURIFICATION

Pre-Filter

PACKAGE

CONTENTS

User

Manual

Unit Pre-Filter / (4) Carbon Filter

Sheets /

(1) True HEPA Filter

Remote

Control

소피아 2 영문

소피아 1

Air Outlet Vent

English

C535

소피아 2 영문

소피아 1

CONTROLS

Reset Button

After replacing a lter,

press the RESET button

for at least 5 seconds.

Fan Speed

Indicator

Indicates the

current fan speed.

Timer Indicator

If timer has been set, the

LED light indicates the set

time of operation.

PlasmaWave®Indicator

Indicates whether PlasmaWave®

is enabled or disabled.

Air Quality

Indicator

Color-coded LED

indicates one of

three levels of air

quality.

Mode Button

Press to cycle through

and set the desired

mode of operation

(Auto, Sleep).

Power Button

Turns the unit on

or off.

Fan Speed Button

Enables Manual operation of the

unit. Press to cycle through and

set the desired fan speed (Low,

Medium, High, Turbo).

PlasmaWave®Button

Enables or disables

PlasmaWave®.

Light

Sensor

Detects the

amount of

ambient

light in the

environment.

Timer

Button

Press to cycle

through and set

desired length of

operation (1hr,

4hr, 8hr).

Check Filter Indicator

LED light indicates when it is

time to change the lter.

Odor Sensor

When in Auto

Mode, detects the

amount of odor in

the environment

to adjust fan

speeds.

WHERE TO USE

Place indoors away

from direct sun light

direct exposure may cause

product malfunction or failure.

Only place on hard, at surfaces

imsy or slanted surfaces may result

in abnormal noise and vibrations.

Allow 12 ~ 18 in. of space between TVs, radios, and other electronics

electromagnetic interference from certain electronics may cause product malfunction.

Allow at least 4 in. from walls

for maximum air ow.

30~46 cm

10 cm

English

C535

SAFETY AND CAUTIONS

Before operating this equipment, carefully read and follow these

safety cautions

Ensure lters are inserted before running unit

running unit without lters can shorten the units life and cause electric shock or injury.

Be sure foreign objects are NOT inserted into the vents on the unit

objects can include pins, rods, and coins.

Do not touch any part of the interior of the unit with wet hands

the high voltage may cause electric shock.

Ensure unit intake and outlet vents do not become blocked

blockage may lead to increased internal temperatures causing product failure and

deformation.

Do not use the unit as a step stool or place heavy objects on it

personal injury may occur or product failure and deformation.

*This unit is not intended to be used to preserve documents or in art conservation.

Do not install in any sort of motor or

transport vehicle (trucks, boats, ships,

etc.)

Do not use around mist or fumes from

industrial oil or around large quantities

of metallic dust

Do not place near any ammable

materials (aerosols, fuel, gases etc.)

Do not place below any electrical outlet

Do not have unit facing

into wind or draft

Do not place in excessively humid

areas where unit may become wet

Do not place in an area with

excessive amounts of noxious gases

Do not place around heating elements

Follow these instructions to reduce the

risk of serious injury or death and to

reduce risk of damagin the unit.

WARNING

Do not pull on the power cord

when unplugging the unit

If the unit becomes submerged in water,

unplug it and contact customer service

Do not plug additional appliances

into the same outlet or power supply

Unplug unit when not in operation

for extended periods of time

Do not tie or knot power cord

when unit is in operation

Cord can become damaged by

forcefully bending, pulling, twisting,

bundling, pinching or placing heavy

objects on it

Do not unplug or move

the unit while in operation

Do not touch the plug with wet hands

English

C535

Note

INSTALLING FILTERS

This product comes with all the required lters. The protective

plastic wrap must be removed from the lters before use.

• Operating the unit without removing the plastic wrap may result in

product failure.

• Unplug and make sure the unit is turned off before installing lters.

Remove the front panel by

grasping its upper edge and

gently pulling forward.

Remove the lters from the unit.

They are protected inside a

plastic wrap.

Remove lters from

protective plastic wrap.

Operating the unit without

removing lters from plastic

wrap may cause abnormal noise,

deformation, or re as a result of

overheating.

Install the lters until

they t securely in place.

Filters must be installed

in this order:

3. True HEPA Filter (back)

2. Carbon Filter Sheet (middle)

1. Pre-Filter (front)

Latch

True HEPA

Filter

Carbon

Filter

Pre-Filter

To install the Pre-Filter, insert bottom tabs into the slots on

either side of the lower part of the unit, then rotate upward to

insert the upper tabs into the slots at the top part of the unit

until sides audibly click into place.

English

C535

• Intervals between lter replacement may vary depending on

environment.

• For optimal use, Pre-Filter can be cleaned once every 14 days

which can extend the life of other lters.

Replace the front panel by rst

inserting the latch at the bottom

edge into the base of the unit,

then rotate the panel upward

toward the top of the unit until

the magnets pull the lid closed.

When to Replace Filters

When the Check Filter indicator

LED is on, it is time to replace the

True HEPA Filter.

Latch

Filter Indicator

Light

When to

service

When to

replace

Pre-Filter none

Clean once

every 14

days

Permanent

Carbon Filter none Can NOT

WASHED

Replace

every 3

months

True HEPA Filter Lasts Approx.

12 months

To purchase replacement

Winix filters:

(877)-699-4649

www.winixamerica.com

this unit

is compatible

with this

filter

FILTER

item: 115115

True

HEPA

Filter

Carbon Filter

Sheet

Note

When to service and replace lters:

The lters’ life varies depending on the level of particles in the

air. The more dust present in the environment, the more dust

accumulates in the lters, shortening the life.

If the lters are heavily soiled or have a bad odor, or if the fan

strength is signicantly weakened, replace lters even if the

Check Filter indicator has not yet turned on.

English

C535

Set desired fan speed by

using Auto or Manual Mode.

By default, when the unit rst

powers on, the mode will be

set to Auto with PlasmaWave

enabled.

Insert the power cord

into an electrical outlet.

Press the "Power" button.

During the rst 30 seconds

of power up, the Air Quality

Indicator will cycle through

Blue, Amber and Red colors.

Smart Sensor (Odor Sensor) takes

approximately 4 minutes to gauge the air

quality in the environment before normal

operation begins.

소피아 2 영문

소피아 1

소피아 2 영문

소피아 1

INITIAL OPERATION

Auto Mode

Enables auto operation based

on air quality Smart Sensors.

1. Press the Mode button to select

Auto mode.

2. The LED ‘Auto’ light will indicate

when Auto mode is activated, and

operation will begin.

Manual Mode

Manually setting

the fan speed.

1. Press the Fan Speed button to set

the desired fan speed to Low, Medium,

High, or Turbo.

2. When Manual Mode is selected,

Auto Mode and Sleep Mode is

automatically disabled.

소피아 2 영문

소피아 1

소피아 2 영문

소피아 1

When in Auto mode the fan speed is automatically adjusted

according to the indoor air quality.

As the indoor air quality improves, the fan speed will

automatically be reduced. If the indoor air quality decreases,

the fan speed will automatically increase.

Note

English

C535

FEATURES

Air Quality Indicator

When the unit is on, the LED light will

indicate the current indoor air quality.

• The three levels of air quality are:

BLUE (good), AMBER (fair), RED (poor).

• Air quality level is displayed on the indicator,

based on the Smart Sensor (Odor Sensor).

• Depending on the immediate environment, the

indicator may change frequently in color or stay

the same for lengthy periods of time.

소피아 2 영문

소피아 1

소피아 2 영문

소피아 1

Air Quality Indicator

Sleep Mode

When Sleep mode is selected, the fan

speed is automatically set to quiet and the

Air Quality Indicator LED light is disabled.

• Auto mode will automatically put unit into

sleep mode when the light sensor detects it is

dark enough in the environment.

• The LED "Sleep" light will indicate when Sleep

mode is activated.

• When Sleep Mode is activated, the Air Quality

Indicator LED light is disabled.

Timer

The timer can be set to let the unit

run for a specified period of time.

• Press the Timer button to select the desired

length of time.

• When the Timer LED light will indicate the

selected length of operation.

• Every time the Timer button is pressed,

the Timer LED light will cycle through the

settings, (1hr, 4hr, 8hr, [NO TIMER]).

소피아 2 영문

소피아 1

소피아 2 영문

소피아 1

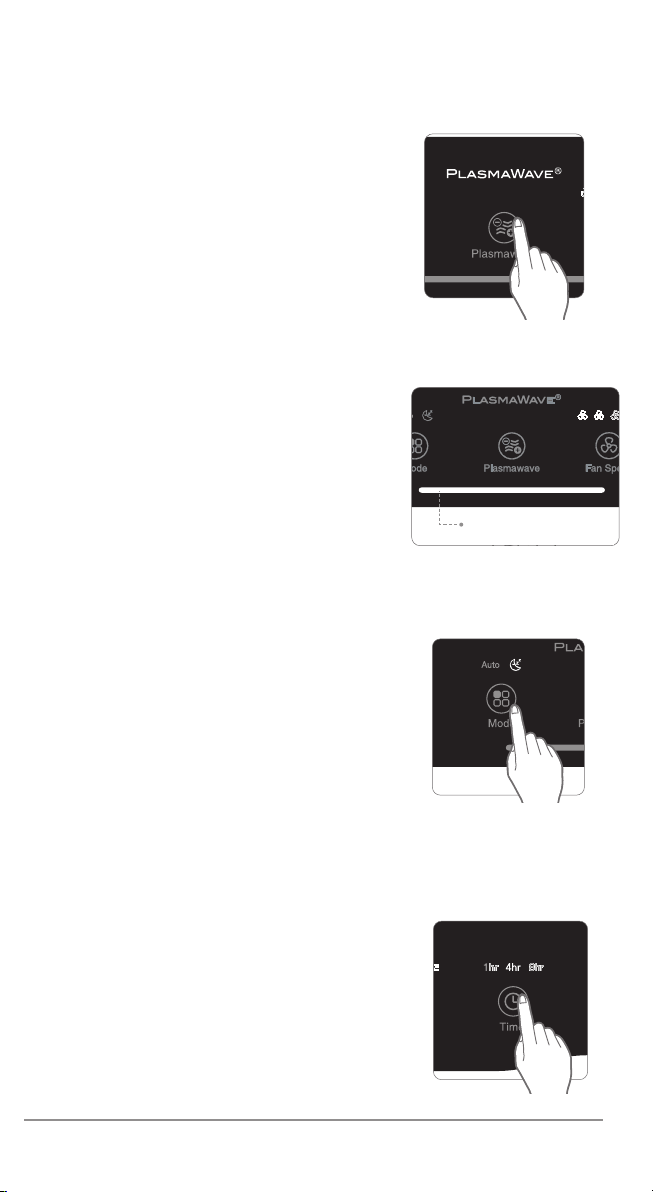

PlasmaWave®

By default, PlasmaWave

is enabled

whenever the unit is powered on.

• Press the Plasmawave button, when the

unit is on, to enable or disable this feature.

• PlasmaWave®works to remove

harmful airborne contaminants.

• When the unit is running, you may hear a

chirping or buzzing sound. The sound is from

large particles passing through PlasmaWave®,

it is normal and does not signify product failure.

English

C535

소피아 2 영문

소피아 1

NOTICE

Remove the front panel

by grasping its upper

edge and gently pulling

forward.

Press on the Pre-Filter

tabs near the top of the

filter, release and remove.

Pull out the Carbon Filter

and True HEPA Filter.

Carbon

Filter

Insert the True HEPA

Filter rst, then the Odor

Absorbing Carbon Filter.

Insert the Pre-Filter. Put the front panel back on.

▶

True

HEPA

Filter Latch

▶

Pre-Filter

▶▶

Tabs

Pre-Filter

Latch

Remove Used Filters

Turn the unit power off before removing lters.

Prepare New Filters

Remove lters from protective plastic wrap.

Operating the unit without removing

lters from plastic wrap may cause

abnormal noise, deformation, or re as a

result of overheating.

For optimal performance, only Genuine

Winix Replacement lters should be used

with this unit.

Resetting the Unit

After replacing the lters, turn the power

onto the unit and then use a thin object,

such as a paper clip, to press the RESET

switch for 5 seconds.

Insert New Filters

Install the lters until they t securely in place.

REPLACING FILTERS

English

C535

Cleaning the lters

Use a vacuum cleaner or soft brush

to clean the Pre-Filter.

• If it is excessively soiled, rinse in

room temperature water.

• Do not use detergent or soap.

• Allow the lter to dry for 24 hours

or more before using.

• Intervals between lter cleaning

may vary depending on the air

quality.

Cleaning the Exterior & Interior

Wipe with a soft damp cloth

using room temperature water.

• Afterwards, wipe it down with a

clean dry cloth.

• To keep unit in peak condition,

clean every 1-2 months.

Open the front panel and clean

the interior with a vacuum cleaner.

• For optimal performance, clean

every 1-2 months.

CLEANING CARE

NOTICE

- When cleaning the unit, always unplug the power cord first

and then wait until the unit has cooled down.

- Never disassemble, repair, or modify this unit yourself.

- Do not use ammable sprays or liquid detergents.

- Do not allow children to clean or maintain the unit.

- Before cleaning or maintaining, ensure unit is unplugged.

NOTICE

- Do not use benzene, alcohol, or other volatile uids,

which may cause damage or discoloration.

- Do not use hot water over 104oF or volatile uids such

as paint thinner.

Autres manuels pour C535

Table des matières

Autres manuels Winix Purificateur d'air

Winix

Winix NK100 Manuel utilisateur

Winix

Winix AUS-9500 Manuel utilisateur

Winix

Winix Air Cleaner Manuel utilisateur

Winix

Winix FreshHome PlasmaWave WACP150 Manuel utilisateur

Winix

Winix ZERO Manuel utilisateur

Winix

Winix PlasmaWave WACU300 Manuel utilisateur

Winix

Winix C535 Manuel utilisateur

Winix

Winix NK305 Manuel utilisateur

Winix

Winix AUS-0850AAPU Manuel utilisateur

Winix

Winix NK305 Manuel utilisateur

Winix

Winix ZERO+ WiFi Manuel utilisateur

Winix

Winix ZERO 4 Manuel utilisateur

Winix

Winix FreshHome PlasmaWave WACP150 Manuel utilisateur

Winix

Winix 5300-2 Manuel utilisateur

Winix

Winix PlasmaWave WACU300 Manuel utilisateur

Winix

Winix T1 Manuel utilisateur

Winix

Winix NK300 Manuel utilisateur

Winix

Winix PlasmaWave 5300 Manuel utilisateur

Winix

Winix 2020EU Manuel utilisateur

Winix

Winix AAPU500-JLE Manuel utilisateur

Winix

Winix PlasmaWave 5300 Manuel utilisateur

Winix

Winix C535 Manuel utilisateur

Winix

Winix 9500 Manuel utilisateur

Winix

Winix 5300-2 Manuel utilisateur

Manuels Purificateur d'air populaires d'autres marques

IKEA

IKEA UPPÅTVIND Manuel utilisateur

Nash

Nash AP-1 PureSmart Manuel utilisateur

LG PH-U450 Series Manuel utilisateur

DeLonghi

DeLonghi DDSX 220WFA Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MA-E85R-E Manuel utilisateur

Sharp

Sharp FU-40SE Manuel utilisateur

Philips

Philips AC2721 Manuel utilisateur

Hitachi

Hitachi EP-A3000 Manuel utilisateur

TruSens

TruSens Z-2000 Manuel utilisateur

Motorola

Motorola MBP87SN Manuel utilisateur

Beko

Beko ATP 7100I Manuel utilisateur

Carrier

Carrier INFINITY 1620 Manuel utilisateur

AtmosAir

AtmosAir P2002 Manuel utilisateur

Friedrich

Friedrich C-90A Instructions d'utilisation et d'installation

Surgically Clean Air

Surgically Clean Air JADE2.0 Manuel utilisateur

Base aire

Base aire 555 Pro Manuel utilisateur

Champion

Champion CP25 Manuel utilisateur

vollara

vollara Air & Surface Pro+ Manuel utilisateur
