Model:
(NA) WP280013267
(EU) WP280013261
(UK) WP280013263
(JP) WP280013265
Winees Spotlight Cam
Winees Scheinwerfer Kamera
1
To avoid personal injury and/or possible product damage,
the following cautions must be followed:
1. Please use sorely the provided adapter instead of
others in case of any damage to the product.
2. Keep out of reach of children. This product contains
small magnets and other small parts, which can cause
choking or injury if ingested.
3. To prevent early failure,the camera should only be
installed in operating environments ranging between
-20°C ~ 50°C(-4°F ~ 122°F).
4. Do not install
- close to heat source
- near the metal objects and mirrors that cause radio
signal aenuation or shading.
5.Do not disassemble or reinstall the camera, otherwise
it may cause security risks.
6. Unplug the power cord before cleaning. Do not clean
the camera with any liquids, spray cleaner or wet cloth.
7. The slot and opening are used for ventilation, not
allowed to be blocked or covered.
CAUTIONS
2

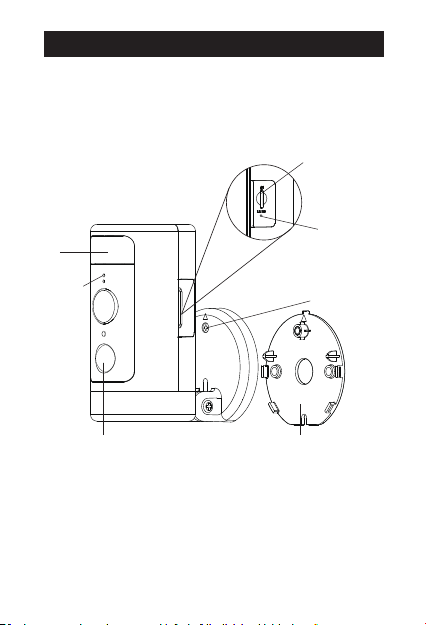

Security Screw
Mounting Bracket
Status LED
MicroSD Card Slot
Reset Buon
Motion Detector
Light
Introduction
Package Contents
Screw*2,
wall anchor*2
Status LED Description
Status Description
Flashing Green
Solid Green
Flashing Red
Solid Red Power on/System booting / Factory reseting
Wireless connected
System ready for WiFi setup / Firmware update
Red and Green
flashing alternately Unable to connect to the cloud
Wireless connection
, cloud connecting fail
Winees
spotlight cam *1 AC adapter *1 Reset pin *1
3
4
1. Scan the QR code below
LED indicator
flashing green
Set up Spotlight Cam in the AiDot App
2. Power on the camera, you will hear "Waiting for Wi-Fi
configuration" with the camera's indicator light flashing in
green.
Or search for“AiDot” in App Store or Google Play
5

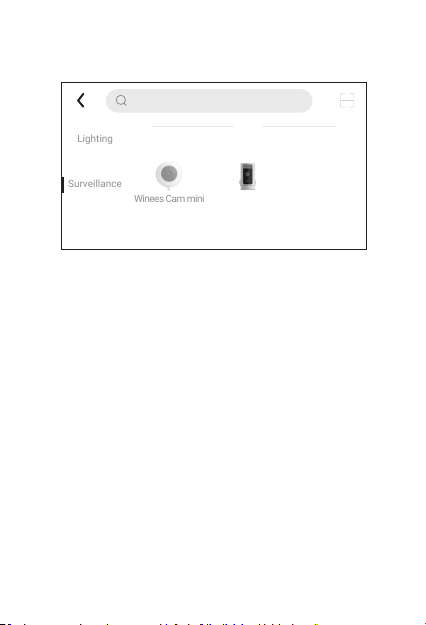

3. In the AiDot app, press ‘+’ - “devices”, select Winees
Spotlight Cam, and follow the instructions on App.
4. Place the spotlight cam in the area where you plan to
install to test the video quality, ensure that the camera can
work normally after the final installation.
IPC
Lighting
Surveillance
Winees Cam mini
Winees Spotlight
Cam
Enter device name
6
1. Placement
The recommended installation height is 2.5~3 meters (8.2~9
feet) above the ground. Either too high or too low height may
aect the operation of the motion detector.
8M
1.3M
1M
0.7M
2.5M
2.5M
2.5M
Install Spotlight Cam on the wall or celling
8M
8M
Depression
angle 10°
Depression
angle 15°
Depression
angle 20°
Motion detect area
7
2. Install the bracket
When install the bracket on the wall/ceiling, please pay
aention to the installation direction of the base.
If installing on a masonry surface, drill holes on the wall first,
insert the anchor into the hole, and then install screw to fix the
base.
Note: When install it upside down on the ceiling, you’ll need to set
the image angle to 180° in the camera seings after adding the
camera on the app.
If installing on a wooden surface, install screw to fix the base
directly.
On the wall Ceiling
8
On a masonry surface
On a wooden surface
9
3. Tighten the camera.
Arrange the cables behind the camera. You can route the
wire from the top or boom. Align the arrow on the camera
base with that on the mounting bracket, snap it into place
with a clear ”click” sound, and then tighten it with the
Security Screw.
