Windsor SENSOR S12 Mode d’emploi

Upright Vacuum

Call: 1-800-USA-CLEAN (800-872-2532) Click: www.usaclean.com Fax: 1-888-USA-CLEAN (888-872-2532)

Windsor Sensor

Poor or No Pickup

These are general maintenance guidelines.

Please consult your owner’s manual prior to performing any repairs or maintenance on this machine.

Difculty Tools Req. Check vacuum bag and lters

Low No - if bag is full or damaged, replace the bag.

Parts: Bag

Low Yes - if lters are clogged/dirty/damaged, replace the lters.

Parts: Filter

Note: See Replacing the Bag and Microlter on page 3.

See Replacing the Exhaust Filter on page 4.

Check hose for clog/damage

Low Yes - remove clog with a wire coat hanger or at tip screwdriver. If hose is damaged, replace the hose.

Parts: Hose

Note: See Removing a Clog on page 5.

Check brush roller

Low Yes - if brush roller is damaged, replace the brush roller.

Parts: Hose

Note: See Replacing the Brush Roller on page 6.

Check the belt

Low Yes - if belt is damaged, replace the belt

Parts: Belt

Note: See Replacing the Belt on page 6.

Windsor Sensor

No Power

Vacuum

Difculty Tools Req. Check the outlet

Low Yes - Try another outlet, if outlet is okay, change the cord and/or switch

Parts: Cord

Switch

Note: See Replacing the Power Cord and Switch on page 8.

Upright Vacuum

Call: 1-800-USA-CLEAN (800-872-2532) Click: www.usaclean.com Fax: 1-888-USA-CLEAN (888-872-2532)

Windsor Sensor

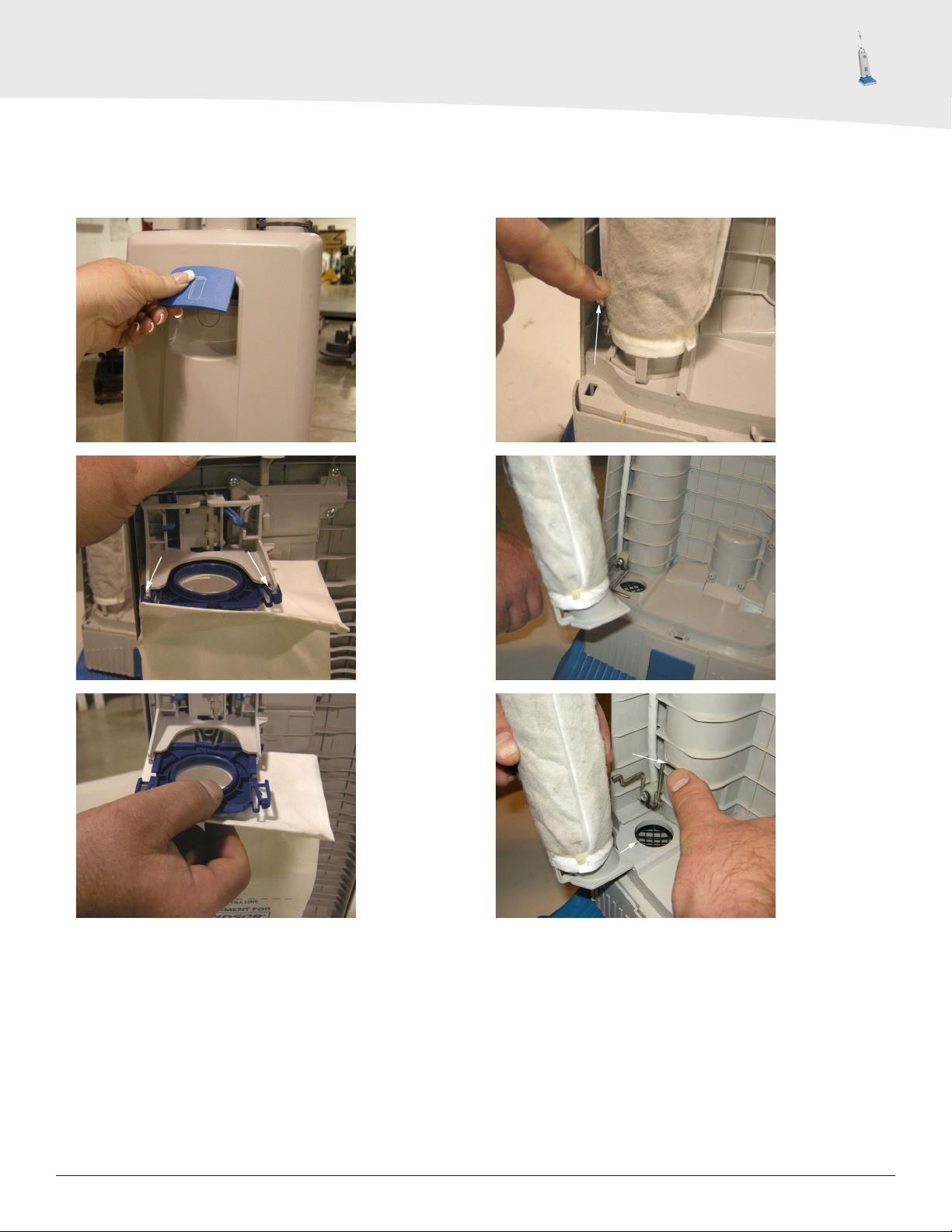

Replacing the Bag and Mircrolter

These are general maintenance guidelines.

Please consult your owner’s manual prior to performing any repairs or maintenance on this machine.

**Before you begin: Turn the machine off and unplug it.

1. Lift lever up

to remove front

cover.

2. Squeeze the

clips on the bag

together to release

bag.

3. Slide the bag

out to remove.

4. Reverse process

to install a new

bag.

1. Perform

“Replacing the

Bag” steps 1-3.

2. Push the wire

holder back

to release the

microlter.

3. Slide the

microlter out to

remove.

4. Reverse the

process to install a

new microlter.

Note: Push the

wire holder down

and hold it while

you slide the

microlter in place.

Upright Vacuum

Call: 1-800-USA-CLEAN (800-872-2532) Click: www.usaclean.com Fax: 1-888-USA-CLEAN (888-872-2532)

Windsor Sensor

Replacing the Exhaust Filter

These are general maintenance guidelines.

Please consult your owner’s manual prior to performing any repairs or maintenance on this machine.

**Before you begin: Turn the machine off and unplug it.

1. Push the button

on the front of the

vacuum body to

release the body

from the base.

2. Pull the body up

to remove it from

the base.

3. Pull up on the

exhaust lter cover

to remove.

4. Remove exhaust

lter from cage.

5. Reverse process

to install a new

exhaust lter.

Upright Vacuum

Call: 1-800-USA-CLEAN (800-872-2532) Click: www.usaclean.com Fax: 1-888-USA-CLEAN (888-872-2532)

Windsor Sensor

Removing a Clog

These are general maintenance guidelines.

Please consult your owner’s manual prior to performing any repairs or maintenance on this machine.

**Before you begin: Turn the machine off and unplug it.

1. Push the button

on the front of the

vacuum body to

release the body

from the base.

2. Pull the body up

to remove it from

the base.

3. Pull the neck

down parallel

with base and

using a wire coat

hanger or at tip

screwdriver, check

for a clog in the

neck.

4. Pull hose from

base. Check for a

clog using a wire

coat hanger or a

at tip screwdriver.

5. Flip the base

over and open the

inspection door to

check for a clog.

6. Reverse steps 1

and 2 to reattach

the body to the

base.

Tools Needed

A. Flat tip

screwdriver

B. Wire coat

hanger

Upright Vacuum

Call: 1-800-USA-CLEAN (800-872-2532) Click: www.usaclean.com Fax: 1-888-USA-CLEAN (888-872-2532)

Windsor Sensor

Replacing the Brush Roller and/or Belt

These are general maintenance guidelines.

Please consult your owner’s manual prior to performing any repairs or maintenance on this machine.

**Before you begin: Turn the machine off and unplug it.

1. Push the button

on the front of the

vacuum body to

release the body

from the base.

2. Pull the body up

to remove it from

the base.

3. Push the button

on top of the base.

While holding the

button down, pop

the brush roller

cover off.

4. Pull to remove

the brush roller

cover.

5. Pull the brush

roller through

the opening to

remove.

6. Reverse process

to install a new

brush roller or

continue to step 7

to replace the belt.

7. With brush roller

pulled out, ip

the base over and

using a Phillips

screwdriver,

remove the 4

screws from the

base plate.

8. Flip the base

back over and pull

to remove the top

base cover.

Tools Needed

A. Flat tip

screwdriver

B. Phillips

screwdriver

Upright Vacuum

Call: 1-800-USA-CLEAN (800-872-2532) Click: www.usaclean.com Fax: 1-888-USA-CLEAN (888-872-2532)

Windsor Sensor

Replacing the Brush Roller and/or Belt

These are general maintenance guidelines.

Please consult your owner’s manual prior to performing any repairs or maintenance on this machine.

**Before you begin: Turn the machine off and unplug it.

9. Using a at tip

screwdriver, slide

the belt off the

pulley.

10. Using a Phillips

screwdriver,

remove the 2

screws from the

brush roll cover.

11. Push the left

bearing block up

from the bottom of

the base.

12. The belt can

now be removed

from the base.

13. When

installing the new

belt, place one

end of the belt on

the motor pulley

and the other end

on the left bearing

block. Pull the vac

bumper out a little

to push the left

bearing block in

place.

14. Reverse steps

to reassemble the

machine.

Upright Vacuum

Call: 1-800-USA-CLEAN (800-872-2532) Click: www.usaclean.com Fax: 1-888-USA-CLEAN (888-872-2532)

Windsor Sensor

Replacing the Power Cord and/or Switch

These are general maintenance guidelines.

Please consult your owner’s manual prior to performing any repairs or maintenance on this machine.

**Before you begin: Turn the machine off and unplug it.

1. Refer to this

picture when

connecting a new

switch or power

cord.

2. Push the button

on the back of the

vacuum to release

the handle.

3. Pull the handle

up to remove it.

7. Using a #7 nut

driver, remove

the nut holding

the green wire in

place.

4. Using a Phillips

screwdriver,

remove the screw

from the back of

the handle.

5. Pull to separate

the front and back

of the handle.

Note: You may

need to use a

small at tip

screwdriver to

gently pry the

handle apart.

6. Pull the handle

apart to access

the power cord

and switch wiring.

Tools Needed

A. Flat tip

screwdriver

B. Phillips

screwdriver

C. #7 nut driver

Upright Vacuum

Call: 1-800-USA-CLEAN (800-872-2532) Click: www.usaclean.com Fax: 1-888-USA-CLEAN (888-872-2532)

Windsor Sensor

Replacing the Power Cord and/or Switch

These are general maintenance guidelines.

Please consult your owner’s manual prior to performing any repairs or maintenance on this machine.

**Before you begin: Turn the machine off and unplug it.

8. Using a Phillips

screwdriver,

remove the 2

screws holding

the power cord

bracket.

9. Using a

small Phillips

screwdriver,

loosen the 2

screws holding

the black wires.

You do not need

to remove these

screws, just loosen

them.

10. Slide the black

wires out.

11. Pull to

disconnect the

wire connectors

attached to the

switch.

12. Push the

switch fom the

back of the handle

to remove it.

Note: You may

need to use a

small at tip

screwdriver to

gently push the

switch through the

handle.

13. The front

switch cover will

come off when you

push the switch

through (step 12).

14. Reverse the

process to install

a new power cord

and/or switch.

Refer to step 1

to reconnect the

wiring correctly.
