Windsor Dominator NMWU2250H Manuel utilisateur

86399150-A 01/02/15

Dominator 500 PSI 17 Gallon

Extractor

Operating instructions (ENG)

MODELS: NMWU2250H

10066670

NMWC1350N

10066680

From Serial Number (Ref No. 1*)

* See Serial number page or

call Manufacturer.

Warranty Registration

Thank you for purchasing a Kärcher North America product. Warranty registration is quick

and easy. Your registration will allow us to serve you better over the lifetime of the product.

To register your product go to :

http://warranty.karcherna.com/

For customer assistance:

1-800-444-7654

286399150 Operators Manual - Dominator 500 PSI 17 Gallon

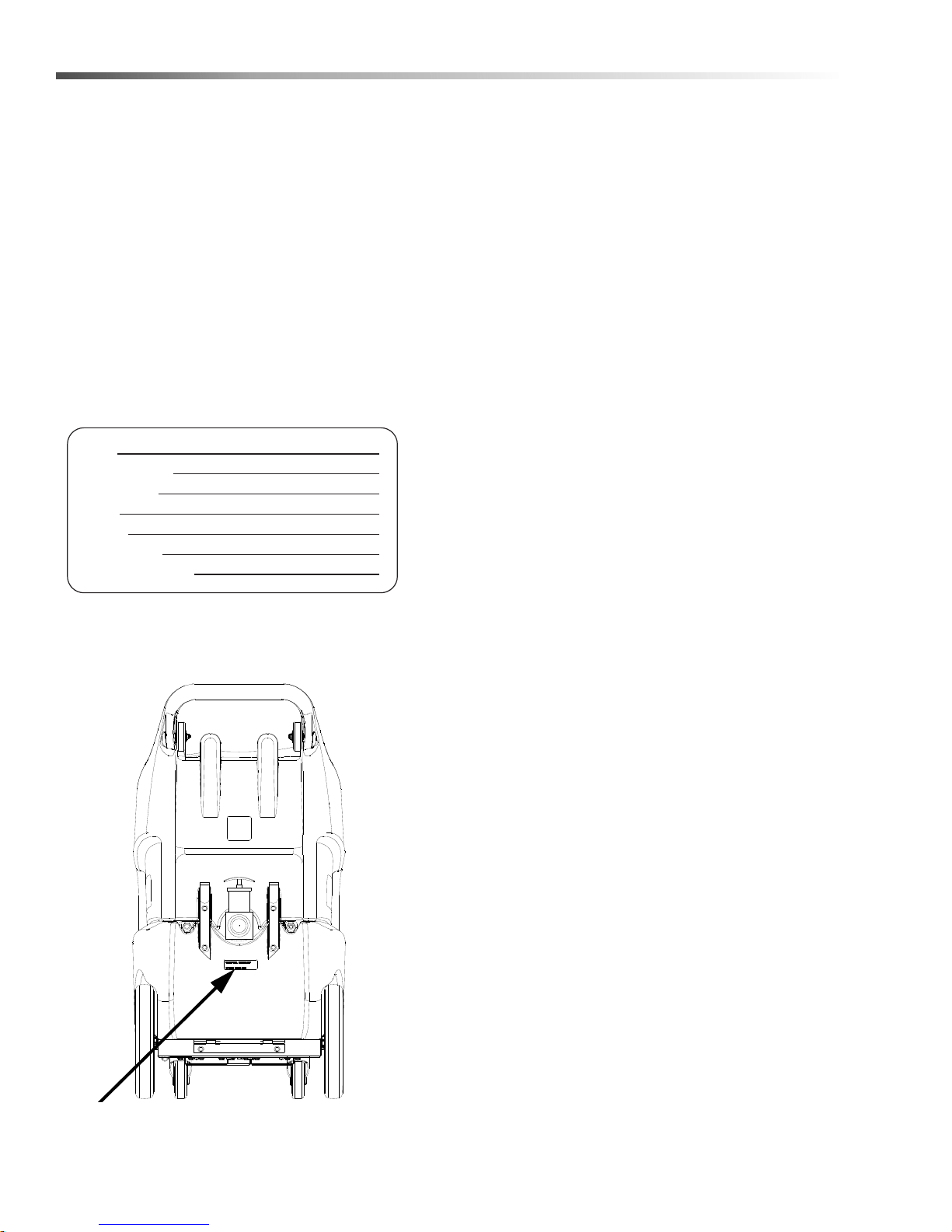

Machine Data Label

Overview

The Dominator is an electric powered carpet extractor intended for commercial use. This appliance applies a

cleaning solution to the carpet and then vacuums the soiled water back into the recovery tank.

Table of Contents

Machine Data Label. . . . . . . . . . . . . . . . . . . . . . . . . .2

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . .3

How To Use This Manual . . . . . . . . . . . . . . . . . . . . .4

Safety

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . .5

HAZARD INTENSITY LEVEL. . . . . . . . . . . . . . . . . .6

Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Grounding Instructions . . . . . . . . . . . . . . . . . . . . . . .8

Operations

Technical Specifications . . . . . . . . . . . . . . . . . . . . . .9

Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Machine Operation . . . . . . . . . . . . . . . . . . . . . . . . .11

Chemicals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Pre-Run Inspection. . . . . . . . . . . . . . . . . . . . . . . . .12

Equipment Set-up. . . . . . . . . . . . . . . . . . . . . . . . . .12

Heater Operation . . . . . . . . . . . . . . . . . . . . . . . . . .12

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Maintenance

Periodic Maintenance . . . . . . . . . . . . . . . . . . . . . . .14

Daily/Regular Maintenance. . . . . . . . . . . . . . . . . . .14

Vacuum Motor Replacement . . . . . . . . . . . . . . . . .15

Solution Pump Replacement . . . . . . . . . . . . . . . . .16

Pressure Regulator. . . . . . . . . . . . . . . . . . . . . . . . .17

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Suggested Spare Parts. . . . . . . . . . . . . . . . . . . . . .20

86399150 Operators Manual - Dominator 500 PSI 17 Gallon

How To Use This Manual

This manual contains the following sections:

• How to Use This Manual

•Safety

• Operations

• Maintenance

• Suggested Spare Parts

The HOW TO USE THIS MANUAL section will tell you

how to find important information for ordering correct

repair parts.

Parts may be ordered from authorized dealers. When

placing an order for parts, the machine model and

machine serial number are important. Refer to the

MACHINE DATA box which is filled out during the

installation of your machine. The MACHINE DATA box

is located on the inside of the front cover of this manual.

The model and serial number of your machine is

located on the back of the machine.

The SAFETY section contains important information

regarding hazardous or unsafe practices of the

machine. Levels of hazards are identified that could

result in product damage, personal injury, or severe

injury resulting in death.

The OPERATIONS section is to familiarize the operator

with the operation and function of the machine.

The MAINTENANCE section contains preventive main-

tenance to keep the machine and its components in

good working condition. They are listed in this general

order:

• Maintenance

•Lubrication

• Vacuum Motor Replacement

• Solution Pump Replacement

• Troubleshooting

NOTE: If a service or option kit is installed on your

machine, be sure to keep the KIT INSTRUCTIONS

which came with the kit. It contains replacement parts

numbers needed for ordering future parts.

NOTE: The manual part number is located on the

lower right corner of the front cover.

Model:

Date of Purchase:

Serial Number:

Dealer:

Address:

Phone Number:

Sales Representative:

86399150 Operators Manual - Dominator 500 PSI 17 Gallon

Safety

IMPORTANT SAFETY INSTRUCTIONS

When using this machine, basic precaution

must always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.

To reduce the risk of fire, electric shock, or injury:

Connect to a properly grounded outlet. See Grounding Instructions.

Do not leave the machine unattended. Unplug machine from outlet when not in use and before maintenance or

service.

Use only indoors. Do not use outdoors or expose to rain.

Do not allow machine to be used as a toy. Close attention is necessary when used by or near children.

Use only as described in this manual. Use only manufacturer's recommended components and attachments.

Do not use damaged electrical cord or plug. Follow all instructions in this manual concerning grounding the

machine. If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into

water, return it to an authorized service center.

Do not pull or carry machine by electrical cord, use as a handle, close a door on cord, or pull cord around sharp

edges or corners.

Do not run machine over cord. Keep cord away from heated surfaces.

Do not unplug machine by pulling on cord. To unplug, grasp the electrical plug, not the electrical cord.

Do not handle the electrical plug or machine with wet hands.

Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce airflow.

This machine is intended for cleaning carpet only.

Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

This machine is not suitable for picking up health endangering dust.

Turn off all controls before unplugging.

Machine can cause a fire when operating near flammable vapors or materials. Do not operate this machine near

flammable fluids, dust or vapors.

This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops

and offices for more than normal housekeeping purposes.

Maintenance and repairs must be done by qualified personnel.

If foam or liquid comes out of machine, switch off immediately.

READ AND SAVE THESE INSTRUCTIONS

86399150 Operators Manual - Dominator 500 PSI 17 Gallon

Safety

The following symbols are used throughout this guide as indicated in their descriptions:

HAZARD INTENSITY LEVEL

There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY.

The level of hazard intensity is determined by the following definitions:

WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.

CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property damage.

FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.

Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper operating

condition. Following is information that signals some potentially dangerous conditions to the operator or the equip-

ment. Read this information carefully. Know when these conditions can exist. Locate all safety devices on the

machine. Please take the necessary steps to train the machine operating personnel.

FOR SAFETY:

DO NOT OPERATE MACHINE:

Unless Trained and Authorized.

Unless Operation Guide is Read and understood.

In Flammable or Explosive areas.

In areas with possible falling objects

WHEN SERVICING MACHINE:

Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use

manufacturer approved replacement parts.

86399150 Operators Manual - Dominator 500 PSI 17 Gallon

Safety

Safety Labels

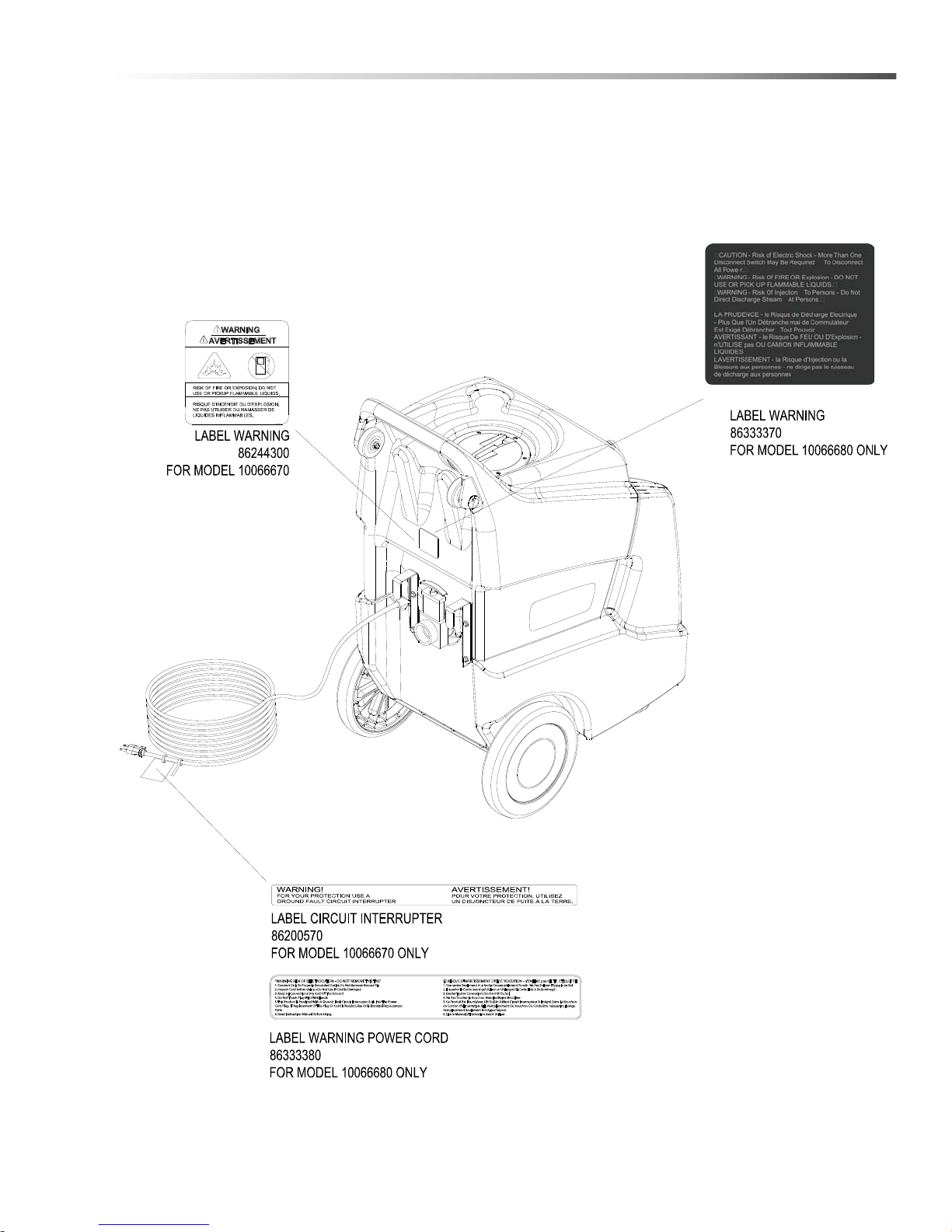

NOTE: These drawings indicate the location of safety labels on the machine. If at any time the labels become

illegible, promptly replace them.

86399150 Operators Manual - Dominator 500 PSI 17 Gallon

Safety

Grounding Instructions

THIS PRODUCT IS FOR COMMERCIAL

USE ONLY.

ELECTRICAL:

In the USA this machine operates on a standard 15

amp 115V, 60 hz, A.C. power circuit. The amp, hertz,

and voltage are listed on the data label found on each

machine. Using voltages above or below those

indicated on the data label will cause serious damage

to the motors.

EXTENSION CORDS:

If an extension cord is used, the wire size must be at

least one size larger than the power cord on the

machine, and must be limited to 50 feet (15.5m) in

length.

GROUNDING INSTRUCTIONS:

This appliance must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least

resistance for electric current to reduce the risk of

electric shock. This appliance is equipped with a cord

having an equipment-grounding conductor and

grounding plug. The plug must be inserted into an

appropriate outlet that is properly installed and

grounded in accordance with all local codes and ordi-

nances.

This appliance is for use on a nominal 120-volt circuit,

and has a grounded plug that looks like the plug in "Fig.

A". A temporary adapter that looks like the adaptor in

"Fig. C" may be used to connect this plug to a 2-pole

receptacle as shown in "Fig. B", if a properly grounded

outlet is not available. The temporary adapter should

be used only until a properly grounded outlet (Fig. A)

can be installed by a qualified electrician. The green

colored rigid ear, lug, or wire extending from the

adapter must be connected to a permanent ground

such as a properly grounded outlet box cover.

Whenever the adapter is used, it must be held in place

by a metal screw.

Improper connection of the equipment-grounding

conductor can result in a risk of electric shock.

Check with a qualified electrician or service person

if you are in doubt as to whether the outlet is

properly grounded. Do not modify the plug

provided with the appliance - if it will not fit the

outlet, have a proper outlet installed by a qualified

electrician.

86399150 Operators Manual - Dominator 500 PSI 17 Gallon

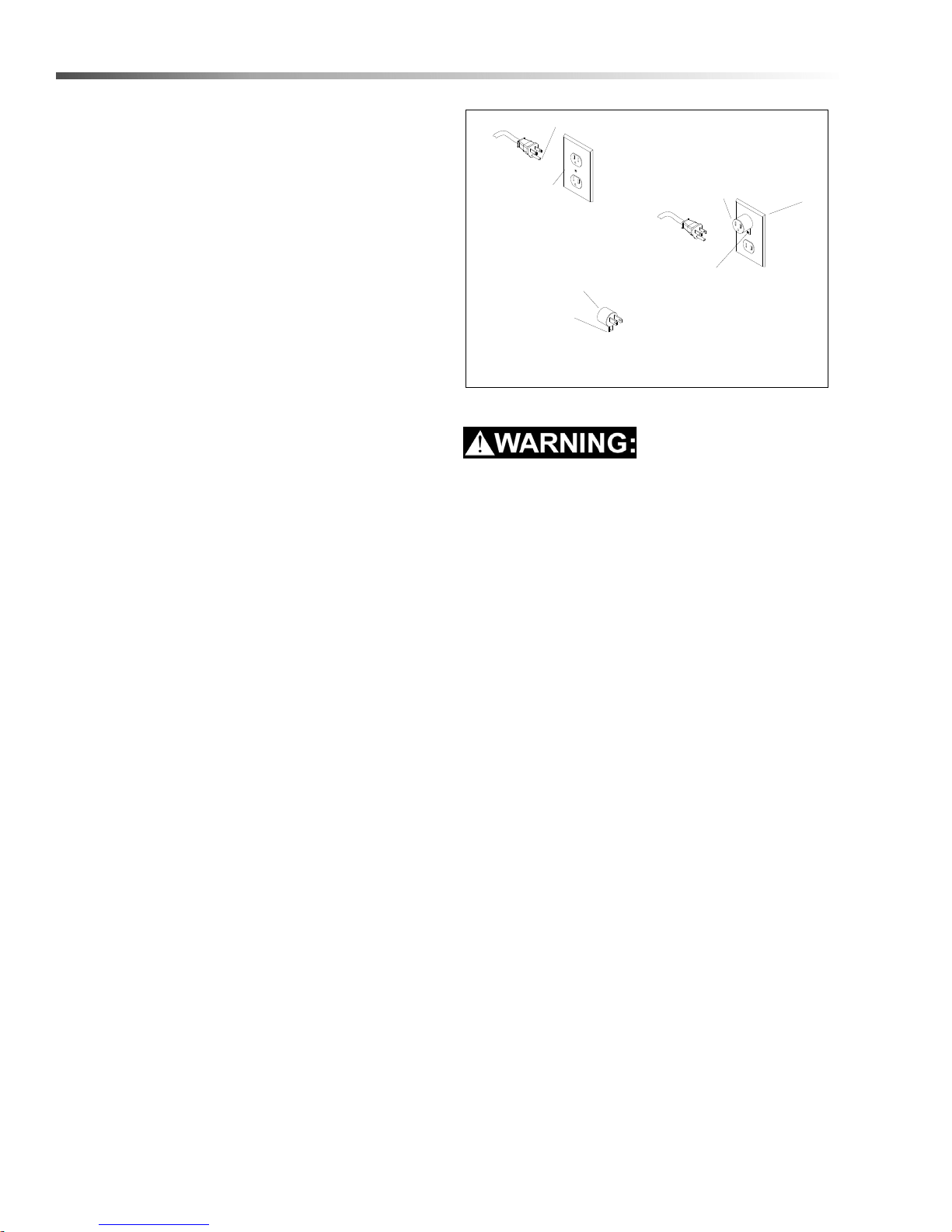

USING AN ADAPTOR

GROUNDING CONNECTION

Note: Adaptors are not allowed in Canada.

Outlet

Tab for Grounding

Outlet Box

FIGURE C

Grounded

FIGURE A

Adaptor

Screw

FIGURE B

Adaptor

Metal Screw

Grounded

Grounding Pin

Operations

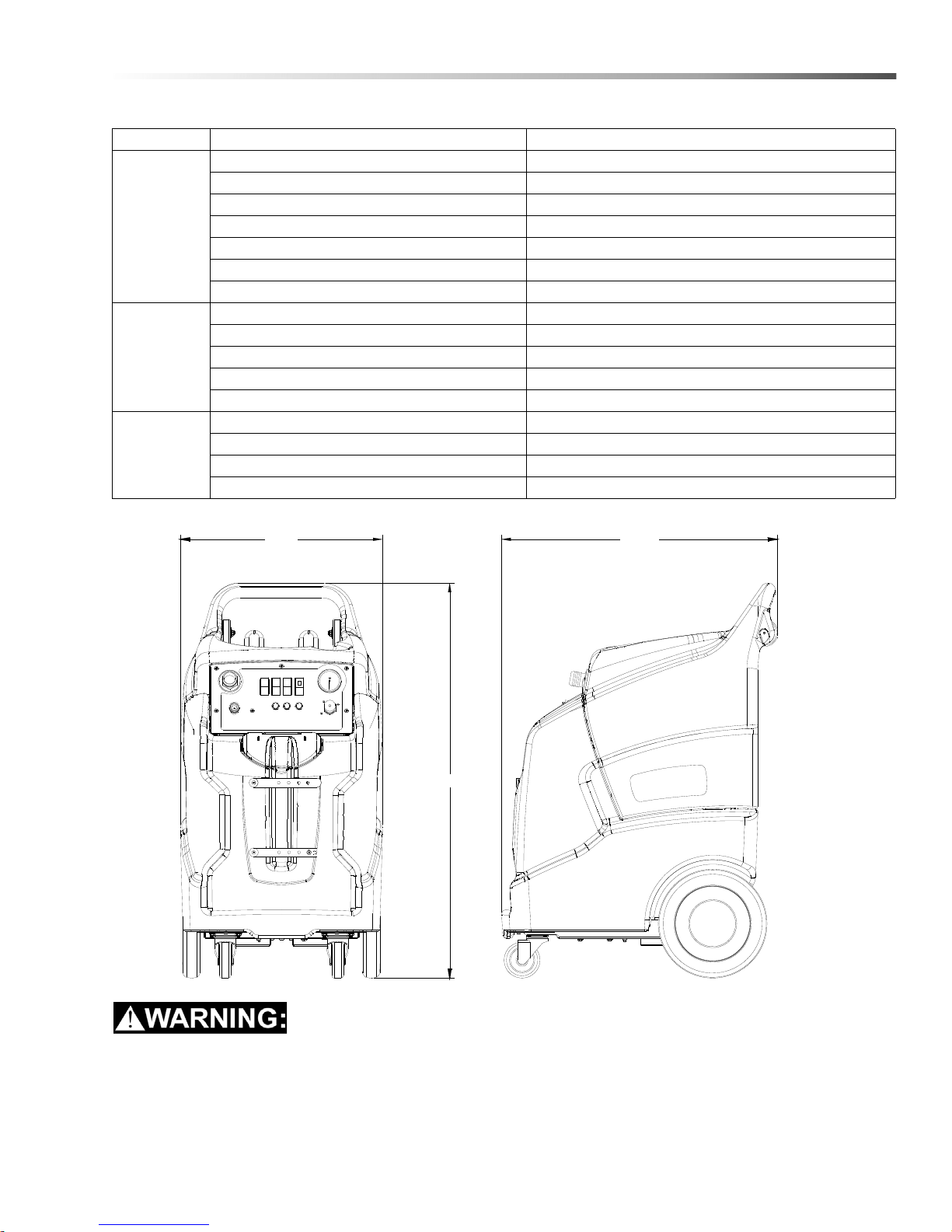

Technical Specifications

This appliance is not intended for use by persons (including children) with reduced physical, sensory or

mental capabilities, or lack of experience or knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for their safety.

MODEL ITEM MEASURE

ALL

Electrical 115 Volt, 60 hz, 15A

Solution Pump 500 psi

Solution Capacity 17 Gal

Recovery Capacity 14 Gal

Height 43 inches

Length 32.5 inches

Width 22.5 inches

10066670

Vacuum Motor Dual 2 Stage

Weight- Empty 139 lbs

Weight-Full Solution 282 lbs

Power cord 2 X 25 feet

Heater 1850 watts

10066680

Vacuum Motor Single 3 Stage

Weight- Empty 122 lbs

Weight-Full Solution 265 lbs

Power cord 1 X 40 feet inline GFCI

Height

Length

Width

86399150 Operators Manual - Dominator 500 PSI 17 Gallon

Operations

Controls

1. Vacuum Accessory Tool Hook-up

2. Solution Pump Switch

3. Vacuum 1 Switch

4. Vacuum 2 Switch (Dual Vacuum Units Only)

5. Heater Switch with On Light (Units w/Heat Only)

6. Pressure Gauge

7. Adjustable Pressure Relief Valve

8. Heater Temperature Light (Units w/Heat Only)

9. Breaker for Vacuum 2 (Dual Vacuum Units Only)

10. Breaker for Vacuum 1

11. Solution Accessory Tool Hook-up

86399150 Operators Manual - Dominator 500 PSI 17 Gallon

123456

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Windsor Scrubber

Windsor

Windsor Walk Behind Scrubber 10052410 Manuel utilisateur

Windsor

Windsor Saber Compact QSC20 Manuel utilisateur

Windsor

Windsor chariot iScrub 20 CS20 Manuel utilisateur

Windsor

Windsor SABER GLIDE SGW32 Manuel utilisateur

Windsor

Windsor SABER GLIDE 10053070 Manuel utilisateur

Windsor

Windsor VP6 Manuel utilisateur

Windsor

Windsor Chariot 3 iScrub 26 Manuel utilisateur

Windsor

Windsor Saber Cutter SCENX326 Manuel utilisateur

Windsor

Windsor SCX264 Manuel utilisateur

Windsor

Windsor SCX264 Caractéristiques techniques

Windsor

Windsor SCE264 Caractéristiques techniques

Windsor

Windsor Saber Cutter SC264 Manuel utilisateur

Windsor

Windsor Saber Cutter series Guide d'installation

Windsor

Windsor 1.005-297.0 Manuel utilisateur

Windsor

Windsor Walk Behind Scrubber 10052270 Manuel utilisateur

Windsor

Windsor Walk Behind Scrubber 10052250 Manuel utilisateur

Windsor

Windsor Presto 3 Manuel utilisateur

Windsor

Windsor Saber Cutter SC326 Manuel utilisateur

Windsor

Windsor Saber Compact QSC20 Mode d’emploi

Windsor

Windsor Flex 3 FLX3 Manuel utilisateur

Windsor

Windsor Saber Cutter Manuel utilisateur

Windsor

Windsor Chariot 3 iScrub 26 CS26 Manuel utilisateur

Windsor

Windsor Saber Compact QSC20 Instructions de montage

Windsor

Windsor chariot iScrub cs20 Caractéristiques techniques

Manuels Scrubber populaires d'autres marques

Olympus

Olympus M200H Manuel utilisateur

Clarke

Clarke BEXT 100H Manuel d'installation et d'exploitation

JOHNY VAC

JOHNY VAC JVC70BCT Manuel utilisateur

RCm

RCm Elan Series Manuel

Kärcher

Kärcher B 120 W Manuel utilisateur

Truvox

Truvox Orbis MotorScrubber 20 Manuel utilisateur

Numatic

Numatic TTB 4045/100 Manuel utilisateur

U.S. Products

U.S. Products PEX 500-C-TICK Mode d'emploi

Mclennan

Mclennan C510 Manuel utilisateur

Tennant

Tennant T20 LPG Manuel utilisateur

Columbus

Columbus ARA 66 BM 100 Manuel utilisateur

Numatic

Numatic TTV 678G / 300T Manuel utilisateur

American-Lincoln

American-Lincoln 505-945 Manuel utilisateur

FIORENTINI

FIORENTINI ET 65-75 Manuel utilisateur

Floorpul

Floorpul ruby 48 blt Guide de l'utilisateur

Onyx

Onyx RX-34 Manuel utilisateur

Dustbane

Dustbane Hurricane 400 Manuel utilisateur

Sana

Sana EUJ-702 Manuel utilisateur
