MANUAL AND USER GUIDE

Personal PA®Value Pack System

Wide-Band FM Wireless Listening System

Model PPAVP 37

Transmitter Model PPAT27

Receiver Model PPA R37

Optional Receiver Model PPA R35-8

PERSONAL PA®VALUE PACK SYSTEM (MODEL PPA VP 37)

INSTALLATION GUIDE & USER MANUAL

CONTENTS PAGE

System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

T27 Transmitter Instructions . . . . . . . . . . . . . . . . . . . . . . . . .5-7

T27 Features and Controls . . . . . . . . . . . . . . . . . . . . . . . . .5

Antenna Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Power Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Selecting a Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Connecting an Audio Source . . . . . . . . . . . . . . . . . . . . . . . .7

Adjusting the Audio Source . . . . . . . . . . . . . . . . . . . . . . . .7

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Recycling Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Receiver Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-17

PPA R37 Receiver Use Instructions . . . . . . . . . . . . . . . . .10

PPA R35-8 Receiver Use Instructions . . . . . . . . . . . . . . . .12

PPA R37/PPA R35-8 Belt Clip Instructions . . . . . . . . . . .14

Using A Receiver With A Hearing Aid . . . . . . . . . . . . . .15

Receiver Management Suggestions . . . . . . . . . . . . . . . . .15

Battery Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

System Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . .21-23

SYSTEM OVERVIEW

Thank you for purchasing the Personal PAValue Pack System from

Williams Sound. The PPAVP 37 System is a Wideband FM

Listening System which operates in the 72-76 MHz frequency band.

Designed for hearing assistance in places of public access, the

PPAVP37 is for those who need help overcoming background noise,

reverberation, or distance from the sound source. The versatile

PPAVP37 is easily integrated with your existing sound system or

can be used with a microphone as a stand-alone system.

The system has two principal parts: the T27 Transmitter and the PPA

R37 Receiver. Much like a miniature radio station, the Transmitter

and microphone pick up the sounds you want to hear and broadcast

them over an FM radio signal. The receivers are used to pick up the

broadcast up to 1000 feet (305 m).

To avoid difficulties, please read through these instructions as you

begin to use the system. Then save the manual for questions that arise

as you continue to use your Personal PAValue Pack System.

If you have any problems with this Williams Sound product, please

call us toll-free at 1-800-843-3544.

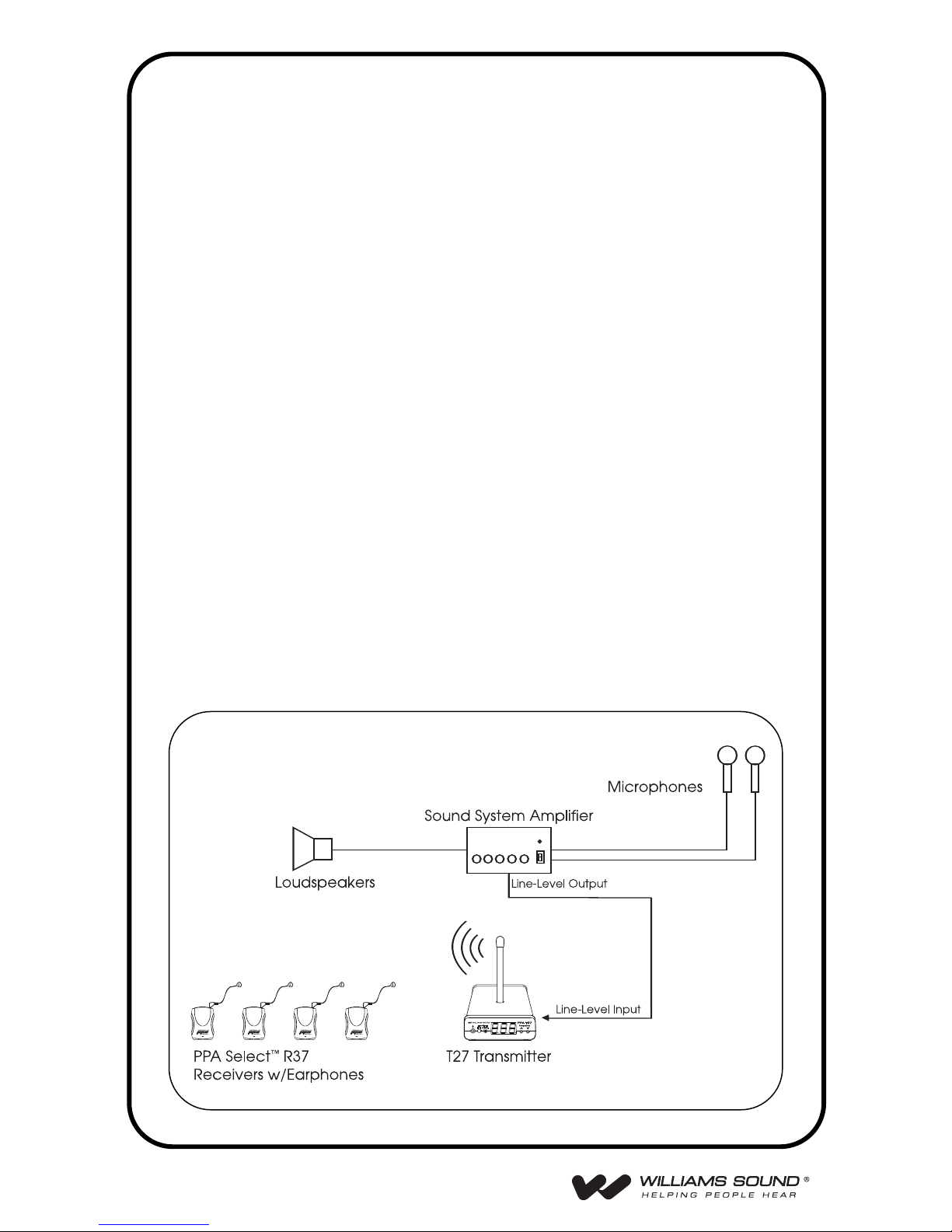

FIG.1: OVERALL SYSTEM DIAGRAM

SETTING UP THE PPA VP 37

PPA T27 Transmitter Instructions

þSTEP 1: SELECT LOCATION

Position the PPAT27 transmitter near the audio source (i.e.

sound system, mixer) from which it will receive audio.

þSTEP 2: INSTALL THE ANTENNA

Gently thread theANT 021 rubber duckie antenna onto the stud

recessed in the hole on the top of the transmitter. FCC rules

allow only the use of antennas provided by Williams Sound. To

use a remote antenna supplied by Williams Sound, the antenna

cap may be removed by turning it counter-clockwise with a pli-

ers or wrench. Please call customer service 800.843.3544 if you

FIG.2: FEATURES & CONTROLS

Front View

1. Mic input jack, 3.5 mm

2. Audio Level Indicator

3. Audio Level Control

4. Frequency Display (LED)

5. Frequency Selector,

Lock/Unlock Control

123 4 5

Rear View

6. Power Input jack,

12VAC

7. Antenna Connector,

75 Ohms

8. Audio Input jack, RCA-

type (Line Level,

Unbalanced)

678

have any questions.

þSTEP 3: CONNECT THE POWER

Locate the TFP 036 power supply cord equipped with the 5-pin

DIN connector, then plug the connector into the “Power In” jack

located in the back of the T27. Plug the power supply into the

AC outlet. On power up, the number “8” will scroll across the

T27 display while the system initializes. The system will then

display the default system frequency (72.9 MHz) or the last

selected frequency set by the user.

þSTEP 4: SELECT THE FREQUENCY

The T27 has 17 available channels in the 72-76 MHz band. By

default, the T27 frequency is set to 72.9 MHz. To change the

frequency on the T27, press and release the down “q” or

up “p” frequency selector button until the desired frequency is

displayed. After 3 seconds, the frequency selection will be set,

and the audio will begin transmitting on the new frequency.

NOTE: You can LOCK this selection to prevent others from

accidently changing the frequency.

To LOCK the desired frequency, press and hold both down “q”

and up “p”frequency selector buttons for 3 seconds until the

word “Loc” appears on the display. The frequency is now locked.

Should the user press the frequency selector button while in

“Lock” mode, the word “Loc” will be displayed for 2 seconds.

ToUNLOCK the desired frequency,press and hold both

down “q” and up “p” frequency selector buttons for 3 seconds

until the transmitter displays ”Un” then “Loc” on the display.

The frequency is now unlocked.The user is now free to change

the frequency on the T27 as needed.

þSTEP 5: CONNECT THE AUDIO SOURCE

On the back of the T27, an RCA-type “Audio In” jack is available

for connecting a line-level, unbalanced audio source. On the front

of the T27, a 3.5mm “Mic Input” jack is available to connect a

Williams Sound electret microphone. Connect the desired audio

source to the T27 transmitter and proceed to Step 6.

þSTEP 6: ADJUST THE AUDIO LEVEL

With the audio source playing, use a small screwdriver or tuning

wand to rotate the “Adjust” control on the front of the T27: 1)

clockwise to increase the audio level; or 2) counterclockwise to

decrease the audio level. Refer to the audio “Level” indicator

LED on the front of the T27 as you make your adjustments:

Audio Level Indicator LED

1.) Never On =Audio source is TOO LOW.

2.) Blinks occassionally =Audio source is OPTIMAL.

3.) Always on =Audio source is TOO HIGH.

þSTEP 7: LISTEN WITH AN FM RECEIVER

IMPORTANT: The FM receiver being used with the T27

transmitter will need to be on the same frequency as the

transmitter.

Install the receiver batteries, plug in the earphone, turn on the

receiver and walk around the listening area. The signal should be

clear and quite loud when the volume is turned up. See pages

10-13 for detailed receiver instructions.

RECEIVER SAFETY INFORMATION

HEARING SAFETY:

CAUTION!

The receiver is designed to amplify sounds to a high volume

level which could potentially cause hearing damage if used

improperly.

To protect your hearing and the hearing of others:

1. Make sure the volume is turned down before putting on the

earphone or headphone before adjusting the volume to a

comfortable level.

2. Set the volume level at the minimum setting that you

need to hear.

3. If you experience feedback (a squealing or howling sound),

reduce the volume setting and move the microphone away

from the earphone or headphone.

4. Do not allow children or other unauthorized persons to

have access to this product.

BATTERY SAFETY AND DISPOSAL:

CAUTION!

The receiver may be supplied with alkaline batteries. Do not

attempt to recharge alkaline batteries, which may explode,

release dangerous chemicals, cause burns, or other serious

harm to the user or product.

PACEMAKER SAFETY:

CAUTION!

1. Before using the receiver with a pacemaker or other medical

device, consult your physician or the manufacturer of your

pacemaker or other medical device.

2. If you have a pacemaker or other medical device, make sure

that you are using this product in accordance with safety

guidelines established by your physician or the pacemaker

manufacturer.

RECYCLING INSTRUCTIONS

Help Williams Sound protect the environment! Please take the

time to dispose of your equipment properly.

Product Recycling for Customers in the European Union:

Please do NOT dispose of your Williams Sound equipment in

the household trash. Please take the equipment to an electron-

ics recycling center; OR, return the product to the factory for

proper disposal.

Battery Recycling for Customers in the European Union:

Please do NOT dispose of used batteries in the household trash.

Please take the batteries to a retail or community collection

point for recycling.

PPA R37 RECEIVER INSTRUCTIONS

PPA R37 is a 17-channel receiver operating on the 72-76 MHz

bandwidth. Features: seek-button channel selection, channel-

lock capability, battery-saving Sleep Mode, on/off volume con-

trol, power/low battery indicator, stereo/mono earphone jack.

OPERATING THE RECEIVER

1. Insert two (2) AA batteries ensuring correct polarity. If

rechargeable NiMH batteries are to be used with the receiver

and a Williams Sound charger, make sure the Alkaline/NiMH

On/Off Switch

Volume Control

Earphone

Jack

"On" Indicator

LED

OFFOFFOFF

FIG. 3

PPA R37 Top

On/Off Switch

Volume Control

Earphone

Jack

"On" Indicator

LED

OFFOFFOFF

PPA R37 Front
