R T X4 0 0 -SJ U se r M a nua l - 1 -

RTX400-SJ™

USER’S MANUAL

Revised January 24, 2008

Features

•TrayFree™ technology! RTX400-SJ can be used without the use of

trays. Simply slip in a SATA drive and shut the door. Each bay offers

a lock for additional security, and shock protection for longer drive life.

•RTX400H-SJ now comes with all-metal

bays and 2 LEDs for power and access.

•Connects through fast eSATA.

•Each SATA hard drive has its own data

channel for maximum speed.

•Its attractive design takes up little desktop space, occupying a tiny

footprint for so much storage capability (up to 4 Terabytes).

•Sturdy aluminum case provides excellent heat dissipation and

rugged durability.

•RTX400-SJ also comes with a heavy duty handle allowing for easy

transport.

Table of Contents

Before Installation 2

Contents of the box 2

Identifying the parts of the product 2

Hardware Setup 3

Usage with Macs 4

Usage with Windows computers 4

Warnings and Notices 4

Technical Specifications 5

WiebeTech LLC

R T X4 0 0 -SJ U se r M a nua l - 2 -

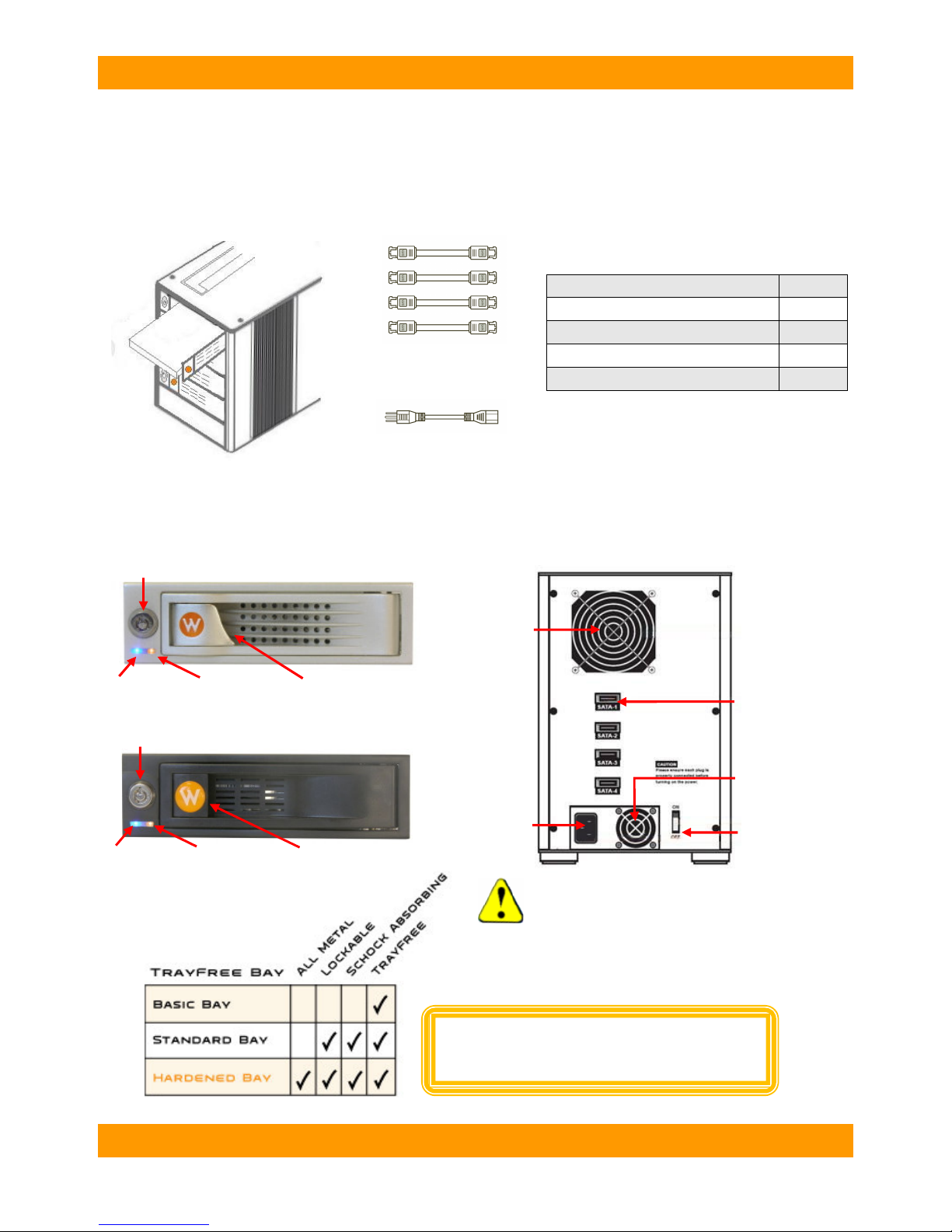

Before Installation

1. Check the accessories with your RTX400-SJ. Please contact WiebeTech if any parts are missing

or damaged. The box should contain the following items:

2. Take a moment to familiarize yourself with the parts of the RTX400-SJ. This will help you to

better understand the remaining instructions.

Accessories Quantity

RTX400-SJ unit 1

eSATA cables 4

Power cord 1

Packet of screws and keys 1

Manual and Warranty Information (on CD)

eSATA cables

Power cable

Hardened Bay

Key lock

Ejection handle

Power LED Access LED

Standard Bay

Key lock

Ejection handle

Power LED Access LED

Rear Panel

8cm Fan

Power

Connection

Port

Power Switch

eSATA Port

Power

Supply

Fan

All RTX TrayFree Bays accept 1TB SATA

drives, have power and access LEDs, and

connect to the host via a SATA connection.

WARNING: Do not block the ventilation

fan during operation. Overheating may

damage the device or hard drives.

WiebeTech LLC

R T X4 0 0 -SJ U se r M a nua l - 3 -

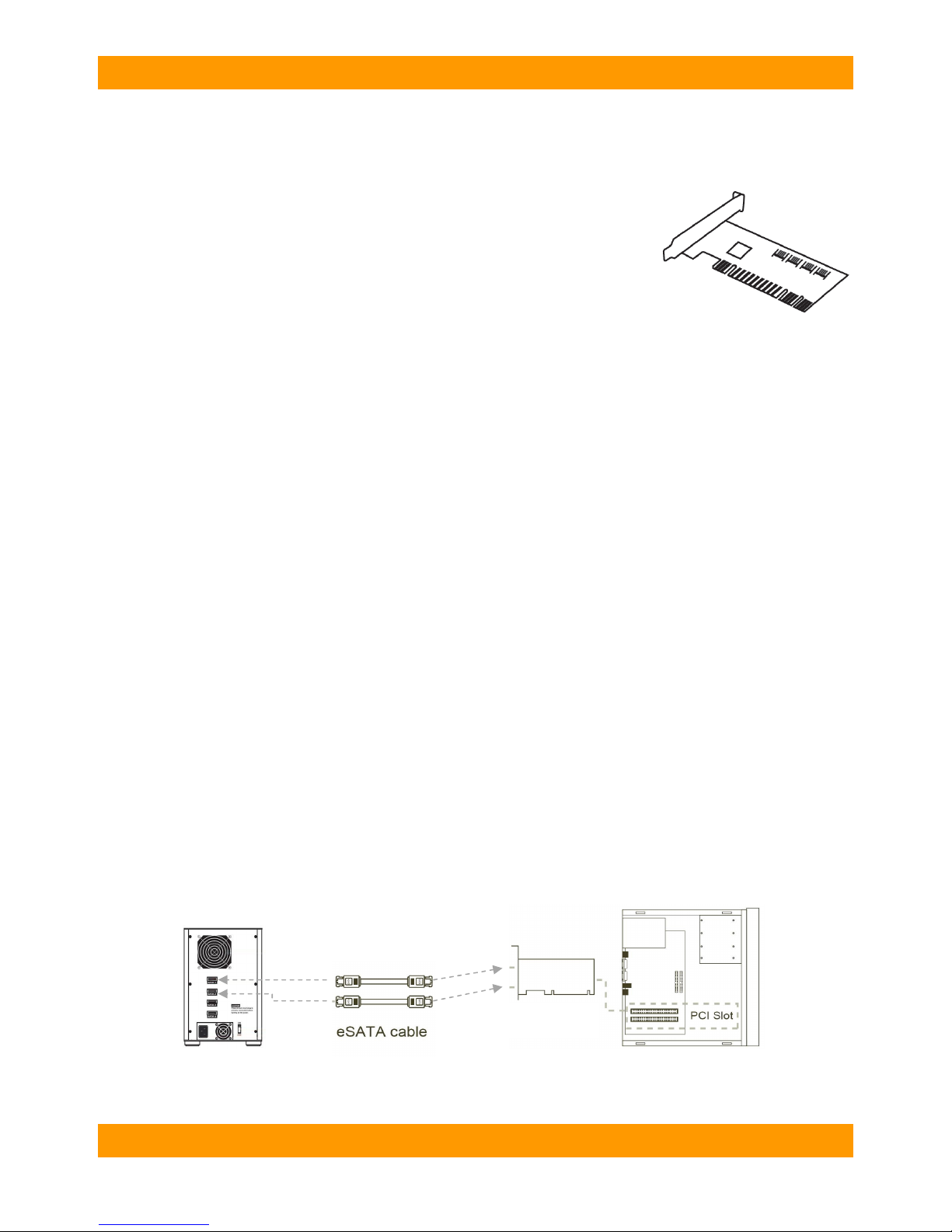

Hardware Setup

1. (Optional) Install a host bus adapter (HBA) with 4 eSATA ports into

an empty expansion slot inside your computer. If your computer already

has 4 available eSATA ports, you can skip this step. Compatible HBA cards

are available from WiebeTech (www.wiebetech.com). The following general

steps will work for most cards. Instructions for individual cards may vary, so

consult your host card’s user manual.

a) Power down the computer system.

b) Insert the PCI card into an available PCI slot. Do not force it, but it will take firm pressure to fully

seat the interface. It may help to gently rock the card back and forth as you apply pressure.

c) Once the card is fully seated in the slot, secure it in place with a screw.

d) Turn the computer back on.

e) Install the appropriate drivers for the card. These are usually found on the CD or diskette that

came with the card. The drivers for WiebeTech cards are found on the “Product Information &

Manuals” CD. Browse to the folder “Product manuals & drivers TeraCards” and then select

the subfolder for your specific model.

2. Install your hard drive. Pull on the ejection handle and open the door. Then just slide in your

SATA drive and shut the door behind it. For extra security for your hard drive you can lock the bay, but

make sure to unlock it before pulling on the ejection handle again.

3. Plug in the eSATA cables and power cord. The RTX400-SJ connects to your computer through

eSATA, an external application of Serial-ATA technology. Each drive has its own dedicated eSATA

connection for maximal data speeds. Plug one end of each cable to the back of the unit. Insert the other

end into an eSATA port on the computer.

Your RTX400-SJ is now ready to use! Turn on the power switch on the back of the unit. If your drives

are already formatted, you can begin using them right away. New hard drives will need to be formatted

before they can be used. Initially, each drive is seen as a separate drive by the computer. If you wish,

you may format each drive into a separate volume and use them individually. If you have software for

creating a RAID (Redundant Array of Independent Disks), you may combine the drives into a single

volume for faster performance and/or data redundancy. Some operating systems, such as OS X, have

this software built in.

WiebeTech LLC

R T X4 0 0 -SJ U se r M a nua l - 4 -

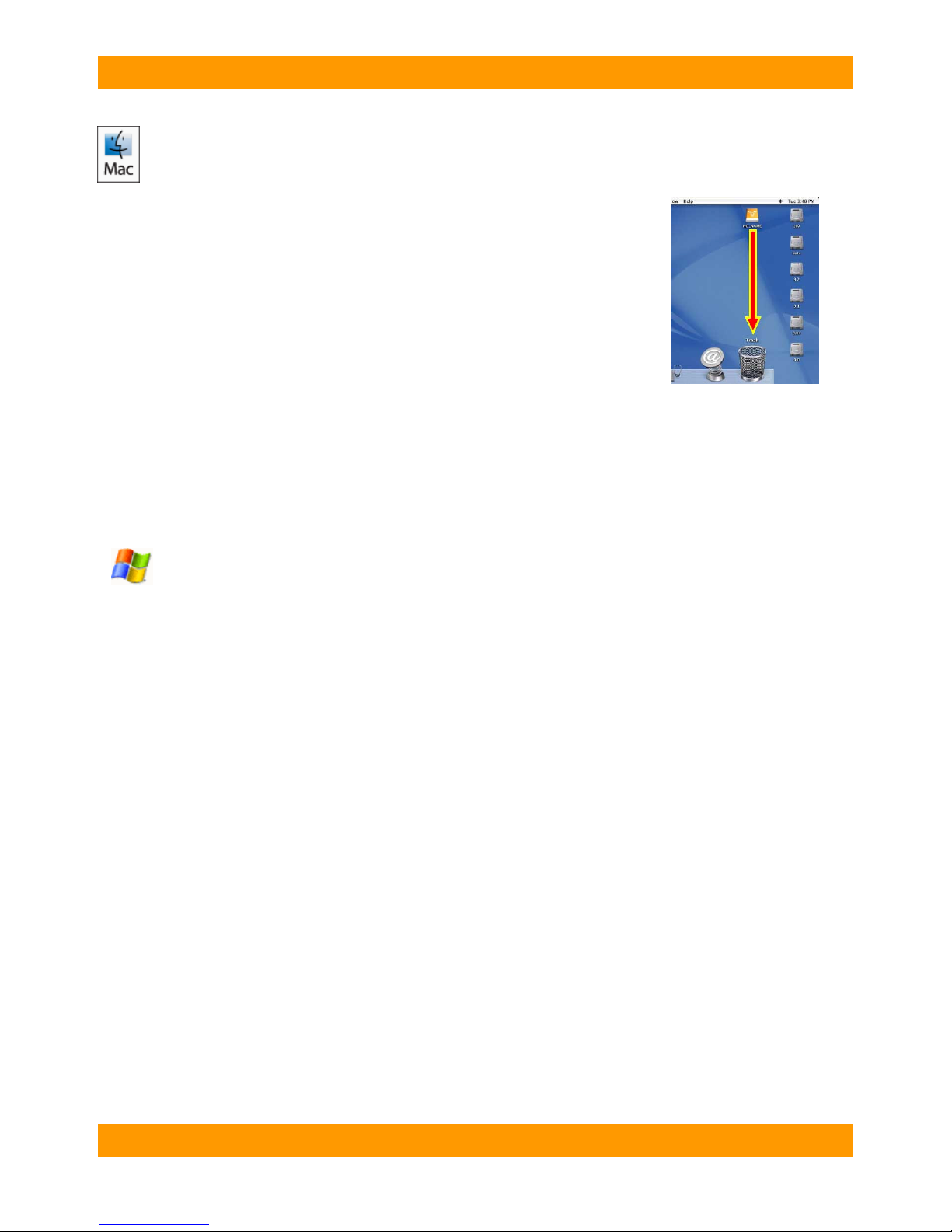

Usage with Macintosh computers

Mounting and Ejecting Volumes

When you connect the unit to the Mac for the first time and turn on the power,

you’ll probably see a message saying that the disk is unreadable. This is

because you must format the volume before using it. The easiest way to do

this is to use Mac OS X’s Disk Utility. If you plan to use the unit on both Macs

and PCs, select “MS DOS File System” as the format type. If you only plan to

use the unit on Macs, then select “Mac OS Extended”. After the volume is

formatted, an icon representing the drive volume will appear (“mount”) on the

desktop. You can now use the volume just like an internal hard drive.

Eject the volume before powering down the unit by dragging the volume’s icon

to the trash bin, or by selecting the volume then pressing Command-E. Shutting down the unit without

first ejecting the volume can result in data loss.

Booting to the RTX400-SJ

Your ability to boot to the RTX400-SJ depends upon whether or not the eSATA host to which it is

connected supports this feature. Many eSATA hosts do not support booting

Usage with Windows computers

Formatting Volumes

Before you can use your RTX400-SJ, you must first format the drives into a volume. Use Disk

Management, which you can find by right-clicking on My Computer then selecting Manage. Select NTFS

for the format type. If you wish to format FAT-32 for cross-platform compatibility, you will need to use a

third-party utility to do so. Windows XP will not create FAT-32 volumes larger than 32GB.

After the volume is formatted, an icon representing the drive volume will appear in My Computer. You

can now use the volume just like an internal hard drive.

Ejecting Volumes

Unlike external storage devices that connect via FireWire or USB, eSATA devices cannot usually be

ejected. It is possible to disable the device using Device Manager. Freeware software utilities that

automate this process may be available on the internet. Whether or not you choose to disable the device

in this way, always make sure the drives are not being accessed before shutting off theRTX400-SJ. If the

unit is turned off in the middle of a data input/output process, data loss may result.

Warnings and Notices

•The RTX400-SJ supports drives of various specifications and different capacities. However, we

recommend using drives of the same brand and type for optimal performance. If drives of different

capacities are used, the unit will consider both drives to have the same capacity as the smaller

drive.

•Use only hard drives that are in perfect condition. Avoid using drives that have ever developed

bad sectors during previous usage. This could lead to possible device failure or loss of data.

WiebeTech LLC

R T X4 0 0 -SJ U se r M a nua l - 5 -

Technical Specifications

Product name/code: RTX400-SJ and RTX400H-SJ

Host Interfaces: eSATA (one connection for each drive)

Data Interface Speeds: SATA 3.0GHz (up to 300MB/s)

Drive Types Supported: 3.5” SATA 1 or 2 hard drives up to 1TB

TrayFree™ Technology: Yes

Shock Absorbing Bays: Yes

Power LED: Yes

Access LED: Yes

Operating System

Requirements:

Windows XP, Vista

Mac OS X 10.2.6 or later

Linux distributions using Kernel version 2.4 or above (USB only)

Operating Temperature: 50 – 85°Fahrenheit (10 – 30°Celsius)

Operating Humidity: 5% to 95%, noncondensing

Power Switch: 2 position: On / Off

Power Supply: Input: 100-240VAC

Output: 200 Watts

Cooling Fan: 8cm Ball Bearing Fan

Safety Certification: CE/FCC

External Material: Aluminum alloy case

Shipping Weights: 14.25 sans drives

20.25 with drives

Dimensions: (177mm W x 270mm D x 231mm H)

Warranty:

1-year limited warranty. See warranty statement for details and limitations.

WiebeTech offers free phone support for 90 days after purchase (1-866-744-

8722). After 90 days, email support is available at support@wiebetech.com.

RTX400-SJ and TrayFree are trademarks of WiebeTech LLC. Other marks are the property of their respective

owners.

FCC Compliance Statement: “This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired

operation.”

In the event that you experience Radio Frequency Interference, you should take the following steps to resolve the problem:

1) Ensure that your unit is plugged into a grounded electrical outlet.

2) Use a data cable with RFI reducing ferrites on each end.

3) Use a power supply with an RFI reducing ferrite approximately 5 inches from the DC plug.

If you have any questions or problems, please contact [email protected] for technical support. If you are

interested in purchasing more WiebeTech products, check our website or contact [email protected]. We

appreciate being able to serve you!

Tested to comply

with FCC standards

FOR HOME OR OFFICE USE
