INSTRUCTIONS FOR USE

TUMBLE DRYERS

IMPORTANT: PLEASE READ THESE

INSTRUCTIONS THOROUGHLY BEFORE USING

THIS APPLIANCE. KEEP THEM IN A SAFE PLACE FOR

FUTURE REFERENCE.

IMPORTANT USER INFORMATION

–This tumble dryer is intended for NORMAL DOMESTIC

USE ONLY.

-Adequate ventilation must be provided to avoid back flow of

gases into the room from appliances burning other fuels.

Including open fires.

-Exhaust air must not be discharged into a flue which is used

for exhausting fumes from appliances burning gas or other

fuel.

–Please note it is not recommended that the dryer is placed

directly next to ovens or cookers as the performance of the

dryer may be affected.

–A carpet must not obstruct the ventilation openings in the

base of the dryer.

–Do not stack the tumble dryer on top of other appliances

without the correct stacking kit.

–Any electrical work required to install the appliance should

be carried out by a qualified person.

–It is important to clean the lint filter after each drying cycle

or the restrictions to airflow will extend drying times and

could cause the safety cut-out to trip.

–Under no circumstances should anything other than the

recommended articles be placed in the tumble dryer.

–The tumble dryer should be serviced by an appointed service

organisation and only genuine parts used.

–It is dangerous to alter or modify the product in any way

other than fitting authorized accessories.

–We recommend that the appliance is unplugged each time

after use.It should always be disconnected from the electricity

supply or long periods (i.e.weekends, holidays etc.)

–The rear of the dryer gets quite hot during use. Position the

dryer so that the back is not accessible while in operation, but

ensure that the sides have a space available to allow airflow.

–The special mains cable and plug assembly must only be

replaced with a genuine part from the manufacturer or our

appointed service agent.

It is important to clean fluff from the window of the dryer and

around the door seal after each drying cycle. Failure to do so

could result in water leaking.

This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of

the appliance by a person responsible for their safety.

Children should be supervised to ensure they do not play with

the appliance. Children of less than 3 years should be kept

away unless continuously supervised.

WARNING: Never stop a tumble dryer before the end of a

drying cycle unless all items are quickly removed and spread

out so that heat is dissipated.

Remove all objects from pockets such as lighters and matches.

DO NOT use a two-way adaptor, or extension lead. The dryer

must be connected to its own socket.

DO NOT block the air inlets at the front, base, rear and side of

your dryer.

DO NOT allow fluff to accumulate around the tumble dryer.

Risk of fire

DO NOT exceed the recommended maximum load.

DO NOT dry unwashed items in the tumble dryer

DO NOT place articles in the dryer if anything other than a

water solution has been used in the cleaning process.

DO NOT attempt to dry dripping wet articles.

DO NOT use the tumble dryer if you suspect that it is

damaged in any way. Under no circumstances should you

attempt to repair the appliance yourself. Repairs carried out by

inexperienced persons may cause serious injury. Consult your

local appointed service engineer and insist on genuine spare

parts.

INSTALLATION

Position the tumble dryer so that the plug remains accessible after installation. Do not block the vent at the front or

base of the dryer, as this will impair the working of the machine. This appliance must not be installed behind a

lockable door, a sliding door or a door with hinges on the opposite side to that of the tumble dryer.

TUMBLE DRYER VENTING

Your tumble dryer will release warm, damp air in one of three ways.

1) EXTENDABLE REAR VENTING - A long flexible vent hose is built into the dryer and can be extended

from the large opening at the rear of the machine

2) FIXED REAR VENTING - Venting is through the large opening at the bottom of the rear panel. A separate

extendible vent hose can be attached if desired.

3) FRONT VENTING - This is a special type of dryer which vents through a grille on the plinth. The opening

on the rear panel is blanked off during manufacturing.

Rear vented dryers can be used without a vent hose but not in a confined space. Rear vented machines must

have a vent hose if they are installed under a work surface. To minimise condensation it is preferable to vent

through a vent to outside. This may be through an open door or window. The best solution is to connect the vent

hose to a permanent connection through a wall or a single glazed window.

This is particularly recommended for small, cool rooms. A kit for this purpose is available as an accessory.

Front venting machines must be converted to extendible rear venting before a permanent connection can be

made to the outside.

When using a vent hose, remember the following points:

The vent hose must be at least 10cm (4 ins) in diameter.

No more than three right-angled bends should be allowed when positioning the vent hose.

Do not distort or constrict the vent hose as this will reduce the airflow.

The vent hose must not be shared with other appliances, for example, a cooker hood outlet.

FINAL INSTALLATION

Push the filter into its operating position as shown in

the diagram. If you wish to change the side on which

your door opens, see the instructions on the back

page. Remove any dust by wiping the drum and door

with a damp cloth. Any initial smell of burning will

be caused by dust on the heater and will quickly

disappear.

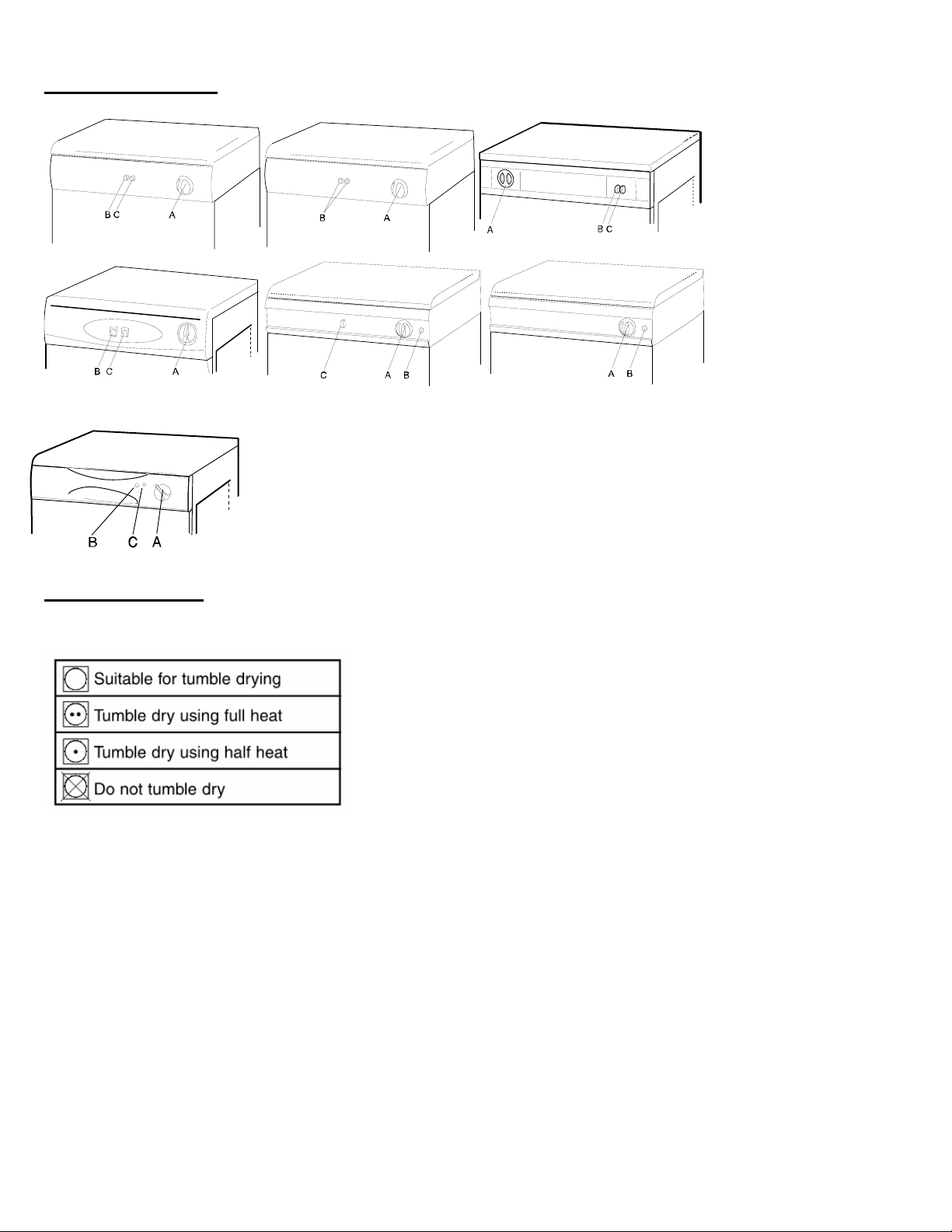

THE CONTROLS

A. THE TIMER Select the required drying time based on the recommendations on

the control panel.

B. HEAT SWITCH(ES) Select the required heat setting based on the

recommendations on the control panel.

C. START BUTTON Press Start button after closing the door and selecting the

required drying time.

PREPARATION

Check care labels inside the garments.

CARE LABELS YOU MAY FIND ON YOUR FABRICS

Do not tumble dry woollen or wool mixture articles unless the article is labelled as being suitable .This should

avoid shrinkage.

Place delicate articles, e.g.tights, scarves, inside a pillowcase.

To avoid the need to iron easycare polyester/cotton items it is better to only dry small loads (i.e. half fill drum) It is

better to dry small and large articles together.

Fabric softeners, or similar products, should be used as specified by the Fabric Softener instructions. Do not

overload the dryer or dry large bulky items such as duvets or sleeping bags as it is important that the airflow

through the dryer is not obstructed.

Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers,

turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being

dried in the tumble dryer.

Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or

pillows fitted with foam rubber pads should not be dried in the tumble dryer.

OPERATION

Open the door.

Load clothes loosely into the drum.

Load sheets first, starting with one corner.

Close the door.

Dry your hands.

Check that the timer is in the ‘0’position.

Plug in the machine.

Select correct heat position, (see programme chart on control panel for recommendations).

Set the timer to the required time setting (see programme chart on control panel for recommendations).

For energy labeling purposes (EN61121:2005) for a cotton dry load, use the maximum load weight for cotton and

set the timer to the recommended drying time for cotton dry as specified on the control panel.

Press the start button if fitted.

The drum will begin rotating. Reversing drum models will stop periodically to rotate in the reverse direction for a

short time.

Should the clothes become dry before the cycle has finished, or if an excessive programme time has been selected,

the drum will continue to rotate while the thermostat will automatically regulate the heater to reduce the risk of

over drying.

If the door is opened during a cycle the dryer will stop. To restart, close the door and press the start button (if

fitted).When drying large items such as sheets, we suggest you periodically stop the dryer to redistribute the load,

and restart it immediately afterwards.

There is an automatic 12 minute cool down period at the end of every cycle, during which the heater is switched

off. This helps to minimize creasing, and must always be used fully to avoid the risk of fire.

The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a

temperature that ensures that the items will not be damaged.

NEVER SWITCH THE DRYER OFF AND LEAVE A HOT LOAD IN THE DRUM. RISK OF FIRE.

ALWAYS CLEAN THE FILTER AFTER EACH USE. Failure to do so could cause the safety cut-out to

operate.

- Pull the filter upwards and away from the appliance.

- Remove any threads or fluff by hand or with a soft brush.

- Slide the filter back.

- Wash the filter occasionally in detergent solution using a soft brush to

remove small particles.

- If your filter becomes damaged, replace it to ensure no damage is caused to

the dryer.

OPTIONAL EXTRAS

Front to Extendible Rear Venting Kit

To convert your dryer from front venting to extendible rear venting.

Vent Hose

Only available for fixed rear dryers. Leads the warm, damp air to outside.

Wall/Window Vent Kit - To make a permanent connection through a wall or window. Front venting dryers need

converting to rear venting before installing this kit (see ‘Front to Extendible Rear Venting Kit’ above). This kit is

not suitable for double glazed windows.

Stacking Kit - To enable your dryer to be secured onto the top of a front loading washing machine (to save floor

space).

The above items can be purchased as accessories for your tumble dryer from your supplier.

Instructions for stacking, if required, are supplied with the stacking kit.

TECHNICAL DATA

OVERALL DIMENSIONS:

Height:85 cm

Width:59.5 cm

Depth:53 cm

MAXIMUM DRY WEIGHT LOADS:

Cotton 7kg

(For minimum creasing 2kg)

Delicates 2kg

For electrical ratings see plate on back of dryer.

For Model No. see serial plate inside door (needed when requesting service).

Room temperature range 5˚C to 30˚C. (Drying performance decreases as room temperature falls).

Your washing machine should have a spin speed of not less than 1000rpm for maximum efficiency.

CUSTOMER ADVICE – BEFORE CALLING FOR ASSISTANCE

If the clothes are not dry after normal drying time:

–Check that you used the correct heat setting.

–Check that you have not set the timer within a cool down period.

–Check that the lint filter has been cleaned. A blocked filter will restrict the airflow.

–Check that your dryer is heating - below the door to the left side, should feel warm to the touch after the first 10-

15 minutes of its programme.

Failure to heat may indicate the safety cut-out has operated. To reset, simply press the red button at the rear of the

machine. If it has operated then a sharp “click” will be heard.

This cut-out only operates if the airflow is severely restricted so make sure the filter is clean, the air inlets and

outlets at the side and back are not blocked, and that all other restrictions are removed before re-starting.

If the cut-out continues to operate after checking the above points, you should contact your service agent.

Check that the machine has the correct weight load in the drum before starting the appliance.

If your machine does not work check the following before calling a service engineer:-

- Check that there is a supply of electricity.

- Check that the door has been properly closed and the machine is switched on.

- Check the fuse in the moulded plug.

A call out charge will be applied for a service visit, if the call could have been

avoided by following these instructions.

If problems continue after checking the above points you should contact our service

agent. Please ensure that you have your serial number to hand when you make the

call. To locate the serial number on your dryer, open the door and look for a white

label inside the door opening. This will indicate the appliance identification code

along with the serial number.

WHIRLPOOL 0800 988 1323 (calls are FREE from landlines however calls from mobiles may

be charged at your network provider’s rates).

Or Service Network 2000 (Northern Ireland only) 028 90365222 (Daytime calls cost up to

14p plus 8p per minute from BT lines Monday-Friday. Mobile and other providers’ charges may vary).

Alternatively call REPAIRCARE 08448797422

(Daytime calls cost up to 8p plus 6p per minute from BT lines Monday to Friday. Mobile and other providers’

charges may vary).

THIS APPLIANCE MUST BE EARTHED

This label, positioned on the rear of your dryer, indicates the surface is hot

when in operation – avoid touching

CAUTION

HOT SURFACE

This appliance is marked according to the European Directive 2002/96/EC

on Waste Electrical and Electronic Equipment (WEEE).

This guideline is the frame of a European wide validity of return and

Recycling on Waste Electrical and Electronic Equipment.

Table des matières

Autres manuels White Knight Séchoir

White Knight

White Knight eco 86A Manuel utilisateur

White Knight

White Knight B96G8W Manuel utilisateur

White Knight

White Knight C44A7WL Manuel utilisateur

White Knight

White Knight 42AW Manuel utilisateur

White Knight

White Knight C831WV Manuel utilisateur

White Knight

White Knight 0312 44C 15001 - C45CWUK Manuel utilisateur

White Knight

White Knight 0312 44A 15330 - 44AS Manuel utilisateur

White Knight

White Knight 437 Manuel utilisateur

White Knight

White Knight 0312 44A 15100-44AW Manuel utilisateur

White Knight

White Knight eco 43a the low carbon Guide rapide

White Knight

White Knight 93AW Manuel utilisateur

White Knight

White Knight CL42 Manuel utilisateur

White Knight

White Knight 0312 727 15003 - 727c Manuel utilisateur

White Knight

White Knight CONDENSER TUMBLE DRYERS Manuel utilisateur

White Knight

White Knight C37AW-S Manuel utilisateur

White Knight

White Knight C372WV Manuel utilisateur

White Knight

White Knight C36AW Manuel utilisateur

White Knight

White Knight eco 86A Manuel utilisateur

White Knight

White Knight C38AW-S Manuel utilisateur

White Knight

White Knight C77AS Manuel utilisateur

White Knight

White Knight 76AS Manuel utilisateur

White Knight

White Knight 0312 76A 15101 Manuel utilisateur

White Knight

White Knight B96M8W Manuel utilisateur

White Knight

White Knight B96G8W Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
