Whitaker 93M Manuel utilisateur
93M
Paper Folder
www.WhitakerBrothers.com
www.WhitakerBrothers.com
Safety Precautions
1
Please read these operating instructions
before putting the machine into
operation and observe the safety
precautions.
Children must not operate the machine!
Do not touch or insert foreign objects
into any rotating part during operation.
www.WhitakerBrothers.com
Safety Precautions
2
Keep long hair clear of machine!
Take care of ties and other loose
pieces of clothing!
Remove any paper clips!
www.WhitakerBrothers.com
Installation
3

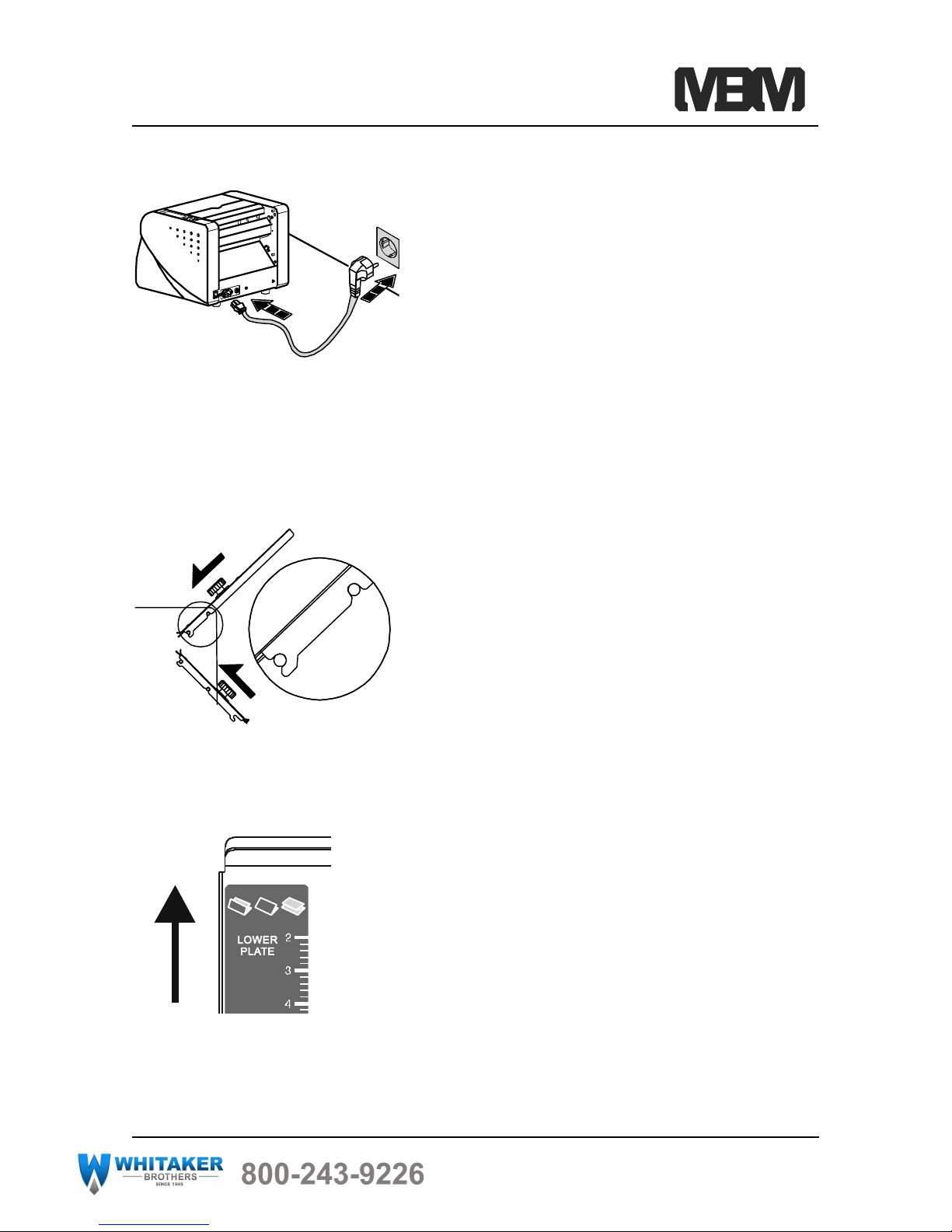

Connect the power cord to a single
phase socket .
120V/4A
Insert the 1st fold plate(long plate)
into the studs (A) and (B) and lock into
position.
When the 2nd fold plate(short plate)
put in，Please see clearly the labels at
both ends as shown.
Put the label indicator: Zigzag fold,
Letter fold, and Double fold into the
machine. With three folding methods:
Letter fold, Zigzag fold, Double fold.
www.WhitakerBrothers.com
Installation
4
When 2nd fold plateput in，Please see
clearly the labels at both ends as
shown.
Put the label indicator: only single
fold into the machine as shown .Only
of single fold.
Check that the 2nd fold plate is in the
correct position.
Opening the receiving paper platform,
pull out the receiving paper stopper.
Opening the insert paper platform, pull
out the supplementary insert paper
plate.
www.WhitakerBrothers.com
Installation
5
Setting the paper size and folding
position.
Open the paper guides by loosening
the 2 screws and push towards the
sides.
Move the paper guides to the edge of
the paper. Tighten the screws.
Press down the paper guide and insert
paper as far as possible.
www.WhitakerBrothers.com
Installation
6
Paper Ready:
Fan the paper stack.
Do not fold curly paper.
Do not fold wet paper.
Do not fold paper with clips or
staples.
www.WhitakerBrothers.com
Installation
7
This machine has four folding
patterns,(LT、LG).
Classified as:
1. Letter fold
2. Zigzag fold
3. Double Fold
4. Single Fold
Check that the paper has been folded
correctly and if necessary adjust the
stopper plate on the 1st fold plate
and/or 2nd fold plate. As soon as the
1st fold plate is correct, adjust the 2nd
fold.
1st fold plate
Adjust stopper plate on the 1st fold plate:
Adjust stopper plate on the 2nd fold plate:
2nd fold plate
stopper plate
stopper plate
www.WhitakerBrothers.com
Installation
8
Turn the 2nd fold plate 180 degrees
(script is in reversed position) and put
back into the machine.
Setting the paper delivery roller
according to folding patterns.
LT
LG
LG
L
G
LT
LT
LT
LG
LG
L
G
LT
LT
2nd fold plate
Adjust 2nd fold plate:
Instruction Label:
