Whispbar K705W Manuel utilisateur

K705W

Fitting Kit

EN Fitting Instructions for Basic Carrier

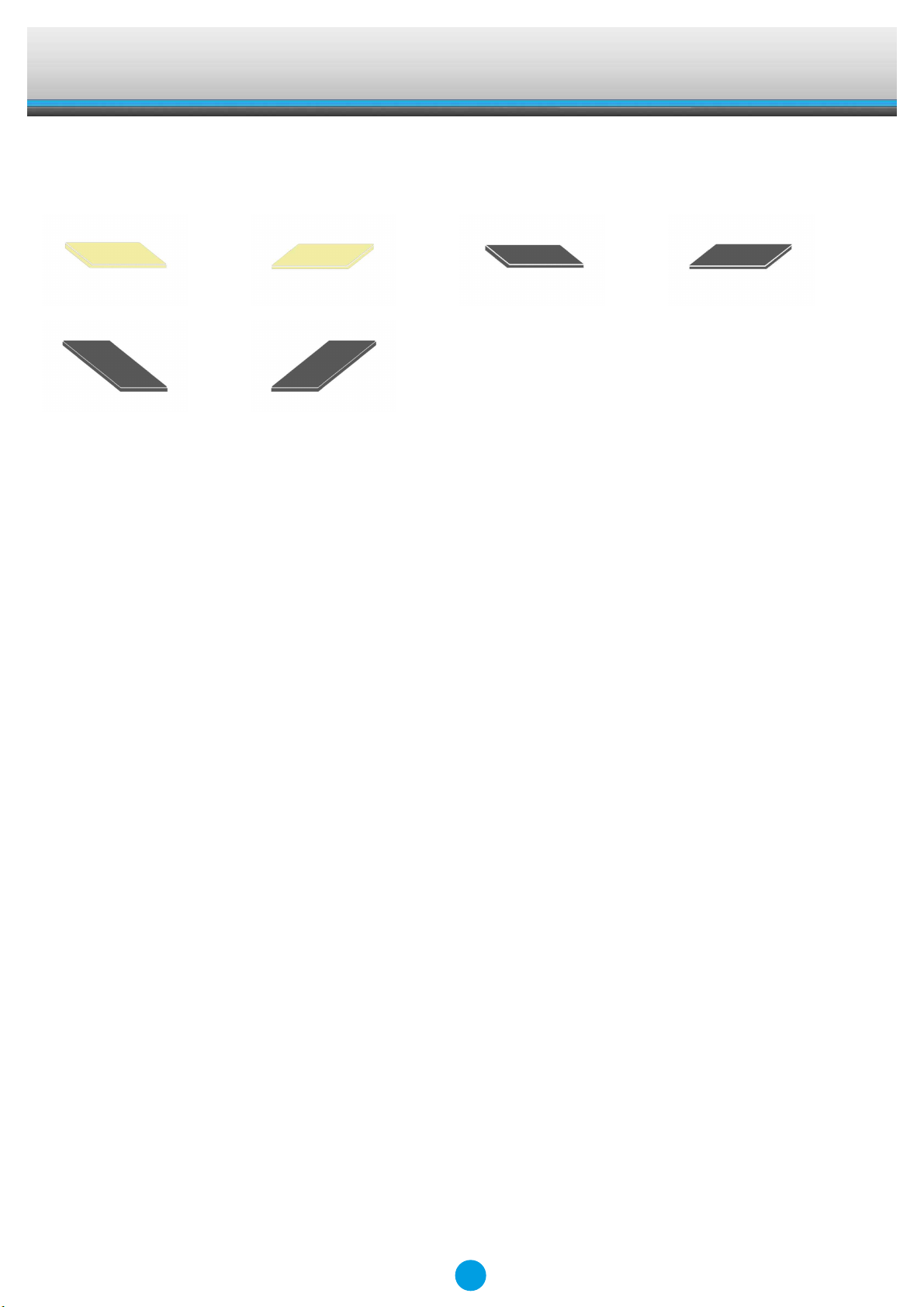

x 2 x 2 x 1 x 1

x 1 x 1 x 2 x 2

Revision No: 4D 1

Fitting Kit K705W

x 2 x 2 x 1 x 1

x 1 x 1

Fitting Kit K705W

MAX kgs (lbs)

W/P WHD

BMW

5 Series E60, 4dr Sedan 03-09 NZ 60 kgs (132 lbs) 60 kgs (132 lbs)

5 Series E60, 4dr Sedan 03-09 AU 60 kgs (132 lbs) 60 kgs (132 lbs)

5 Series E60, 4dr Sedan 04-09 ZA 60 kgs (132 lbs) 60 kgs (132 lbs)

5 Series E60, 4dr Sedan 04-10 US 60 kgs (132 lbs) 60 kgs (132 lbs)

5 Series E60, 4dr Sedan 04-10 EU 60 kgs (132 lbs) 60 kgs (132 lbs)

5 Series E60, 4dr Sedan 04-10 CN 60 kgs (132 lbs) 60 kgs (132 lbs)

Fitting Kit K705W

A B C 1 2 3

5 Series E60, 4dr Sedan 03-09 (NZ) -250mm 455mm - 860mm 850mm -

-9 -13/16ths" 17 15/16ths" - 33 7/8ths" 33 7/16ths" -

5 Series E60, 4dr Sedan 03-09 (AU) -250mm 455mm - 860mm 850mm -

-9 -13/16ths" 17 15/16ths" - 33 7/8ths" 33 7/16ths" -

5 Series E60, 4dr Sedan 04-09 (ZA) -250mm 455mm - 865mm 850mm -

-9 -13/16ths" 17 15/16ths" - 34 1/16ths" 33 7/16ths" -

5 Series E60, 4dr Sedan 04-10 (US) -250mm 455mm - 860mm 850mm -

-9 -13/16ths" 17 15/16ths" - 33 7/8ths" 33 7/16ths" -

5 Series E60, 4dr Sedan 04-10 (EU) -250mm 455mm - 865mm 850mm -

-9 -13/16ths" 17 15/16ths" - 34 1/16ths" 33 7/16ths" -

5 Series E60, 4dr Sedan 04-10 (CN) -250mm 455mm - 865mm 850mm -

-9 -13/16ths" 17 15/16ths" - 34 1/16ths" 33 7/16ths" -

Fitting Kit EN

K705W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K705W

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K705W

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●A = Clear

B = Grey

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = C021

B = C022

C = C023

D = C024

Fitting Kit EN

K705W

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●It is important to put the pads in the correct

position on the vehicle.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 293A

B = 294A

Fitting Kit EN

K705W

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

●Make sure the pad fits into the holes

underneath the foot.

Fitment

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Clamps directly to edge of roof under the

doors

●Please check the front of this manual for

information relating specifically to your

vehicle.

Fitting Kit EN

K705W

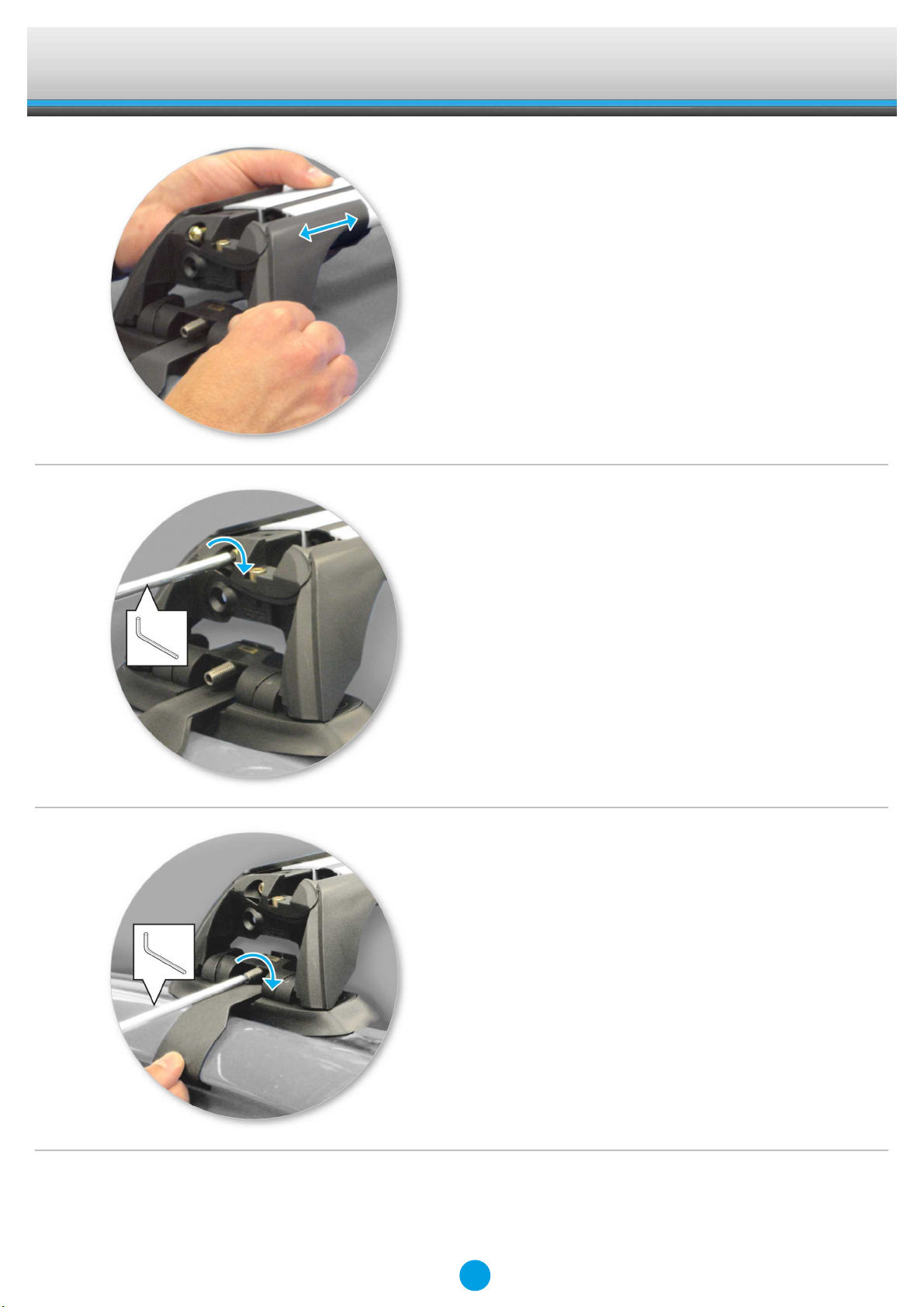

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

●Tighten adjusting screw to 3 Nm (2.2 ft lb)

hand tight.

●Tighten locking screw on both legs evenly,

3 Nm (2.2 ft lb).
