Whispbar K768W Manuel utilisateur

K768W

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 4 x 4 x 4

x 1 x 1 x 2 x 4

Revision No: 1A 1

Fitting Kit K768W

MAX kgs (lbs)

W/P WHD

Toyota

Highlander GX, 5dr SUV 14-+ NZ 60 kgs (132 lbs) 75 kgs (165 lbs)

Highlander LE, 5dr SUV 14-+ US 60 kgs (132 lbs) 75 kgs (165 lbs)

Kluger GX, 5dr SUV 14-+ AU 60 kgs (132 lbs) 75 kgs (165 lbs)

Fitting Kit EN

K768W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

Fitting Kit EN

K768W

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Set bars to length (revert to rear of these

instructions).

●Please check the rear of this manual for

information relating specifically to your

vehicle.

Fitting Kit EN

K768W

●Tighten adjusting screw to 3 Nm (2.2 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

Fitting Kit EN

K768W

Fitment

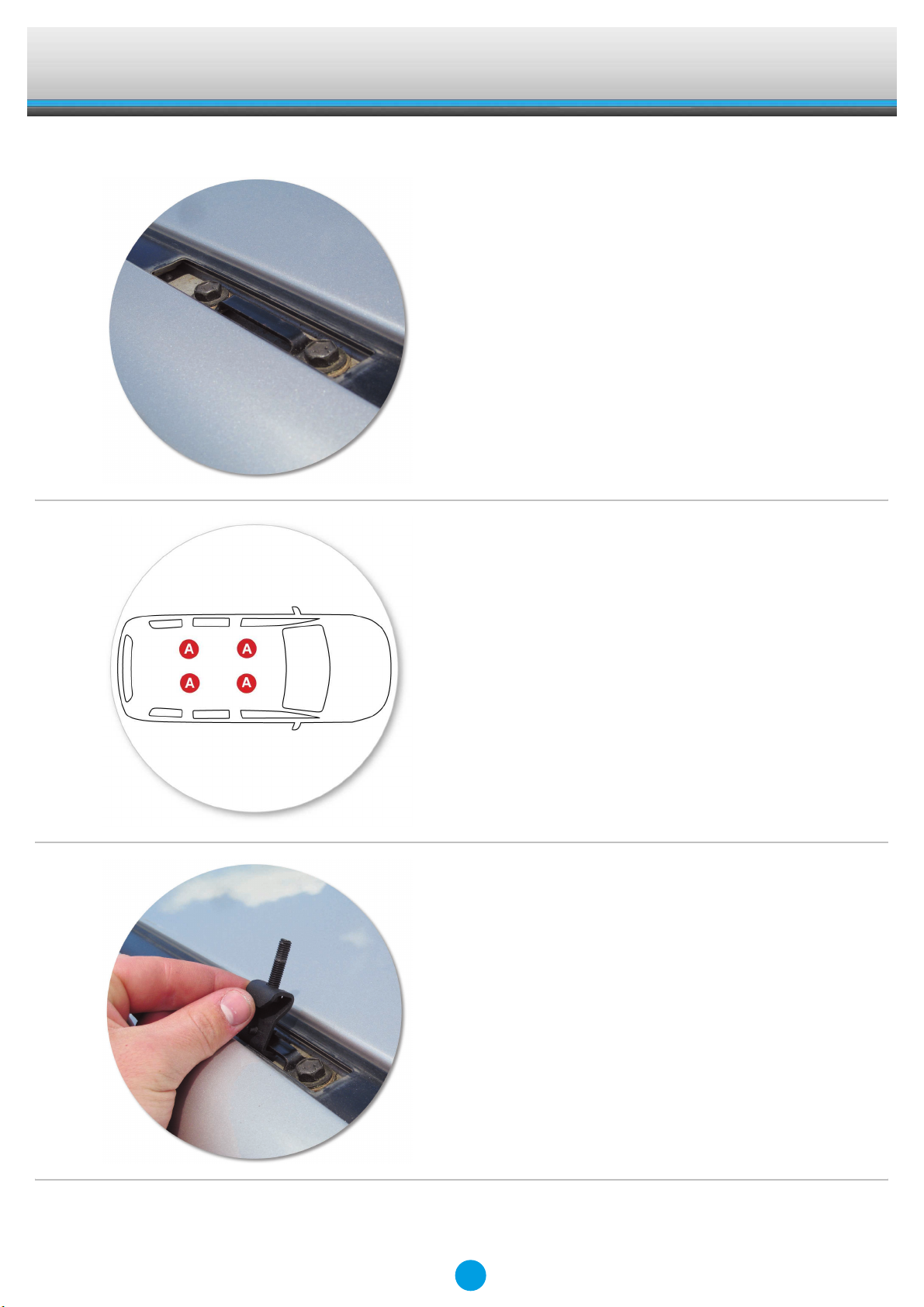

●Open or remove fixed-point covers.

●Store items away in a safe place.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 5214

●Hook clamps into the fixed points on the

vehicle.

Fitting Kit EN

K768W

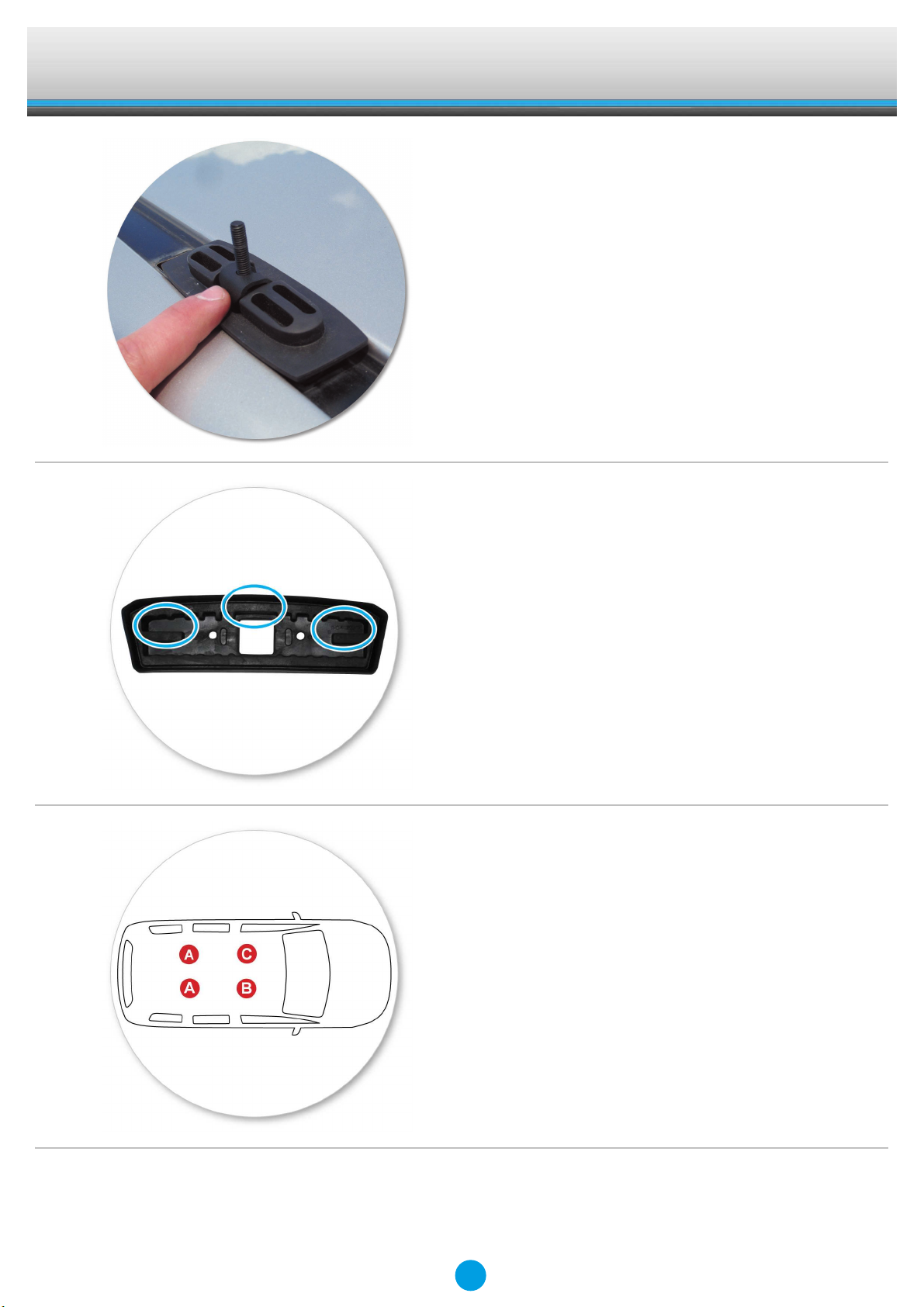

●Place ditch mould insert over the clamp.

●Repeat for all four positions.

●Refer to the underside of the pad for the

part number.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 220A

B = 222A

C = 223A

Fitting Kit EN

K768W

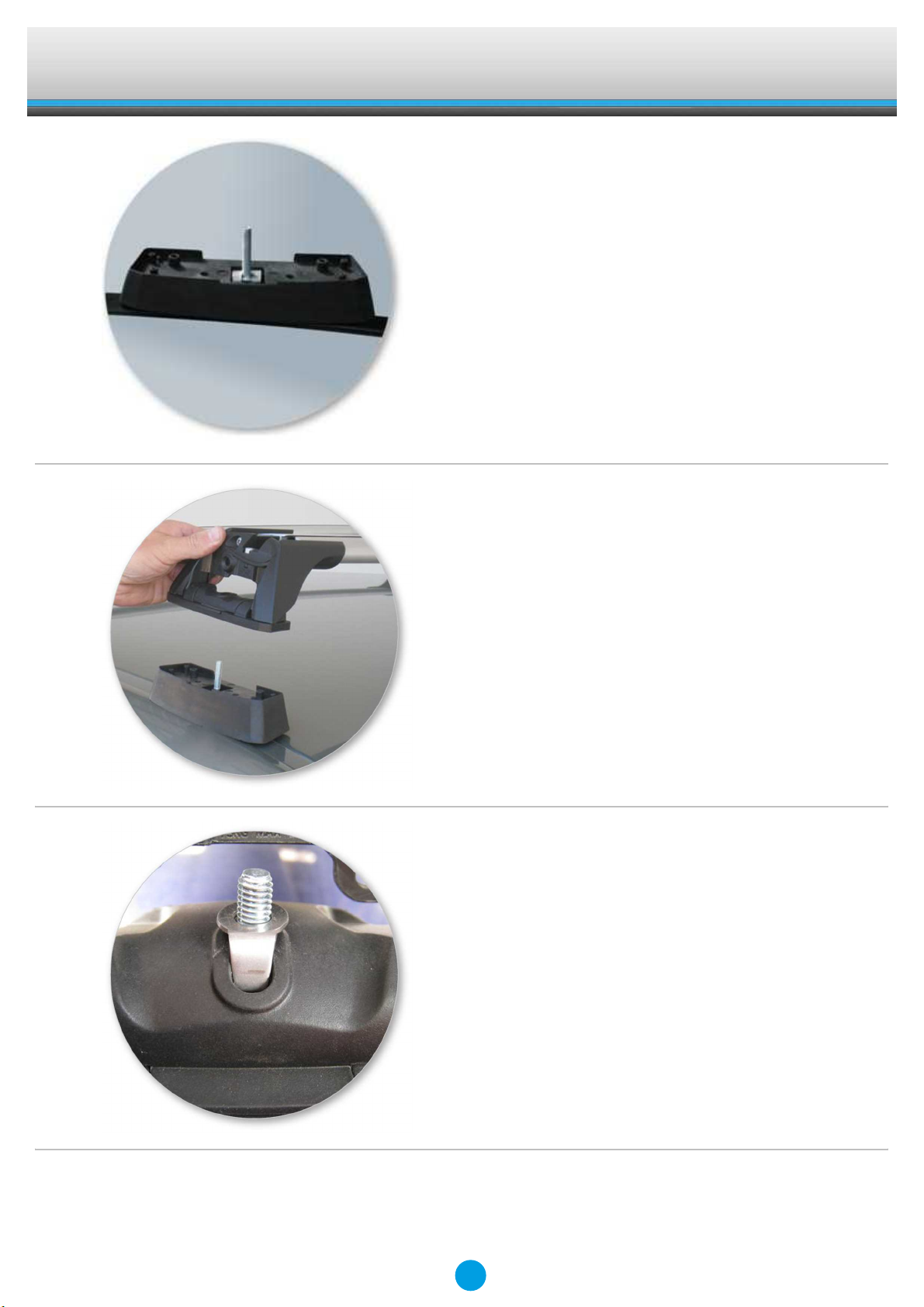

●Place pads on roof as per diagram. Screw

thread should be vertically through square

hole in pad.

●Place crossbar foot over clamp bolt.

●Place washer over clamp thread as shown.

●Ensure that tab is inserted into clamp

block.

Fitting Kit EN

K768W

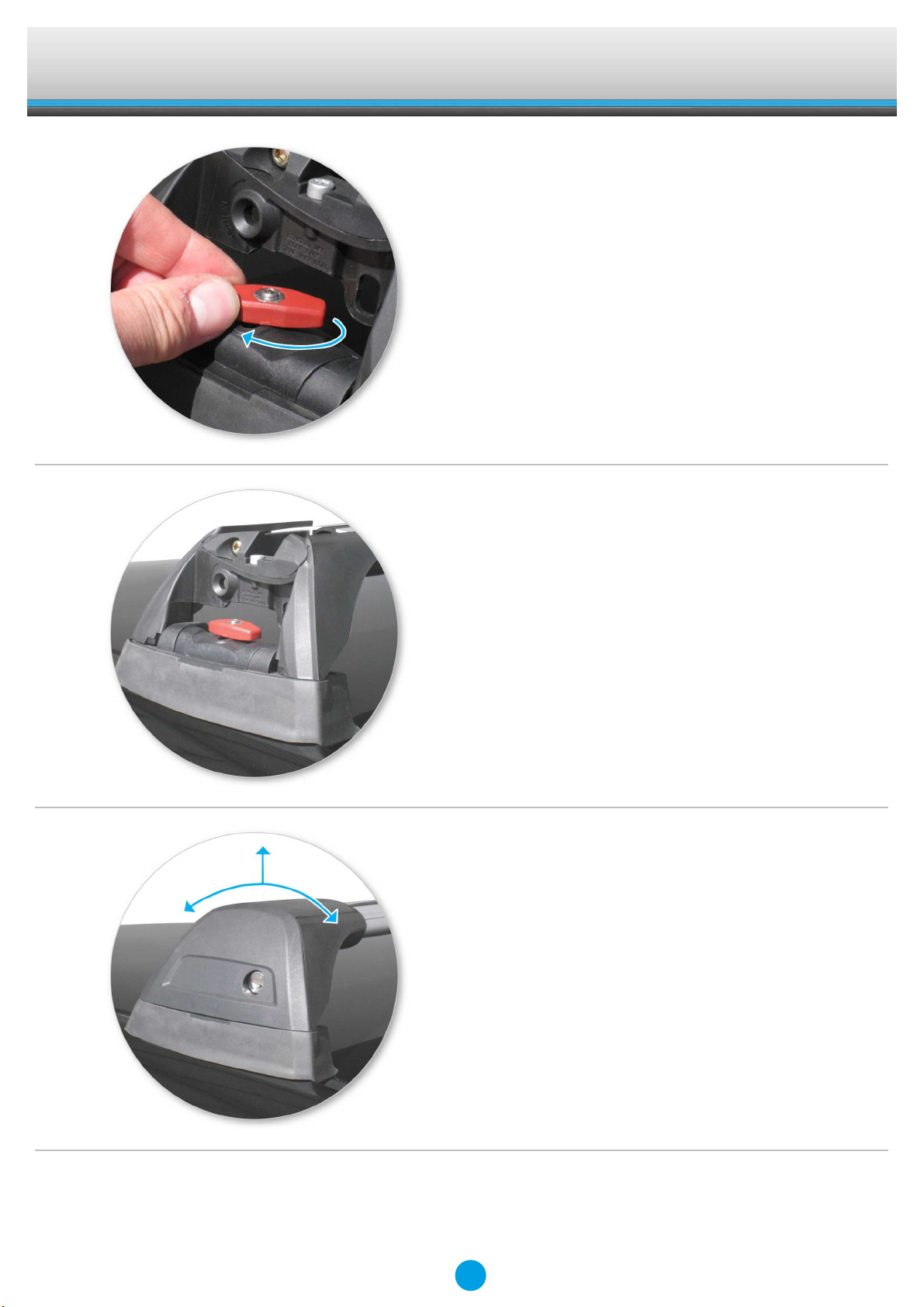

●Tighten the plastic knob. The side with the

nut showing should be facing up.

●Ensure the plastic knob is in the position

shown when fully tightened.

●Repeat for all four positions.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

Fitting Kit EN

K768W

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
