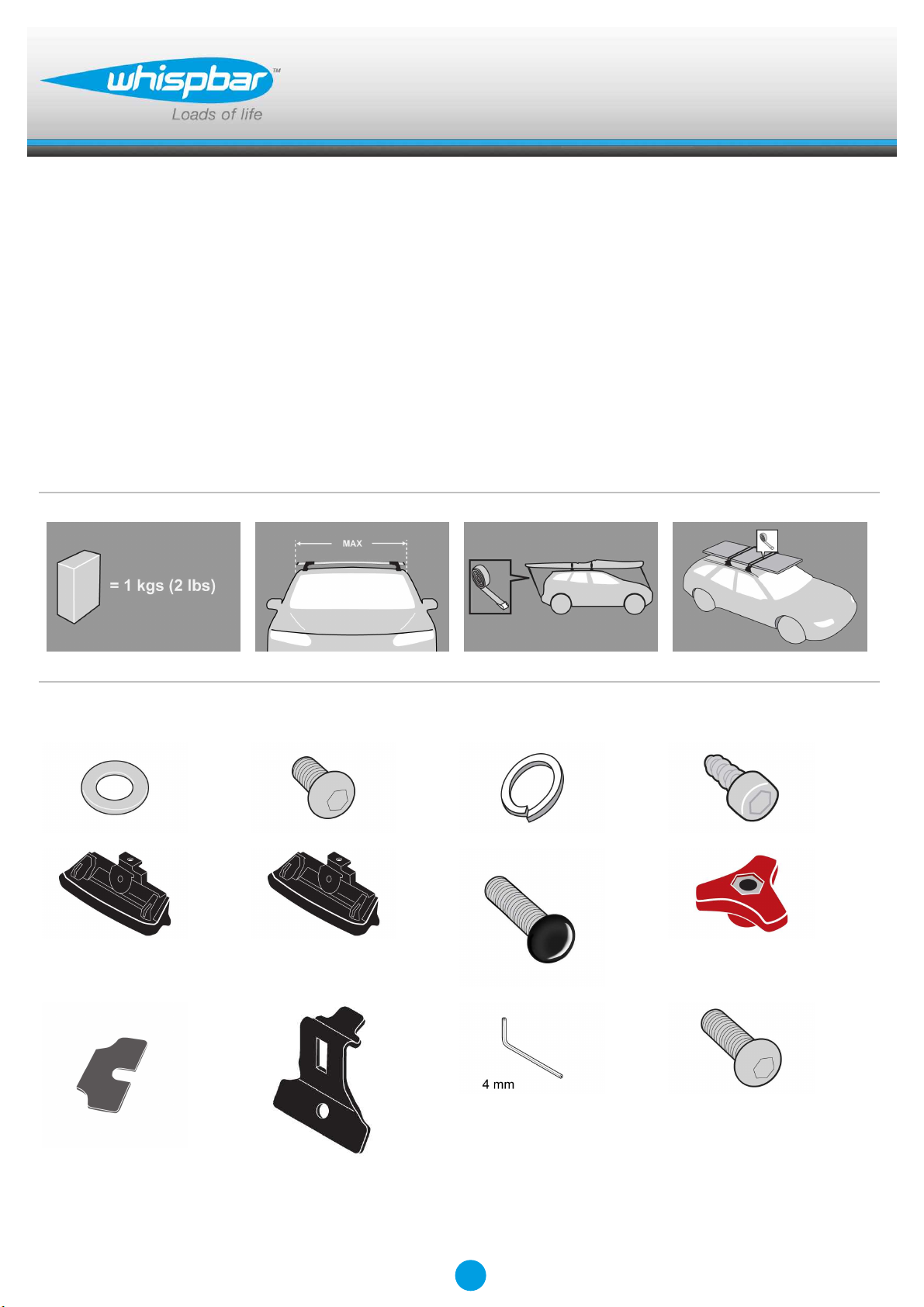

Whispbar K684W Manuel utilisateur

K684W

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 4 x 4 x 8

x 2 x 2 x 4 x 4

x 4 x 4 x 1 x 4

Revision No: 4D 1

Fitting Kit K684W

MAX kgs (lbs)

W/P WHD

Jeep

Compass, 5dr SUV 11-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Compass, 5dr SUV 11-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Compass, 5dr SUV 11-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

Compass, 5dr SUV 11-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Compass, 5dr SUV 11-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)

Compass, 5dr SUV 11-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)

2

Fitting Kit K684W

X

A B C 1 2 3

Compass, 5dr SUV 11-+ (NZ) 110mm 800mm - 860mm 825mm -

4 5/16ths" 31 1/2ths" - 33 7/8ths" 32 1/2ths" -

Compass, 5dr SUV 11-+ (AU) 110mm 800mm - 860mm 825mm -

4 5/16ths" 31 1/2ths" - 33 7/8ths" 32 1/2ths" -

Compass, 5dr SUV 11-+ (ZA) 110mm 800mm - 860mm 825mm -

4 5/16ths" 31 1/2ths" - 33 7/8ths" 32 1/2ths" -

Compass, 5dr SUV 11-+ (EU) 110mm 800mm - 860mm 825mm -

4 5/16ths" 31 1/2ths" - 33 7/8ths" 32 1/2ths" -

Compass, 5dr SUV 11-+ (US) 110mm 800mm - 860mm 825mm -

4 5/16ths" 31 1/2ths" - 33 7/8ths" 32 1/2ths" -

Compass, 5dr SUV 11-+ (CN) 110mm 800mm - 860mm 825mm -

4 5/16ths" 31 1/2ths" - 33 7/8ths" 32 1/2ths" -

3

Fitting Kit EN

K684W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

4

Fitting Kit EN

K684W

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Set bars to length (revert to rear of these

instructions).

●Clamps onto flush roof rail. Pins locate on

inside of rail.

5

Fitting Kit EN

K684W

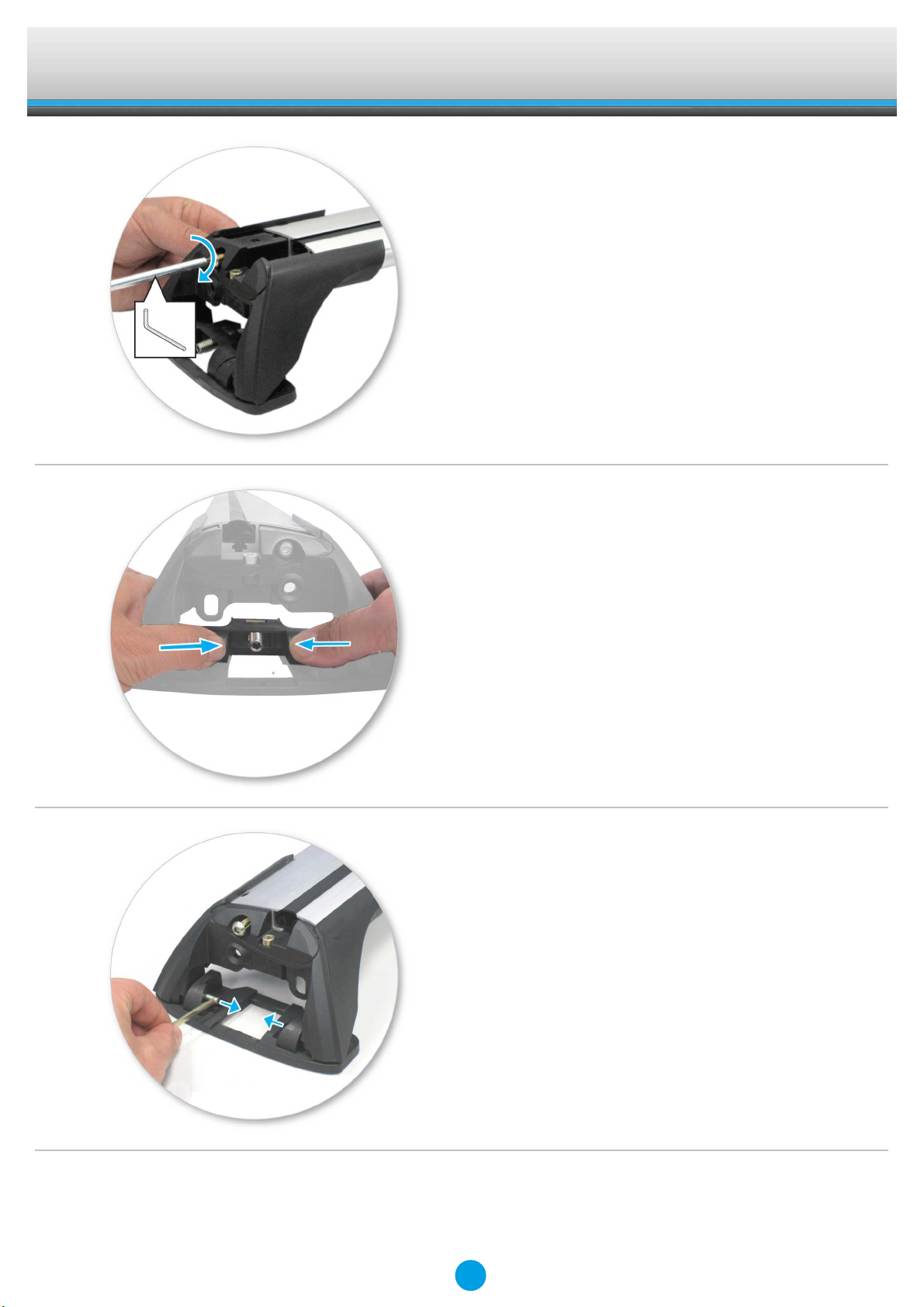

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Remove both pins from each leg. Use

tapered end of spanner located inside left

hand cover to assist.

6

Fitting Kit EN

K684W

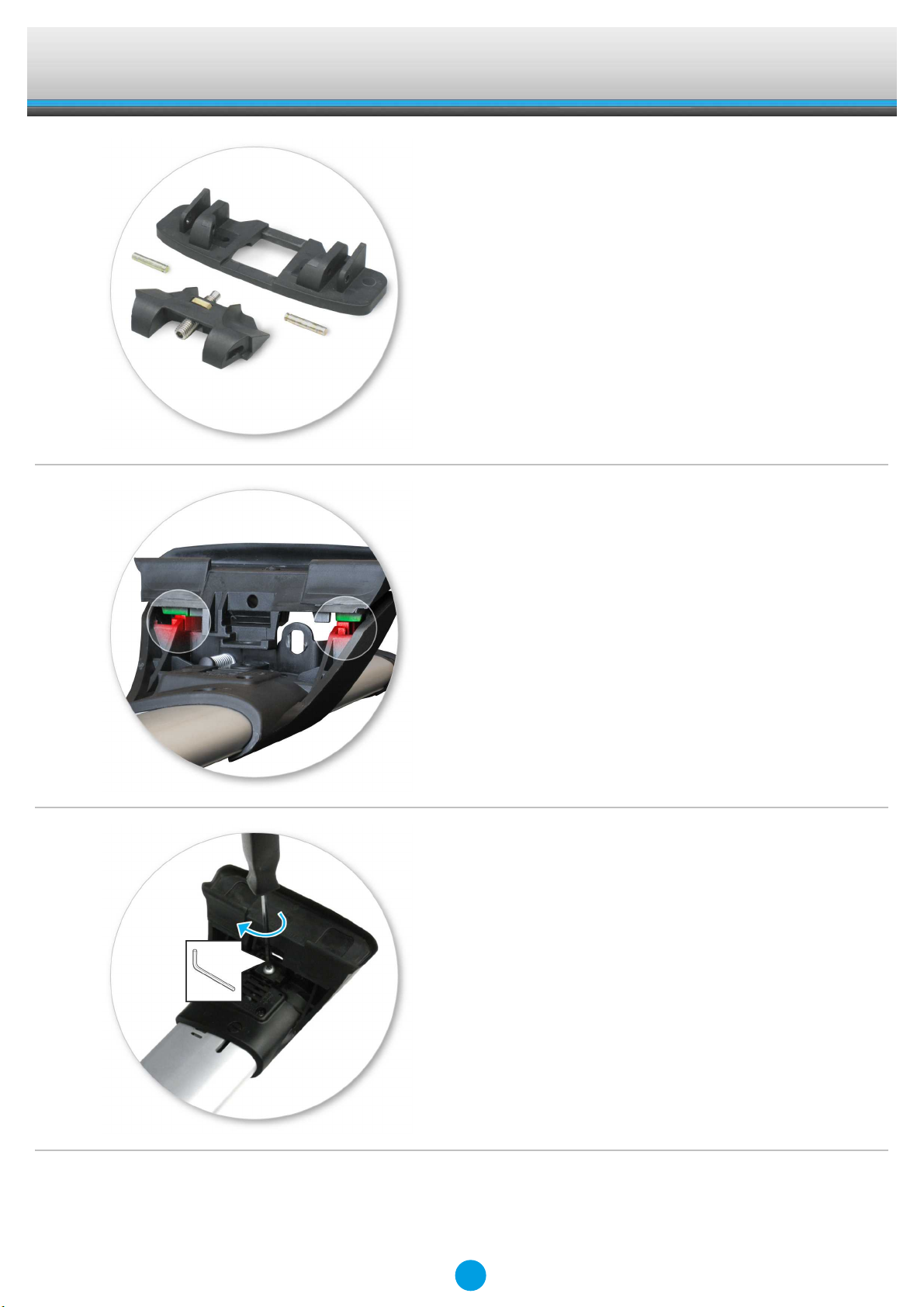

●Detach foot from leg. Store loose parts in a

safe place.

●Repeat for all legs.

●Select four feet assemblies and match the

left and right assemblies to the left and

right roof rack legs.

●Assemble foot from kit into leg by pressing

it down.

●Ensure foot interlocks with leg.

●Using short capscrew and washer, secure

assembly onto leg (use Hex Screwdriver

supplied with crossbar to assist)

●Do not over tighten.

●Repeat for all legs.

7

Fitting Kit EN

K684W

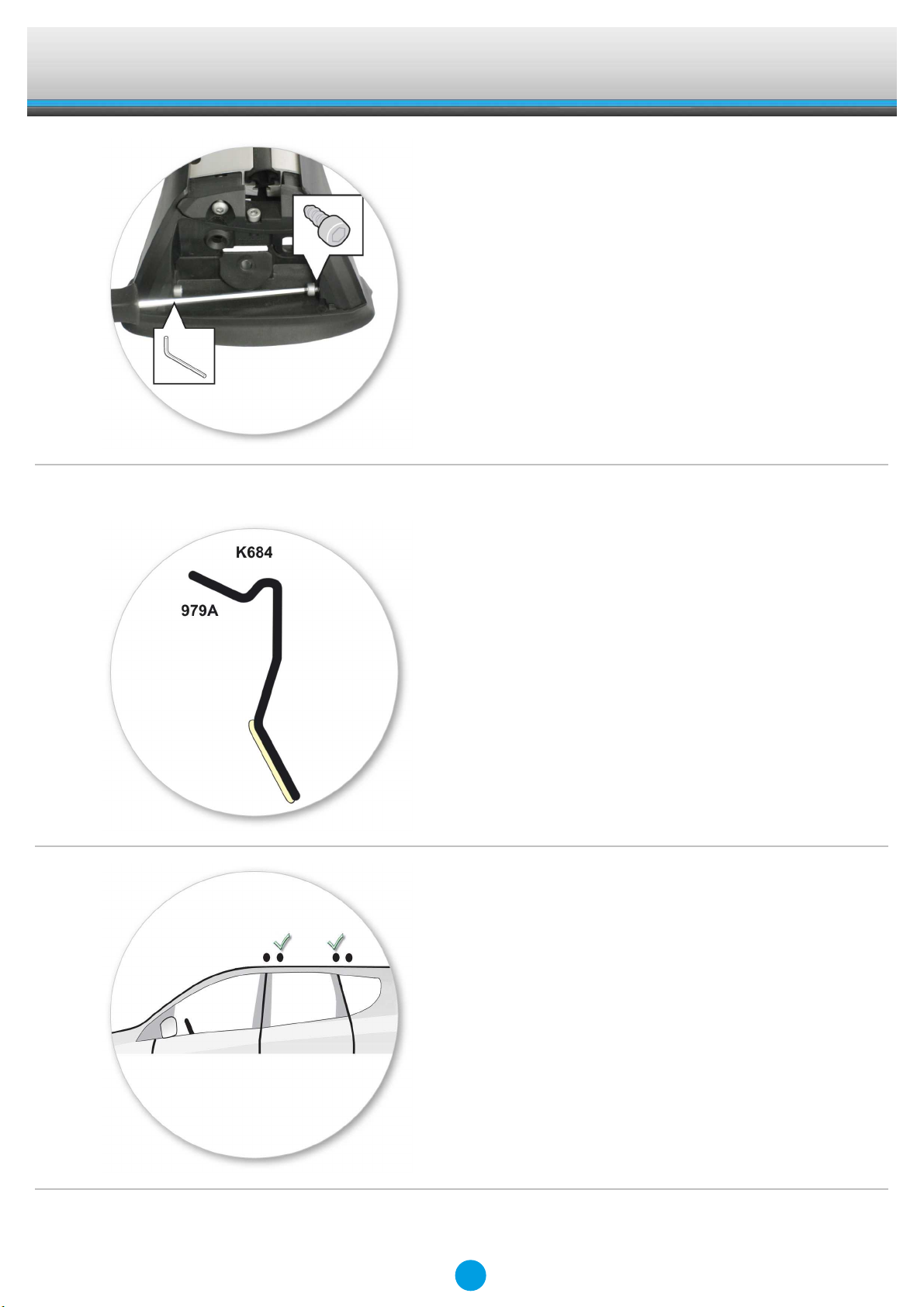

●Use two M5 x 12 mm self tapping screws to

secure the assembly onto the leg.

●Do not over tighten.

Fitment

●Apply protective strip as shown.

Trim if required.

●Place crossbar foot over fixed-point mount.

8

Fitting Kit EN

K684W

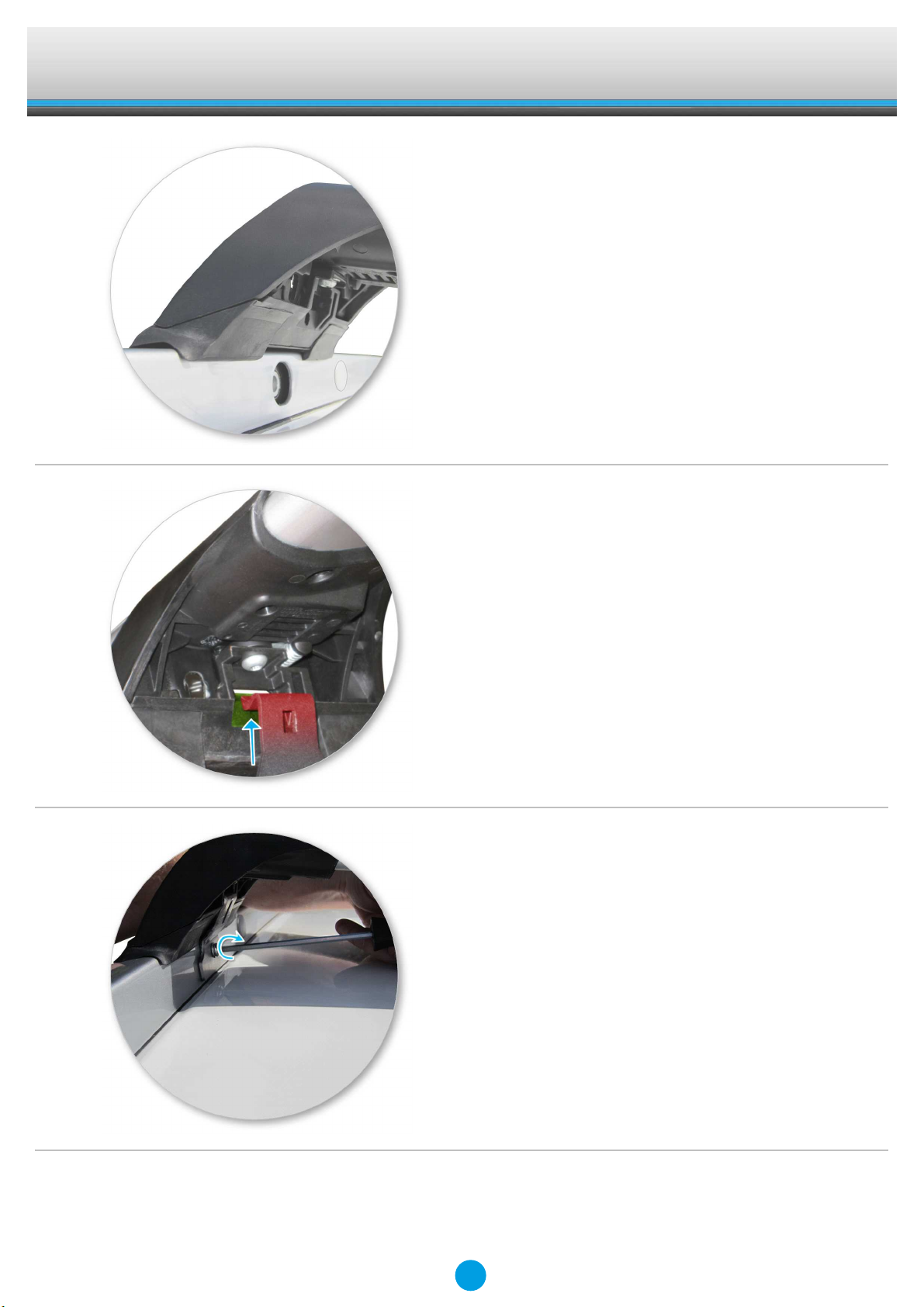

●Open or remove fixed-point covers.

●Place crossbar foot over fixed-point mount.

●Ensure back edge of foot sits flush with the

back edge of vehicle roof rail.

●Slide clamp through opening in leg.

●Using the Hex Key and the capscrews,

secure the clamps to the vehicle.

●Ensure spring washer is between clamp

and the head of the screw.

9

Fitting Kit EN

K684W

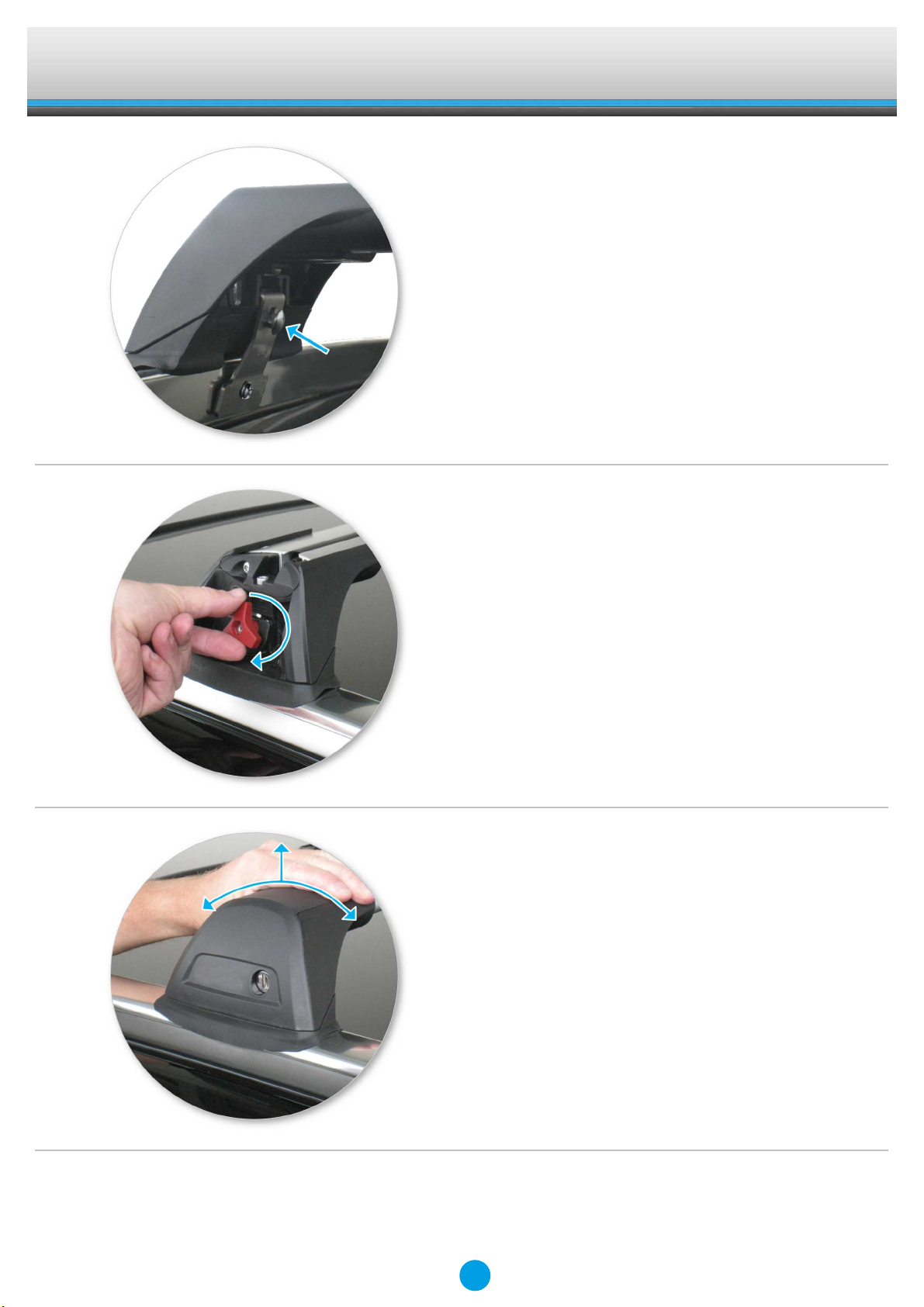

●Thread the coach bolt through the clamp

and the leg.

●Tighten the plastic knob.

●Ensure the plastic knob is in the position

shown when fully tightened.

●Do not over tighten.

●Repeat for all four positions.

●Use keys to fit and lock covers

●Check crossbar is securely attached to the

vehicle.

10
