Whispbar K372W Manuel utilisateur

K372W

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 4 x 2 x 2

x 4 x 4

Revision No: 9D 1

Fitting Kit K372W

MAX kgs (lbs)

W/P WHD

Citroen

C3 Panoramic Window, 5dr Hatch 09-16 EU 70 kgs (154 lbs) 70 kgs (154 lbs)

C3 Panoramic Window, 5dr Hatch 10-+ NZ 70 kgs (154 lbs) 70 kgs (154 lbs)

C3 Panoramic Window, 5dr Hatch 10-14 AU 70 kgs (154 lbs) 70 kgs (154 lbs)

Fitting Kit K372W

A B C 1 2 3

C3 Panoramic Window, 5dr Hatch 09-16 (EU) -70mm 610mm - 730mm 695mm -

-2 -3/4ths" 24" - 28 3/4ths" 27 3/8ths" -

C3 Panoramic Window, 5dr Hatch 10-+ (NZ) -70mm 610mm - 730mm 695mm -

-2 -3/4ths" 24" - 28 3/4ths" 27 3/8ths" -

C3 Panoramic Window, 5dr Hatch 10-14 (AU) -70mm 610mm - 730mm 695mm -

-2 -3/4ths" 24" - 28 3/4ths" 27 3/8ths" -

Fitting Kit EN

K372W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

Fitting Kit EN

K372W

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

●Attaches to factory-fitted mounting points

●Please check the front of this manual for

information relating specifically to your

vehicle.

Fitting Kit EN

K372W

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

Fitting Kit EN

K372W

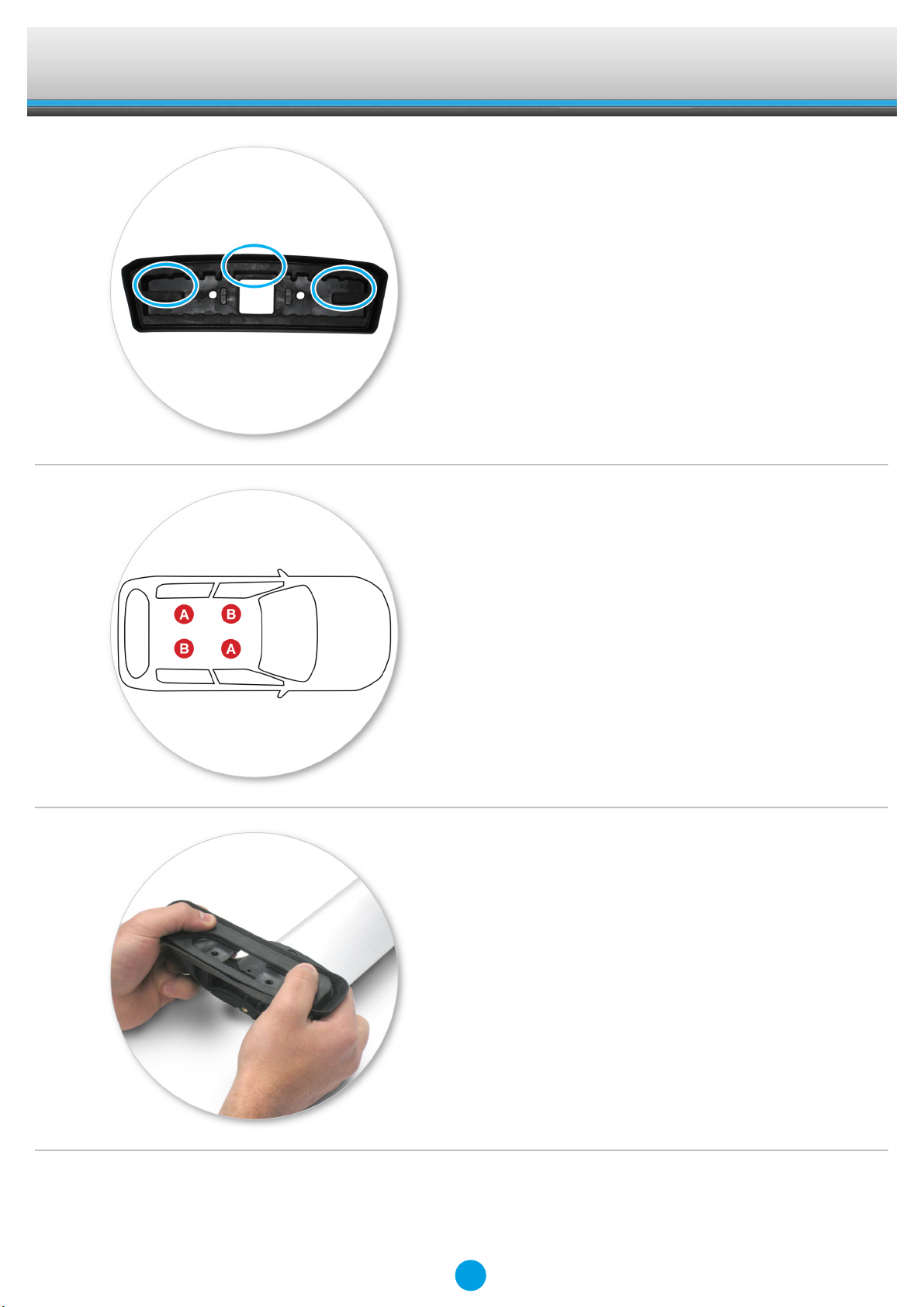

●Refer to the underside of the pad for the

part number.

●It is important to put the pads in the correct

position on the vehicle.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 11-04-229

B = 11-04-230

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

●Make sure the pad fits into the holes

underneath the foot.

Fitting Kit EN

K372W

Fitment

●Open or remove fixed-point covers.

●Select four clamps and fit them to the

inside of the fixed-point mounts on the

vehicle.

●Repeat for all four positions.

●Mount crossbars over clamps.

●Ensure the pads are in the correct position

and the clamp threads pass through the

crossbar feet.

Fitting Kit EN

K372W

●Place washer over clamp thread as shown.

●Ensure that tab is inserted into clamp

block.

●Tighten the plastic knob. The side with the

nut showing should be facing up.

●Ensure the plastic knob is in the position

shown when fully tightened.

●Repeat for all legs.

Fitting Kit EN

K372W

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
