Whispbar K343W Manuel utilisateur
K343W

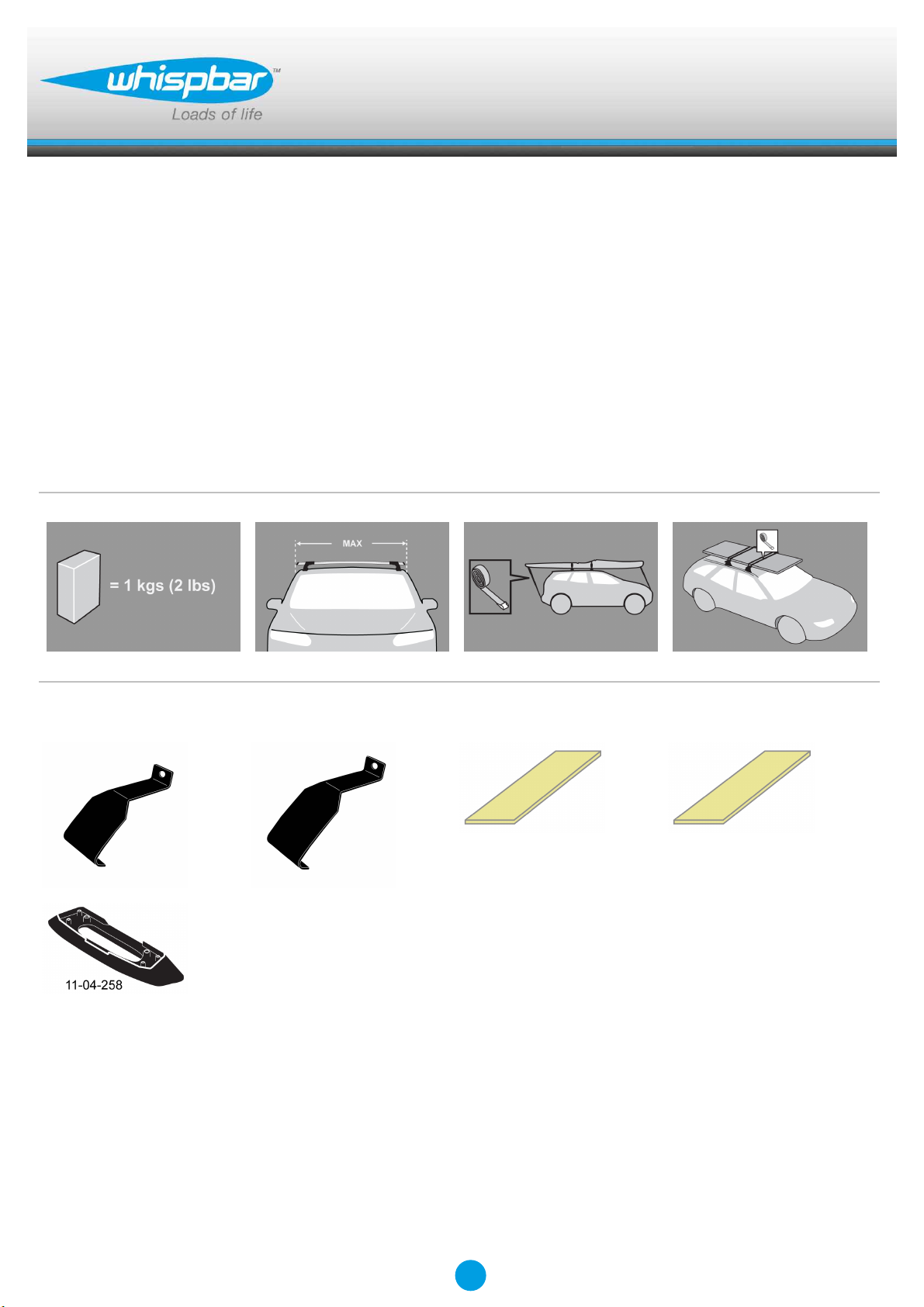

Fitting Kit
EN Fitting Instructions for Basic Carrier
x 2 x 2 x 2 x 2
x 4
Revision No: 8D 1
Fitting Kit K343W
MAX kgs (lbs)
W/P WHD
Toyota
Aurion, 4dr Sedan 06-11 ZA 60 kgs (132 lbs) 60 kgs (132 lbs)
Aurion, 4dr Sedan Nov 06-11 NZ 60 kgs (132 lbs) 60 kgs (132 lbs)
Aurion, 4dr Sedan Nov 06-11 AU 60 kgs (132 lbs) 60 kgs (132 lbs)
Camry, 4dr Sedan 06-12 ZA 60 kgs (132 lbs) 60 kgs (132 lbs)
Camry, 4dr Sedan 06-12 EU 60 kgs (132 lbs) 60 kgs (132 lbs)
Camry, 4dr Sedan 07-Aug 11 US 60 kgs (132 lbs) 60 kgs (132 lbs)
Camry, 4dr Sedan Aug 06-Feb 12 AU 60 kgs (132 lbs) 60 kgs (132 lbs)
Camry, 4dr Sedan Aug 06-Feb 12 NZ 60 kgs (132 lbs) 60 kgs (132 lbs)
Lexus
ES 350, 4dr Sedan 07-12 US 50 kgs (110 lbs) 50 kgs (110 lbs)
2
Fitting Kit K343W
X
A B C 1 2 3
Aurion, 4dr Sedan 06-11 (ZA) -290mm 360mm - 905mm 858mm -
-11 -7/16ths" 14 3/16ths" - 35 5/8ths" 33 3/4ths" -
Aurion, 4dr Sedan Nov 06-11 (NZ) -290mm 360mm - 905mm 858mm -
-11 -7/16ths" 14 3/16ths" - 35 5/8ths" 33 3/4ths" -
Aurion, 4dr Sedan Nov 06-11 (AU) -290mm 360mm - 905mm 858mm -
-11 -7/16ths" 14 3/16ths" - 35 5/8ths" 33 3/4ths" -
Camry, 4dr Sedan 06-12 (ZA) -290mm 360mm - 905mm 858mm -
-11 -7/16ths" 14 3/16ths" - 35 5/8ths" 33 3/4ths" -
Camry, 4dr Sedan 06-12 (EU) -290mm 360mm - 905mm 858mm -
-11 -7/16ths" 14 3/16ths" - 35 5/8ths" 33 3/4ths" -
Camry, 4dr Sedan 07-Aug 11 (US) -290mm 360mm - 905mm 858mm -
-11 -7/16ths" 14 3/16ths" - 35 5/8ths" 33 3/4ths" -
Camry, 4dr Sedan Aug 06-Feb 12 (AU) -290mm 360mm - 905mm 858mm -
-11 -7/16ths" 14 3/16ths" - 35 5/8ths" 33 3/4ths" -
Camry, 4dr Sedan Aug 06-Feb 12 (NZ) -290mm 360mm - 905mm 858mm -
-11 -7/16ths" 14 3/16ths" - 35 5/8ths" 33 3/4ths" -
ES 350, 4dr Sedan 07-12 (US) -290mm 360mm - 935mm 875mm -
-11 -7/16ths" 14 3/16ths" - 36 13/16ths" 34 7/16ths" -
3
Fitting Kit EN
K343W
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
NOTE: Clamp images in these instructions may
not be representative of the clamps in this kit
4
Fitting Kit EN
K343W
●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
5
Fitting Kit EN
K343W
●Remove locking screw.
●Apply protective strip as shown.
Trim if required.
●It is important to put the clamps in the
correct position on the vehicle.
●Letters refer to the part numbers stamped
on clamps.
●Clamp Part Number:
A = 447A
B = 448A
6
Fitting Kit EN
K343W
●Attach clamp to each leg. NOTE; clamps
may have labels showing their positions on
the vehicle (For example; "Front Right").
●Refit locking screw so that it goes through
the hole in the clamp. Do not begin to
tighten the locking screw.
●Fit rubber pads (supplied with fitting kit) to
foot. Pad may vary in shape to that shown.
7
Fitting Kit EN
K343W
●Make sure the pad fits into the holes
underneath the foot.
Fitment
●Place crossbar on vehicle. Minimum
recommended spacing between the bars is
700mm (27 1/2") (unless otherwise stated).
●Clamps directly to edge of roof under the
doors
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Adjust the legs on the crossbar so that they
are positioned equally from the ends of the
crossbar, and the clamps engage firmly on
the body work of the vehicle.
8
Fitting Kit EN
K343W
●Tighten adjusting screw to 3 Nm (2.2 ft lb)
hand tight.
●Tighten locking screw on both legs evenly.
●Check crossbar is securely attached to the
vehicle.
9
Fitting Kit EN
K343W
●Use keys to fit and lock covers
CAUTION: Recheck all fasteners immediately after
a load is applied to the crossbars.
Regularly check screws are tight.
10
