Whirlpool WTW6400SW3 Manuel utilisateur

TOP AND CABINET PARTS

For Model: WTW6400SW3

(White)

9−08 Litho in U.S.A. (drd)(mek) Part No. W10172461 Rev. C

AUTOMATIC WASHER

TOP AND CABINET PARTS

For Model: WTW6400SW3

(White)

W10172461

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10113000

Use & Care Guide

W10026634

Tech Sheet

W10150640

Quick Start Guide

8577781 Wiring Diagram

W10165664

Energy Guide

2 8565314 Top

W10162416

Frame Assembly,

Cabinet Top

(Includes

Items 31 & 51)

4 8576784 Sound Absorber,

Cabinet

5 8566156 Cabinet

6 8566090 Panel, Rear

W10160572

Retainer, Drain

Hose Storage

W10155270

Cable Tie

W10111536

Ball, Suspension

(Set Of 4 −

Includes Item 50)

10 8566146 Damper Assembly,

Tub Suspension

(Set Of 4−Includes

Items 9, 48,

50 & 52)

11 1157158 Screw, 8−18 x 3/8

W10042120

Locator, Top (2)

W10119828

Screw, Lid

Hinge Mounting (4)

14 8576780 Hinge Arm, Lid (2)

15 Hinge, Spring

Assembly

8563958 (Left)

8563959 (Right)

16 8563785 Lock, Top−

Front (2)

W10052730

Bearing, Lid

Hinge (2)

18 8577353 Lid−Inner

(Includes Item 47)

19 8572894 Lid

20 8578826 Foot Assembly,

Leveling (4)

W10059150

Dispenser,

Fabric Softener

22 8566210 Bezel, Fabric

Softener Dispenser

W10161865

Dispenser,

Stain Remover

24 8566211 Bezel, Stain

Remover Dispenser

25 8564976 Dispenser,

Detergent

26 8564979 Bezel, Detergent

Dispenser

W10106990

Nozzle Assembly,

Fresh Water

28 371503 Clamp, Hose

W10059230

Lock Assembly, Lid

30 8572019 Bezel, Lid Lock

31 8564458 Absorber, Impact

32 8564456 Hinge, Top (2)

33 18849 Pad, Top Hinge (2)

34 343641 Screw,

10−16 x 1/2 (2)

35 8563941 Cover, Harness

36 693995 Screw, 8−18 x 3/8

37 8543784 Bracket,

Drain Hose

W10076920

Screw (2)

39 8281136 Screw, 10−16 x 3/4

40 8576476 Spacer, Rear

(Cabinet/Top)

41 370451 Clamp, Hose

42 371503 Clamp, Hose

43 3400061 Screw,

10−16 x 9/16

44 90016 Clip, Harness (5)

45 8281736 Wire,

Ground Jumper

46 3400076 Screw, 10−32 x 5/8

W10076780

Bumper, Lid (2)

48 8577896 Washer, Suspension

Umbrella (4)

49 3390647 Screw, 8−18 x 1/2

W10167599

Bushing,

Suspension (Set Of

4−Includes Item 9)

51 8578386 Shield, Wire

Harness

52 8564017 Cup,

Suspension (4)

W10161707

Top Foam Seal

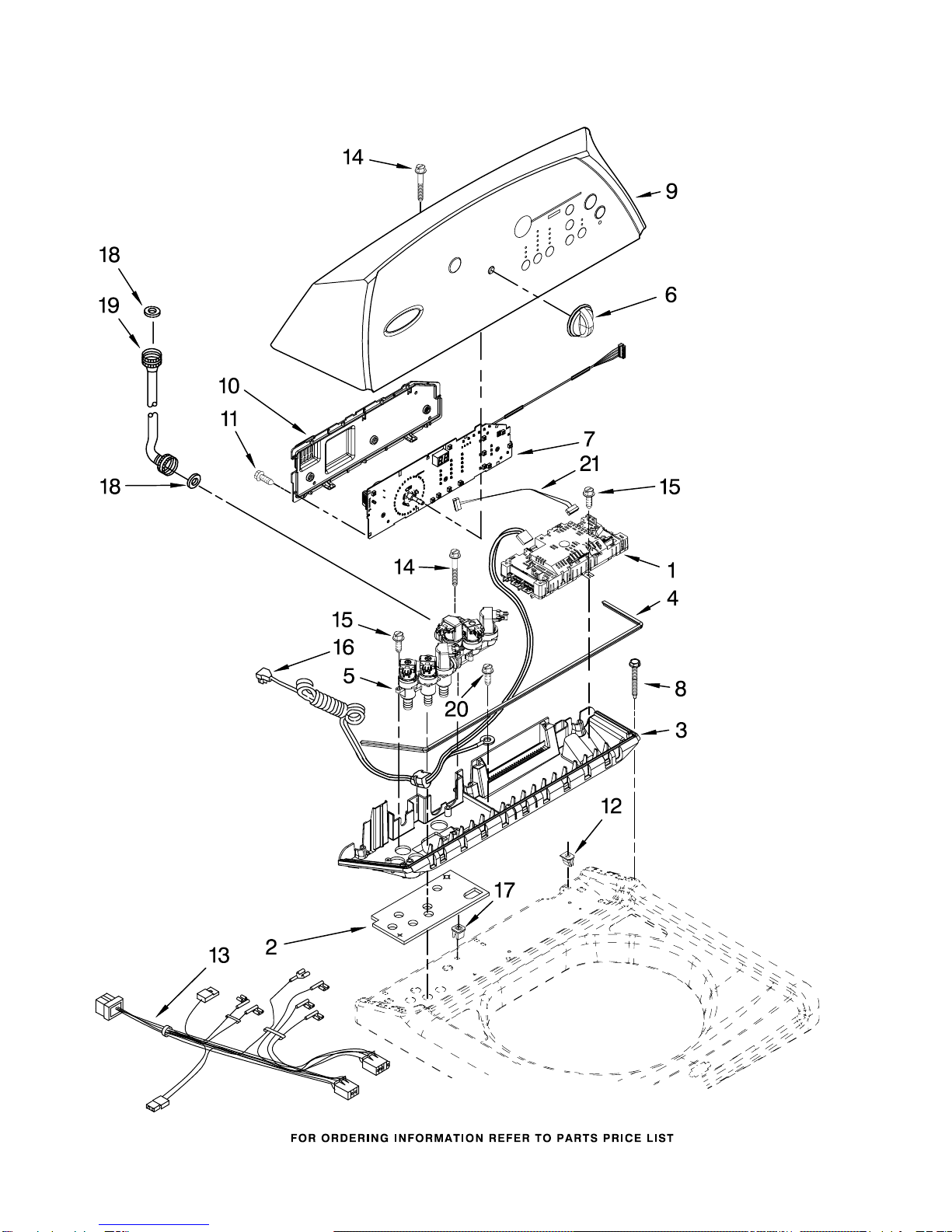

CONTROL PANEL PARTS

For Model: WTW6400SW3

(White)

W10172461

CONTROL PANEL PARTS

For Model: WTW6400SW3

(White)

W10172461

Illus. Part

No. No. DESCRIPTION

W10188476

Control Unit

Assembly,

Machine & Motor

W10130502

Gasket, Valve Tray

3 8565304 Tray Assembly,

Console (Includes

Items 2 & 4)

4 8565259 Gasket,

Console/Tray

W10128457

Valve, Log

Assembly

6 8574957 Knob, Control

7 8564291 User Interface

W10004990

Screw, 6−20 x 1.2

W10070050

Console

10 8564265 Cover, Rear−

User Interface

W10003770

Screw,

6−19 x 1/2 (3)

W10022060

Nut, Push−In (3)

W10128687

Harness, Upper

(Includes Item 21)

14 8565324 Screw,

10−16 x 1.75

15 8281136 Screw, 8−18 x 3/4

16 3407203 Cord Assembly,

Power

17 98460 Nut, Push−In (2)

18 3976300 Washer, Water

Inlet Hose

(1−1/16 x 5/8)(4)

19 Hose, Water Inlet

W10194208

Blue Coupler

8571378 Red Coupler

20 3351614 Screw, Power

Cord Ground

21 3407187 Harness,

Thermistor

MOTOR, BASKET AND TUB PARTS

For Model: WTW6400SW3

(White)

W10172461

MOTOR, BASKET AND TUB PARTS

For Model: WTW6400SW3

(White)

W10172461

Illus. Part

No. No. DESCRIPTION

W10106600

Cap, Impeller

W10076270

Screw & Washer

Assembly

W10076260

Washer

W10130807

Tub Ring

5 8572540 Hose Pressure

Switch

W10141017

Impeller

(Washplate)

7 8533953 Screw,

8−16 x 1.000 (6)

W10118114

Hub, Basket−Driven

(Includes Item 9)

9 8545953 Hub, Basket−Driver

(Includes Item 8)

W10118182

Basket Assembly

(Includes Items

7, 8, & 9)

W10128830

Tub & Drive Shaft

Assembly

W10005430

Clamp, Pressure

Hose Retainer

14 8533957 Screw, 10−16 x 1/2

W10137698

Shield,

Drive Motor

(Includes Item 16)

16 8565172 Tube, Buffer

(Set Of 4)

17 8565170 Stator, Motor

(Includes Item 18)

18 8557836 Plate, Stator

(Set Of 2)

19 8534042 Screw,

1/4−20 x .968 (4)

W10137685

RPS Assembly

21 8565177 Rotor, Main Drive

Motor (Includes

Item 22)

22 Bolt, Rotor

Assembly

Non−Serviceable

(Supplied W/Rotor)

W10137697

Harness, Lower

(Includes Item 5)

24 8566197 Filter, Dual

Pump Hood

25 8533928 Screw,

8−18 x 3/4 (2)

PUMP PARTS

For Model: WTW6400SW3

(White)

W10172461

Illus. Part

No. No. DESCRIPTION

W10155921

Pump Assembly,

Drain

W10128765

Hose, Drain

3 8543774 Hose, Recirc

W10049400

Pump Assembly,

Recirc

W10004910

Screw,

12−16 x 1.125

6 370449 Clamp, Hose

7 8269146 Clamp, Hose

8 8317496 Clamp, Hose

9 8182771 Grommet, Pump

Mounting (4)

10 8534021 Clamp, Recirc

Hose Retainer

11 8533943 Screw, 10−16 x 3/4

12 8182768 Clamp,

Drain Pump Hose

13 8576642 Retainer,

Drain Hose

14 3347868 Cable Tie

15 8182769 Hose, Recirc Pump

16 8182770 Clamp,

Recirc Pump Hose

17 8182767 Hose, Drain Pump

OPTIONAL PARTS (NOT INCLUDED)

For Model: WTW6400SW3

(White)

W10172461

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350938 Primer, Gray

350930 White

PAINT, BULK (1 qt.)

799344 White (Uncut)

WATER SYSTEM PARTS

285442 Connector Kit,

Plastic Drain

Hose

285321 Sleeve Kit,

(Contains 2

Sleeves)

285320 Siphon Break Kit

367031 Drain Protector

SEALER

285195 Sealer, Gasket

(.20 Fl. Oz.) (6 ml)

COUPLING

384496 Coupling, Hose

ACCESSORY PARTS

W10135699

Affresh

Odor Remover
