TOP AND CABINET PARTS

For Models: WFW8400TW00, WFW8400TB00

(White) (Black)

10−07 Printed in U.S.A. (drd) Part No. W10139064 Rev. B

AUTOMATIC WASHER

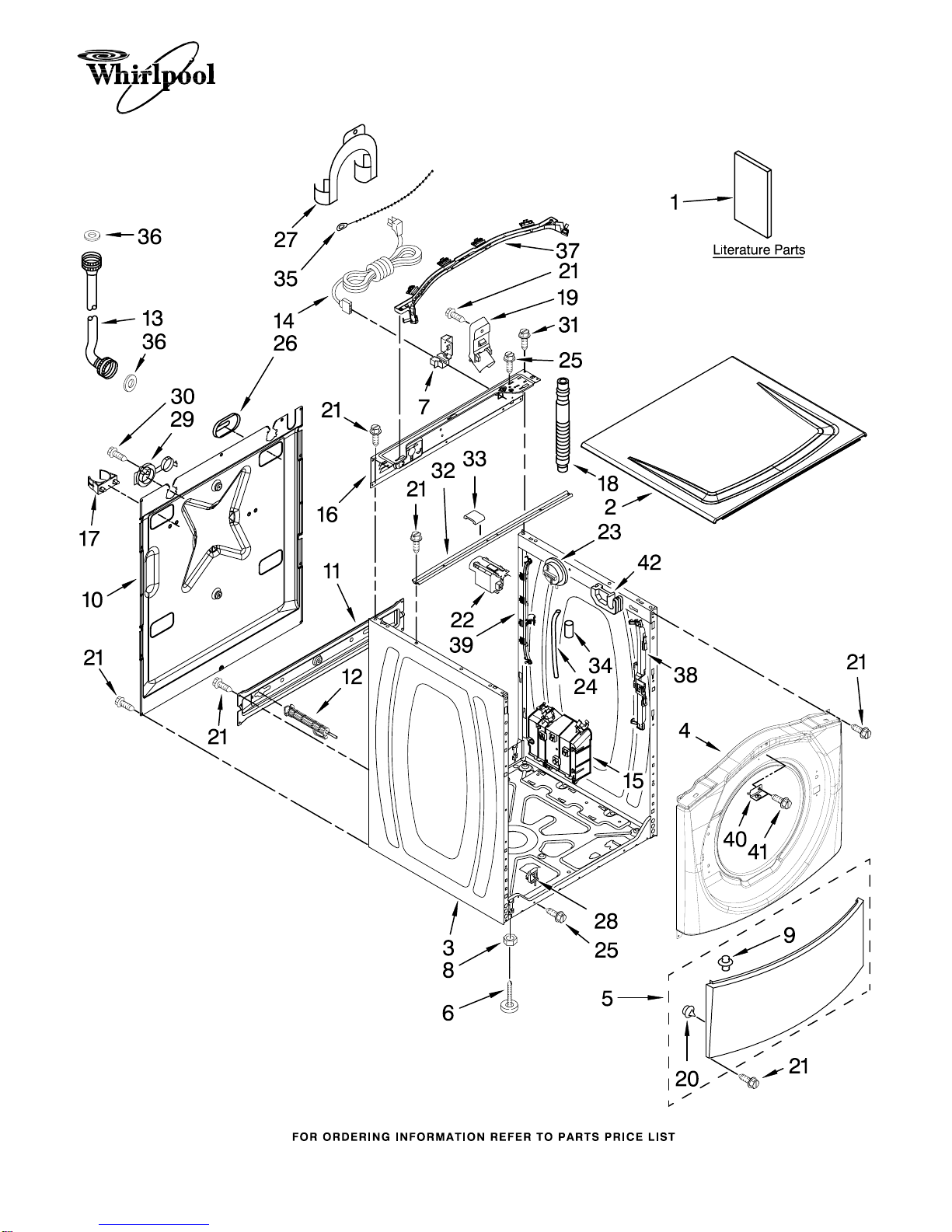

TOP AND CABINET PARTS

For Models: WFW8400TW00, WFW8400TB00

(White) (Black)

W10139064

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10117768

Use & Care Guide

W10071760

Tech Sheet

Energy Guide

W10128102

White Model

W10157937

Black Model

8540316 Quick Start Guide

2 Top

8540716 White

W10128645

Black

3 Cabinet

8540548 White

W10117456

Black

4 Panel, Front

8540572 White

W10128427

Black

5 Toe Panel

8540813 White

W10112981

Black

W10121677

Foot, Leveling (4)

W10110676

Strain Relief,

Power Cord

8 3359452 Nut, Lock (4)

9 8518891 Rivet (2)

10 8540580 Panel, Rear

11 8540581 Brace, Transport

12 8540199 Bolt, Shipping (4)

13 Hose, Water Inlet

8571377 Blue Coupler

8571378 Red Coupler

W10121405

Cord, Power

15 8540540 Motor Control Unit

16 8540974 Brace, Rear

17 8540093 Clamp, Tube

Transportation

18 8540011 Hose, Drain

19 8540607 Retainer,

Hose Outlet

20 238614 Bumper (2)

W10015090

Screw, 8−18 x 5/8

22 8540230 Filter,

Interference

23 8540224 Switch, Pressure

24 8540294 Hose, Pressure

Switch

25 8540479 Screw, Grounding

26 8540268 Cover, Transport

27 8540021 U−Bend,

Drain Hose

W10085220

Microswitch (2)

29 8540728 Sleeve,

Cord Support (2)

30 8540727 Screw, 3 x 8 mm

31 8540329 Screw

32 8540720 Brace, Top

(Includes Item 33)

33 8283273 Damper, Brace

34 2161302 Sleeve, Pressure

Switch Hose

35 3347868 Cable Tie

36 16123 Washer, Water

Inlet Hose (4)

1−1/16 x 5/8

37 8540290 Harness Channel,

Top Rear

38 8540288 Harness Channel,

Side Front

39 8540289 Harness Channel,

Side Rear

40 8540669 Bracket,

Console Retainer

41 8533954 Screw

42 8540644 Bracket, Spring

DOOR AND LATCH PARTS

For Models: WFW8400TW00, WFW8400TB00

(White) (Black)

W10139064

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8540108 Clamp, Bellow

To Tub

2 8540952 Bellow

3 8540772 Lock, Door

4 8540725 Screw

5 8540221 Hook, Door

6 Trim Ring,

Outer Door

8540533 Nestle White

W10135726

Tempest Grey

7 8540107 Clamp, Bellow

To Front Panel

8 8540115 Clamp, Support

9 8540114 Clamp, Glass (2)

10 8540513 Screw

11 Frame, Door

Front Assembly

8540588 Nestle White

W10128432

Whistler Grey

12 8540428 Glass, Door

W10138523

Frame, Door

Back Support

14 8540416 Hinge, Door

15 8540284 Screw

16 8540282 Screw

W10015090

Screw

CONTROL PANEL PARTS

For Models: WFW8400TW00, WFW8400TB00

(White) (Black)

W10139064

Illus. Part

No. No. DESCRIPTION

1 Panel, Control

W10132001

White

W10131963

Black

2 Knob, Control

8574963 Nestle White

W10129067

Tempest Grey

3 User Interface

8574920 White Model

W10149382

Black Model

4 8540558 Brace, Top Front

5 8540839 Channel, Water

W10160253

Microcomputer,

Machine Control

7 3390647 Screw, 8−18 x 1/2

8 8540524 Harness, Wiring

(Main)

9 8540282 Screw

W10015090

Screw, 8−18 x 5/8

DISPENSER PARTS

For Models: WFW8400TW00, WFW8400TB00

(White) (Black)

W10139064

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8540751 Valve, Inlet

2 8540065 Hose, Valve

To Dispenser

3 370450 Clamp, Hose

4 8540282 Screw

5 8540042 Nozzle, Inlet

6 8540393 Cam, Actuator

7 8540394 Lever, Water

Distribution

8 8540041 Actuator

9 VS611 Washer

10 8281276 Clamp, Hose

11 8540395 Connection, Lever

12 8540058 Dispenser

13 8540053 Nozzle,

Distribution

14 8540063 Hose, Dispenser

To Tub

15 Handle, Drawer

8574948 White

W10099634

Black

W10117943

Medallion

17 8540402 Drawer,

Detergent

18 8540399 Cover,

Detergent Drawer

19 8540429 Siphon,

Bleach/Softener

20 8540400 Hook, Drawer

PUMP AND MOTOR PARTS

For Models: WFW8400TW00, WFW8400TB00

(White) (Black)

W10139064

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8540525 Harness, Motor

2 8540033 Cap, Lock Foot

3 8540180 Air Trap

4 8540013 Ball

5 8540008 Clamp

6 8540012 Hose,

Tub to Pump

7 370448 Clamp

W10034820

Foot, Rubber

(Slider)

9 356138 Clamp, Hose

W10130913

Pump (Complete)

W10034830

Foot, Rubber

(Lock)

12 8533964 Screw,

10−16 x 1.25 (2)

13 8540025 Seal, Filter Cap

14 8540996 Filter Assembly

(Includes Item 13)

W10140581

Motor, Drive

16 8540134 Bolt, Motor

TUB AND BASKET PARTS

For Models: WFW8400TW00, WFW8400TB00

(White) (Black)

W10139064

TUB AND BASKET PARTS

For Models: WFW8400TW00, WFW8400TB00

(White) (Black)

W10139064

Illus. Part

No. No. DESCRIPTION

1 8533999 Nut, Pulley

2 8540088C Pulley

3 8540101 Belt, Drive

4 8540600 Counterweight,

Front Lower

W10112169

Pipe, Ventilation

6 8540010 Clamp, Vent Hose

7 8540019 Hose, Exhaust

W10112663

Tub, Rear

(Includes Items

10 & 22)

9 8540604 Counterweight,

Rear

10 8540090 Gasket, Tub

11 8540357 Basket, Complete

12 8540360 Baffle, Tub

13 8540323 Element, Heating

14 8534084 Nut, Shock

Absorber Mounting

15 8540598 Counterweight,

Front Upper

W10010360

Spring,

Suspension

(Set Of 2)

W10094780

Bolt,

Counterweight Mtg.

18 3363365 Clamp, Hose

19 8540015 Hose, Exhaust

20 8540092 Clamp, Tub

W10112664

Tub, Front

(Includes Items

10, 22, 30 & 31)

22 8540072 Nut, Push−In

W10084740

Shock Absorber

24 8540226 Negative

Thermistor Control

25 8540382 Screw

26 8540342 Crosspiece Asm

27 8540940 Bracket, Shock

Absorber Mounting

28 8540841 Bolt, Shock Brkt.

29 8540842 Nut, Shock Brkt.

30 8540322 Bracket,

Heating Element

31 8540880 Screw

OPTIONAL PARTS (NOT INCLUDED)

For Models: WFW8400TW00, WFW8400TB00

(White) (Black)

W10139064

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

72032 Black

PAINT, PRESSURIZED SPRAY

(12 oz.)

350938 Primer, Gray

350930 White

786020 Black

PAINT, BULK (1 qt.)

799344 White (Uncut)

786032 Black (Uncut)

ACCESSORY PARTS

285863 Drain Extension
