Whirlpool LA62OOXS Manuel utilisateur

AUTOMATIC

WASHER

Large Capacity

Model

LA62OOXS

KrOwave Ovens. Trash Compactors. Room AM Condltloners. Dehumldlfiers, Automatic Washers. Clothes Dryers. Freezers. Relngerator-FI

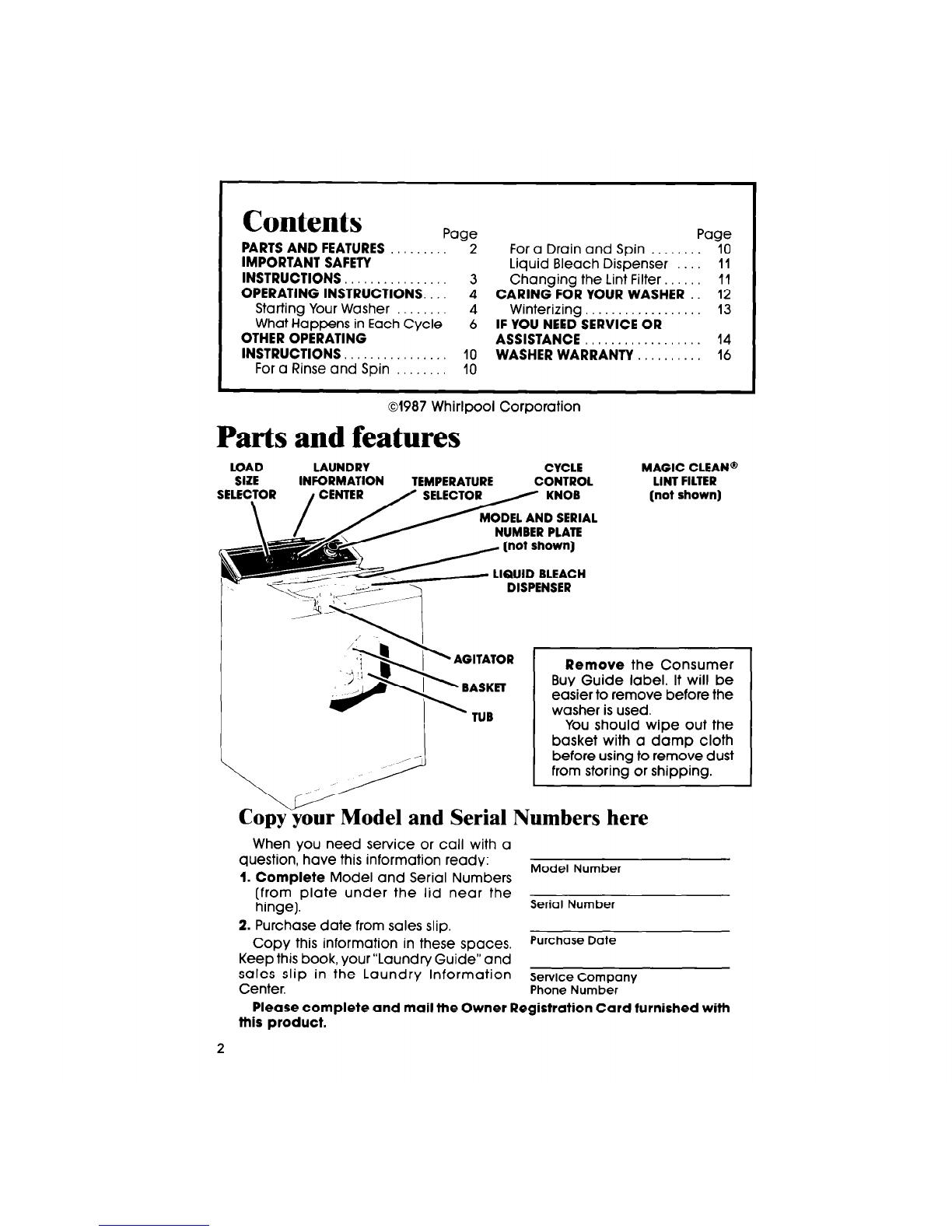

Contents

Paae

PARTS AND FEATURES - 2

IMPORTANT SAFETY

INSTRUCTIONS. 3

OPERATING INSTRUCTIONS.. 4

Starting Your Washer 4

What Happens in Each Cycle 6

OTHER OPERATING

INSTRUCTIONS. . . . 10

For a Rinse and Spin 10

For a Drain and Spin

Liquid Bleach Dispenser

Changing the Lint Filter..

CARING FOR YOUR WASHER

Winterizing

IF YOU NEED SERVICE OR

ASSISTANCE

WASHER WARRANTY

Page

01987 Whirlpool Corporation

Parts and features

LOAD

SIZE LAUNDRY

INFDRMATION TEMPERATURE CYCLE

CONTROL MAGIC CLEAN@

LINT FILTER

(not shown)

LIQUID BLEACH

Remove the Consumer

Buy Guide label. It will be

easier to remove before the

washer is used.

You should wipe out the

basket with a damp cloth

before using to remove dust

from storing or shipping.

Copyjour Model and Serial Numbers here

When you need service or call with a

question, have this information ready:

1. Complete Model and Serial Numbers Model Number

(from plate under the lid near the

hinge). Serio, Number

2. Purchase date from sales slip.

Copy this information in these spaces. P~rch9Sen9te

Keep this book, your “Laundry Guide” and

sales slip in the Laundry Information

Center. Service Company

Phone Number

Please complete and mail the Owner Registration Card furnished with

this product.

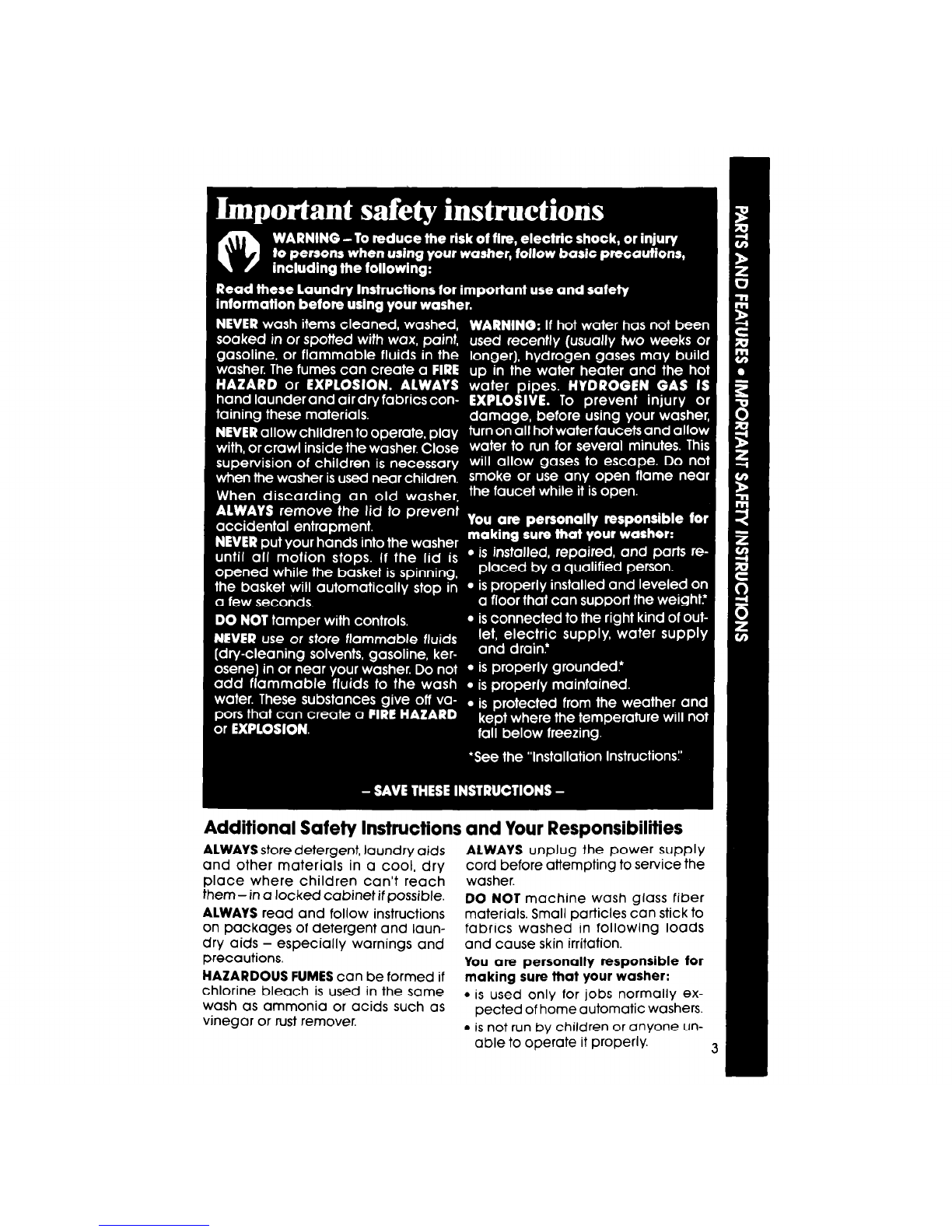

Additional Safety Instructions and Your Responsibilities

ALWAYS store detergent, laundry aids ALWAYS unplug the power supply

and other materials in a cool, dry cord before attempting to service the

place where children can’t reach washer.

them - in a locked cabinet if possible. DO NOT machine wash glass fiber

ALWAYS read and follow instructions materials. Small particles can stick to

on packages of detergent and laun- fabrics washed in following loads

dry aids - especially warnings and and cause skin irritation.

precautions. You are personally responsible for

HAZARDOUS FUMES can be formed if making sure that your washer:

chlorine bleach is used in the same

is used only for jobs normally ex-

wash as ammonia or acids such as

vinegar or rust remover. petted of home automatic washers.

a is not run by children or anyone un-

able to operate it prOperlY. 3

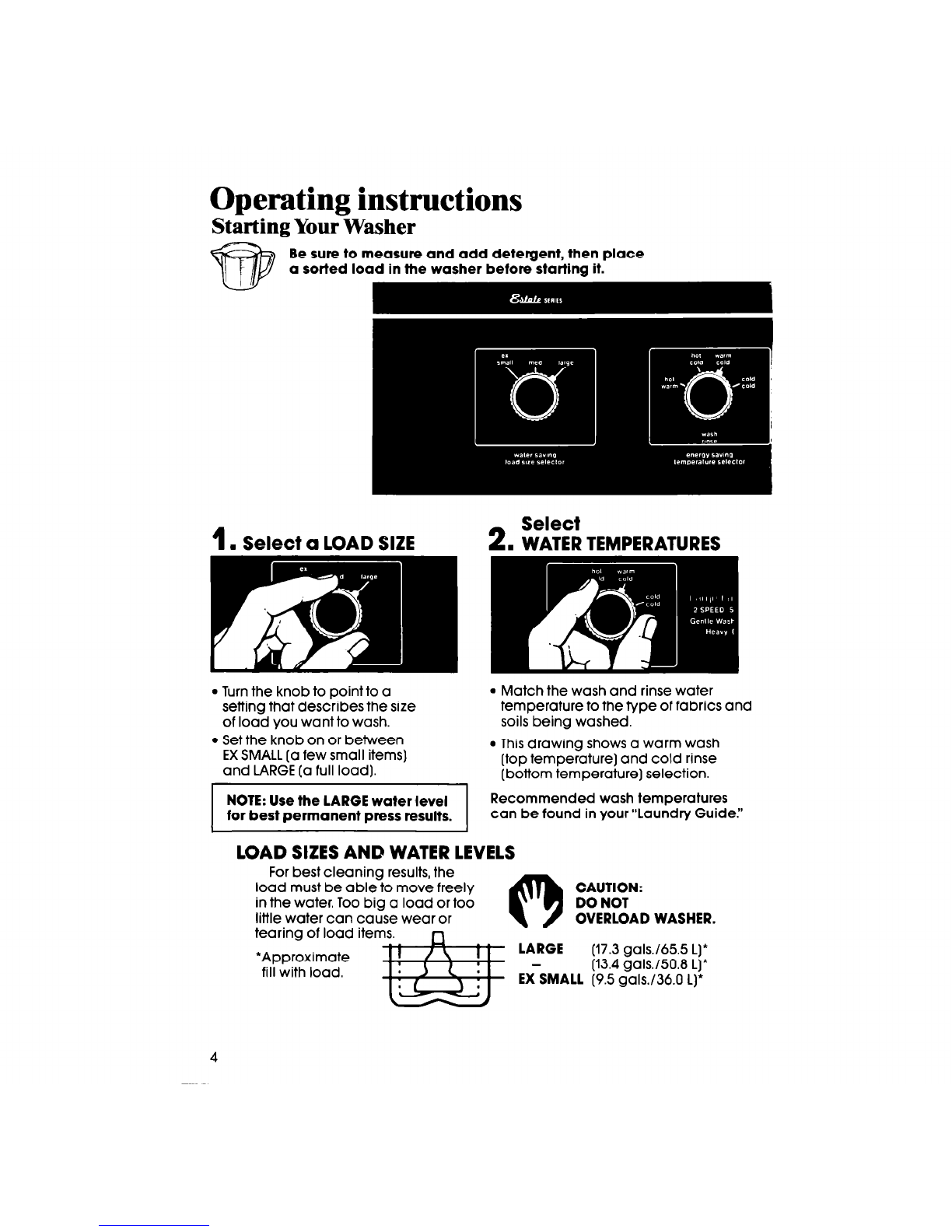

Operating instructions

Starting Your Washer

Be sure to measure and add detergent, then place

a sorted load in the washer before starting it.

1 2

Select

. Select a LOAD SIZE . WATER TEMPERATURES

Turn the knob to point to a

Match the wash and rinse water

setting that describes the size temperature to the type of fabrics and

of load you want to wash. soils being washed.

Set the knob on or between

EX SMALL [a few small items)

This drawing shows a warm wash

and LARGE (a full load). (top temperature] and cold rinse

(bottom temperature] selection.

NOTE: Use the LARGE water ievel Recommended wash temperatures

for best permanent press results. can be found in your “Laundry Guide:’

LOAD SIZES AND WATER LEVELS

For best cleaning results, the

load must be able to move freely

in the water. Too big a load or too

little water can cause wear or

tearing of load items.

‘Approximate

fill with load.

CAUTION:

DO NOT

OVERLOAD WASHER.

LARGE (17.3 gals./655 L)*

(13.4 gals./50.8 L)*

EiSMALL (9.5 galsJ36.0 L)’

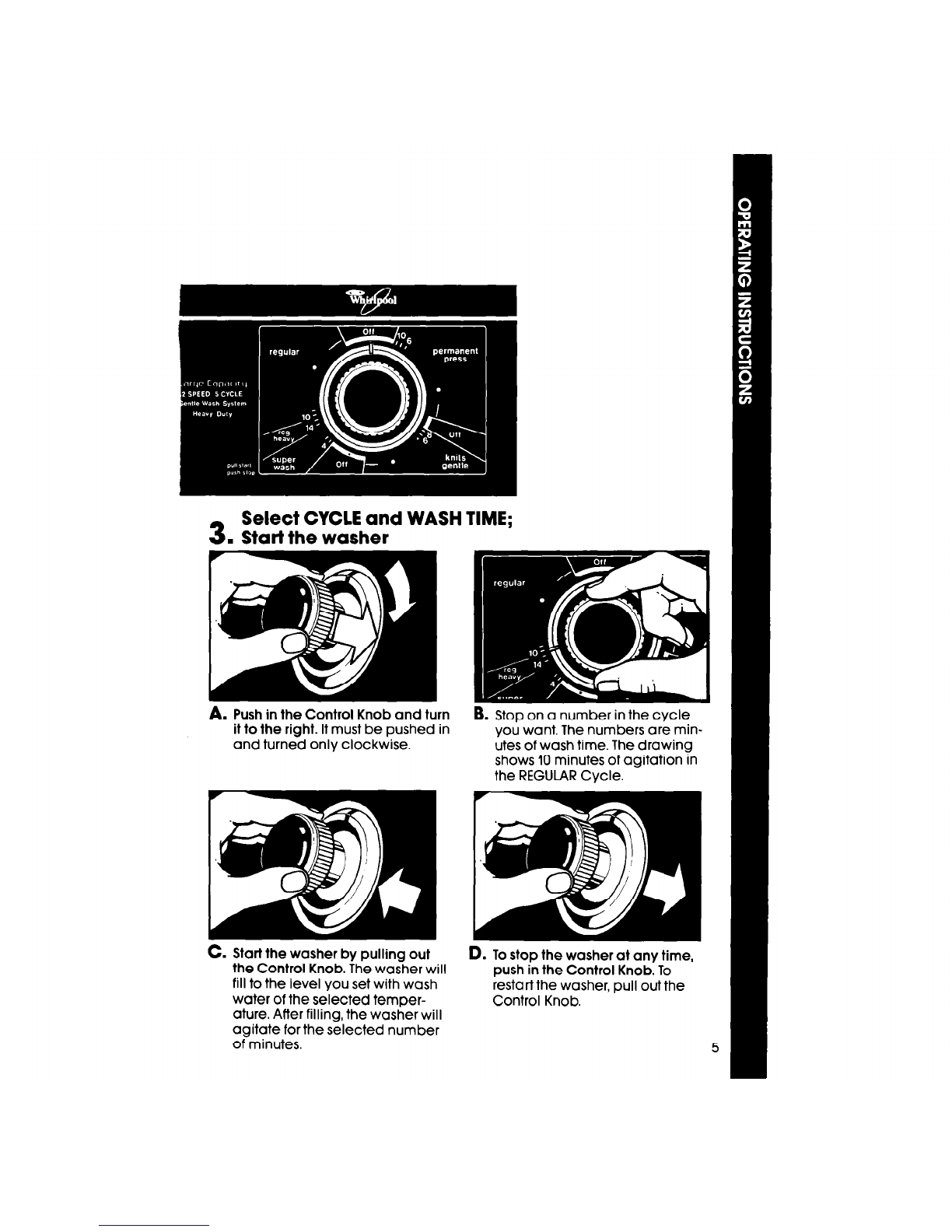

Select CYCLE and WASH TIME;

. Start the washer

Push in the Control Knob and turn

it to the right. It must be pushed in

and turned only clockwise.

Stop on a number in the cycle

you want. The numbers are min-

utes of wash time. The drawing

shows 10 minutes of agitation in

the REGULAR Cycle.

Start the washer by pulling out

the Control Knob. The washer will

fill to the level you set with wash

water of the selected temper-

ature. After filling, the washer will

agitate for the selected number

of minutes.

To stop the washer at any time,

push in the Control Knob. To

restart the washer, pull out the

Control Knob.

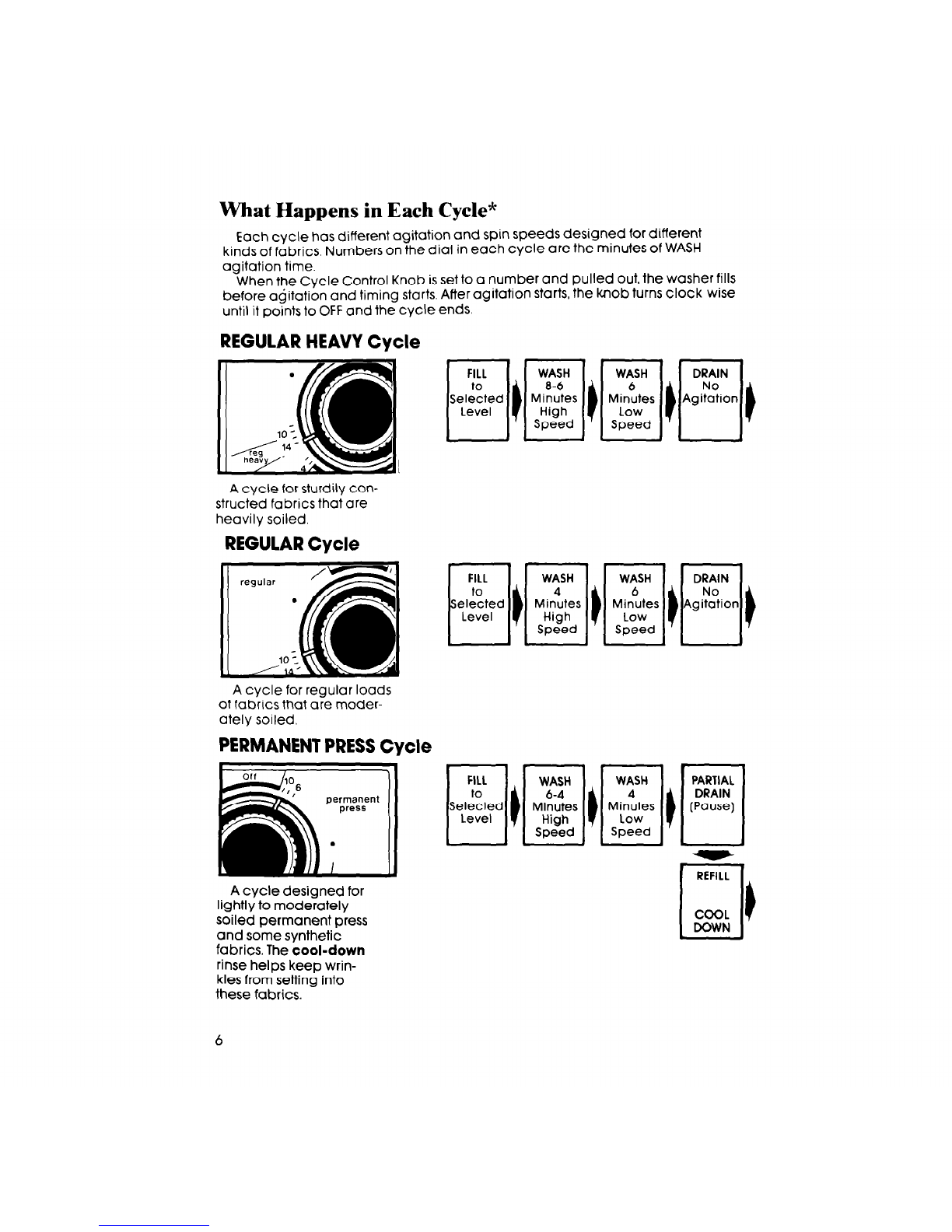

What Happens in Each Cycle*

Each cycle has different agitation and spin speeds designed for different

kinds of fabrics, Numbers on the dial in each cycle are the minutes of WASH

agitation time.

When the Cycle Control Knob is set to a number and pulled out, the washer fills

before agitation and timing starts. After agitation starts, the knob turns clock wise

until it points to OFF and the cycle ends.

REGULAR HEAVY Cycle

A cycle for sturdily con-

structed fabrics that are

heavily soiled.

REGULAR Cycle

A cycle for regular loads

of fabrics that are moder-

ately soiled.

PERMANENT PRESS Cycle

FILL

Selected

Level I

A cycle designed tor

lightly to moderately

soiled permanent press

and some synthetic

fabrics. The cool-down

rinse helps keep wrin-

kles from setting into

these fabrics.

REFILL

COOL

DOWN

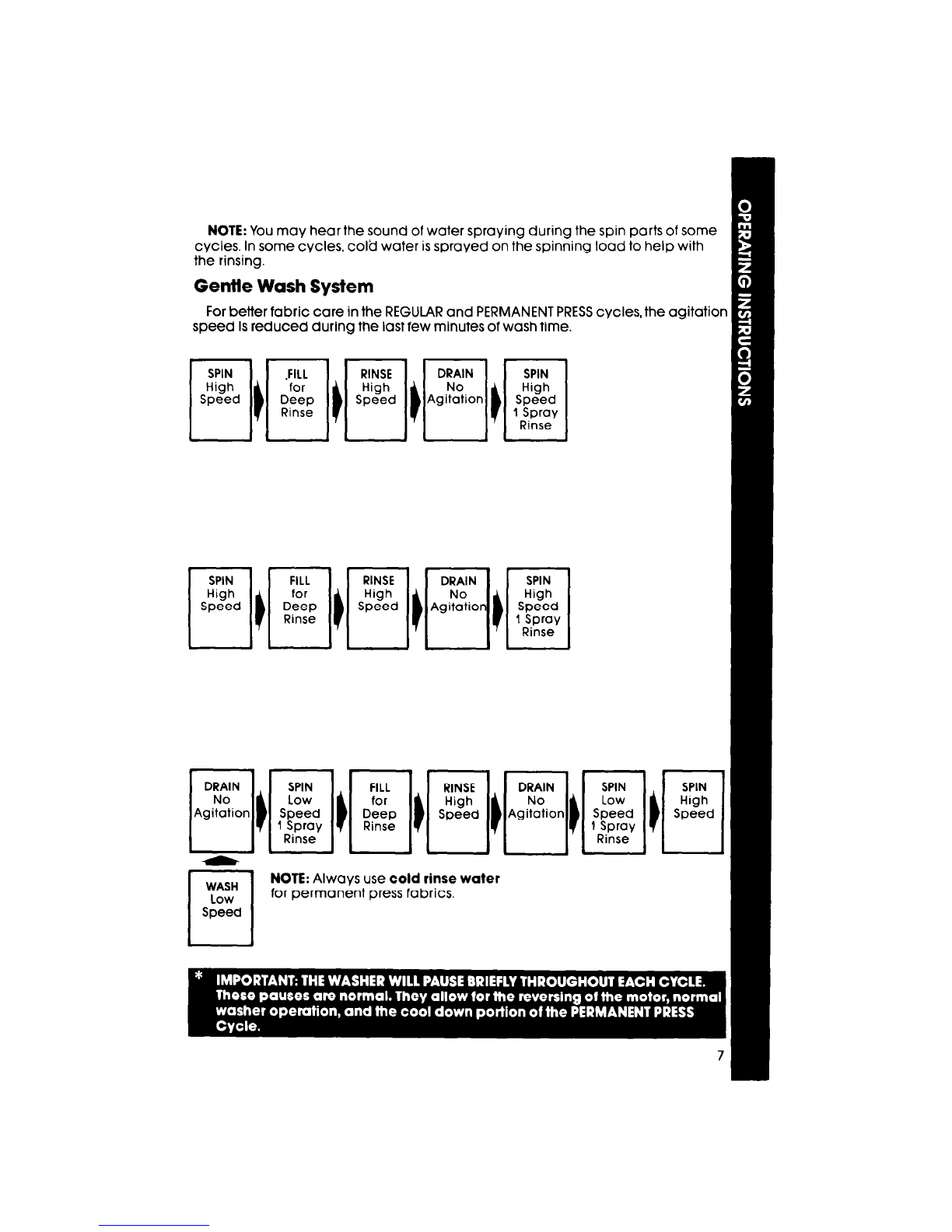

NOTE: You may hear the sound of water spraying during the spin parts of some

cycles. In some cycles, colb water is sprayed on the spinning load to help with

the rinsing.

Gentle Wash System

For better fabric care in the REGULAR and PERMANENT PRESScyc

speed is reduced during the last few minutes of wash time.

E-l

NOTE: Always use cold rinse water

for permanent press fabrics. I

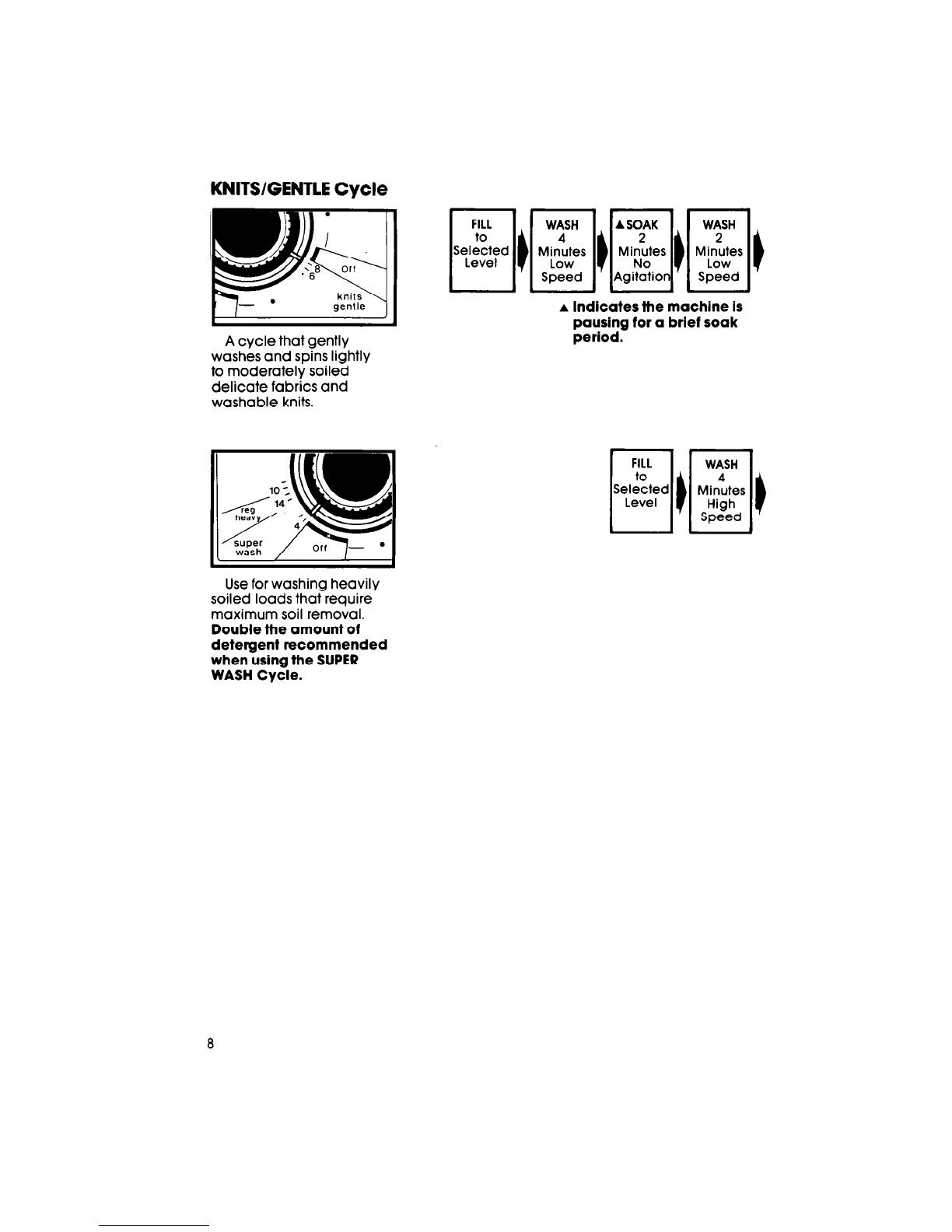

KNITS/GENTLE Cycle

A cycle that gently

washes and spins lightly

to moderately soiled

delicate fabrics and

washable knits.

A lndlcates the machine is

pausing for a brief soak

period.

Use for washing heavily

soiled loads that require

maximum soil removal.

Double the amount of

detergent recommended

when using the SUPER

WASH Cycle.

A SOAK

Minutes

dgitatio I

WASH

Minutes

Low

Speed

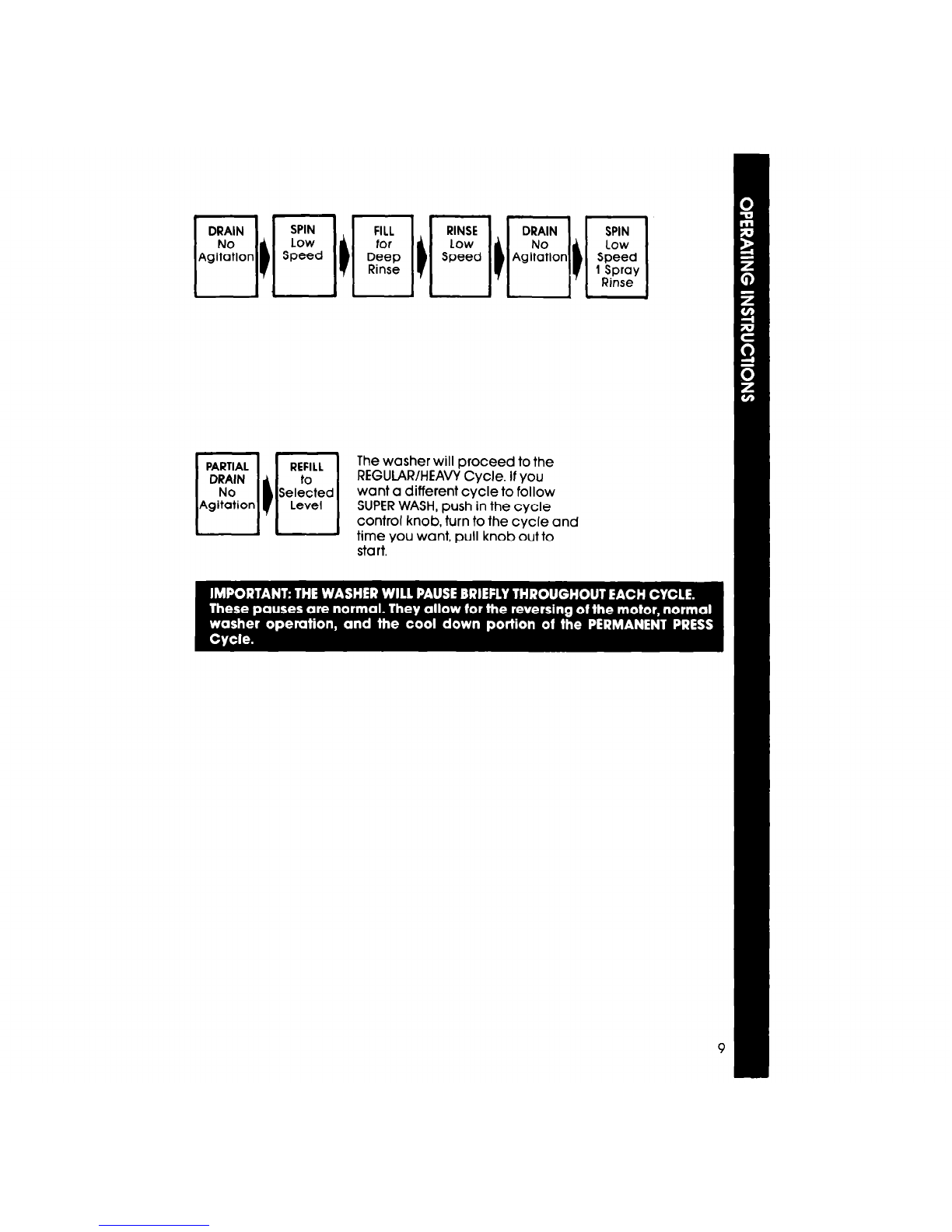

The washer will proceed to the

REGULAR/HEAVY Cycle. If you

want a different cycle to follow

SUPERWASH, push in the cycle

control knob, turn to the cycle and

time you want, pull knob out to

start.

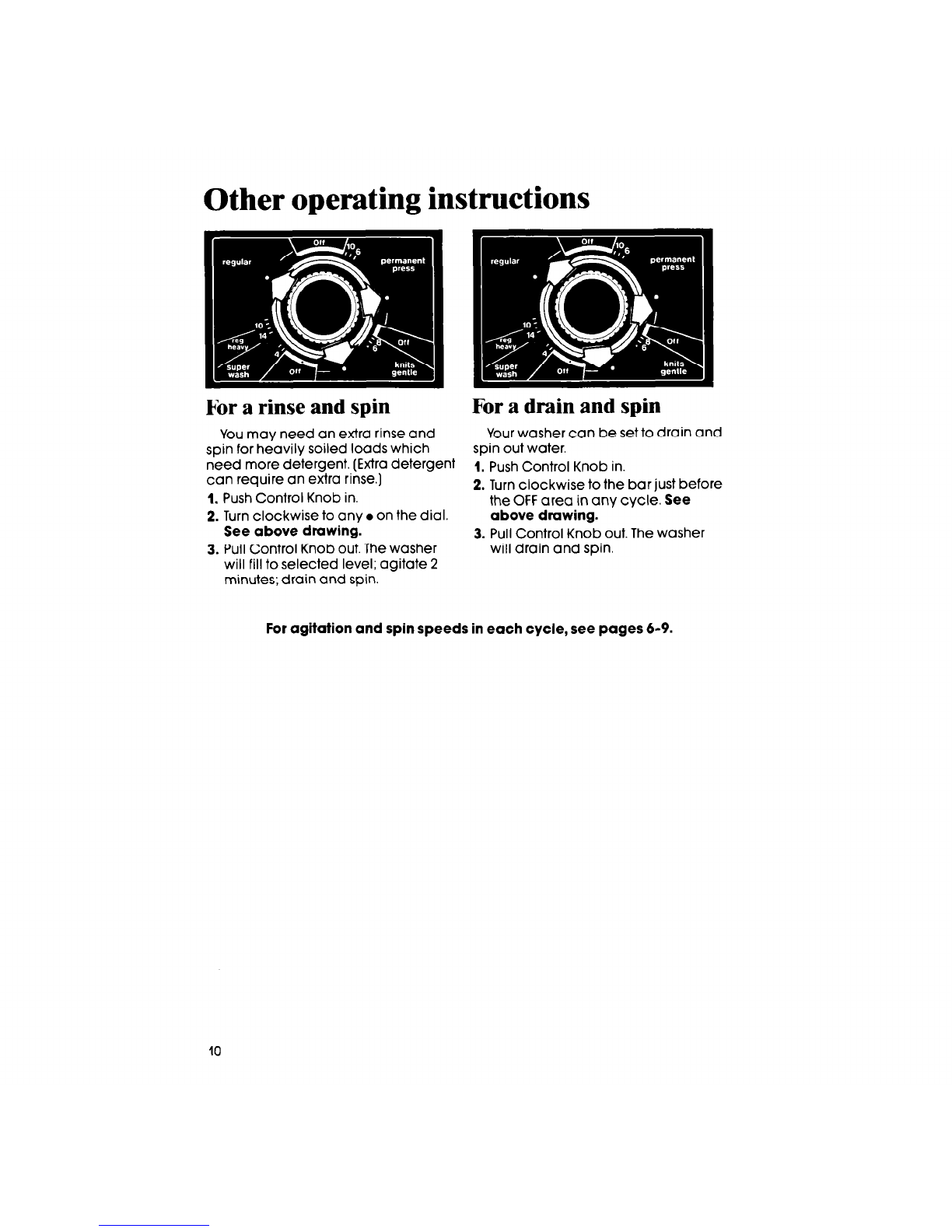

Other operating instructions

For a rinse and spin For a drain and spin

You may need an extra rinse and

spin for heavily soiled loads which

need more detergent. (Extra detergent

can require an extra rinse.]

1. Push Control Knob in.

2. Turn clockwise to any

on the dial.

See above drawing.

3. Pull Control Knob out. The washer

will fill to selected level; agitate 2

minutes; drain and spin.

Your washer can be set to drain and

spin out water.

1. Push Control Knob in.

2. Turn clockwise to the bar just before

the OFF area in any cycle. See

above drawing.

3. Pull Control Knob out. The washer

will drain and spin.

For agitation and spin speeds in each cycle, see pages 6-9.
