Parts and features

LAI JNDRY

. .--_ TEMPERATURE SELECTOR

SE!FR Ty,CEiL MAGIC CLEAN@

LINT FILTER

(not shown)

/A / (not shown)

an-iv I

AGITATOR

MODEL AND SERIAL

NUMBER PLATE

LIQUID BLEACH

DISPENSER

- BASKET

- TUB

Remove the Consumer

Buy Guide label. It will be

easier to remove before

the washer is used.

You should wipe out the

basket with a damp cloth

before using to remove

dust from storing or

shipping.

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this information ready: Model Number

1. Complete Model and Serial Numbers

(from plate under the lid near the Serial Number

hinge).

2. Purchase date from sales slip. Purchase Date

Copy this information in these spaces.

Keep this book in the Laundry Information

Center with your “Laundry Guide:’ sales Service Company/

slip and warranty Phone Number

Please complete and mail the Owner Registration Card furnished with

this product.

Your responsibilities

Read this “Use and Care Guide”

and your “Laundry Guide” care-

fully for important use and safety

information.

You are personally responsible

for making sure that your

washer...

is installed by a qualifiedinstaller.

is properly installed and

leveled on a floor that can

support the weight.*

is connected to the right kind

of outlet, electric supply, water

supply and drain:

is properly grounded.*

is used only for jobs normally

expected of home automatic

washers.

is properly maintained.

is protected from the weather

and kept where the tempera-

ture will not fall below freezing.

is not run by children or anyone

unable to operate it properly.

*See the “Installation Instructions”

for complete information.

Contents

Page

PARTS AND FEATURES . 2

YOUR RESPONSIBILITIES 3

SAFETY FIRST : 3

STARTING YOUR WASHER, 4

WHAT HAPPENS IN EACH

CYCLE . 6

OTHER OPERATING

INSTRUCTIONS , 10

For a Rinse and Spin 10

For a Drain and Spin 10

For a Pre-Wash 10

Liquid Bleach Dispenser 11

MAGIC CLEAN@ Lint Filter 11

CARING K)R YOUR WASHER 12

Winterizing 13

IF YOU NEED SERVICE OR

ASSISTANCE 14

I. Before Calling for

Assistance 14

2. If You Need Assistance 15

3. If You Need Service 15

4. If You Have a Problem 15

01966 Whirlpool Corporation

Before starting your washer:

1. Measure and add detergent

2. Place sorted load in washer.

3. Start washer.

Select a

1. LOAD SIZE Select WATER

TEMPERATURES

Turn the knob to point at a setting

Match the wash water temperature

that describes the size of load you to the type of fabrics and soils being

want to wash. washed.

Set the knob anywhere on or

between EX SMALL (a few items]

and EX LARGE (a full load].

All rinses are coldCold rinses save

energy and help prevent wrinkles

from setting into fabrics.

NOTE: Use the EX LARGE water

level for best permanent press

results.

i.h4CWliL C’;--tw*,r(*gJ.*.l.%a/~ i.w -- 4EU’.I -,b%J*il~:-n.w,, ,/ a_- _. ,- 1.d+.fi’L

;

+--we?. *@2see-r-a%=ll)iY-~-~ i ..cw ,11 >

LOAD SIZES AND WATER LEVELS

3 For best cleaning results, the

? load must be able to move freely CAUTION :

r in the water. Too big a load or too DO NOT

little water can cause wear or OVERLOAD WASHER.

tearing of load items.

* ‘Approximate

i fill with load.

EX LARGE (21. 7 gals./B2.1L)*

(18.3 gals./69.3L)*

(15.0 gals./56.8L)* 1

EX SMALL (11.9 gals./45OL)*

3. Start the washer

Push in the Control Knob and

turn it to the right. It must be

pushed in and turned only

clockwise.

Stop on a number in the cycle

you want. The numbers are min-

utes of wash time. The drawing

shows10 minutes of agitation in

the REGULAR Cycle.

C. Start the washer by pulling out

the Control Knob. The washer

will fill to the level you set with

wash water of the selected

temperature. After filling, the

washer will agitate for the

selected number of minutes.

To stop the washer at any time

push in the Control Knob. To

restart the washer, pull out the

Control Knob.

What happens in each cycle*

Each cycle has different agitation and spin speeds designed for different

kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH

agitation time.

When the Cycle Control Knob is set to a number and pulled out, the washer

fills before agitation and timing starts. After agitation starts, the knob turns clock-

wise until it points to OFF and the cycle ends.

HEAVY Cycle

A cycle for sturdily con-

strutted fabrics that are

heavily soiled.

REGULAR Cycle

A cycle for sturdily con-

structed fabrics that ore

moderately to lightly

soiled.

PERMANENT PRESS NORMAL Cycle

A cycle designed for per-

manent press and some

synthetic fabrics that are

moderately soiled. The

cool down rinse helps

keep wrinkles from setting

into these items.

NOTE: You may hear the sound of water spraying during the spin ports of

some cycles. In some cycles, cold water is sprayed on the spinning load to help

with the rinsing

DRAIN

Agitation

DRAIN

Agitation

1-1-1

SPIN FILL RINSE

Speed

High ) l$ip ) S”,i%d 1 (Aigzn ) $!&

-uuuu

DRAIN SPIN

IOC

) Agik%on 1 ,Sig

SPIN FILL I I RINSE I I DRAIN I 1 SPIN SPIN

I WASH 1

PERMANENT PRESS LIGHT Cycle

A cycle designed for lightly

soiled permanent press

and synthetic items. The

cool down rinse helps

keep wrinkles from setting

into these items.

KNITS/GENTLE Cycle

A cycle that gently washes

and spins delicate items

and washable knits. A Indi-

cates the machine is

pausing for a brief soak

period.

PRE-WASH Cycle

COOL

I 0

DOWN

Use for pre-washing heavily

soiled or stained loads that

need extra pretreatment

before the wash cycle. Use

recommended amount

of detergent or pre-soa k

additive.

DRAIN

Agltatlon

-----

SPIN

Speed

Low ) ijig ) SFd ) AIs!In ) ;&

1Spray

Rinse

IUUUL

NOTE: Always use cold rinse water for

permanent press fabrics

DRAIN

Agitation

DRAIN

Agitation

WASHER

STOPS

Select

Wash

Cycle

Special care is needed when soaking or pre-washing laundry.

See your “laundry Guide” tar proper use of this cycle.

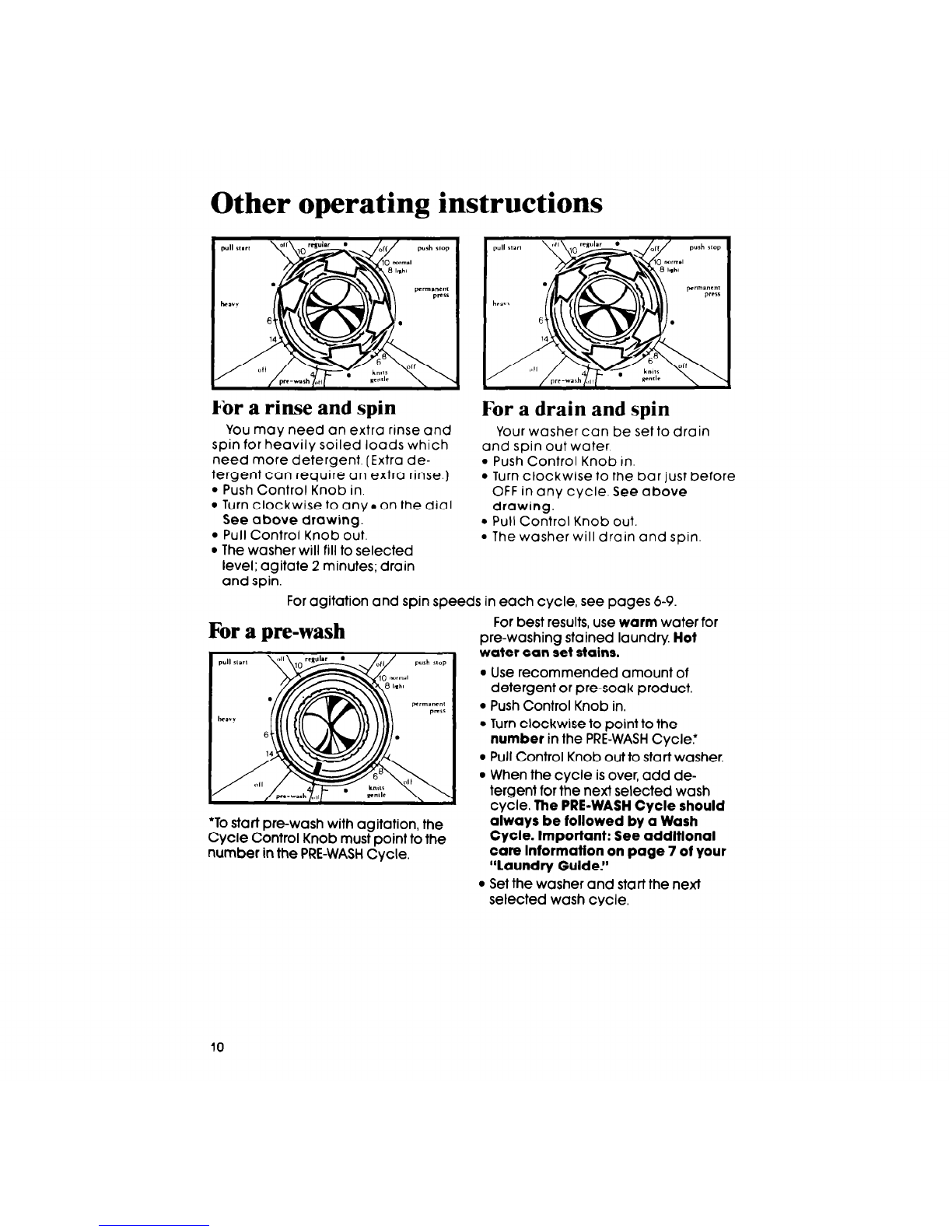

Other operating instructions

For a rinse and spin For a drain and spin

You may need an extra rinse and

spin for heavily soiled loads which

need more detergent. (Extra de-

tergent can require an extra rinse.)

Push Control Knob in.

Turn clockwise to any. on the dial

See above drawing.

Pull Control Knob out.

The washer will fill to selected

level; agitate 2 minutes; drain

and spin.

Your washer can be set to drain

and spin out water

Push Control Knob in.

Turn clockwise to the bar just before

OFF in any cycle. See above

drawing.

Pull Control Knob out.

The washer will drain and spin.

For agitation and spin speeds in each cycle, see pages 6-9.

For

a pre-wash For best results, use warm water for

pre-washing stained laundry. Hot

water can get stains.

Use recommended amount of

detergent or pre-soak product.

Push Control Knob in.

*TO.Staft pre-wash with agitation, the

Cycle Control Knob must point to the

number in the PRE-WASH Cycle.

. Turn clockwise to point to the

number in the PRE-WASH Cycle?

Pull Control Knob out to start washer.

When the cycle is over, add de-

tergent for the next selected wash

cycle. The PRE-WASH Cycle should

always be followed by a Wash

Cycle. Important: See addltional

care Information on page 7 of your

“Laundry Guide!’

Set the washer and start the next

selected wash cycle.
