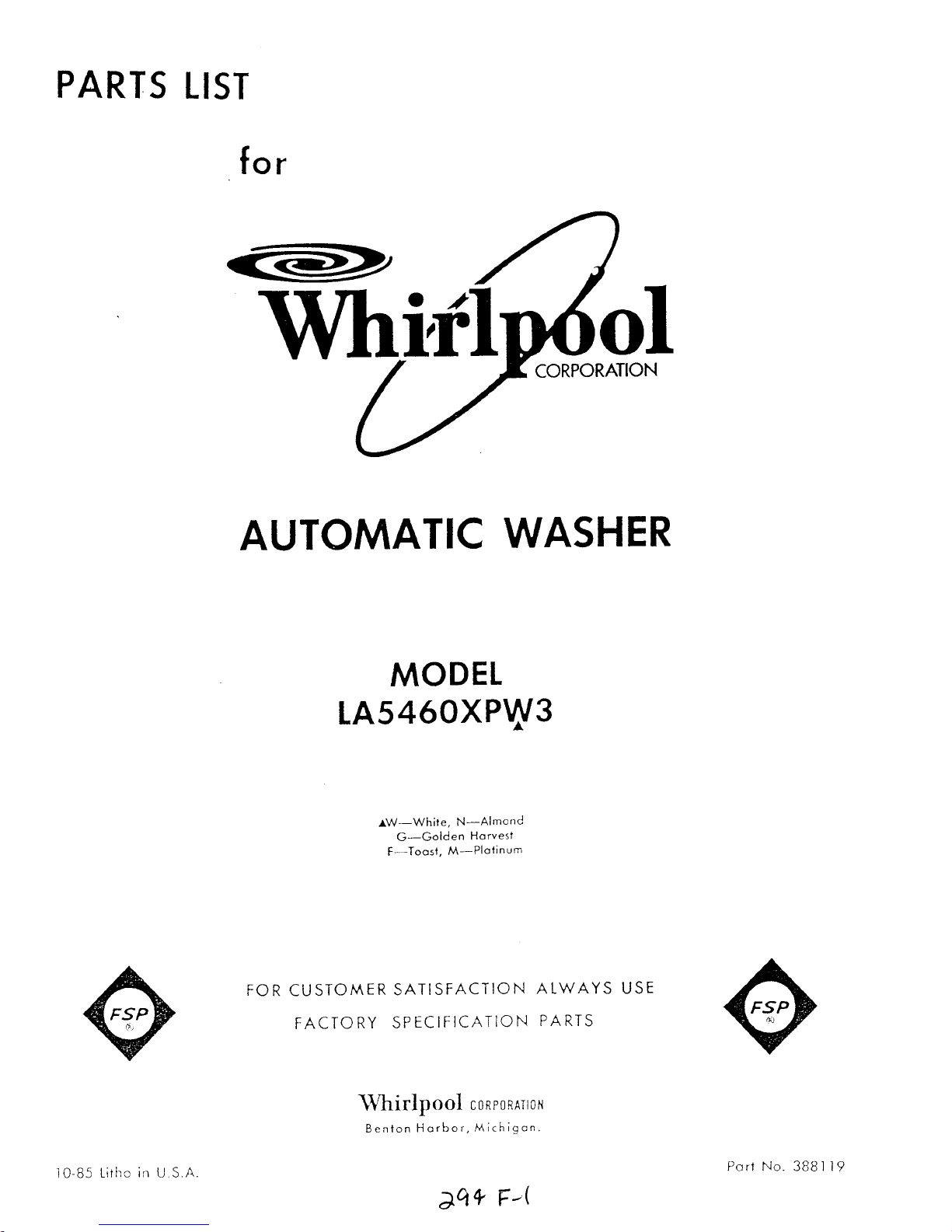

Whirlpool LA5460XPW3 Manuel utilisateur

1 358473 Nut, Push-In (2)

2 Top

63989 White

63993 Golden Harvest

63990 Almond

63991 Toast

63992 Platinum

3 62750 Spacer, Cabinet To Top (4)

4 687128 Screw, 10-16 x 1/2

5 Cabinet

63128 White

63132 Golden Harvest

63129 Almond

386617 Toast

386618 Platinum

6 62780 Clip, Top & Cabinet & Rear Panel (2)

8 354764 Screw & Washer, Lid Switch (2)

9 63833 Harness, Lid Switch

10 359231 Shield, Lid Switch

11 359230 Switch, Lid

12 357347 Actuator, Lid Switch

13 18724 Screw, Lid Hinge Mounting (4)

14 21097 Pad, Lid Hinge (2)

15 54584 Hinge, Lid (L.H.)

16 54583 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid Hinge (2)

19 Lid

387074 White

387078 Golden Harvest

387075 Almond

387077 Toast

387076 Platinum

20 358684 Strike, Lid Switch

22 93770 Bumper, Lid (2)

23 Handle, Lid

379884 White

379888 Golden Harvest

379885 Almond

379890 Toast

379891 Platinum

24 Spring & Button, Lid

53749 (L.H.)

53748 (R.H.)

25 54690 Plug, Button

26 358472 Stop, Push-In Top

27 62888 Plug, Terminal (3-Way)

28 384435 Screw, 10-16 x 1/2 (4)

30 354239 Rivet, Serial Nameplate

31 90016 Clip, Harness

LITERATURE AND OPTIONAL PARTS

LITERATURE PARTS

LIT385238 Guide, Laundry

LIT383931 Sheet, Installation Instructions

LIT387255 Guide, Use and Care

LIT386210 Label, Energy Guide

LIT388119 List, Repair Parts

OPTIONAL PARTS NOT INCLUDED

PAINT,TOUCH UP (1/2 oz.)

72017 White

72107 Almond

72110 Golden Harvest

72112 Toast

72113 Platinum

PAINT PRESSURIZED SPRAY (13 oz.)

350941 Leveler (Thinner)

350938 Primer, Gray

350930 White

350956 Almond

261890 Golden Harvest

285365 Toast

285366 Platinum

PAINT,BULK (1 qt.)

799344 White

978883 Almond (Uncut)

261891 Golden Harvest

285367 Toast

285368 Platinum

OIL 350572 Oil, Gearcase (16 Oz.)

LUBRICANT

285208 Lubricant (Use Only in Brake Shoe Assembly On Roller and Pin)

SEALER285195 Sealer, Gasket (.20 Fl. Oz.) (6 ml)

DO-IT-YOURSELF-REPAIR-MANUALS

LITERATURE PARTS

LIT677818 Dryer

LIT677821 Compactor

LIT677967 Dishwasher

LIT677971 Ice Maker (In Refrigerator)

1 16123 Washer, Water Inlet Hose (4) (1-1/16 x 5/8)

2 63162 Pin, Cabinet Guide (2)

3 81339 Hose, Water Inlet (2)

4 687128 Screw, 10-16 x 1/2

5 62748 Hinge, Console (2)

6 63730 Panel, Rear

7 62747 Pad, Rear Panel

8 387325 Hose, Corrugated Plastic Drain (5-1/2Ft.)

388418 Hose, Corrugated Plastic Drain (10 Ft.) (Not Included)

9 64100 Timer, Control (60 Hz.)

10 63493 Motor, Timer

11 90767 Screw, 8A x 3/8

12 63835 Sw\itch, Wa\ter Level

13 63688 Bracket, Control

14 62734 Cord, Power

15 62733 Strain Relief, Power Cord

16 63789 Cap, End (L.H.)

17 96160 Screen, Filter (2)

18 358992 Valve, Water Mixing

19 90864 Screw, 10-24 x 3/8 (2)

20 359262 Screw, Ground (10-16 x 1/2)

21 272846 Clamp, Hose

22 62662 Hose, Vacuum Break

23 371503 Clamp, Hose

24 63029 Break, Vacuum

25 63290 Support, Rear Panel

26 63206 Connector, Drain Hose

27 272856 Clamp, Hose

28 63172 Hose, Pump To Drain Connector

30 371502 Clamp, Hose

31 272858 Clamp, Hose

32 62731 Hose, Pump To Tub

33 357030 Clamp, Capacitor

34 357021 Capacitor, Motor Start (MFD 189, 110 Volts)

35 660746 Switch, Water Temperature

358934 (Alt.)

358935 (Alt.)

36 96435 Screw, Timer Mounting (10-32 x 1) (2)

38 688805 Clip, Control Knob

39 64128 Panel, Console

40 689559 Nut, Push-In (2)

42 355326 Screw, 13-16 x 5/8 (4)

43 386630 Knob, Water Level

44 386570 Knob, Timer

45 64138 Dial, Timer

47 386630 Knob, Water Temperature

48 356138 Clamp, Hose

49 64211 Screw, 8-18 (2) (Panel to Top)

50 62863 Screw, 10-16 x 3/8

51 63795 Cap, End (R.H.)

52 343641 Screw, 10-16 x 1/2

53 63020 Rack, Literature

54 364089 Wire, Ground

55 9416643 Screw, 10-16 x 1/2 (2)

56 357247 Retainer, Wire

57 371504 Clamp, Hose

58 384496 Coupling, Hose

1 63911 Cap, Agitator

2 358237 Screw & Washer (5-16-24 x 1)

3 63235 Agitator

4 63223 Tub Ring & Gasket

5 63222 Gasket, Tub Ring

6 285350 Clothes Guard Repair Kit

7 63552 Clip, Clothes Guard (6)

8 486754 Screw, 6-32 x 3/8 (6)

9 680829 Washer, Nylon (6)

10 285348 Locknut (6)

11 21366 Nut, Spanner

12 63780 Basket & Clothes Guard (Includes Illus. 6)

13 62941 Filter, Plate

14 62942 Lock, Filter

15 357782 Block, Basket Drive

16 62665 Gasket, Centerpost

17 63125 Tub

19 353406 Hose, Pressure Switch

1 384251 Miscellaneous Parts Bag

2 16123 Washer, Inlet Hose (1-1/16 x 5/8) (4)

3 22965 Strap, Ground

4 62739 Nut, Lock (2) (3/8-16)

5 386047 Foot, Front (2)

6 132848 Screw, Ground (10-24 x 1)

7 356138 Clamp, Hose

8 386566 Cable Tie
