Whirlpool LAS00XP Manuel utilisateur

AUTOMATIC

WASHER

Design 2000

Eli;, Capacity

LASOOXP

ave Ovens. Trash Compactors, Room Air Condllioners. Dehumldlflers. Automatic Washers, Clothes Dryers.

FreeZerS.

Relrlgerator-Freezer!

Parts and features

LOAD IN LAUNDRY TEMPERATURE

SELECTOR

SIZE / CENTER

SELECTOR CYCLE

CONTROL

KNOB

5--~ I

MODEL AND SERI

NIIMRFP PI

ATF

(not shown)

AGITATOR

I I BASKET

LINT FILTER

(not shown)

---FdpT TUB

Remove the Consumer

Buy Guide label. It will be

easier to remove before

the washer is used.

You should wipe out the

basket with a damp cloth

before using to remove

d ;hu;W&;om storing or

Copy your Model and Serial Numbers here

When

youneed service or call with a

question, have this information ready:

Model Number

I. Complete Model and Serial Num-

bers (from plate under the IId near the

hinge). Serio, Number

2. Purchase date from sales slip

Copy this information in these spaces. Purchase Date

Keep this book in the Laundry Informa-

tion

Center with your”Laundry Guide,”

sales slip and warranty.

Service Company/

Phone Number

There is no warranty registration to return. Proof-of-purchase is all

that is required for in-warranty service.

Your

l-e

sponsibilitie

Read thus “Use and Care Guide”

and Your “Laundry Guide” care-

fully for important use and safety

information.

You are personally responsible

for m’aking sure that your

washer...

is installed by a qualifiedinstaller.

is properly installed and

leveled on a floor that can

support the weight.*

is connected to the right kind

of outlet, electric supply, water

supply and drain.’

is properly grounded.’

is used only for jobs normally

expected of home automatic

washers.

is properly maintained.

is protected from the weather

and kept where the tempera-

ture will not fall below freezing.

is not run by children or anyone

unable to operate it properly.

*See the “Installation Instructions”

for complete information.

Contents

Paoe

PARTS AND FEATURES.

YOUR RESPONSIBILITIES

SAFETY FIRST

STARTING YOUR WASHER,. ,

WHAT HAPPENS IN EACH

CYCLE.

OTHER OPERATING

INSTRUCTIONS

For a Rinse and Spin

For a Drain and Spin

For a Soak

Cleaning the Lint Filter,,

CARING FOR YOUR WASHER

Winterizing

IF YOU NEED SERVICE OR

ASSISTANCE.

1. Before Calling for

Assistance

2. If You Need Assistance

3. If You Need Service

4. If You Have a Problem

-Y-

‘cl984 Whirlpool Corporation -SAVE THESE INSTRUCTIONS - 3

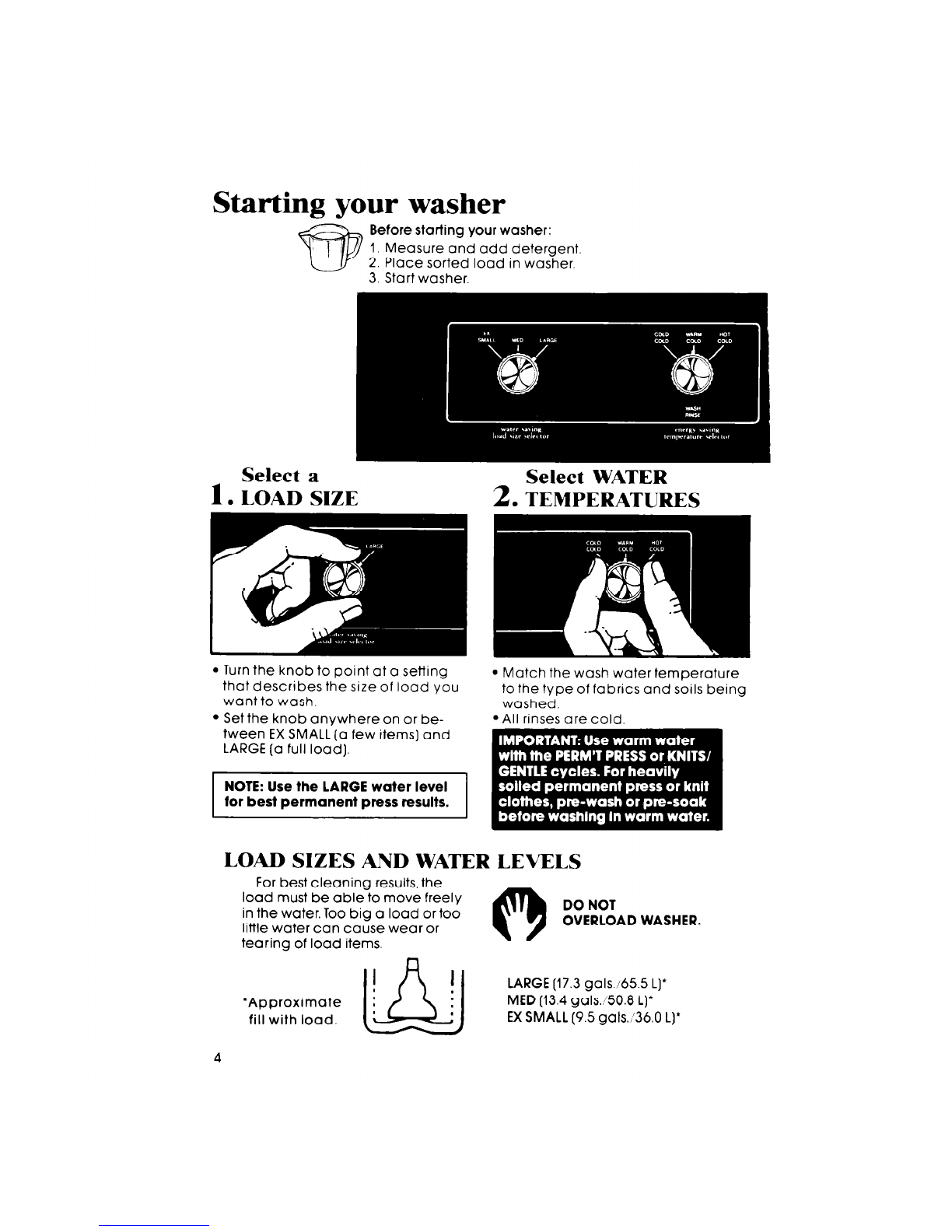

Starting your washer

Before starting your washer:

I. Measure and add detergent.

2. Place sorted load in washer.

3. Start washer.

Select a

1. LOAD SIZE Select WATER

TEMPERATURES

Turn the knob to point at a setting

that describes the size of load you

want to wash.

Set the knob anywhere on or be-

tween EX SMALL (a few items] and

LARGE (a full load].

NOTE: Use the LARGE water level

for best permanent press results.

Match the wash water temperature

to the type of fabrics and soils beingto the type of fabrics and soils being

washed.washed.

All

All rinses are cold.

LOAD SIZES AND WATER LEVELS

For best cleaning results, the

load must be able to move freely

in the water. Too big a load or too 0

DO NOT

little water can cause wear or OVERLOAD WASHER.

tearing of load items.

‘Approximate

fill with load.

LARGE (17.3 gals.165.5 L)’

MED (13.4 gals./50.8 L)’

EX SMALL (9.5 gals./36.0 L)’

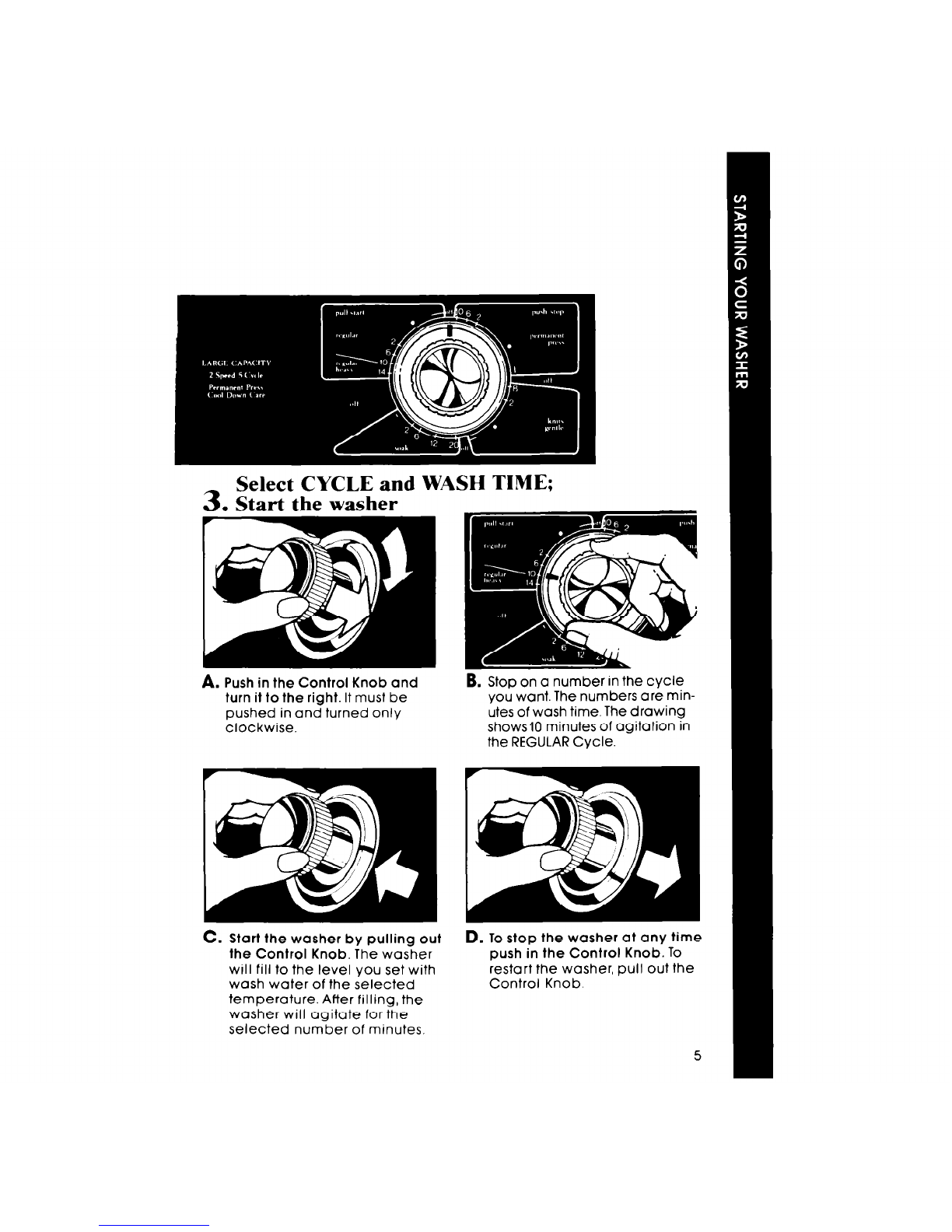

3. Start the washer

Push in the Control Knob and

turn it to the right. It must be

pushed in and turned only

clockwise.

Stop on a number in the cycle

you want. The numbers are min-

utes of wash time. The drawing

shows10 minutes of agitation in

the REGULAR Cvcle.

Start the washer by pulling out

the Control Knob. The washer

will fill to the level you set with

wash water of the selected

temperature. After filling, the

washer will agitate for the

selected number of minutes.

To stop the washer at any time

push in the Control Knob. To

restart the washer, pull out the

Control Knob.

What happens in each cycle*

Each cycle has different agitation and spin speeds designed for different

kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH

agitation time.

When the Cycle Control Knob is set to a number and pulled out, the washer

fills before agitation and timing starts. After agitation starts, the knob turns clock-

wise until it points to OFF and the cycle ends.

REGULAR HEAVY Cycle

REGULAR Cycle

A cycle for sturdily con-

structed fabrics that are

heavily soiled.

A cycle for regular loads of

fabrics that are moderately

soiled.

PERMANENT PRESS Cycle

A special cycle with the

necessary cool down rinse

which helps keep wrinkles

from setting into Permanent

Press and some synthetic

fabrics.

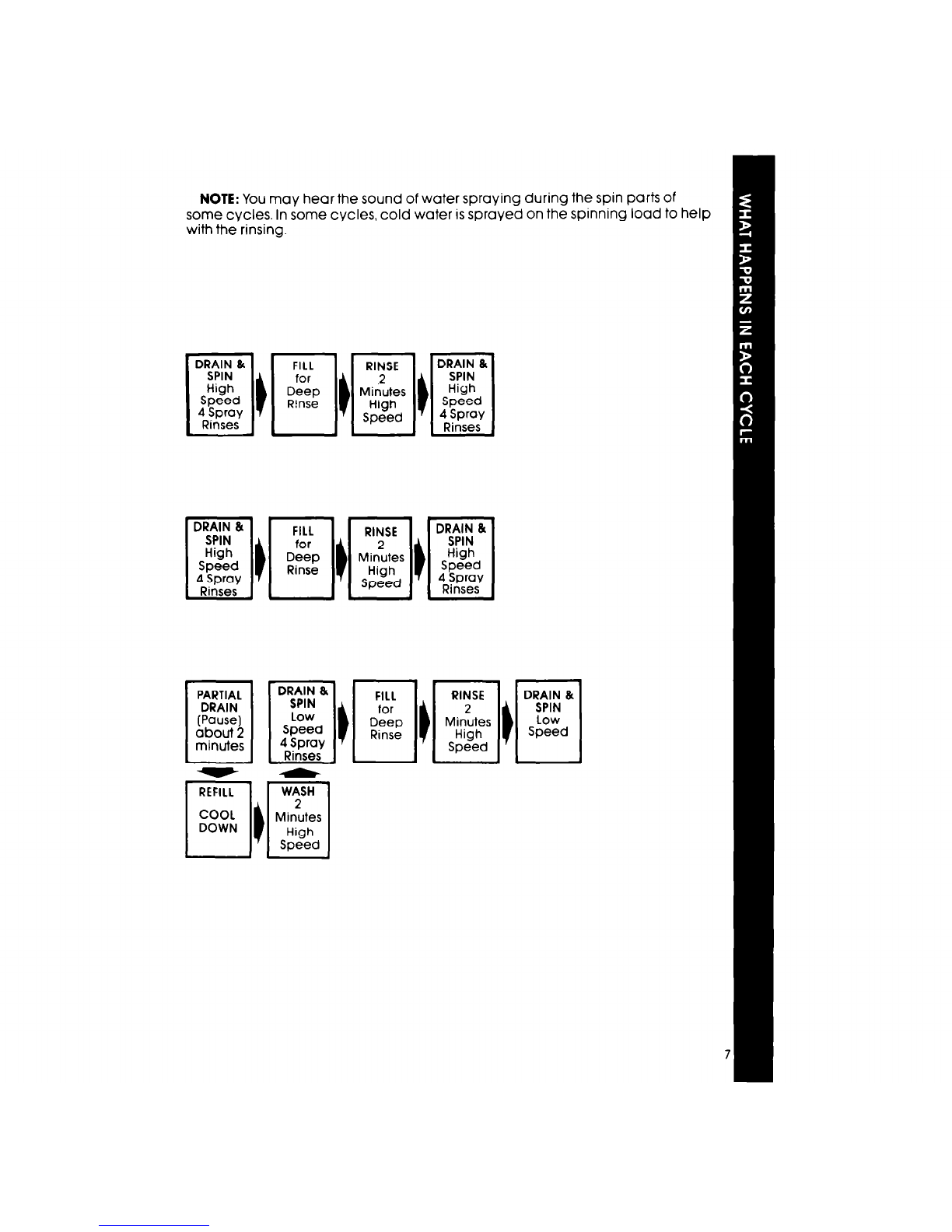

NOTE: You may hear the sound of water spraying during the spin parts of

some cycles. In some cycles, cold water is sprayed on the spinning load to help

with the rinsing.

KNITS/GENTLE Cycle

A cycle for lightly soiled

items that need a short

wash and spin time. Wash

nylon hose in a net laundry

bag.

Brief periods of agitation

and soak time help remove

heavy soils and certain

stains that need extra

pretreatment. Use recom-

mended amount of

detergent.

The SOAK Cycle

should always be fol-

lowed by a Wash Cycle.

Special care is needed when soaking or pre-washing laundry.

See your “Laundry Guide” for proper use of this cycle. I

Other operating instructions

For a rinse and spin

You may need an extra rinse and

spin for heavily soiled loads which

need more detergent. (Extra de-

tergent can require an extra rinse.)

Push Control Knob in.

Turn clockwise to any* on the dial.

See above drawing.

Pull Control Knob out.

The washer will fill to selected

level; agitate 2 minutes; drain

and spin.

For a drain and spin

Your washer can be set to drain

and spin out water.

Push Control Knob in.

Turn clockwise to the bar just before

OFF in any cycle. See above

drawing.

Pull Control Knob out.

The washer will drain and spin.

For agitation and spin speeds in each cycle, see pages 6 -9

For a soak l

Use recommended amount of

For best results, use warm water

for soaking stained laundry. Hot

water can set stains.

detergent or presoak product.

Push Control Knob in.

Turn clockwise to point at a number

in the SOAK Cycle?

Pull Control Knob out to start washer.

When the cycle is over, add de-

tergent for the next selected wash

cycle. The SOAK Cycle should

always be followed by a Wash

Cycle.

important: See additional care

information on page 7 of your

“Laundry Guide!’

‘TO start soak with agitation, the Cycle Control Knob

must point to a number in the SOAK Cycle.

Cleaning the lint filter

Clean filter after every load for best

filtering results. Note: The load type

will vary the amount of lint build-up.

To clean:

Lift off the agitator barrel.

Wash or wipe the filter clean in the

bottom of the agitator barrel. The

filter is not removable.

Replace the agitator barrel and

snap into place.
