Whirlpool TT14DKXBN11 Manuel utilisateur

UseAndCare

Table of Contents

(complete) ..................2

A Note to You ................2

Refrigerator Safety m.....

Parts and Features .......4

Before Using Your

Refrigerator .,...,............. 5

Using Your

Refrigerator ...................7

Caring for Your

Refrigerator .................15

Food Storage Guide ...19

Troubleshooting .........21

Requesting

Assistance

or Service ........,...........22

Warranty ......................24

1-800-253-I 301

Call us wlth questions or comments.

14’ NO-FROST TOP FREEZER REFRIGERATOR

PART NO. 2183012

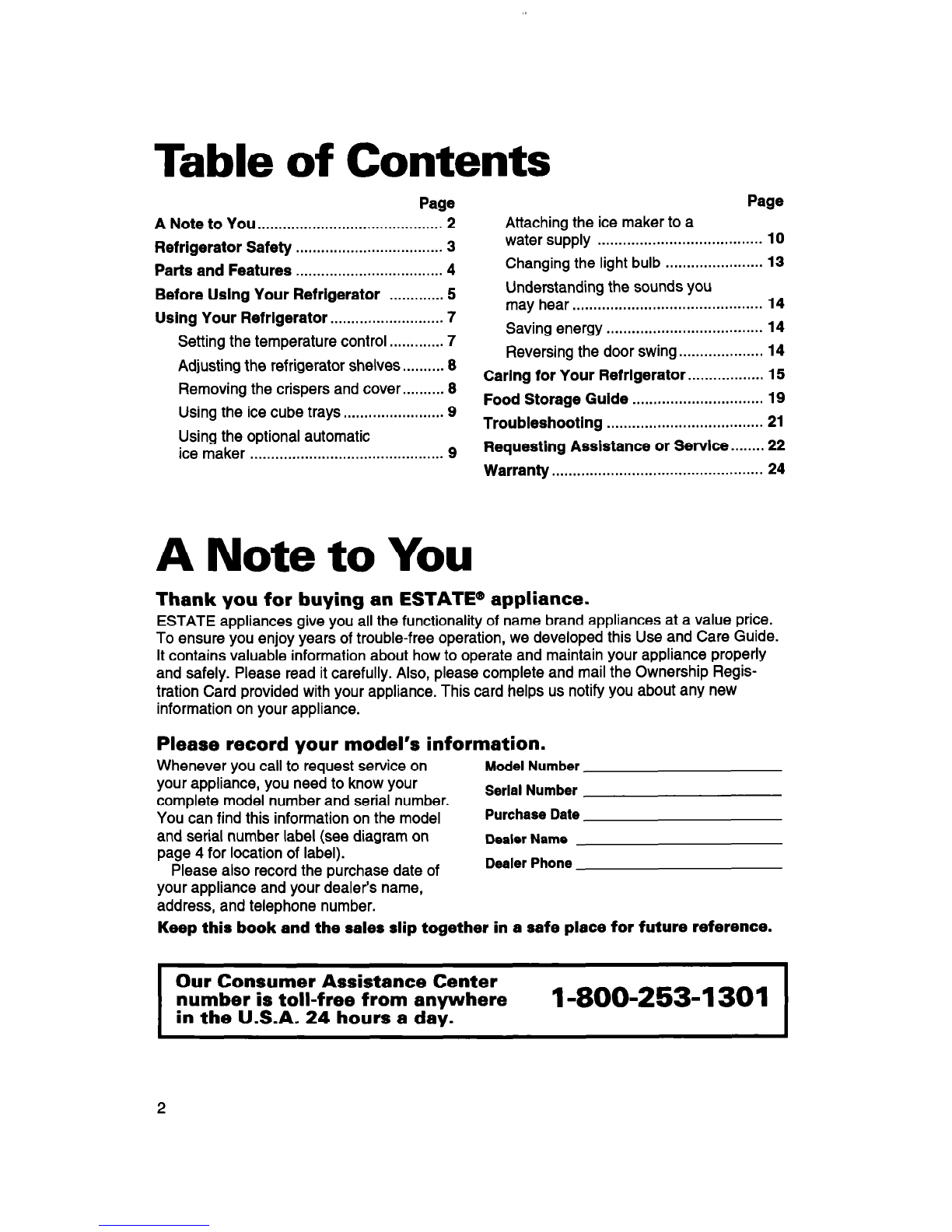

Table of Contents

Page

A Note to You.. .......................................... 2

Refrigerator Safety ................................... 3

Parts and Features ................................... 4

Before Uslng Your Refrigerator ............. 5

Using Your Refrigerator.. ......................... 7

Setting the temperature control.. ........... 7

Adjusting the refrigerator shelves.. ........ 8

Removing the crispers and cover.. ........ 8

Using the ice cube trays.. ...................... 9

Using the optional automatic

ice maker .............................................. 9

Page

Attaching the ice maker to a

water supply ....................................... 10

Changing the light bulb ....................... 13

Understanding the sounds you

may hear ............................................. 14

Saving energy ..................................... 14

Reversing the door swing.. .................. 14

Caring for Your Refrigerator.. ................ 15

Food Storage Guide ............................... 19

Troubleshooting ..................................... 21

Requesting Assistance or Service.. ......22

Warranty ..................................................

A Note to You

Thank you for buying an ESTATE@ appliance.

ESTATE appliances give you all the functionality of name brand appliances at a value price.

To ensure you enjoy years of trouble-free operation, we developed this Use and Care Guide.

It contains valuable information about how to operate and maintain your appliance properly

and safely. Please read it carefully. Also, please complete and mail the Ownership Regis-

tration Card provided with your appliance. This card helps us notify you about any new

information on your appliance.

Please record your model’s information.

Whenever you call to request service on

Model Number

your appliance, you need to know your

complete model number and serial number.

Serlel Number

You can find this information on the model

Purchase Date

and serial number label (see diagram on

Dealer Name

page 4 for location of label).

Please also record the purchase date of

your appliance and your dealers name,

address, and telephone number.

Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

Our Consumer Assistance Center

number is toll-free from anywhere

1-800-253-1301

in the U.S.A. 24 hours a day.

Refrigerator Safety

Your safety is important to us.

This guide contains statements under

warning symbols. Please pay special

attention to these symbols and follow any

instructions given. Here is a brief explana-

tion of the use of the warning symbol.

This symbol alerts you to such dangers

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using the

refrigerator.

@Childentrapment and suffocation are

not problems of the past. Junked or

abandoned refrigerators are still

dangerous ... even if they will “just sit

in the garage a few days.”

If you are getting rid of your old

refrigerator, do it safely. Please read

the enclosed safety booklet from the

Association of Home Appliance

Manufacturers. Help prevent acci-

dents.

Never clean refrigerator parts with flam-

mable fluids. The fumes can create a fire

hazard or explosion.

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND

LIQUIDS IN THE VICINITY OF THIS OR

ANY OTHER APPLIANCE. THE FUMES

CAN CREATE A FIRE HAZARD OR

EXPLOSION.

*Never allow children to operate, play

with, or crawl inside the refrigerator.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

Install and level the refrigerator on a floor

that will hold the weight and in an area

suitable for its size and use.

Do not install the refrigerator near an oven,

radiator, or other heat source.

Do not use the refrigerator in an area

where the room temperature will fall below

55°F (13°C).

Use the refrigerator only for the uses

described in this manual.

Properly maintain the refrigerator.

Be sure the refrigerator is not used by

anyone unable to operate it properly.

Keep the refrigerator out of the weather.

Connect the refrigerator only to the proper

kind of outlet, with the correct electrical

supply and grounding. (Refer to the

Electrical Requirements and Grounding

Instructions Sheet.)

Do not load the refrigerator with food

before it has time to get properly cold.

Parts and Features

This section contains captioned illustrations of your appliance. Use them to become familiar

with where all parts and features are located and what they look like. Page references are

included for your convenience.

NOTE: The model you have purchased may have all or some of the parts and features

shown and they may not match the illustration exactly. This manual covers several models.

Ice cube

Partlal

freezer shelf -

Control panel-

(P. 7)

Model and serial

number label y

(onsidewall)

(P.2)

Adjustable

wire shelves

(P.a)

Crlsper

cover

(P.8)

Crlspers A

(P.8)

Levellng

rollers

(P.‘3)

Control panel

Temperature control

I Llght switch

Butter

- compartment

Before Using Your

Refrigerator

It is important to prepare your refrigerator for use. This section tells you how to clean it,

connect it to a power source, install it, and level it.

Cleaning your refrigerator

Removing packaging materials

NOTE: Do not remove any permanent

Remove tape and any inside labels (except instruction labels inside your refrigerator. Do

the model and serial number label) before not remove the Tech Sheet fastened under

using the refrigerator. the refrigerator at the front.

To remove any remaining glue:

Rub briskly with your thumb to make a ball,

Cleaning it before use

then remove. After removing all packaging materials,

OR clean your refrigerator before

using it, if necessary. See

Soak area with liquid hand-dishwashing

detergent before removing glue as

described above. Do not use sharp

instruments, rubbing alcohol, flammable

fluids or abrasive cleaners. These can

damage the material. See “Important

Safety Instructions” on page 3.

cleaning instructions on pages

15 and 16.

Plugging it in

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15 or 20 ampere

fused and properly grounded electrical

supply is required. It is recommended that a

separate circuit serving only this appliance

be provided. Use a receptacle which cannot

be turned off with a switch or pull chain. Do

not use an extension cord.

&prong groundlng

type wall receptacle

See Electrical Requirements and Ground-

ing Instructions Sheet in your Literature

Package. groundlng plug

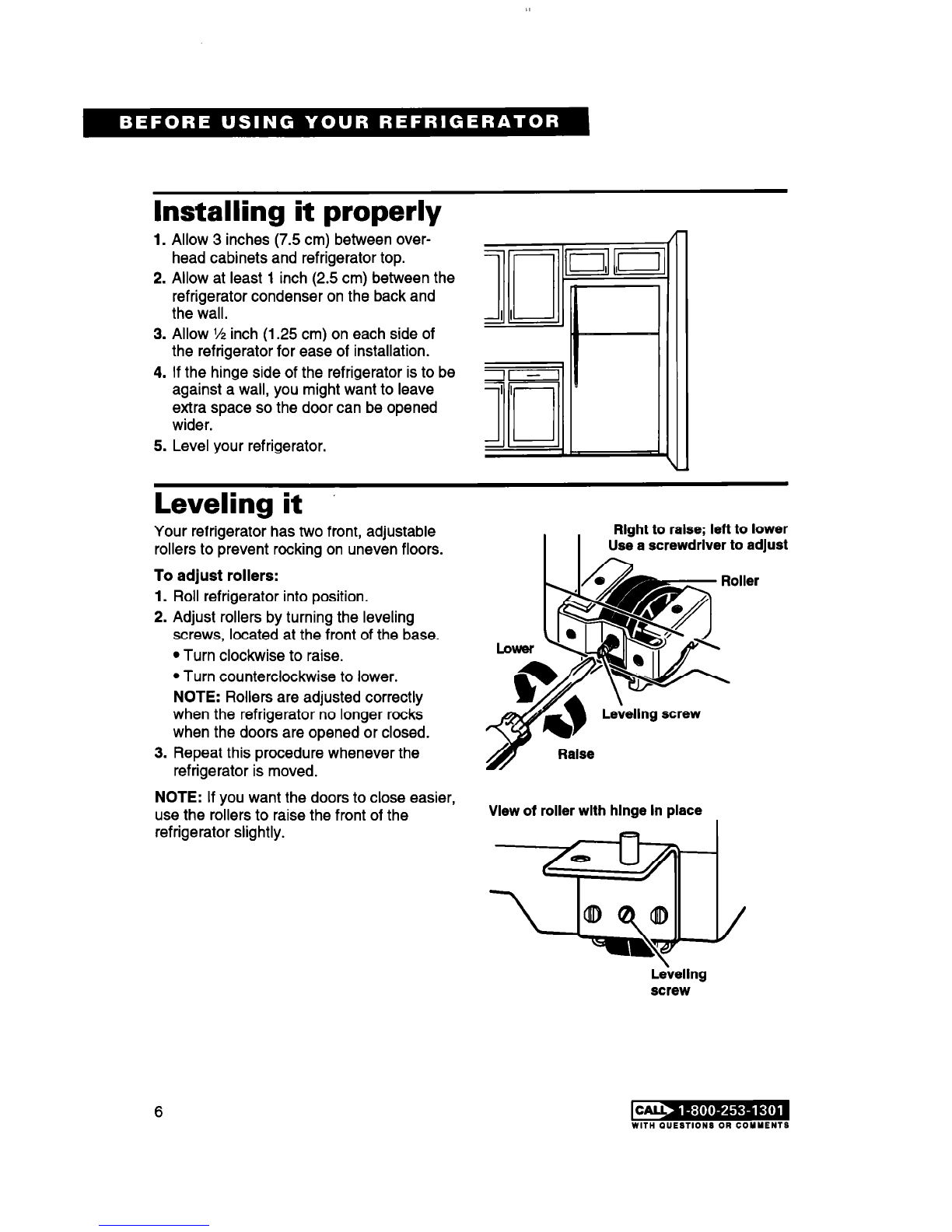

Installing it properly

1. Allow 3 inches (7.5 cm) between over-

head cabinets and refrigerator top.

2. Allow at least 1 inch (2.5 cm) between the

refrigerator condenser on the back and

the wall. JUI

I I

3. Allow 1/2inch (1.25 cm) on each side of

the refrigerator for ease of installation.

4. If the hinge side of the refrigerator is to be

against a wall, you might want to leave

extra space so the door can be opened

wider.

5. Level vour refriaerator.

Leveling it

Your refrigerator has two front, adjustable

rollers to prevent rocking on uneven floors.

To adjust rollers:

1. Roll refrigerator into position.

2. Adjust rollers by turning the leveling

screws, located at the front of the base.

Turn clockwise to raise.

Turn counterclockwise to lower.

NOTE: Rollers are adjusted correctly

when the refrigerator no longer rocks

when the doors are opened or closed.

3. Repeat this procedure whenever the

refrigerator is moved.

NOTE: If you want the doors to close easier,

use the rollers to raise the front of the

refrigerator slightly.

I I Rlght to ralse; left to lower

Use a screwdrlver to adjust

Vlew of roller wlth hlnge In place

Lelellng

screw

WITHOUESTIONSON

COMMENTS

Using Your Refrigerator

To obtain the best possible results from your refrigerator, it is important that you operate it

properly. This section tells you how to set the temperature control, remove and adjust some

of the features in your refrigerator, and how to save energy.

Setting the temperature control

The Temperature Control is in the refrigera-

tor. It controls the temperature in both the

refrigerator and freezer compartments.

When you plug in the refrigerator for the first

time:

1. Set the Temperature Control to 3 (nor-

mal). Temperature Control adjustments

range from 1 (warmest) to 5 (coldest).

NOTE: Turning the Temperature Control

to OFF stops cooling in both the refrigera-

tor and freezer compartments, but it does

not disconnect the refrigerator from the

power supply.

2. Give the refrigerator time to cool down

completely before adding food. This could

take several hours.

3. Adjust the Temperature Control to have

food as cold as you like. The setting

indicated above should be correct for

normal, household refrigerator usage.

NOTE: The built-in exterior moisture control

continuously guards against moisture build-

up on the outside of the refrigerator cabinet.

Adjusting the refrigerator shelves

The refrigerator shelves can be adjusted to

match the way you use your refrigerator.

To remove the shelves:

1. Remove items from the shelf.

2. Slide shelf straight out to the stop.

3. Lift back of shelf over stop.

4. Slide shelf out the rest of the way.

To replace the shelves:

1. Slide back of shelf into shelf track in

wall of cabinet.

2. Guide front of shelf into shelf track.

3. Slide shelf in all the way.

Removing the crispers and cover

To remove the crispers:

1. Slide crispers straight out to the stop.

2. Lift the front.

3. Slide out the rest of the way.

4. Replace in reverse order.

To remove the cover:

1. Lift cover front and remove the cover

support.

2. Lift cover up and slide out.

To replace the cover:

1. Fit cover tabs into lowest cabinet slots

and push in. Lower the front retainers

into place.

2. Insert cover support (with the long tab

toward the front) into the groove on the

underside of the cover.

NOTE: If the support needs adjustment,

turn base clockwise to raise or counter-

clockwise to lower.

WIT” OUESTIONS ON CONYENTS

Using the ice cube trays

If you don’t use the cubes, they may shrink.

The moving cold air starts a slow evapora-

tion. The longer you store cubes, the smaller

they get.

To remove ice:

1. Hold tray at both ends.

2. Twist slightly.

Using the optional automatic ice maker

If you have an automatic ice maker, or if you

plan to add one later, there are a few things

you will want to know:

The ON/OFF lever is a wire signal arm.

DOWN to make ice automatically

UP to shut off the ice maker

IMPORTANT: Do not turn ice maker on

until it is connected to the water supply.

Instructions for ice maker water supply

hookup are attached to the back of the

refrigerator cabinet.

up to

stop Ice

maker.

Down

start Ice

maker.

The dial or lever on the side of the ice

maker changes the size of the cubes.

Good water quality is important for good

ice quality. Try to avoid connecting the ice

maker to a softened water supply. Water

softener chemicals, such as salt from a

malfunctioning softener, can damage the

ice maker mold and lead to poor ice

quality. If a softened water supply cannot

be avoided, make sure that the water

softener is well maintained and operating

properly.

Solving common ice maker problems

PROBLEM POSSIBLE CAUSE/SOLUTION

Ice crescents attached

This is normal. They break apart easily. Shake bin occasion-

at corners allv to keep cubes separated.

Ice maker will not

operate or Ice is not

made fast enough

ON/OFF lever is in the OFF (up) position. Lower lever to the

ON (down) position.

Freezer is not cold enough. Adjust temperature control and

wait 24 hours.

Off-taste or odor in Ice

New plumbing connections can cause discolored or off-

flavored ice. Discard the first few batches of ice.

Cubes are stored too long. Throw them away and make a

new supply.

Foods in freezer are not wrapped properly. See “Food

Storage Guide” on pages 19 and 20.

Freezer and ice bin need to be cleaned. See pages 15

and 16.

Water may contain minerals (such as sulfur). A filter may be

required to remove them.

Read all directions carefully before you begin.

Tools required:

Standard screwdriver

Electrlcal Shock Hazard

7/16-inchand X-inch open-end wrenches or

Disconnect electrical supply to refri- two adjustable wrenches

gerator before installing.

X-inch nut driver

Electrical drill must be grounded before

X-inch drill bit

drilling holes in water line.

Hand drill or electric drill (properly

Failure to do so could result in death, grounded)

electrical shock, or serious injury. NOTE: Your appliance dealer has a kit

available with a X-inch saddle type shut-off

IMPORTANT:

valve, a union, and copper tubing. Before

Use copper tubing only and check for purchasing, make sure a saddle type valve

leaks. complies with your local plumbing codes. Do

Install ice maker tubing in areas where not use piercing type or %-inch saddle

valve which reduces water flow and clogs

temperatures are above freezing. more easily.

Attaching the ice maker to a water supply

WITH OUESTIONS OR COYYENTS

Table des matières

Autres manuels Whirlpool Réfrigérateur

Whirlpool

Whirlpool WH43S1E Manuel utilisateur

Whirlpool

Whirlpool ETl4EK Manuel utilisateur

Whirlpool

Whirlpool WRF974CIHV00 Manuel utilisateur

Whirlpool

Whirlpool RT17DK Mode d’emploi

Whirlpool

Whirlpool GX5FHTXVQ00 Manuel utilisateur

Whirlpool

Whirlpool WIN852 GS Manuel utilisateur

Whirlpool

Whirlpool ED5LVAXVB00 Manuel utilisateur

Whirlpool

Whirlpool ET8WTMXKQ02 Manuel utilisateur

Whirlpool

Whirlpool Icemagic Fresh Series Manuel utilisateur

Whirlpool

Whirlpool B2lDK Manuel utilisateur

Whirlpool

Whirlpool ED5LHAXW Instructions d'utilisation

Whirlpool

Whirlpool ADN 270S Manuel utilisateur

Whirlpool

Whirlpool WRF555SDHV Manuel utilisateur

Whirlpool

Whirlpool 3WSC19D4AY00 Manuel utilisateur

Whirlpool

Whirlpool ET18SK Manuel utilisateur

Whirlpool

Whirlpool BLF 8001 Guide de configuration

Whirlpool

Whirlpool ED5FHAXVS - 25' Dispenser Refrigerator Manuel utilisateur

Whirlpool

Whirlpool WRX-17TM Manuel utilisateur

Whirlpool

Whirlpool W10131411A Manuel utilisateur

Whirlpool

Whirlpool GSC25C4EYW Instructions de montage

Whirlpool

Whirlpool 1VET27DKGW1 Manuel du propriétaire

Whirlpool

Whirlpool GX5FHDXV Manuel de la liste des pièces

Whirlpool

Whirlpool ED22DL Manuel utilisateur

Whirlpool

Whirlpool GI6SDRXXQ Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
