Whirlpool S-04-GNF32E WO Instructions de construction
Whirlpool of India Limited
SERVICE AND
PARTS MANUAL
GLOBAL NO FROST DOUBLE DOOR
REFRIGERATORS
1.0 Safety precautions & warnings 2-3
2.0 Product specifications 4

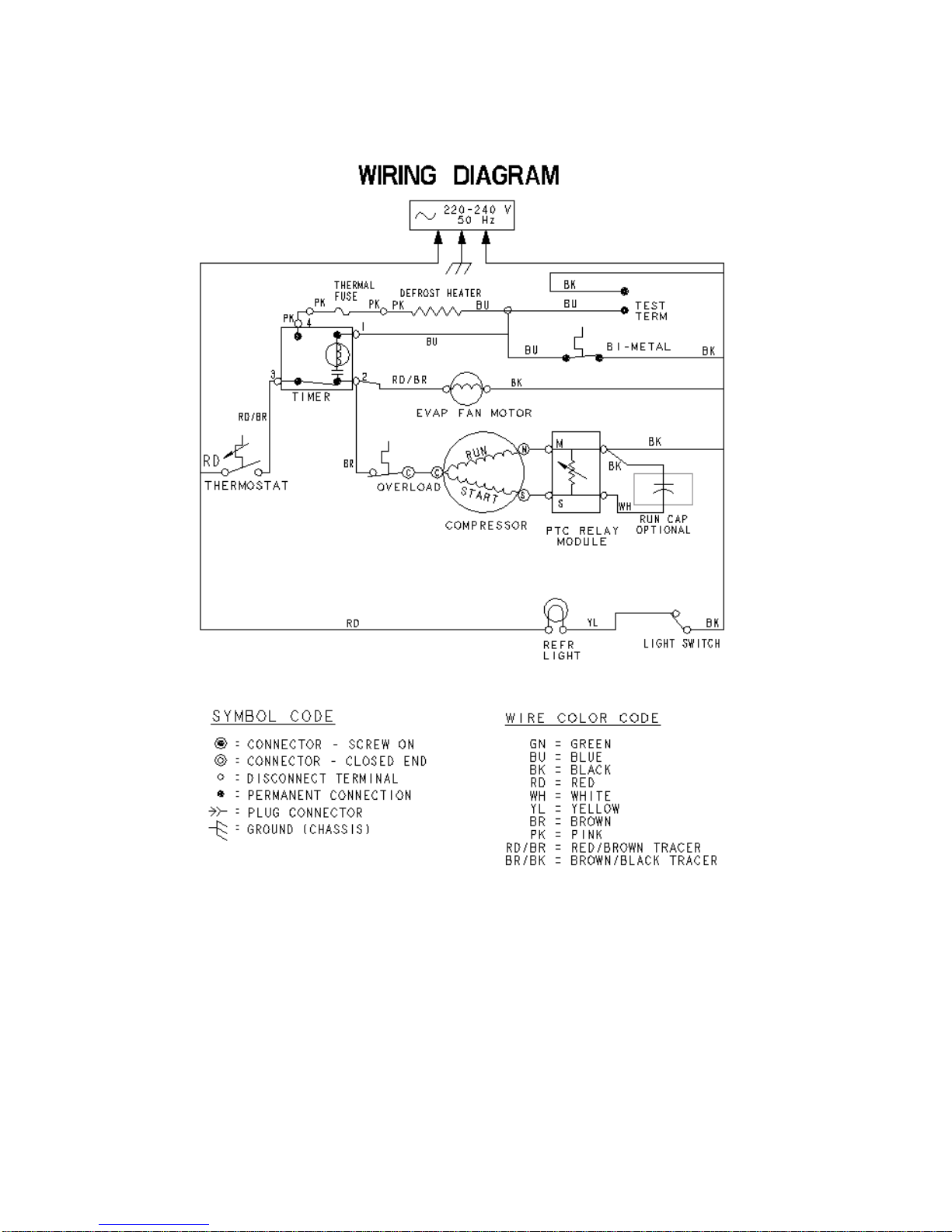

3.0 Circuit diagram 7
4.0 Product dimensions 8
5.0 Packaging dimensions 9
6.0 Sealed system schematic layout 10
7.0 Trouble shooting -cooling system 11
7.1 Trouble shooting defrosting 12
8.10 Cabinet assembly parts diagram 13
8.11 Cabinet assembly parts list 14
8.20 Shelves part diagram 15
8.21 Shelves parts list 16
8.30 Freezer compartment parts diagram 17
8.31 Freezer compartment parts list 18
8.40 Control box parts diagram 19
8.41 Control box parts list 20
8.50 Compressor assembly parts diagram 21
8.51 Compressor assembly parts list 22
SAPCODE MODEL DESCRIPTION
4428 S-04-GNF24E WO 220L QUICKCHILL ELITE – WHITE
4429 S-04-GNF26E WO 250L QUICKCHILL ELITE – WHITE
4440 S-04-GNF32E WO 285L QUICKCHILL ELITE – WHITE
This document is only intended for qualified technicians who are aware of the respective safety regulations.
Date 10th april 2002 Subject to modification
Document No. WOI/GNF/100420021

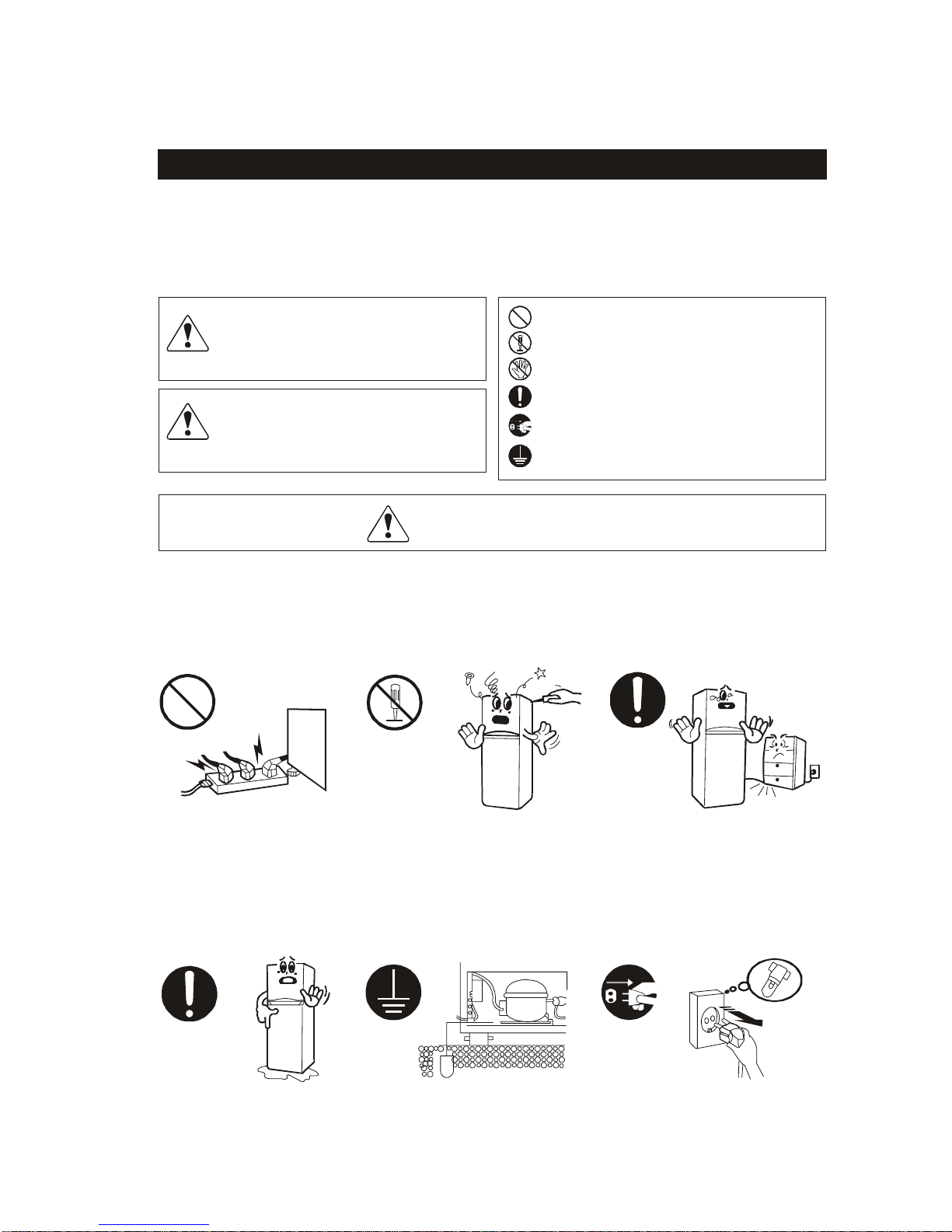

Safety precautions and warnings:
Read all instructions before using this appliance in order to
avoid risk of accident or possible damage.
Indicates prohibition
This symbol is intended
to alert the user to the
possible death or injury.
This symbol is intended
to alert the user to the
possible injury or damage.
Warning / Caution Description of symbols
Warning
Warning
Caution
Do not disassemble
Adhere the instruction strictly
Unplug fromthe electrical outlet
Earth the appliance to avoid the risk
of an electric shock.
This may cause abnormal
heating or fire hazard.
Do not install the
refrigerator in a humid
(with condensation)
location or an
unstable surface.
If earthling is not done, it will
cause break down and electric
shock. It may cause electric shock
It may cause fire or abnormal
operation which leads to injury. This may cause fire.
Do not plug multiple
electric appliances
into the same outlet.
Check the operating
environment Be sure to earth. Pull the power plug out for
exchanging the interior
lam of the refrigerator.
Prohibition
Do not disassemble
repair or alter. Do not bend the power cord
with excessive force or do
not have the power cord
pressure by heavy article.
Do not
disassemble
Do not contact
Earth Unplug
Page 2

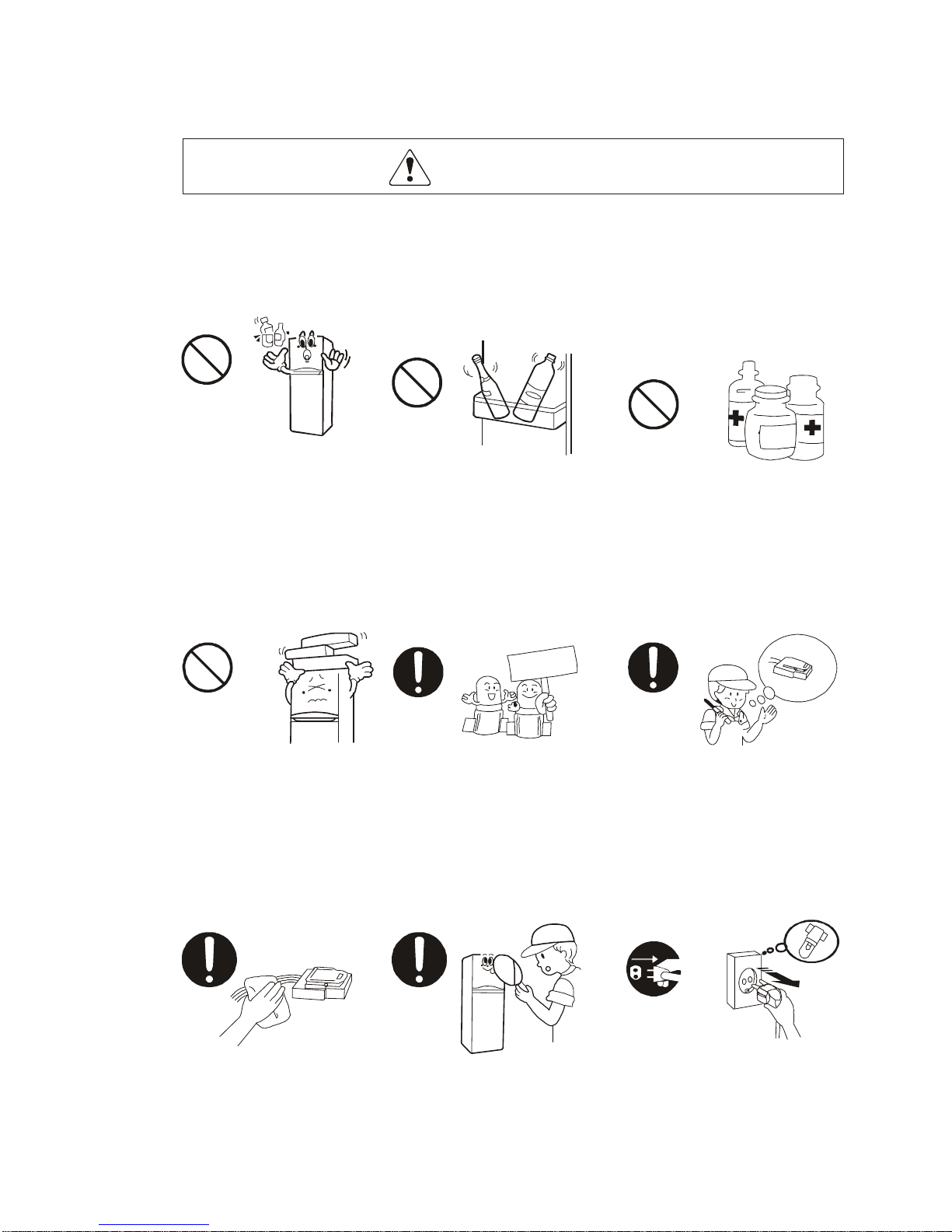

Caution
Bottles may explode
causing personal injury.
Opening or closing the
door may trigger the loose
itemsto slip & cause injury.
Use of it as it is may cause
fire.
Opening the door may
trigger loose items to slip
&cause injury.
Check the model, rated
voltage, rated current,
operating temperature etc.
of the component.
The service unit should be
resembled & returnto its
original assembly state.
Medical supplies, which
need to be under strict
temperature control, should
not be stored in the
refrigerator.
This can protect against the
risk of fire hazard caused by
tracking and short circuit.
When the trace of moisture
penetration is detected,
insulation tapping.
Do not store bottled food
or drinks in the freezing
compartment.
Do not put on top of the
refrigerator.
Please wipe out foreign
materials of the metal
option of power plug
cleanly.
Do not store food in
unstable manner.
When replacing electric
components, be sure to
use rated components.
A
fter servicing the refrigerator
be sure to check the
components are reassembled
in a correct manner.
Do not store anything
other than food in the
refrigerator.
When servicing the
refrigerator completely
remove dust or foreign
substances from the housing,
electric connections etc.
Check electrical ports for
the trace of moisture
penetration.
Prohibition
Prohibition
Prohibition Prohibition
Unplug
Rated
Components
Page 3
2.0 Technical Specifications for 220L Elite Model
Dimensions Cooling agent
Height 1408mm Type -R134a
Width 550mm Quantity – 88Grams
Depth 625mm
Capacity 220L
Refrigerator compartment-150L
Freezer compartment-70L
Thermostat Cooling
Total – 220L
Switchingvalues
Cut in Temperature
COLD:-3.9 to -7.3 Deg.Cen,
MID: -2.4 to -0.9 Deg.Cen,
WARM: 0.5 to 3.9 Deg.Cen
Electrical Connection
Switch off Temperature Voltage
Frequency- For every 8 hours. . Max. Voltage- 260V
Power consumption Min. Voltage- 160V
In 24 hours -1.36kwh
*With Control knobs in Mid Position
Compressor for service)
Type -QB66 of Matsushita
(Oil cooled Type)
Technical Specifications for 250L Elite Model
Dimensions Cooling agent
Height: 1550mm
Width: 550mm
Depth: 625mm Type R134a
Quantity 88Grams
Capacity-250L Thermostat Cooling
Refrigerator Compartment: 180L Cut in temperature
Freezer Compartment: 70L COLD:-7.3 to –3.9 Deg.Cen
Total : 250L MID :-0.8 to 0.8 Deg.Cen
WARM:2.8 to 6.2 Deg.Cen
Electrical Connection Voltage
Switch off Frequency: For every 8 hours. Maximum: 260V
Minimum: 160V
Power consumption
In 24 hours - 1.3383 Kwh.
*With control knobs in “Mid Position”
Compressor
Type: QB66 of Matsushita(Oil cooled type)
Technical Specifications for 285L Elite Model
Dimensions Cooling agent
Height: 1725mm
Width: 550mm
Depth: 625mm Type R134a
Quantity 88Grams
Capacity-285L Thermostat Cooling
Refrigerator Compartment: 215L Cut in temperature
Freezer Compartment: 70L COLD :-1.7 to 1.7 Deg.Cen
Total : 285L MID : 2.0 to 3.6 Deg.Cen
WARM : 2.8 to 6.2 Deg.Cen
Electrical Connection Voltage
Switch off Frequency: For every 8 hours. Maximum: 260V
Minimum : 160V
Power consumption
In 24 hours - 1.4392 Kwh.
*With control knobs in “Mid Position”
Compressor
Type: QB66 of Matsushita(Oil Cooled type)

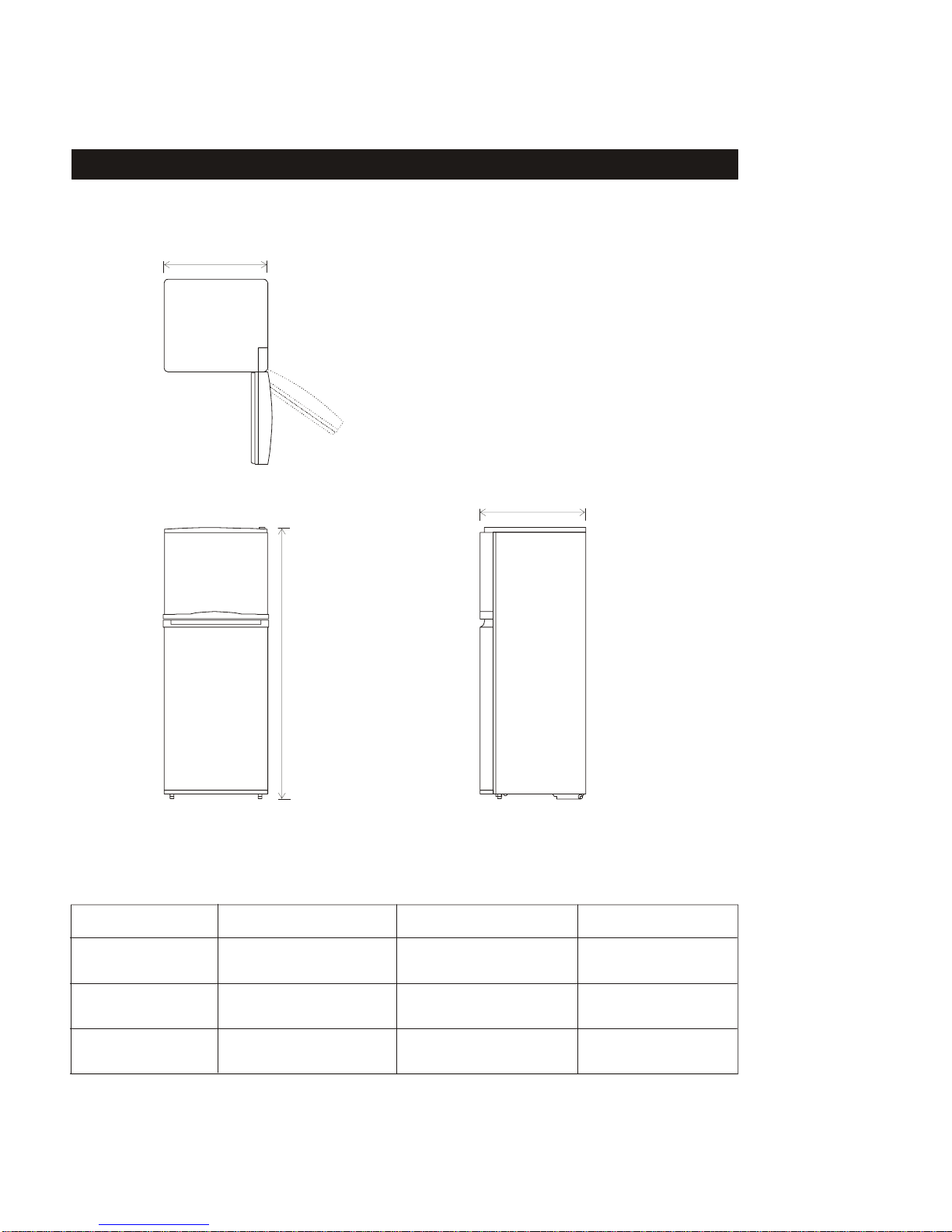

4.0 Product Dimension
220 Liter
250 Liter
285 Liter
Height (A) Width (B) Depth (C)
1395 mm
1537 mm
1662 mm
550 mm
550 mm
550 mm
625 mm
625 mm
625 mm
B
C
A
Page 6
5.0 Packaging Dimensions :
B
C
A
220 Liter
250 Liter
285 Liter
Height (A) Width (B) Depth (C)
1493 mm
1609 mm
1734 mm
628 mm
628 mm
628 mm
695 mm
695 mm
695 mm
Page 7
Page 8

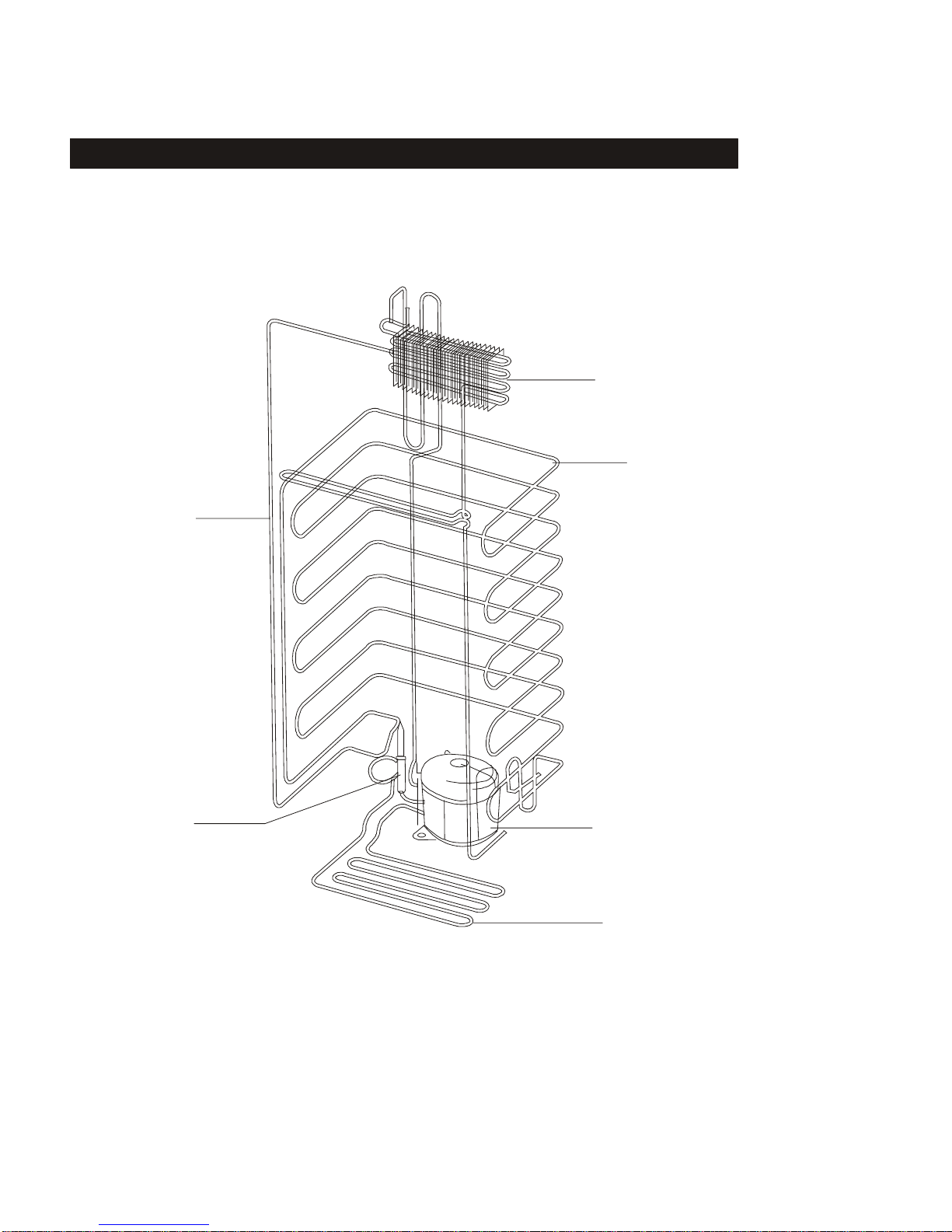

6.0 Sealed System Schematic Layout :
Evaporator
Condenser
(Foamedin three sides.)
Heat Loop
(Foamed)
Drier Compressor
Precooler
