CABINET PARTS

For Models: ET8WTKXVQ00, ET8WTKXVT00, ET8WTKXVB00

(White) (Biscuit) (Black)

02−08 Litho In U.S.A. (rrm) Part No. W10183671 Rev. A

REFRIGERATOR

CABINET PARTS

For Models: ET8WTKXVQ00, ET8WTKXVT00, ET8WTKXVB00

(White) (Biscuit) (Black)

W10183671

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2265591 Service &

Wiring Sheet

2316016 Use & Care Guide

W10179570

Energy Guide

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677969 Do−It−Yourself

Manual, Ref./ Fzr.

2 2261963 Hinge Butt, Top

3 2324094 Roller, Front

4 488296 Washer

5 2264132 Cover, Unit

6 2222100 Screw

7 489442 Screw

8 2266506 Spacer, Back

9 2166086 Hinge, Center

10 2166043 Shim, Hinge

Center

11 489497 Screw

12 2221926 Hinge Butt,

Bottom

13 9791682 Hinge−Pin,

Bottom

14 3428970 Screw

15 2201567 Shim, Bottom

Hinge

16 2174760 Fitting, Water Tube

17 Hole Plug (6)

2201012 White

2200924 Biscuit

2183998 Black

18 1106508 Seal

19 2262176 Screw

20 Corner Filler

2166003 White

2202282 Biscuit

2215384 Black

21 489341 Washer

22 487576 Washer 7/64

23 Rail, Center

(Not Serviced)

24 Cabinet (Not a

Serviceable Part)

DOOR PARTS

For Models: ET8WTKXVQ00, ET8WTKXVT00, ET8WTKXVB00

(White) (Biscuit) (Black)

W10183671

DOOR PARTS

For Models: ET8WTKXVQ00, ET8WTKXVT00, ET8WTKXVB00

(White) (Biscuit) (Black)

W10183671

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes

Illus. 9 & 14)

2266588W White

2266588T Biscuit

2266588B Black

2 2207942 Door Compartment

3 8281206 Screw

4 2156003 Trim, Endcap

5 Handle,

Refrigerator

2221946W White

2221946T Biscuit

2326169B Black

6 489357 Screw

8 8281146 Screw

9 Door Gasket,

Magnetic

2263258 Mist Beige

2264723 Black

10 Screw Cover

2202819W White

2202819T Biscuit

2202819B Black

11 2262218 Nameplate

13 2266729 Trim, Door Shelf

14 2262054 Thimble

15 2266738 Trim, Door

16 Freezer Door

2265990W White

2265990T Biscuit

2265990B Black

(Includes

Illus. 14 & 18)

17 Hole Plug,

Handle

2189000 White

2200936 Biscuit

2189009 Black

18 Door Gasket,

Magnetic

2263257 Mist Beige

2264722 Black

19 2189202 Bracket, Door Stop

20 488921 Screw

21 Hole Plug

2212648 White

2212649 Biscuit

2212651 Black

22 2156007 Plug, Trim

23 2195916 Trim, Endcap

25 Handle, Freezer

2202098 White

2215015 Biscuit

2202098B Black

26 2266727 Trim, Endcap

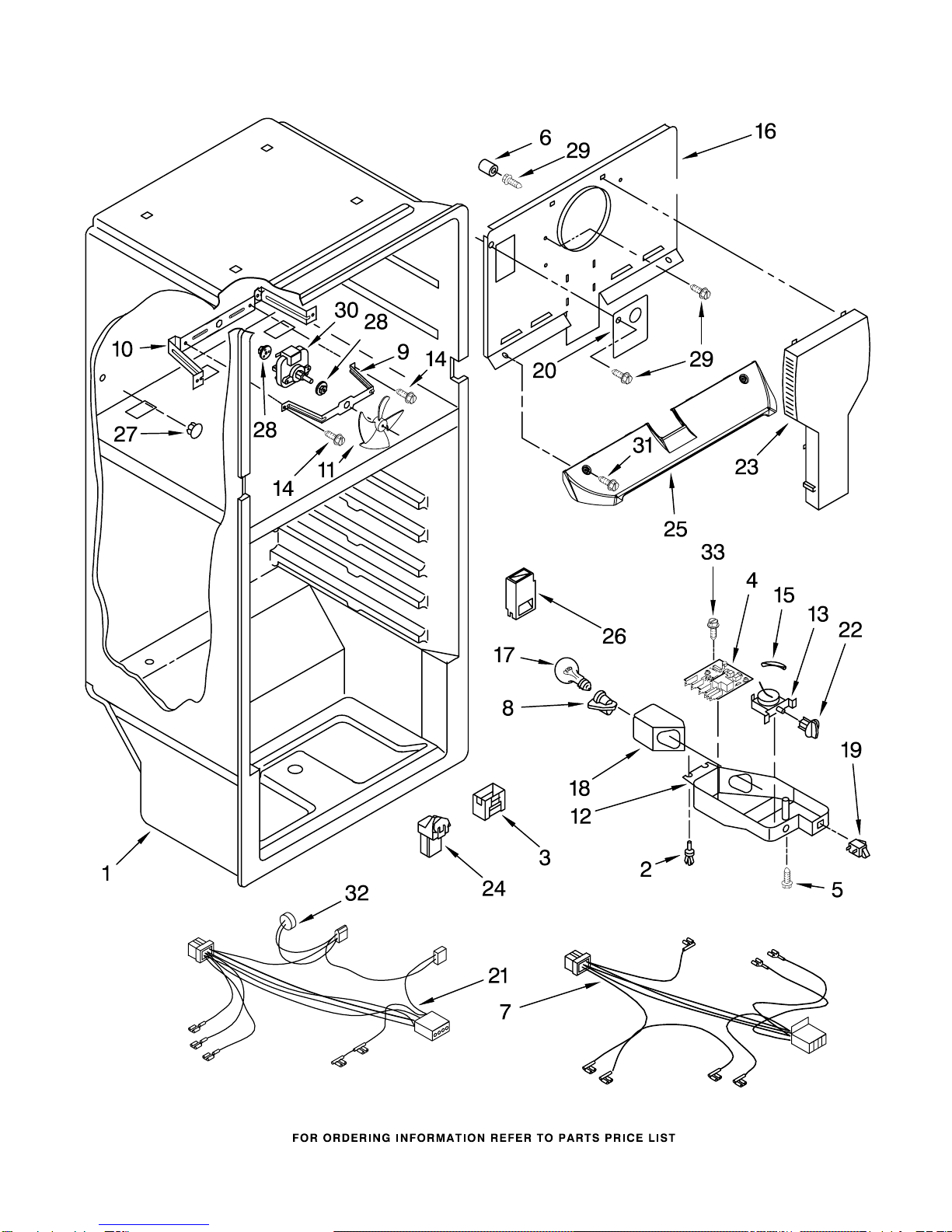

LINER PARTS

For Models: ET8WTKXVQ00, ET8WTKXVT00, ET8WTKXVB00

(White) (Biscuit) (Black)

W10183671

LINER PARTS

For Models: ET8WTKXVQ00, ET8WTKXVT00, ET8WTKXVB00

(White) (Biscuit) (Black)

W10183671

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 939962 Rivet

3 2183061 Cover, Air Diffuser

4 2303825 Adaptive Defrost

Control

5 489174 Screw

6 487996 Plastic Closure

7 2265930 Wire Assembly

Control Box

8 2162085 Socket, Light

9 2197404 Fan Support

Bracket

10 2197405 Fan Mounting

Bracket

11 2169142 Fan Blade

12 2215210 Control Box

13 2325701 Thermostat

14 489399 Screw

15 1118680 Thermostat Tube

Barrier

16 2264669 Cover, Evaporator

17 2252970 Light Bulb

18 9791702 Light Shield

19 1118894 Rocker Arm

Switch

20 2217784 Cover, Hole

21 2319442 Wiring, Freezer

(Includes Item 32)

22 2202885 Control Knob

23 9790408 Air Tower

24 2197052 Hood And Foil

Assembly

25 2261978 Cover, Air Return

26 2221992 Air Diffuser

Assembly

27 941839 Hole Plug

28 2264462 Grommet, Motor

29 489478 Screw

30 2201212 Evaporator Fan

Motor

31 2262178 Screw

32 2266066 Defrost, BI−Metal

33 488693 Screw

UNIT PARTS

For Models: ET8WTKXVQ00, ET8WTKXVT00, ET8WTKXVB00

(White) (Biscuit) (Black)

W10183671

UNIT PARTS

For Models: ET8WTKXVQ00, ET8WTKXVT00, ET8WTKXVB00

(White) (Biscuit) (Black)

W10183671

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10127456

Support Plate,

Compressor

2 489442 Screw

3 2264004 Condenser

4 2176942 Heater, Defrost

5 2264835 Clip, Condensor

6 8533859 Screw

7 2319224 Heat Shield

8 2264516 Snap−Rivet

9 2161302 Sleeve

10 2263929 Air Baffle

11 2188875 Motor, Condensor

14 Grommet

2264447 Production

4387558 Service

16 939054 Clip, Wire

17 2150304 Roller

18 2264756 Axle, Rivet

19 2262191 Wedge, Evaporator

20 2263920 Evaporator Assy.

22 2225929 Start− Device

Combination

(Start Relay and

Overload for

Production

Compressor Only)

23 2262192 Wedge, Evaporator

24 2264129 Fan Blade

25 2264841 Screw

26 2266360 Shield,Electrical

27 549193 Clamp, Cord

28 2217634 Compressor

(Includes Items

14,29 & 32)

29 Drier

2317845 Service

30 2263990 Strap

31 2264838 Sleeve

32 Capacitor

2264017 Production

1118576 Service

33 2212996 Bale Strap

34 1114718 Clip, Wiring

35 2264278 Tube, Drain

36 2266467 Clip, Harness

37 24364001 Clip, Compressor

39 2264131 Extension,

Tube−Heat

W10151677

Wire Assy. Unit

41 2263928 Evaporator Tray

42 2316181 Tube, Discharge

(Incl. Pre Cooler)

43 VS20001 Tube, Process

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

3.75 Ozs.

(R134A)

SHELF PARTS

For Models: ET8WTKXVQ00, ET8WTKXVT00, ET8WTKXVB00

(White) (Biscuit) (Black)

W10183671

Illus. Part

No. No. DESCRIPTION

1 9790379 Cover, Meat Pan

W10142522

Shelf (2)

3 2192250 Crisper, Cover

4 2207931 Crisper Pan

5 2210047 Glass, Crisper

6 2207936 Pan, Meat

W10142525

Shelf, Freezer

OPTIONAL PARTS

For Models: ET8WTKXVQ00, ET8WTKXVT00, ET8WTKXVB00

(White) (Biscuit) (Black)

W10183671

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

978941 Insulation,

Fiberglass

(63−1/2" x 35−1/2"

x 2−5/8")

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4" x 108")

876305 Kit, Insulation

(14 Pcs.

3" x 24" x 48")

876370 Kit, Insulation

(2 Pcs.

3" x 24 " x 48")

876029 Kit, Foam Slab

(30" x 32−1/2" x

1−1/2")

505587 Sealer, Mastic

(1 Qt.)

511873 Touch−Up, White

Porcelain (2 Oz.)

542638 Grease, Silicone

(1/2 Oz.)

542639 Cement,

Alumilastic

(1−1/4 Oz.)

606755 Bag, Insulation

(36−5/8" x 46")

799833 Kit, Evaporator

Repair

(Aluminum Epoxy)

799832 Kit, Porcelain

Repair (White)

503695 Cork Sealer

(1/4 Pound)

Customer Touch−Up Material

350942 Primer, White

(12 Oz. Spray Can)

350939 Enamel, Black

(12 Oz. Spray Can)

350930 Enamel, White

(12 Oz. Spray Can)

4392901 Enamel, Biscuit

(12 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

72032 Brush Touch−Up Kit

(Black)

4392899 Brush Touch−Up Kit

(Biscuit)

Refinishing Material

799344 Enamel, White

(1 Qt. Uncut)

799340 Enamel, Black

(1 Qt. Uncut)

4392900 Enamel, Biscuit

(1 Qt. Uncut)

833938 Kit, Terminal

Connector

Important: The spray paint is

not to be used where the paint

may make contact with the door

gaskets.

TORX SCREW WRENCH

1117510 Torx Key
