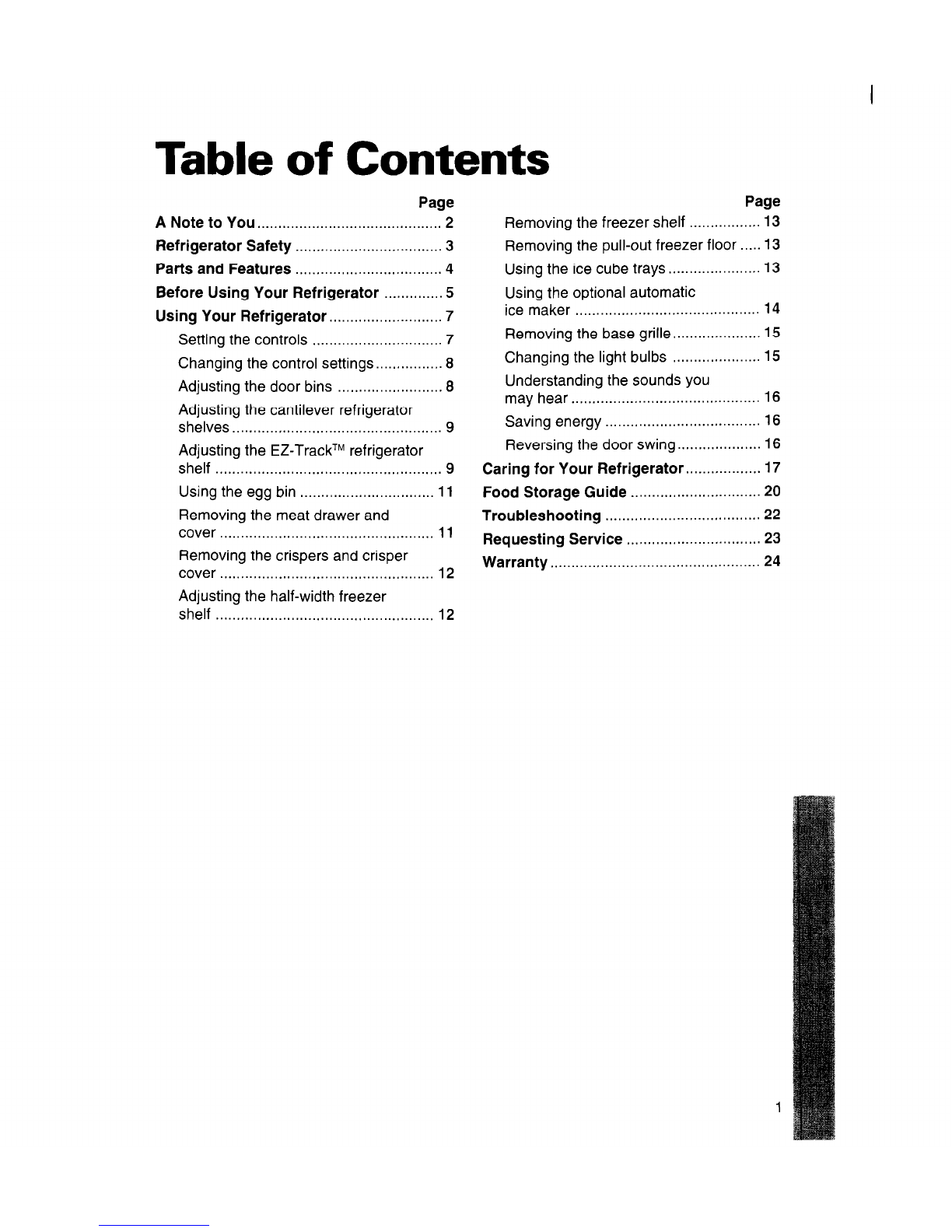

Table of Contents

Page

A Note to You.. .......................................... 2

Refrigerator Safety ................................... 3

Parts and Features ................................... 4

Before Using Your Refrigerator .............. 5

Using Your Refrigerator.. ......................... 7

Setting the controls ............................... 7

Changing the control settings.. .............. 8

Adjusting the door bins ......................... 8

Adjusting the cantilever refrigerator

shelves.. ................................................ 9

Adjusting the EZ-TrackTM refrigerator

shelf ...................................................... 9

Using the egg bin ................................ 11

Removing the meat drawer and

cover ................................................... 11

Removing the crispers and crisper

cover ................................................... 12

Adjusting the half-width freezer

shelf .................................................... 12

Page

Removing the freezer shelf ................. 13

Removing the pull-out freezer floor.. ... 13

Using the ice cube trays ...................... 13

Using the optional automatic

ice maker ............................................ 14

Removing the base grille.. ................... 15

Changing the light bulbs ..................... 15

Understanding the sounds you

may hear.. ........................................... 16

Saving energy ..................................... 16

Reversing the door swing.. .................. 16

Caring for Your Refrigerator.. ................ 17

Food Storage Guide ............................... 20

Troubleshooting ..................................... 22

Requesting Service ................................ 23

Warranty .................................................. 24

A Note to You

Thank you for buying a Whirlpool@ appliance.

Because your life is getting busier and more complicated, Whirlpool Refrigerators are easy

to use, save time, and help you manage your home better. To ensure you enjoy years of

trouble-free operation, we developed this Use and Care Guide. It contains valuable informa-

tion about how to operate and maintain your appliance properly and safely. Please read it

carefully.

Please record your model’s information.

Whenever you call to request service on

Model Number

your appliance, you need to know your

complete model number and serial number.

Serial Number

You can find this information on the model

and serial number label (see diaaram on

Purchase Date

page 4 for location of ladel). -

Please also record the purchase date of

Dealer Name

your appliance and your dealer’s name,

address, and telephone number.

Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

Refrigerator Safety

Your safety is important to us.

This guide contains statements under a

warning symbol. Please pay special atten-

tion to this symbol and follow any instruc- This symbol alerts you to such dangers

tions given. Here is a brief explanation of the

use of the warning symbol. 1 electrical shock. ’

as personal injury burns fire and

’ ’

IMPORTANT SAFETY INSTRUCTIONS

l Read all instructions before using the l Never allow children to operate, play

refrigerator. with, or crawl inside the refrigerator.

l Child entrapment and suffocation are l Never clean refrigerator parts with

not problems of the past. Junked or flammable fluids. The fumes can create a

abandoned refrigerators are still fire hazard or explosion.

dangerous .. even if they will “just sit in l FOR YOUR SAFETY l

the garage a few days.”

If you are getting rid of your old DO NOT STORE OR USE GASOLINE

refrigerator, do it safely. Please read the OR OTHER FLAMMABLE VAPORS AND

enclosed safety booklet from the Asso- LIQUIDS IN THE VICINITY OF THIS OR

ciation of Home Appliance Manufactur- ANY OTHER APPLIANCE. THE FUMES

ers. Help prevent accidents. CAN CREATE A FIRE HAZARD OR

EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

l Install and level the refrigerator on a floor

that will hold the weight and in an area

suitable for its size and use.

l Do not install the refrigerator near an oven,

radiator, or other heat source.

l Do not use the refrigerator in an area

where the room temperature will fall below

55°F (13°C).

l Keep the refrigerator out of the weather.

l Connect the refrigerator only to the proper

kind of outlet, with the correct electrical

supply and grounding. (Refer to the

Electrical Requirements and Grounding

Instructions Sheet.)

l Do not load the refrigerator with food

before it has time to get properly cold.

l Use the refrigerator only for the uses

described in this manual.

l Properly maintain the refrigerator.

l Be sure the refrigerator is not used by

anyone unable to operate it properly.

Parts and Features

This section contains captioned illustrations of your appliance. Use them to become familiar

with where all parts and features are located and what they look like. Page references are

included for your convenience.

NOTE: The model you have purchased may have all or some of the parts and features

shown and they may not match the illustration exactly. This manual covers several models.

Ice cube trays

and ice bin -

(P. 13)

Adjustable

half-width

freezer shelf ’

(P. 12)

Freezer shelf’

(P. 13)

Pull-out

freezer floor /

(P. 13)

Model and serial

number label /

(on side wall)

(P.2)

Meat drawer/

(P. 11)

Crisper cover’

(P. 12)

Crispers A

(P. 12)

%/I IIl1/ Control panel

(P. 11)

EZ-TrackTM

refrigerator

.mmII.. shelf

Leveling rollers

(behind base grille) (p. 6) Base grille

(P. 16)

Control panel

REFRIGERATOR EXTERIORMOISTURECONTROL FREEZER

COLDER.

Refrigerator control Freezer control

Before Using Your

Refrigerator

It is important to prepare your refrigerator for use. This section tells you how to clean it,

connect it to a power source, install it, and level it.

Cleaning your refrigerator

Removing packaging materials

NOTE: Do not remove any permanent

Remove tape and any inside labels (except instruction labels inside your refrigerator. Do

the model and serial number label) before not remove the Tech Sheet fastened under

using the refrigerator. the refrigerator at the front.

To remove any remaining tape or label

glue: Cleaning it before use

l Rub briskly with thumb. After removing all packaging materials, clean

your refrigerator before using

OR it, if necessary. See cleaning

l Apply liquid hand-dishwashing detergent to instructions on page 17.

area before removing glue as described ’ u

above. Do not use sharp instruments, rub-

bing alcohol, flammable fluids, or abrasive

cleaners. These can damage the material.

See “Important Safety Instructions” on

page 3.

Plugging it in

Recommended Grounding Method

A 115 Volt/GO Hz (Plug 1) 220/240 Volt/50

Hz (Plug 2), 220 Volt/GO Hz or 220/240 Volt/

50 Hz (Plug 3) AC only 15 or 20 ampere

fused and properly grounded electrical

supply is required. It is recommended that a

separate circuit serving only this appliance

be provided. Use a receptacle which cannot

be turned off with a switch or pull chain. Do

not use an extension cord.

Plug 1 Plug 2

Plug 3

2. If the hinge side of the refrigerator is to

be against a wall, you might want to leave

extra space so the door can be opened

wider.

3. The refrigerator can be flush against the

Installing it properly

1. Allow l/2 inch (1.25 cm) space on each

side and at the top of the refrigerator for

ease of installation.

back wall.

Leveling it

Your refrigerator has 2 front leveling screws

- one on the right and one on the left. To

adjust one or both of these, follow the

directions below.

1. Remove base grille. (See page 15.)

2. To raise front, turn screw clockwise.

3. To lower front, turn screw counterclock-

wise.

4. Check with level.

5. Replace base grille. (See page 15.)

Using Your Refrigerator

To obtain the best possible results from your refrigerator, it is important that you operate it

properly. This section tells you how to set the controls, remove, and adjust the features in

your refrigerator, and how to save energy.

Setting the controls

Controls for the refrigerator and freezer are

in the refrigerator. When you plug in the

refrigerator for the first time:

1. Sk the Refrigerator Control to 4

(Recommended Setting). Refrigerator

Control settings range from 1 (warmest)

to 8 (coldest).

2. Set the Freezer Control to C (Recom-

mended Setting). Freezer Control

settings range from A (coldest) to

D (warmest).

Give the refrigerator time to cool down

completely before adding food. This may

take several hours. The settings indicated

above should be correct for normal, house-

hold refrigerator usage. The controls are set

correctly when milk or juice is as cold as you

like and when ice cream is firm. If you need

to adjust these settings, see “Changing the

control settings” on page 8.

Exterior moisture control

The Exterior Moisture Control operates

electric heaters around the door openings.

These heaters help keep moisture from form-

ing on the outside of the refrigerator cabinet.

l Use the OFF setting when humidity is low.

l Use the ON setting if moisture forms on

the outside of the refrigerator cabinet.

Changing the control settings

If you need to adjust temperatures in the

refrigerator or freezer, use the settings listed

in the chart below as a guide.

l Adjust the Refrigerator Control first.

l Wait at least 24 hours between adjust-

ments.

. Then adjust the Freezer Control if needed.

CONDITION: REASON: RECOMMENDED SEITINGS:

Refrigerator Freezer

Refrigerator l Door opened often

section too warm l Large amount of food added

4 A

l Room temperature too warm

Freezer section l Door opened often

too warm l Large amount of food added

3 C

l Very cold room temperature

(can’t cycle often enough)

Refrigerator l Controls not set correctly for

section too cold

2 B

your conditions

Ice not made

fast enough l Heavy ice usage

l Very cold room temperature

3 C

(can’t cycle often enough)

Both sections l Door opened often

too warm l Large amount of food added

4 B

l Very warm or very cold room

temperatures

Adjusting the door bins

To remove door bins:

1. Lift bin up.

2. Pull bin straight out.

i To replace door bins:

1. Slide bin in above desired support button.

) 2. Push down until it stops.

Adjusting the cantilever refrigerator shelves

Adjust the shelves to match the way you use

your refrigerator. Glass shelves are strong

enough to hold bottles, milk, and other

heavy food items.

To remove a shelf:

1. Remove items from shelf.

2. Tilt shelf up at front.

3. Lift shelf at back.

4. Pull shelf straight out.

To replace a shelf:

Guide the rear shelf hooks into the slots

in the shelf supports on the back liner wall.

2. Tilt front of shelf up until hooks drop into

slots.

3. Lower front of shelf to a level position.

To slide shelf out (on some models):

l Carefully pull front of shelf toward you.

To slide shelf in:

l Push shelf in until it stops.

NOTE: Glass shelves are heavy. Handle

them carefully.

Adjusting the EZ-TrackTM refrigerator shelf

The EZ-Track shelf slides from side to side

for more flexible storage in your refrigerator.

To slide shelf side to side:

1. Lift slightly on shelf front.

2. Slide to desired location.

3. Lower shelf front to level position.

NOTE: You do not have to remove

small items from the shelf before moving

it side to side. You may need to remove

larger items.

Lift front slightly

then slide to new location.

Table des matières

Langues :

Autres manuels Whirlpool Réfrigérateur

Whirlpool

Whirlpool W10551713A Manuel utilisateur

Whirlpool

Whirlpool ETZOZK Manuel utilisateur

Whirlpool

Whirlpool 4ET14GK Manuel utilisateur

Whirlpool

Whirlpool ETl2CC Manuel utilisateur

Whirlpool

Whirlpool W8TXNGFWB - 17.6 cu. Ft. Refrigerator Instructions de montage

Whirlpool

Whirlpool REFRIGERATOR Manuel utilisateur

Whirlpool

Whirlpool WRS325FDAB Instructions de montage

Whirlpool

Whirlpool RC 8140 IX Manuel utilisateur

Whirlpool

Whirlpool ET8WTMXKQ04 Manuel utilisateur

Whirlpool

Whirlpool ED5HVAXVL01 Manuel utilisateur

Whirlpool

Whirlpool 6ED22ZR Manuel utilisateur

Whirlpool

Whirlpool ET20NK Manuel utilisateur

Whirlpool

Whirlpool REFRIGERATOR Manuel utilisateur

Whirlpool

Whirlpool KSBS20QEWH0 Manuel utilisateur

Whirlpool

Whirlpool ET22MM Manuel utilisateur

Whirlpool

Whirlpool ETl4JM Manuel utilisateur

Whirlpool

Whirlpool ET8WTKXK Manuel de la liste des pièces

Whirlpool

Whirlpool ET8CHMXKQ04 Manuel utilisateur

Whirlpool

Whirlpool ET180K Manuel utilisateur

Whirlpool

Whirlpool top freezer refrigerator Instructions d'installation

Whirlpool

Whirlpool ED2VHGXMB01 Manuel utilisateur

Whirlpool

Whirlpool Coolerator EM02ACRWW0 Manuel utilisateur

Whirlpool

Whirlpool ET2AHTXMT02 Manuel utilisateur

Whirlpool

Whirlpool 3ED27DQ Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
