COOKTOP PARTS

For Model: SF110AXSQ1

(Designer White)

8−06 Litho in U.S.A. (jac) Part No. 8191166

30" GAS FREESTANDING

STANDARD CLEAN RANGE

ELECTRONIC IGNITION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10032070

Instructions

Installation

98015589 Installation Instr

(Template)

W10106860

Guide, Use & Care

98007130 Safer Cooking Tips

98007032 Tech Sheet

98017619W

Cooktop

W10094870

Panel, Manifold

4 98006102 Knob, Burner (4)

5 98007225 Screw

6 98013747 Grate, Burner (2)

7 98004722 Clip, Cooktop (2)

8 98014544 Wire, Ground

9 98013389 Bumper, Cooktop

10 98005000 Screw (3)

11 98017465 Cap, Burner (4)

12 8534079 Screw

13 98008321 Knob, Oven

14 98017537 Burner, Top (4)

BACKGUARD PARTS

For Model: SF110AXSQ1

(Designer White)

8191166

Illus. Part

No. No. DESCRIPTION

1 Endcap

98005336 White Left

98005337 White Right

2 98006083 Rear, Backguard

98017736W

Panel, Backguard

4 9757609 Nameplate

5 98015526 Screw

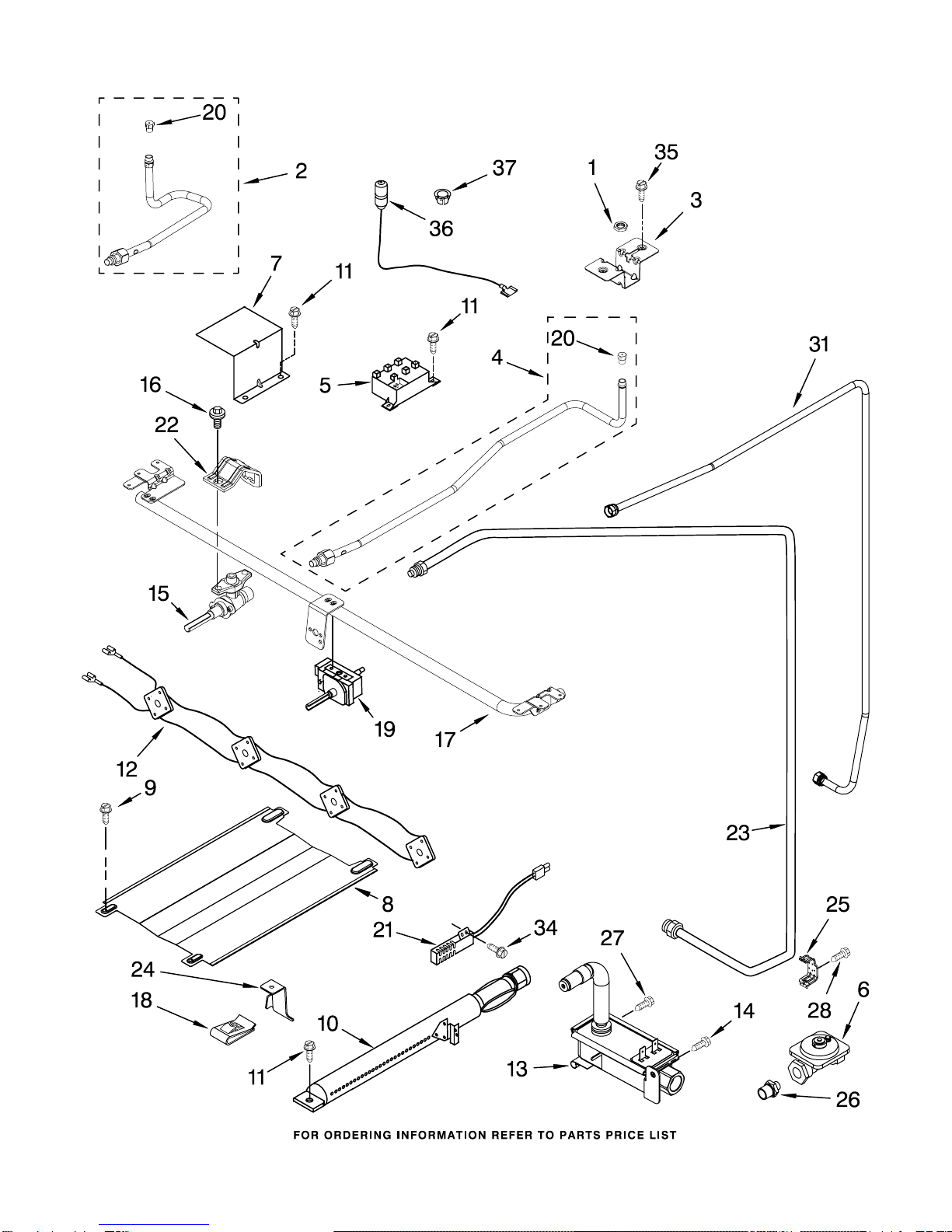

MANIFOLD PARTS

For Model: SF110AXSQ1

(Designer White)

8191166

MANIFOLD PARTS

For Model: SF110AXSQ1

(Designer White)

8191166

Illus. Part

No. No. DESCRIPTION

1 98017323 Nut (4)

2 98017582 Venturi, Front (2)

3 98017741 Brkt., Venturi (4)

4 98017359 Venturi, Rear (2)

5 6610341 Spark Module

6 98007411 Regulator

7 98007192 Cover, Module

8 98015099 Spreader, Flame

9 98006632 Screw

10 98012138 Burner, Oven

11 98006633 Screw

12 98017409 Harness, Switch

13 98014893 Valve, Oven

14 98006633 Screw

15 98017498 Valve, Burner (4)

16 98017517 Bolt, Valve Mtg

17 98017558 Pipe, Manifold

18 98009179 U−Nut

19 98003984 Thermostat, Oven

20 98017348 Orifice (4)

21 98005652 Igniter, Oven

Oven Pilot)

22 98017516 Bracket, Valve (4)

23 98007428 Tubing (Regltr to

Oven Valve)

24 98013314 Locator, Burner

25 98007410 Bracket, Regulator

26 98007431 Fitting 3/8to9/16

27 98013634 Screw

28 1180823 Screw

31 98017171 Tubing, Inlet

34 98005659 Screw

35 98004484 Screw

36 Igniter, Top

98014514 RF & RR

98017917 LR

98014516 LF

37 98015032 Clip, Igniter

FOLLOWING PARTS

NOT ILLUSTRATED

W10032010

LP Spud Kit

(For Use With LP)

CHASSIS PARTS

For Model: SF110AXSQ1

(Designer White)

8191166

CHASSIS PARTS

For Model: SF110AXSQ1

(Designer White)

8191166

Illus. Part

No. No. DESCRIPTION

1 98003799 Flue Box

2 98013690 Clip, Flue

3 98014398 Shield, Insulation

4 98010042 Panel, Side (2)

5 98005502 Clip, Oven Bottom

6 98006710 Counterweight

7 98006739 Wire, Brick

8 98006750 Frame, Front

9 98005306 Foot, Front (2)

10 9761935 Foot, Rear (2)

11 98004449 Bottom, Oven

12 98015683 Baffle, Side (2)

13 98003847 Baffle, Base

14 98003830 Rail, Base (2)

15 98012175 Support, Burner

16 98017162 Gasket, Broil Door

17 98005642 Clip, Bulb (2)

18 98009179 U−Nut

20 98015100 Back, Main

21 98017163 Seal, Oven

22 98006633 Screw

23 98007193 Washer

24 98007126 Base, Foot

25 98006632 Screw

26 98006715 Shield, Channel

27 98007191 Shield, Lower

29 98014532 Cord, Power

30 98005026 Clip, Tubing

31 98015346 Foil, Side (2)

32 98006634 Screw

33 98004447 Top, Oven

34 Side, Oven

98004452 Right Hand

98004451 Left Hand

35 98005768 Back, Oven

36 98015363 Support, Rear

39 98008545 Screw (4)

40 98007205 Cap, Insulation

42 98014105 Cover, Valve

43 98014104 Cover, Socket

INSULATION

98014360 Insulation, Wrap

98004286 Insulation, Back

OVEN & BROILER PARTS

For Model: SF110AXSQ1

(Designer White)

8191166

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 98014136 Rack, Oven (2)

2 98003480 Grill, Broiler

3 98016005 Pan, Broiler

4 98016570 Rack, Broiler

5 98004761 Bracket, Rack (2)

6 98004715 Guide, Rack (4)

7 98003790 Hanger, Brlr Door

8 98006727 Screw

9 98004698 Liner, Door

11 98015234 Insulation, Door

12 98009337 Panel, Door

13 98006623 Handle, Brlr Door

14 98004773 Spacer, Handle

15 98004052 Bumper, Door(2)

16 98006644 Screw

17 98006633 Screw

18 98003791 Support, Hinge

19 Spring, Broiler

98008380 Right

98008379 Left

20 98004219 Screw

21 98007396 Spacer, Hinge

22 98004053 Pin, Hinge (2)

23 98008341 Cover, Guide (4)

DOOR PARTS

For Model: SF110AXSQ1

(Designer White)

8191166

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8533842 Screw

3 98017966 Liner, Door

4 98006853 Insulation, Door

6 Hinge, Door

98017873 Left

98017875 Right

98017968W

Panel, Door

9 98017250 Retainer, Upper(2)

98017915W

Handle, Oven Door

11 98017967 Bracket, Handle(2)

12 98004993 Screw

14 98006727 Screw

15 Retainer

98004564 Right

98004629 Left

16 98004219 Screw

OPTIONAL PARTS

For Model: SF110AXSQ1

(Designer White)

8191166

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 c

8316781 Wire, Black

14 Ga. 150 c

242821 Wire, Blue

14 Ga. 150 c

242822 Wire, Brown

14 Ga. 150 c

242830 Wire, Brown

14 Ga. 200 c

242823 Wire, Green

14 Ga. 150 c

242824 Wire, Orange

14 Ga. 150 c

242825 Wire, Red

14 Ga. 150 c

242831 Wire, Red

14 Ga. 200 c

242827 Wire, Yellow

14 Ga. 150 c

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

511873 White Porcelain

(2 Oz.)

WIRING HARNESS PARTS

6610434 Harness, Main

3196696 Clip, Wire

3391018 Cable Tie−Push Mnt

98015022 Bushing, Snap (2)

98005894 Clamp, Cord

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit(Uncut)

ANTI−TIP KIT

98017833 Anti−Tip Kit
