Whirlpool RS696PXGB10 Manuel utilisateur
COOKTOP PARTS
1
For Models:RS696PXGB10, RS696PXGQ10
(Black) (Designer White)
05−04 Litho in U.S.A. (cre) Part No. 8185985
30" ELECTRIC
DROP−IN RANGE
SELF CLEANING
OVEN
COOKTOP PARTS
2
For Models:RS696PXGB10, RS696PXGQ10
(Black) (Designer White)
8185985
Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 Literature Parts
LIT8300770
Installation
Instructions
LIT8300666
Use & Care Guide
LIT8301349
Tech Sheet
LIT3191638
Safe Cooking Tips
2 Cooktop, Glass
3191843 Black
3191189 White
3 3191310 Bracket, Switch
Mounting
4 Element, Surface
8523698 1200W RF−LR
8523696 1800W RR
8523692 2500W LF
5 3191791 Spring, Locator
246119 Screw (8)
7 Switch, Infinite
3191049 1200W RR−LR
(Silver Shaft)
3191050 1800W RR
(Yellow Shaft)
4454541 2500W LF
(Red Shaft)
311865 Screw
8 3183956 Seal, Switch Cover
10 Knob, Control (4)
3196231 Black
3196232 White
14 3182435 Seal, Switch (4)
15 3191515 Bracket, Support
Element
16 Trim Ring, Cooktop
3193228 Black
3193227 White
3196537 Screw
17 3192452 Frame, Cooktop
21 3191952 Lamp, Indicator
3191953 Bumper, Rubber
9750835 Bumper, Door
OVEN PARTS
3
For Models:RS696PXGB10, RS696PXGQ10
(Black) (Designer White)
8185985
OVEN PARTS
4
For Models:RS696PXGB10, RS696PXGQ10
(Black) (Designer White)
8185985
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 Trim, Side
(Right Hand)
4450844 Black Model
4449747 Screw
4450845 White Model
(Left Hand)
4450847 Black Model
8281236 Screw
4450848 White Model
Screw
3 Hinge Receiver
4455605 Left Hand
4455606 Right Hand
4 4448520 Bumper, Door
7 4455865 Top Chassis
4449809 Screw
9 4452158 Tube, Vent
3196176 Screw
10 4452165 Lens, Light
11 4452368 Oven Light Assy
12 4452166 Bulb, Light
14 4455612 Frame, Front
4449040 Screw
4450118 Nut
15 4455382 Gasket, Door
19 4451478 Support, Insulation
4449809 Screw
21 Rail, Side
4450579 Right Side
4450580 Left Side
4448444 Grommet
4449154 Screw
22 8301268 Latch, Motorized
25 4455641 Side, Chassis
(R.H. & L.H.)
4449809 Screw
26 4452234 Back, Chassis
4449809 Screw
27 Liner, Oven
(Not serviceable)
29 4455636 Sensor
4449154 Screw
37 4451442 Thermostat (TOD)
(Temp.) SPST
43 4455530 Base, Chassis
49 4448933 Retainer, Gasket
4449154 Screw
50 4451747 Cover, Back
4449809 Screw
53 4449845 Support, Bracket
4449809 Screw
55 Trim, Bottom
4448477 Black Model
4448478 White Model
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
4449316 Insulation, Wrap
4450365 Insulation, Back
CONTROL PANEL PARTS
5
For Models:RS696PXGB10, RS696PXGQ10
(Black) (Designer White)
8185985
Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 Control Panel Assy.
W/Membrane Switch
4456312 Black Model
4456311 White Model
4449745 Screw
3400832 Screw
2 4451034 Gasket,
Control Panel
3 8301345 Microcomputer
4449745 Screw

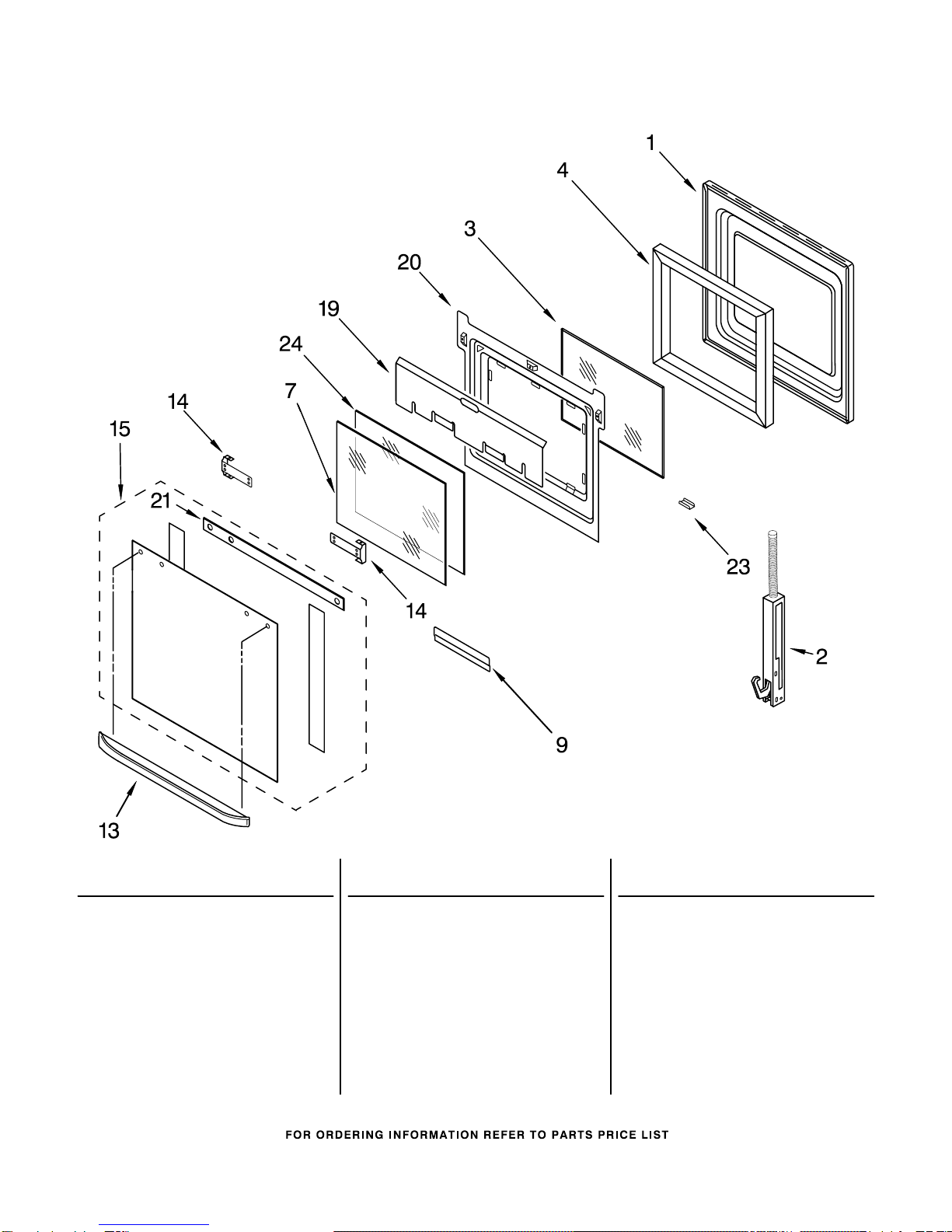

OVEN DOOR PARTS
6
For Models:RS696PXGB10, RS696PXGQ10
(Black) (Designer White)
8185985
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 4455618 Door Liner
2 Hinge, Door
8300571 R.Side
8300572 L.Side
4449743 Screw
3 4449259 Glass, Inner
4 4451722 Insulation, Door
7 8300974 Glass, Inner
9 4451668 Retainer, Glass
4449809 Screw
13 Door Handle
4448854 Black Model
4448855 White Model
14 4450813 Bracket, Handle
4451040 Screw
15 Assy, Door Glass
4452065 Black Model
4452066 White Model
19 4450362 Shield, Heat
4449809 Screw
20 8300778 Retainer, Glass
4449809 Screw
21 8300820 Seal, Door Top
23 Retainer, Clip
4450863 Black Model
4450864 White Model
3400832 Screw
24 4449263 Glass, Inner
TOP VENTING PARTS
7
For Models:RS696PXGB10, RS696PXGQ10
(Black) (Designer White)
8185985
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 4451759 Vent, Exhaust
4449040 Screw
2 4455178 Elbow, Vent−Top
3 4455334 Blower
4455352 Bracket
4 4451758 Block, Foam
5 4455177 Elbow, Vent−Bottom
11 4449868 Block, Terminal
3400080 Screw
13 4448549 Vent,
(Control Panel)
4450038 Screw
14 Side, Control Compt.
4451535 Right
4451536 Left
4449809 Screw
15 4452244 Back, Control
4449809 Screw
19 4451985 Suppressor
20 3191842 Cover, Rear
21 4451407 Plate, Support
4452260 Spacer, Foam
INTERNAL OVEN PARTS
8
For Models:RS696PXGB10, RS696PXGQ10
(Black) (Designer White)
8185985
Illus. Part
No. No. DESCRIPTION
2 4456103 Element, Broil
4449154 Screw
3 3147563 Grill, Broiler
4 3147845 Pan, Broiler
6 4448717 Rack, Oven
7 4452153 Element, Bake
4449154 Screw
OPTIONAL PARTS
9
For Models:RS696PXGB10, RS696PXGQ10
(Black) (Designer White)
8185985
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
261869 Cord Brown
72032 Black
PAINT, SPRAY
350930 White
261900 Citrine White
830864 Black
ADHESIVE
591014 Adhesive
Loctite (1/3 oz.)
482338 Sealer, Silastic
(3 oz.)
SPLICING WIRES−−25FT.
LENGTH
242828 Wire (12 Ga.
150 c Black)
242820 Wire (14 Ga.
150 c Black)
242821 Wire (14 Ga.
150 c Blue)
242822 Wire (14 Ga.
150 c Brown)
242830 Wire (14 Ga.
200 c Brown)
242823 Wire (14 Ga.
150 c Green)
242824 Wire (14 Ga.
150 c Orange)
242829 Wire (12 Ga.
150 c Red)
242825 Wire (14 Ga.
150 c Red)
242831 Wire (14 Ga.
200 c Red)
242826 Wire (14 Ga.
150 c White)
242827 Wire (14 Ga.
150 c Yellow)
242832 Wire (14 Ga.
200 c Yellow)
WIRING HARNESS PARTS
8301080 Harness, Wire
(Main)
3191956 Harness, Wire
(Infinite Switch)
4455280 Harness, Wire
(Burners)
4451163 Conduit
4448664 Clamp
4449809 Screw
112432 Nut
4450800 Screw, Ground
4451761 Support, Wiring
4454842 Tie, Cable
4452222 Spacer, Harness
Miscellaneous
814381 Pin Hinge Kit
4448950 Screw, Install (4)
