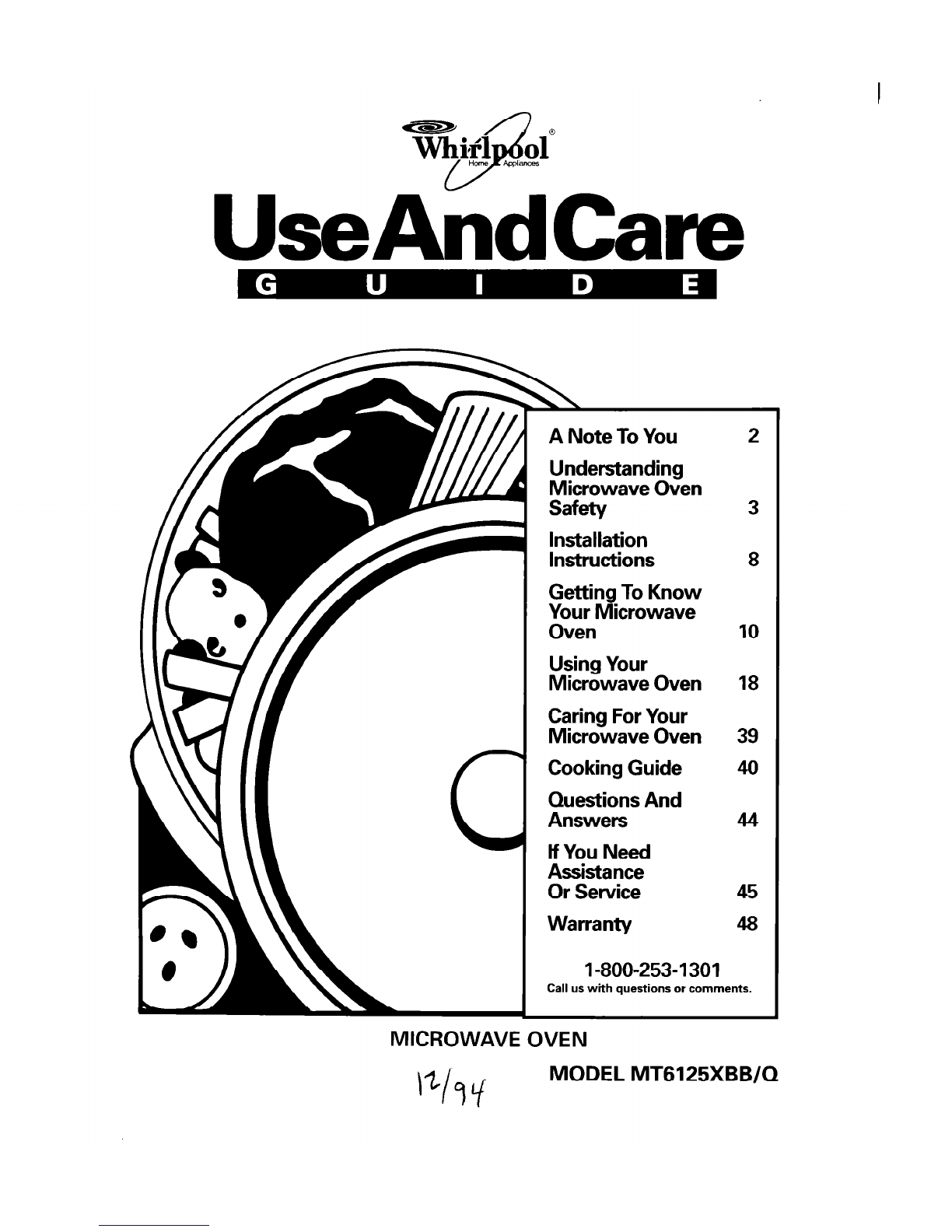

Whirlpool MT6125XBB/Q Manuel utilisateur

A Note To You 2

Understanding

Microwave Oven

safety 3

Installation

Instructions 8

Getting To Know

Your Microwave

Oven 10

Using Your

Microwave Oven 18

Caring For Your

Microwave Oven 39

Cooking Guide 40

Questions And

Answers 44

HYou Need

Assistance

Or Service 45

Warranty 48

1-800-253-1301

Call us with questions or comments.

MICROWAVE OVEN

MODEL MT6125XBB/Q

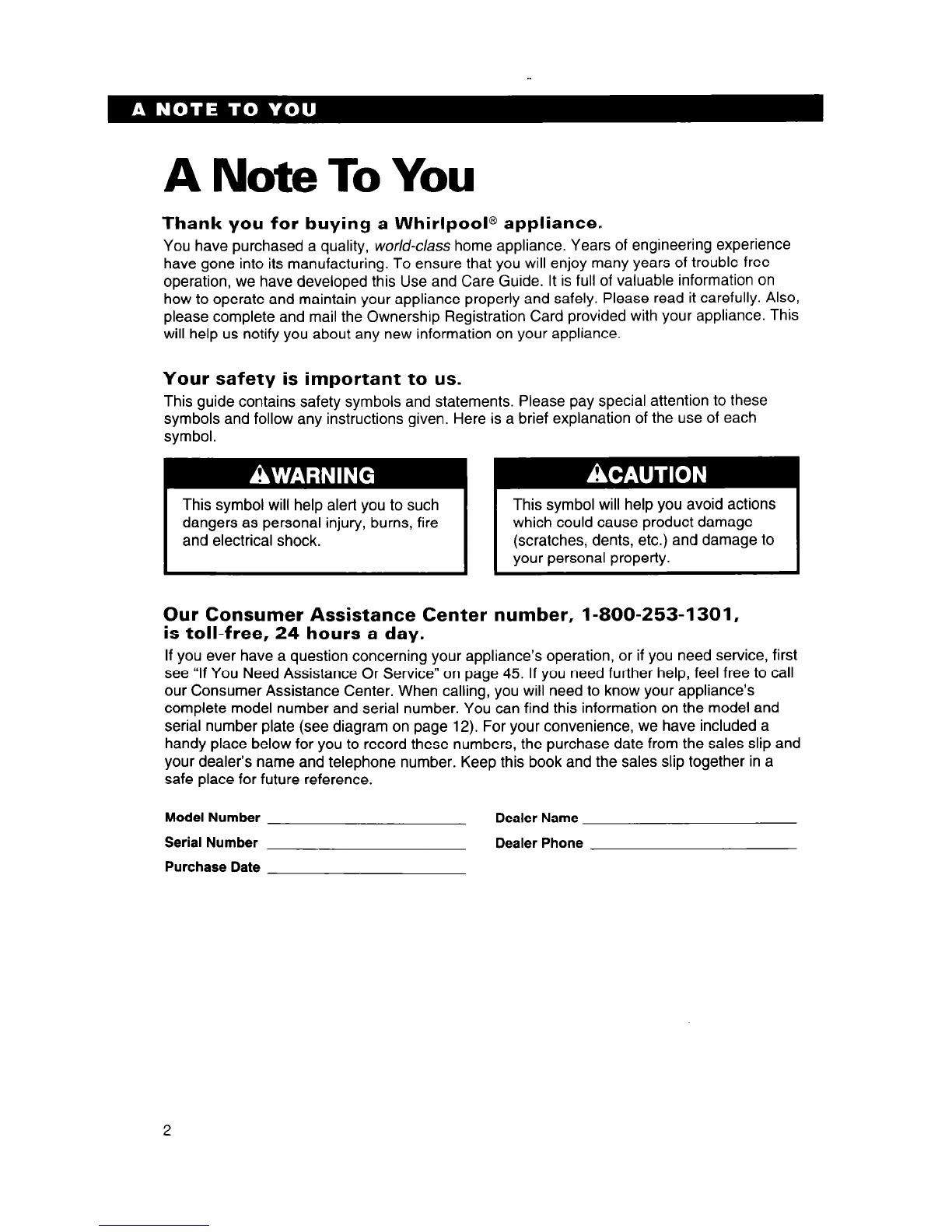

Note To You

Thank you for buying a Whirlpool@ appliance.

You have purchased a quality, wor/cMass home appliance. Years of engineering experience

have gone into its manufacturing. To ensure that you will enjoy many years of trouble-free

operation, we have developed this Use and Care Guide. It is full of valuable information on

how to operate and maintain your appliance properly and safely. Please read it carefully. Also,

please complete and mail the Ownership Registration Card provided with your appliance. This

will help us notify you about any new information on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these

symbols and follow any instructions given. Here is a brief explanation of the use of each

symbol.

This symbol will help alert you to such

dangers as personal injury, burns, fire

and electrical shock.

This symbol will help you avoid actions

which could cause product damage

(scratches, dents, etc.) and damage to

your personal property.

Our Consumer Assistance Center number, 1-800-253-l 301,

is toll-free, 24 hours a day.

If you ever have a question concerning your appliance’s operation, or if you need service, first

see “If You Need Assistance Or Service” on page 45. If you need further help, feel free to call

our Consumer Assistance Center. When calling, you will need to know your appliance’s

complete model number and serial number. You can find this information on the model and

serial number plate (see diagram on page 12). For your convenience, we have included a

handy place below for you to record these numbers, the purchase date from the sales slip and

your dealer’s name and telephone number. Keep this book and the sales slip together in a

safe place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

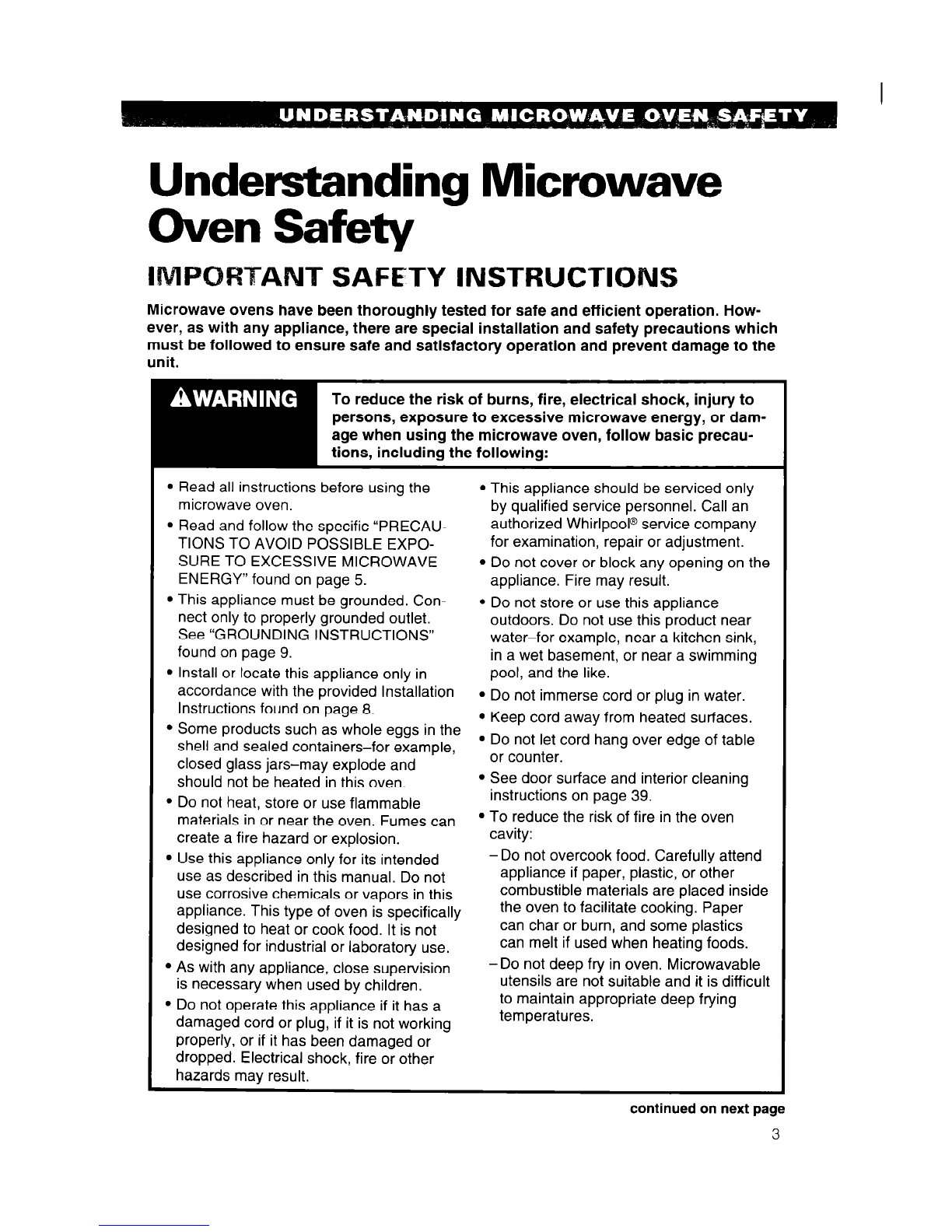

Understanding Microwave

Oven Safety

T SAFETY INSTRUCTIONS

Microwave ovens have been thoroughly tested for safe and efficient operation. How-

ever, as with any appliance, there are special installation and safety precautions which

must be followed to ensure safe and satisfactory operation and prevent damage to the

unit.

To reduce the risk of burns, fire, electrical shock, injury to

persons, exposure to excessive microwave energy, or dam-

age when using the microwave oven, follow basic precau-

tions, including the following:

. Read all instructions before using the l This appliance should be serviced only

microwave oven. by qualified service personnel. Call an

l Read and follow the specific “PRECAU- authorized Whirlpool@ service company

TIONS TO AVOID POSSIBLE EXPO- for examination, repair or adjustment.

SURE TO EXCESSIVE MICROWAVE l Do not cover or block any opening on the

ENERGY” found on page 5. appliance. Fire may result.

l This appliance must be grounded. Con- * Do not store or use this appliance

nect only to properly grounded outlet.

See “GROUNDING INSTRUCTIONS” outdoors. Do not use this product near

found on page 9. water-for example, near a kitchen sink,

in a wet basement, or near a swimming

l Install or locate this appliance only in pool, and the like.

accordance with the provided Installation

Instructions found on page 8. l Do not immerse cord or plug in water.

l Some products such as whole eggs in the l Keep cord away from heated surfaces.

shell and sealed containers-for example, l Do not let cord hang over edge of table

closed glass jars-may explode and or counter.

should not be heated in this oven. l See door surface and interior cleaning

l Do not heat, store or use flammable instructions on page 39.

materials in or near the oven. Fumes can l To reduce the risk of fire in the oven

create a fire hazard or explosion. cavity:

l Use this appliance only for its intended -Do not overcook food. Carefully attend

use as described in this manual. Do not appliance if paper, plastic, or other

use corrosive chemicals or vapors in this combustible materials are placed inside

appliance. This type of oven is specifically the oven to facilitate cooking. Paper

designed to heat or cook food. It is not can char or burn, and some plastics

designed for industrial or laboratory use. can melt if used when heating foods.

l As with any appliance, close supervision -Do not deep fry in oven. Microwavable

is necessary when used by children. utensils are not suitable and it is difficult

l Do not operate this appliance if it has a to maintain appropriate deep frying

damaged cord or plug, if it is not working temperatures.

properly, or if it has been damaged or

dropped. Electrical shock, fire or other

hazards may result.

continued on next page

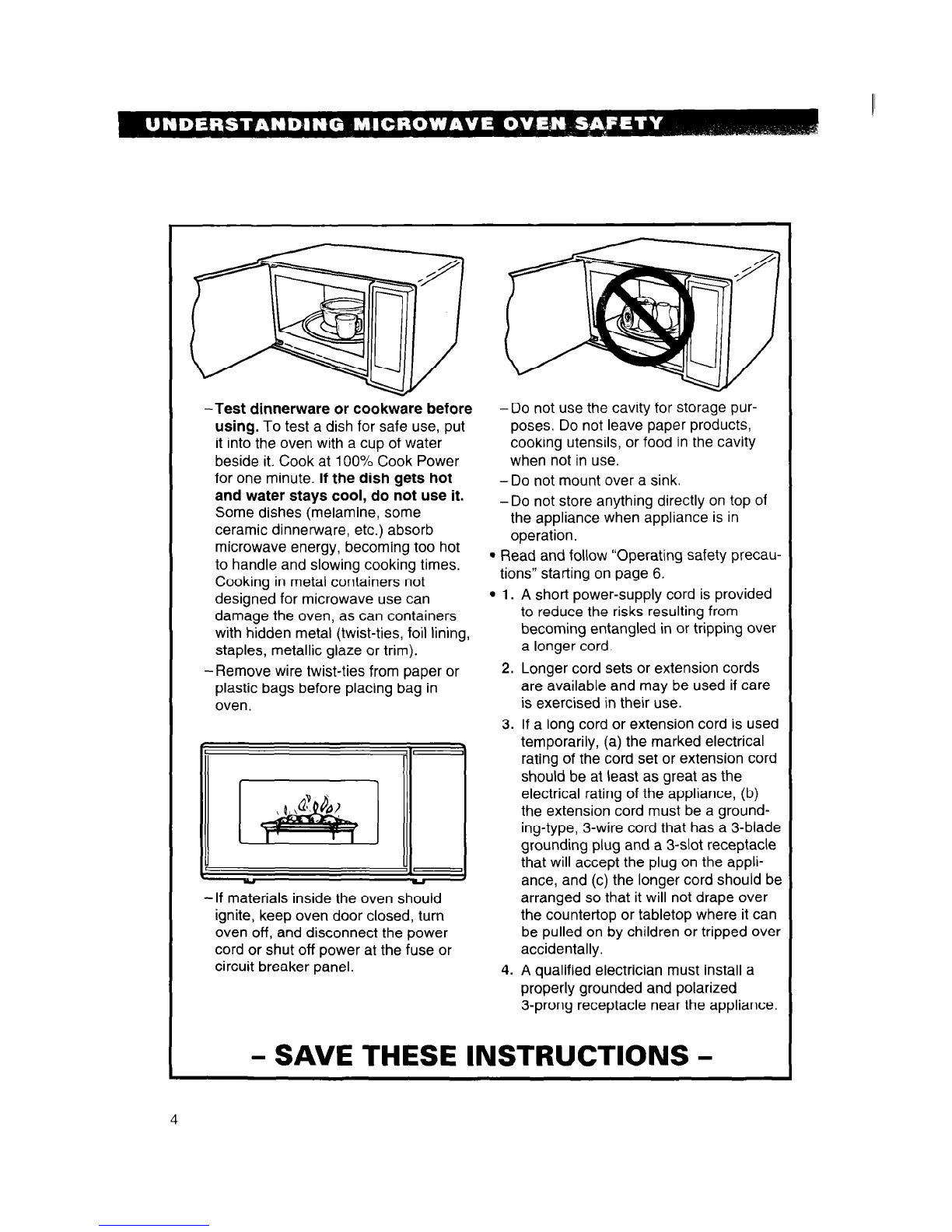

-Test dinnerware or cookware before -Do not use the cavity for storage pur-

using. To test a dish for safe use, put poses. Do not leave paper products,

it into the oven with a cup of water cooking utensils, or food in the cavity

beside it. Cook at 100% Cook Power when not in use.

for one minute. If the dish gets hot -Do not mount over a sink.

and water stays cool, do not use it.

Some dishes (melamine, some -Do not store anything directly on top of

the appliance when appliance is in

ceramic dinnerware, etc.) absorb operation.

microwave energy, becoming too hot

to handle and slowing cooking times. l Read and follow “Operating safety precau-

Cooking in metal containers not tions” starting on page 6.

designed for microwave use can l

A short power-supply cord is provided

damage the oven, as can containers to reduce the risks resulting from

with hidden metal (twist-ties, foil lining, becoming entangled in or tripping over

staples, metallic glaze or trim). a longer cord.

-Remove wire twist-ties from paper or 2. Longer cord sets or extension cords

plastic bags before placing bag in are available and may be used if care

oven. is exercised in their use.

3. If a long cord or extension cord is used

c \ temporarily, (a) the marked electrical

L 7 rating of the cord set or extension cord

should be at least as great as the

electrical rating of the appliance, (b)

the extension cord must be a ground-

ing-type, 3-wire cord that has a 3-blade

grounding plug and a 3-slot receptacle

that will accept the plug on the appli-

‘

t L ) ante, and (c) the longer cord should be

-If materials inside the oven should arranged so that it will not drape over

ignite, keep oven door closed, turn the countertop or tabletop where it can

oven off, and disconnect the power be pulled on by children or tripped over

cord or shut off power at the fuse or accidentally.

circuit breaker panel. 4. A qualified electrician must install a

properly grounded and polarized

3-prong receptacle near the appliance.

- SAVE THESE INSTRUCTIONS -

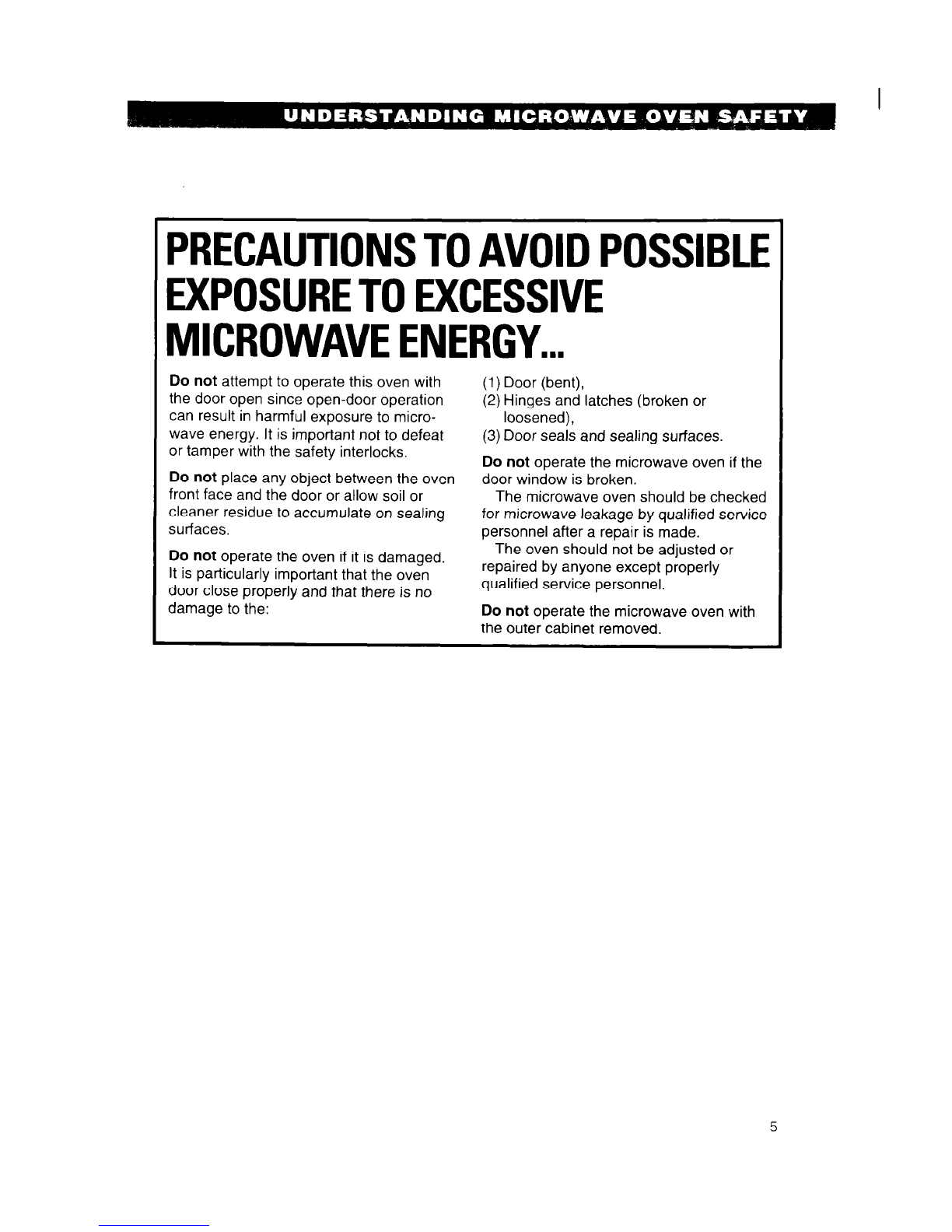

PRECAUTIONSTOAVOIDPOSSIBLE

EXPOSURETOEXCESSIVE

MICROWAVEENERGY...

Do not attempt to operate this oven with

the door open since open-door operation

can result in harmful exposure to micro-

wave energy. It is important not to defeat

or tamper with the safety interlocks.

Do not place any object between the oven

front face and the door or allow soil or

cleaner residue to accumulate on sealing

surfaces,

(1) Door (bent),

(2) Hinges and latches (broken or

loosened),

(3) Door seals and sealing surfaces.

Do not operate the microwave oven if the

door window is broken.

The microwave oven should be checked

for microwave leakage by qualified service

personnel after a repair is made.

Do not operate the oven if it is damaged.

It is particularly important that the oven

door close properly and that there is no

damage to the:

The oven should not be adjusted or

repaired by anyone except properly

qualified service personnel.

Do not operate the microwave oven with

the outer cabinet removed.

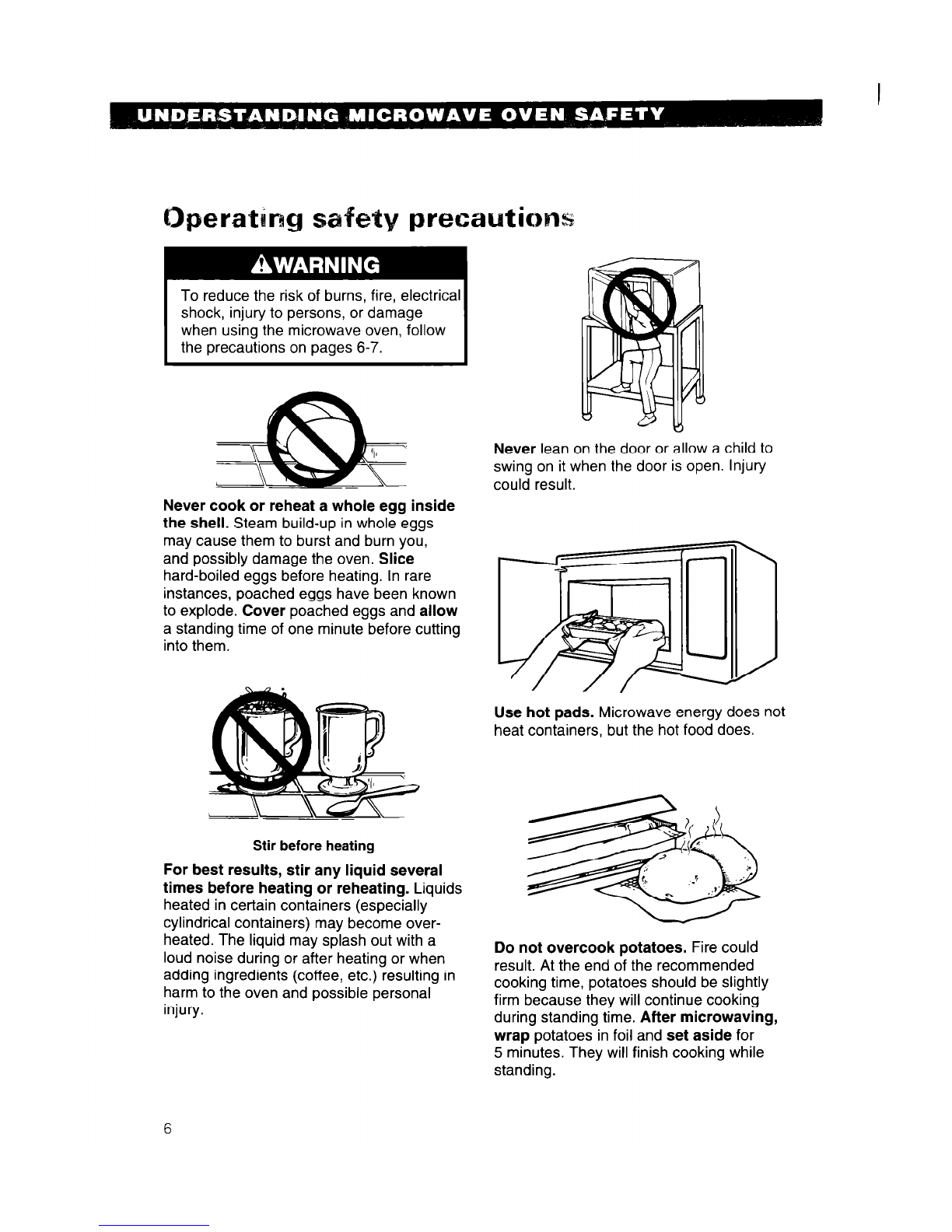

To reduce the risk of burns, fire, electrical

shock, injury to persons, or damage

when using the microwave oven, follow

the precautions on pages 6-7.

Never cook or reheat a whole egg inside

the shell. Steam build-up in whole eggs

may cause them to burst and burn you,

and possibly damage the oven. Slice

hard-boiled eggs before heating. In rare

instances, poached eggs have been known

to explode. Cover poached eggs and allow

a standing time of one minute before cutting

into them.

Stir

before heating

For best results, stir any liquid several

times before heating or reheating. Liquids

heated in certain containers (especially

cylindrical containers) may become over-

heated. The liquid may splash out with a

loud noise during or after heating or when

adding ingredients (coffee, etc.) resulting in

harm to the oven and possible personal

injury.

Never lean on the door or allow a child to

swing on it when the door is open. Injury

could result.

Use hot pads. Microwave energy does not

heat containers, but the hot food does.

Do not overcook potatoes. Fire could

result. At the end of the recommended

cooking time, potatoes should be slightly

firm because they will continue cooking

during standing time. After microwaving,

wrap potatoes in foil and set aside for

5 minutes. They will finish cooking while

standing.

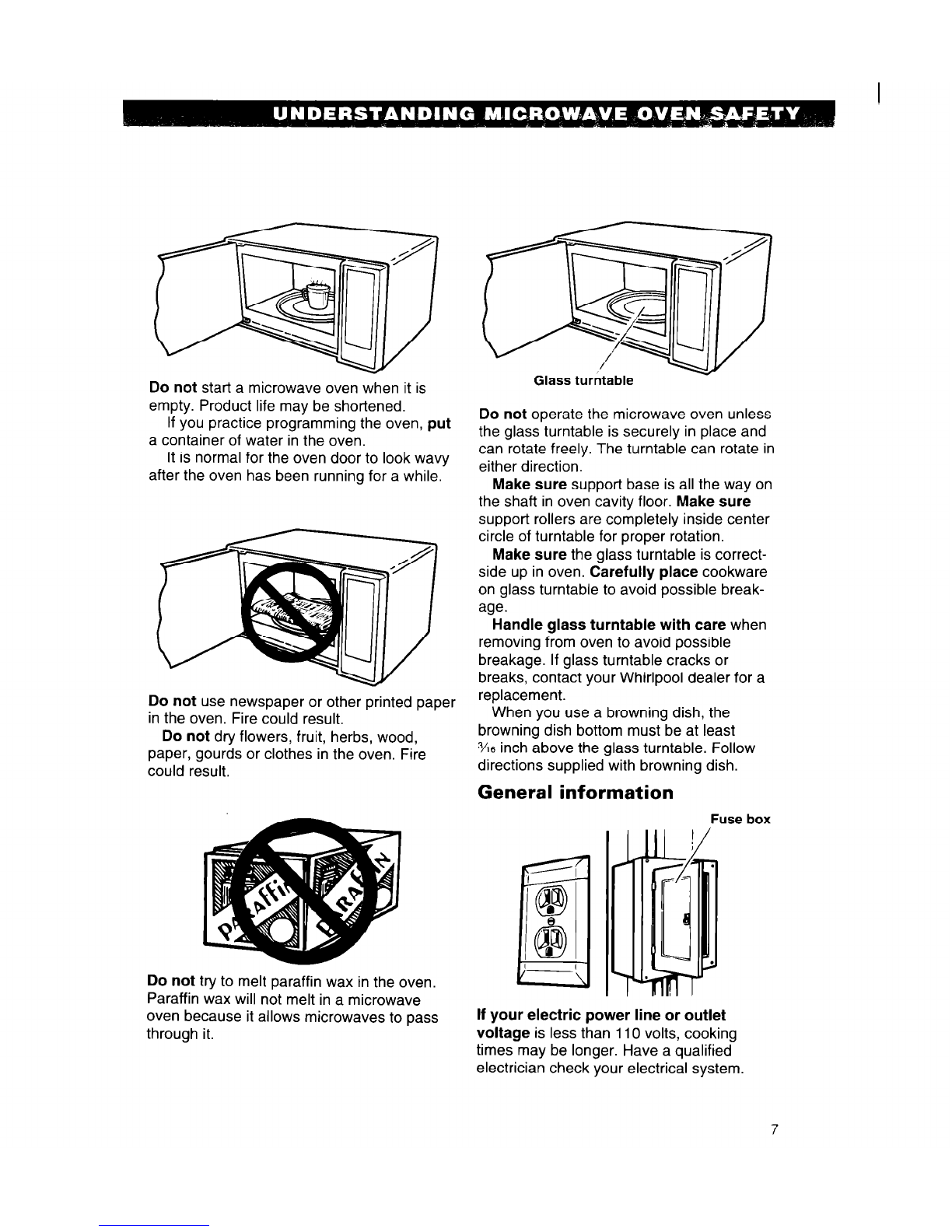

Do not start a microwave oven when it is

empty. Product life may be shortened.

If you practice programming the oven, put

a container of water in the oven.

It is normal for the oven door to look wavy

after the oven has been running for a while.

Do not use newspaper or other printed paper

in the oven. Fire could result.

Do not dry flowers, fruit, herbs, wood,

paper, gourds or clothes in the oven. Fire

could result.

Glass turntable

Do not operate the microwave oven unless

the glass turntable is securely in place and

can rotate freely. The turntable can rotate in

either direction.

Make sure support base is all the way on

the shaft in oven cavity floor. Make sure

support rollers are completely inside center

circle of turntable for proper rotation.

Make sure the glass turntable is correct-

side up in oven. Carefully place cookware

on glass turntable to avoid possible break-

age.

Handle glass turntable with care when

removing from oven to avoid possible

breakage. If glass turntable cracks or

breaks, contact your Whirlpool dealer for a

replacement.

When you use a browning dish, the

browning dish bottom must be at least

% inch above the glass turntable. Follow

directions supplied with browning dish.

General information

Do not try to melt paraffin wax in the oven.

Paraffin wax will not melt in a microwave

oven because it allows microwaves to pass

through it.

Fuse box

If your electric power line or outlet

voltage is less than 110 volts, cooking

times may be longer. Have a qualified

electrician check your electrical system.

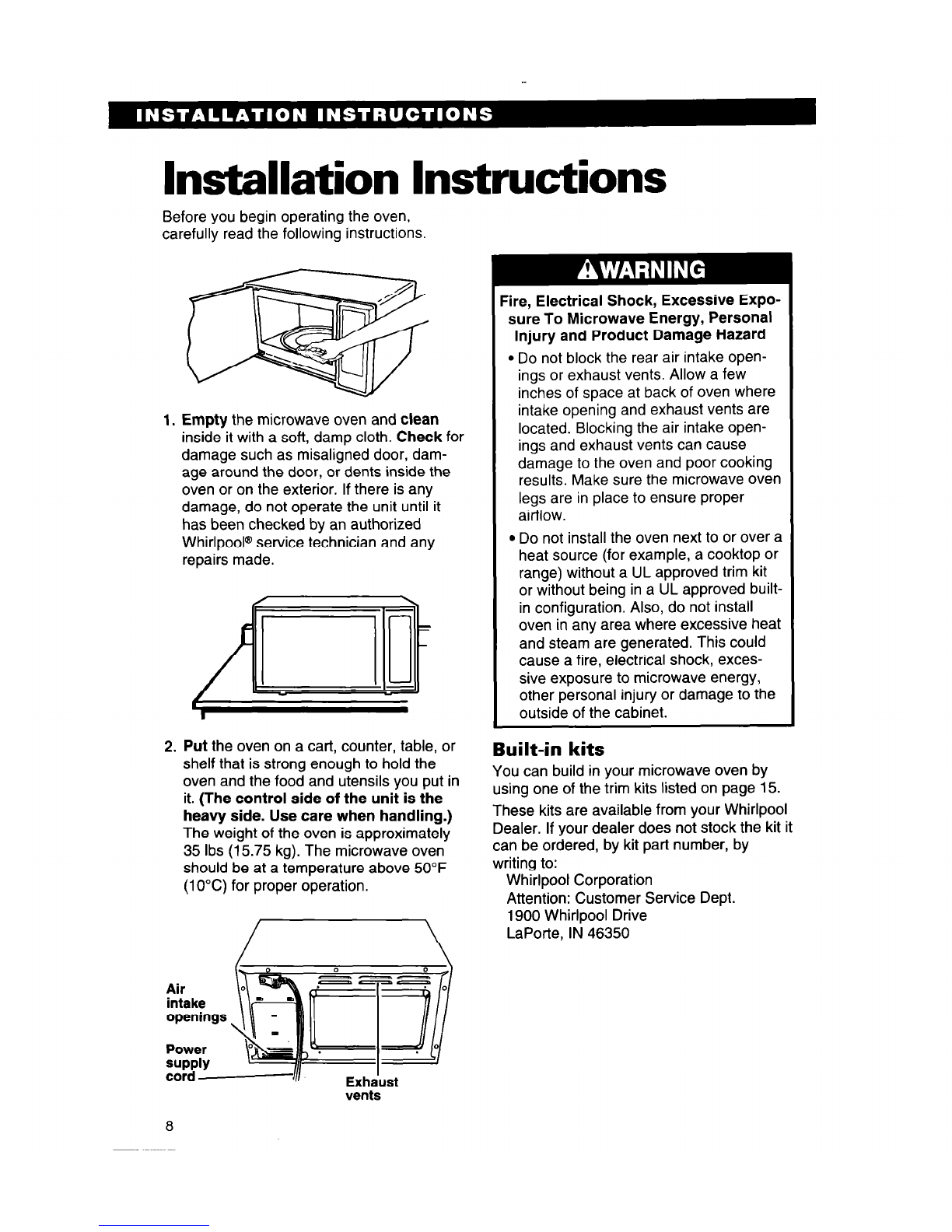

Installation Instructions

Before you begin operating the oven,

carefully read the following instructions.

Empty

the microwave oven and clean

inside it with a soft, damp cloth. Check for

damage such as misaligned door, dam-

age around the door, or dents inside the

oven or on the exterior. If there is any

damage, do not operate the unit until it

has been checked by an authorized

Whirlpool@ service technician and any

repairs made.

2. Put the oven on a cart, counter, table, or

shelf that is strong enough to hold the

oven and the food and utensils you put in

it. (The control side of the unit is the

heavy side. Use care when handling.)

The weight of the oven is approximately

35 Ibs (15.75 kg). The microwave oven

should be at a temperature above 50°F

(10%) for proper operation.

Air

intake

openings

Power

suPPlY

cord -

-ire, Electrical Shock, Excessive Expo-

sure To Microwave Energy, Personal

Injury and Product Damage Hazard

l Do not block the rear air intake open-

ings or exhaust vents. Allow a few

inches of space at back of oven where

intake opening and exhaust vents are

located. Blocking the air intake open-

ings and exhaust vents can cause

damage to the oven and poor cooking

results. Make sure the microwave oven

legs are in place to ensure proper

airflow.

l Do not install the oven next to or over a

heat source (for example, a cooktop or

range) without a UL approved trim kit

or without being in a UL approved built-

in configuration. Also, do not install

oven in any area where excessive heat

and steam are generated. This could

cause a fire, electrical shock, exces-

sive exposure to microwave energy,

other personal injury or damage to the

outside of the cabinet.

Built-in kits

You can build in your microwave oven by

using one of the trim kits listed on page 15.

These kits are available from your Whirlpool

Dealer. If your dealer does not stock the kit it

can be ordered, by kit part number, by

writing to:

Whirlpool Corporation

Attention: Customer Service Dept.

1900 Whirlpool Drive

LaPorte, IN 46350

vents

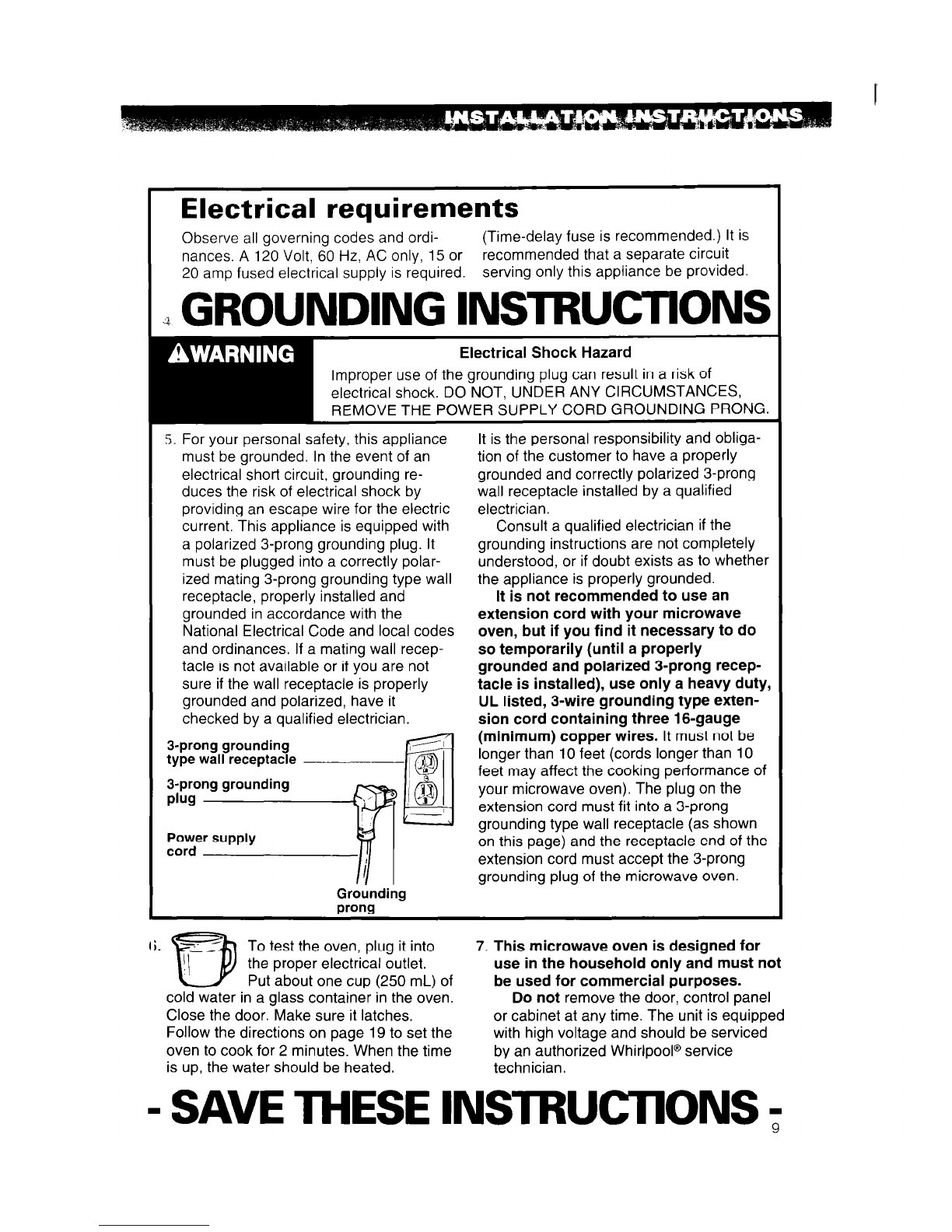

Electrical requirements

Observe all governing codes and ordi- (Time-delay fuse is recommended.) It is

nances. A 120 Volt, 60 Hz, AC only, 15 or recommended that a separate circuit

20 amp fused electrical supply is required. serving only this appliance be provided.

.aGROUNDING INSTRUCTIONS

Electrical Shock Hazard

Improper use of the grounding plug can result in a risk of

electrical shock. DO NOT, UNDER ANY CIRCUMSTANCES,

REMOVE THE POWER SUPPLY CORD GROUNDING PRONG.

5. For your personal safety, this appliance It is the personal responsibility and obliga-

must be grounded. In the event of an tion of the customer to have a properly

electrical short circuit, grounding re- grounded and correctly polarized 3-prong

duces the risk of electrical shock by wall receptacle installed by a qualified

providing an escape wire for the electric electrician.

current. This appliance is equipped with Consult a qualified electrician if the

a polarized 3-prong grounding plug. It grounding instructions are not completely

must be plugged into a correctly polar- understood, or if doubt exists as to whether

ized mating 3-prong grounding type wall the appliance is properly grounded.

receptacle, properly installed and It is not recommended to use an

grounded in accordance with the extension cord with your microwave

National Electrical Code and local codes oven, but if you find it necessary to do

and ordinances. If a mating wall recep- so temporarily (until a properly

tacle is not available or if you are not grounded and polarized 3-prong recep-

sure if the wall receptacle is properly tacle is installed), use only a heavy duty,

grounded and polarized, have it UL listed, 3-wire grounding type exten-

checked by a qualified electrician. sion cord containing three 16-gauge

3-prong grounding

I/’ (minimum) copper wires. It must not be

type wall receptacle --- ) J@

0 longer than 10 feet (cords longer than 10

feet may affect the cooking performance of

3-prong grounding

I s

Plug >’ 0 i@ your microwave oven). The plug on the

extension cord must fit into a 3-prong

-’

i grounding type wall receptacle (as shown

Power supply on this page) and the receptacle end of the

cord i extension cord must accept the 3-prong

grounding plug of the microwave oven.

Grounding

prong

Ii- !I-

D Totesttheoven,plugitinto 7. This microwave oven is designed for

L- the proper electrical outlet. use in the household only and must not

Put about one cup (250 mL) of be used for commercial purposes.

cold water in a glass container in the oven. Do not remove the door, control panel

Close the door. Make sure it latches. or cabinet at any time. The unit is equipped

Follow the directions on page 19 to set the with high voltage and should be serviced

oven to cook for 2 minutes. When the time by an authorized Whirlpool@ service

is up, the water should be heated. technician.

- SAVE THESE INSTRUCTlONS ;

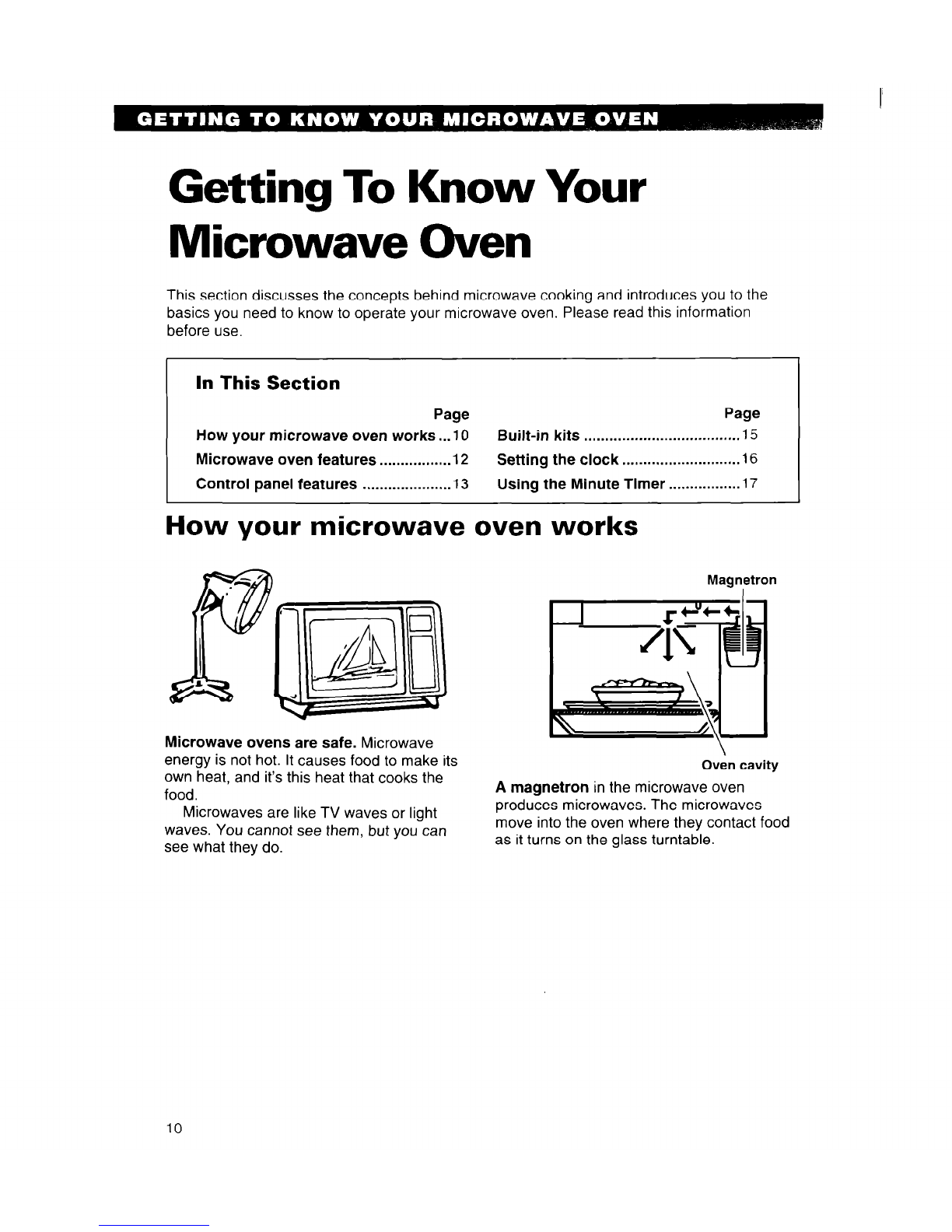

Getting To Know Your

Microwave Oven

This section discusses the concepts behind microwave cooking and introduces you to the

basics you need to know to operate your microwave oven. Please read this information

before use.

In This Section

Page Page

How your microwave oven works ...10 Built-in kits ............-- ,...... - .........15

Microwave oven features .................12 Setting the clock ............................16

Control panel features .....................13 Using the Minute Timer .................17

How your microwave oven works

Microwave ovens are safe. Microwave

energy is not hot. It causes food to make its

own heat, and it’s this heat that cooks the

food.

Microwaves are like TV waves or light

waves. You cannot see them, but you can

see what they do.

Magnetron

mij

Oven cavity

A magnetron in the microwave oven

produces microwaves. The microwaves

move into the oven where they contact food

as it turns on the glass turntable.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Whirlpool Four à micro-ondes

Whirlpool

Whirlpool MH3184XPY4 Manuel utilisateur

Whirlpool

Whirlpool WML55011HS Manuel utilisateur

Whirlpool

Whirlpool MT21OOCY Manuel utilisateur

Whirlpool

Whirlpool GH7208XRY Manuel utilisateur

Whirlpool

Whirlpool RMC275PD Manuel utilisateur

Whirlpool

Whirlpool WMC50522HV Manuel utilisateur

Whirlpool

Whirlpool M 542 Manuel utilisateur

Whirlpool

Whirlpool COOK20 MWP201SB Manuel utilisateur

Whirlpool

Whirlpool AT 310/WH Manuel utilisateur

Whirlpool

Whirlpool WM1807 Manuel utilisateur

Whirlpool

Whirlpool AVM 733 Manuel d'utilisation et d'entretien

Whirlpool

Whirlpool MH8150XM Manuel utilisateur

Whirlpool

Whirlpool MW8550XS Manuel utilisateur

Whirlpool

Whirlpool Microwave Hood Combination MH3184XPS5 Manuel utilisateur

Whirlpool

Whirlpool MH1160XSD0 Manuel utilisateur

Whirlpool

Whirlpool AMW 842 Manuel d'utilisation et d'entretien

Whirlpool

Whirlpool MW8550XL Manuel utilisateur

Whirlpool

Whirlpool MK1074XHQ Manuel utilisateur

Whirlpool

Whirlpool MH660XV-1 Manuel utilisateur

Whirlpool

Whirlpool GSC308PJS3 Manuel utilisateur

Whirlpool

Whirlpool MH6700XW-1 Manuel utilisateur

Whirlpool

Whirlpool MH1150XMS Manuel utilisateur

Whirlpool

Whirlpool MW8901XS Manuel utilisateur

Whirlpool

Whirlpool GH6177XPQ - 1.7 CF SpeedCook Microwave Manuel utilisateur

Manuels Four à micro-ondes populaires d'autres marques

Daewoo

Daewoo KOG-574R0S Manuel utilisateur

LG MH7040SS Manuel utilisateur

Sharp

Sharp R-895(AL)M Manuel utilisateur

Dometic

Dometic DOTRM13W Manuel utilisateur

Sanyo

Sanyo EM-X680 Manuel utilisateur

Sharp

Sharp R-393M Manuel utilisateur

KitchenAid

KitchenAid KMCX4510 Instructions d'installation

Smeg

Smeg S45MCX1 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHM2044 Manuel utilisateur

Sunbeam

Sunbeam SMW759 Manuel utilisateur

Gallet

Gallet FMOE230S Manuel utilisateur

Bosch

Bosch CEG732X.1B Manuel utilisateur

Dometic

Dometic Roadmate 230 Manuel utilisateur

Samsung

Samsung SJ0396W Manuel utilisateur

Sanyo

Sanyo EM-P494WS Manuel utilisateur

Sharp

Sharp R-240 Manuel utilisateur

Electrolux

Electrolux EMS2840 Manuel utilisateur

Daewoo

Daewoo KOC-984T2S13 Manuel utilisateur
