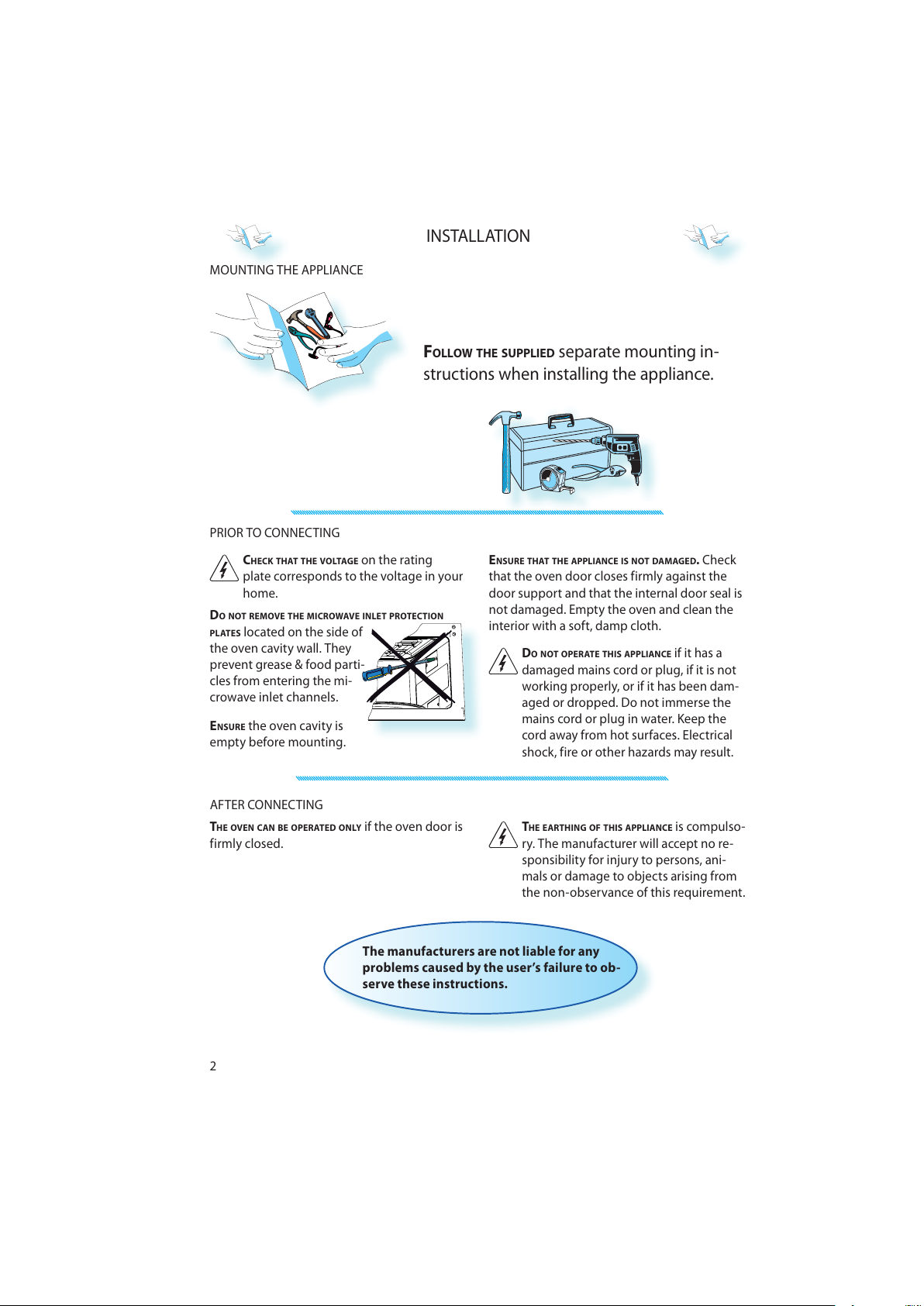

INSTALLATION

PRIOR TO CONNECTING

ENSURE THAT THE APPLIANCE IS NOT DAMAGED. Check

that the oven door closes firmly against the

door support and that the internal door seal is

not damaged. Empty the oven and clean the

interior with a soft, damp cloth.

AFTER CONNECTING

THE EARTHING OF THIS APPLIANCE is compulso-

ry. The manufacturer will accept no re-

sponsibility for injury to persons, ani-

mals or damage to objects arising from

the non-observance of this requirement.

The manufacturers are not liable for any

problems caused by the user’s failure to ob-

serve these instructions.

DONOT OPERATE THIS APPLIANCE if it has a

damaged mains cord or plug, if it is not

working properly, or if it has been dam-

aged or dropped. Do not immerse the

mains cord or plug in water. Keep the

cord away from hot surfaces. Electrical

shock, fire or other hazards may result.

DONOT REMOVE THE MICROWAVE INLET PROTECTION

PLATES located on the side of

the oven cavity wall. They

prevent grease & food parti-

cles from entering the mi-

crowave inlet channels.

ENSURE the oven cavity is

empty before mounting.

CHECK THAT THE VOLTAGE on the rating

plate corresponds to the voltage in your

home.

THE OVEN CAN BE OPERATED ONLY if the oven door is

firmly closed.

MOUNTING THE APPLIANCE

FOLLOW THE SUPPLIED separate mounting in-

structions when installing the appliance.

All manuals and user guides at all-guides.com

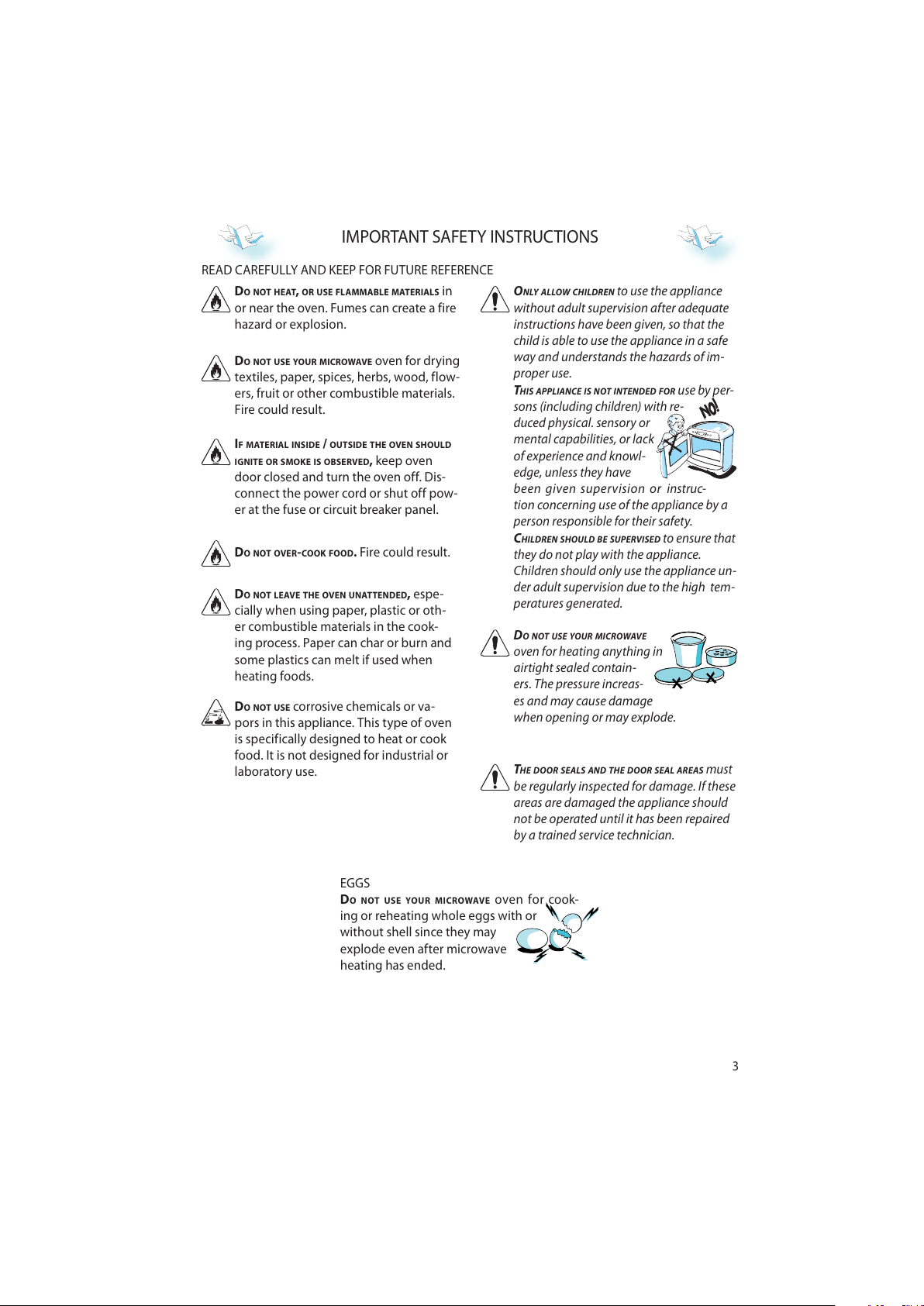

IMPORTANT SAFETY INSTRUCTIONS

DONOT HEAT, OR USE FLAMMABLE MATERIALS in

or near the oven. Fumes can create a fire

hazard or explosion.

DONOT USE YOUR MICROWAVE oven for drying

textiles, paper, spices, herbs, wood, flow-

ers, fruit or other combustible materials.

Fire could result.

DONOT OVER-COOK FOOD. Fire could result.

DONOT LEAVE THE OVEN UNATTENDED, espe-

cially when using paper, plastic or oth-

er combustible materials in the cook-

ing process. Paper can char or burn and

some plastics can melt if used when

heating foods.

IFMATERIAL INSIDE / OUTSIDE THE OVEN SHOULD

IGNITE OR SMOKE IS OBSERVED, keep oven

door closed and turn the oven off. Dis-

connect the power cord or shut off pow-

er at the fuse or circuit breaker panel.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

ONLY ALLOW CHILDREN to use the appliance

without adult supervision after adequate

instructions have been given, so that the

child is able to use the appliance in a safe

way and understands the hazards of im-

proper use.

THIS APPLIANCE IS NOT INTENDED FOR use by per-

sons (including children) with re-

duced physical. sensory or

mental capabilities, or lack

of experience and knowl-

edge, unless they have

been given supervision or instruc-

tion concerning use of the appliance by a

person responsible for their safety.

CHILDREN SHOULD BE SUPERVISED to ensure that

they do not play with the appliance.

Children should only use the appliance un-

der adult supervision due to the high tem-

peratures generated.

DONOT USE YOUR MICROWAVE

oven for heating anything in

airtight sealed contain-

ers. The pressure increas-

es and may cause damage

when opening or may explode.

EGGS

DONOT USE YOUR MICROWAVE oven for cook-

ing or reheating whole eggs with or

without shell since they may

explode even after microwave

heating has ended.

THE DOOR SEALS AND THE DOOR SEAL AREAS must

be regularly inspected for damage. If these

areas are damaged the appliance should

not be operated until it has been repaired

by a trained service technician.

DONOT USE corrosive chemicals or va-

pors in this appliance. This type of oven

is specifically designed to heat or cook

food. It is not designed for industrial or

laboratory use.

All manuals and user guides at all-guides.com

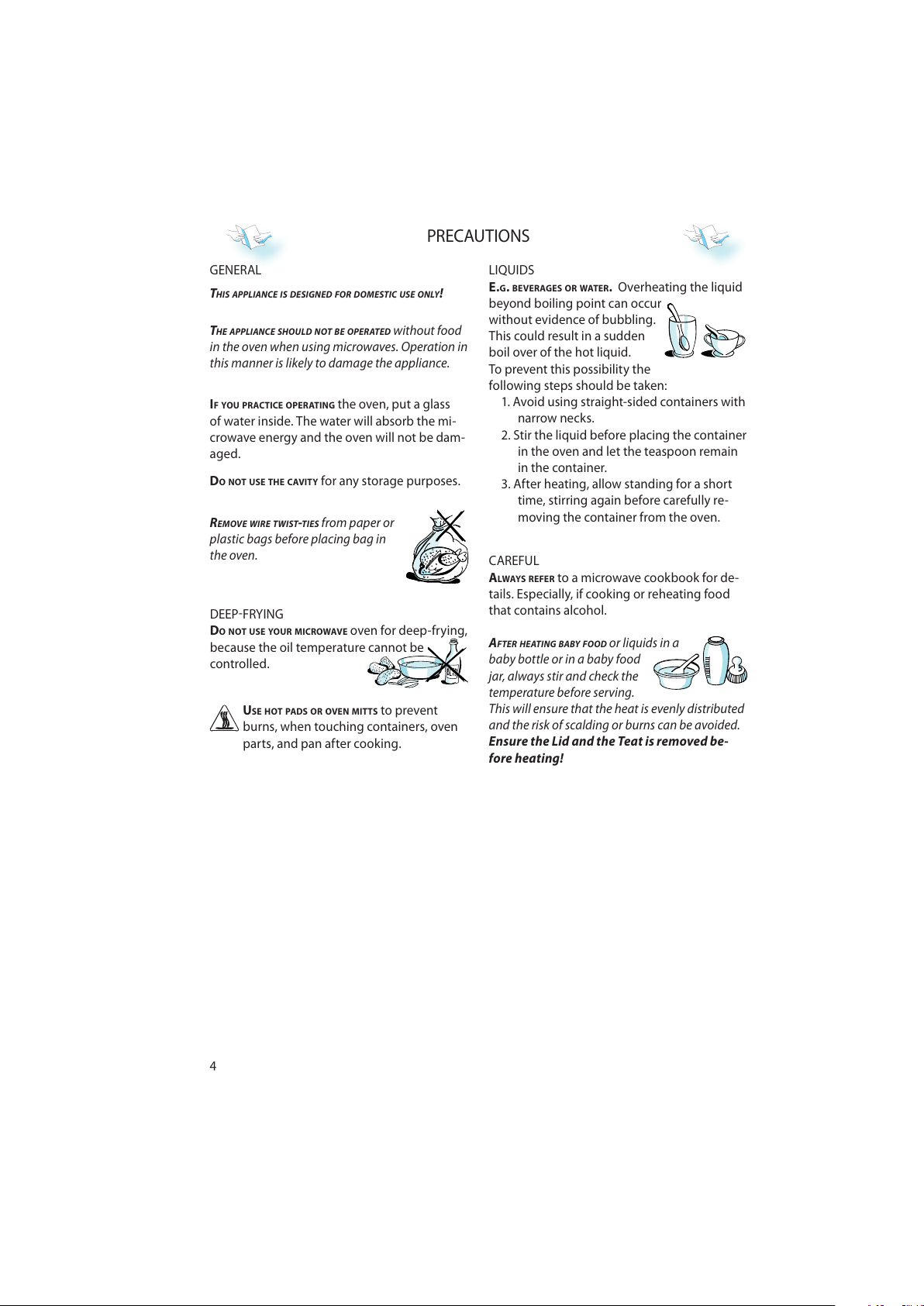

GENERAL

THIS APPLIANCE IS DESIGNED FOR DOMESTIC USE ONLY!

THE APPLIANCE SHOULD NOT BE OPERATED without food

in the oven when using microwaves. Operation in

this manner is likely to damage the appliance.

IFYOU PRACTICE OPERATING the oven, put a glass

of water inside. The water will absorb the mi-

crowave energy and the oven will not be dam-

aged.

REMOVE WIRE TWIST-TIES from paper or

plastic bags before placing bag in

the oven.

DEEPFRYING

DONOT USE YOUR MICROWAVE oven for deep-frying,

because the oil temperature cannot be

controlled.

LIQUIDS

E.G. BEVERAGES OR WATER. Overheating the liquid

beyond boiling point can occur

without evidence of bubbling.

This could result in a sudden

boil over of the hot liquid.

To prevent this possibility the

following steps should be taken:

1. Avoid using straight-sided containers with

narrow necks.

2. Stir the liquid before placing the container

in the oven and let the teaspoon remain

in the container.

3. After heating, allow standing for a short

time, stirring again before carefully re-

moving the container from the oven.

CAREFUL

ALWAYS REFER to a microwave cookbook for de-

tails. Especially, if cooking or reheating food

that contains alcohol.

AFTER HEATING BABY FOOD or liquids in a

baby bottle or in a baby food

jar, always stir and check the

temperature before serving.

This will ensure that the heat is evenly distributed

and the risk of scalding or burns can be avoided.

Ensure the Lid and the Teat is removed be-

fore heating!

PRECAUTIONS

USE HOT PADS OR OVEN MITTS to prevent

burns, when touching containers, oven

parts, and pan after cooking.

DONOT USE THE CAVITY for any storage purposes.

All manuals and user guides at all-guides.com

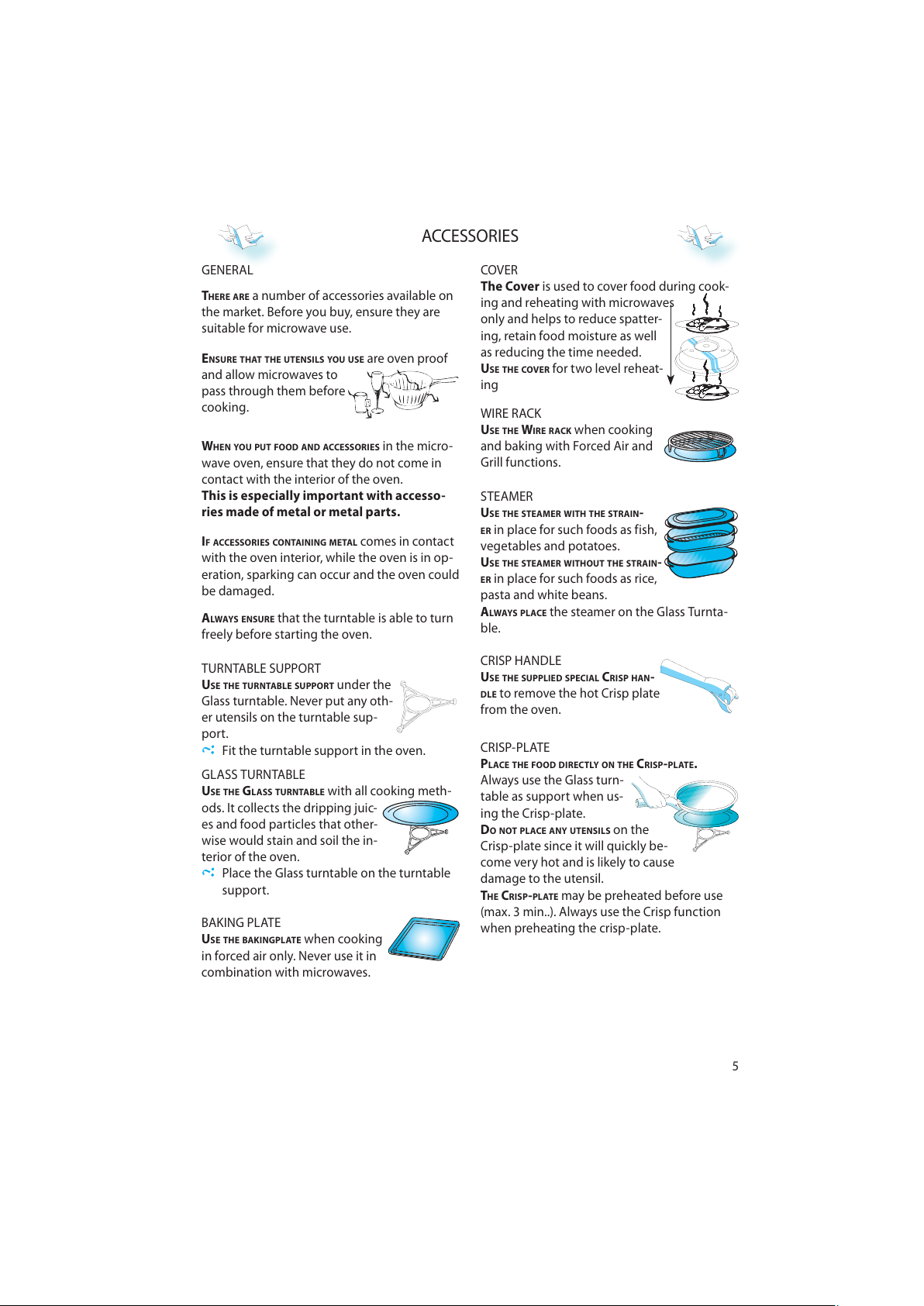

ACCESSORIES

GENERAL

IFACCESSORIES CONTAINING METAL comes in contact

with the oven interior, while the oven is in op-

eration, sparking can occur and the oven could

be damaged.

TURNTABLE SUPPORT

USE THE TURNTABLE SUPPORT under the

Glass turntable. Never put any oth-

er utensils on the turntable sup-

port.

Fit the turntable support in the oven.

GLASS TURNTABLE

USE THE GLASS TURNTABLE with all cooking meth-

ods. It collects the dripping juic-

es and food particles that other-

wise would stain and soil the in-

terior of the oven.

Place the Glass turntable on the turntable

support.



ENSURE THAT THE UTENSILS YOU USE are oven proof

and allow microwaves to

pass through them before

cooking.

WHEN YOU PUT FOOD AND ACCESSORIES in the micro-

wave oven, ensure that they do not come in

contact with the interior of the oven.

This is especially important with accesso-

ries made of metal or metal parts.

ALWAYS ENSURE that the turntable is able to turn

freely before starting the oven.

CRISP HANDLE

USE THE SUPPLIED SPECIAL CRISP HAN-

DLE to remove the hot Crisp plate

from the oven.

CRISP-PLATE

PLACE THE FOOD DIRECTLY ON THE CRISP-PLATE.

Always use the Glass turn-

table as support when us-

ing the Crisp-plate.

DONOT PLACE ANY UTENSILS on the

Crisp-plate since it will quickly be-

come very hot and is likely to cause

damage to the utensil.

THE CRISP-PLATE may be preheated before use

(max. 3 min..). Always use the Crisp function

when preheating the crisp-plate.

THERE ARE a number of accessories available on

the market. Before you buy, ensure they are

suitable for microwave use.

BAKING PLATE

USE THE BAKINGPLATE when cooking

in forced air only. Never use it in

combination with microwaves.

COVER

The Cover is used to cover food during cook-

ing and reheating with microwaves

only and helps to reduce spatter-

ing, retain food moisture as well

as reducing the time needed.

USE THE COVER for two level reheat-

ing

WIRE RACK

USE THE WIRE RACK when cooking

and baking with Forced Air and

Grill functions.

STEAMER

USE THE STEAMER WITH THE STRAIN-

ER in place for such foods as fish,

vegetables and potatoes.

USE THE STEAMER WITHOUT THE STRAIN-

ER in place for such foods as rice,

pasta and white beans.

ALWAYS PLACE the steamer on the Glass Turnta-

ble.

All manuals and user guides at all-guides.com

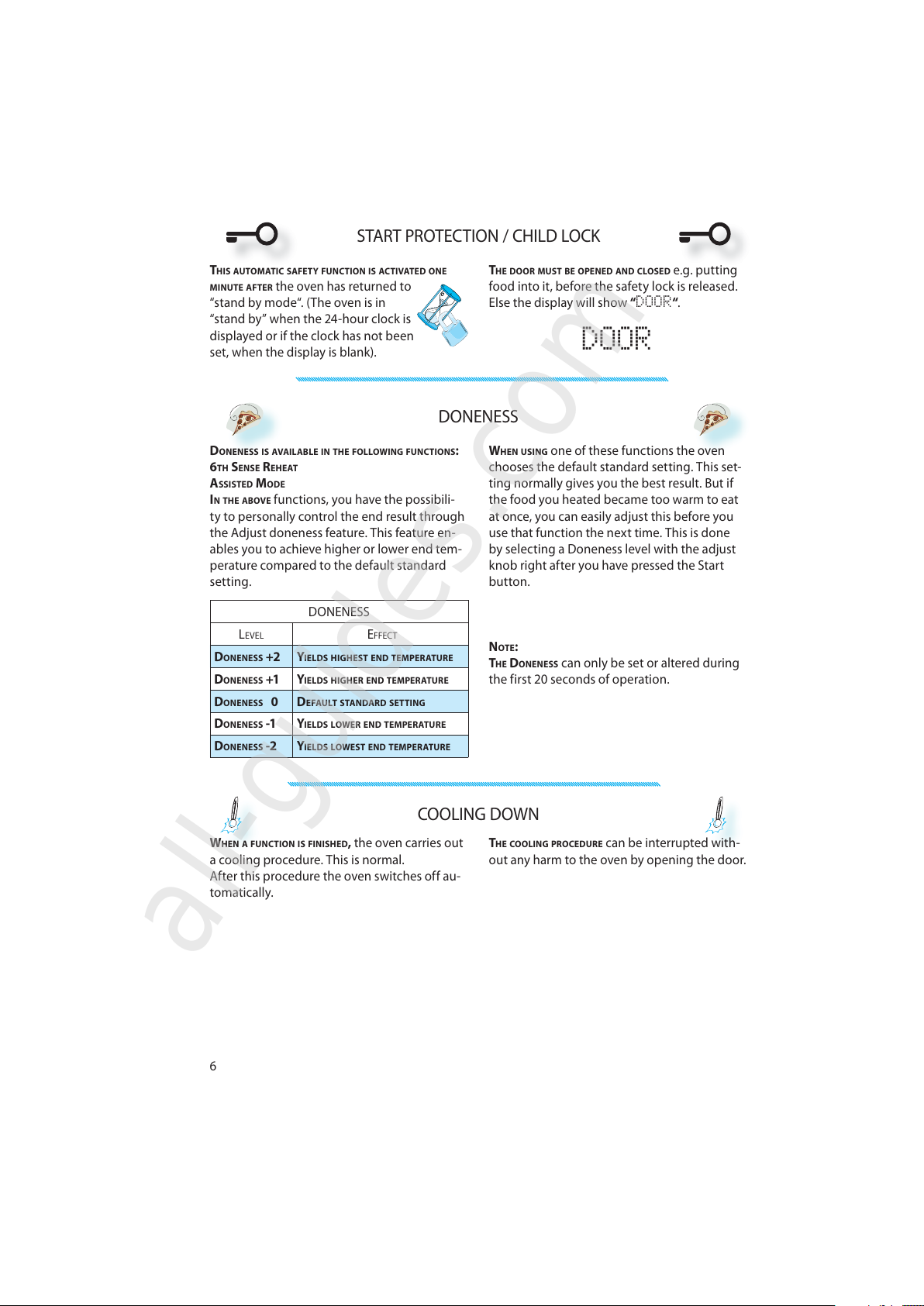

START PROTECTION / CHILD LOCK

THIS AUTOMATIC SAFETY FUNCTION IS ACTIVATED ONE

MINUTE AFTER the oven has returned to

“stand by mode“. (The oven is in

“stand by” when the 24-hour clock is

displayed or if the clock has not been

set, when the display is blank).

THE DOOR MUST BE OPENED AND CLOSED e.g. putting

food into it, before the safety lock is released.

Else the display will show “DOOR“.

DOOR

DONENESS

DONENESS IS AVAILABLE IN THE FOLLOWING FUNCTIONS:

6TH SENSE REHEAT

ASSISTED MODE

INTHE ABOVE functions, you have the possibili-

ty to personally control the end result through

the Adjust doneness feature. This feature en-

ables you to achieve higher or lower end tem-

perature compared to the default standard

setting.

WHEN USING one of these functions the oven

chooses the default standard setting. This set-

ting normally gives you the best result. But if

the food you heated became too warm to eat

at once, you can easily adjust this before you

use that function the next time. This is done

by selecting a Doneness level with the adjust

knob right after you have pressed the Start

button.

NOTE:

THE DONENESS can only be set or altered during

the first 20 seconds of operation.

COOLING DOWN

WHEN AFUNCTION IS FINISHED, the oven carries out

a cooling procedure. This is normal.

After this procedure the oven switches off au-

tomatically.

THE COOLING PROCEDURE can be interrupted with-

out any harm to the oven by opening the door.

DONENESS

LEVEL EFFECT

DONENESS +2 YIELDS HIGHEST END TEMPERATURE

DONENESS +1 YIELDS HIGHER END TEMPERATURE

DONENESS 0 DEFAULT STANDARD SETTING

DONENESS -1 YIELDS LOWER END TEMPERATURE

DONENESS -2 YIELDS LOWEST END TEMPERATURE

All manuals and user guides at all-guides.com

all-guides.com

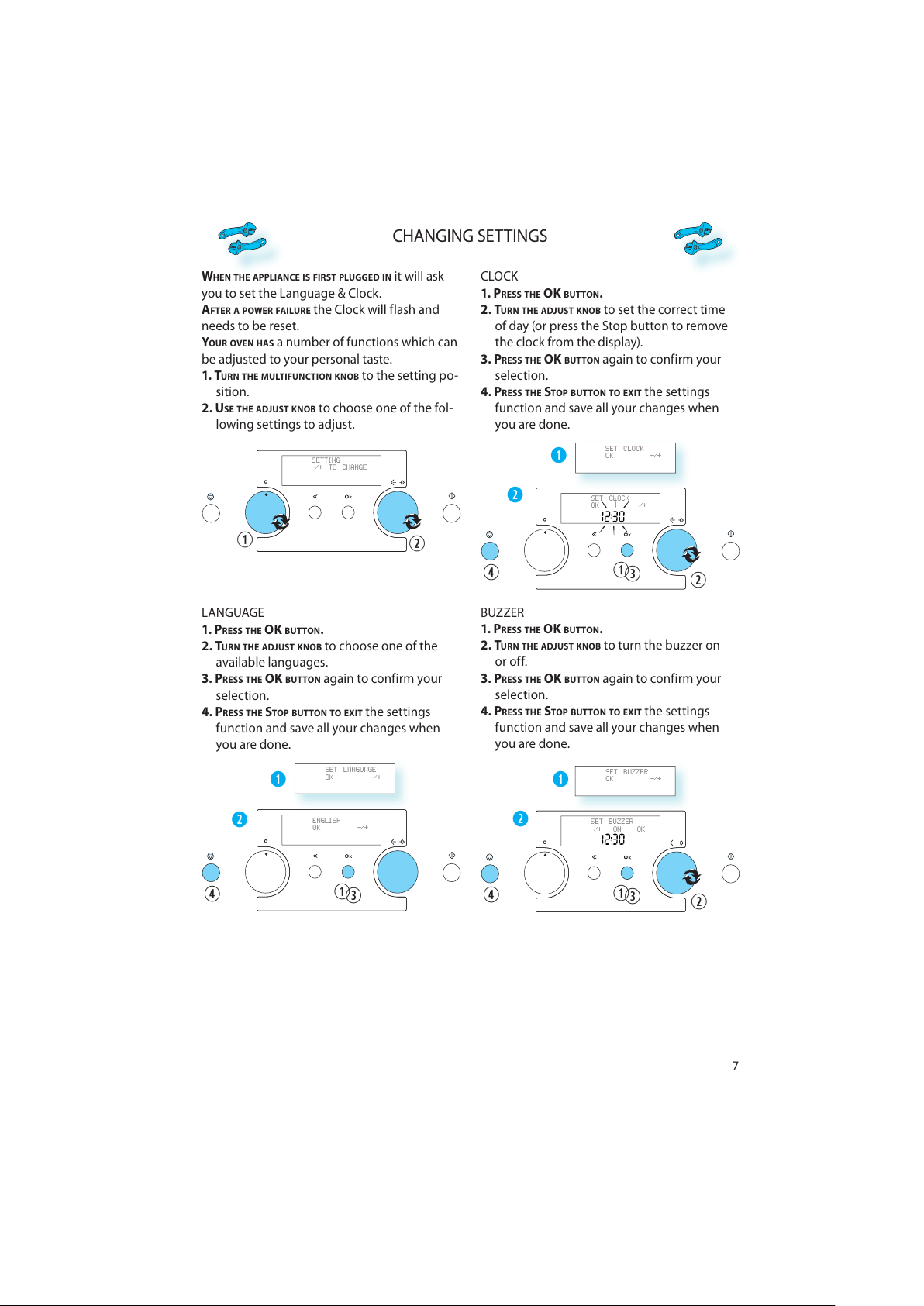

CHANGING SETTINGS

WHEN THE APPLIANCE IS FIRST PLUGGED IN it will ask

you to set the Language & Clock.

AFTER APOWER FAILURE the Clock will flash and

needs to be reset.

YOUR OVEN HAS a number of functions which can

be adjusted to your personal taste.

1. TURN THE MULTIFUNCTION KNOB to the setting po-

sition.

2. USE THE ADJUST KNOB to choose one of the fol-

lowing settings to adjust.

LANGUAGE

1. PRESS THE OK BUTTON.

2. TURN THE ADJUST KNOB to choose one of the

available languages.

3. PRESS THE OK BUTTON again to confirm your

selection.

4. PRESS THE STOP BUTTON TO EXIT the settings

function and save all your changes when

you are done.

CLOCK

1. PRESS THE OK BUTTON.

2. TURN THE ADJUST KNOB to set the correct time

of day (or press the Stop button to remove

the clock from the display).

3. PRESS THE OK BUTTON again to confirm your

selection.

4. PRESS THE STOP BUTTON TO EXIT the settings

function and save all your changes when

you are done.

SETTING

-/+ TO CHANGE

ENGLISH

OK -/+

SET LANGUAGE

OK -/+

SET CLOCK

OK -/+

SET CLOCK

OK -/+

BUZZER

1. PRESS THE OK BUTTON.

2. TURN THE ADJUST KNOB to turn the buzzer on

or off.

3. PRESS THE OK BUTTON again to confirm your

selection.

4. PRESS THE STOP BUTTON TO EXIT the settings

function and save all your changes when

you are done.

SET BUZZER

OK -/+

SET BUZZER

-/+ ON OK

All manuals and user guides at all-guides.com

CONTRAST

1. PRESS THE OK BUTTON.

2. TURN THE ADJUST KNOB to set the level of con-

trast suitable to your preference.

3. PRESS THE OK BUTTON again to confirm your

selection.

4. PRESS THE STOP BUTTON TO EXIT the settings

function and save all your changes when

you are done.

SET CONTRAST

OK -/+

SET CONTRAST

KITCHEN TIMER

USE THIS FUNCTION when you need a kitchen tim-

er to measure time for various purposes such

as cooking eggs or letting the dough rise be-

fore baking etc.

1. TURN THE MULTIFUNCTION KNOB to the zero posi-

tion. The clock is displayed if it has been set,

else the display will be blank.

2. PRESS THE OK BUTTON to invoke setting mode.

3. TURN THE ADJUST KNOB TO SET THE TIME to mea-

sure.

THE KITCHEN TIMER AUTOMATICALLY STARTS the count-

down after 10 seconds. Press the Start button

to if you wish to start sooner.

ANACOUSTIC SIGNAL will be heard when the timer

has finished to count down.

4. TOTURN THE KITCHEN TIMER OFF before the count-

down have finished, press the Stop button.

TIMER

-/+ TO SET

CHANGING SETTINGS

BRIGHTNESS

1. PRESS THE OK BUTTON.

2. TURN THE ADJUST KNOB to set the level of bright-

ness suitable to your preference.

3. PRESS THE OK BUTTON again to confirm your

selection.

4. PRESS THE STOP BUTTON TO EXIT the settings

function and save all your changes when

you are done.

SET BRIGHTNESS

OK -/+

SET BRIGHTNESS

rqw

All manuals and user guides at all-guides.com

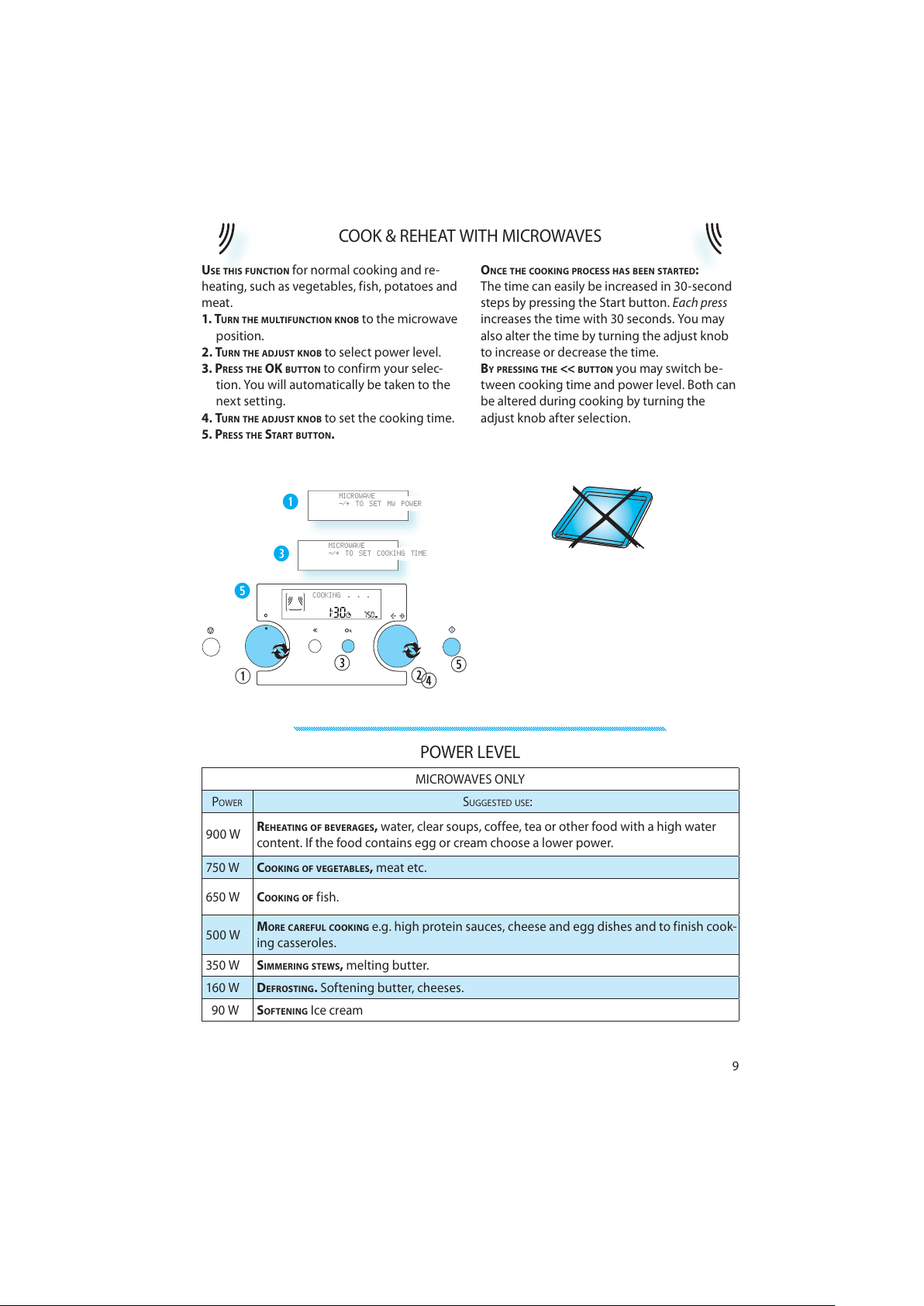

COOK & REHEAT WITH MICROWAVES

USE THIS FUNCTION for normal cooking and re-

heating, such as vegetables, fish, potatoes and

meat.

1. TURN THE MULTIFUNCTION KNOB to the microwave

position.

2. TURN THE ADJUST KNOB to select power level.

3. PRESS THE OK BUTTON to confirm your selec-

tion. You will automatically be taken to the

next setting.

4. TURN THE ADJUST KNOB to set the cooking time.

5. PRESS THE START BUTTON.

ONCE THE COOKING PROCESS HAS BEEN STARTED:

The time can easily be increased in 30-second

steps by pressing the Start button. Each press

increases the time with 30 seconds. You may

also alter the time by turning the adjust knob

to increase or decrease the time.

BYPRESSING THE << BUTTON you may switch be-

tween cooking time and power level. Both can

be altered during cooking by turning the

adjust knob after selection.

MICROWAVE

-/+ TO SET MW POWER

MICROWAVE

-/+ TO SET COOKING TIME

COOKING . . .

POWER LEVEL

MICROWAVES ONLY

POWER SUGGESTED USE:

900 W REHEATING OF BEVERAGES, water, clear soups, coffee, tea or other food with a high water

content. If the food contains egg or cream choose a lower power.

750 W COOKING OF VEGETABLES, meat etc.

650 W COOKING OF fish.

500 W MORE CAREFUL COOKING e.g. high protein sauces, cheese and egg dishes and to finish cook-

ing casseroles.

350 W SIMMERING STEWS, melting butter.

160 W DEFROSTING. Softening butter, cheeses.

90 W SOFTENING Ice cream

All manuals and user guides at all-guides.com

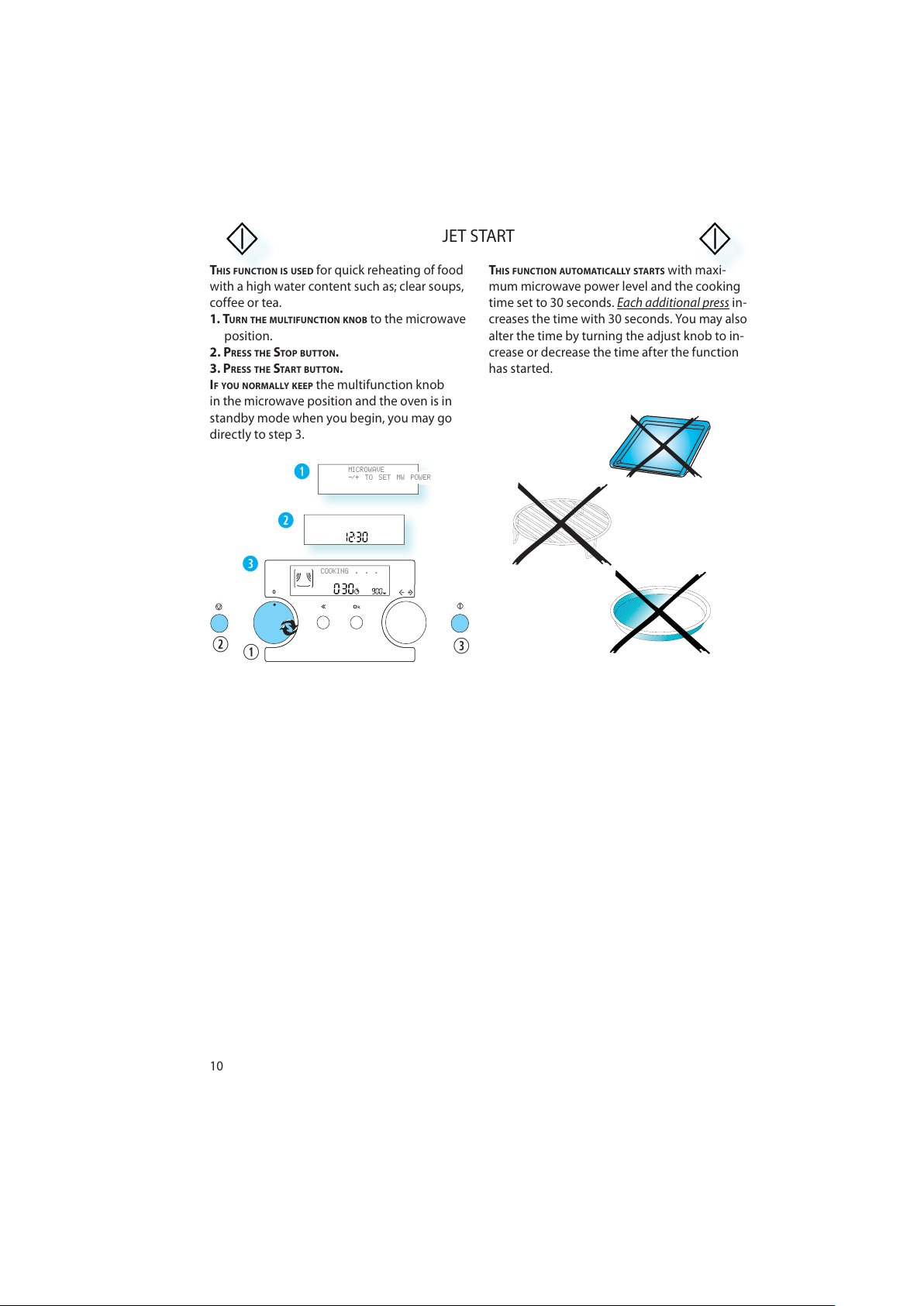

THIS FUNCTION IS USED for quick reheating of food

with a high water content such as; clear soups,

coffee or tea.

1. TURN THE MULTIFUNCTION KNOB to the microwave

position.

2. PRESS THE STOP BUTTON.

3. PRESS THE START BUTTON.

IFYOU NORMALLY KEEP the multifunction knob

in the microwave position and the oven is in

standby mode when you begin, you may go

directly to step 3.

THIS FUNCTION AUTOMATICALLY STARTS with maxi-

mum microwave power level and the cooking

time set to 30 seconds. Each additional press in-

creases the time with 30 seconds. You may also

alter the time by turning the adjust knob to in-

crease or decrease the time after the function

has started.

JET START

MICROWAVE

-/+ TO SET MW POWER

COOKING . . .

All manuals and user guides at all-guides.com

Autres manuels pour AMW 575 - GUIDE

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Whirlpool Four à micro-ondes

Whirlpool

Whirlpool MW3500XP Manuel utilisateur

Whirlpool

Whirlpool MT6120XE Manuel utilisateur

Whirlpool

Whirlpool MH3185XPB1 Manuel utilisateur

Whirlpool

Whirlpool YWMH31017HB Manuel utilisateur

Whirlpool

Whirlpool MBNA910X Manuel utilisateur

Whirlpool

Whirlpool AMW 831 Manuel utilisateur

Whirlpool

Whirlpool MT9102SF Manuel utilisateur

Whirlpool

Whirlpool MWl500XS Manuel utilisateur

Whirlpool

Whirlpool MWF 800 Manuel utilisateur

Whirlpool

Whirlpool MWC25 Manuel utilisateur

Whirlpool

Whirlpool MWO 618/01 WH Manuel utilisateur

Whirlpool

Whirlpool WMH1162XVD - 1.6 cu. ft. Microwave-Range Hood... Manuel utilisateur

Whirlpool

Whirlpool YUMV4084BS Manuel utilisateur

Whirlpool

Whirlpool AMW 735 Manuel utilisateur

Whirlpool

Whirlpool AMW 545 Manuel utilisateur

Whirlpool

Whirlpool GH5184XPB3 Manuel utilisateur

Whirlpool

Whirlpool WMH31017FW Manuel utilisateur

Whirlpool

Whirlpool YMH1170XSB1 Manuel utilisateur

Whirlpool

Whirlpool WMH53521HV Manuel utilisateur

Whirlpool

Whirlpool MWO 611 WH Manuel utilisateur

Whirlpool

Whirlpool YWMC50522 Manuel utilisateur

Whirlpool

Whirlpool JMV8186AA Manuel utilisateur

Whirlpool

Whirlpool MH7155XM Manuel utilisateur

Whirlpool

Whirlpool GMC275PDB2 Manuel utilisateur

Manuels Four à micro-ondes populaires d'autres marques

Daewoo

Daewoo KOG-574R0S Manuel utilisateur

LG MH7040SS Manuel utilisateur

Sharp

Sharp R-895(AL)M Manuel utilisateur

Dometic

Dometic DOTRM13W Manuel utilisateur

Sanyo

Sanyo EM-X680 Manuel utilisateur

Sharp

Sharp R-393M Manuel utilisateur

KitchenAid

KitchenAid KMCX4510 Instructions d'installation

Smeg

Smeg S45MCX1 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHM2044 Manuel utilisateur

Sunbeam

Sunbeam SMW759 Manuel utilisateur

Gallet

Gallet FMOE230S Manuel utilisateur

Bosch

Bosch CEG732X.1B Manuel utilisateur

Dometic

Dometic Roadmate 230 Manuel utilisateur

Samsung

Samsung SJ0396W Manuel utilisateur

Sanyo

Sanyo EM-P494WS Manuel utilisateur

Sharp

Sharp R-240 Manuel utilisateur

Electrolux

Electrolux EMS2840 Manuel utilisateur

Daewoo

Daewoo KOC-984T2S13 Manuel utilisateur
