Whirlpool EV209NBTQ00 Manuel utilisateur

CABINET PARTS

For Model: EV209NBTQ00

(White)

5−08 Litho in U.S.A. (wam)(bay) Part No. W10207390 Rev.A

VERTICAL FREEZER

CABINET PARTS

For Model: EV209NBTQ00

(White)

W10207390

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10164586

Owners Manual

W10164585

Energy Label/Tag

W10183363

Instructions,

Field Installable

Ice Maker

W10164537

Hinge, Center

3 4356803 Clip, Grille

4 8210310 Grille

5 4390511 Screw

6 4390489 Shim, Top

7 4390905 Power Light

Assembly

8 4357279 Cover, Hinge

9 4390489 Shim, Bottom

10 8210222 Hinge, Top

11 8210235 Hinge, Bottom

W10189183

Rail, Mullion

W10177675

Leg, Leveler(2)

14 4356830 Screw

W10164544

Grommet, Drain

W10164631

Cord, Power

17 Cabinet (Not A

Serviceable Part)

18 4357159 Clamp, Tube

19 4357243 Screw

W10164550

Shield, Drain

Trough

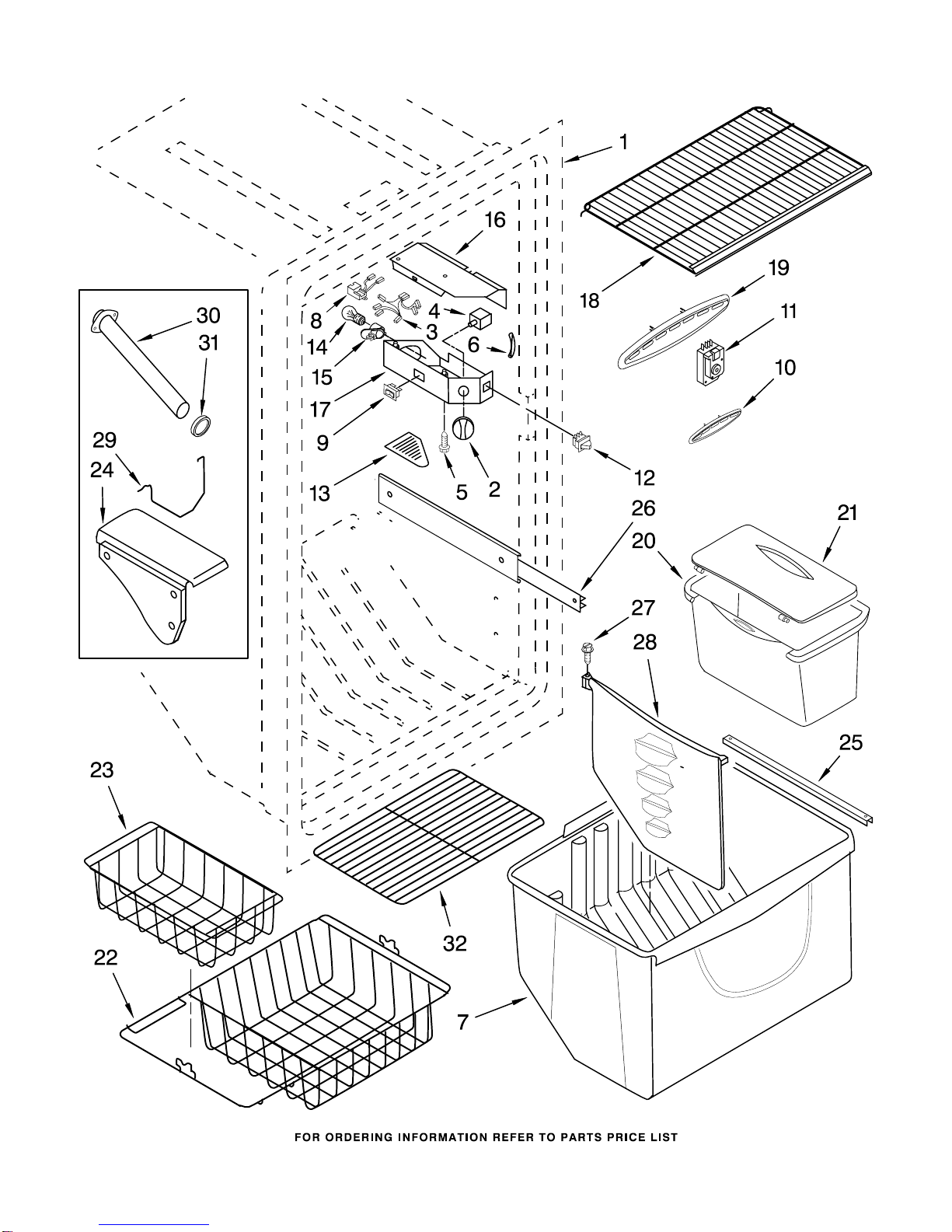

LINER PARTS

For Model: EV209NBTQ00

(White)

W10207390

LINER PARTS

For Model: EV209NBTQ00

(White)

W10207390

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 8210348 Knob, Control

W10164510

Harness, Wire

(Control Box)

4 8210344 Thermostat

5 4390511 Screw

6 8210246 Tubing,

Thermostat

W10164543

Basket, Large

W10164512

Alarm, Door

Ajar

W10164530

Switch, Alarm

W10164560

Baffle, Short (2)

11 4357124 Defrost Timer

W10164501

Switch, Light

13 8210349 Lens, Light

14 4390465 Bulb, Light

15 8210350 Socket, Light

16 8210351 Shield, Light

W10164503

Box, Control

W10164533

Shelf, Wire (3)

W10164558

Baffle, Long (1)

W10164621

Bin, Ice

W10164622

Cover, Ice Bin

W10164565

Basket

(Non−I/M Unit)

W10164583

Basket, Divider

(Non−Icemaker)

W10164566

Cover

(I/M Units)

W10164584

Support, Basket

W10164570

Slide, Basket

27 4356491 Screw

W10183189

Divider, Basket

W10164580

Arm, Shut−Off

(I/M Model)

W10164581

Tube, Fill

(I/M Model)

W10164582

Gasket, Fill Tube

W10164564

Shelf, Half

(I/M Units)

OPTIONAL PARTS NOT INCLUDED

FIELD INSTALLABLE

ICE MAKER

2155469A Ice Maker

(ECKM94)

UNIT PARTS

For Model: EV209NBTQ00

(White)

W10207390

UNIT PARTS

For Model: EV209NBTQ00

(White)

W10207390

Illus. Part

No. No. DESCRIPTION

W10164539

Cover, Evaporator

2 4357244 Evaporator

3 4390914 Motor, Fan

4 4390912 Blade, Fan

W10164625

Heater, Defrost

W10164624

Shield, Heater

W10164623

Pan, Drain

8 Gasket, Cover

Evaporator

4390663 Right

4390664 Left

9 8210253 Bi−Metal Defrost

W10164568

Cap, Icemaker

Water Tube

11 4357129 Bracket, Motor

12 4356943 Screw, Motor

13 4357110 Screw

14 4356775 Compressor

(Includes Items

15,16,17,19 & 21)

15 4356738 Relay

16 4357299 Drier

17 4356777 Cover

W10164626

Harness, Fan

19 4356776 Overload

20 4356846 Sleeve

21 4356335 Compressor,

Grommet

22 4356847 Washer

23 8210220 Bolt, Compressor

24 4390510 Screw

25 4357263 Exchanger, Heat

26 8210279 Pan, Compressor

27 4356952 Clip, Thermostat

28 8210248 Condenser

29 4356970 Screw

30 4357277 Screw

31 8210224 Capacitor

32 4357020 Grommet

33 4357123 Plate, Evaporator

Mount

34 8210261 Block, Foam

35 4357110 Screw

36 4390754 Roller, Rear

37 4390755 Axle

W10164629

Harness, Unit

W10164630

Clip, Harness

W10164633

Screw

REFRIGERANT CHARGE

6.2 oz.

(R−134A)

DOOR PARTS

For Model: EV209NBTQ00

(White)

W10207390

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10164616

Door Assembly

(Includes Interior

Door Liner)

W10207408

Bushing, Hinge

W10164620

Rail, Door

(Wire)

4 8210404 Rail, Door (1)

W10164618

Gasket, Lower

Door

W10164617

Gasket, Door

(Upper)

W10164614

Door Assy. (Top)

(Includes Interior

Door Liner)

8 2255121 Nameplate

W10164622

Cover, Door

Bin (4)

W10164621

Bin, Door (4)

11 8210400 Stop, Door (2)

OPTIONAL PARTS (NOT INCLUDED)

For Model: EV209NBTQ00

(White)

W10207390

Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

Customer Touch−Up Material

350930 Enamel, White

(13 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

Important: The spray paint is

not to be used where the paint

may make contact with the door

gaskets.

Refinishing Material

799344 Enamel, White

(1 Qt. Uncut)

Miscellaneous

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4 x 108")

978941 Insulation

Fiberglass

(63−1/2" x 35−1/2

x 2−5/8")

505587 Sealer Mastic

(1 Qt.)

503695 Cork Sealer

(1/4 Pound)
