CABINET PARTS

For Model: EV200FZRQ03

(White)

2−08 Litho in U.S.A. (wam) Part No. W10190894 Rev. A

VERTICAL FREEZER

CABINET PARTS

For Model: EV200FZRQ03

(White)

W10190894

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8210432 Owners Manual

8210399 Energy Label/Tag

2 4390520 Washer, Door

Spacer

3 4356803 Clip, Grille

4 8210310 Grille

5 4357139 Screw

6 4390731 Bushing, Hinge

7 8210227 Corner Filler (2)

8 4356828 Shim, Hinge

9 8210222 Hinge, Top

10 8210238 Hinge, Bottom

11 4357019 Drain Plug

12 4390866 Leg, Leveler

13 4356830 Screw

14 4357269 Grommet, Drain

15 8210375 Cord, Power

16 Cabinet (Not A

Serviceable Part)

17 4390905 Power Light

Assembly

18 4357279 Cover, Hinge

19 4390596 Plug (White)

LINER PARTS

For Model: EV200FZRQ03

(White)

W10190894

LINER PARTS

For Model: EV200FZRQ03

(White)

W10190894

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 8210348 Knob, Control

3 8210395 Thermostat

4 4357042 Screw

5 8210349 Lens, Light

6 4390698 Basket

7 4390513 Switch, Light

8 4390465 Bulb, Light

9 8210350 Socket, Light

10 8210351 Shield, Light

11 8210406 Box, Control

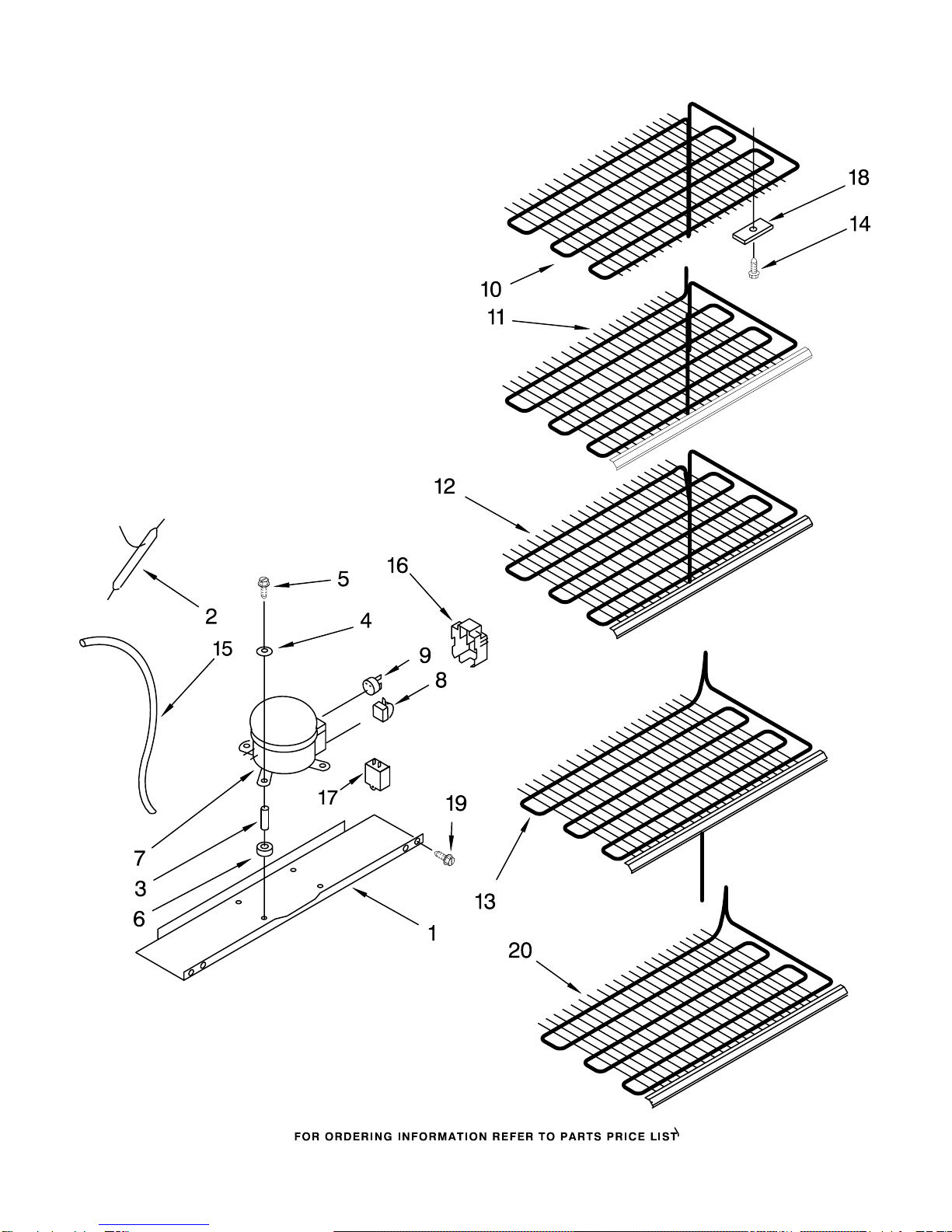

UNIT PARTS

For Model: EV200FZRQ03

(White)

W10190894

UNIT PARTS

For Model: EV200FZRQ03

(White)

W10190894

Illus. Part

No. No. DESCRIPTION

1 4357095 Pan, Compressor

Mounting

2 4357299 Drier

3 4356846 Sleeve, Grommet

4 4356847 Washer

5 4356852 Screw, Compressor

Mounting

6 4356335 Grommet

7 4356775 Compressor

(Includes Items

6, 8, 9, & 17)

8 4356738 Relay

9 4356776 Overload

10 8210412 Evaporator, Top

11 8210254 Evaporator Shelf

12 8210255 Evaporator Shelf

13 8210256 Evaporator Shelf

14 4357223 Evaporator,

Mounting Screw

15 4390809 Heat Exchanger

16 4356777 Cover

17 4390674 Capacitor

18 4356854 Clamp

19 4356820 Screw

20 8210257 Evaporator Shelf,

Bottom

REFRIGERANT CHARGE

6.9 oz.

(R−134A)

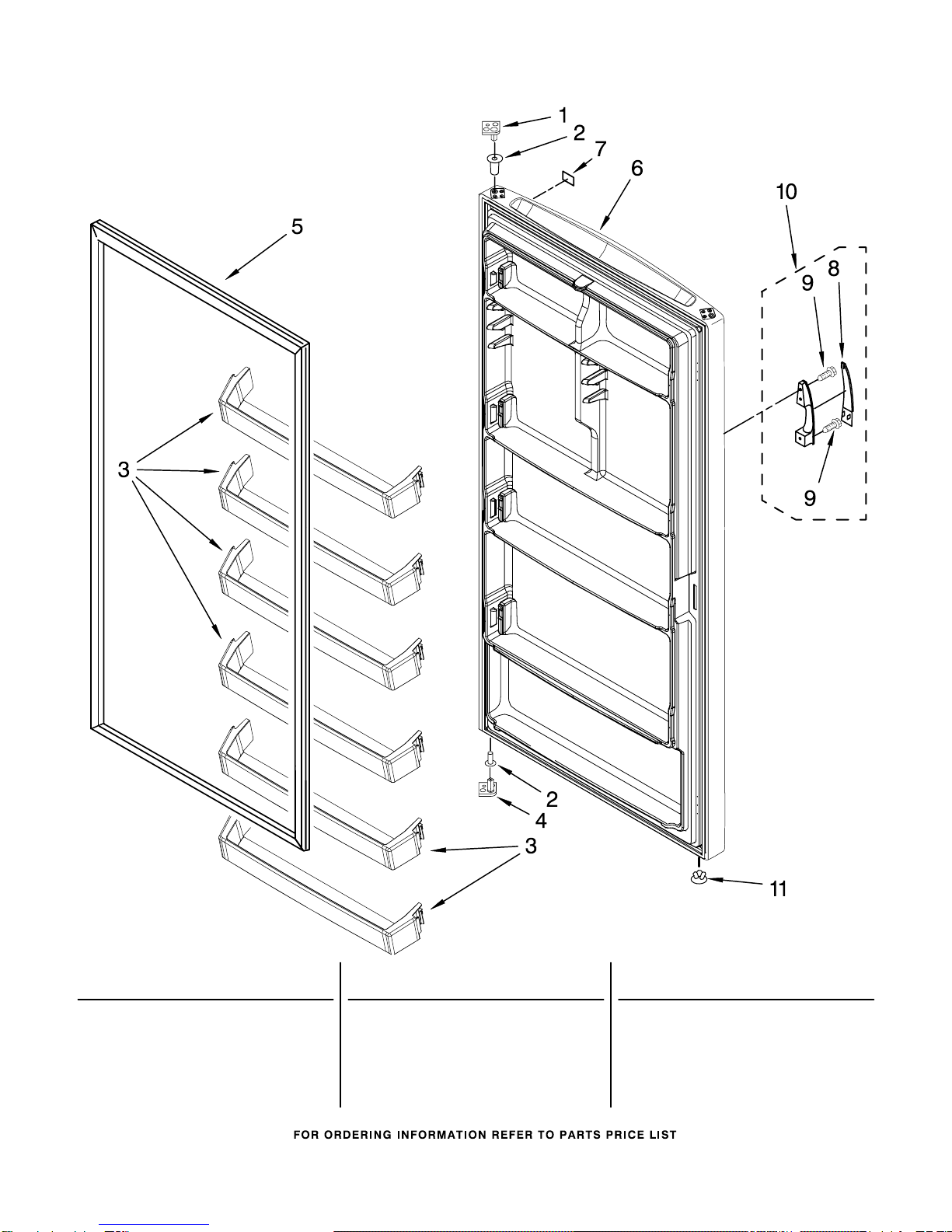

DOOR PARTS

For Model: EV200FZRQ03

(White)

W10190894

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8210401 Stop, Door

(Upper)

2 4390731 Bushing, Hinge

3 8210404 Rail, Door (6)

4 8210400 Stop, Door

(Lower)

5 8210341 Gasket, Door

6 8210361 Door Assembly

(Includes Interior

Door Liner)

7 2255121 Nameplate

8 4390668 Insert, Handle

9 4390669 Screw

10 4390667 Handle Assembly

(Includes Items

8 & 9)

11 4357067 Vent Plug

OPTIONAL PARTS (NOT INCLUDED)

For Model: EV200FZRQ03

(White)

W10190894

Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

Customer Touch−Up Material

350930 Enamel, White

(13 Oz. Spray Can)

72107 Brush Touch−Up Kit

(White)

Important: The spray paint is

not to be used where the paint

may make contact with the door

gaskets.

Refinishing Material

799344 Enamel, White

(1 Qt. Uncut)

Miscellaneous

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4 x 108")

978941 Insulation

Fiberglass

(63−1/2" x 35−1/2

x 2−5/8")

505587 Sealer Mastic

(1 Qt.)

503695 Cork Sealer

(1/4 Pound)
