Whirlpool EV209NBTQ Instructions d'utilisation

2 Door Upright Freezer

®

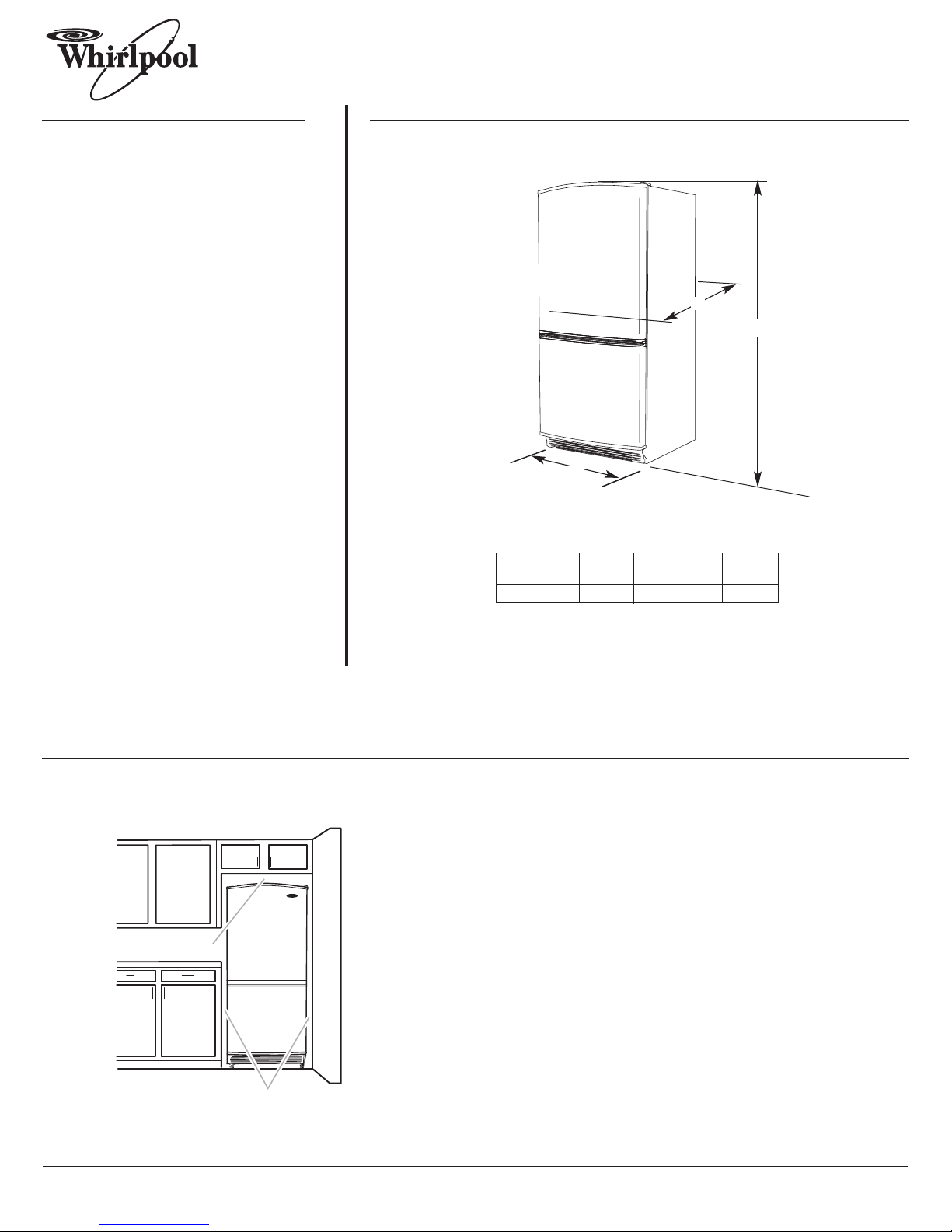

PRODUCT MODEL NUMBERS OVERALL DIMENSIONS

LOCATION REQUIREMENTS

EV209NBTQ

Because Whirlpool Brand policy includes a continuous commitment to improve our

products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. M07.021.0

16-11-07

Depth Cabinet Height Width

Model “A” “B” “C”

EV209NBTQ

Door swing is right-hand, reversible

C

B

30.2” 67.0” 33.0”

Electrical: A 115 Volt, 60 Hz., AC only 15 or 20

amp fused (or circuit breaker), grounded electri-

cal supply is required. It is recommended that a

separate circuit serving only your freezer be

provided. Use an outlet that cannot be turned off

by a switch. Do not use an extension cord.

Water Supply: Connect the ice maker to a cold

water line with water pressure between 30 and

120 psi.

®

Allow at least 3 in. (7.5 cm) of air space at the top and on both sides of the freezer

and 1 in. (2.5 cm) between the back of the freezer and the wall. If the freezer is to

be against a wall, leave extra space on the hinge side so the door can open wider.

NOTE: This freezer may be installed side by side with another refrigerator or freezer.

Allow for a 3 in. (7.5 cm) clearance at the top and sides and a 1/4 in. (0.64 cm)

clearance between the appliances.

IMPORTANT: Do not install the freezer near an oven, radiator, or other heat source,

nor in a location where the temperature will fall below 40°F (5°C).

A

3" (7.5 cm)

3" (7.5 cm)
