TOP AND CONSOLE PARTS

For Model: WGD5200TQ0

(Designer White)

2−07 Litho in U.S.A. (LT) Part No. W10131173 Rev.A.

29" GAS DRYER

TOP AND CONSOLE PARTS

For Model: WGD5200TQ0

(Designer White)

W10131173

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8578183 Use & Care Guide

8562582 Installation

Instructions

W10042960

Sheet,

Cycle Feature

8576793 Wiring Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677818 Dryer

2 693995 Screw, Hex Head

3 8533971 Screw, 8−18 x 5/16

4 8271365 Cap, End (L.H.)

5 3936144 Connector

6 388326 Screw, Console

7 8533951 Screw, Grounding

8 8271359 Cap, End (R.H.)

9 8274261 Panel, Rear

Console

10 8557861 Screen, Lint

11 8536939 Clip, Spring

13 688983 Screw, 8−18 x 5/8

14 94614 Terminal

15 3395683 Connector

(Motor)

16 8557930 Top

18 3394427 Clip, Harness

19 3397269 Connector (Timer)

20 3403499 Connector,

2 Position

(Gas Valve)

21 3976584 Timer, 60 Hz.

22 357213 Nut, Push−In (2)

23 8299876 Harness, Wiring

24 3977456 Switch,

Push−To−Start

25 8566061 Timer Knob

Assembly

26 8544895 Bracket, Control

27 8578844 Panel, Control

28 8566065 Knob,

Push−To−Start

29 3403498 Connector,

3 Position

(Gas Valve)

30 717252 Receptacle (2−Way)

CABINET PARTS

For Model: WGD5200TQ0

(Designer White)

W10131173

CABINET PARTS

For Model: WGD5200TQ0

(Designer White)

W10131173

Illus. Part

No. No. DESCRIPTION

1 697776 Screw, 10−32 x 5/8

2 343641 Screw, 10−16 x 1/2

3 693995 Screw, Hex Head

4 8541400 Bracket, Cabinet

5 3396795 Cover, Block

6 3394975 Plug, Front Panel

7 3396807 Panel, Rear

8 342055 Screw, 8−18 x 1/2

9 3980175 Clamp, Elbow

10 3406104 Door Switch

Assembly

11 697773 Screw, 6−20 x 7/8

12 3404413 Plug−Hole

15 3394083 Clip, Front Panel

16 3392100 Foot, Dryer (4)

18 8530603 Cabinet

(Includes

Illus. 4)

19 98234 Clip, Ground (2)

20 690363 Lock, Front Top (2)

21 3403574 Front Panel

Assembly

23 685203 Clip, Felt Pad

24 690081 Catch, Door

25 3405514 Hinge & Pin

Assembly (2)

26 696144 Strike, Door

27 3403371 Door, Rear

28 3403361 Door, Front

29 8566059 Handle, Door

30 8066124 Seal & Bearing

Assembly

31 3405245 Seal, Door

32 344020 Cord, Power

33 8066217 Hinge, Top (2)

34 691366 Idler & Pulley

Assembly

35 8066065 Belt, Drive

36 348780 Base, Motor

37 3400500 Bolt,

5/16−18 x 3/4

38 8066184 Pulley, 60 Hz.

39 8066206 Motor, 60 Hz.

40 660658 Clamp, Motor

41 3404162 Clamp, Motor

(W/Shield)

42 8318272 Burner Assembly,

60 Hz.

(Refer To Pages

5 & 6 For Further

Breakdown)

43 341029 Clamp, Pipe

BA−150

8318272 BURNER ASSEMBLY

USE WITH TYPE 1 − NATURAL

AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES

For Model: WGD5200TQ0

(Designer White)

W10131173

Illus. Part

No. No. DESCRIPTION

BA−150

8318272 BURNER ASSEMBLY

USE WITH TYPE 1 − NATURAL

AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES

1 8318272 Burner Assembly

60 Hz.

(Type 1)

(White Rodgers)

2 688617 Tube, Burner

3 694298 Bracket, Ignitor

4 686590 Ignitor

5 3393909 Screw & Washer

(8−32 x 5/8)

6 343641 Screw, 10−16 x 1/2

7 693986 Base, Burner

8 3387057 Screw, 8−18 x 3/8

9 Orifice, Burner

234826 Type 1

229742 Type 4 (Butane)

234868 Type 4 (Propane)

10 8318277 Valve, 60 Hz.

(Includes Pipe &

Illus. #7)

11 694421 Screw,

8−32 x 1/2 (2)

12 694538 Bracket, Coil

13 694540 Coil, 60 Hz.

(2 Terminal)

(Main)

14 694539 Coil, 60 Hz.

(Split)

(3 Terminal)

(Pilot Position)

15 694424 Leak Limiter

16 694423 Screw, Regulator

Adjustment

17 694422 Spring, Regulator

20 239822 Plug, Pipe

25 341029 Clamp, Pipe

694572 Conversion Kit

(Type 1)

to Type (4) L.P.G.

Following Parts Not Illustrated

For Model: WGD5200TQ0

(Designer White)

W10131173

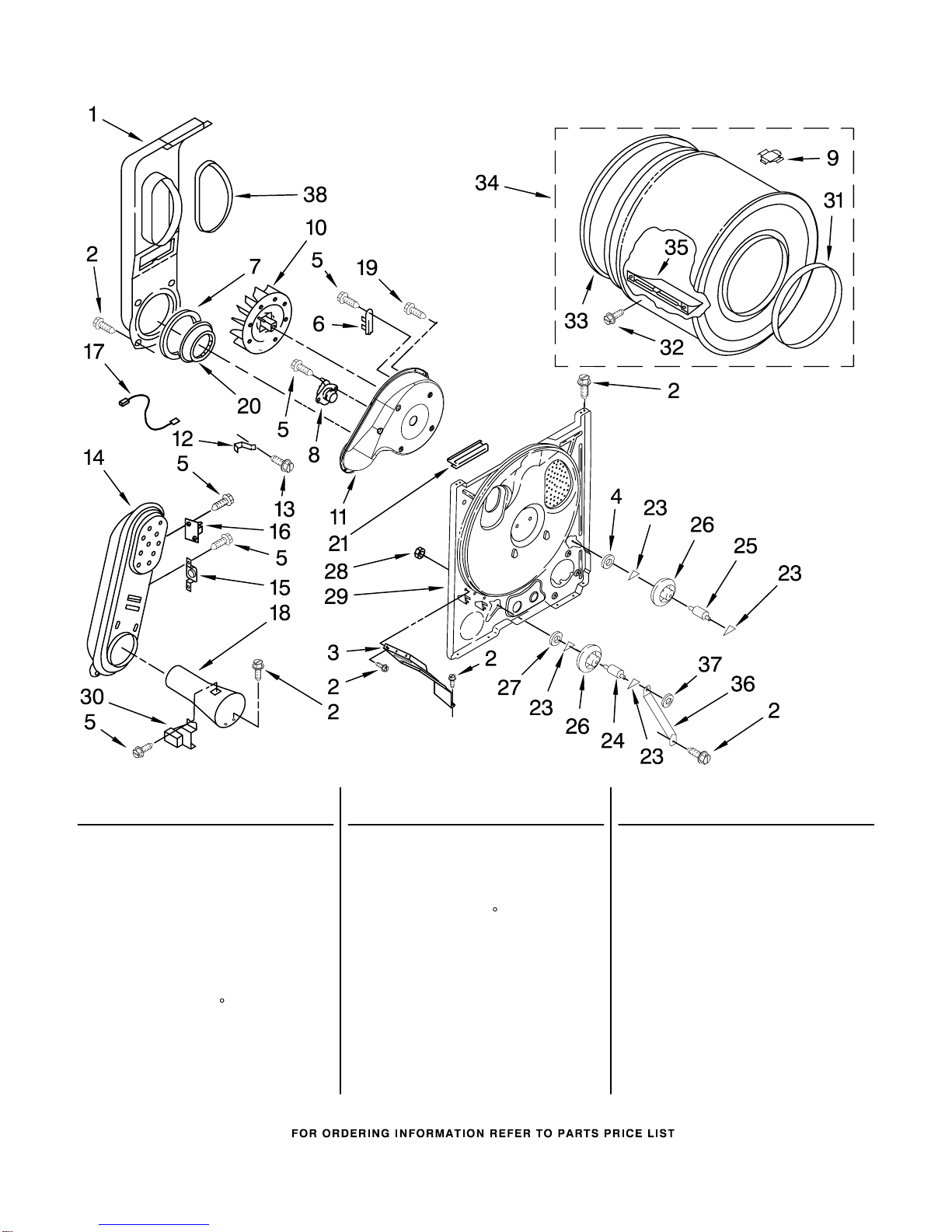

BULKHEAD PARTS

For Model: WGD5200TQ0

(Designer White)

W10131173

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 694283 Lint Chute

Assembly

2 343641 Screw, 10−16 x 1/2

3 3406022 Bracket, Bulkhead

4 3388703 Washer, Support

5 90767 Screw, 8−18 x 3/8

6 3392519 Fuse, Thermal

7 347139 Seal, Lint

Chute

8 3387134 Thermostat,

150 F(60C)

9 8066086 Drum Hole

Plug

10 694089 Wheel, Blower

11 8577230 Housing, Blower

12 3398161 Clip

13 489463 Screw, 8−18 x 5/8

14 8530285 Box, Heater

15 3403140 Thermostat,

205 F (96C)

16 280010 Kit,

Thermal Cut−Off

(Includes

Illus. 15)

17 3401707 Wire, Jumper

18 8066048 Funnel, Burner

19 3390647 Screw, 8−18 x 1/2

20 696302 Shield, Exhaust

21 3392247 Pad, Blower

Housing

23 690997 Ring, Tri

24 3399506 Shaft, L.H.

25 3399507 Shaft, R.H.

26 3397590 Roller, Support

27 348197 Washer, Support

28 3359452 Nut, 3/8−16

29 8529955 Bulkhead

30 338906 Sensor, Radiant

31 3394509 Ring, Bearing

W10109200

Screw, 11−16 x 3/4

33 8066085 Seal, Rear Drum

34 3396777 Drum Assembly

35 342847 Baffle, Drum

36 3976435 Bracket, Support

37 90296 Clip

38 339956 Seal

OPTIONAL PARTS (NOT INCLUDED)

For Model: WGD5200TQ0

(Designer White)

W10131173

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

279948 Kit,

Dryer Repair

8522199 Kit, Dryer

Vent Testing

346764 Kit, Hold−Down

(Gas Dryer Mobile

Home Installation)

689790 Dry Rack

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)
