Whirlpool WGD4800B Manuel utilisateur

Gas Dryer

PRODUCT MODEL NUMBERS

W10562360A

05/2016

WGD4800B, WGD4810B, WGD4850B, WGD4890B,

WGD5500B, WGD5800B, WGD5810B, WGD4870B,

WGD5000D, WGD4810E, WGD4815E, WGD4915E,

WGD4975E, WGD4616F, WGD4916F

29" Wide Models

Dryer Dimensions

A B

223/4"

(578 mm)

273/4"

(705 mm)

A. Wide opening side-swing door

B. Wide opening hamper door

NOTE: Leveling legs should be 1/2" (13 mm) (to match height of

3.6 cu. ft. capacity washer) or 1½" (38 mm) (to match height of

3.8 cu. ft. capacity washer).

29"

(737 mm)

433/8"

(1102 mm)

1/2"

(13 mm)

29"

(737 mm)

11/2"

(38 mm)

433/8"

(1102 mm)

Installation Spacing

ABC

18"*

(457 mm)

(25 mm)

29"

(737 mm)

(25 mm)

1"*

(25 mm)

14" max.*

(356 mm)

27¾"

(705 mm)

48 in.

(310 cm )

2*2

3"*

(76 mm)

3"*

(76 mm)

24 in.

(155 cm )

2 *

A. Recessed area

B. Side view – closet or conned area

C. Closet door with vents

*Required spacing

27" Wide Models

Dryer Dimensions

A B

223/4"

(578 mm)

291/2"

(749 mm)

133/4"

(349 mm)

291/2"

(749 mm)

A. Wide opening side-swing door

B. Wide opening hamper door

27"

(686 mm)

11/2"

(38 mm)

43"

(1092 mm)

Installation Spacing

18"*

(457 mm)

(25 mm)

27"

(686 mm)

(25 mm)

1"*

(25 mm)

14" max.*

(356 mm)

(749 mm)

½"*

(140 mm)

48 in.

(310 cm )

24 in.

(155 cm )

2 *

3"*

(76 mm)

3"*

(76 mm)

A. Recessed area

B. Side view – closet or conned area

C. Closet door with vents

*Required spacing

273/4"

(705 mm)

133/4"

(349 mm)

ELECTRICAL REQUIREMENTS

A 120-volt, 60 Hz, AC-only, 15 or 20 amp fused electrical supply is required. A time-delay fuse or circuit breaker and a separate circuit

are recommended.

GAS SUPPLY REQUIREMENTS

Gas supply: This dryer is equipped for use with Natural gas. Dryer can be converted to L.P. gas. When rigid pipe is used it should be 1/2" IPS. When

acceptable to the gas supplier and local codes, 3/8" approved tubing may be used for lengths under 20 ft (6.1 m). For lengths over 20 ft (6.1 m), larger

tubing should be used. Pipe-joint compounds resistant to the action of L.P. gas must be used. An individual manual shutoff valve must be installed

within 6 ft (1.8 m) of the dryer in accordance with the National Fuel Gas Code ANSI Z223.1.

INSTALLATION REQUIREMENTS

Installation clearances:

The location must be large enough to allow the dryer door to

open fully.

Most installations require a minimum 5½" (140 mm) clearance

behind the dryer for the exhaust vent with elbow. See “Venting

Requirements.”

Installation spacing for recessed area or closet

The dimensions shown are for the minimum spacing allowed.

■Additional spacing should be considered for ease of installation

and servicing.

■Additional clearances might be required for wall, door, and oor

moldings.

■Additional spacing of 1" (25 mm) on all sides of the dryer is

recommended to reduce noise transfer.

■For closet installation, with a door, minimum ventilation

openings in the top and bottom of the door are required.

Louvered doors with equivalent ventilation openings are

acceptable.

■Companion appliance spacing should also be considered.

Because Whirlpool Corporation policy includes a continuous commitment to improve Dimensions are for planning purposes only. For complete details, see Installation

our products, we reserve the right to change materials and specications without notice. Instructions packed with product. Specications subject to change without notice.

VENTING REQUIREMENTS

Exhaust venting: Exhaust your dryer to the outside. 4" (102 mm)

diameter vent is required. Rigid or exible metal exhaust vent

must be used. Do not use plastic or metal foil vet. Exhaust hood

must be at least 12" (305 mm) from the ground or any object that

may be in the path of the exhaust.

Determine vent length and elbows needed for best

drying performance:

■Use following Vent System Chart to determine type of vent

material and hood combinations acceptable to use.

NOTE: Do not use vent runs longer than those specied

in Vent System Chart. Exhaust systems longer than those

specied will:

■Shorten life of dryer.

■Reduce performance, resulting in longer drying times

and increased energy usage.

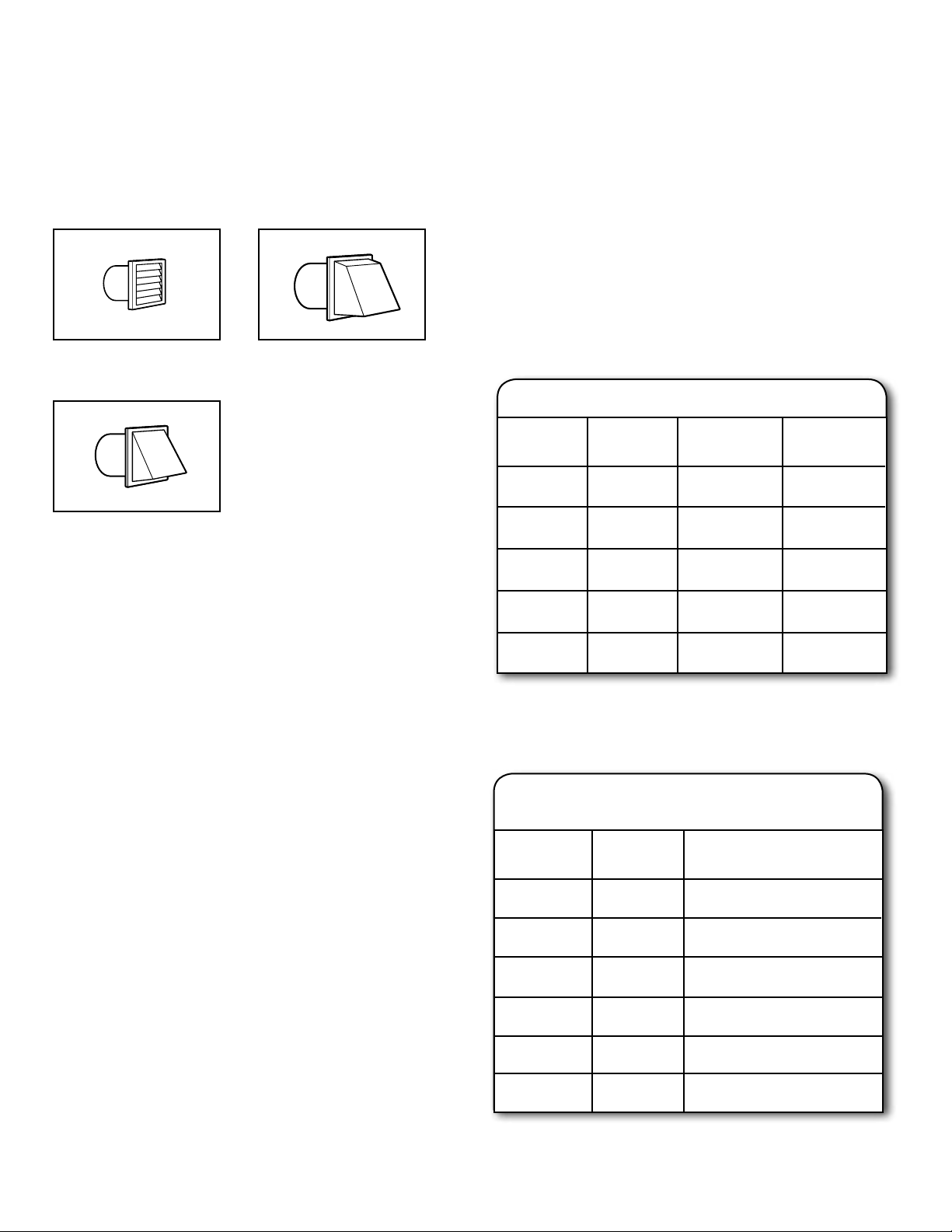

Louvered Hood

Angled Hood

Box Hood

Exhaust hoods:

Recommended Styles:

Acceptable Style:

Determine vent path:

■Select route that will provide straightest and most direct

path outdoors.

■Plan installation to use fewest number of elbows and turns.

■When using elbows or making turns, allow as much room

as possible.

■Bend vent gradually to avoid kinking.

■Use as few 90° turns as possible.

Vent System Chart

Number of

90° turns or

elbows

Type

of vent

Box/louvered

hoods

Angled

hoods

0Rigid metal

Rigid metal

64 ft. (20 m)

54 ft. (16.5 m)

44 ft. (13.4 m)

35 ft. (10.7 m)

27 ft. (8.2 m)

58 ft. (17.7 m)

48 ft. (14.6 m)

38 ft. (11.6 m)

29 ft. (8.8 m)

21 ft. (6.4 m)

NOTE: Side and bottom exhaust installations for 27" wide

models have a 90º turn inside the dryer. To determine

maximum exhaust length, add one 90º turn to the chart.

Vent System Chart

(29" Wide Long Vent Models Only)

Number of

90° turns

or elbows

Type

of vent

Box/louvered, or

Angled hoods

0 Rigid metal 120 ft. (36.6 m)

110 ft. (33.5 m)

100 ft. (30.5 m)

90 ft. (27.4 m)

80 ft. (24.4 m)

Rigid metal

570 ft. (21.3 m)Rigid metal

The “Vent System Chart” provides venting requirements that will

help achieve best drying performance.
