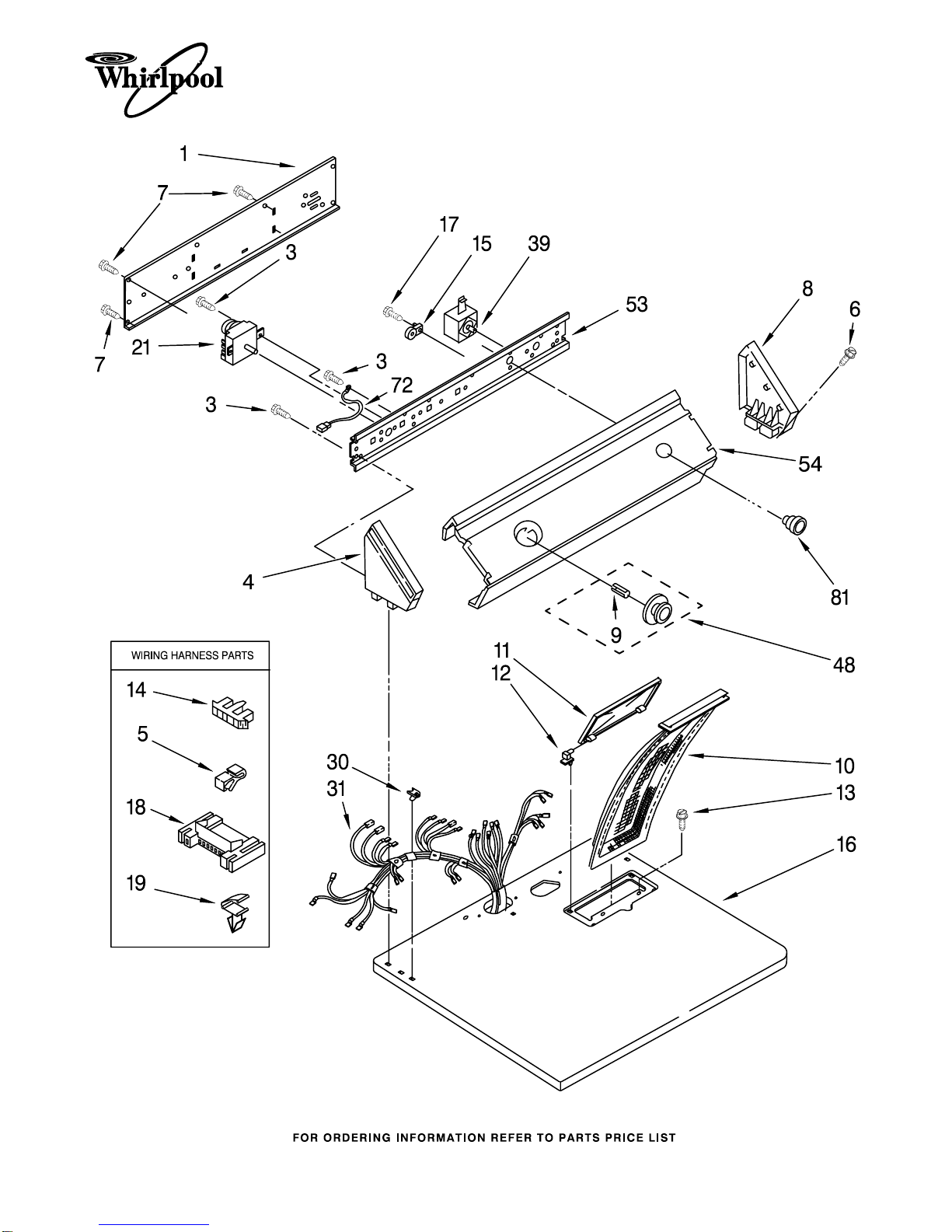

TOP AND CONSOLE PARTS

For Models:

LEN3624BW2, LEN3624BN2

(White) (Almond)

1−95 Litho in U.S.A. (tpm) Part No. 4377372

ELECTRIC DRYER

TOP AND CONSOLE PARTS

LITERATURE AND OPTIONAL PARTS

For Models:

LEN3624BW2, LEN3624BN2

(White) (Almond)

4377372

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

3397545

Panel, Rear

Console

3390646

Screw,

8−18 x 5/16

3358533

Cap, End (L.H.)

689180

Clip, Retainer

3353145

Screw, Console

693995

Screw, Hex Head

3358518

Cap, End (R.H.)

688805

Clip

339392

Screen, Lint

Cover, Lint Screen

688150

White

689310

Almond

339229

Hinge, R.H.

339230

Hinge, L.H.

688983

Screw, 8−18 x 5/8

3397269

Connector, Timer

3388706

Resistor

Top

3396022

White

3396023

Almond

3390647

Screw, 8−18 x 1/2

3395683

Connector

(Motor)

3394427

Clip−Harness

3392250

Timer, 60 Hz.

357213

Nut, Push−In (2)

3399653

Harness, Wiring

3395382

Switch,

Push−To−Start

3396145

Timer Knob

Assembly

3396293

Bracket, Control

3397189

Panel, Control

690853

Wire, Ground

3396160

Knob, Push

To Start

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LITERATURE PARTS

LIT3401083

Guide, Use & Care

LIT3397597

Instructions,

Installation

LIT3401728

Label, Wiring

Diagram

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017

White

72107

Almond

PAINT, PRESSURIZED SPRAY

(13 oz.)

350930

White

350956

Almond

350938

Primer, Gray

PAINT, BULK (1 qt.)

799344

White (Uncut)

978883

Almond (Uncut)

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677818

Dryer

CABINET PARTS

For Models:

LEN3624BW2, LEN3624BN2

(White) (Almond)

4377372

CABINET PARTS

For Models:

LEN3624BW2, LEN3624BN2

(White) (Almond)

4377372

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

3393008

Screw, 10−16 x 1/2

343641

Screw, 10−16 x 1/2

3396795

Cover, Terminal

Block

694091

Screw

3396807

Panel, Rear

347207

Switch, Door

98129

Screw,

6−20 x 1−3/8 (2)

691581

Lever, Door Switch

693994

Screw, Rear Panel

Mounting

3392100

Foot, Dryer

279810

Foot−Optional

(Extended Length

Package Of 2)

(Not Included)

Cabinet

3399580

White

3399581

Almond

(Includes Illus.

Nos. 5,7,16,29

41 And 57.)

98234

Clip, Ground

690363

Lock, Front

Top (2)

Upper Front

Panel Assembly

693197

White

693198

Almond

685203

Clip, Felt Pad

3389441

Catch, Door

348023

Hinge and Pin

Assembly (2)

3394083

Clip, Front

Panel (2)

98997

Clip, Harness

696144

Strike, Door

695656

Door, Rear

Door Front

348205

White

689314

Almond

Handle, Door

686711

White

689308

Almond

349462

Seal & Bearing

Assembly

279393

Terminal Block

Kit For

Terminal Block

690261

Block, Terminal

238088

Hinge, Top (2)

691366

Idler & Pulley

Assembly

660996

Belt, Drive

348780

Base, Motor

172455

Bolt,

5/16−18 x 3/4

3401143

Pulley, 60 Hz.

3395652

Motor Assembly

60 Hz.

660658

Clamp, Motor

343481 (Alt.)

685441 (Alt.)

3390734

Seal, Door

697776

Screw, 10−32 x 1/2

(External Ground)

279318

Terminal, Tinned

& Brass (3)

(Includes Illus. 40)

BULKHEAD PARTS

For Models:

LEN3624BW2, LEN3624BN2

(White) (Almond)

4377372

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

694283

Lint Chute Assembly

3388703

Washer, Support

90767

Screw, 8 x 3/8

3399848

Thermal Cut−Off

(Hi−Limit

Thermostat Illus.

No.15 Included)

347139

Seal, Lint

Chute

3392247

Pad, Blower

Housing

694089

Wheel, Blower

695081

Housing, Blower

3398161

Clip

343641

Screw, 10−16 x 1/2

3397566

Box, Heater

3390291

Thermostat,

High Limit 250 F

(121.1 C) (60 Hz.)

3392123

Seal, Blower

Shaft

3398064

Element, Heater

(For 240 Volt

Installation)

279457

Wire Kit (For

Heater Element

Wiring Harness

Repair)

3392519

Fuse, Thermal

660039

Thermostat,

150 F / 66C

3400800

Screw, 8−18 x 3/4

690997

Ring, Tri

3399506

Shaft, L.H.

3399507

Shaft, R.H.

3397588

Roller, Support

348197

Washer, Support

3359452

Nut, 3/8−16

3397264

Bulkhead

3394508

Ring, Bearing

97787

Screw, 11−16 x 7/8

337449

Seal, Rear Drum

3396775

Drum Assembly

342847

Baffle, Drum

3394133

Bracket, Support

90296

Clip

339956

Seal

696302

Shield, Exhaust
