BEFORE USING THE DRYER/CONNECTIONS

PRECAUTIONS AND GENERAL RECOMMENDATIONS

DESCRIPTION OF THE DRYER

VENT CONNECTION

DOOR REVERSIBILITY

18190-gb.fm5 Page 4 Monday, November 12, 2001 10:41 AM

BEFORE USING THE DRYER/CONNECTIONS

1. Removing he packaging and check

After unpacking, make sure that the dryer is

undamaged. If in doubt, do not use the dryer.

Contact After-Sales Service or your local retailer.

eep the packaging materials (plastic bags,

polystyrene parts, etc.) out of reach of children, as

they are potentially dangerous.

2. Elec rical Connec ions

Electrical connections must be carried out by a

qualified technician in compliance with the

manufacturer's instructions and current standard

safety regulations.

Electrical connection must comply with local

Electricity Board regulations.

Voltage information, power consumption and the

required fuse protection is shown on the rating

plate mounted at the rear of the dryer.

The manufacturer cannot accept any liability for

personal injury or damage to property resulting from

failure to adhere to these instructions.

The dryer must be earthed as prescribed by law.

Do not use extension leads or multiple adaptors.

Before any maintenance on the dryer disconnect it

from the mains supply.

Do not operate the dryer if it has been damaged

during transport. Contact one of our After-Sales

Service technicians.

Mains cable replacement is only to be carried out

by After-Sales Service.

3. Ins alla ion

Do not install your dryer where it can be subject

to extreme conditions, such as: poor ventilation,

temperatures around freezing (or above 35°C).

Remove the protective foil from the control

panel.

Level the dryer by adjusting the two front feet.

Take care not to trap the mains cable between

the dryer and the wall.

S acking ki

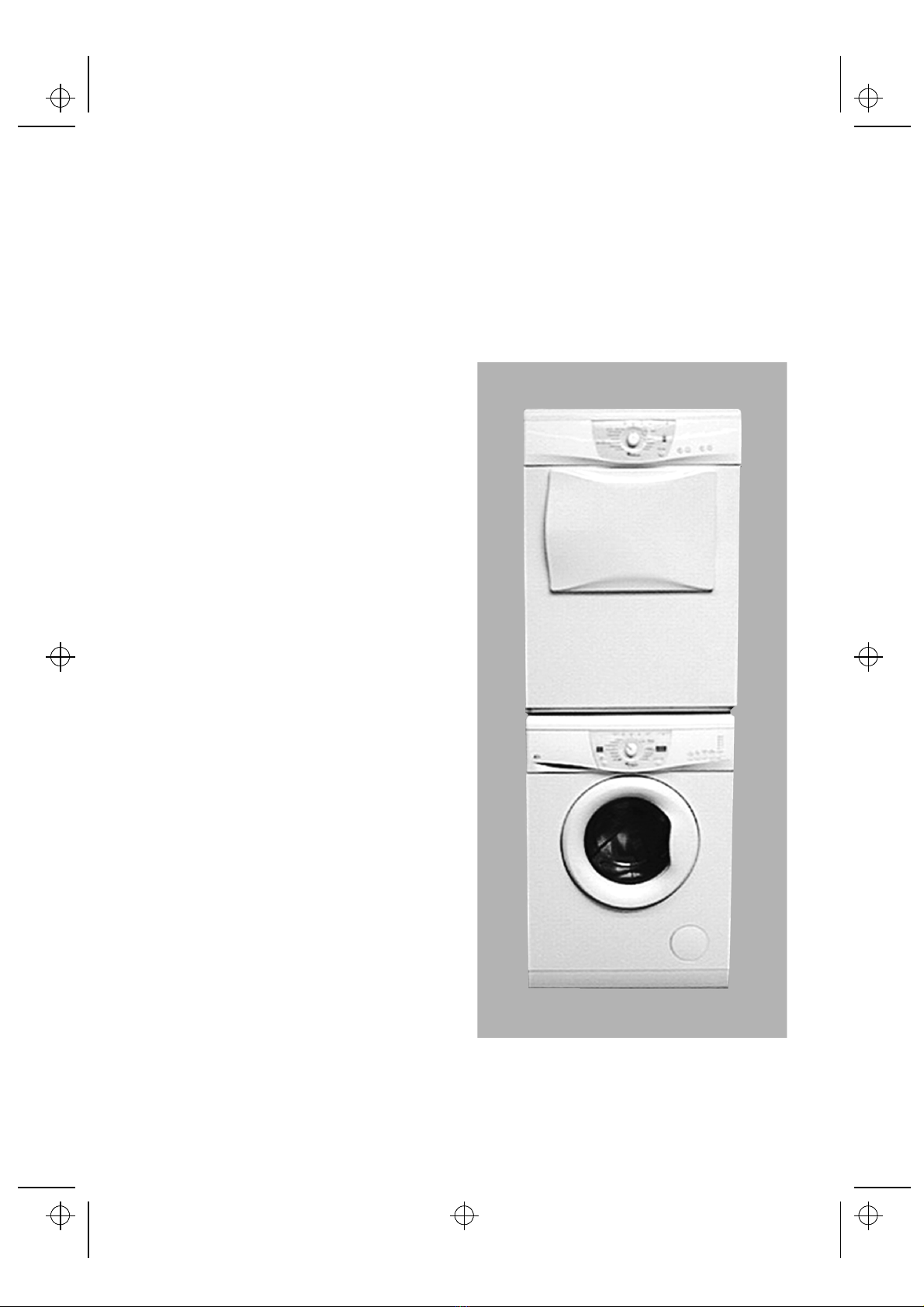

Your dryer can be stacked on top of your front

loading washing machine. To do this, use stacking

kit AMH 542, available from your dealer.

Minimum housing dimensions:

Width: 600 mm

Height: 850 mm

Depth: 560 mm

18190-gb.fm5 Page 5 Monday, November 12, 2001 10:41 AM

PRECAUTIONS AND GENERAL RECOMMENDATIONS

1. Packing

The packing box may be fully recycled as confirmed

by the recycling symbol.

2. Energy saving ips

Always dry a full load: depending on the type of

laundry and the programme/drying time.

Always use the maximum allowed spin speed of

your washing machine. You will save time and

energy when running your drying cycle.

Do not overdry the laundry.

Clean the lint filter after every drying cycle.

Place your dryer in a room with a temperature

between 15° C and 20° C. In case of higher

temperature ventilate the room.

Always select the correct programme/drying time

for the load in order to obtain the desired drying

results.

Select the gentle option only with small loads.

When drying cotton, for example: dry iron dry and

cupboard dry loads together. Start with the iron dry

programme/drying time setting, remove the

laundry to be ironed at the end of that cycle and

dry the remainder of the load on the cupboard dry

setting.

3. Disposing of packaging and old appliances.

The dryer is built from reusable materials. The

dryer must be disposed of in compliance with local

waste disposal regulations.

Before scrapping, cut off the power cable so that

the dryer cannot be connected to the mains.

4. Child safe y:

Children must not be allowed to play with the

dryer.

5. General recommenda ions:

Always set the programme/time selector knob to

the 0 position after use. This prevents the dryer

from being switched on accidentally.

Before cleaning or carrying out maintenance,

switch off the dryer and disconnect it from the

mains supply.

To clean the outside of the dryer, use a neutral

detergent and a damp cloth.

Do not use abrasive detergents.

Wipe away lint from the door seal and the door

using a damp cloth.

If the lint filter mesh is clogged, clean it with

water and a soft brush.

If necessary, the power cable may be replaced with

an identical one obtained from our After-Sales

Service. The power cable must only be replaced by

a qualified technician.

EC Declara ion of Conformi y

This dryer has been designed, constructed and

distributed in compliance with the safety

requirements of EC Directives:

93/68/EC.

The dryer must only be used in the household for

the prescribed uses.

18190-gb.fm5 Page 6 Monday, November 12, 2001 10:41 AM

DESCRIPTION OF THE DRYER

VENT CONNECTION

1. Work top

2. Contact pin

3. Door

To open the door: pull the handle

To close the door: push gently until closed.

4. Filter

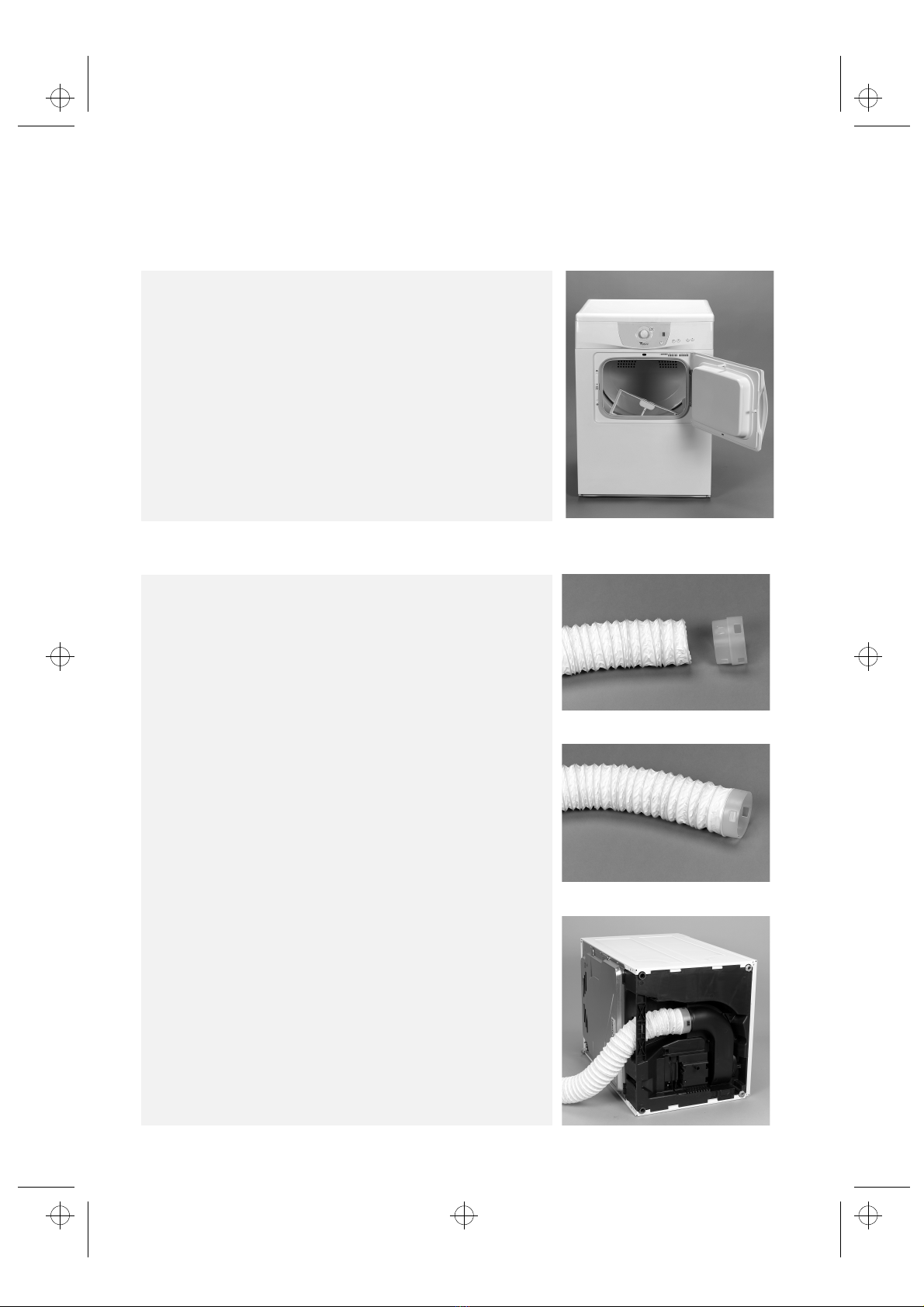

On delivery from the factory, the outlet vent hose, together with an

adaptor, is located in the drum.

No e: If the vent hose is not supplied, the AMH 577 kit, available from

your dealer, should be used.

Ins alling he ven hose

1. Place a towel or the packing material on the right-hand side next

to the dryer.

2. Place the dryer on its right-hand side (seen from the front) on the

towel or the packing material.

3. Push the adapter into the hose (see illustration). Attach the

adapter with the vent hose to the connection in the dryer base

and lock it into place.

Ven ing ou side

Without kinking it, lead the vent hose outside (inside diameter

10 cm, maximum length with two bends 3 m).

Ensure that the vent hose does not sag when stacking the dryer on a

washing machine. It should only be placed horizontally or upwards.

Do not connect to ventilation systems protected by fly nets. These can

become clogged and cause malfunctioning of the dryer.

Do not connect the vent hose to a chimney system.

Do not connect the vent h ose to the heating system. Only connect

the hose to ventilation systems insulated against humidity.

Dryer opera ion wi hou ven hose

Only use the dryer in a large, well-ventilated room.

eep the room free of dust.

A minimum distance of 10 cm between rear of appliance and the wall

must be observed.

18190-gb.fm5 Page 7 Monday, November 12, 2001 10:41 AM

DOOR REVERSIBILITY

Door Reversibili y

1. Unplug he dryer.

2. Open the door.

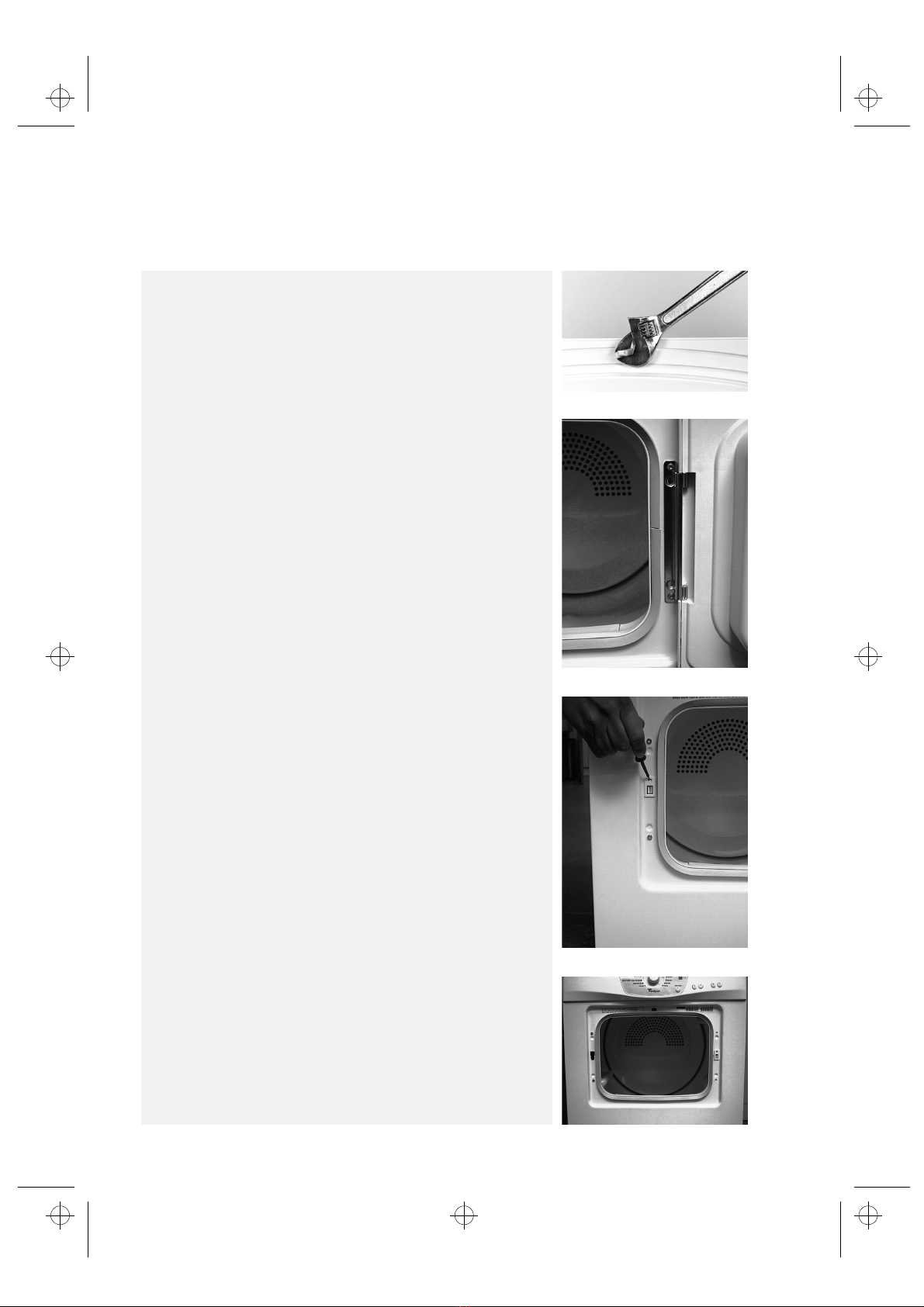

3. Using a spanner, turn the contact pin on the inside of the door

(top) through 90° and remove it.

4. Remove the 2 door hinge screws, followed by the door.

5. Unscrew the 2 screws above and below the door lock system.

6. Removing the door lock:

Using a screwdriver, press down on the small rib in the upper

opening and extract the door lock by pulling it towards you.

7. Reverse the door:

Fasten the door on the desired side using the 2 screws.

Insert the door lock system on the opposite side and lock it

securely.

Fix the 2 screws above and below the door lock system.

8. Replace the contact pin in the inside of the door (top).

18190-gb.fm5 Page 8 Monday, November 12, 2001 10:41 AM
