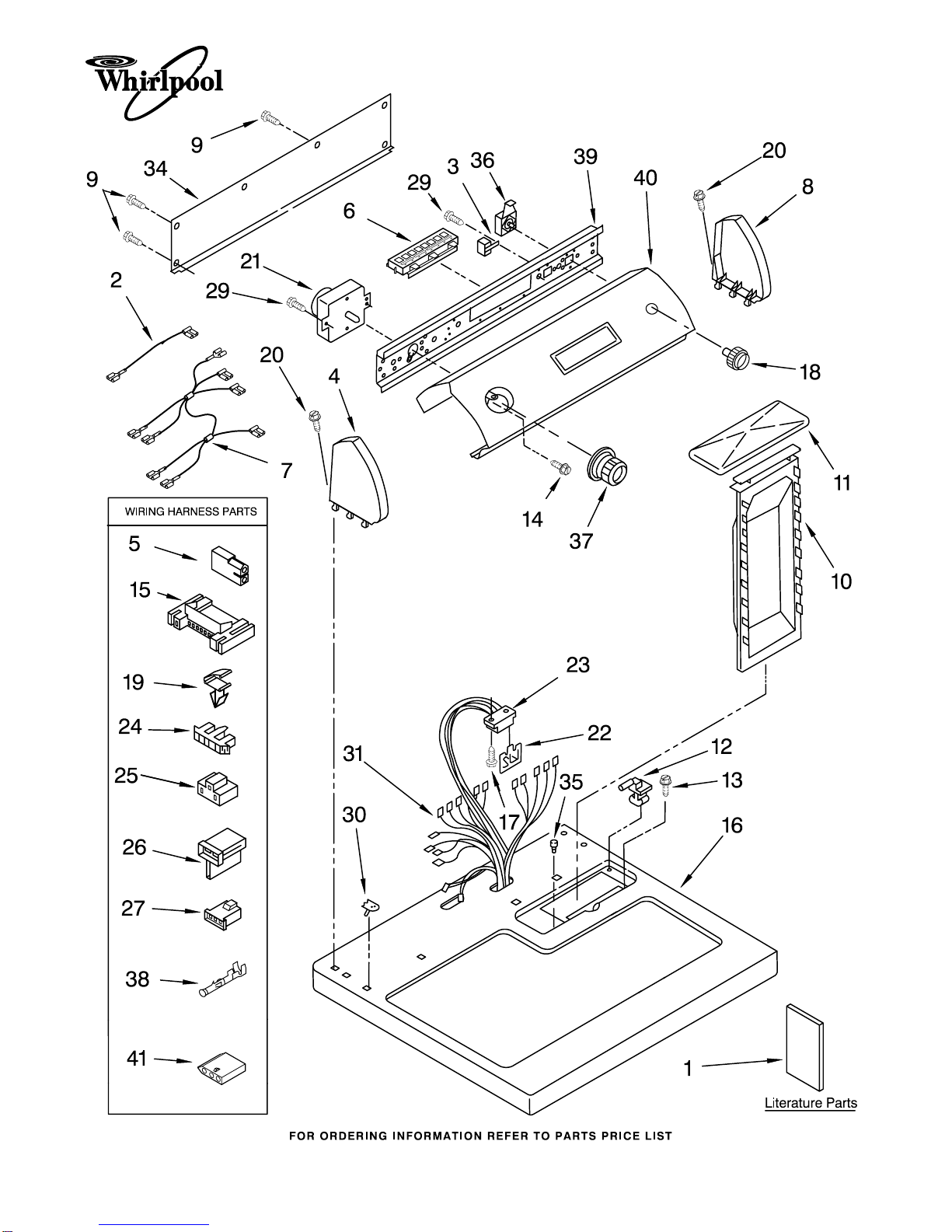

TOP AND CONSOLE PARTS

For Model: 7MLGC9545JQ4

(Designer White)

04−03 Litho in U.S.A. (djc) Part No. 8180033

29" GAS DRYER

TOP AND CONSOLE PARTS

For Model: 7MLGC9545JQ4

(Designer White)

8180033

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT3978910

Instructions,

Installation

LIT8543094

Use & Care Guide

LIT8533205

Wiring Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677818

Dryer

2 Wire, Jumper

3393811 Violet

3393812 Blue

3 694419 Buzzer, Mini

4 8271365 Cap, End (L.H.)

5 717252 Plug, 2−Way

Terminal

6 8318269 Switch,

Clean Touch

7 3396032 Wire, Jumper

(Guard/Signal)

8 8271359 Cap, End (R.H.)

9 693995 Screw, Hex

Washer Head

10 349639 Handle & Lint

Screen Assembly

11 8283378 Cover, Lint Screen

12 3978605 Hinge, R.H.

3978606 Hinge, L.H.

13 688983 Screw, 8−18 x 5/8

14 3400859 Screw, Grounding

15 3395683 Connector

(Motor)

16 8271390 Top

17 343641 Screw, 10−16 x 1/2

18 8271341 Knob,

Push−To−Start

19 3394427 Clip−Harness

20 388326 Screw, Console

21 8299762 Timer Assembly

(60 Hz.)

22 3390537 Control,

Electronic

23 3391885 Connector, Edge

24 3397269 Connector−Timer

25 3401144 Connector,

(PTS Relay)

26 3403499 Connector,

2−Position

(Gas Valve)

27 3403498 Connector,

3−Position

(Gas Valve)

29 3390646 Screw, 8−18 x 5/16

30 357213 Nut, Push−In (2)

31 8299881 Harness, Wiring

34 8274261 Panel, Rear

Console

35 297535 Bumper, Lint Lid

36 3398094 Switch,

Push−To−Start

37 8312687 Timer Knob

Assembly

38 94614 Terminal, Female

39 8271426 Bracket, Control

40 3977844 Panel, Control

41 3936144 Connector

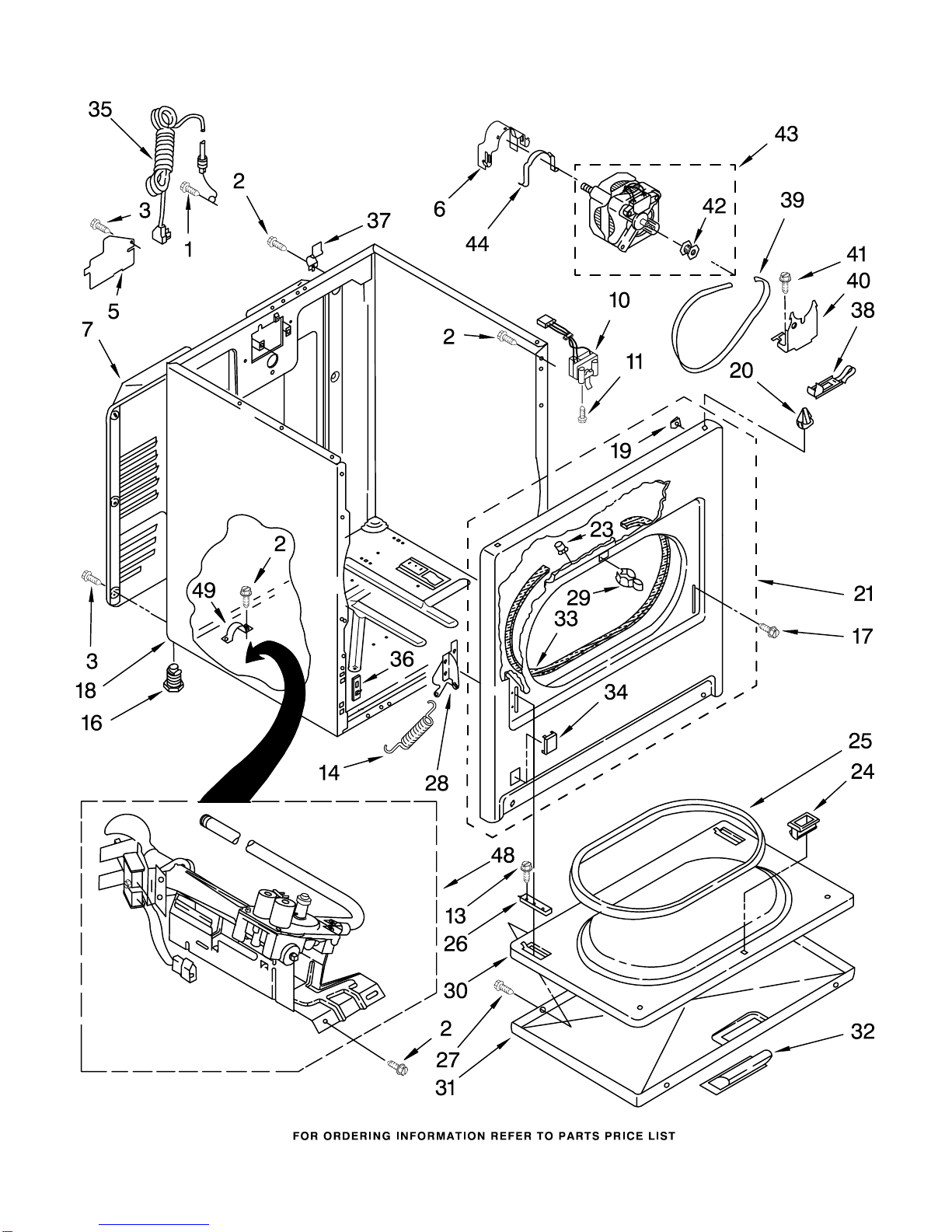

CABINET PARTS

For Model: 7MLGC9545JQ4

(Designer White)

8180033

CABINET PARTS

For Model: 7MLGC9545JQ4

(Designer White)

8180033

Illus. Part

No. No. DESCRIPTION

1 697776 Screw, 10−32 x 5/8

(External Ground)

2 343641 Screw, 10−16 x 1/2

3 693995 Screw, Hex Head

5 3396795 Cover, Block

6 3404162 Clamp, Motor

(W/Shield)

7 3396805 Panel, Rear

10 3406107 Door Switch

Assembly

11 697773 Screw, 6−20 x 7/8

13 3357011 Screw, 10−16 x 1/2

14 692495 Spring, Door (2)

16 3392100 Foot, Dryer

279810 Foot−Optional

(Extended Length)

(Package of 2)

(Not Included.)

17 342043 Screw, 10−32 x 3/8

18 8530603 Cabinet

19 98234 Clip, Ground (2)

20 690363 Lock, Front Top (2)

21 3395197 Panel Front

23 685203 Clip, Felt Pad (2)

24 3389441 Catch, Door

Assembly

25 3390731 Seal, Door

26 337189 Clip, Hinge (2)

27 694091 Screw, 8−18 x 3/8

28 8066056 Hinge, R.H.

8066057 Hinge, L.H.

29 696144 Strike, Panel

30 695737 Door, Rear

31 3393549 Door, Front

32 690270 Handle, Door

33 3406129 Seal & Bearing

Assembly

34 3394975 Plug, Front Panel

35 344020 Cord, Power

36 3394083 Clip, Front Panel

37 238088 Hinge, Top (2)

38 3394332 Idler & Slide

Assembly

39 8066065 Belt, Drive

40 348780 Base, Motor

41 3400500 Bolt, 5/16−18 x 3/4

42 3394341 Pulley, 60 Hz.

43 8538262 Motor Assembly

60 Hz.

44 660658 Clamp, Motor

48 8318272 Burner Assembly,

60 Hz.

(See Pages 7 &

8 For Further

Burner Breakdown)

49 341029 Clamp, Pipe

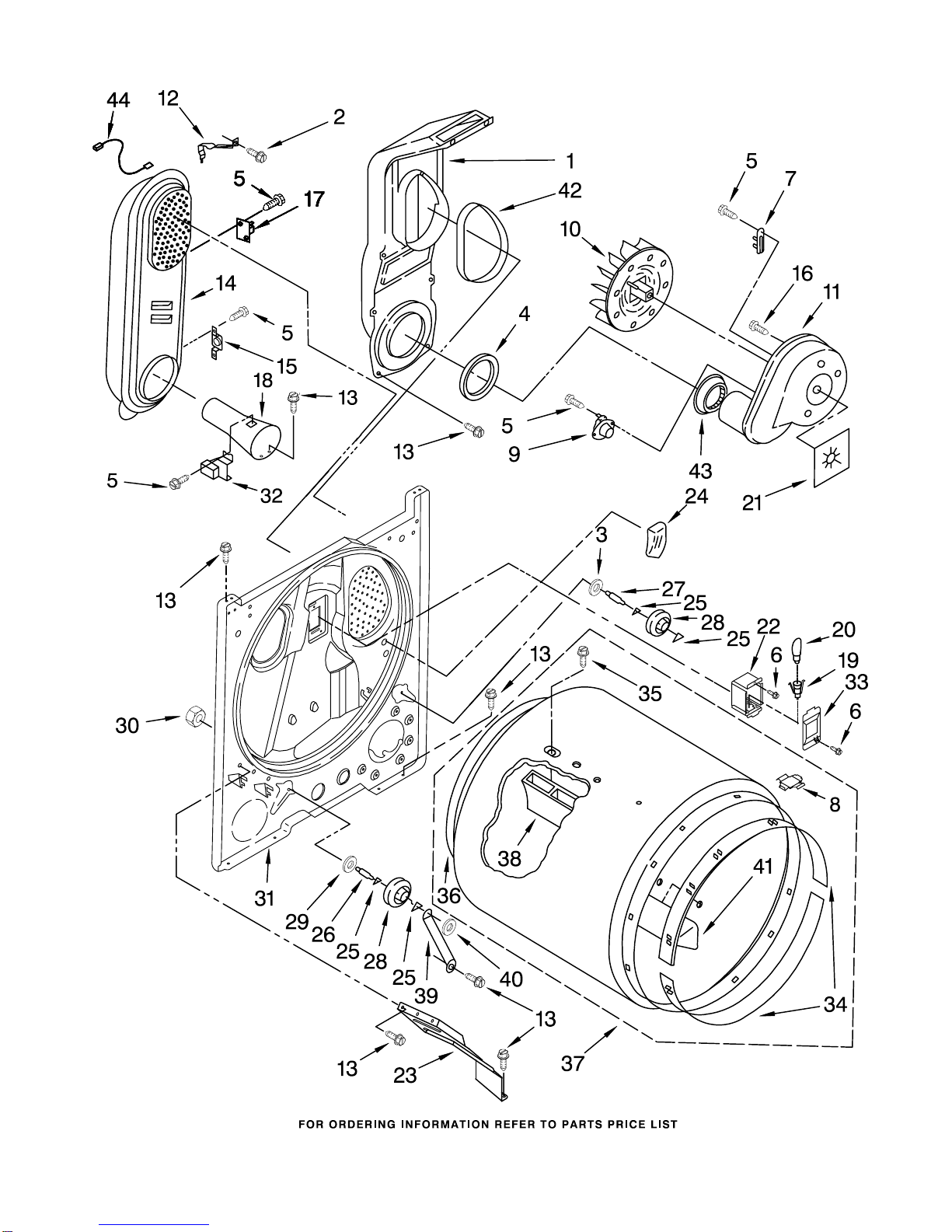

BULKHEAD PARTS

For Model: 7MLGC9545JQ4

(Designer White)

8180033

BULKHEAD PARTS

For Model: 7MLGC9545JQ4

(Designer White)

8180033

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 348368 Lint Chute

Assembly

2 489463 Screw, 8−18 x 5/8

3 3388703 Washer−Support

4 347139 Seal, Lint

Chute

5 90767 Screw, 8−18 x 3/8

6 487909 Screw, 8−15 x 1/2

7 3392519 Fuse, Thermal

8 8066086 Drum Hole

Plug

9 8318268 Thermostat,

Internal−Bias

10 694089 Wheel, Blower

(Includes

Illus. 21)

11 3405016 Housing, Blower

12 3398161 Clip

13 343641 Screw, 10−16 x 1/2

14 8530285 Box, Heater

15 3403140 Thermostat, 205 F

(96 C)

16 3390647 Screw, 8−18 x 1/2

17 280010 Kit,

Thermal Cut−Off

(Includes

Illus. 15)

18 8066049 Funnel, Burner

19 3403634 Socket Assembly

20 3406124 Bulb

21 3394196 Seal, Blower

22 3977373 Bracket, Drum

Light

23 3406022 Bracket, Bulkhead

24 3976479 Pad, Sensor

25 690997 Ring, Tri

26 3399506 Shaft, L.H.

27 3399507 Shaft, R.H.

28 3397588 Roller, Support

29 348197 Washer, Support

30 3359452 Nut, 3/8−16

31 3403414 Bulkhead

32 338906 Sensor, Radiant

33 3402841 Lens, Drum Light

34 692526 Ring, Bearing

35 97787 Screw, 11−16 x 3/4

36 3406130 Seal, Rear Drum

37 695587 Drum Assembly

38 692490 Baffle, Drum (2)

39 3976434 Bracket, Support

40 90296 Clip

41 3403636 Baffle, Drum (1)

42 339956 Seal

43 696302 Shield, Exhaust

44 3401707 Wire, Jumper

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

279948 Kit,

Dryer Repair

8522199 Kit, Dryer

Vent Testing

346764 Kit, Hold−Down

(Gas Dryer Mobile

Home Installation)

3406839 Dry Rack

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

OPTIONAL PARTS (NOT INCLUDED)

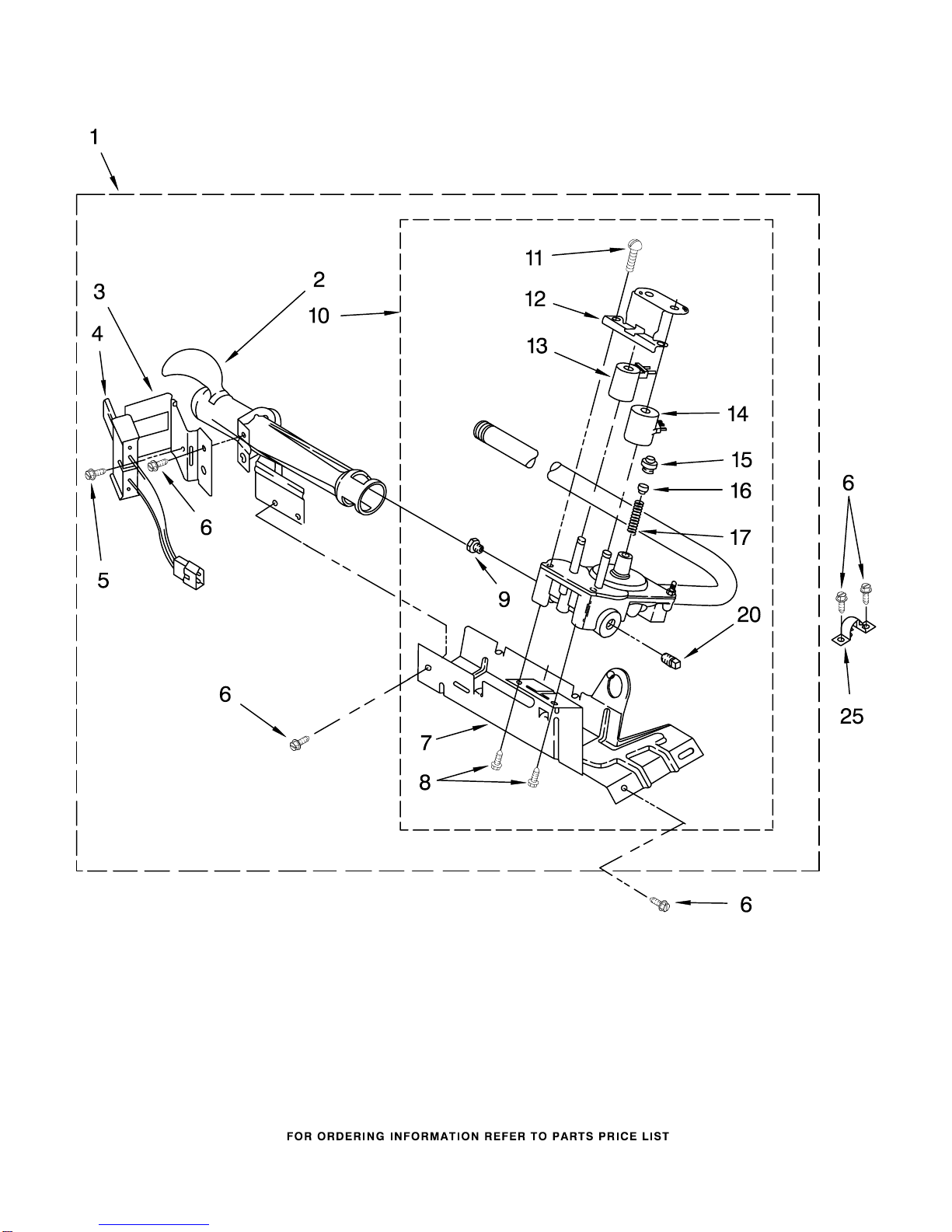

BA−150

8318272 BURNER ASSEMBLY

USE WITH TYPE 1 − NATURAL

AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES

For Model: 7MLGC9545JQ4

(Designer White)

8180033

Illus. Part

No. No. DESCRIPTION

BA−150

8318272 BURNER ASSEMBLY

USE WITH TYPE 1 − NATURAL

AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES

1 8318272 Burner Assembly

60 Hz.

(Type 1)

(White Rodgers)

2 688617 Tube, Burner

3 694298 Bracket, Ignitor

4 686590 Ignitor

5 3393909 Screw & Washer

(8−32 x 5/8)

6 343641 Screw, 10−16 x 1/2

7 693986 Base, Burner

8 3387057 Screw, 8−18 x 3/8

9 Orifice, Burner

234826 Type 1

229742 Type 4 (Butane)

234868 Type 4 (Propane)

10 8318277 Valve, 60 Hz.

(Includes Pipe &

Illus. #7)

11 694421 Screw,

8−32 x 1/2 (2)

12 694538 Bracket, Coil

13 694540 Coil, 60 Hz.

(2 Terminal)

(Main)

14 694539 Coil, 60 Hz.

(Split)

(3 Terminal)

(Pilot Position)

15 694424 Leak Limiter

16 694423 Screw, Regulator

Adjustment

17 694422 Spring, Regulator

20 239822 Plug, Pipe

25 341029 Clamp, Pipe

694572 Conversion Kit

(Type 1)

to Type (4) L.P.G.

Following Parts Not Illustrated

For Model: 7MLGC9545JQ4

(Designer White)

8180033
