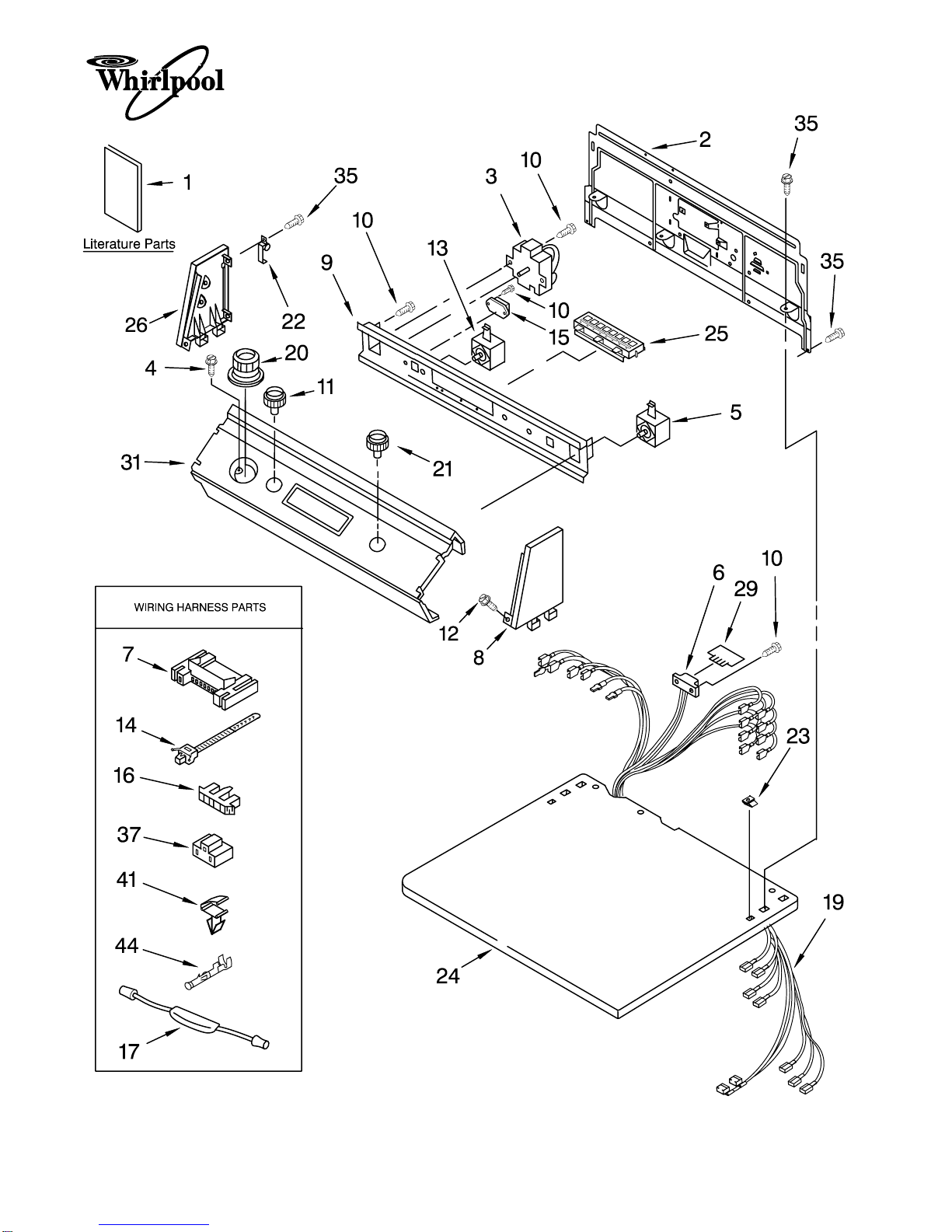

TOP AND CONSOLE PARTS

ELECTRIC DRYER

For Models: GEC9858HQ0, GEC9858HZ0

(Designer White) (Designer Almond)

3-99 Litho in U.S.A. (djc) Part No. 4377896 Rev. A

TOP AND CONSOLE PARTS

For Models: GEC9858HQ0, GEC9858HZ0

(Designer White) (Designer Almond)

4377896

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT3977703

Label, Wiring

Diagram

LIT8280525

Guide, Use & Care

LIT3397629

Instructions

Installation

Following May Be Purchased

DO-IT-YOURSELF

REPAIR MANUALS

LIT677818

Manual, Do-It-

Yourself Repair

(Dryer)

2 3976705 Panel, Rear

Console

3 3406725 Timer, 60 Hz.

4 3400859 Screw, Grounding

(8-18 x 7/32)

5 3398094 Relay,

Push-To-Start

6 3391885 Connector, Edge

7 3395683 Connector

(Motor)

8 Cap, End (R.H.)

3358513 White

3358514 Almond

9 8271318 Bracket, Control

10 3390646 Screw, 8-18 x 5/16

11 Knob, Control

3950759 White

3950760 Almond

12 388326 Screw, Console

13 3398093 Switch, Signal

14 3391018 Tie, Cable

15 697812 Power, Relay

16 3397269 Connector, Timer

17 8283132 Resistor, Assembly

19 3406628 Harness, Electric

20 Timer Knob

Assembly

8283182 White

8283183 Almond

21 Push-To-Start

Knob

3406133 White

3406134 Almond

22 387402 Hinge, Assembly

23 357213 Nut, Push-In (2)

24 Top

3976482 White

3976483 Almond

25 Switch,

Clean Touch

3406991 White

3406992 Almond

26 Cap, End (L.H.)

3358528 White

3358529 Almond

29 3977407 Control,

Electronic

31 Panel, Control

8274444 White

8274445 Almond

35 3390647 Screw, 8-18 x 1/2

37 3401144 Connector

(PTS Relay)

41 3394427 Clip, Harness

44 94614 Terminal

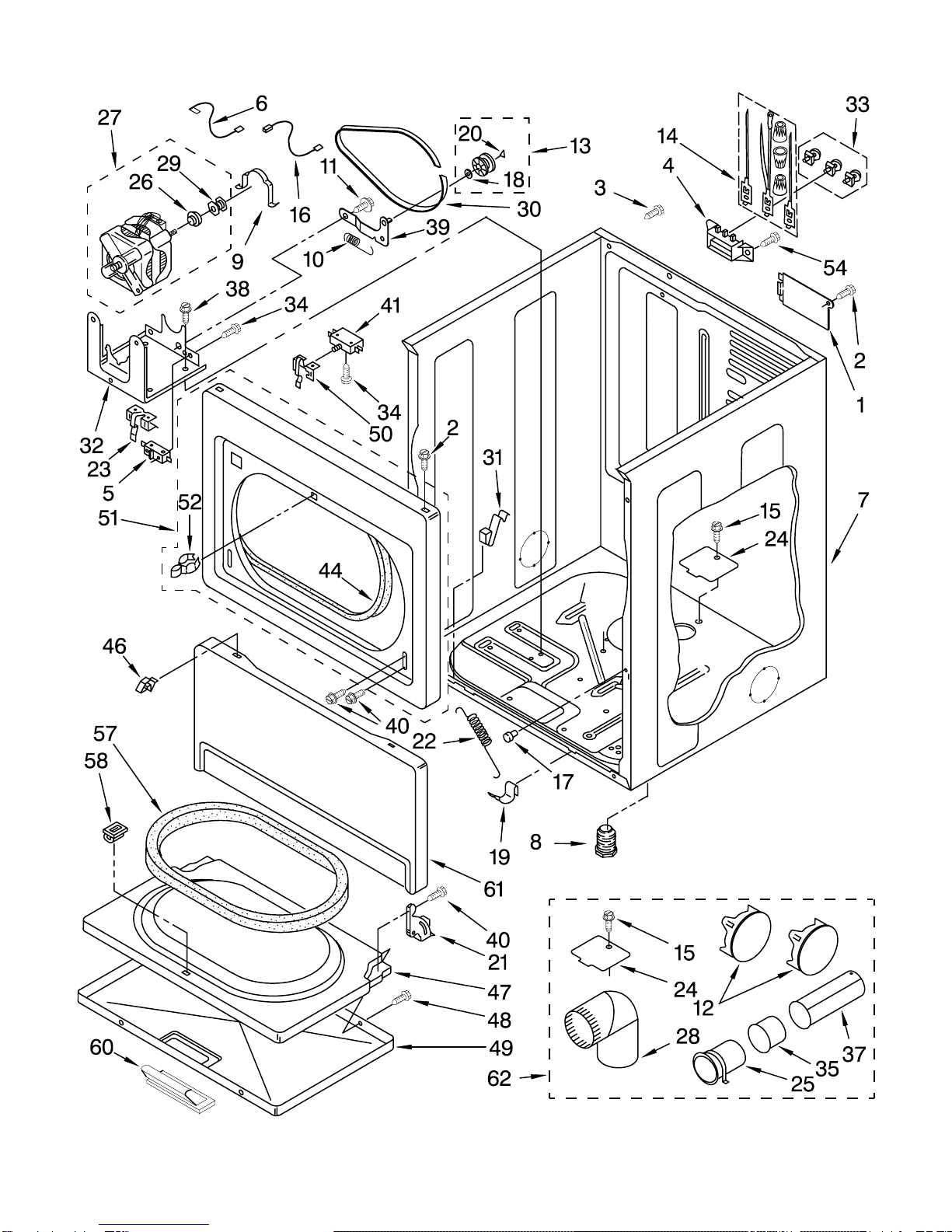

CABINET PARTS

For Models: GEC9858HQ0, GEC9858HZ0

(Designer White) (Designer Almond)

4377896

CABINET PARTS

OPTIONAL PARTS (NOT INCLUDED)

Illus. Part

No. No. DESCRIPTION

For Models: GEC9858HQ0, GEC9858HZ0

(Designer White) (Designer Almond)

4377896

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3393904 Cover, Terminal

Block

2 3390814 Screw, 8-18 x 3/8

3 697776 Screw, 10-32 x 5/8

4 3397659 Block, Terminal

5 3394881 Switch, Broken

Belt

6 3398948 Wire, Jumper

(Broken Belt

Switch)

7 Cabinet

3402264 White

3402265 Almond

8 3392100 Foot, Dryer

279810 Foot - Optional

(Extended Length

Package Of 2)

(Not Included)

9 660658 Clamp, Motor (2)

10 3387374 Spring, Idler

11 3389420 Retainer, Idler

12 Plug, Multivent

697750 White

697751 Almond

13 3388672 Pulley Assembly

14 279318 Terminal, Brass

& Tinned (3)

(Includes Illus. 33)

15 3390647 Screw, 8-18 x 1/2

16 3394081 Wire, Belt Switch

17 693152 Bumper

18 233520 Washer, Thrust

19 297092 Clip (2)

20 690997 Tri Ring

21 3387560 Hinge, Door (R.H.)

3387559 Hinge, Door (L.H.)

22 3387565 Spring, Door (2)

23 3391408 Lever, Snap

Switch

24 3394331 Cover-Plate

25 3395532 Exhaust Pipe

& Bracket

26 3393657 Restrainer, Belt

27 3395654 Motor, Assembly

60 HZ.

28 49026 4" - 90 Elbow

29 3389729 Pulley 60 HZ.

30 661570 Belt, Drive

31 3388600 Clip,

Lint, Duct

32 3387118 Bracket, Motor

33 279393 Terminal Block

Screw Kit (For

Terminal Block)

34 98129 Screw,

6-20 x 1 3/8

35 3395534 Exhaust Pipe

(Short)

37 3395535 Exhaust Pipe

(Long)

38 3390663 Screw, 10-16 x 1/2

39 3388674 Idler Bracket

40 3357011 Screw, 10-16 x 1/2

41 3392266 Switch, Door

44 3387242 Seal, Front Panel

46 3388229 Retainer

47 697655 Door, Rear

48 694091 Screw, 8-18 x 3/8

49 Door, Front

697221 White

697222 Almond

50 691581 Lever, Switch

51 Upper Front Panel

697227 White

697228 Almond

52 696144 Strike, Door

54 3393008 Screw, 10-16 x 1/2

57 3390736 Seal, Door

58 690081 Catch, Door

Assembly

60 Handle, Door

690270 White

690271 Almond

61 Toe, Panel

697215 White

697216 Almond

Optional Parts Not Included

Dryer Exhaust Kit

(For Side & Bottom Venting)

62 279818 White

279819 Almond

PAINT, TOUCH-UP (1/2oz.)

72017 White

72107 Almond

PAINT, PRESSURIZED SPRAY

(13 oz.)

350930 White

350956 Almond

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

BULKHEAD PARTS

For Models: GEC9858HQ0, GEC9858HZ0

(Designer White) (Designer Almond)

4377896

BULKHEAD PARTS

For Models: GEC9858HQ0, GEC9858HZ0

(Designer White) (Designer Almond)

4377896

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3399508 Shaft, R.H. Thread

2 90767 Screw, 8-18 x 3/8

3 3390647 Screw, 8-18 x 1/2

4 3394984 Door, Lint

Screen

5 697354 Air Duct Assembly

6 697813 Seal, Outlet

Housing

7 697814 Seal, Drum Front

8 3359452 Nut,3/8 x 16(R.H.)

9 3977358 Drum Hole

Plug

10 3395196 Lens, Light

11 3395522 Wire, Jumper

(Brown)

12 487909 Screw, 10-18 x 1/2

14 3387747 Heater Element

15 279457 Terminal Wire

Kit (For Heater

Element Wiring

Harness Repair)

16 3387709 Nut, 3/8-16 (L.H.)

17 3387809 Bulkhead, Rear

18 3387459 Washer, Support

19 3399509 Shaft, L.H. Thread

20 690997 Ring, Tri

21 3396801 Roller, Support

23 3394985 Outlet Housing

Assembly

24 3394986 Spring, Lint

Screen Door

25 697282 Complete Drum

Assembly

26 697777 Screw, 11-16 x 7/8

27 697694 Seal, Drum

29 3395536 Clip, Exhaust

Pipe

32 3402715 Exhaust Pipe

Assembly

(Includes Illus.

No. 29)

33 3406125 Lamp,

Incadescent

34 3387223 Electrode, Sensor

35 3394882 Bracket,

Lampholder

37 697772 Wheel, Blower

40 3392258 Wire, Ground

(Sensor)

41 3395521 Wire, Jumper

(Black)

42 3977425 Thermostat,

Internal-Bias

44 697363 Housing, Blower

45 3390531 Lint Duct Assembly

46 3392537 Heater Box

47 3398671 Thermal Cut-Off

48 3390291 Thermostat 250 F

(121 C)

49 697700 Bracket, Heater

50 697699 Shield, Heat

51 3387230 Screw, 10-16 x 1

52 697771 Cover, Blower

(Includes Illus.

No. 62)

53 697693 Baffle, Drum

54 697563 Bulkhead, Front

58 697767 Grill, Outlet

59 3390719 Thermal Fuse

60 697770 Seal, Cover Plate

62 697769 Seal, Lint Duct

64 3390721 Lint, Screen
